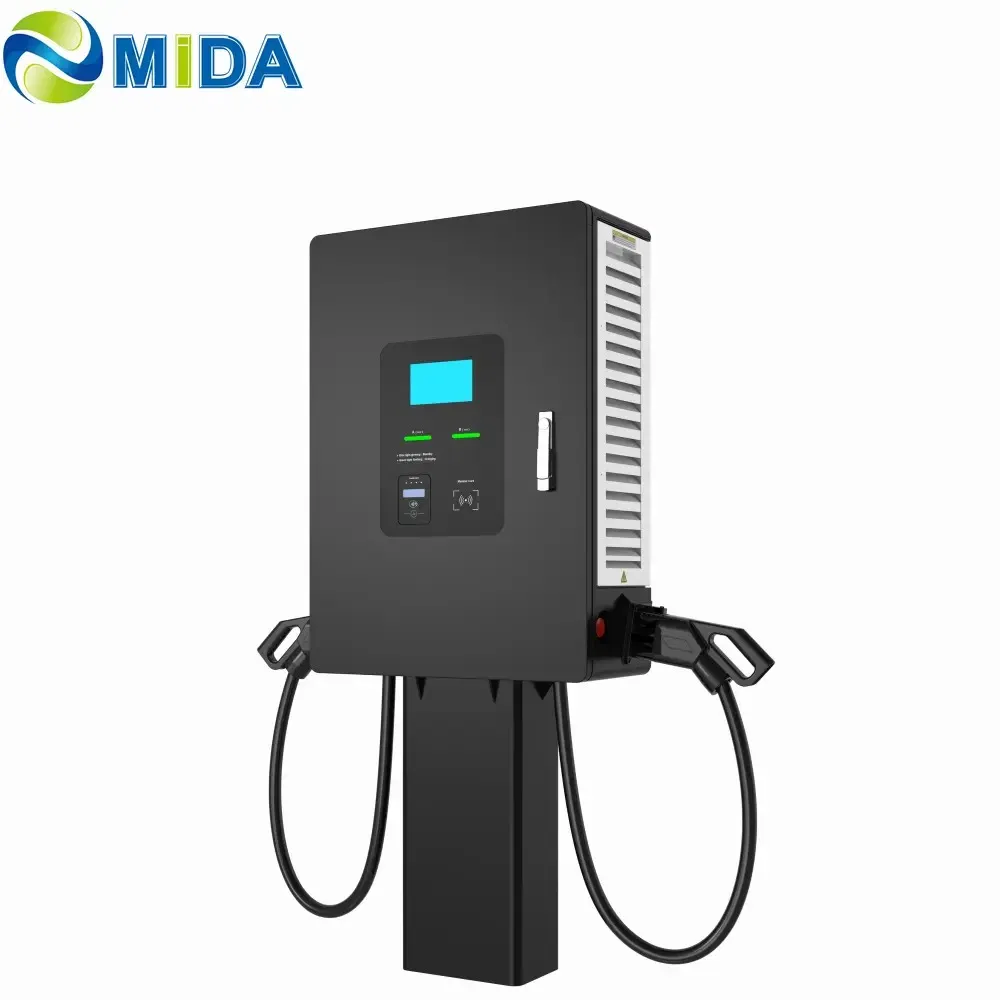

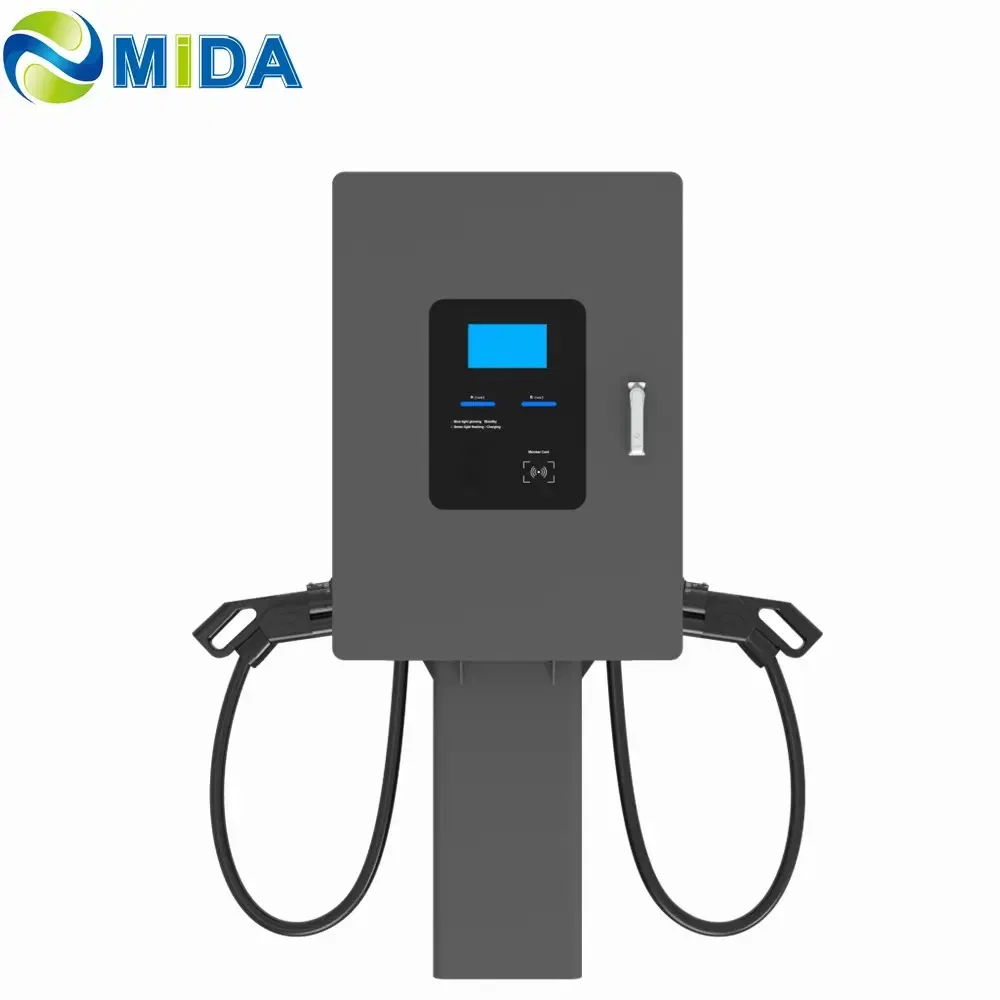

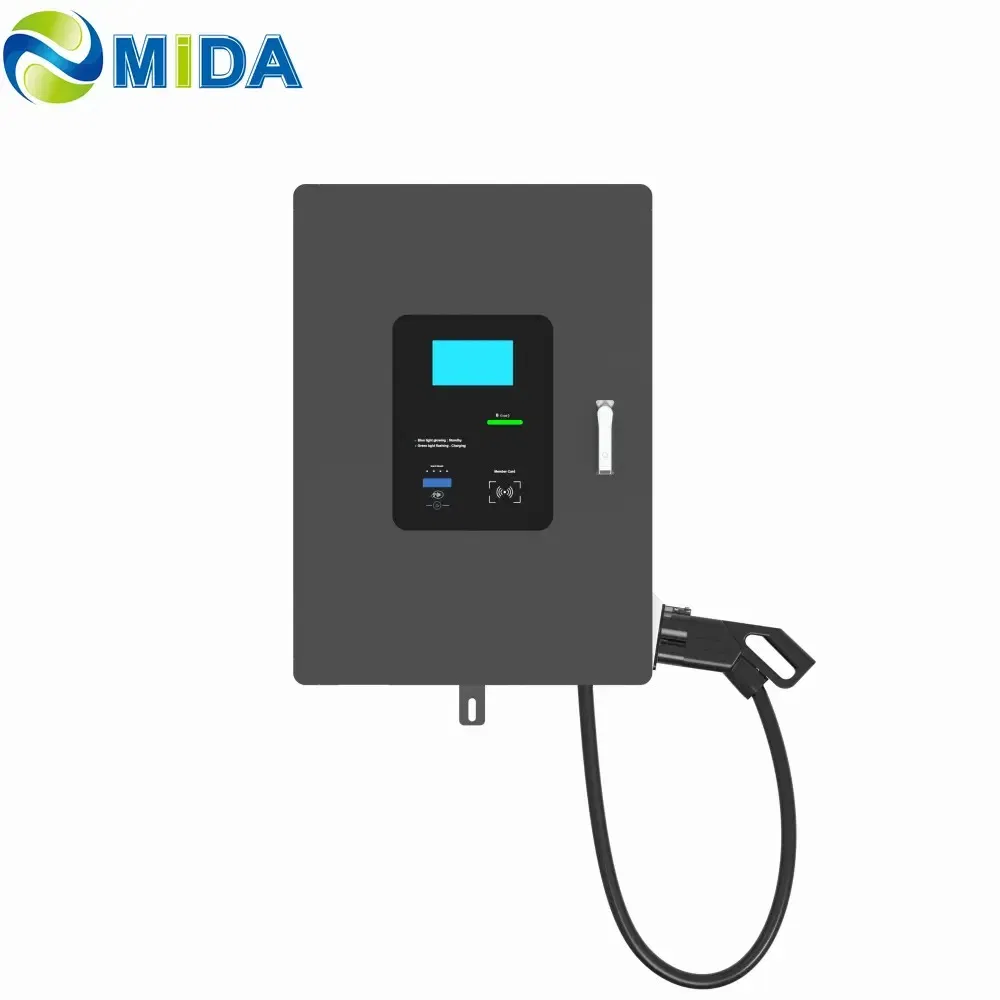

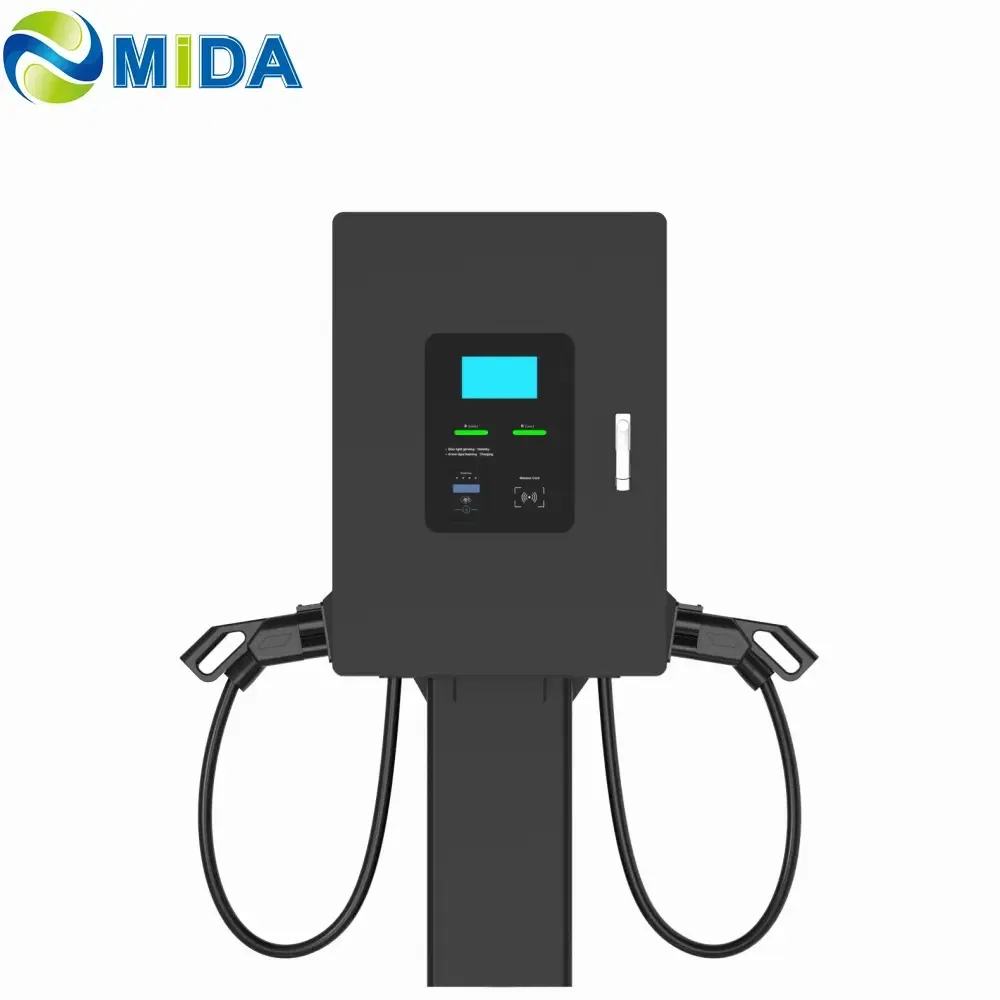

20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
1 / 5
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use
20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use

20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Wall Mounted
Send Inquiry

Product Description

Basic Info.

Model NO.
MD-ME-20KW/30KW/40KW
Location
Public Use
Charging Interfaces
One Pile with One Charge
Start Mode
RFID, Mobile App, Credit Card
Rate Power
20kw 30kw 40kw 60kw
Input Voltage
400V±15%
Input Voltage Type
Tn-S (Three Phase Five Wire)
Output Voltage
150-1000V
Origin
China

20kW/30kW/40kW Wall-Mounted Commercial EV DC Charging Station

EV DC Fast Charger

Guaranteed Security

  • ✔ IP54 protection rating
  • ✔ Waterproof, dust-proof, flame retardant
  • ✔ Over temperature & Short circuit protection
  • ✔ Emergency stop function
Wall-mount or Pedestal Small footprint to fit any location. Robust components designed for both indoor and outdoor environments.
Easy to Use LCD touch screen with multi-language interface. Supports RFID, mobile Apps, or POS payment.

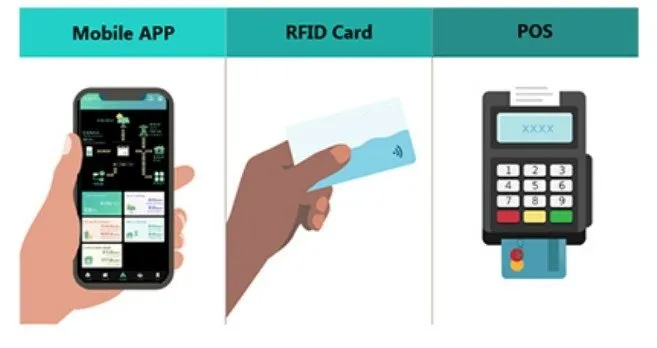

User Interface

Technical Specifications

Category Item 20KW 40KW
Input Input Voltage 3-phase 400V ± 15% AC
Working Frequency 45~65Hz
Power Factor ≥0.99
Output Rated Voltage CHAdeMO 500Vdc; CCS 750Vdc; GBT 750Vdc
Max Output Current 66A 132A
Interface Display 8'' LCD Touchscreen
Environment Protection IP54
Mechanical Dimensions 690mm*584mm*1686mm (±20mm)

After Sales Service

Warranty Period 2 years comprehensive warranty with technical support.
Maintenance Free instructions for installation and troubleshooting. Free parts are available within the warranty period.
Manufacturing
Certification

Frequently Asked Questions

What are the available power ratings for this charging station?
The station is available in 20kW, 30kW, and 40kW configurations to suit different commercial or residential needs.
Can this charger be installed outdoors?
Yes, it features an IP54 protection rating, making it waterproof and dust-proof for reliable outdoor operation.
Which payment methods does the station support?
It supports multiple secure authentication and payment methods including RFID cards, mobile apps, and POS terminals.
Does it support the OCPP protocol for network management?
Yes, the station supports OCPP 1.6J and is upgradeable to OCPP 2.0 for advanced network communication.
What is the standard warranty period?
We provide a 2-year warranty period, which includes free technical instructions and replacement parts if needed.
What types of EV connectors are compatible?
The station is compatible with major standards including CHAdeMO (500Vdc), CCS, and GBT (750Vdc).
