📌 Basic Information
Production Capacity
1,000,000,000
📦 Packaging & Delivery
Package Size
37.50cm * 26.50cm * 17.00cm
Lead Time
10 days (1 - 1000 Pieces); Negotiable (> 1000 Pieces)

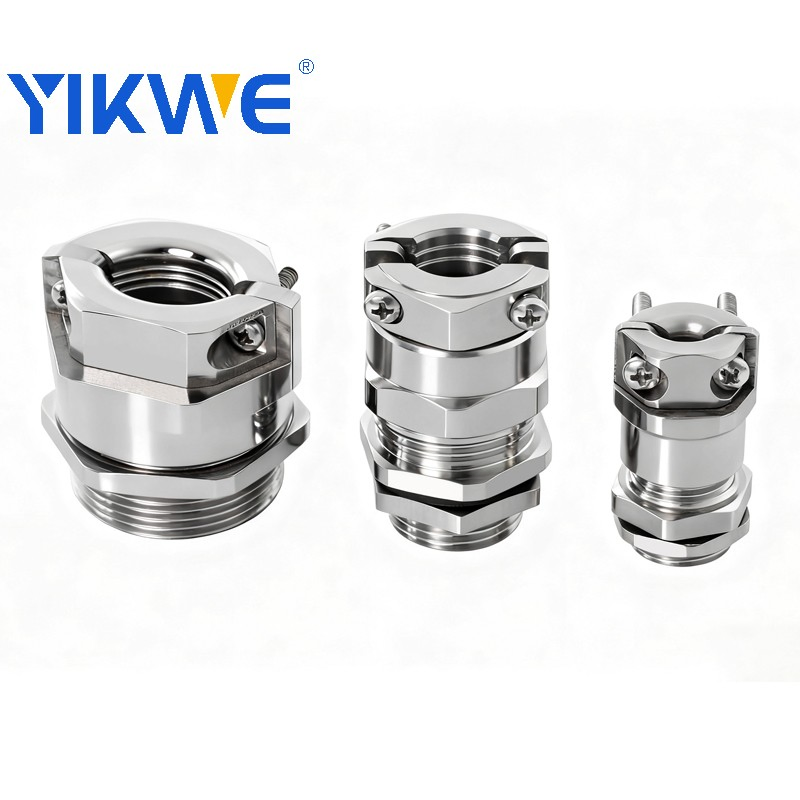

📝 Product Description

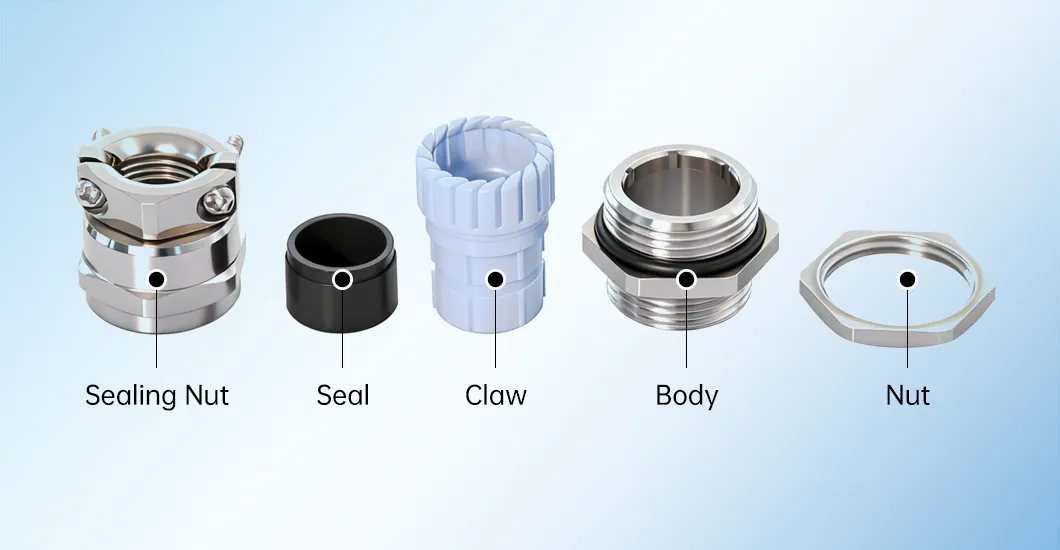

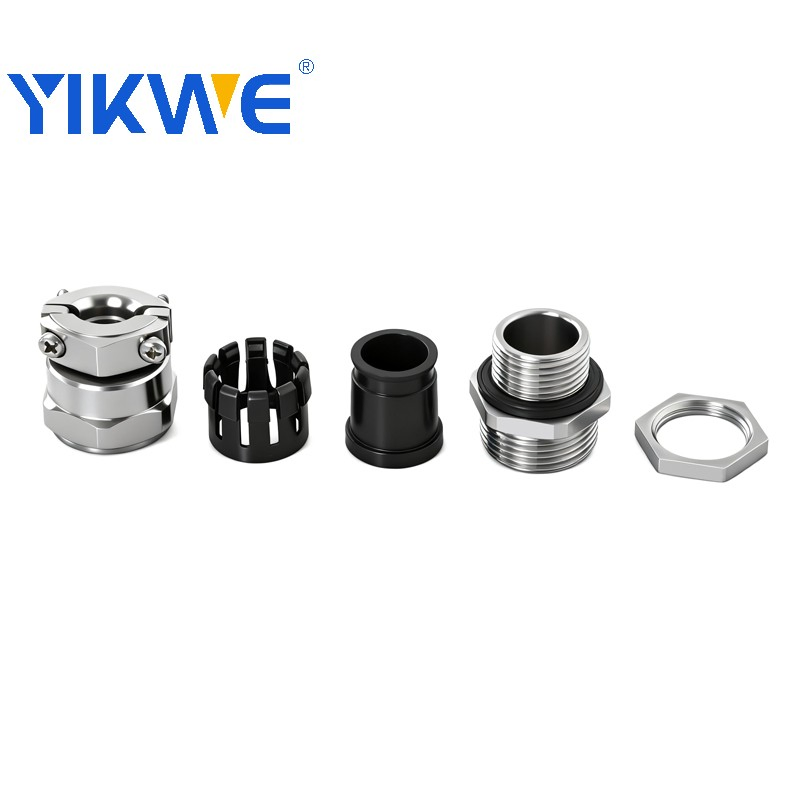

Material Specifications:
• Body: SS304/316L / Brass
• Claw: PA6 (Nylon)
• Hermetic & O-ring: NBR
Clamping Core Sleeve Options:
• A-type half-pass, B-type straight-through, C-type Silicone
Technical Data:
• Thread Size: M, PG, G, NPT thread
• Working temperature: -40℃ to +100℃, short-term +120℃ (Type C: -50℃~+250℃)
• Protection Level: IP68

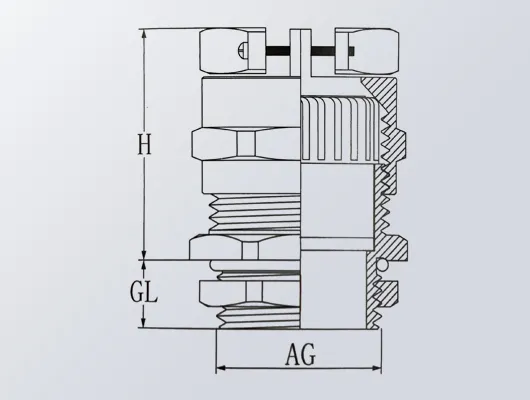

📊 Technical Specifications
| Model (Metric) |
Specification |
Clamping Range(mm) |
AG (mm) |
GL (mm) |
H(mm) |
Wrench Size |
| YKWS/B-DL-M12 | M12x1.5 | 3~6.5 | 12 | 8 | 26 | 14 |
| YKWS/B-DL-M16 | M16x1.5 | 4~8 | 16 | 8 | 30 | 17/18 |
| YKWS/B-DL-M20 | M20x1.5 | 6~12 | 20 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-M25 | M25x1.5 | 13~18 | 25 | 12 | 34.5 | 30 |
| YKWS/B-DL-M32 | M32x1.5 | 15~22 | 32 | 12 | 36 | 35 |
| YKWS/B-DL-M40 | M40x1.5 | 22~30 | 40 | 15 | 43 | 45 |
| Model (PG) |
Specification |
Clamping Range(mm) |
AG (mm) |
GL (mm) |
H(mm) |
Wrench Size |
| YKWS/B-DL-PG7 | PG7 | 3~6.5 | 12.5 | 8 | 26 | 14 |
| YKWS/B-DL-PG9 | PG9 | 4~8 | 15.2 | 8 | 30 | 17/18 |
| YKWS/B-DL-PG13.5 | PG13.5 | 6~12 | 20.4 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-PG21 | PG21 | 13~18 | 28.3 | 12 | 34.5 | 30 |
| YKWS/B-DL-PG29 | PG29 | 18~25 | 37 | 12.5 | 43 | 40 |
| Model (NPT) |
Specification |
Clamping Range(mm) |
AG (mm) |
GL (mm) |
H(mm) |
Wrench Size |
| YKWS/B-DL-NPT1/4 | NPT1/4 | 3~6.5 | 13.16 | 8 | 26 | 14 |
| YKWS/B-DL-NPT1/2 | NPT1/2 | 6~12 | 20.96 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-NPT3/4 | NPT3/4 | 13~18 | 26.45 | 12 | 34.5 | 30 |
| YKWS/B-DL-NPT1 | NPT1 | 18~25 | 33.25 | 12.5 | 43 | 40 |
❓ Frequently Asked Questions
What is the IP rating of the YKWB-DL cable gland?
The product is rated IP68, providing superior protection against dust ingress and long-term immersion in water.
What materials are used for the seals?
The hermetic seal and O-ring are made of NBR (Nitrile Rubber), which offers excellent resistance to oil and heat.
Can this connector handle high temperatures?
Yes, the standard working temperature is -40℃ to +120℃. For extreme conditions, the Type C silicone version can handle up to +250℃.
Which thread types are available for this model?
We offer a full range of thread specifications including Metric (M), PG, G (Gas thread), and NPT.
What is the typical lead time for an order of 500 pieces?
For orders between 1 and 1000 pieces, the standard lead time is approximately 10 days.
Is the material corrosion-resistant?
Yes, the brass and stainless steel (SS304/316L) options provide high durability and excellent resistance to corrosion in industrial environments.
