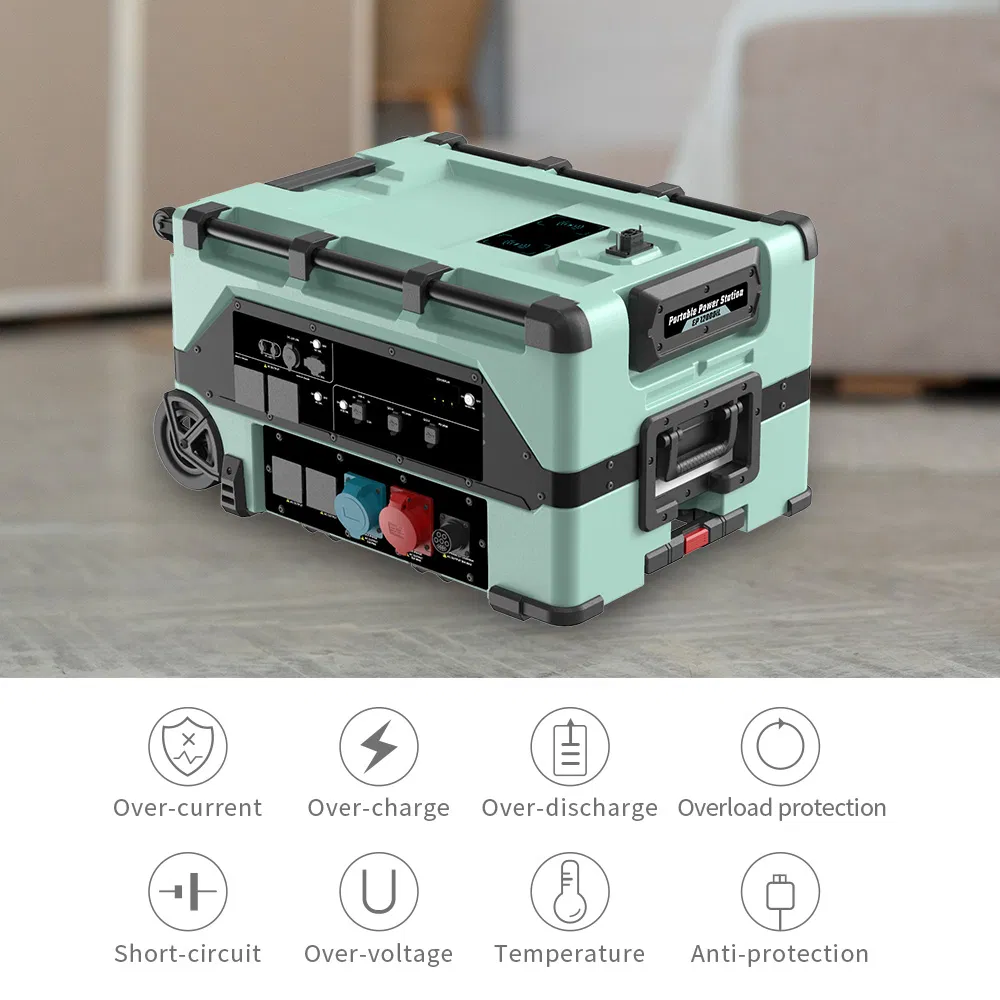

Ultra-Responsive 12000W Solar Generator Eco-Friendly Mobilebattery Solar Power System

i

Basic Information

Model NO.

EP12000iL

Cycle Life

3000

Nominal Capacity

7680wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Fast Charging

70mins Fully Charged

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

Portability

Drawbar & Wheels

Package Size

97.00cm * 76.00cm * 57.00cm

Gross Weight

110.000kg

★

Product Advantages

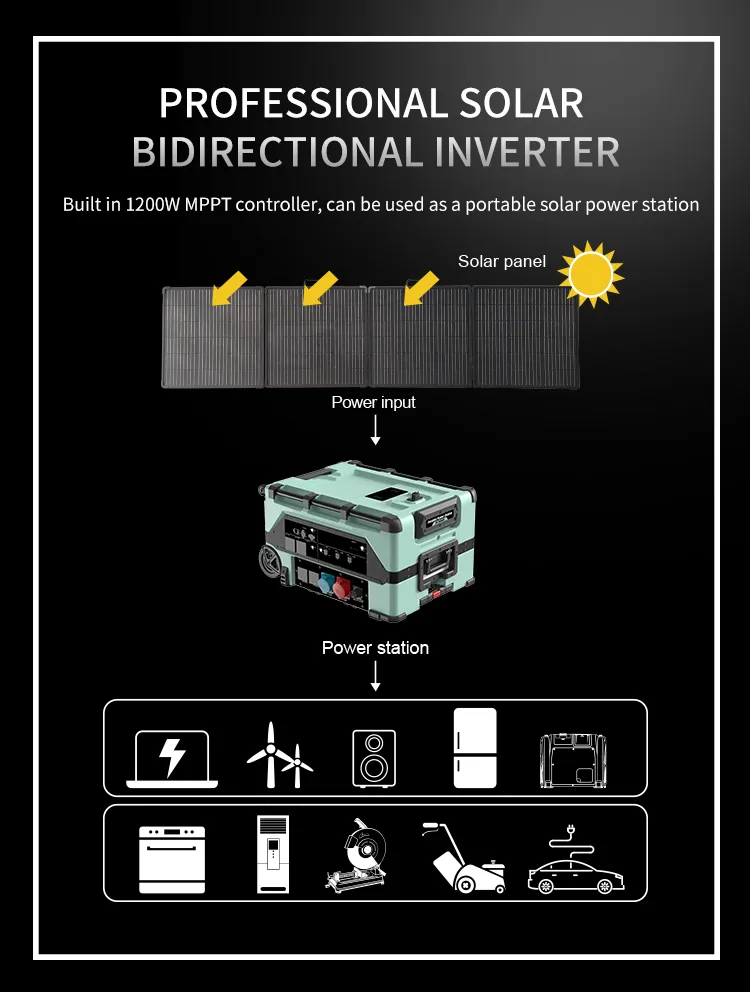

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

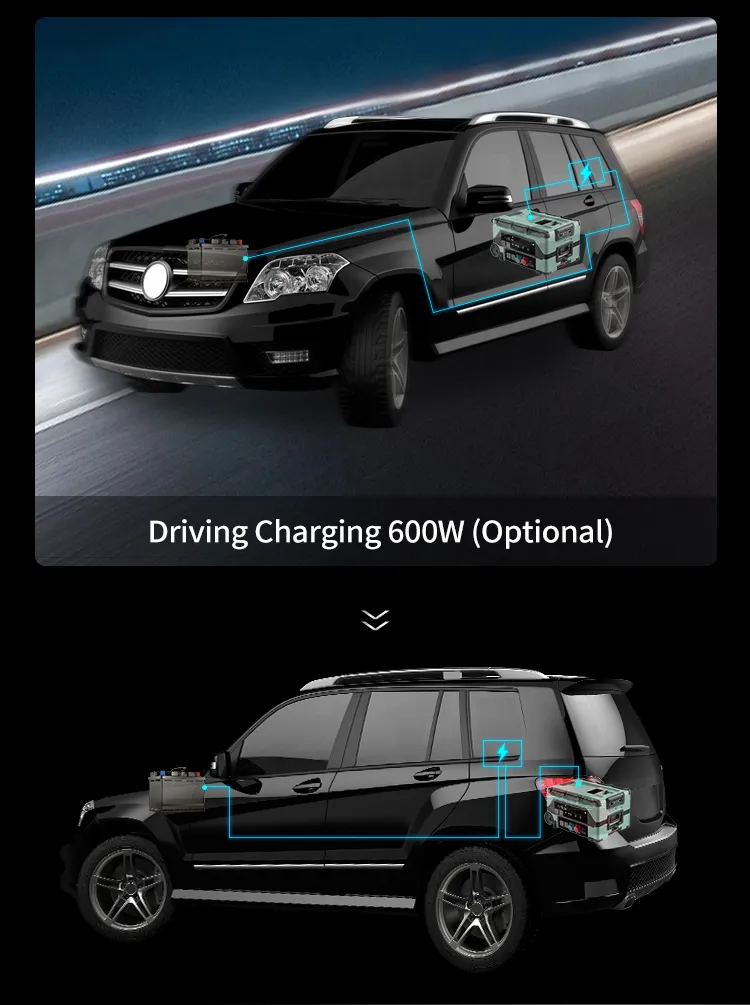

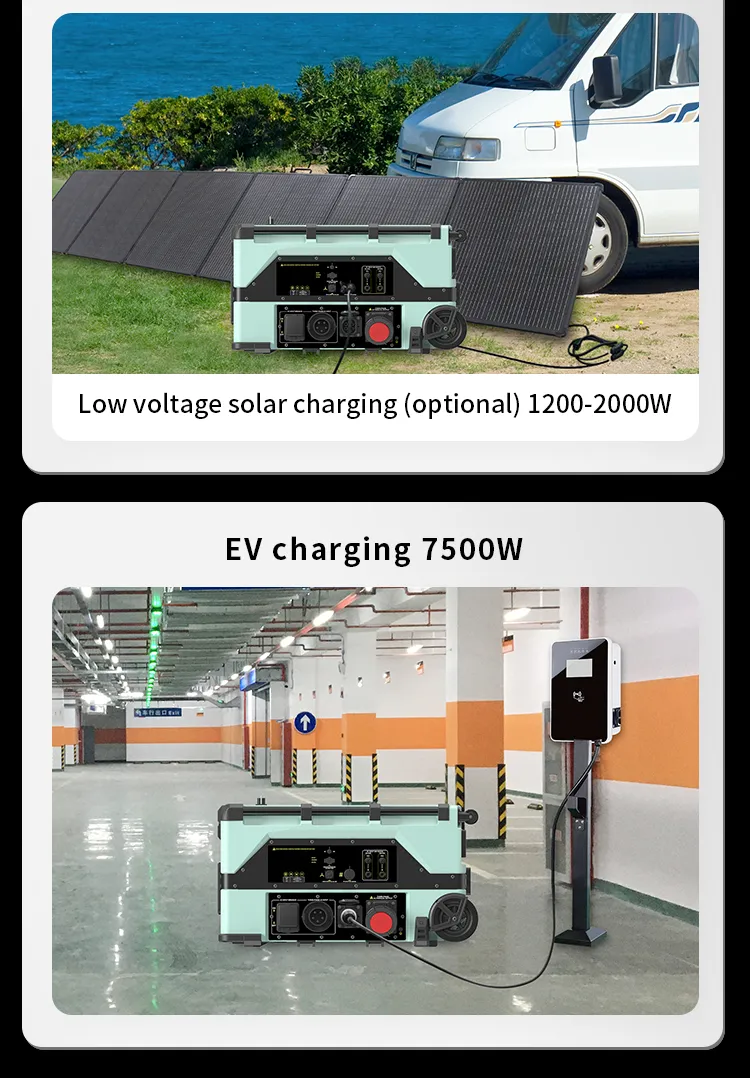

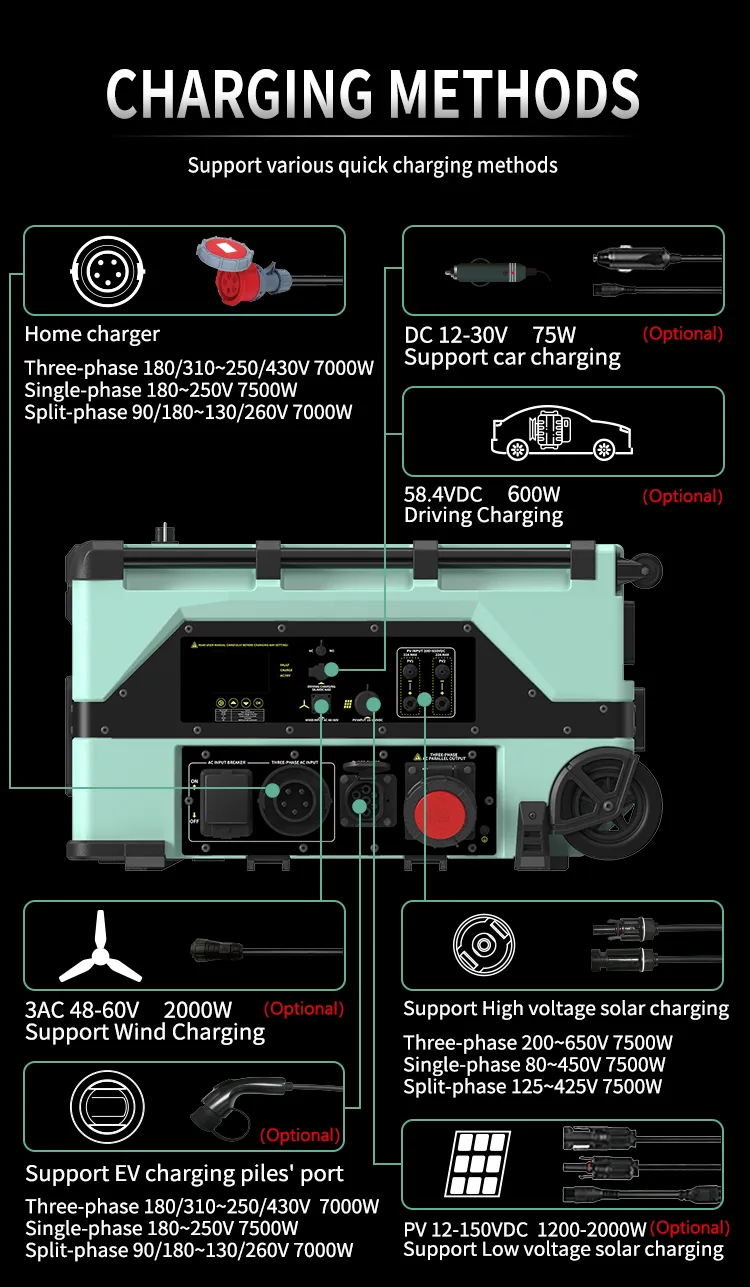

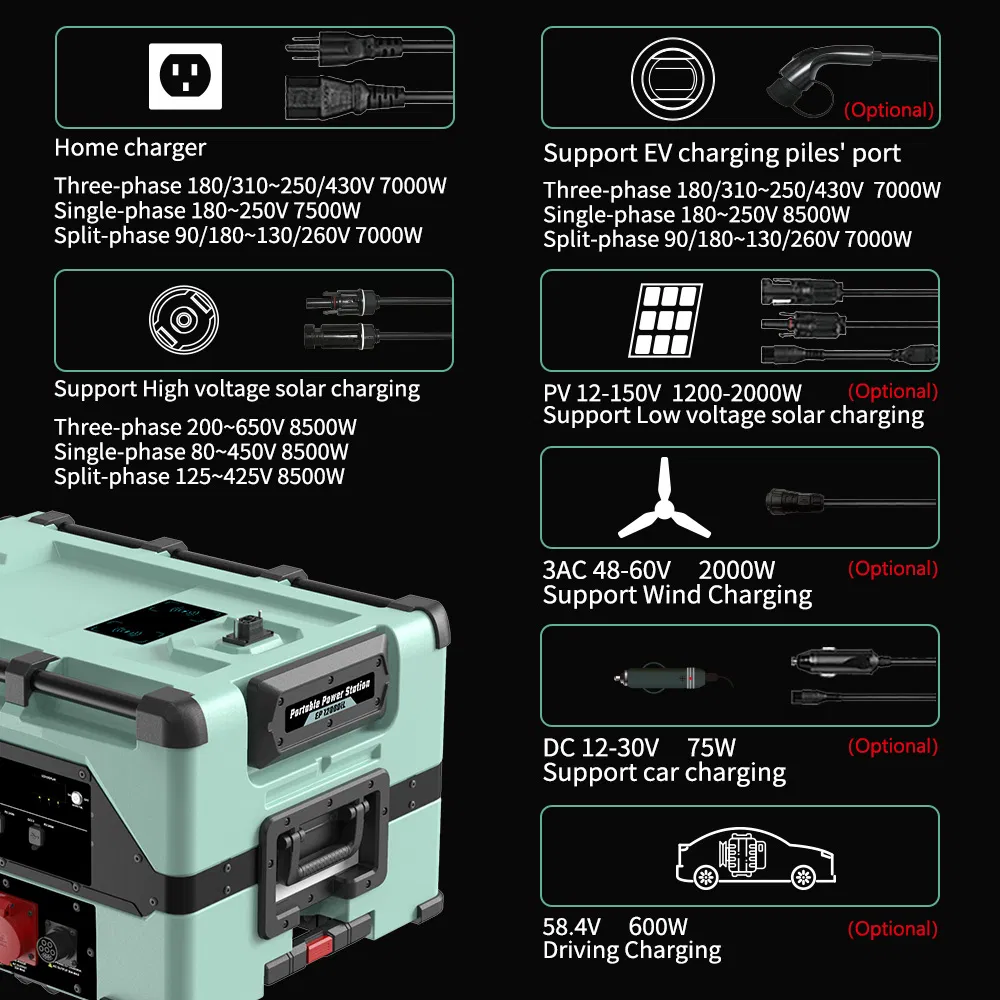

Support various fast charging methods: utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

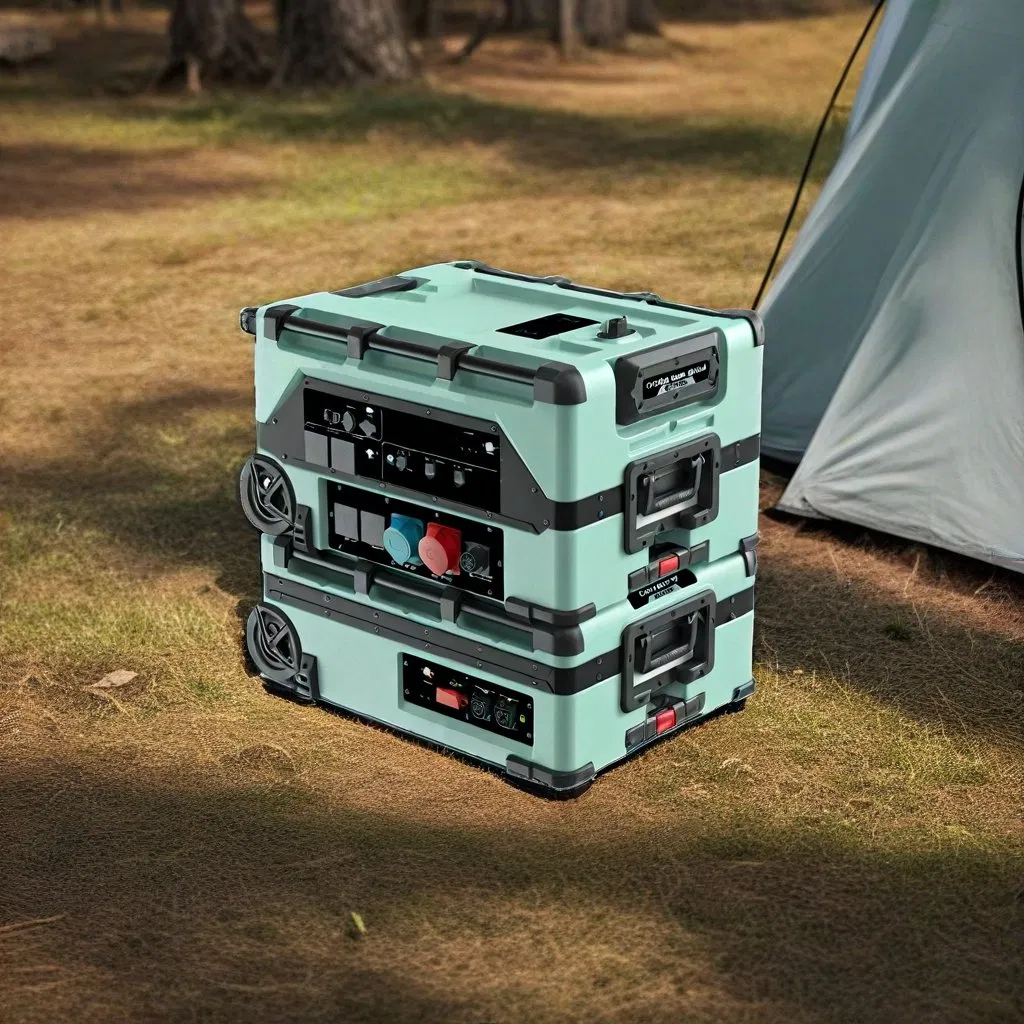

Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

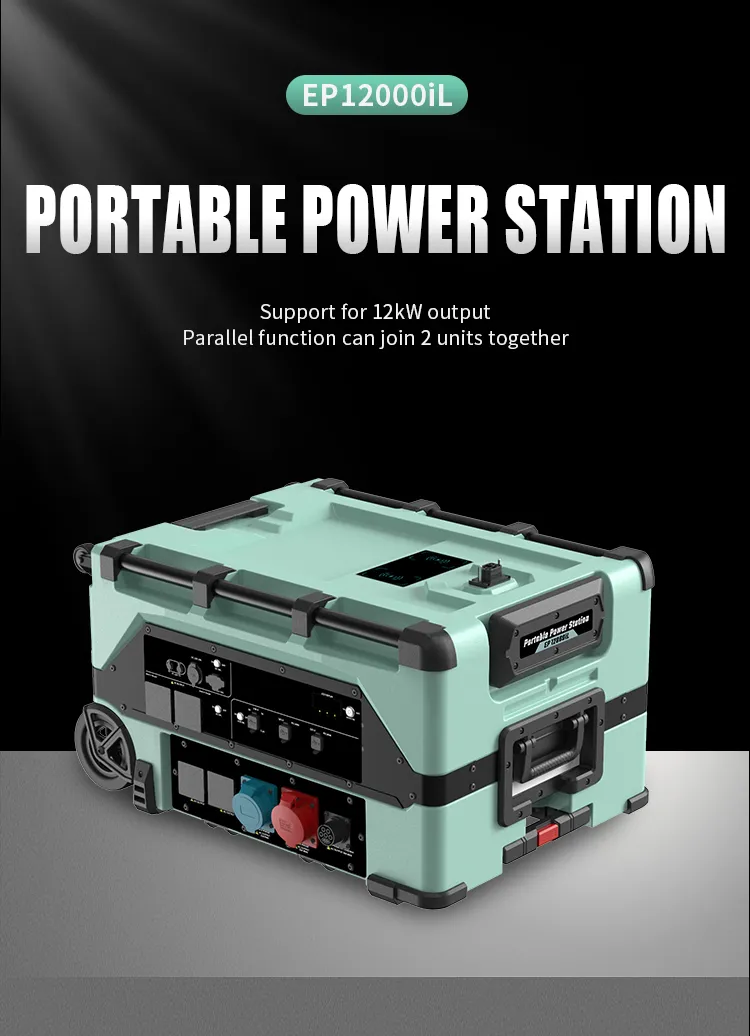

Stacked parallel patented technology: join 2 units together for 24kW continuous output.
Built-in electric vehicle charger, can charge cars up to 22kW.
Versatile four-wheel chassis and large-diameter wheel for effortless mobility.
High protection grade: Unit IP53 and Battery Pack IP66.
Patented dual channel cooling system and V-0 level flame-retardant casing.
Intelligent control and monitoring via smartphone APP.
Conformed to EU and US security certification with 5 years warranty.

⚙

Product Parameters

AC OUTPUT SPECIFICATIONS		Value
Rated Power	Three-phase / Single-phase / Split-phase	12000VA / 11000VA / 10000VA
Peak Power	Three-phase / Single-phase / Split-phase	24000VA / 22000VA / 20000VA
Output Waveform	Pure-Sine Wave	THD < 3%
Rated Frequency	Universal	50/60Hz

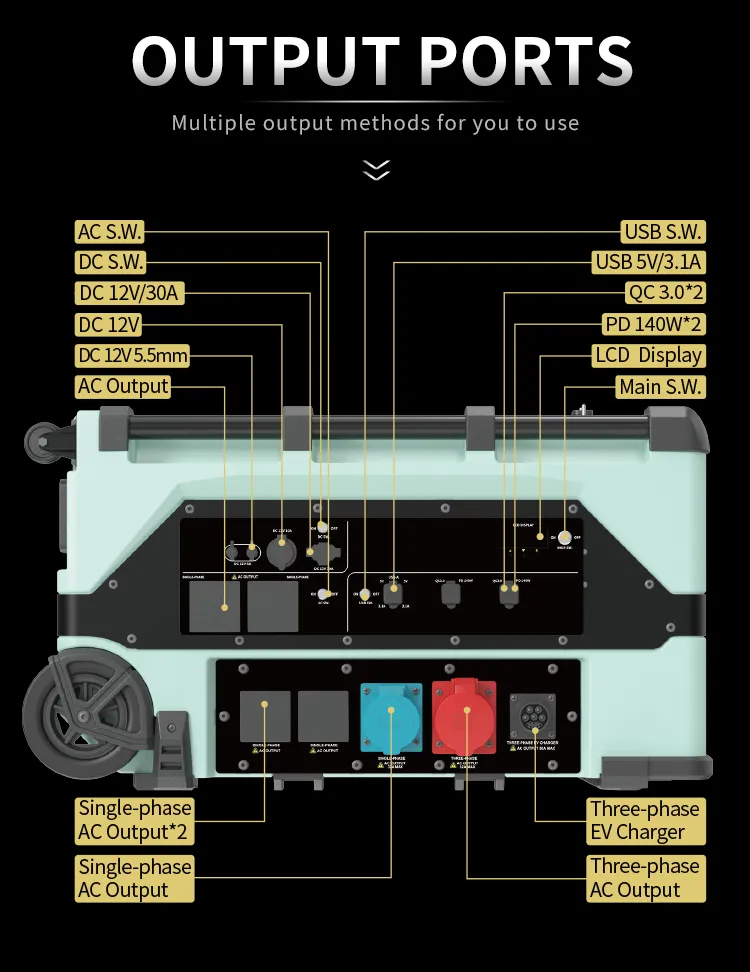

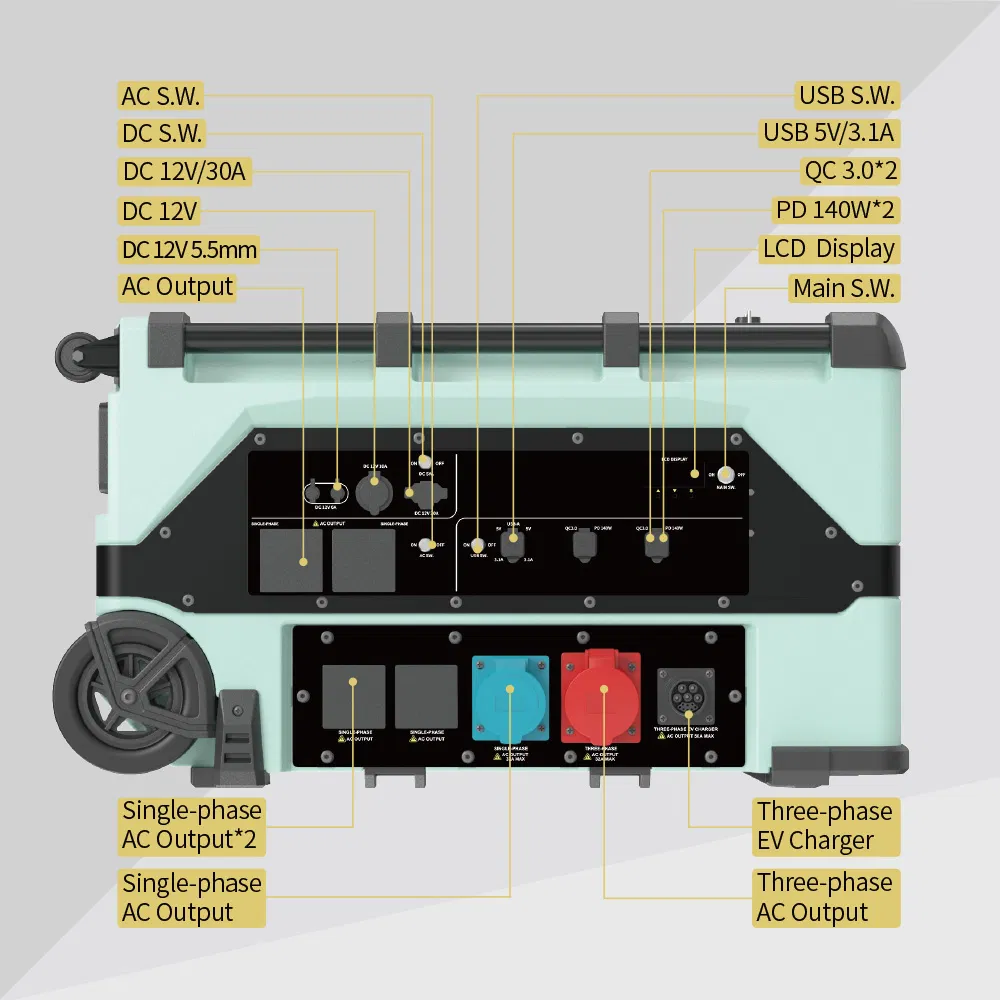

DC & USB OUTPUT	Port Type	Specification
DC Output	XT90 / Cigarette Lighter	12V/30A / 12V/10A
USB Output	QC3.0 (×2)	Up to 12V/1.5A
Type-C Output	PD 140W (×2)	Up to 28V/5A
Wireless Output	Dual Pad	2 × 15W

📷

Detailed Photos

⌂

Profile

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide innovative products and services on inverter generators, Internet of Things, power equipment, and electrical products. We insist on independent research and development, possessing more than 70 critical patents in power equipment and intelligent controller fields.

Our products have earned an excellent reputation in Europe and North America markets for their superior quality and competitive pricing. We are committed to bringing innovative products to global customers and promoting high-quality manufacturing standards.

?

Frequently Asked Questions

What is the battery capacity and type of the EP12000iL?

The unit features a high-power 7680Wh LiFePO4 (Lithium Iron Phosphate) battery, known for its safety and long cycle life of over 3000 cycles to 80% capacity.

How fast can the system be fully charged?

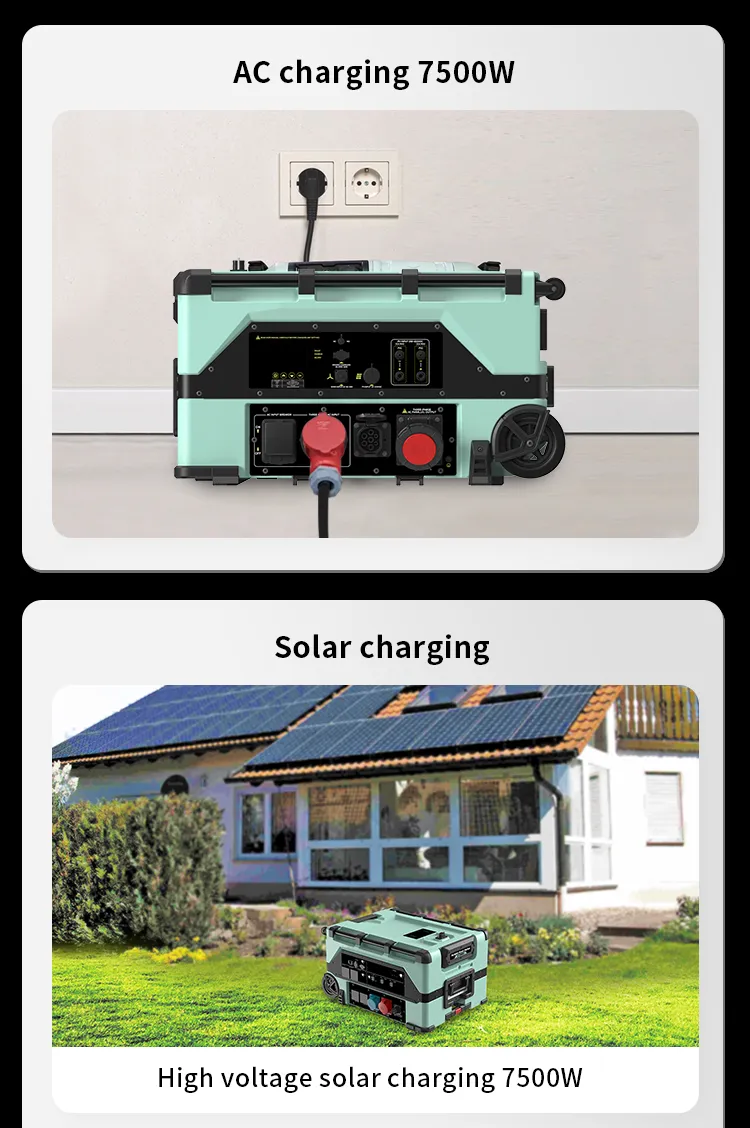

With super-fast charging technology, the system can be fully charged in approximately 70 minutes using AC utility power or high-voltage solar input.

Can the capacity be expanded for larger power needs?

Yes, the system is highly expandable. You can connect up to 31 extra battery packs (EP12000B) to reach a massive total capacity of 245kWh.

What types of AC output does it support?

It supports versatile AC outputs including Three-phase (12kW), Single-phase (11kW), and Split-phase (10kW), making it suitable for various industrial and residential applications.

Is the unit weather-resistant for outdoor use?

The main unit has an IP53 protection grade, and the battery packs are rated at IP66, providing excellent durability against dust and water in outdoor environments.

Does it support smart monitoring?

Yes, the system features an intelligent control system that can be monitored and managed via a dedicated smartphone APP and a built-in LCD panel.
