Charging Adapter Type 1 Plug to Tesla 40A Inlet Connector

1 / 1

Charging Adapter Type 1 Plug to Tesla 40A Inlet Connector

Customization:	Available
After-sales Service:	1 Year
Usb Number:	None

Send Inquiry

Product Description

Looking for a Reliable EV Charger Manufacturer to Support Your Project?

Basic Specifications

Model NO.

adapter

Certification

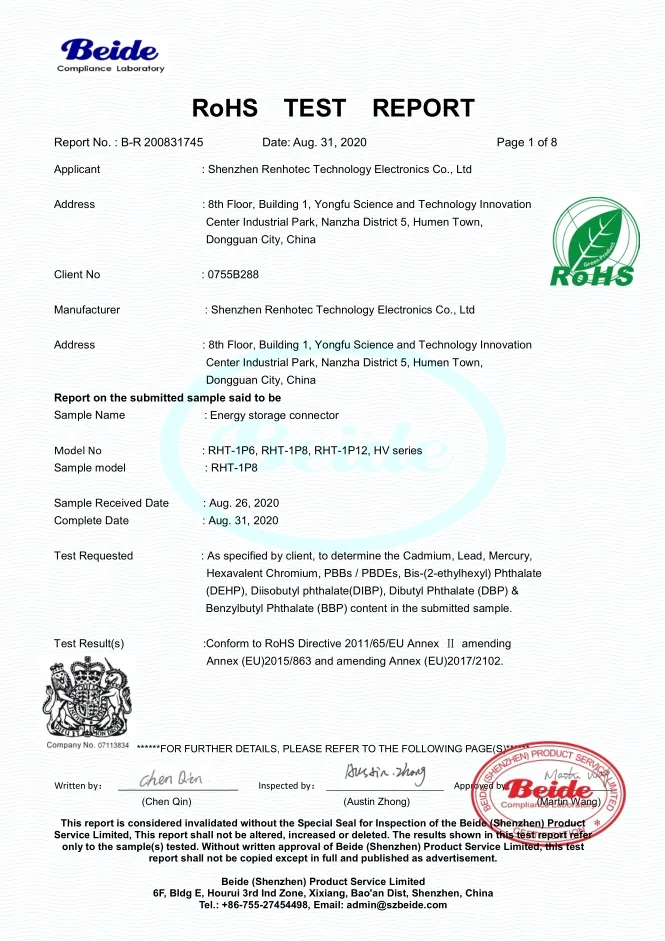

FCC, CE, RoHS, ISO

Usage

EV Charging

Interface

IEC62196

Color

White

Input Voltage

250V

Rated Current

16A-32A

Pins

7pin

IP Degree

IP67 / IP6K9K (Mated)

Application

Residential / General-Purpose

Capacity

500,000 / Month

HS Code

8536909000

★

Product Features

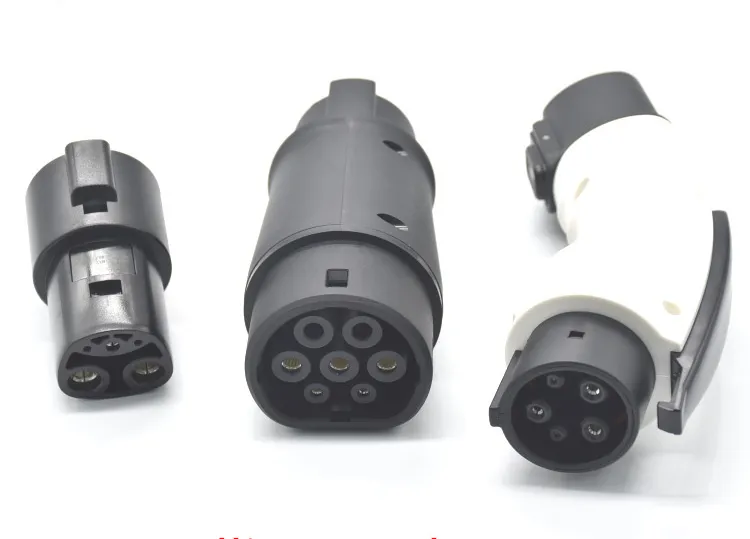

Full Series EV Charger Solutions

Complies with GB/T20234-2011 standards for safety and compatibility.
Comprehensive range: DC charging connectors (125A-250A) and AC charging connectors (16A-32A).

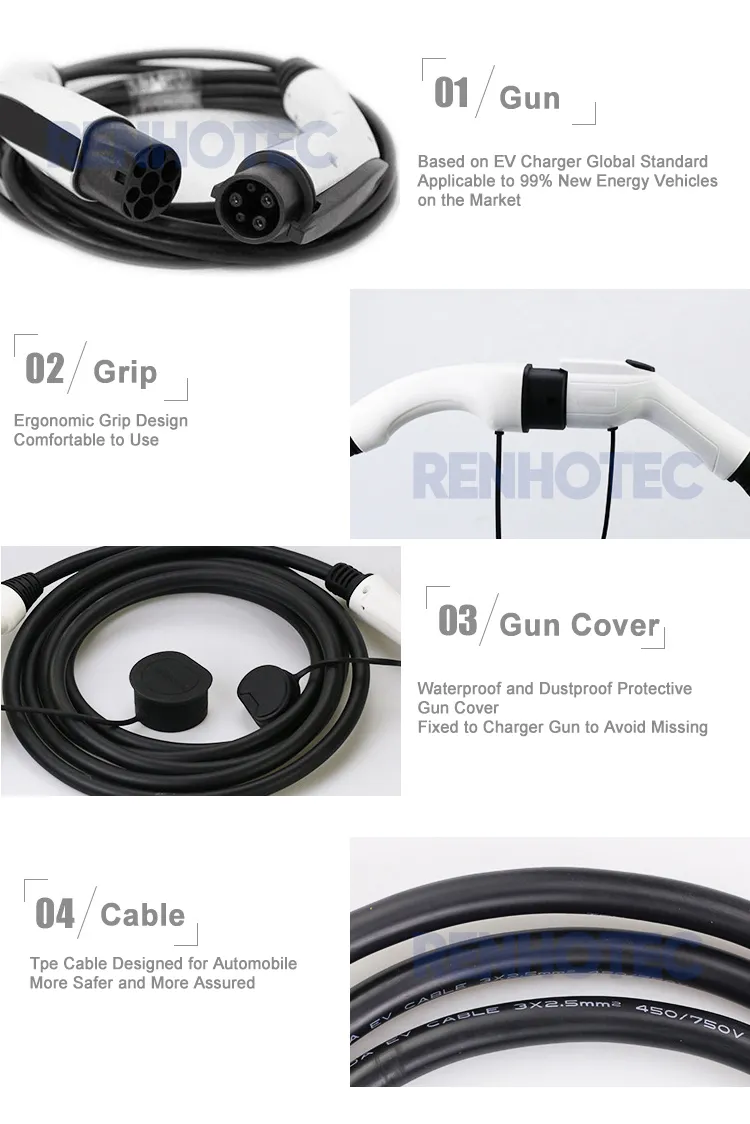

Humanized ergonomic design with superior grip and ease of use.
High protection level: IP55/IP67 rating for reliable outdoor performance.
Durable termination: Wire crimping for both plug and socket connections.
Versatile accessories: Includes damping caps, metal string caps, and more.

⚙

Technical Parameters

EV Charger Specifications
Model Series	GB/T Series / SAE J1772 / Type 1 / Type 2 / Cable Assembly
Connector Type	Plug / Receptacle / Dummy Socket
Current Type	AC / DC
Rated Current	16A / 32A / 70A / 80A / 125A / 200A / 250A
Application	Vehicle End / Power Supply Side

🛡

Material & Performance

Material Composition:

• Shell & Insulator: High-grade Thermoplastics (UL94-V0)

• Sealing Ring: Specialized Rubber Material

• Contacts: Copper Alloy with Gold-plating (Power & Signal)

Environmental Specs:

• Operating Temp: -30ºC to +50ºC

• Relative Humidity: 98% at 40ºC

• Durability: >10,000 Mating Cycles (Non-charged)

🔌

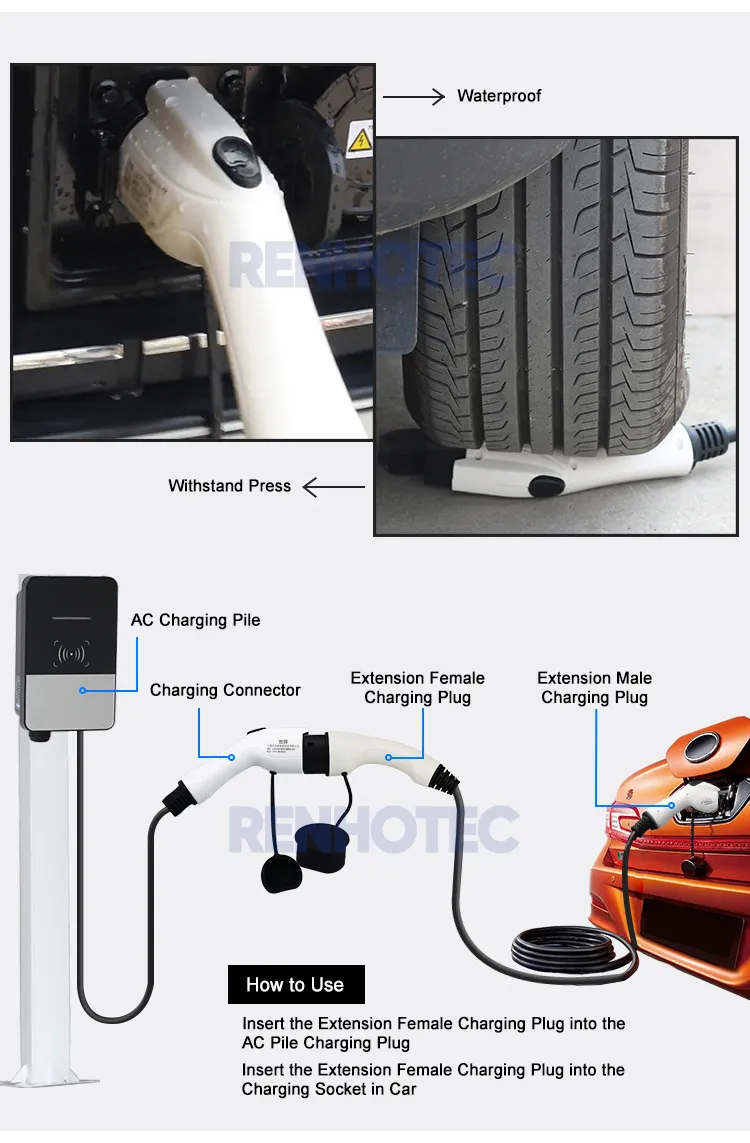

Application & Internal Structure

Used for high voltage cable connections inside electric vehicles.

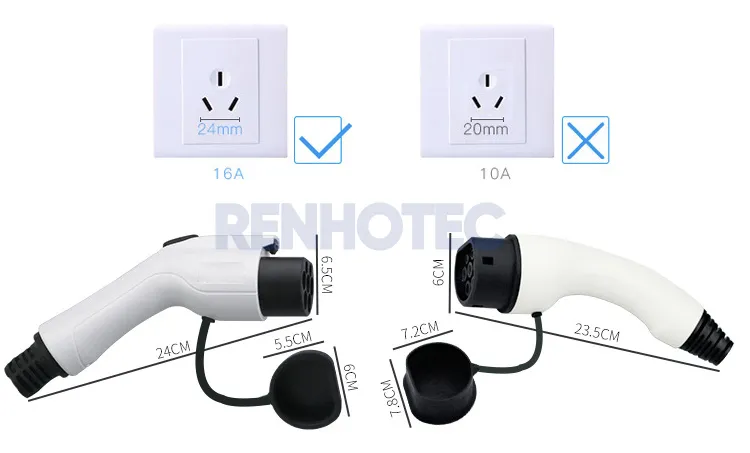

PS: Sizes are manually measured; please refer to the actual product for precision.

📦

Logistics & Quality

Packing Details:

1. Standard: Individual parts in transparent PE bags with labels.
2. OEM customized packaging available upon request.

Shipping Methods:

• Samples/Small Orders: FedEx, DHL, UPS, TNT, SF (Door to Door).
• Batch Orders: Air, Sea, or Rail transport.
• Lead Time: 1-7 working days for samples; 7-15 working days for mass production.
