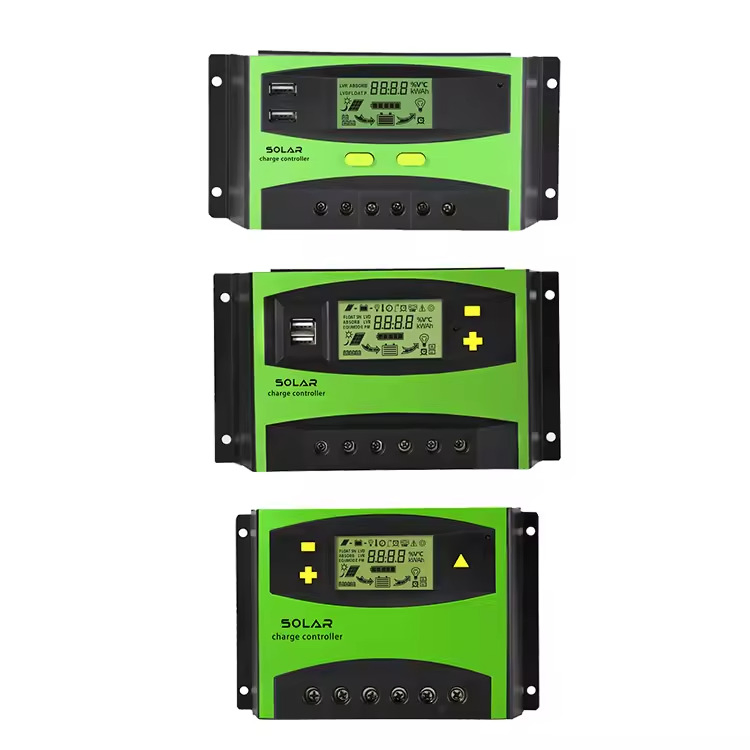

Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
1 / 5
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller

Solar Controller 20A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HT30DU
Condition
New
Certification
ISO, CB, CE
Rated Voltage
12/24/48V
Color
Green
Origin
China
HS Code
9032899090
Production Capacity
50000PCS/Year
PWM Solar Charge Controller HT60D

HT60D 40-60A, 12/24/48VDC Series

Key Features
✓ PWM Solar Charge Controller 12/24V or 48VDC (40/50/60A)
✓ 40A model equipped with 2 USB chargers
✓ LCD display for energy, fault codes, battery, PV, and load details
✓ Bigger terminals for enhanced safety and easy installation
✓ Selectable battery types with 4-stage adjustable charge parameters
✓ Temperature Compensation and Clock Function included
✓ Multiple load modes: Normal, Light Control, and Double Time Control
✓ Full protection: over charge, discharge, overload, short circuit, and reverse polarity
Technical Specifications

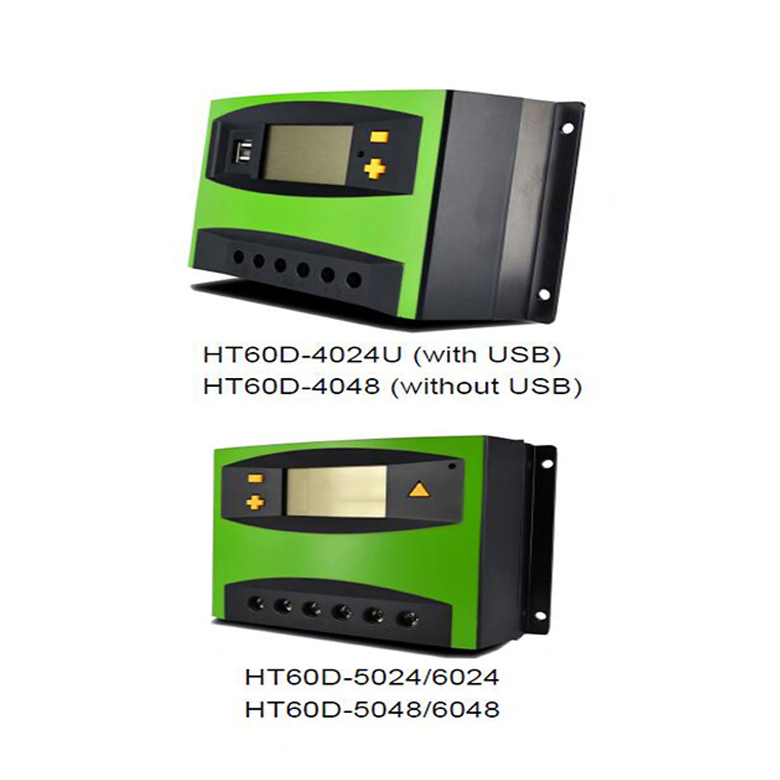

ITEM MODEL HT60D-4024U HT60D-5024 HT60D-6024 HT60D-4048 HT60D-5048 HT60D-6048
Rated Charge Current 40A50A60A40A50A60A
System Voltage 12/24V AUTO 48VDC
Protection Over Load ≥120% 60s; ≥150% 10s; ≥180% 0.2s
Over Voltage 16V(12V) / 32V(24V) / 64V(48V)
Short Circuit Yes
USB Charge YESNONONONONO
Protection Class IP30
Product Size (mm) 196*111*54188*125*48.5187*125*56196*111*54188*125*48.5187*125*56
Product Display

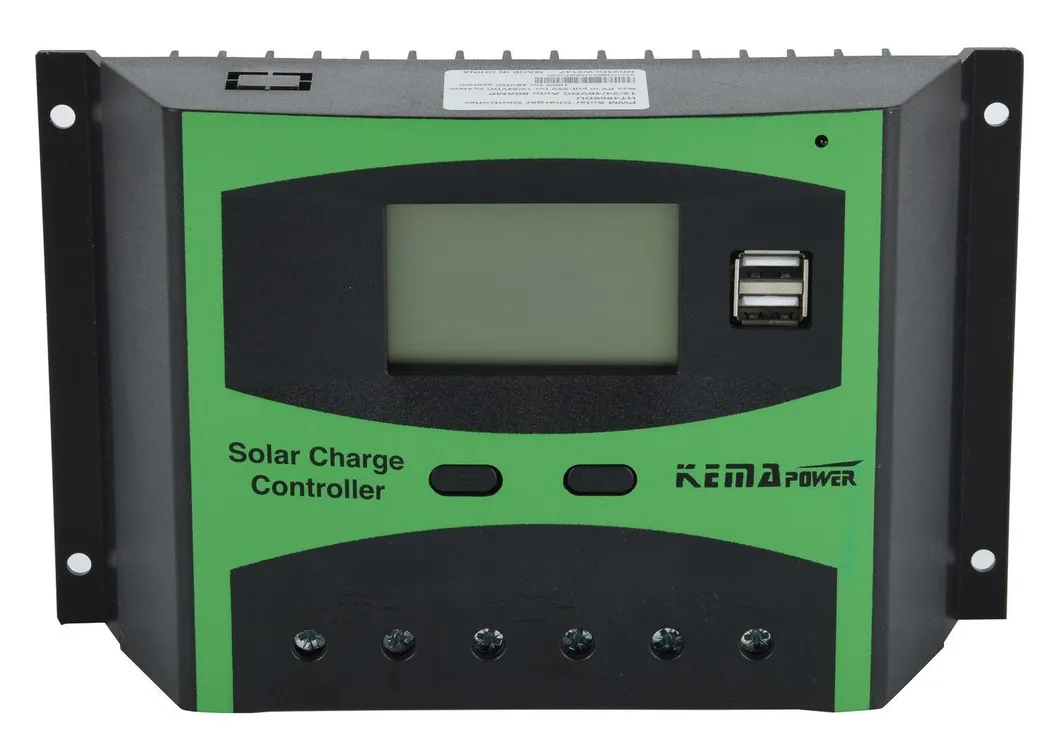

Solar Controller Display 1

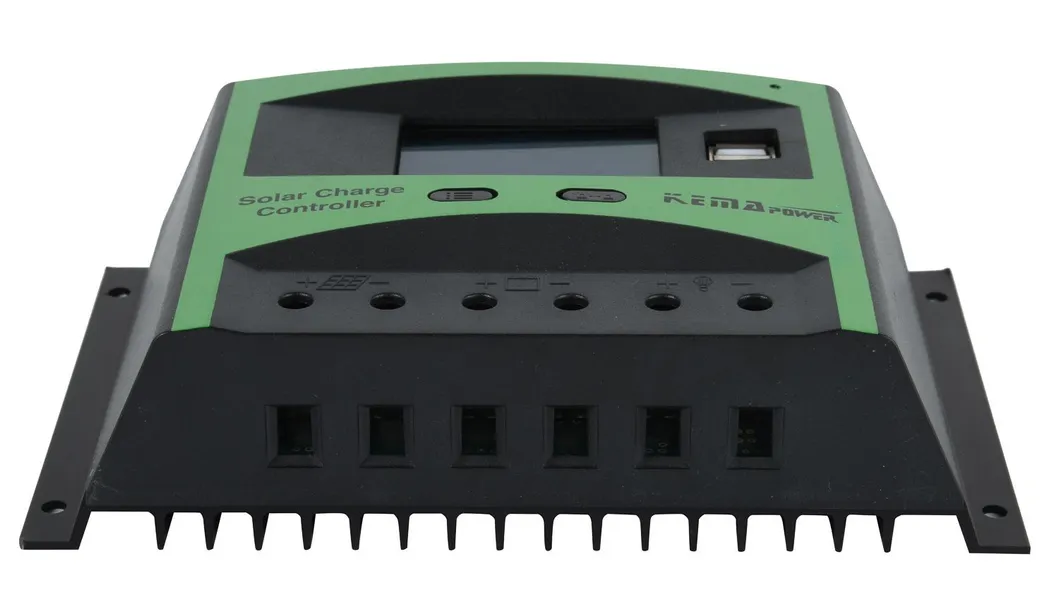

Solar Controller Display 2

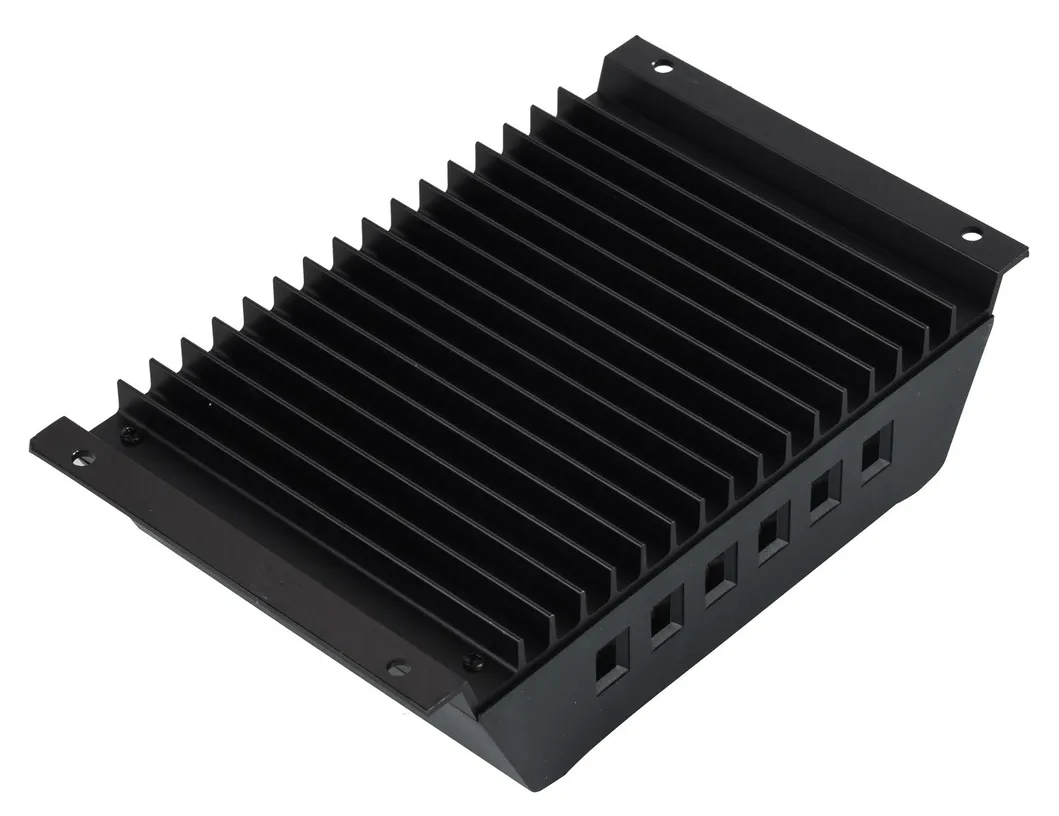

Solar Controller Display 3
Solar Controller Detail 1

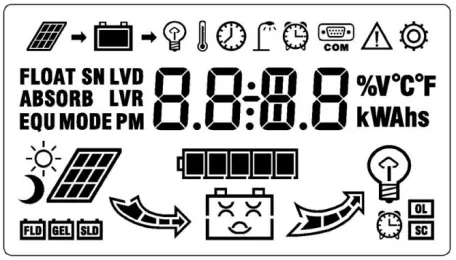

Solar Controller Detail 2

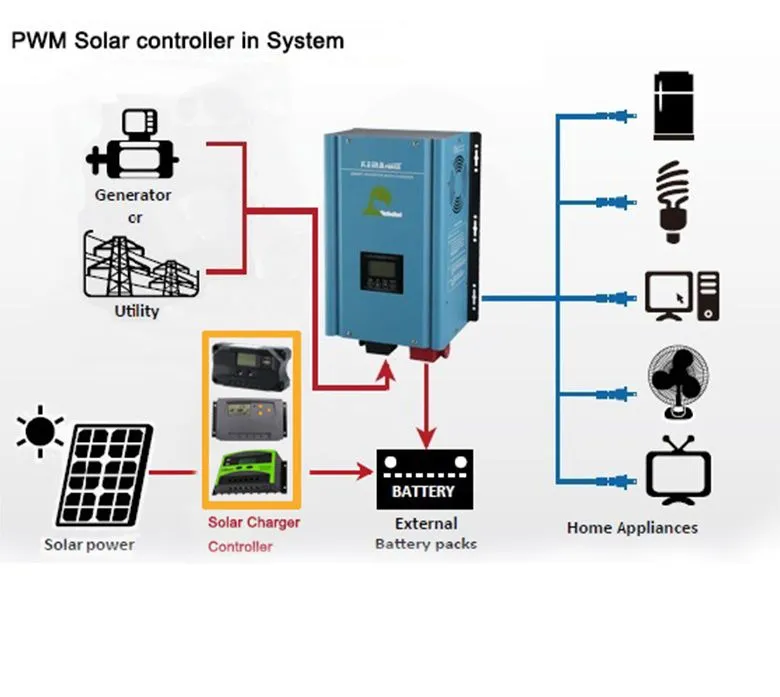

Solar Controller Detail 3

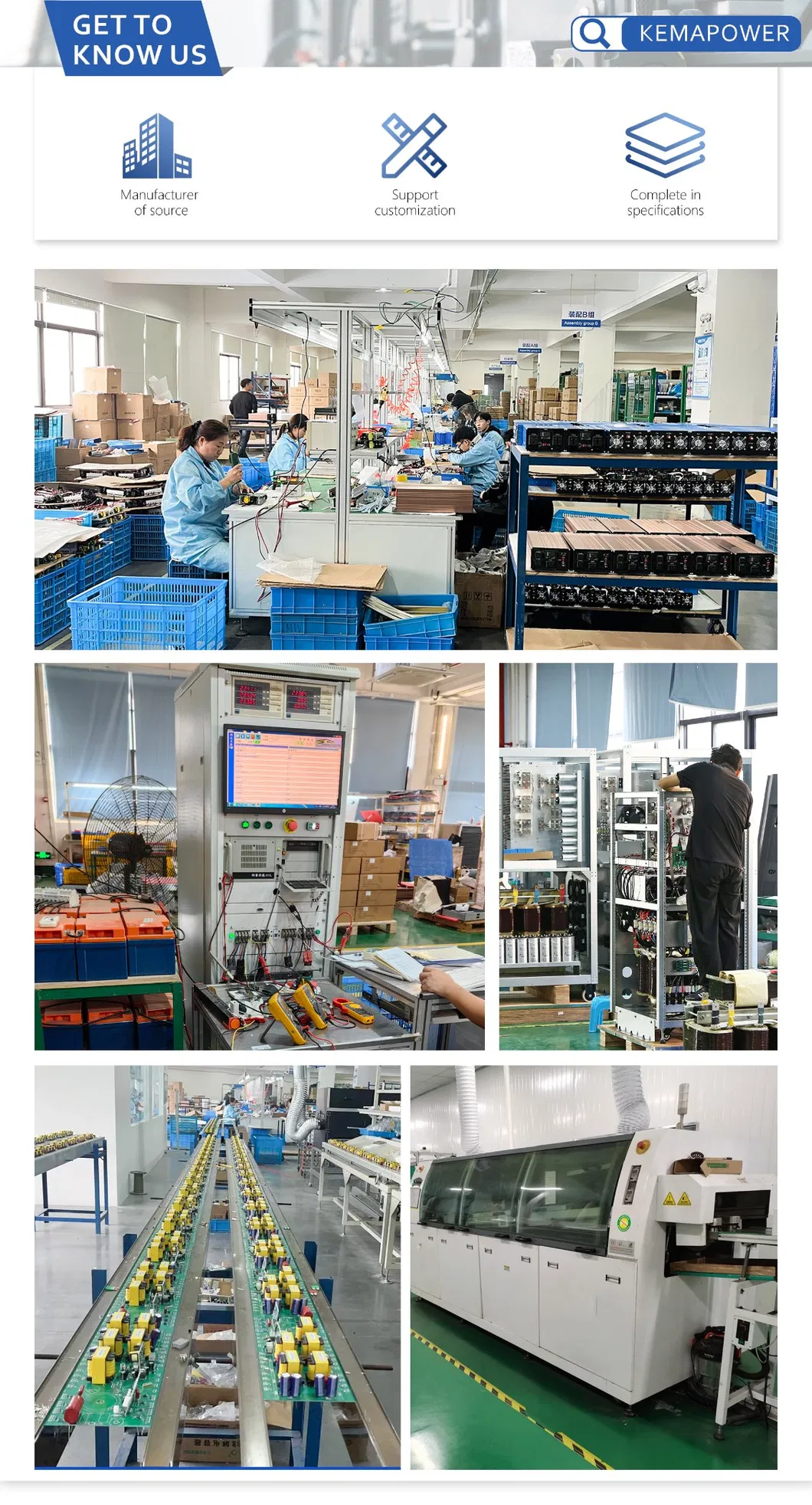

Solar Controller Full Info 1 Solar Controller Full Info 2 Solar Controller Full Info 3 Solar Controller Full Info 4
Frequently Asked Questions
What system voltages is this controller compatible with?
The HT60D series supports 12V/24V automatic recognition for specific models and 48VDC for others, providing flexibility for various solar setups.
Does the controller support USB charging for mobile devices?
Yes, the 40A model (HT60D-4024U) comes equipped with 2 USB charging ports for convenient device charging.
What type of display does the controller have?
It features a comprehensive LCD display that shows generated energy, fault codes, battery status, PV input, and detailed charging/discharging data.
What are the available load working modes?
Users can select from Regular mode, Light Control mode, and Light + Double Time control mode, making it ideal for street lighting applications.
What safety protections are built into the device?
The controller includes integrated protection against over-charging, over-discharging, overloads, short circuits, and reverse polarity for the solar panel and battery.
Can I use this controller with different battery types?
Yes, the controller features selectable battery types and 4-stage PWM charging with adjustable parameters to optimize battery life.
