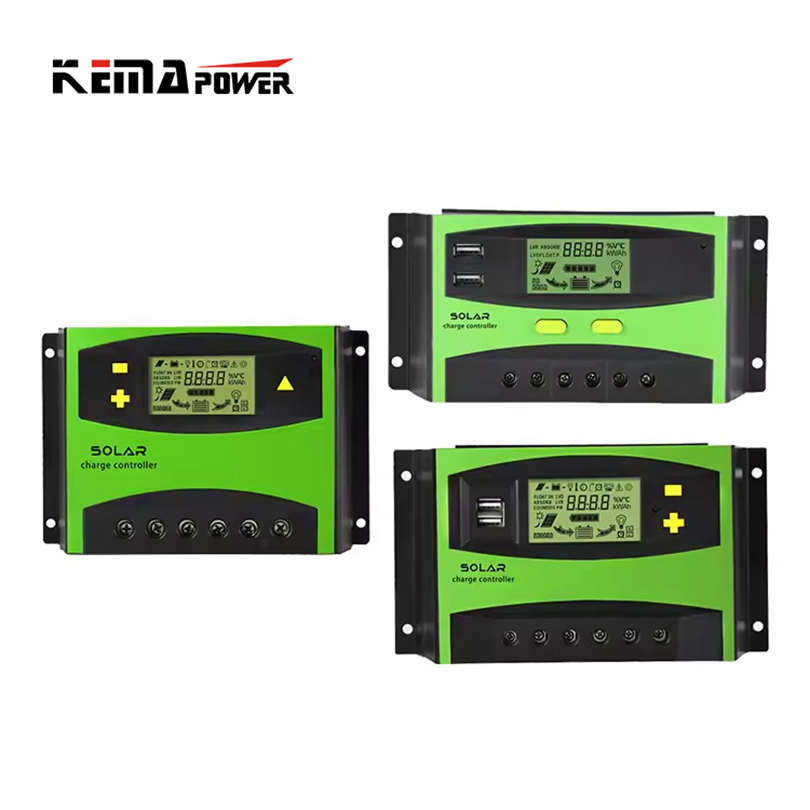

Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
1 / 5
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller
Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller

Solar Controller 30A-60A Smart Lighting Street Lamp Photovoltaic Panel Charging Controller

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
HT
Condition
New
Certification
CE
Rated Voltage
24V
Application
Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller
HS Code
9032899090
Specification
Green Color
Capacity
50000PCS/Year
PWM Solar Charge Controller
LCD HT Series
Key Features
  • LCD PWM Solar Charge Controller HT series 12/24/48V, 30/40/50/60A
  • 12/24V automatic recognition or 48VDC
  • 2*1A USB Charger for mobile devices
  • Charging and discharging parameters adjustable
  • Time and Light Control function selectable for street light systems
  • Preset charging parameters for three battery types
  • Built-in Temperature compensation function

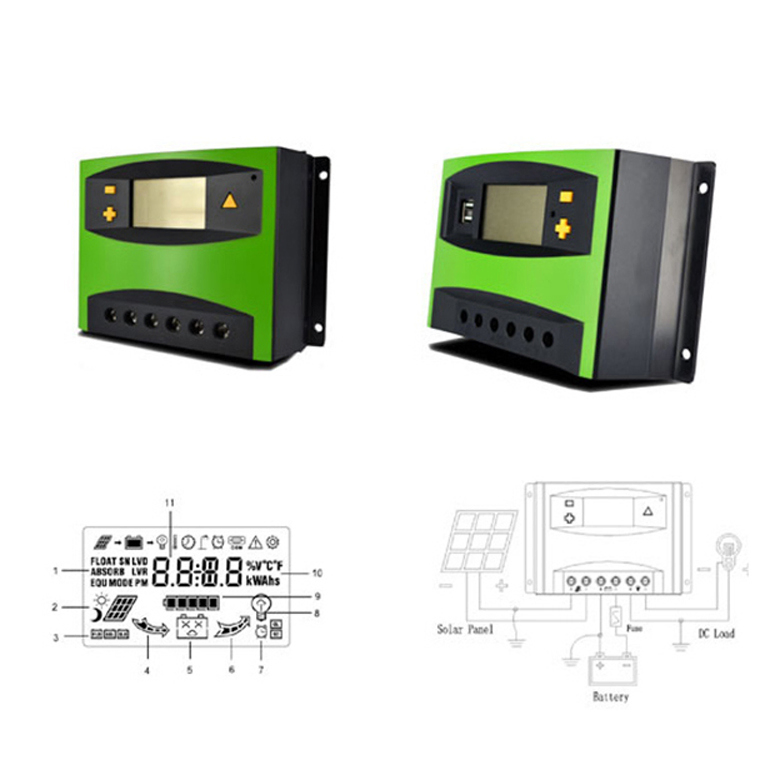

  • LCD display for energy capacity, fault codes, battery, PV, and Load details

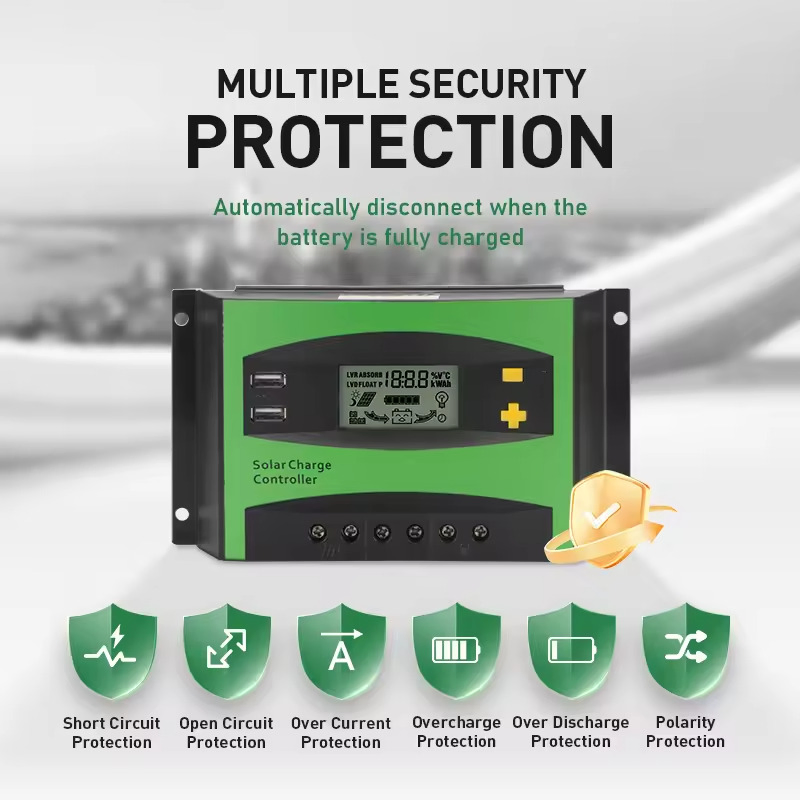

  • Comprehensive protection: PV over current, reverse polarity, battery over charge/discharge, load overload, and short circuit
  • Optional communication with computer via RJ45
Technical Specifications
MODEL HT4830DU HT4840DU HT4850DU HT4860DU HT2450DU HT2460DU
Rated charge current 30A 40A 50A 60A 50A 60A
System voltage 12/24/48V AUTO 12/24V AUTO
Over Load Prot. ≥120% 60s; ≥150% 10s; ≥180% 0.2s
HVD / LVD HVD: 16.5V | LVD: 11V (for 12VDC, others multiple)

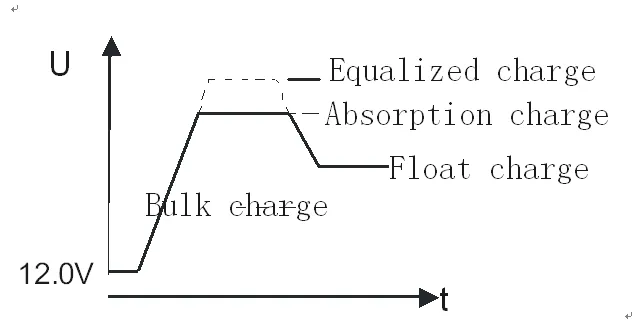

Charging Mode PWM 4-stage (Bulk, Absorption, Float, Equalized)
Battery Type Sealed, GEL, Flood and User (default)
USB Charge 2 * 5V 1.0A
IP Class IP32
Product Size (mm) 192.5 * 109 * 43 200 * 126 * 56
Product Display

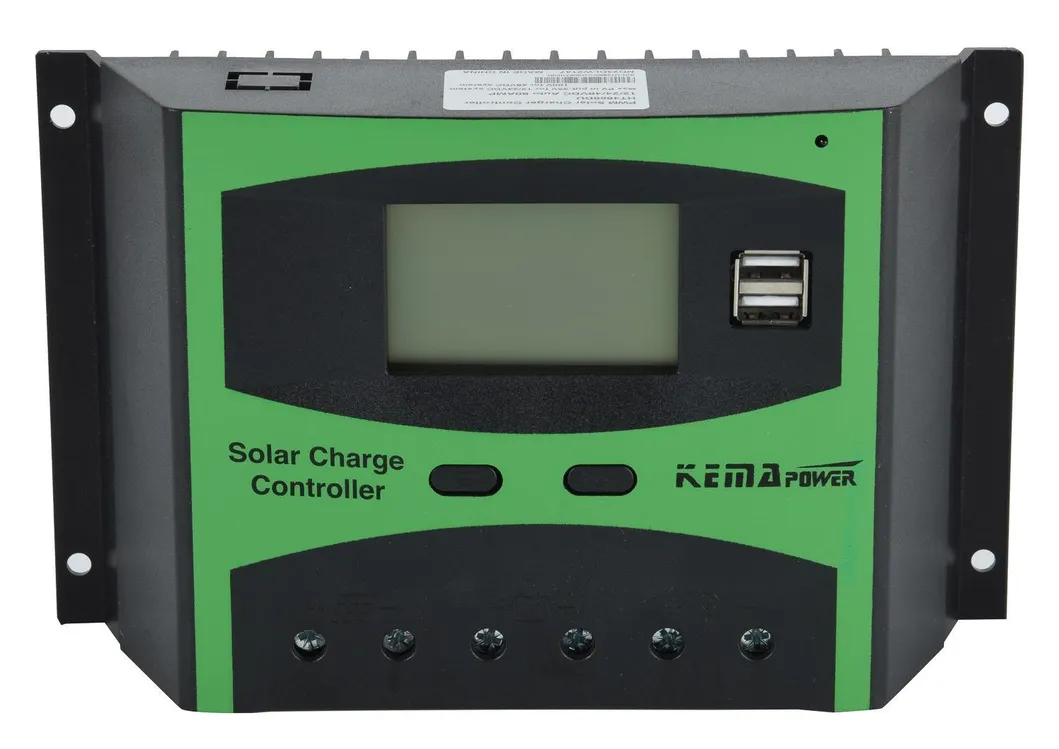

Solar Controller View 1

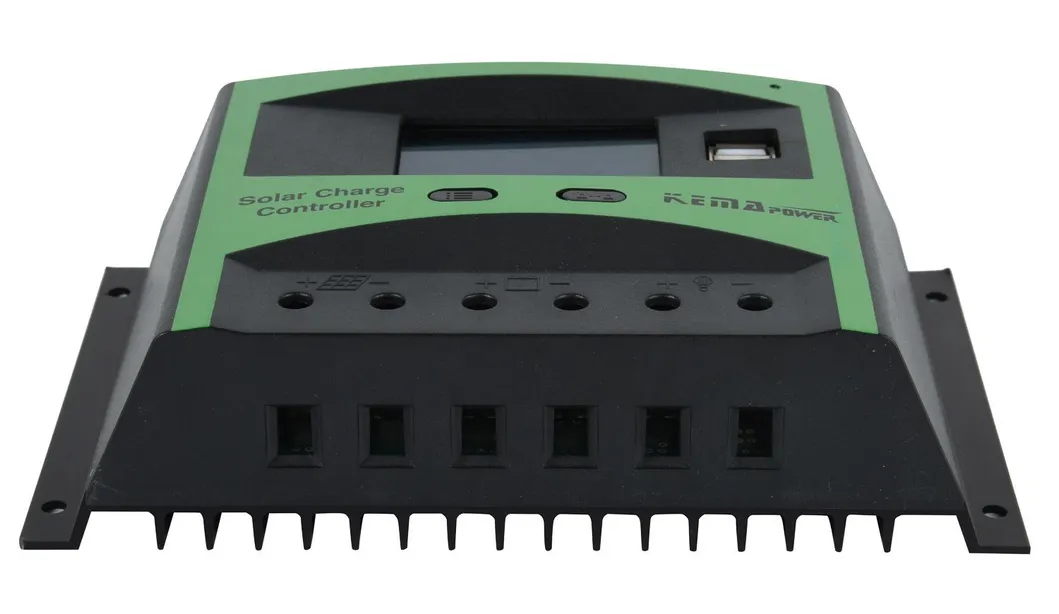

Solar Controller View 2

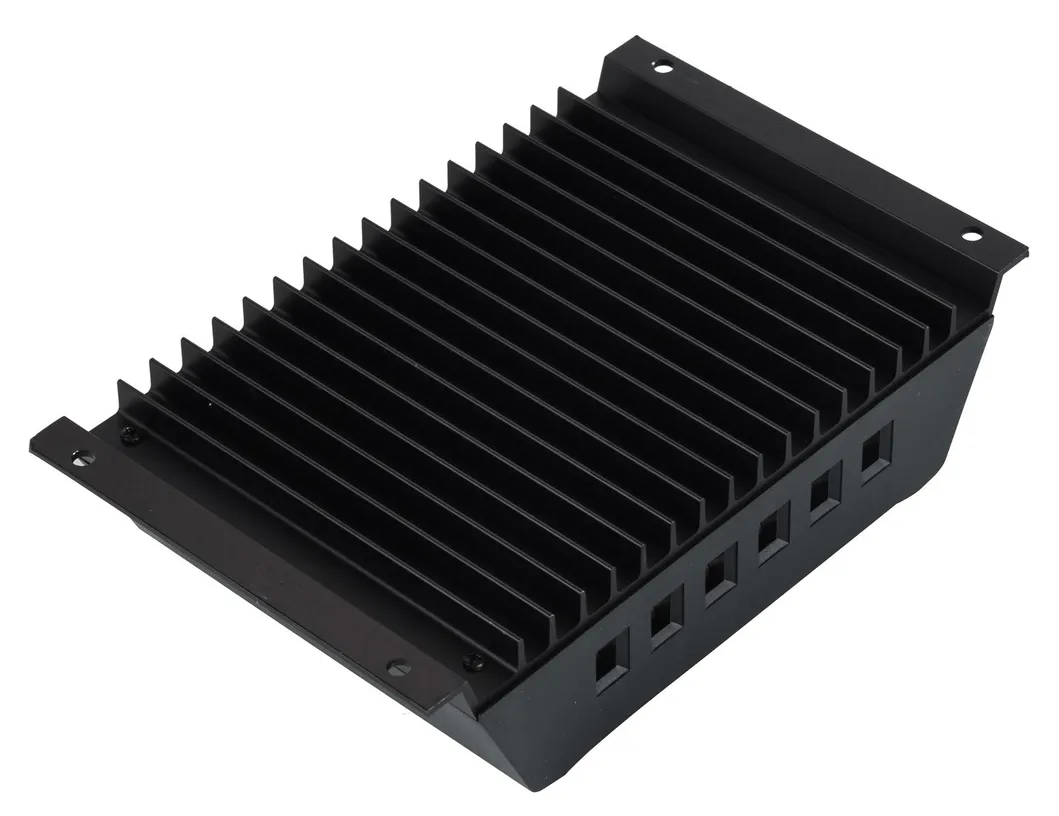

Solar Controller View 3
Solar Controller Detail 1

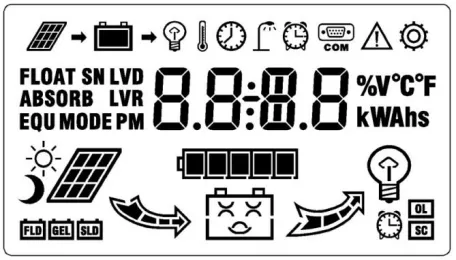

Solar Controller Detail 2
Solar Controller Detail 3
Detailed Specs 1 Detailed Specs 2 Detailed Specs 3 Detailed Specs 4
Frequently Asked Questions
What system voltages does the HT series controller support?
The HT series supports 12V, 24V, and 48V systems with automatic voltage recognition (depending on the specific model).
Can I use this controller for street lighting?
Yes, it features selectable Time and Light Control functions, making it ideal for solar street light applications.
Does it support charging for different battery types?
Yes, it has preset parameters for Sealed, GEL, and Flooded batteries, as well as a "User" mode for custom settings.
What information is displayed on the LCD screen?
The LCD displays real-time data including battery voltage, PV output, charging/discharging current, accumulated energy (AH), temperature, and fault codes.
Is there a USB charging port for mobile devices?
Yes, the controller includes two 5V/1.0A USB ports for convenient charging of small electronic devices.
What safety protections are built into the unit?
It includes protection against PV reverse polarity, battery overcharge/over-discharge, load overload, short circuits, and controller over-temperature.
