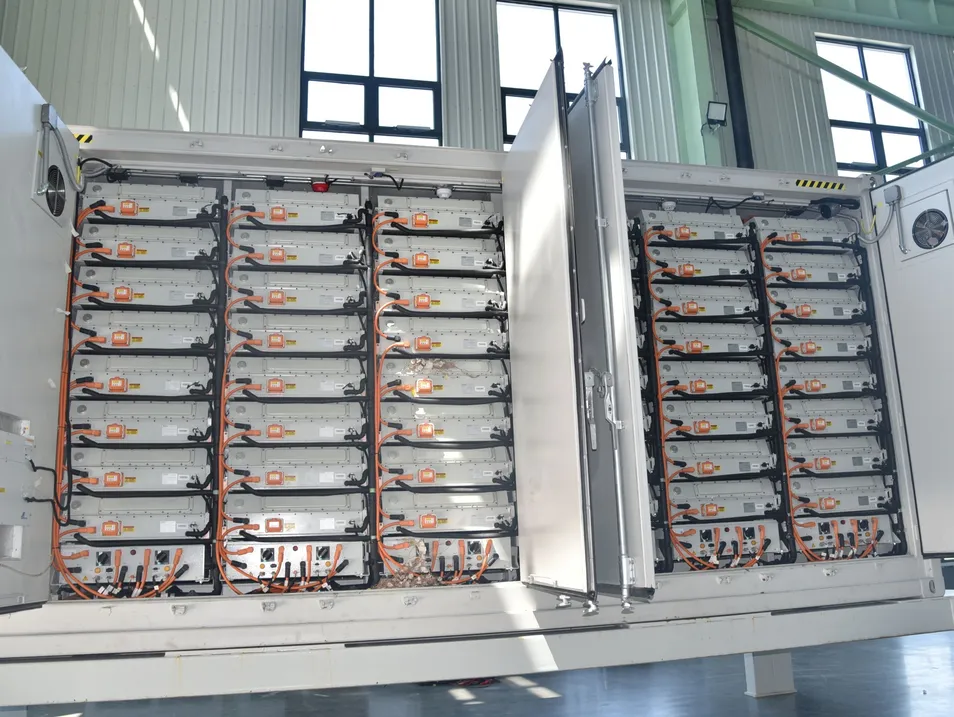

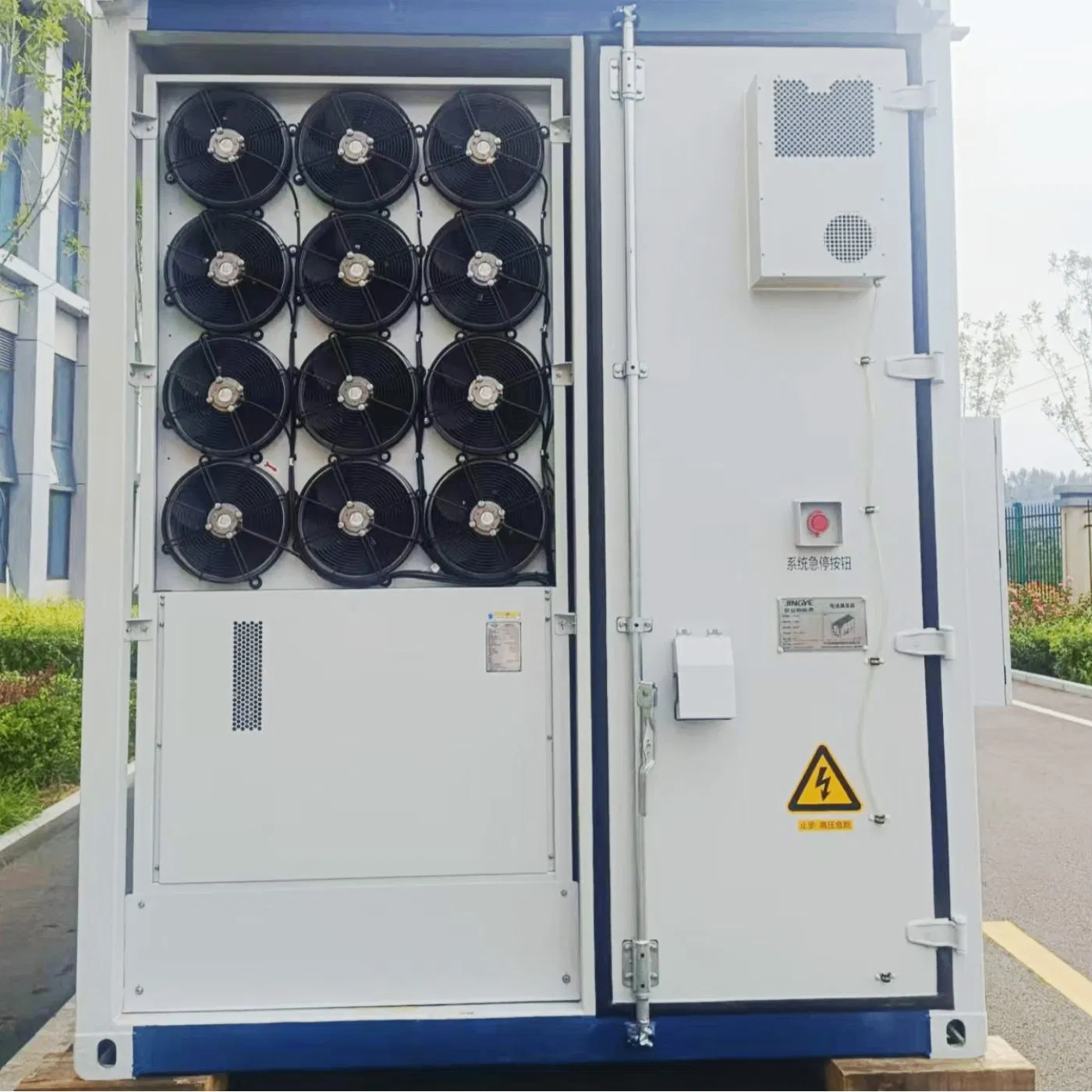

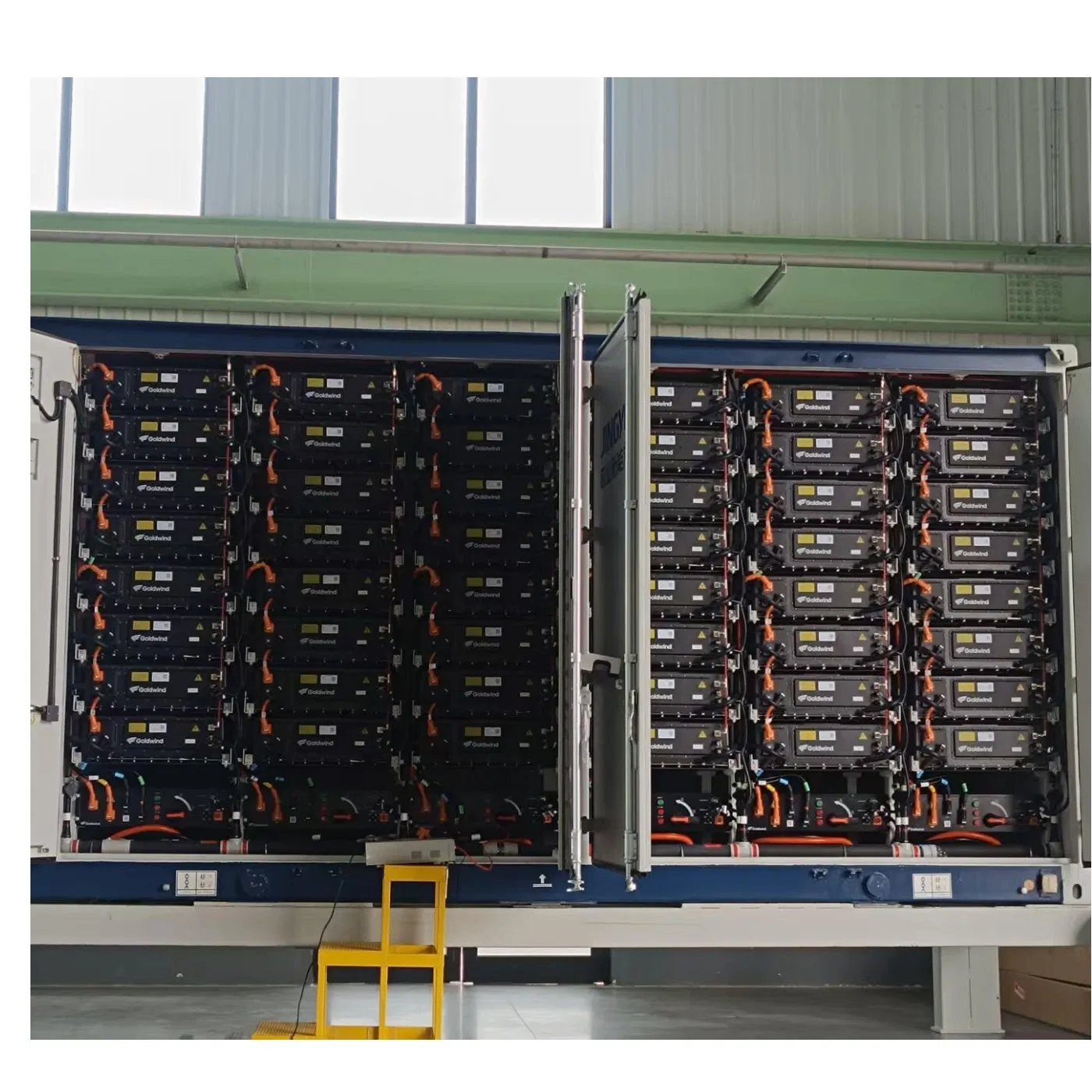

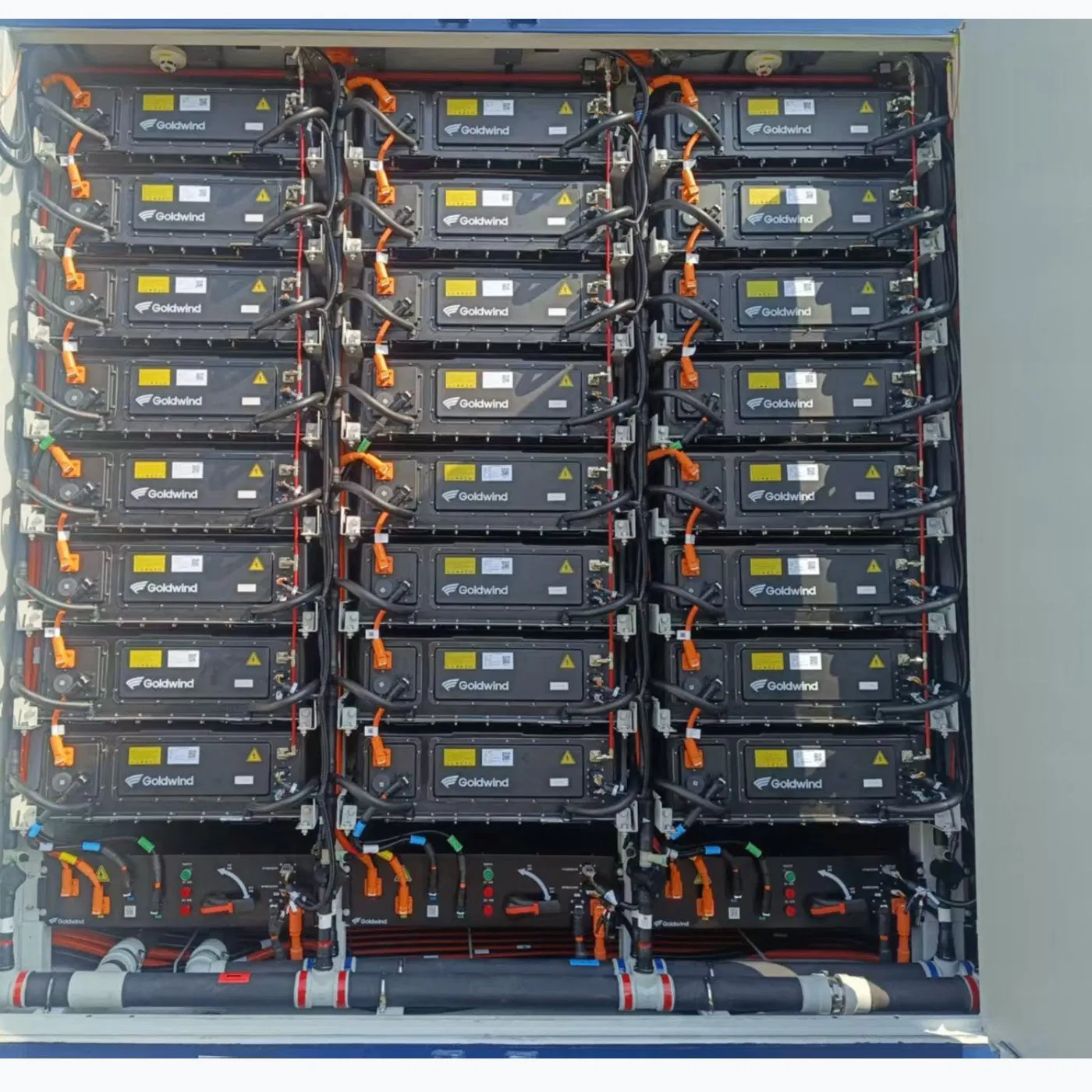

5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems (BMS), fire protection systems, thermal management systems, and environmental control systems.

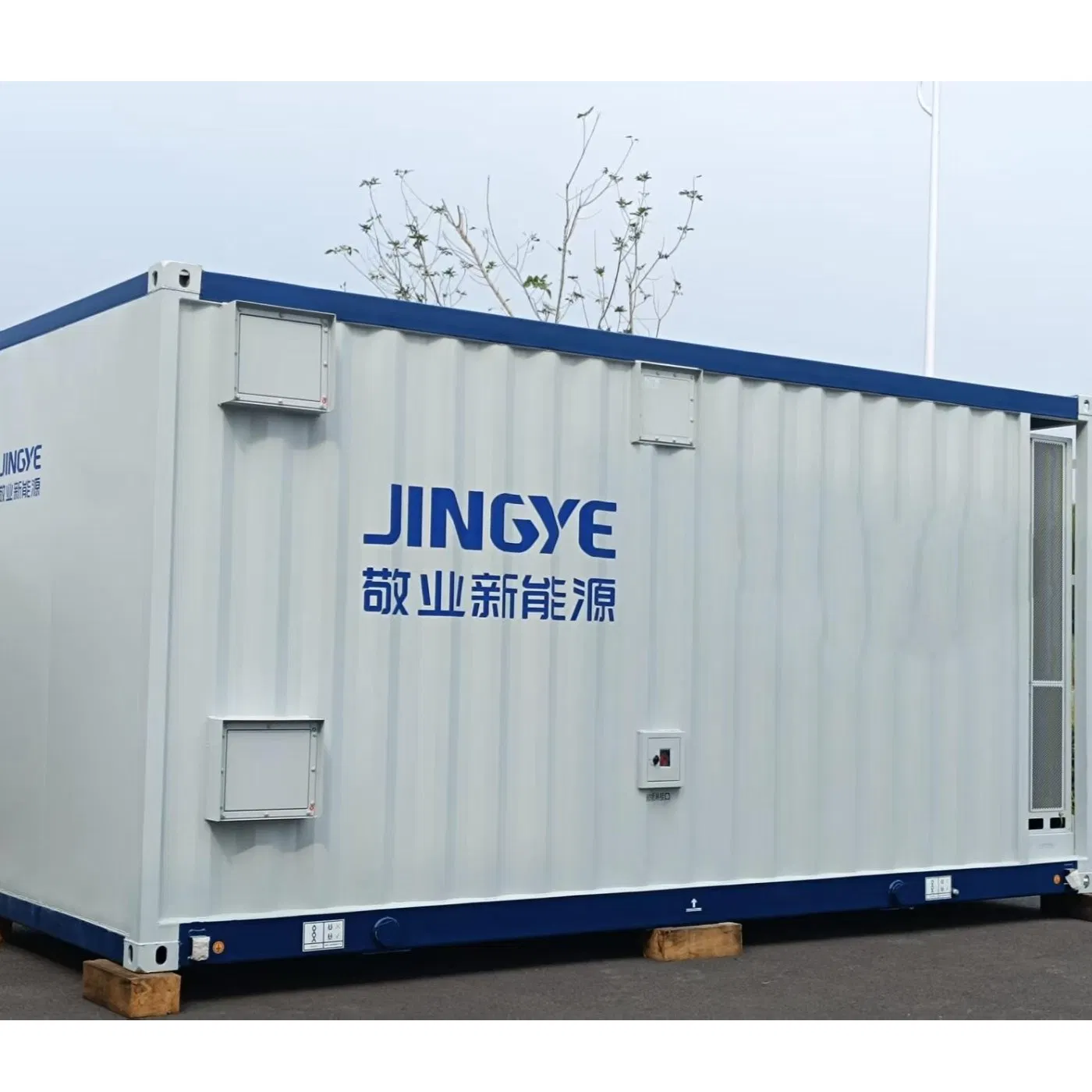

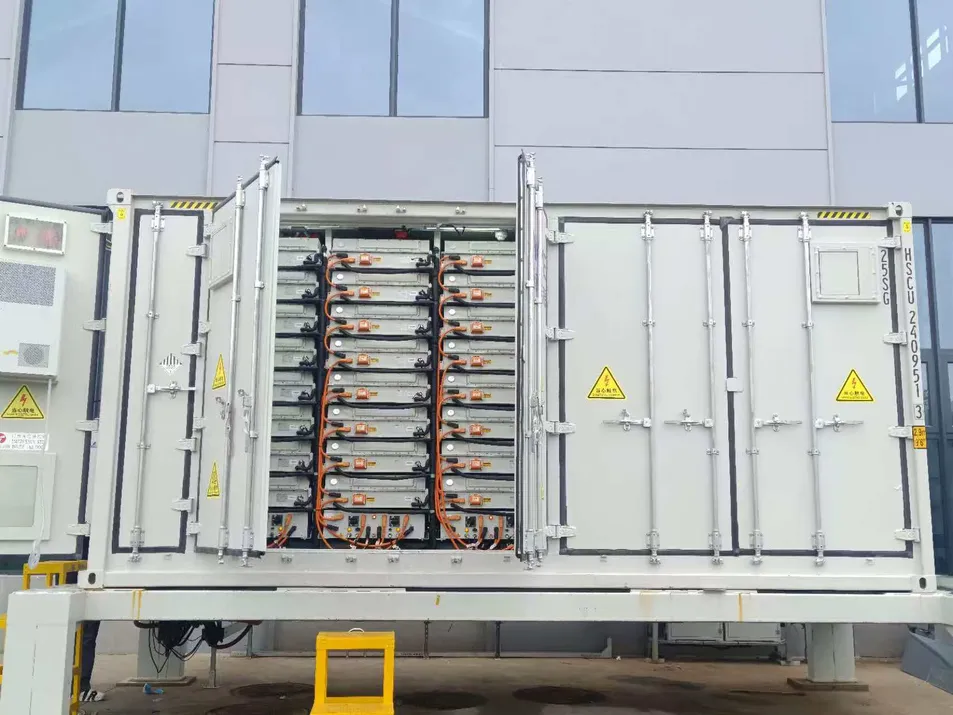

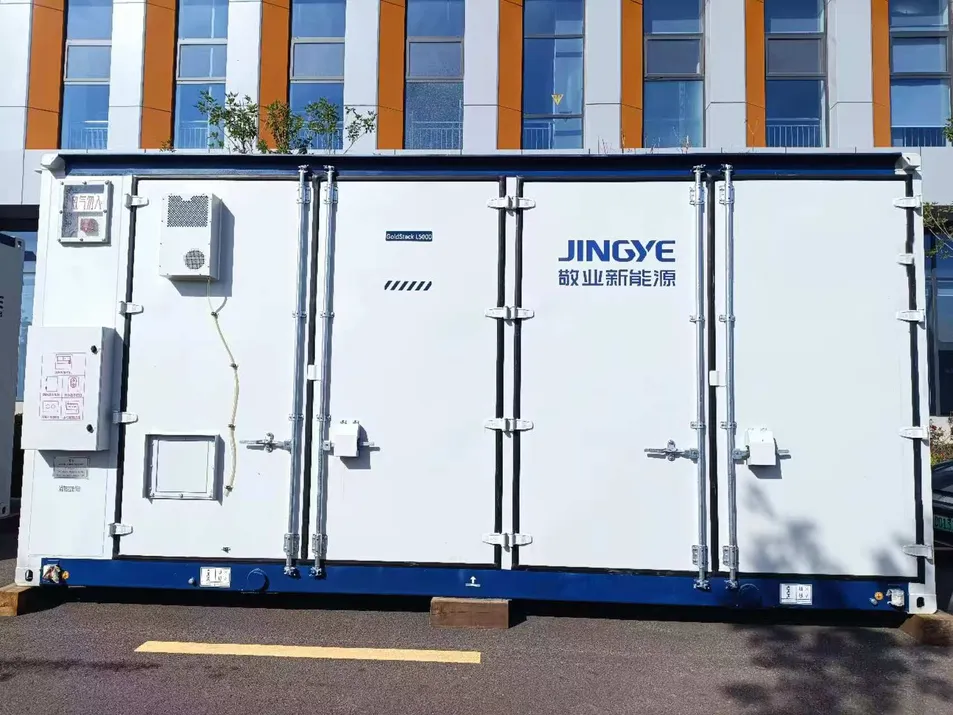

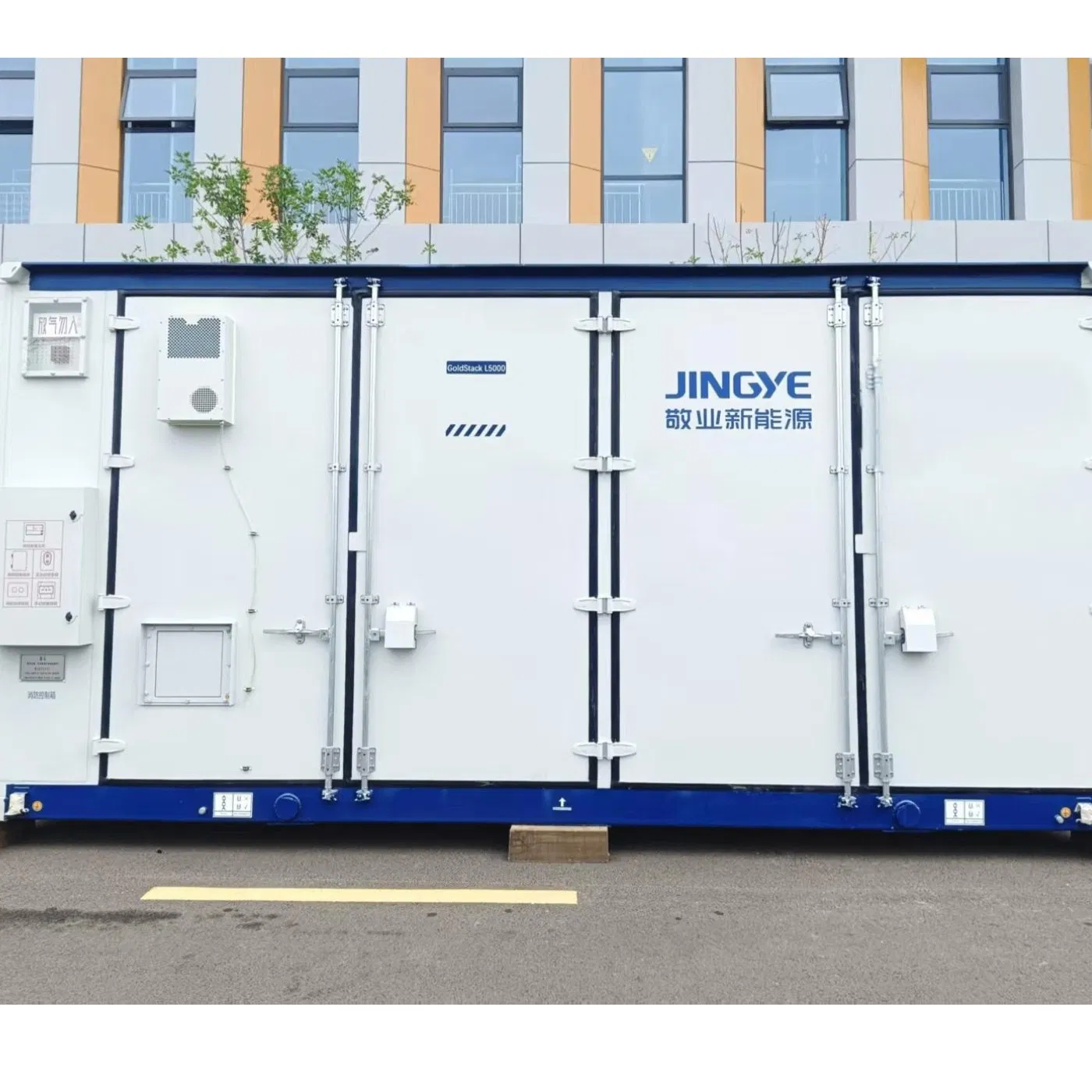

The system utilizes simplified integration technology, housing all components within a standard 20-foot container (2438mm-2896mm-6058mm). Arranged in three compartments, it ensures maximum safety control while remaining suitable for various transportation conditions and site designs.
| Item | Specification |
|---|---|
| Configuration | 12*(1P104S*4) |
| Rated Power / Capacity | 5MWh / 5015kWh |
| Rated Voltage | 1331.2VDC |
| Voltage Range | 1164.8V - 1497.6VDC |
| Max Charging/Discharge Power | ≤ 2.5MW |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | Approx. 43 Tons |
| Communication Protocol | Ethernet, CAN, ModbusRTU |
| Operating Temperature | -30℃ to 60℃ (Discharging) |

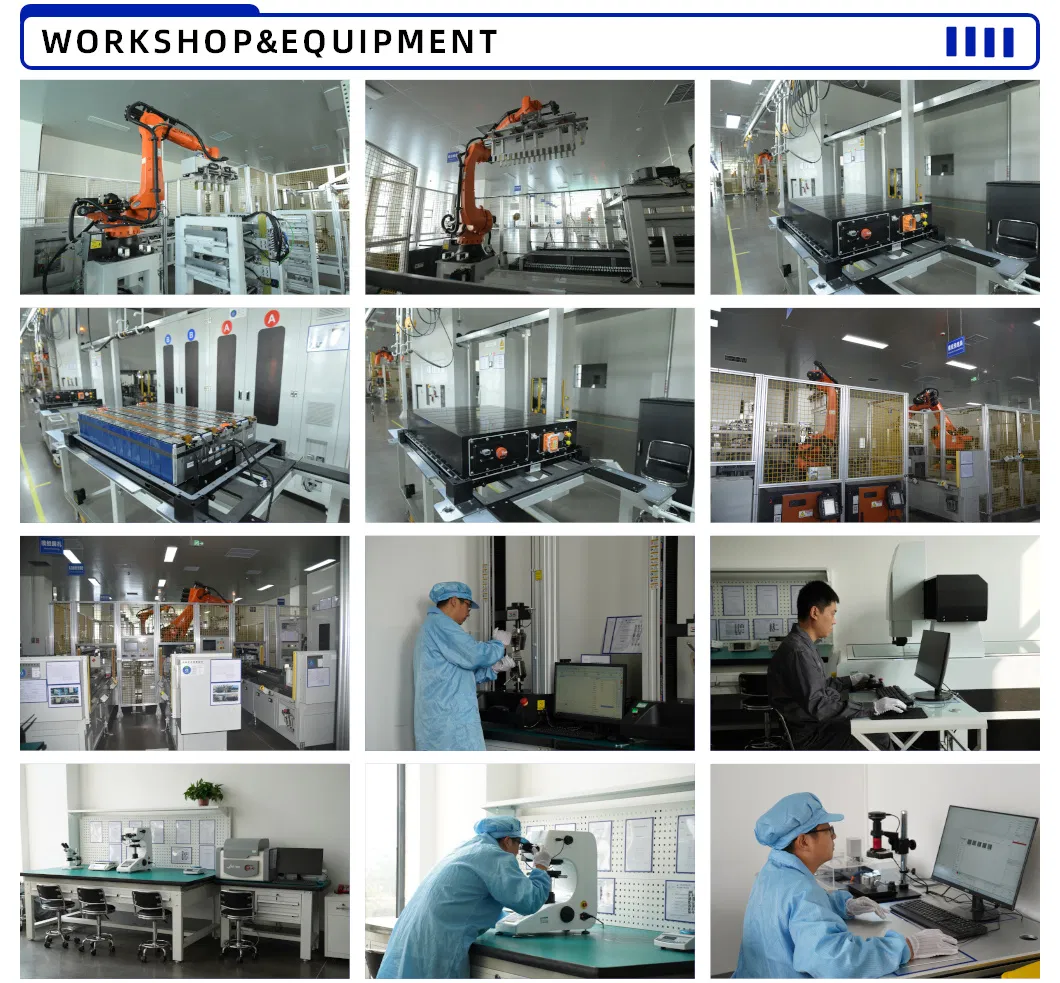

Our facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems. Products are widely applied in smart grids, industrial energy storage, and green transportation sectors.
