30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
1 / 5
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller
30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller

30A 50A 100A 12V 24V 48V Smart MPPT Solar Panel Power Charge Controller

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
XD-Wonder1
Condition
New
Certification
ISO, CE
Application
Collector Controller, Charger Controller, Solar Working Station, Voltage Controller
Rated Voltage
12V/24V/48V
Rated Current
10A/20A/30A/40A/50A/60A/80A/100A
MPPT Efficiency
>99%
Conversion Efficiency
>98%
Work Time (H)
1~24h
Communication
RS485 Optional
Max PV Input
150V
Display
LCD Display
⚡ Inverter & Controller Features
1. Efficient Tracking: Advanced MPPT tracking with 99% efficiency. Increases generation by nearly 20% compared to PWM.
2. Real-time Monitoring: LCD display for PV data and charts simulating the power generation process.
3. Flexible Design: Wide PV input voltage range, making system configuration highly convenient.
4. Battery Health: Intelligent battery management functions to significantly extend battery life.
5. Connectivity: RS485 communication port available as an optional feature for remote monitoring.
🔍 Product Details

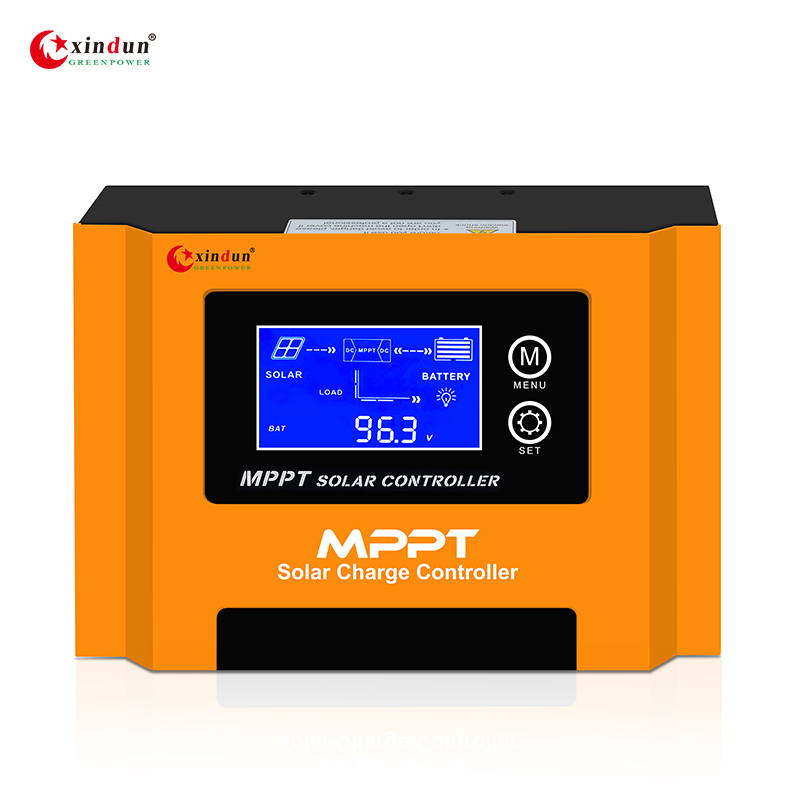

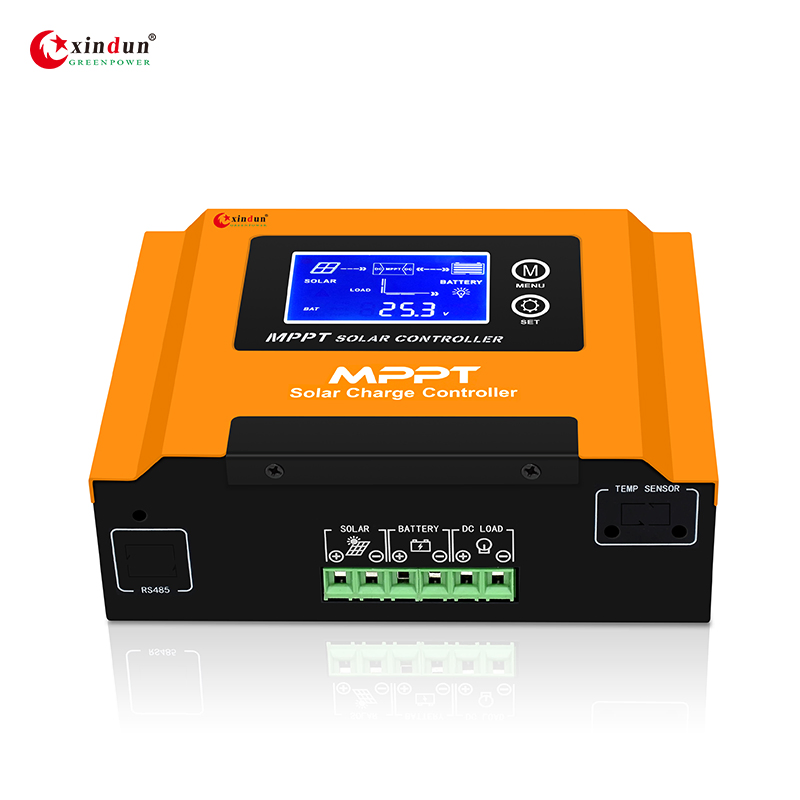

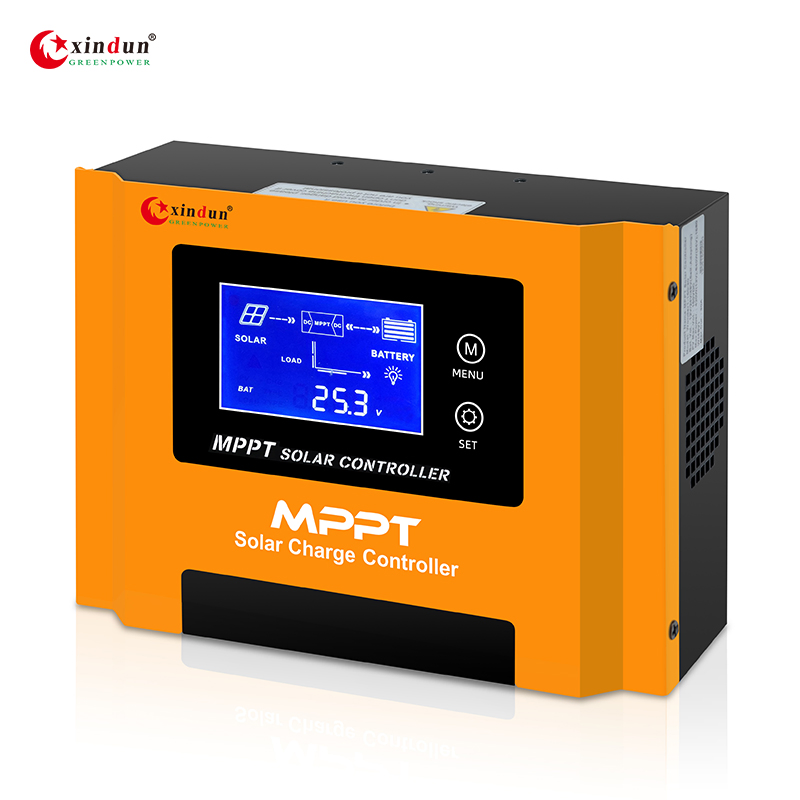

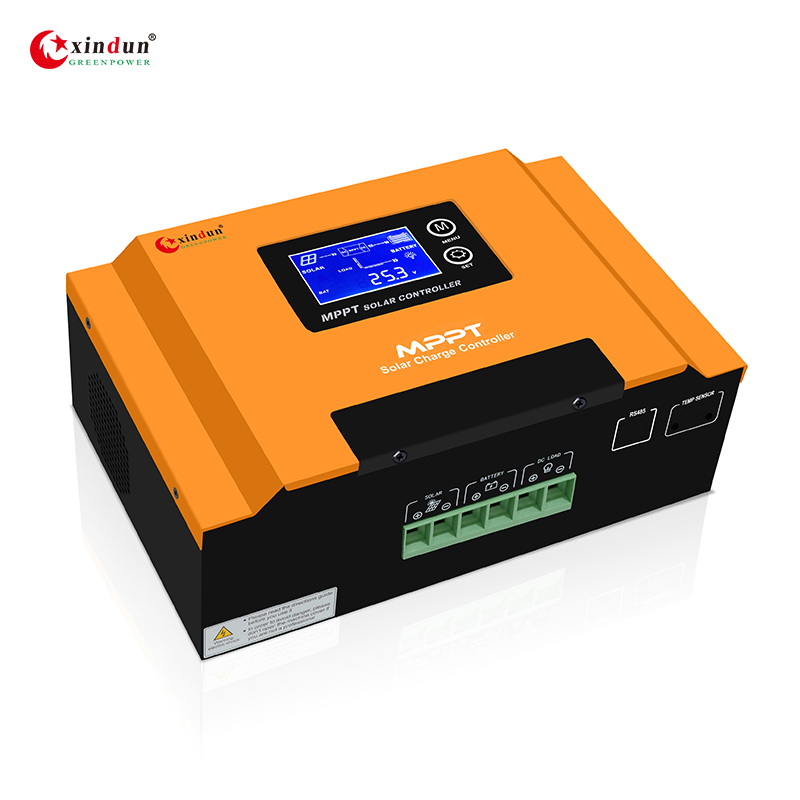

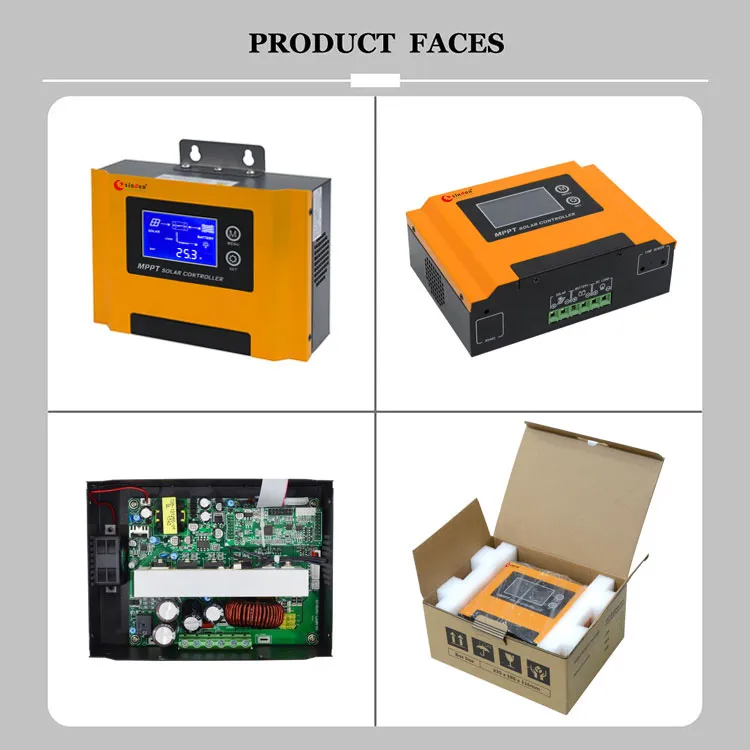

Smart MPPT Controller Top View Smart MPPT Controller Front View
📊 Technical Specifications
Model: Wonder1 150/10 - 150/30 150/40 - 150/60 150/80 - 150/100
Rated Current 10A / 20A / 30A 40A / 50A / 60A 80A / 100A
Rated System Voltage 12V / 24V / 48V Auto Recognition
Max PV Input (Voc) 150V
MPPT Tracking Voltage 12V: 15V-120V | 24V: 30V-120V | 48V: 60V-120V
PV Array Max Power Up to 1400W (12V) / 2800W (24V) / 5600W (48V)
Battery Type Lead acid / User specified
Conversion Efficiency >98%
Operating Temperature -15ºC to +50ºC
🔌 Wiring & Application

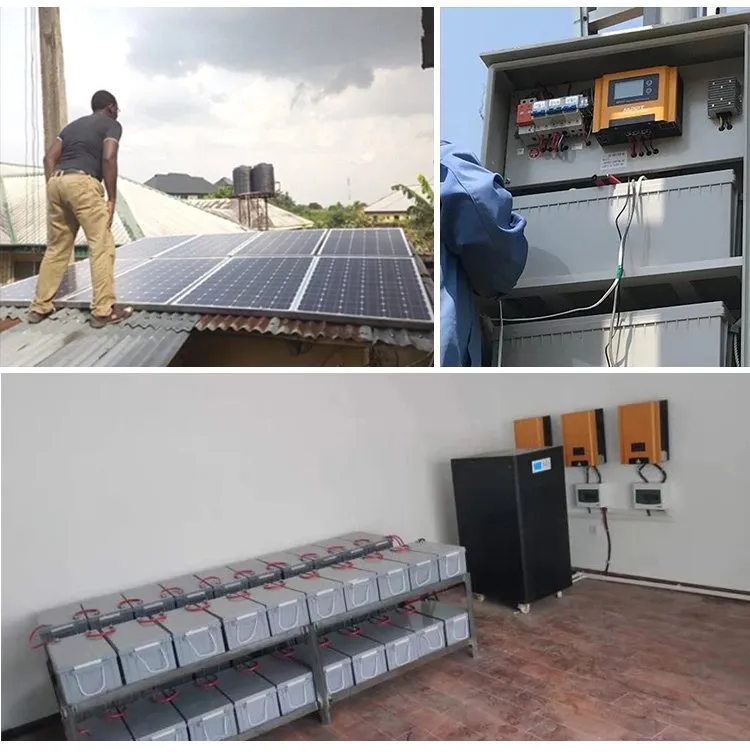

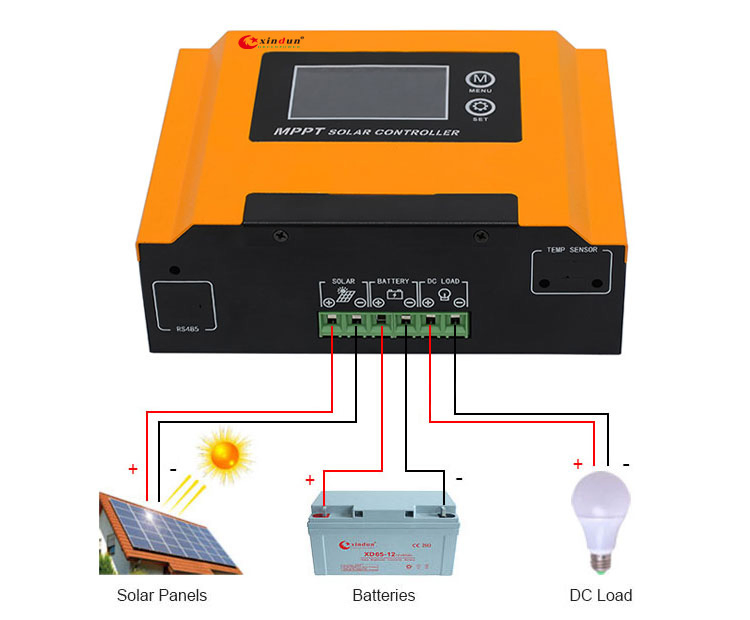

Wiring Diagram Application Scenario
📦 Packaging & Shipping

Package: Carton Box for standard packaging. Wooden Box recommended for samples to ensure protection during transportation.

Shipping Methods:

  • Express: FedEx / DHL / TNT / UPS (Door-to-door)
  • Air/Sea: For batch goods and CFL (Port receiving)
  • Delivery: 7 days for samples; 10-25 days for batch orders
🏭 Production & Workshop

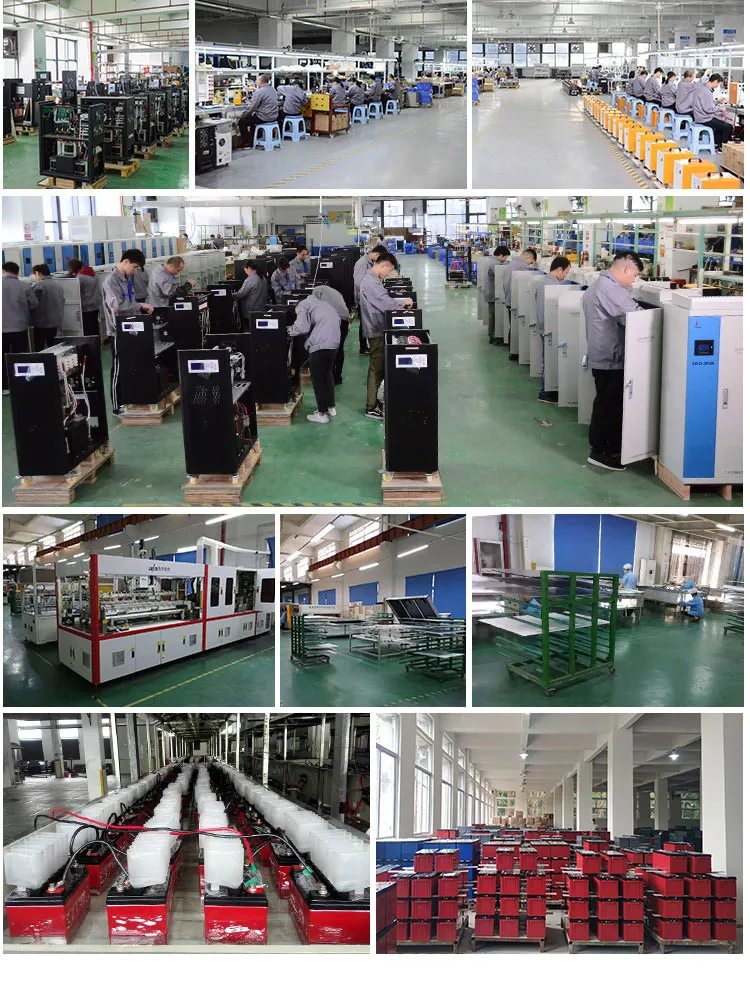

Production Process Testing Area Workshop
❓ Frequently Asked Questions
Q1: What is the main advantage of MPPT over PWM?
A: MPPT controllers offer tracking efficiency up to 99%, which can increase power generation by approximately 20% compared to traditional PWM controllers.
Q2: Does this controller support 48V battery systems?
A: Yes, the XD-Wonder1 features auto-recognition for 12V, 24V, and 48V battery systems.
Q3: What is the maximum PV input voltage?
A: The maximum PV input voltage (Voc) is 150V, which allows for flexible solar panel configurations.
Q4: Can I monitor the controller remotely?
A: Yes, it supports an optional RS485 communication port which can be used for WiFi or GPRS monitoring via an app.
Q5: What types of protection does the controller provide?
A: It includes built-in protection against over-voltage, under-voltage, over-temperature, and PV anti-reverse connection.
Q6: Is the cooling system loud?
A: The unit uses an intelligent fan control system that only activates based on thermal needs, ensuring efficient cooling with minimal noise.
