✓ Versatile charging: Utility, Solar (High/Low V), EV charger, AC generator, and Wind turbine.

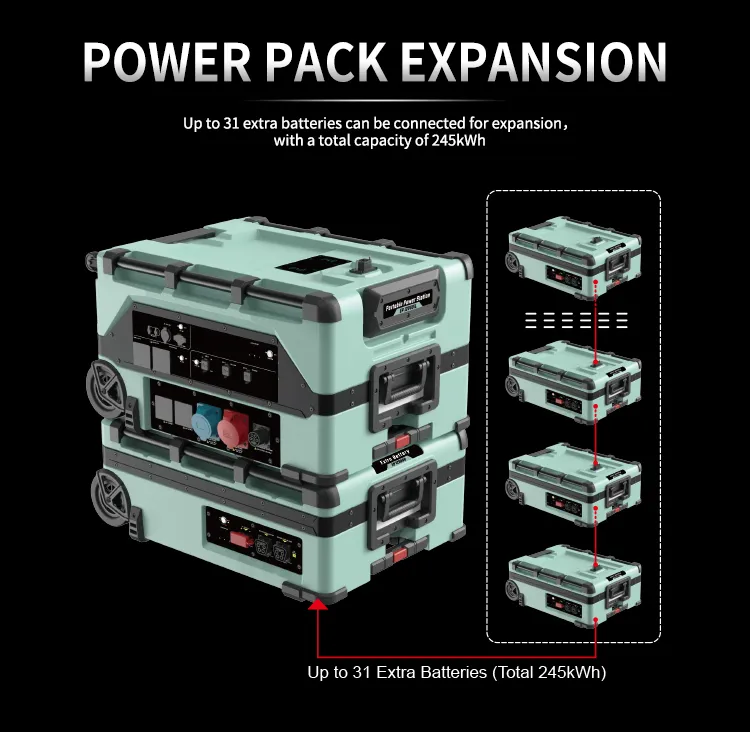

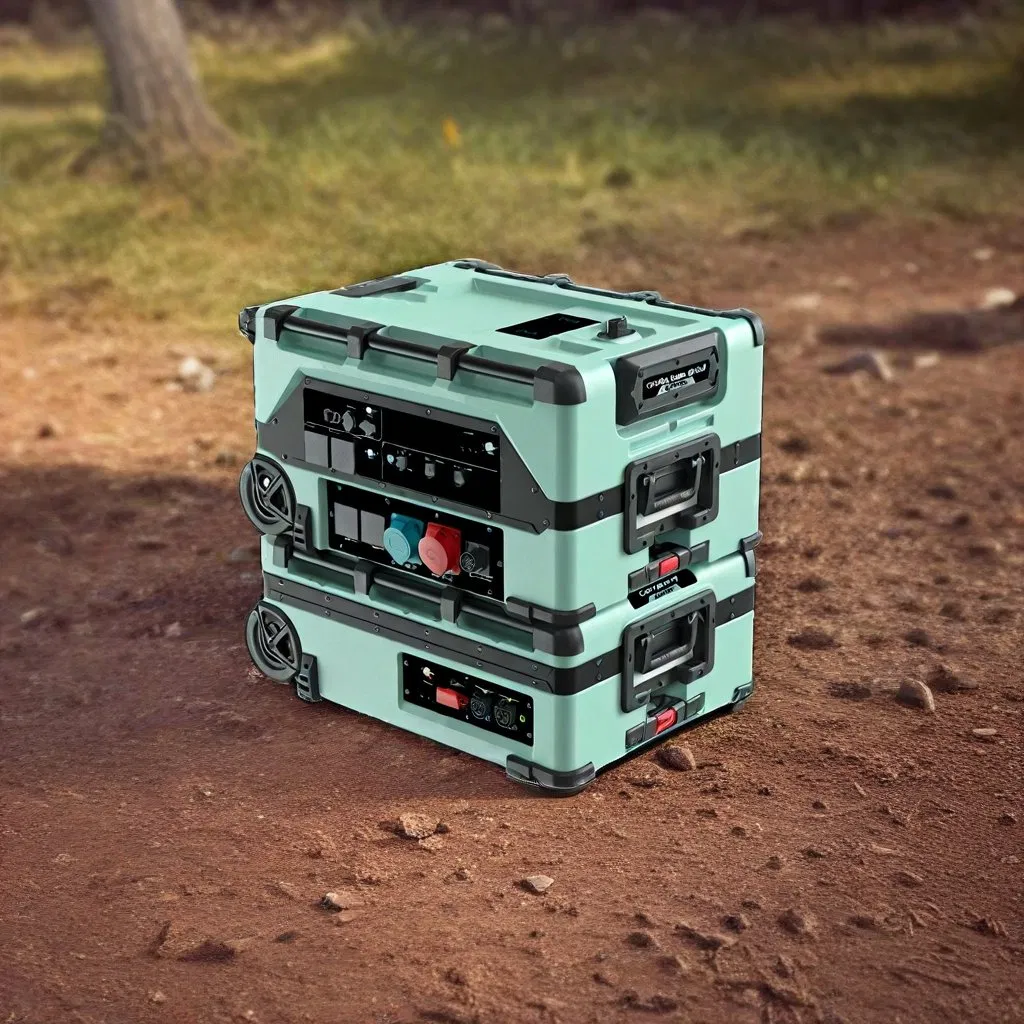

✓ Scalable capacity: Stack up to 31 extra batteries for a total of 245kWh.

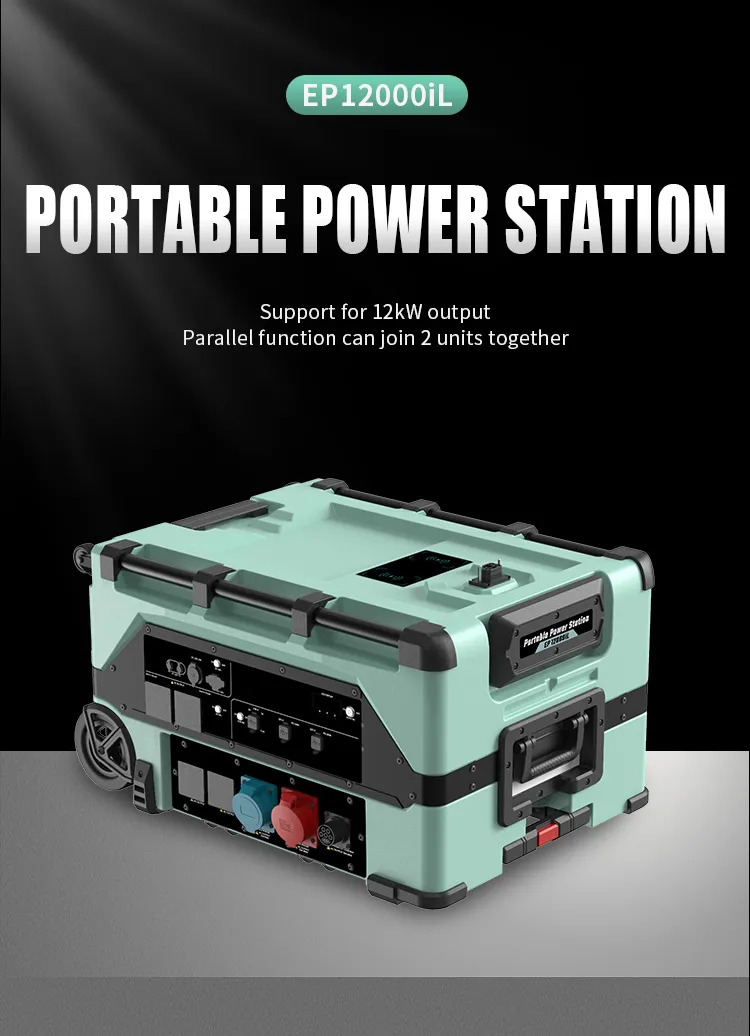

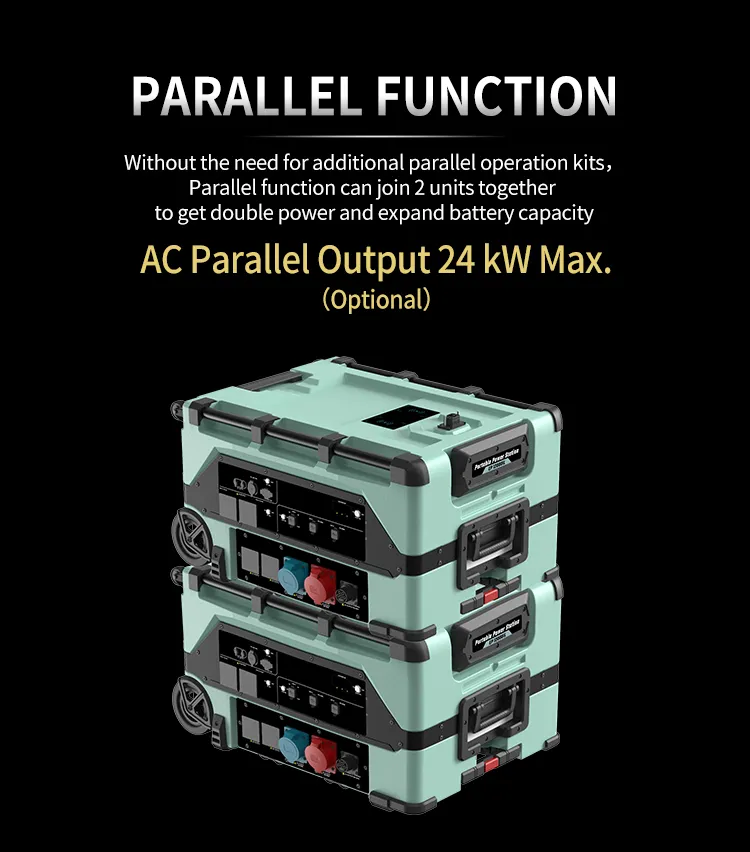

✓ Patented parallel technology: Connect 2 units for 24kW continuous output.
✓ Integrated EV charger capable of charging vehicles at up to 22kW.
✓ High protection grade: Unit IP53 and Battery Pack IP66.
✓ Intelligent control and monitoring via specialized smartphone APP.

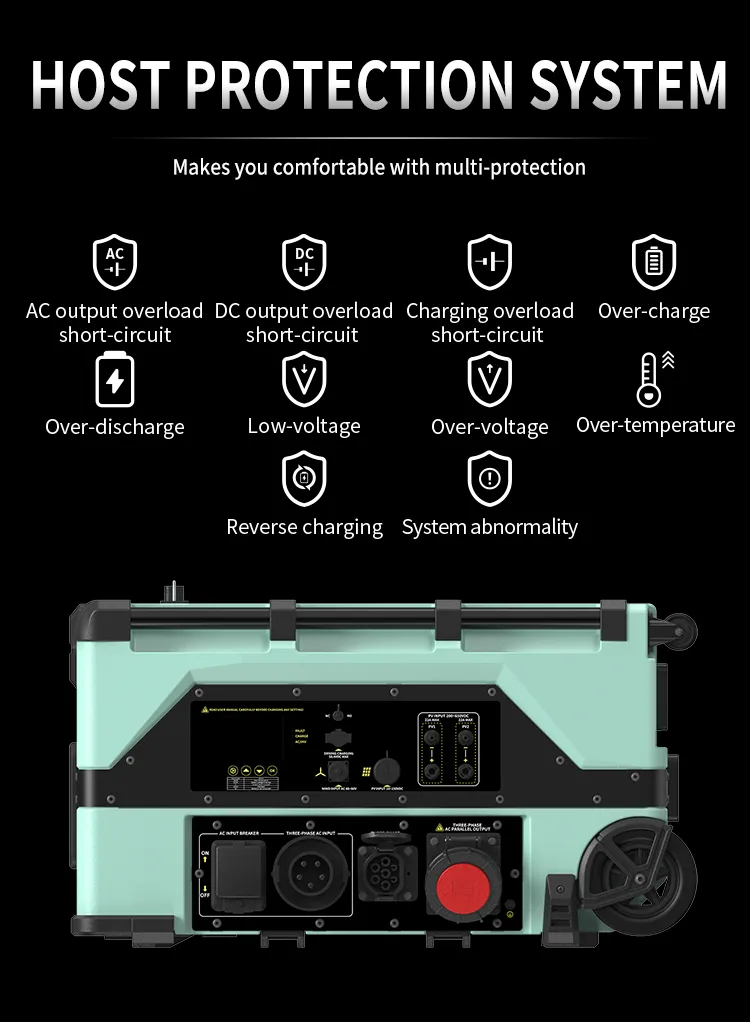

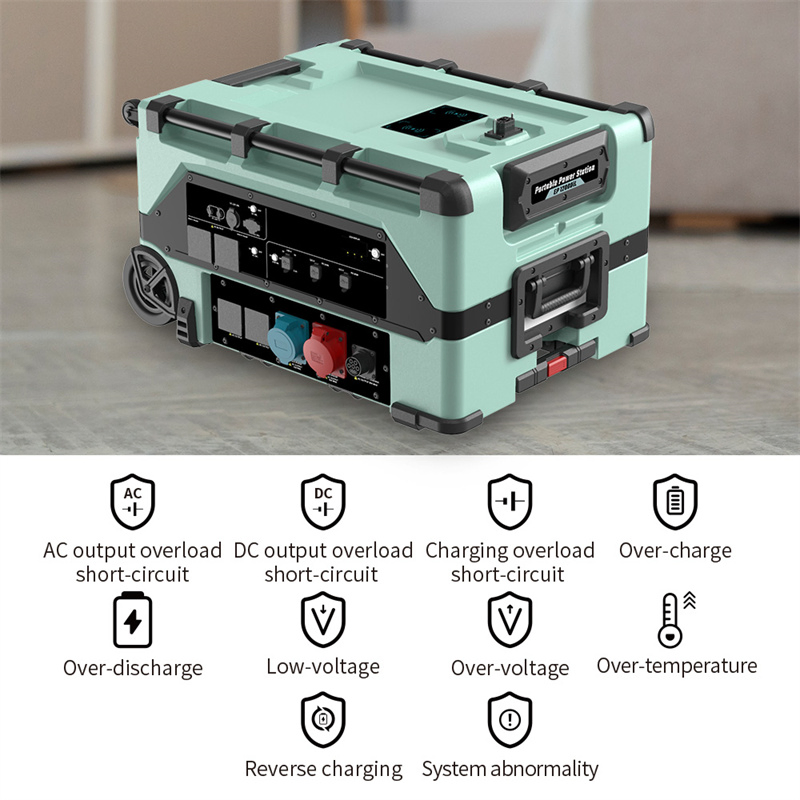

✓ Safety assured with V-0 level flame-retardant casing and international certifications.

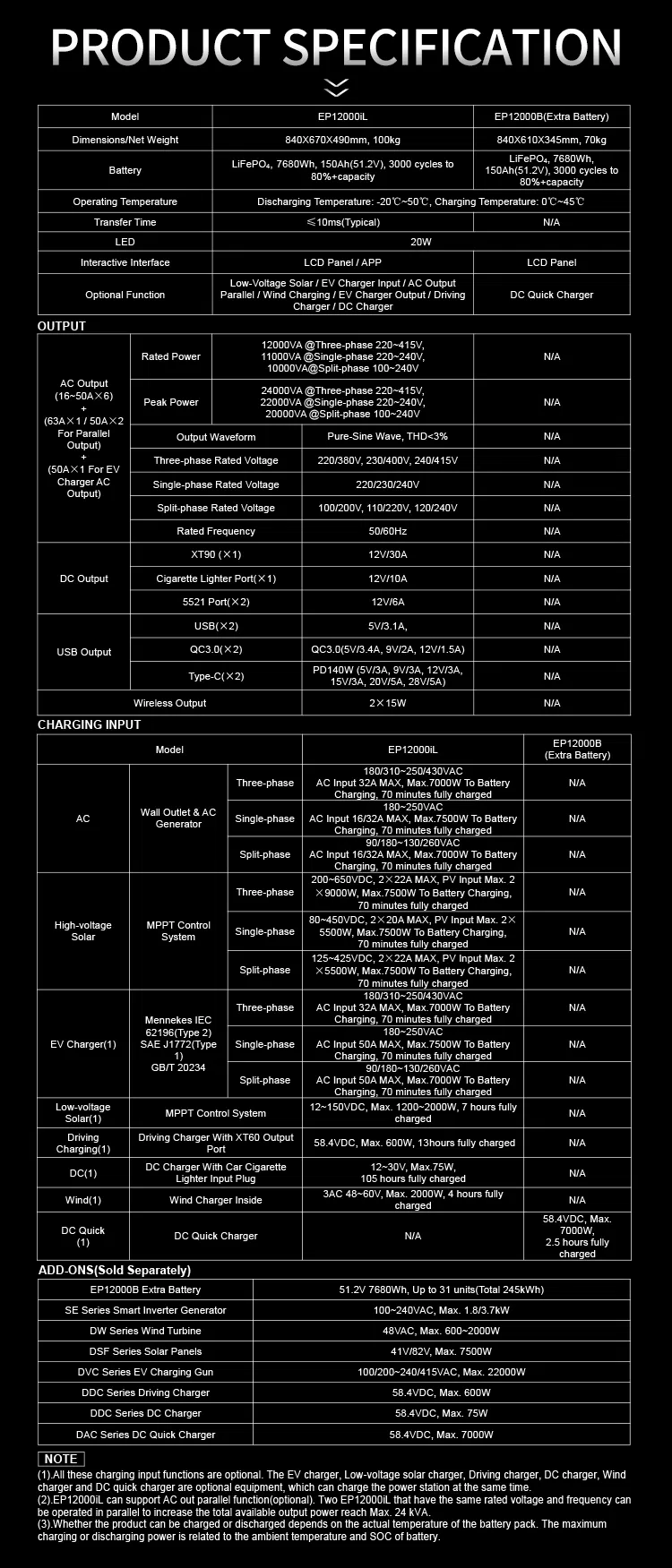

Product Parameters

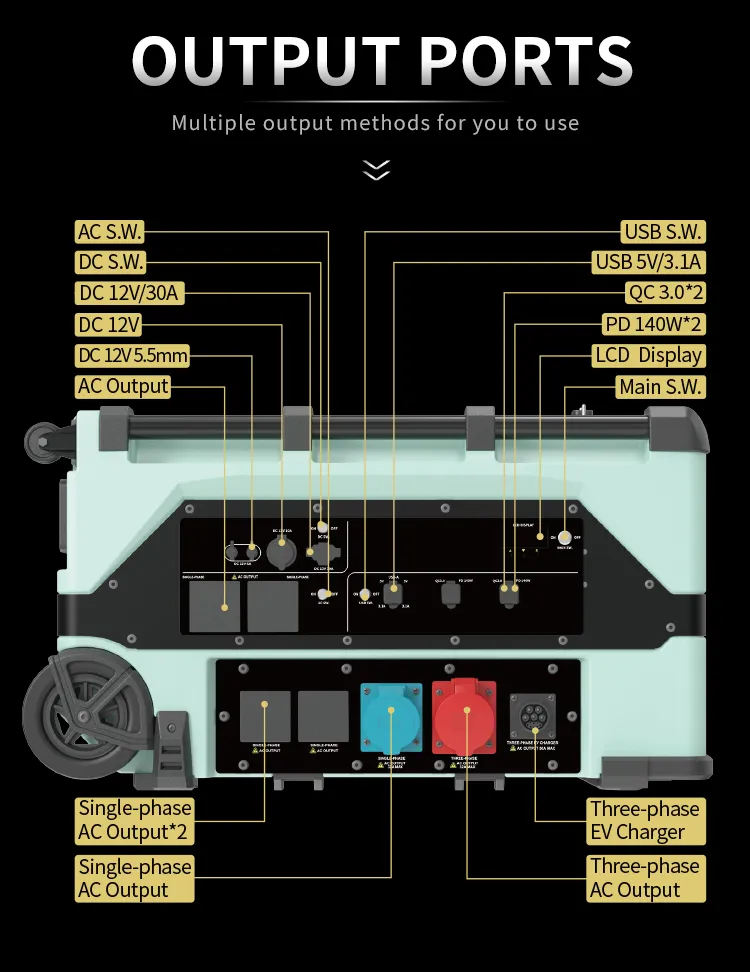

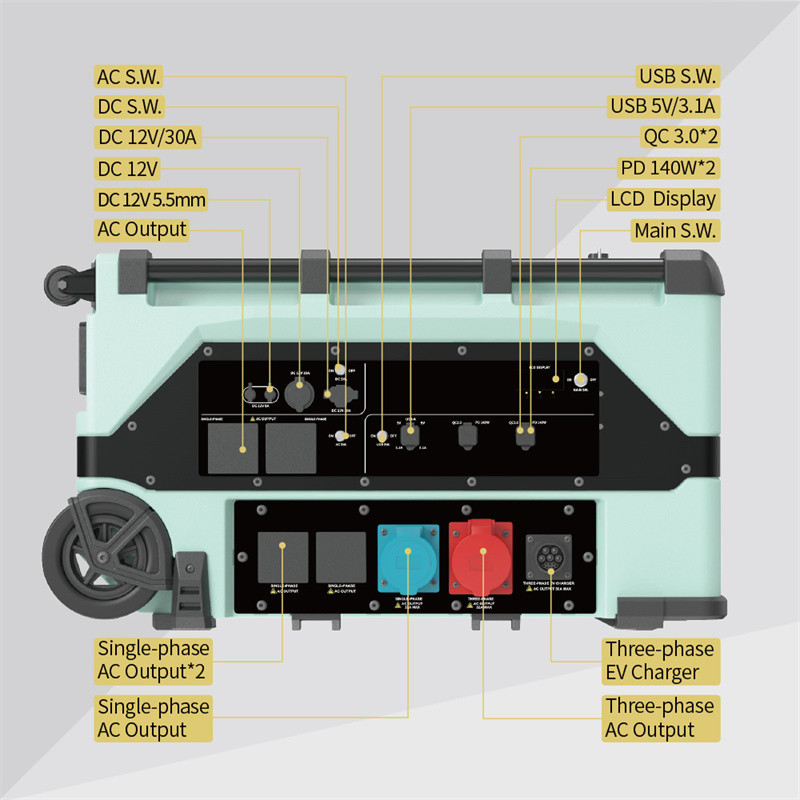

Output Specifications
Details
Rated Power (AC)
Three-phase / Single-phase / Split-phase
12000VA / 11000VA / 10000VA
Peak Power
Instantaneous Load
24000VA / 22000VA / 20000VA

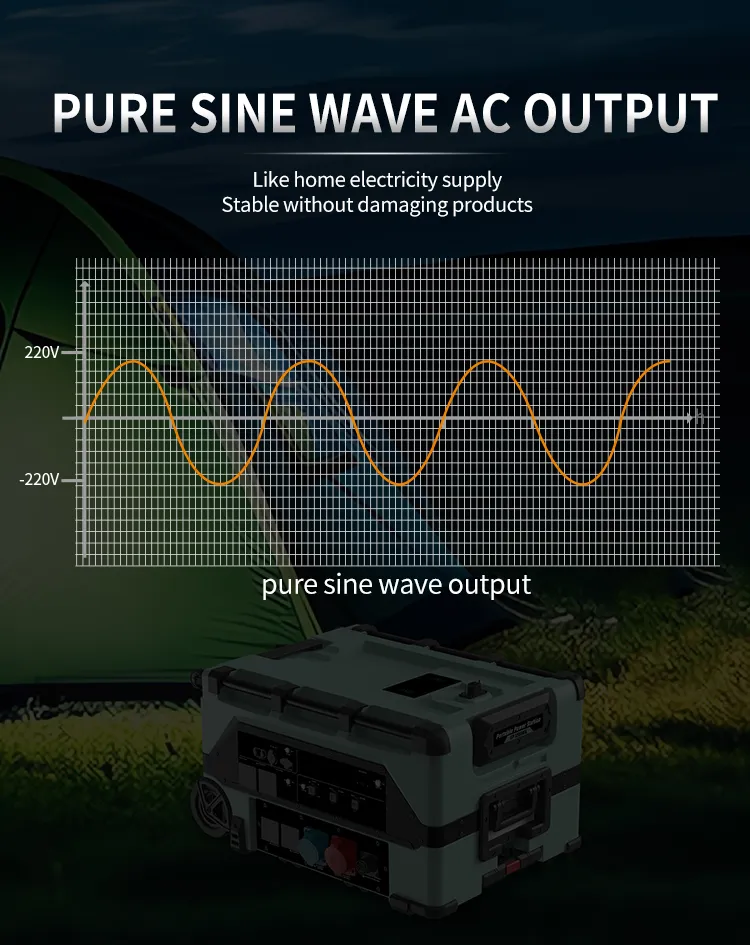

Output Waveform
Quality
Pure-Sine Wave, THD < 3%
USB Output
Quick Charge & Type-C
QC3.0 (18W) / PD (140W)
DC Output
Multiple Ports
XT90 (12V/30A), 12V/10A Cigarette Lighter

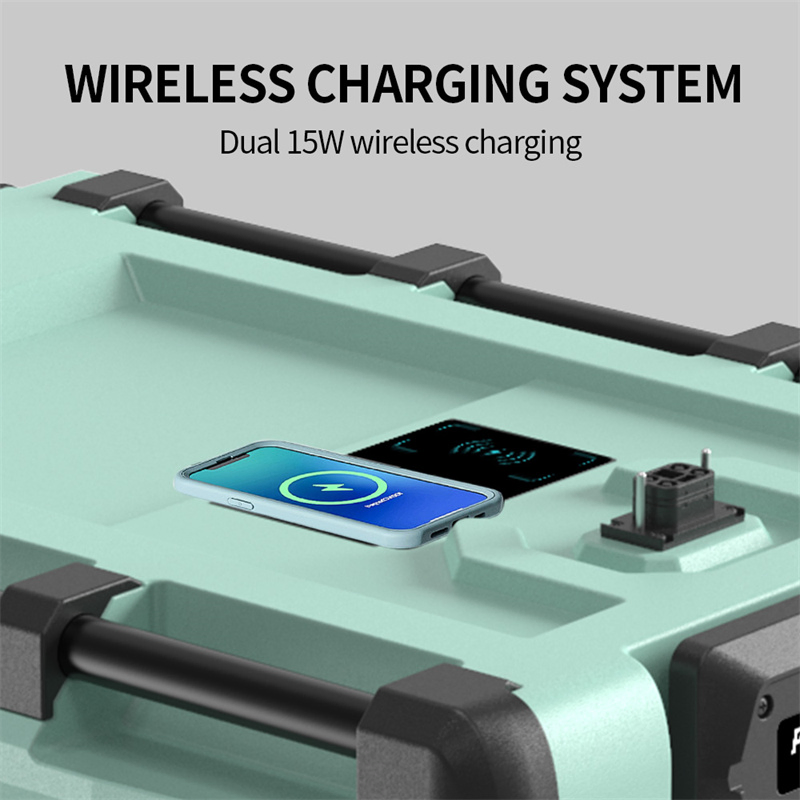

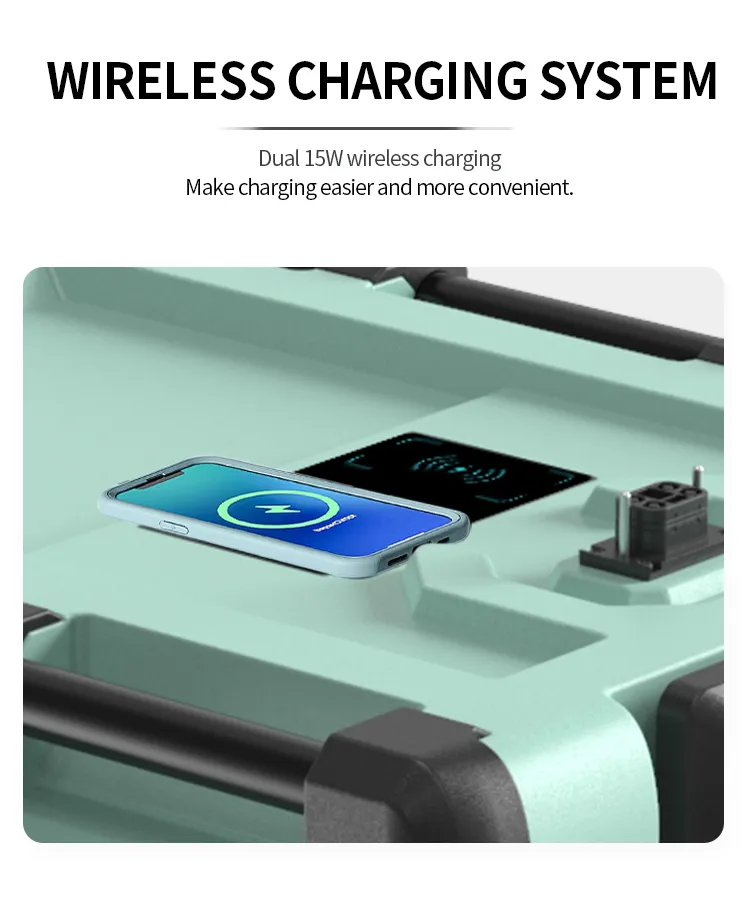

Wireless Charging
Top Mounted
2 × 15W

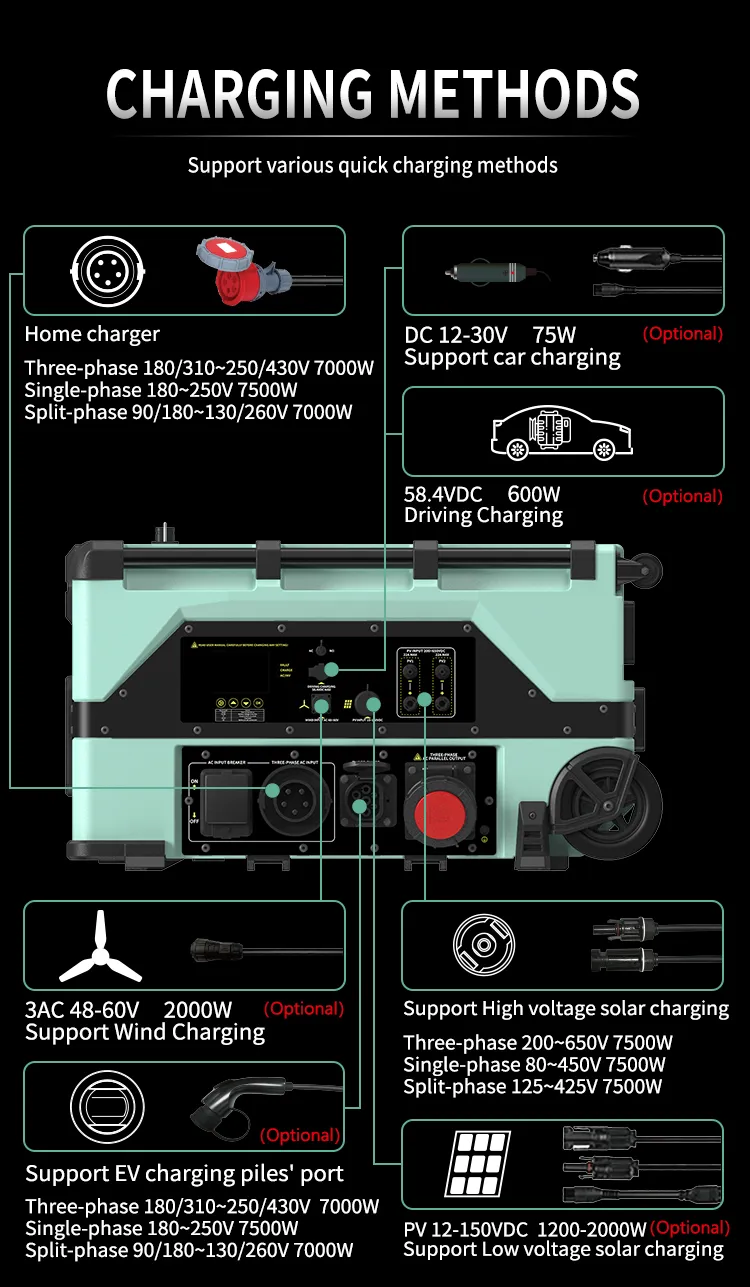

Charging Input
Performance

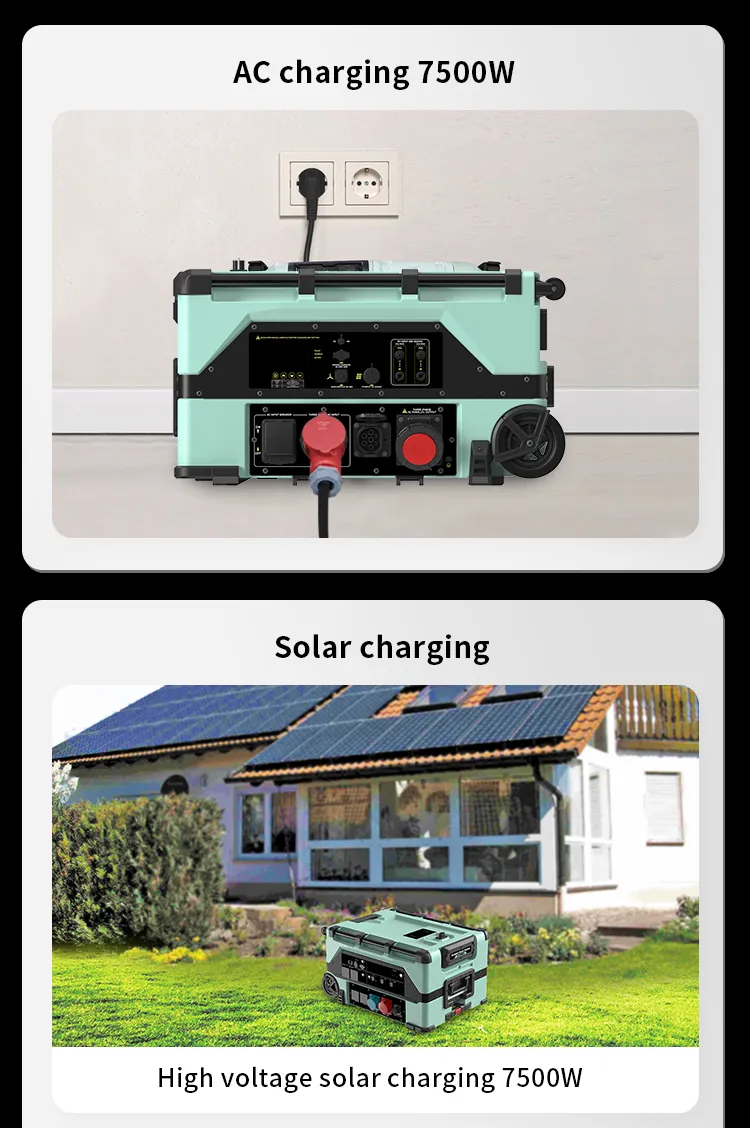

AC Wall / Generator
Fast Charging
Max. 7500W (Approx. 70 mins to full)

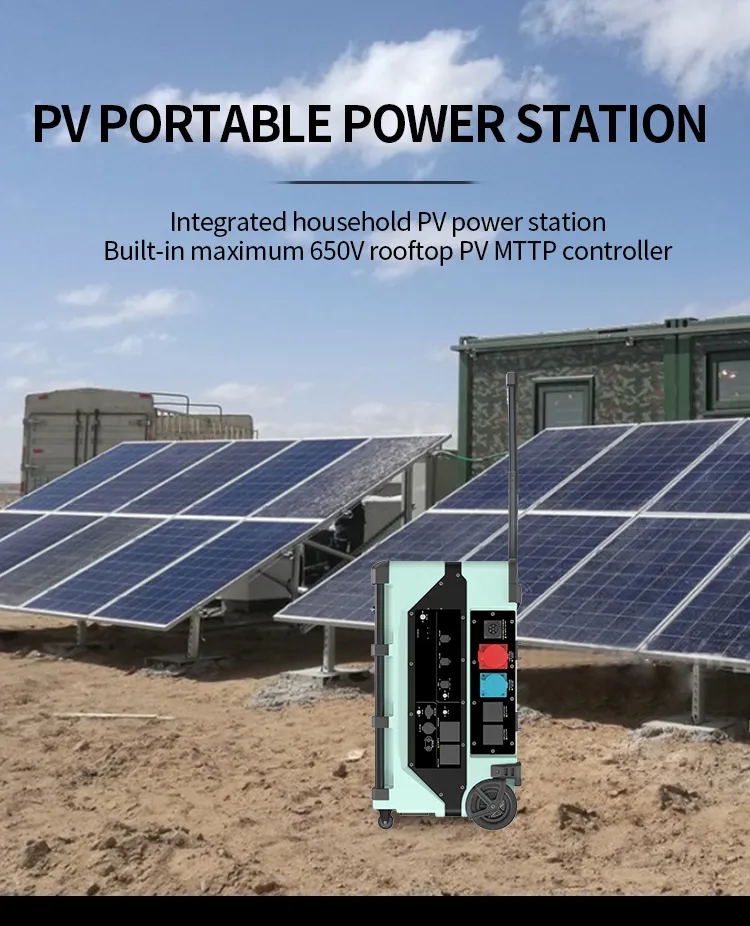

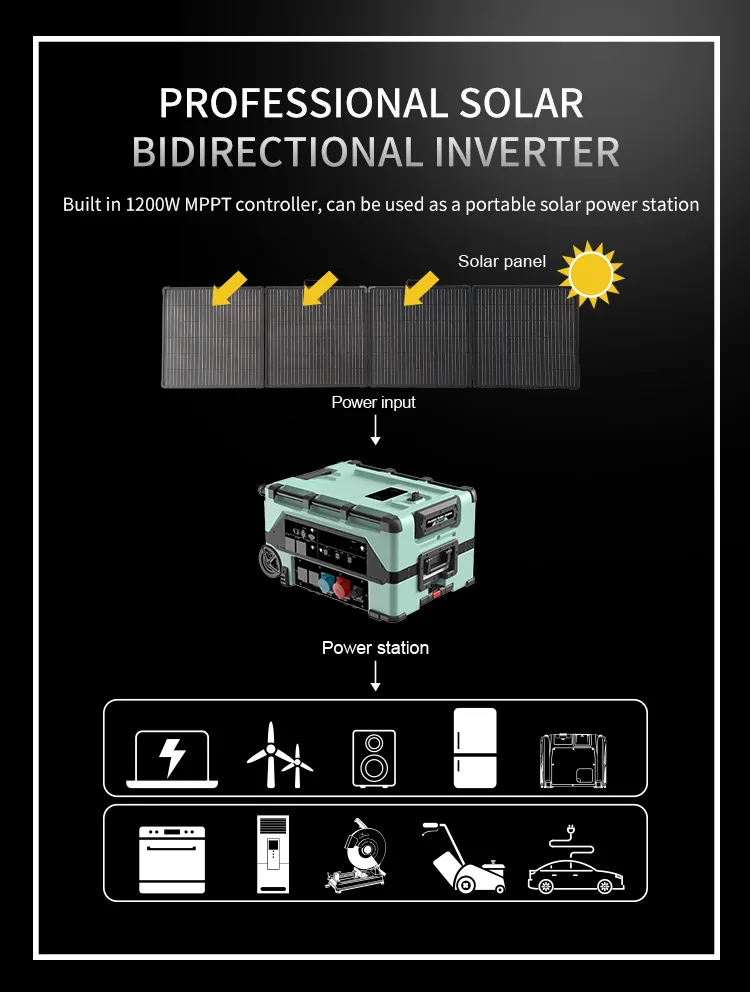

High-voltage Solar
MPPT Control
Max. 7500W to battery (Approx. 70 mins)

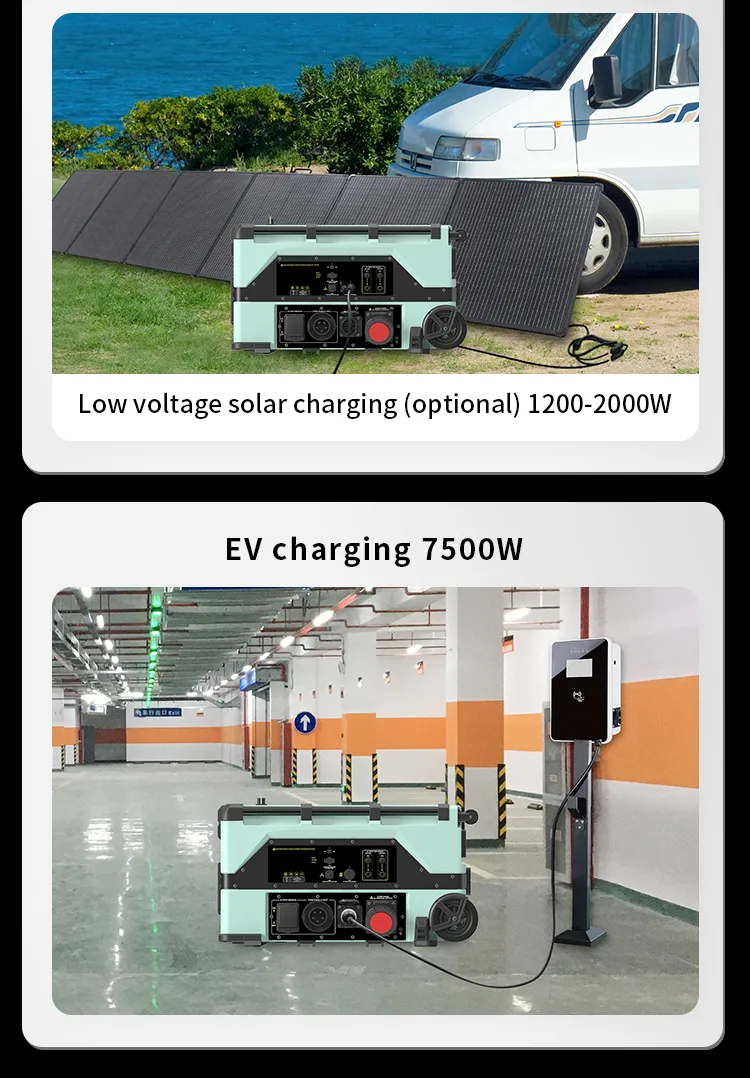

Low-voltage Solar
XT60 Port
Max. 1200~2000W
EV Charger Input
Type 2 / Type 1 / GB/T
Max. 7500W (Approx. 70 mins)
Wind Charging
Inside Controller
3AC 48~60V, Max. 2000W

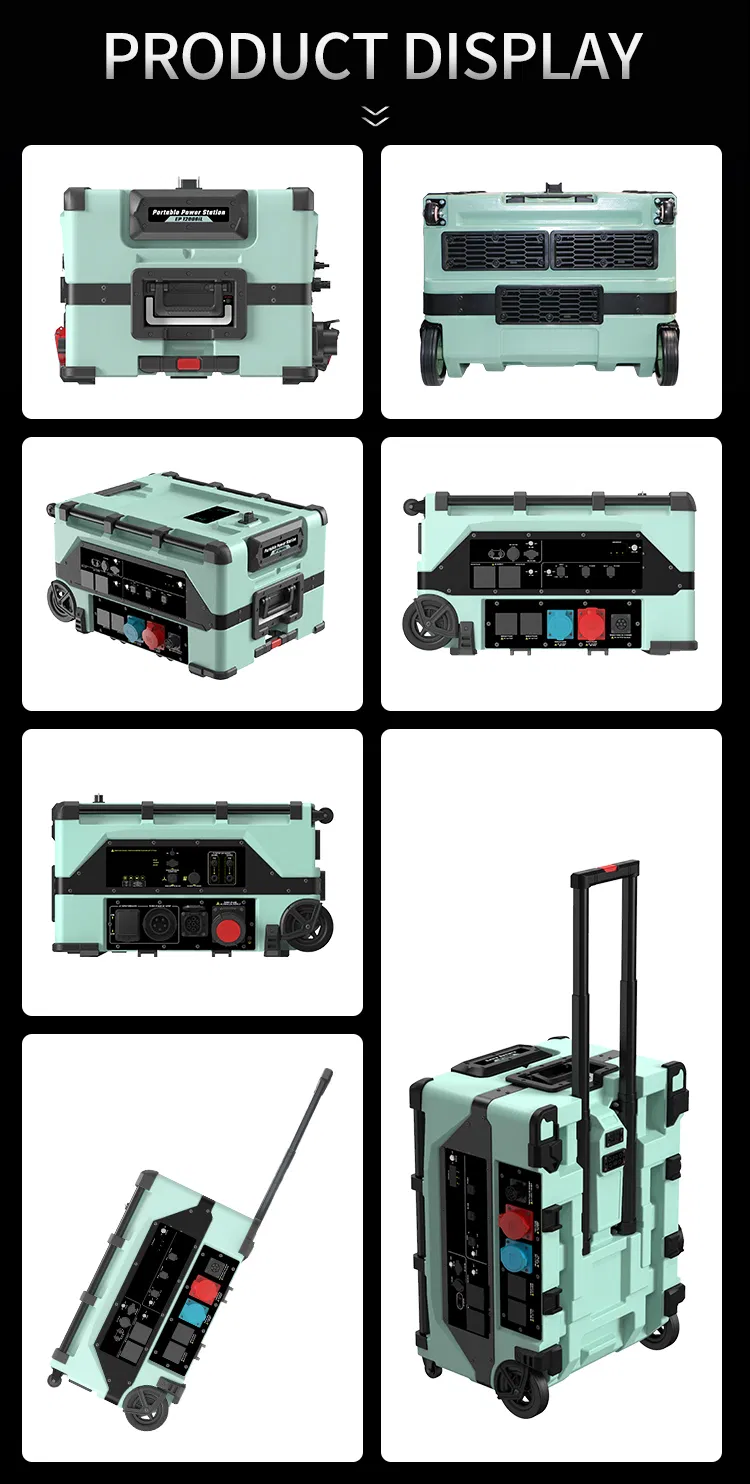

Detailed Product Showcase
Frequently Asked Questions
What is the battery capacity and expansion capability?

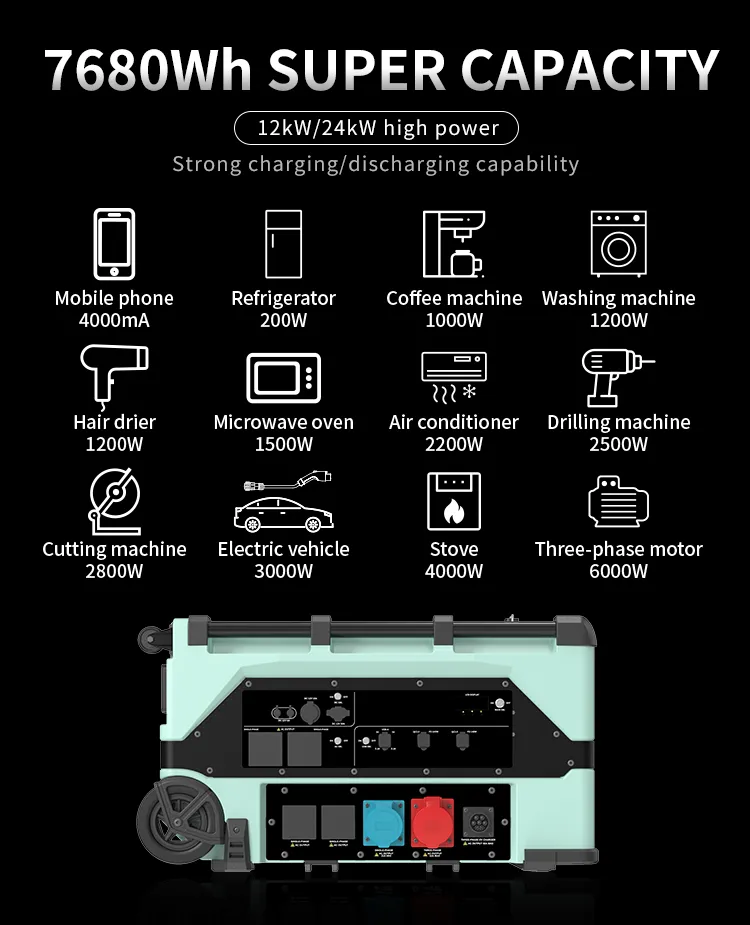

The standard unit features a 7680Wh LiFePO4 battery. It is highly scalable, allowing you to stack up to 31 extra battery packs for a maximum total capacity of 245kWh.
How fast can the system be charged?
Using high-power fast charging methods like AC utility or high-voltage solar, the battery can be fully charged in approximately 70 minutes.
What types of AC output are supported?
The EP12000iL supports Three-phase (12kW), Single-phase (11kW), and Split-phase (10kW) outputs, making it compatible with various industrial and household standards globally.
Can I use this to charge an Electric Vehicle?
Yes, it features a built-in electric vehicle charger that can replace traditional charging stations, supporting EV charging up to 22kW.
Is the unit suitable for outdoor use?
Absolutely. The main unit has an IP53 protection grade, and the battery packs are rated at IP66, providing excellent resistance against dust and water in various environments.

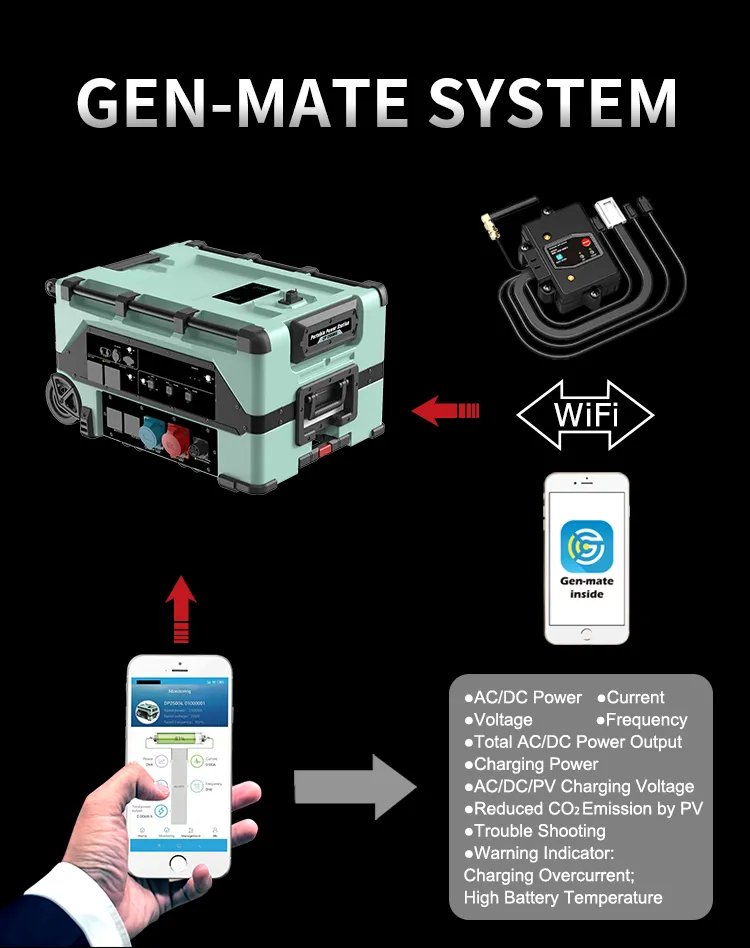

Does the system support remote monitoring?
Yes, the system integrates intelligent control and monitoring which can be accessed through a dedicated smartphone APP.
