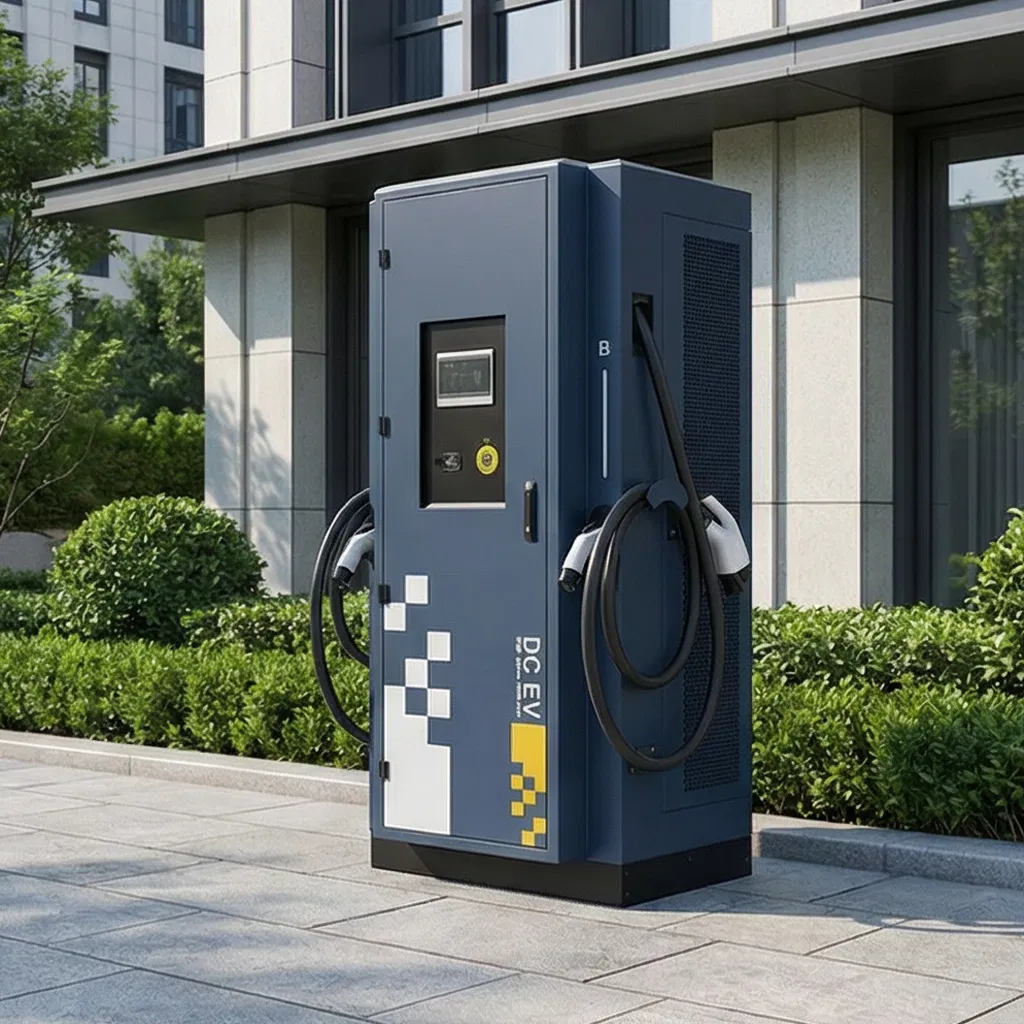

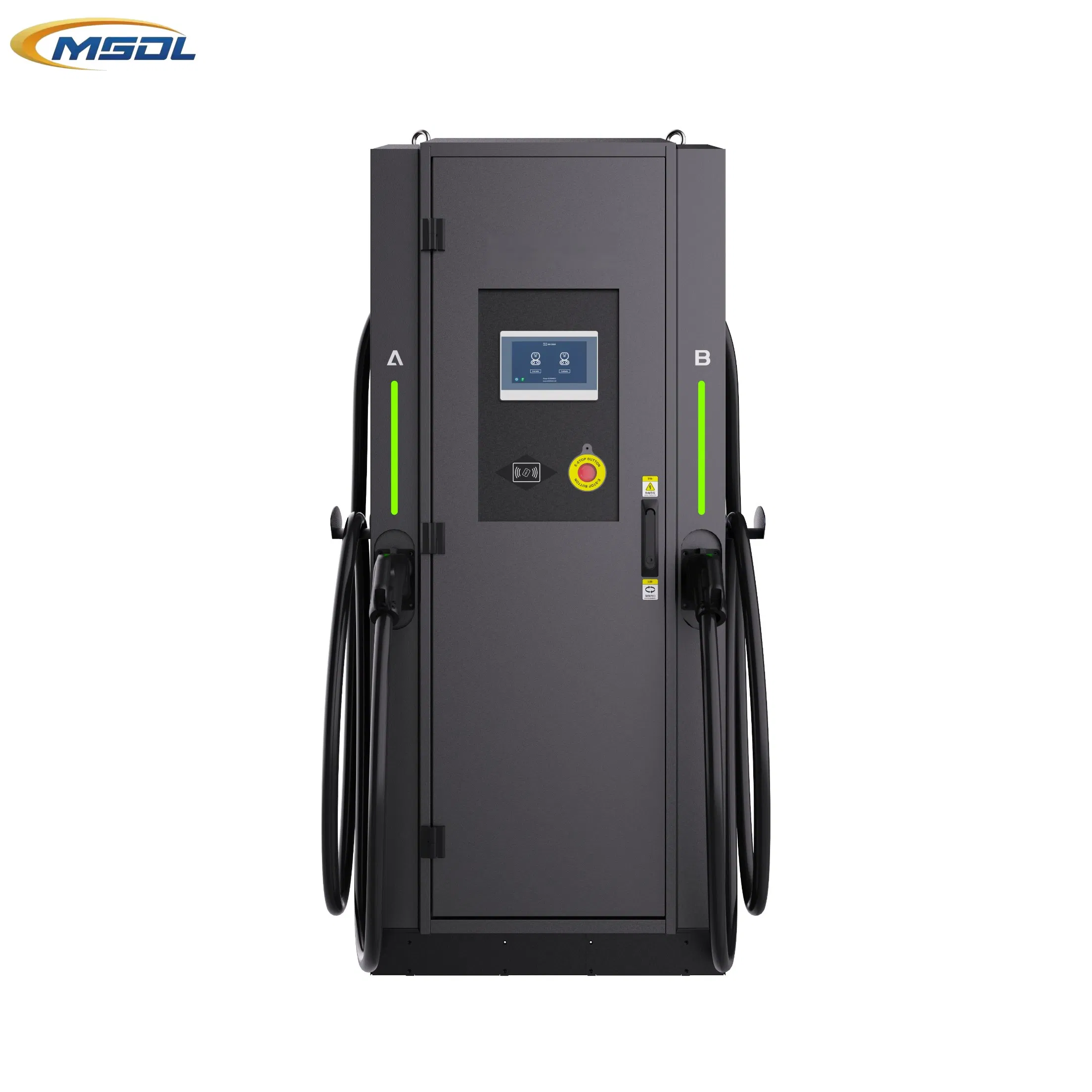

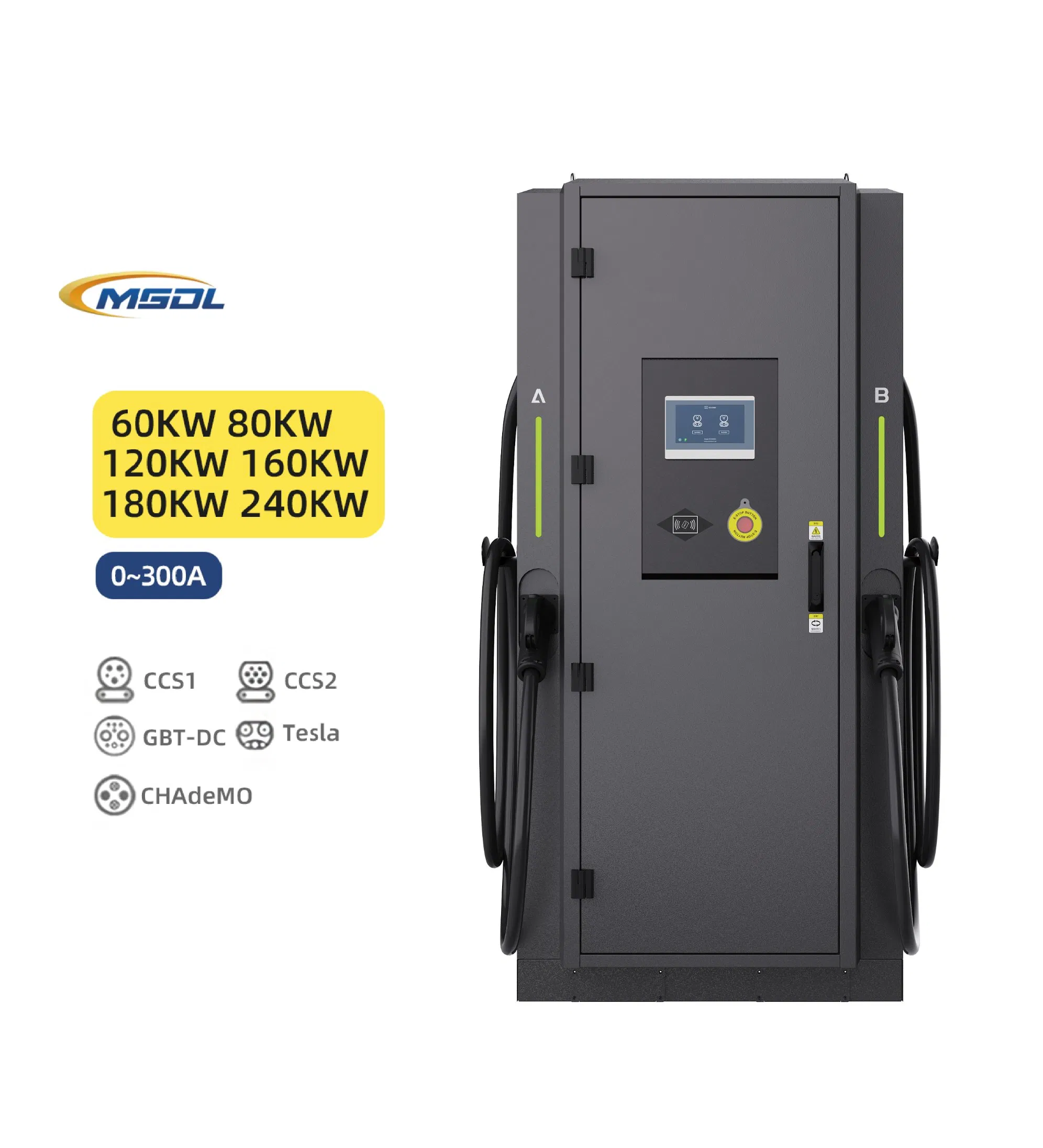

Powerful DC EV Charger Charging Station with 5-7m Cable for Fast Charging

Still deciding? Get samples of $ !
Order Sample

Product Description

🔹 Basic Information
Model NO.
MS08A-10A
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Dimensions
900mm X 700mm X 1900mm
Weight
440kg
Cable Length
5m-7m

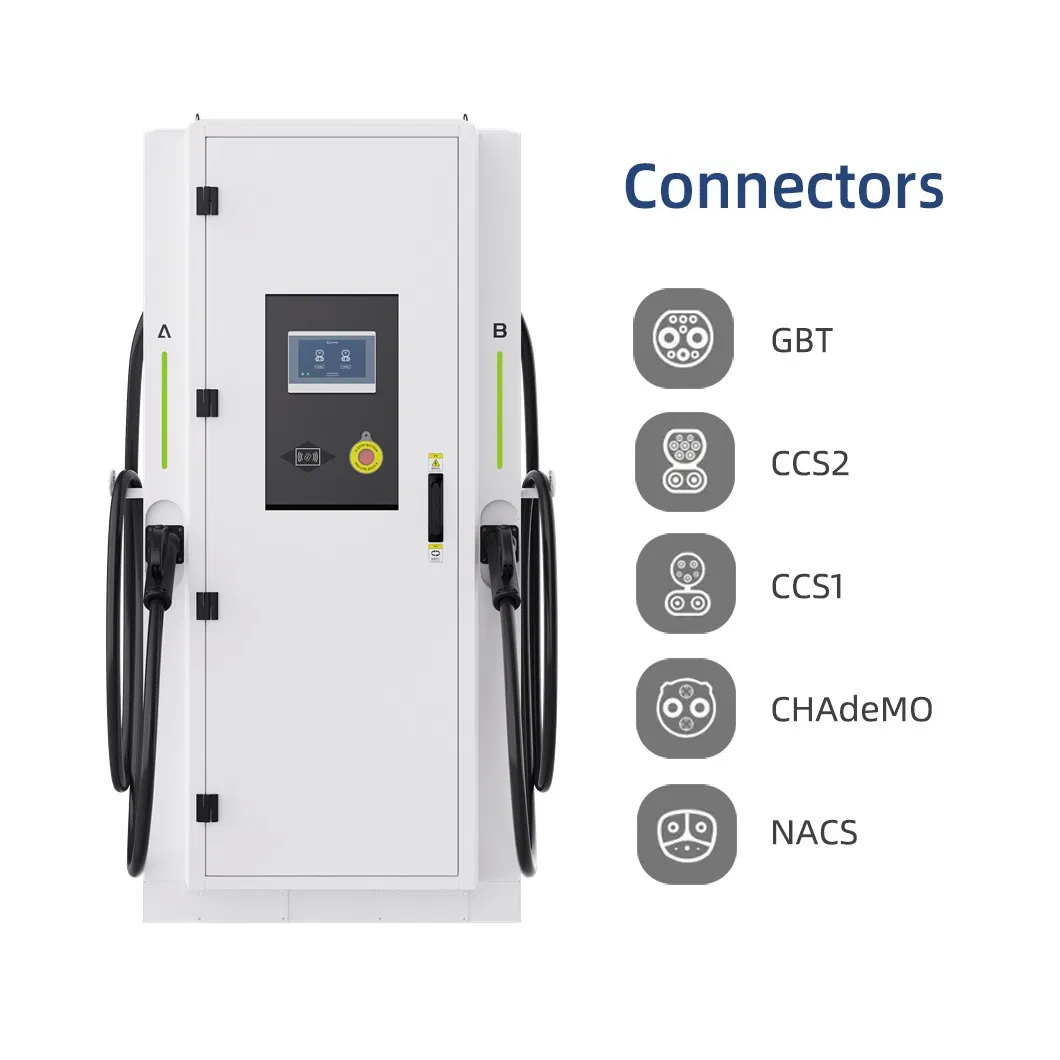

Connectors
Gbt, CCS2, CCS1, Chademo, Nacs
Input Voltage
400VAC / 480VAC (3p+N+PE)
Output Voltage
200 - 1000VDC
Rated Power
240-480kw
Protection
IP54 IK10
DC EV Charger Charging Station
🚀 Product Description
240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Next-Generation Ultra-High-Performance DC Charging Station: Empowering the Future of Heavy-Duty Electrification. As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent. Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet this era's demands.

Functional Aesthetics: The overall form is bold and steady, with a rugged and resolute style. Clean, sharp lines and distinct angular contours exude industrial strength. Whether installed at busy highway supply stations or deployed in complex environments like mines and ports, it exudes professional, reliable industrial character.

Modular Architecture: This product adopts a forward-thinking modular and highly scalable design. It comes standard with 12 high-efficiency power module slots. Its power capacity offers exceptional scalability, smoothly expanding up to an impressive 480kW.

📊 Technical Specifications
Category Parameter Details
Electrical Efficiency Peak efficiency ≥ 96%
Power Factor > 0.99
Output Current 1-600A
Design Display 7’’ LCD with touch screen
Access Control RFID: ISO/IEC 14443A/B | POS machine (Optional)
Cooling Air Cooled
Environment Operating Temp -30°C to 75°C
Altitude < 2000m

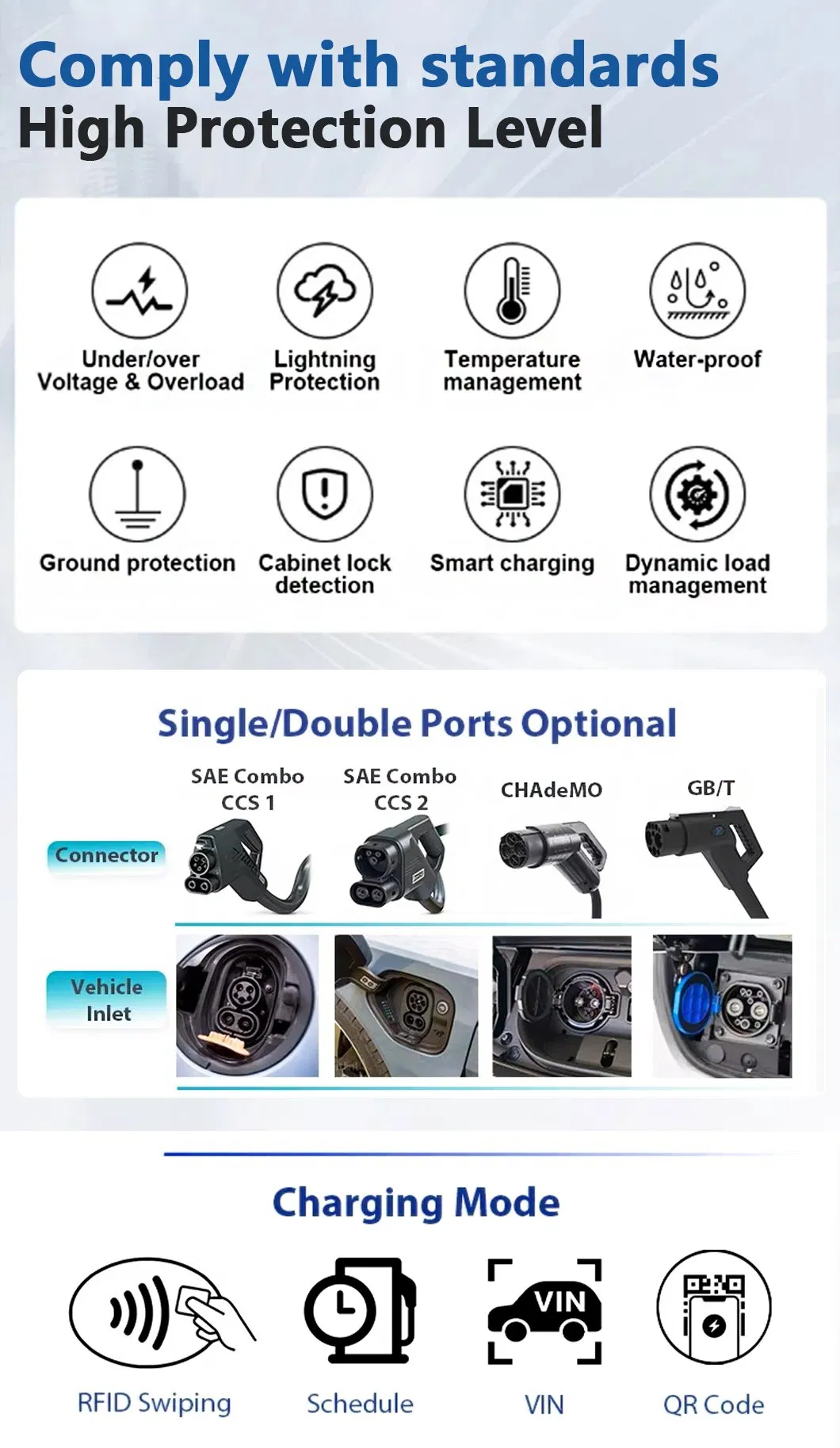

Safety Protections Overvoltage, lightning, overcurrent, leakage, waterproof, Emergency Stop

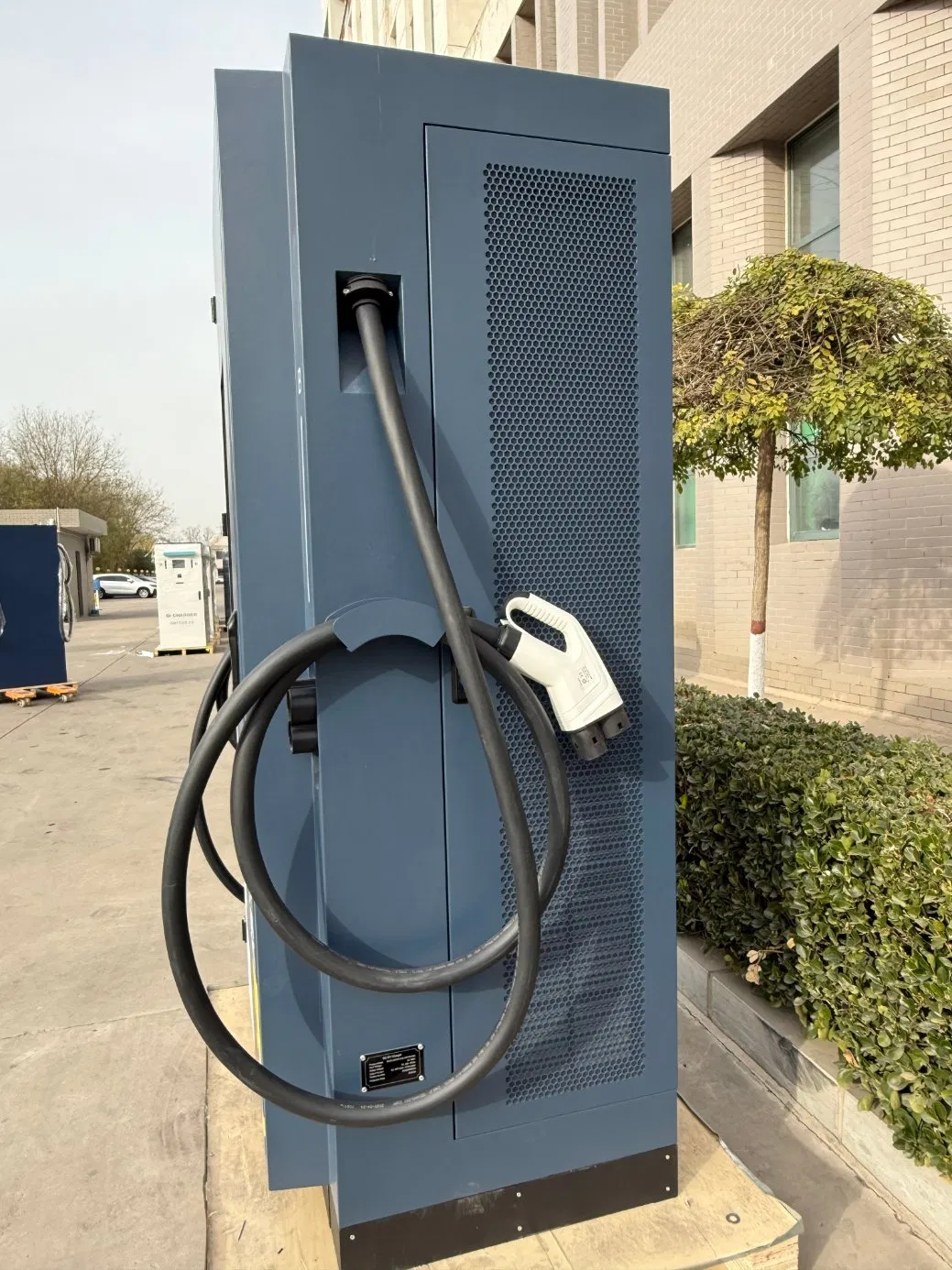

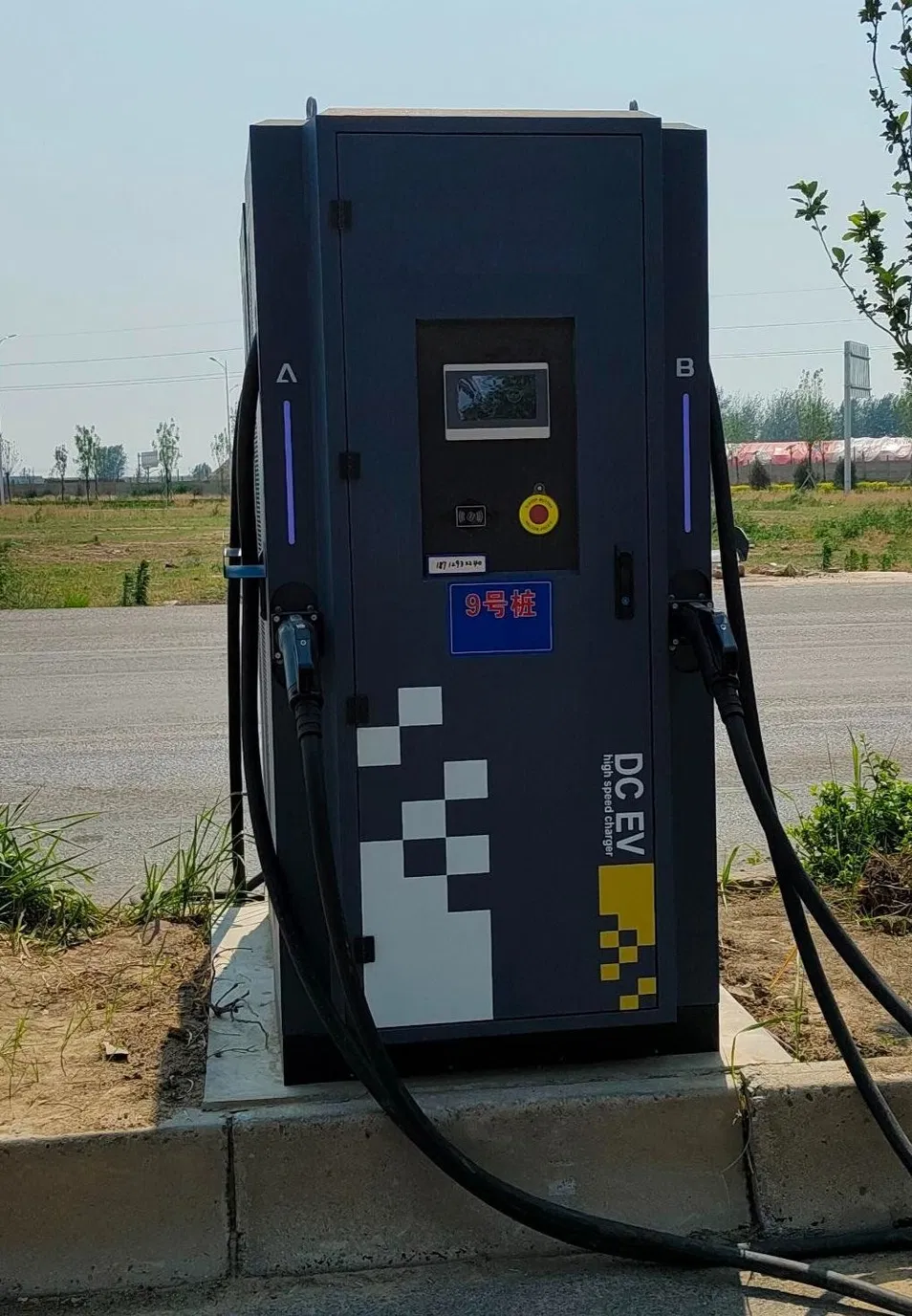

📸 Product Gallery
📦 Packaging & Delivery
Package Size
120.00cm * 95.00cm * 200.00cm
Gross Weight
570.000kg
Package Type
Wooden Case Packaging
❓ Frequently Asked Questions
What is the maximum output power of this station?
The station features a modular design that can be scaled from 240kW up to a maximum of 480kW, making it ideal for heavy-duty electric trucks and commercial fleets.
Which charging connector standards are supported?
It supports a wide range of global standards including GBT, CCS2, CCS1, CHAdeMO, and NACS, ensuring compatibility with almost any electric vehicle.
Is this charger suitable for extreme weather conditions?
Yes, it is designed to operate in temperatures ranging from -30°C to 75°C and features an IP54 ingress protection rating with IK10 impact resistance.

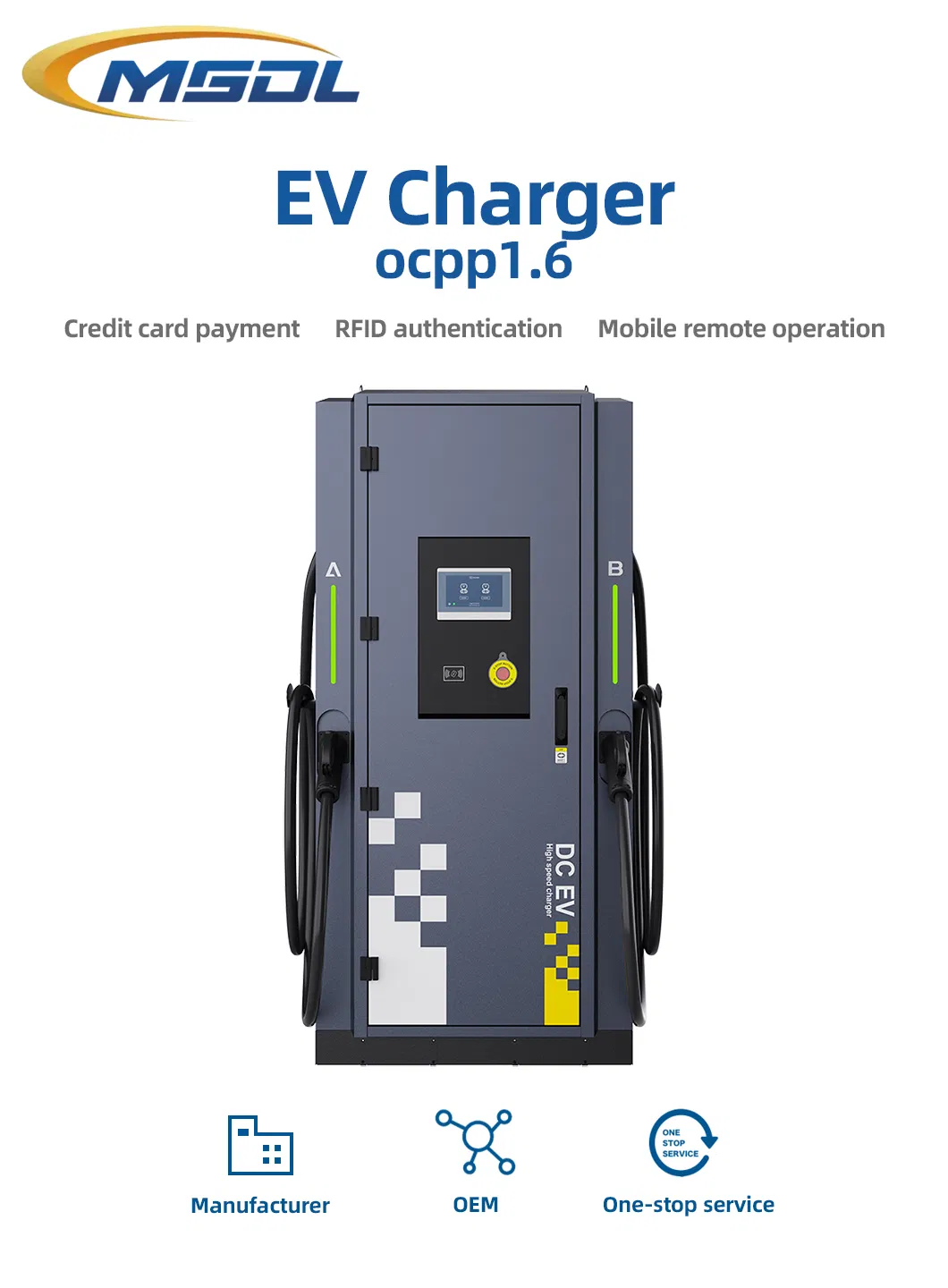

What payment and access methods are available?
Users can initiate charging via RFID cards, mobile remote operation, or an optional POS machine for credit card payments.
What safety features are integrated into the system?
The unit includes comprehensive protection against overvoltage, lightning, overcurrent, and leakage, as well as an emergency stop button for immediate power disconnection.
Does the station support smart operation platforms?
Yes, it uses the standard OCPP protocol, allowing it to connect seamlessly with various charging network operation platforms.
