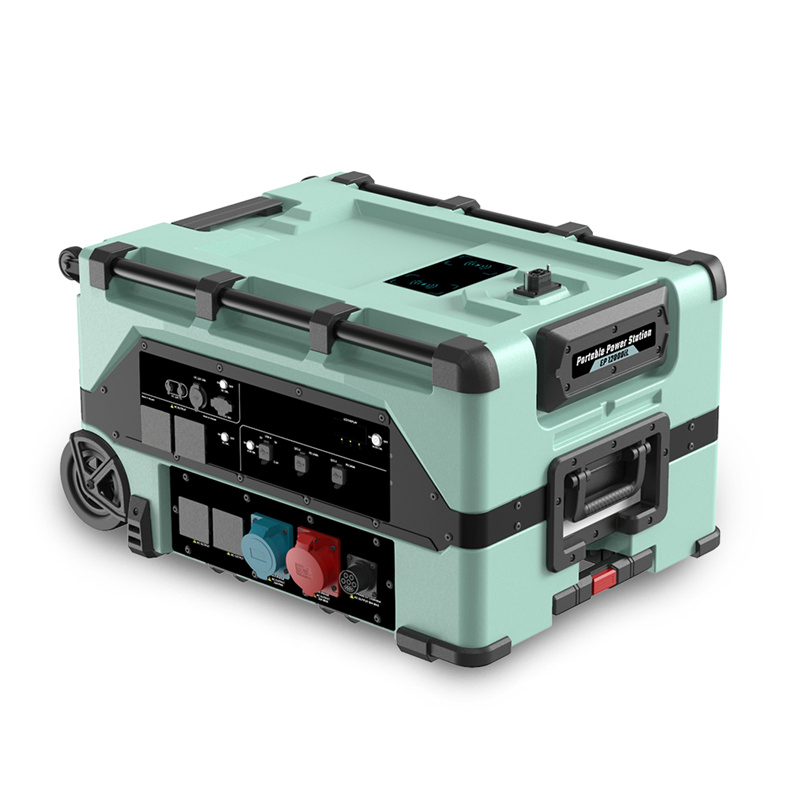

Portable Solar Power System Home Energy Storage System

1 / 5

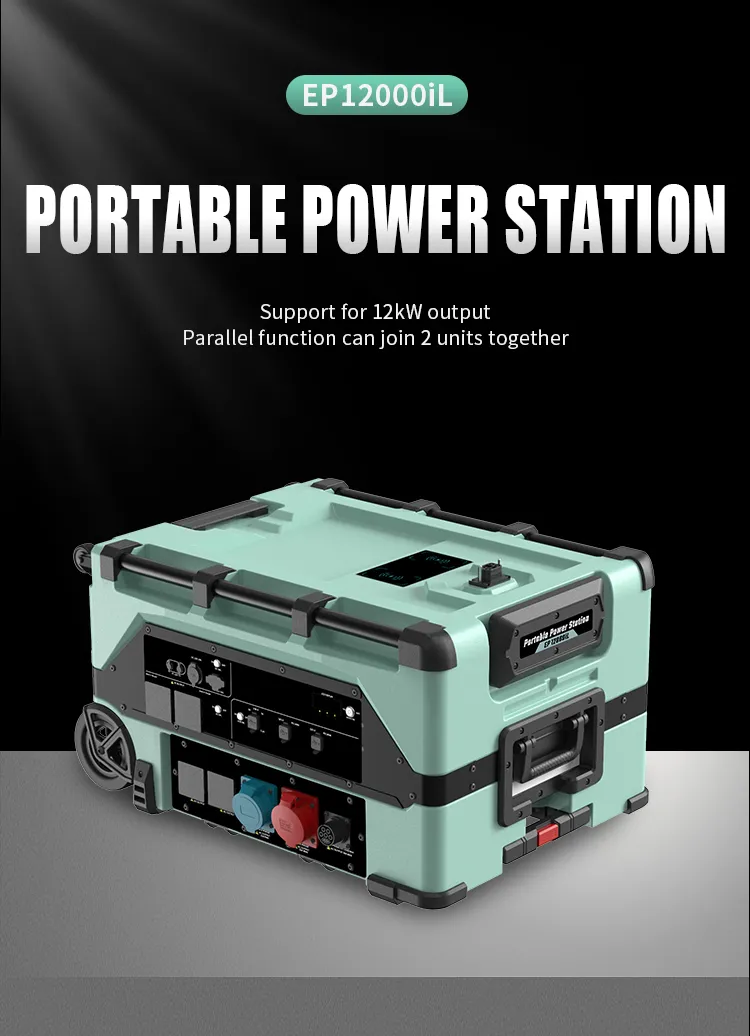

Portable Solar Power System Home Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

EP12000il

Cycle Life

3000

Nominal Capacity

7680Wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kWh

Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

Portability

Drawbar & Wheels

Dimensions

840X670X490mm, 110kg

⭐

Product Advantages

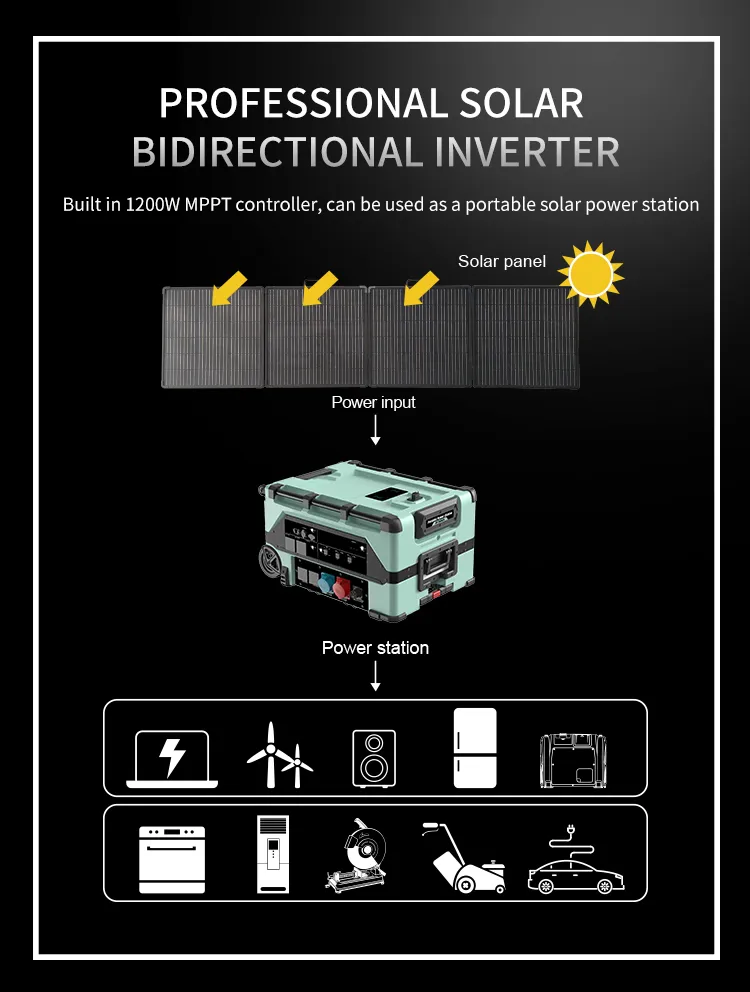

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter.
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
Support various fast charging: Utility, High/Low-voltage solar, EV charger, Driving car, AC generator and Wind turbine.

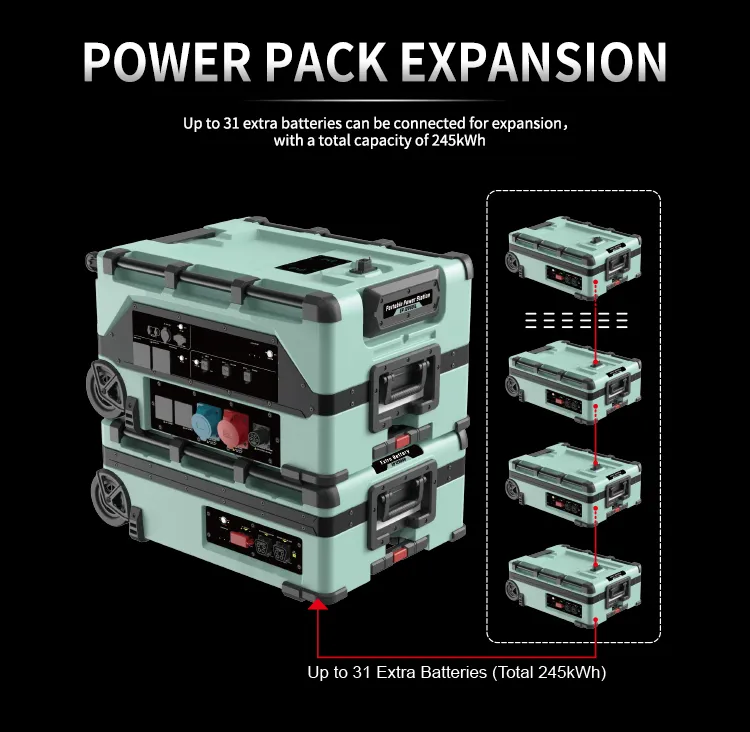

Expandable capacity: Up to 31 extra batteries can be stacked for a total of 245kWh.

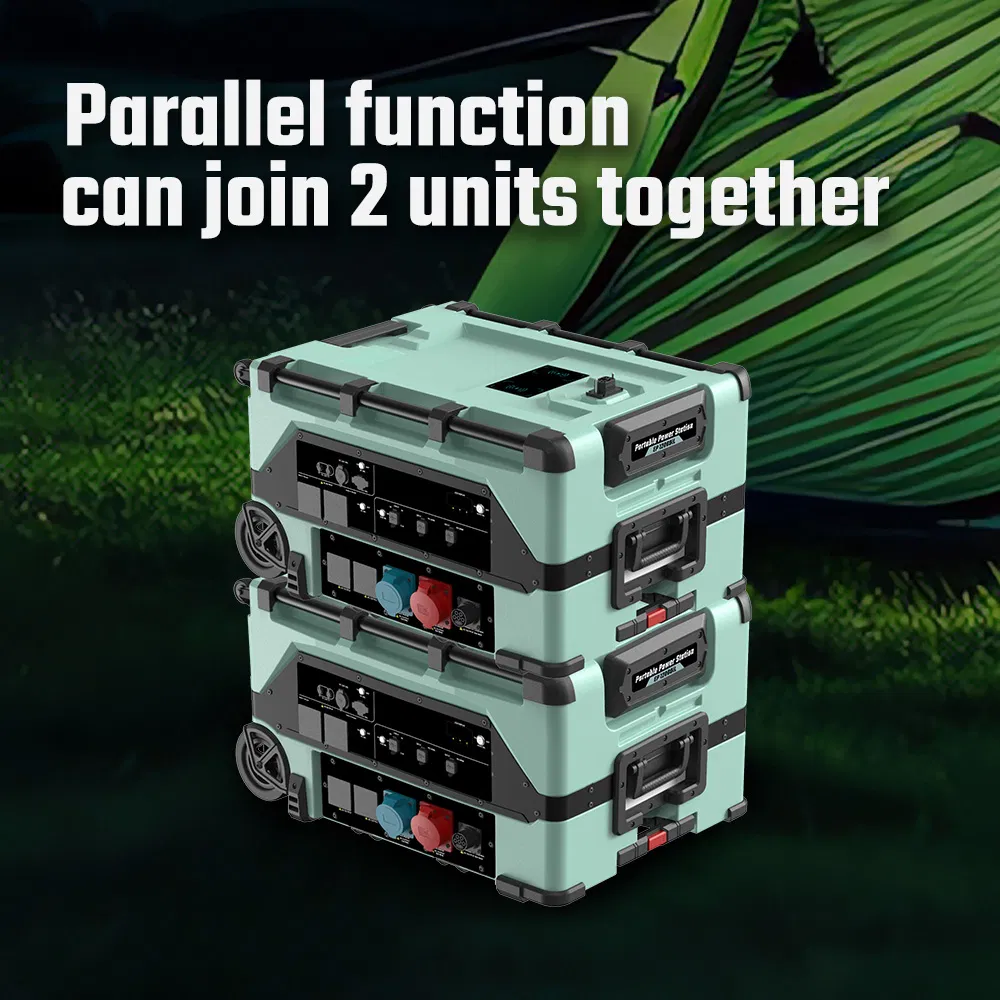

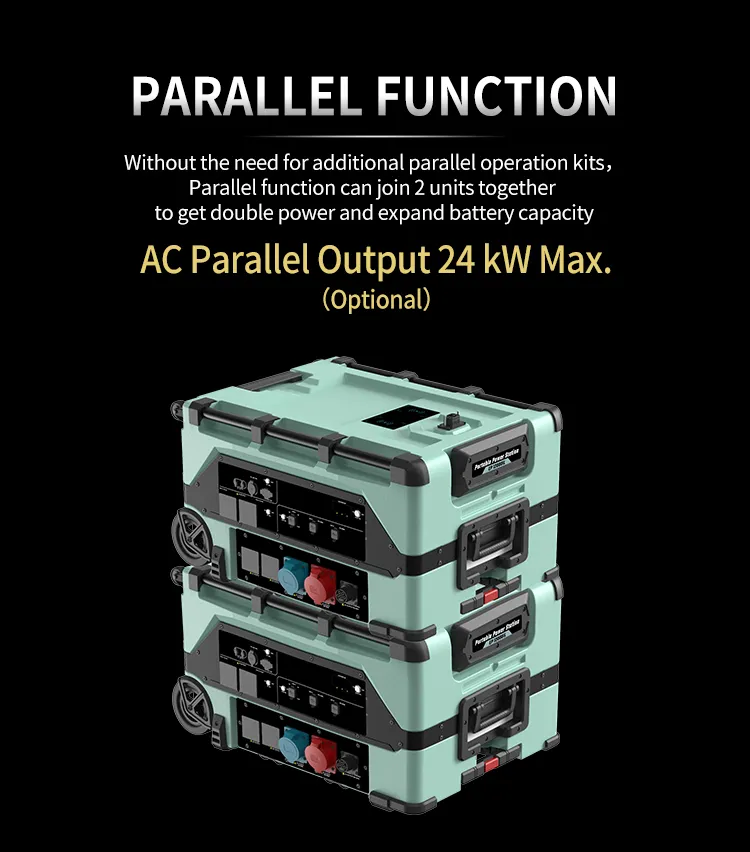

Parallel technology: Join 2 units for 24kW continuous output.
Built-in EV charger: Replace charging stations to charge cars up to 22kW.
Switchable four-wheel chassis and large-diameter wheels for easy transport.
High protection grade: Unit IP53 and Battery Pack IP66.
Patented dual channel cooling system for optimal performance.
Integrated handles and anti-collision rubber pads in all directions.
V-0 level flame-retardant and fire-resistant casing.

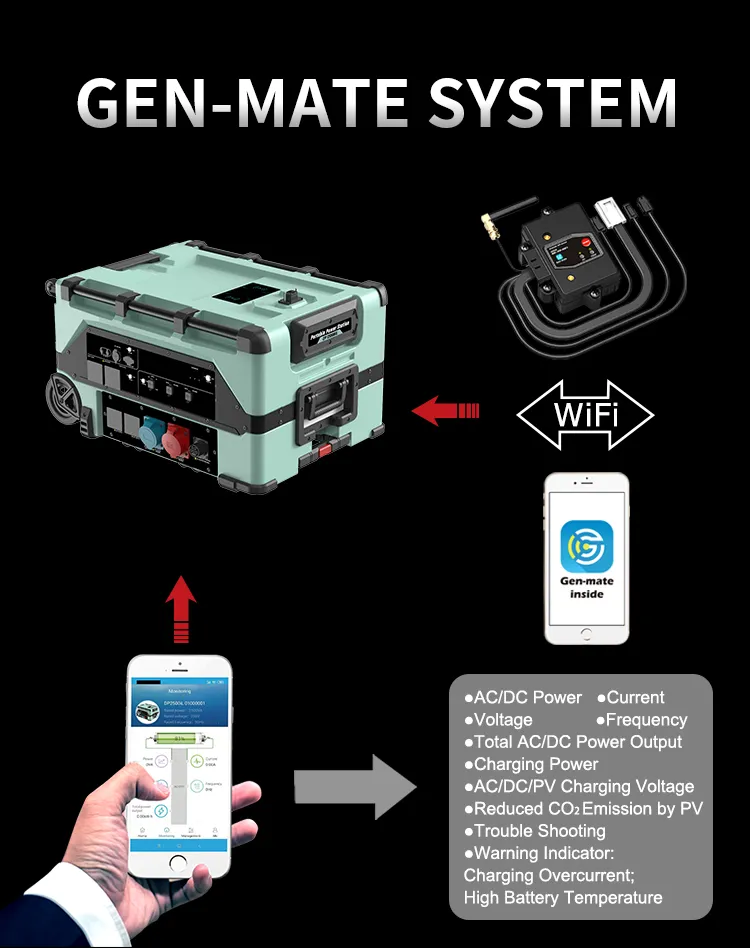

Intelligent control and monitoring via smartphone APP.
Conformed to EU and US security certifications.
Premium quality with a 5-year warranty.

⚙️

Technical Parameters

AC Output Specifications		Details
Rated Power	Three-phase	12000VA @ 220~415V
	Single-phase	11000VA @ 220~240V
	Split-phase	10000VA @ 100~240V

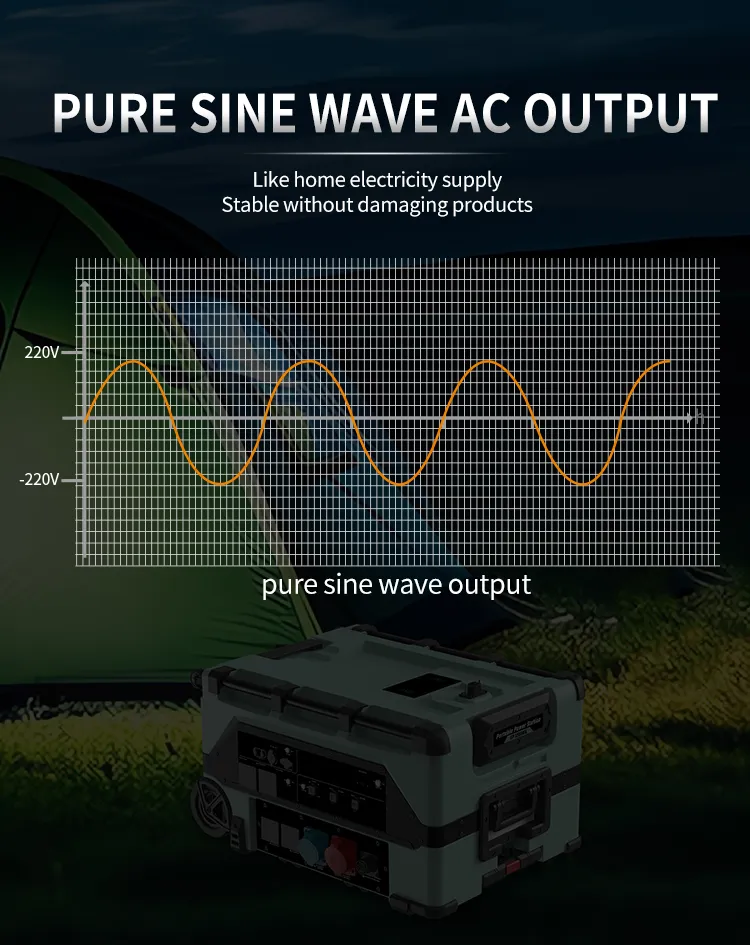

Output Waveform		Pure-Sine Wave, THD < 3%
Rated Frequency		50/60Hz

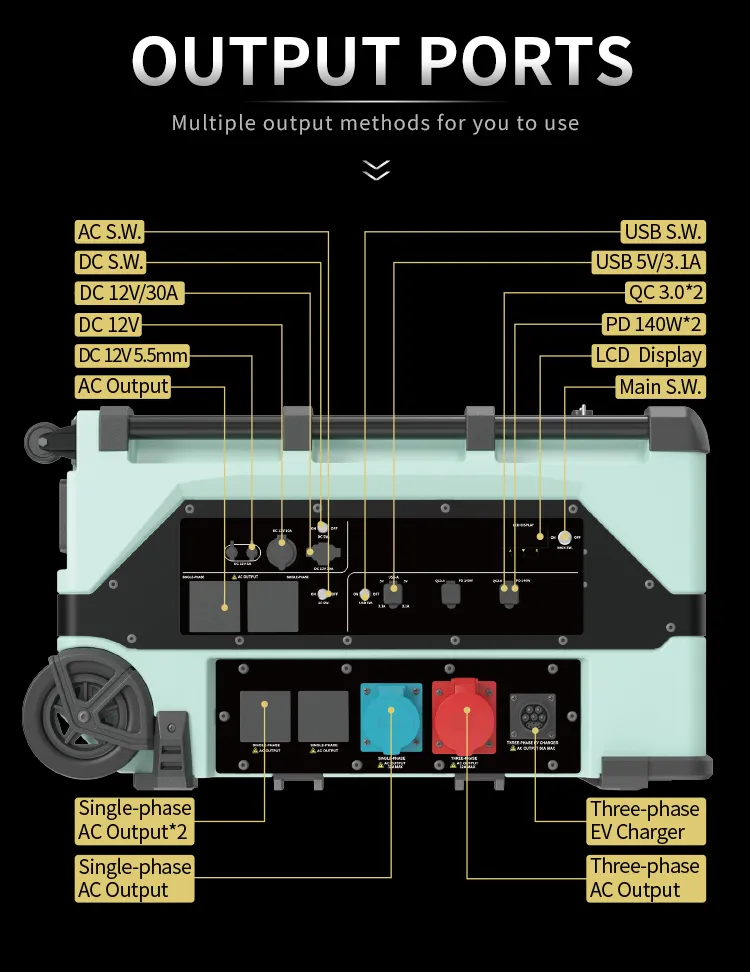

DC Output Port	Specification
XT90 (×1)	12V/30A
Cigarette Lighter Port	12V/10A
USB QC3.0 (×2)	18W Max
Type-C PD 140W (×2)	28V/5A Max

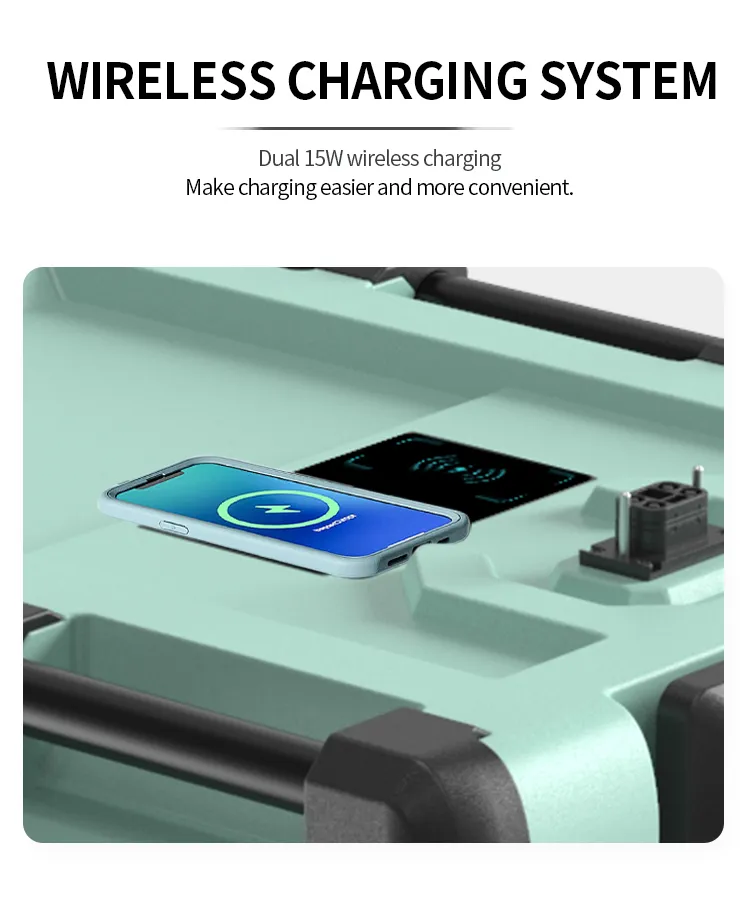

Wireless Output (×2)	15W Each

📸

Detailed Photos

🔌

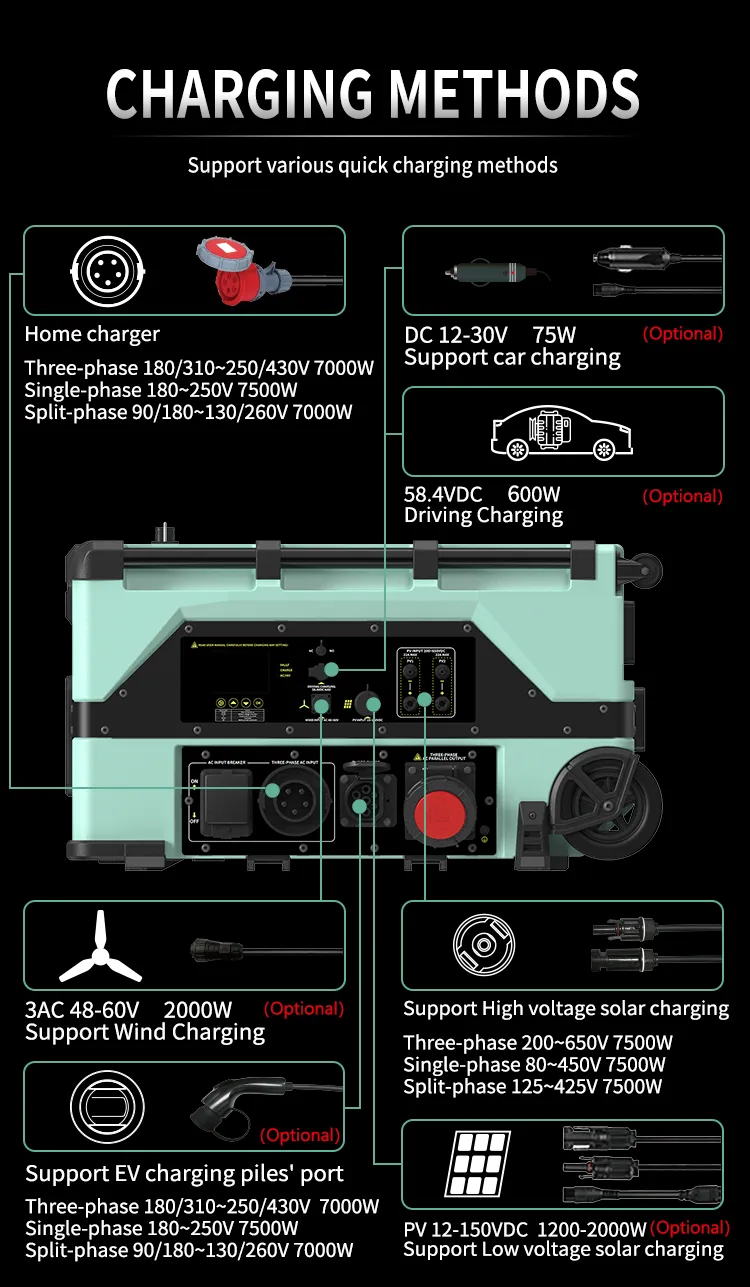

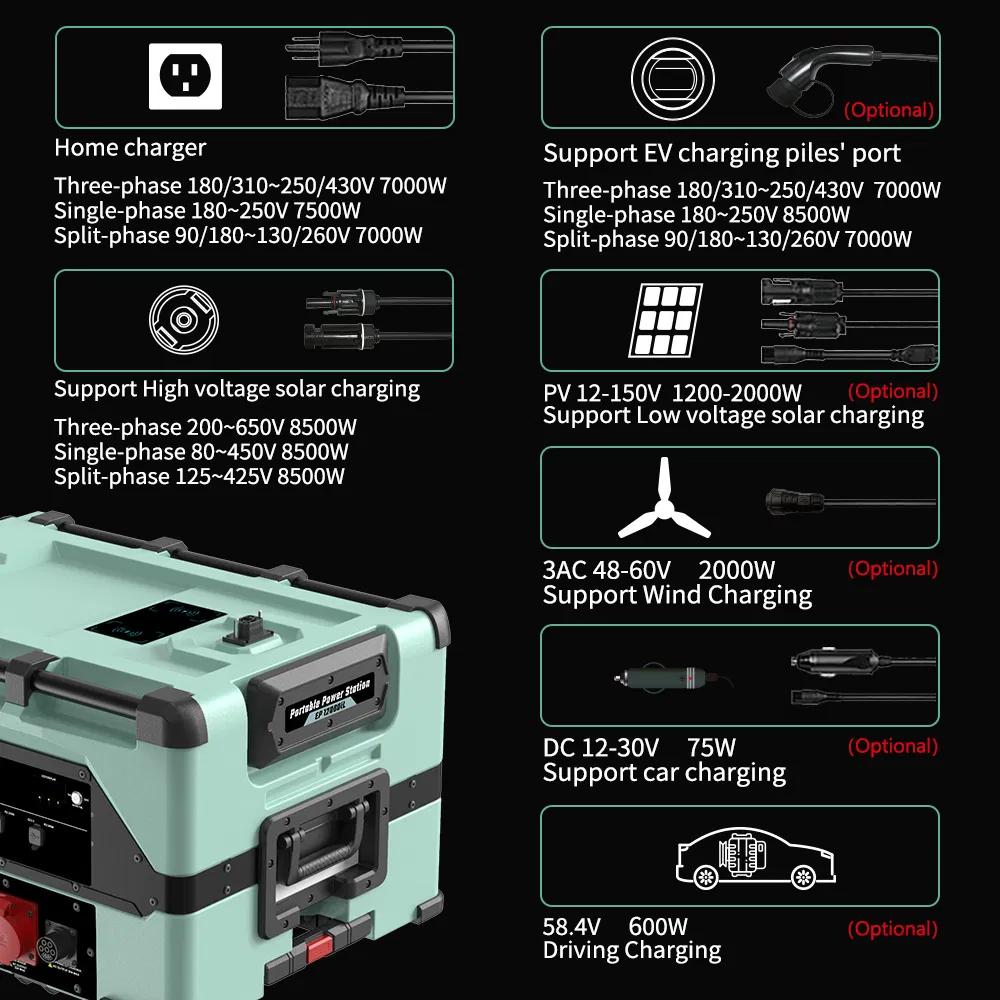

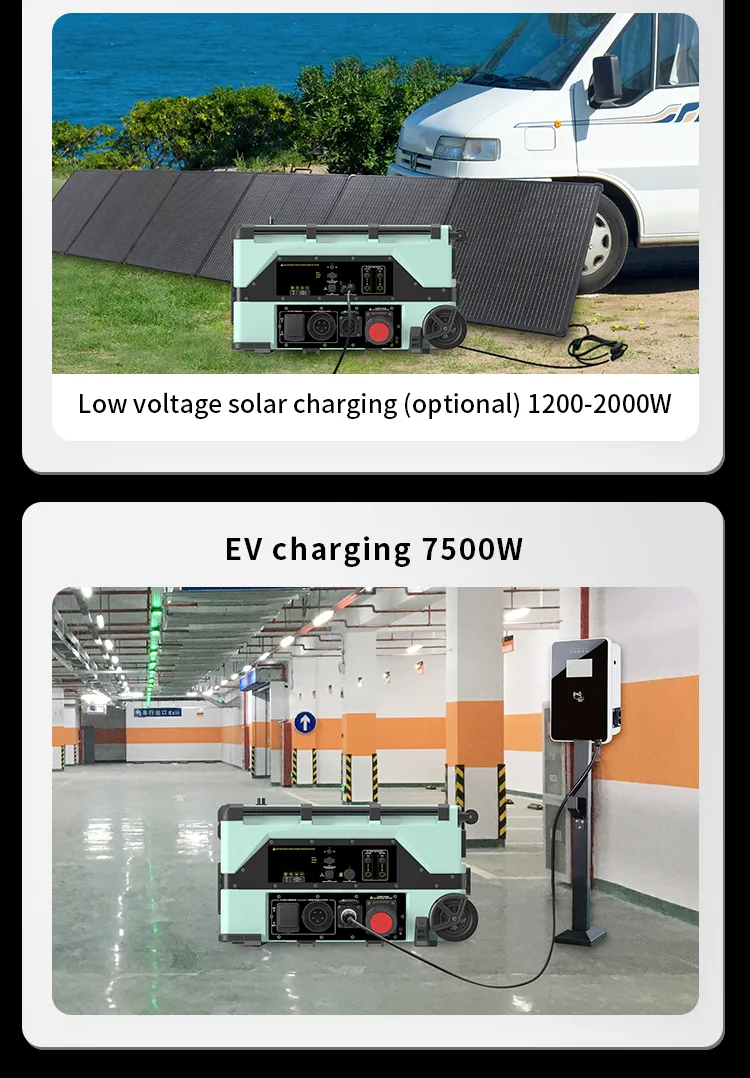

Charging Input Options

Method	Input Specs	Charging Time

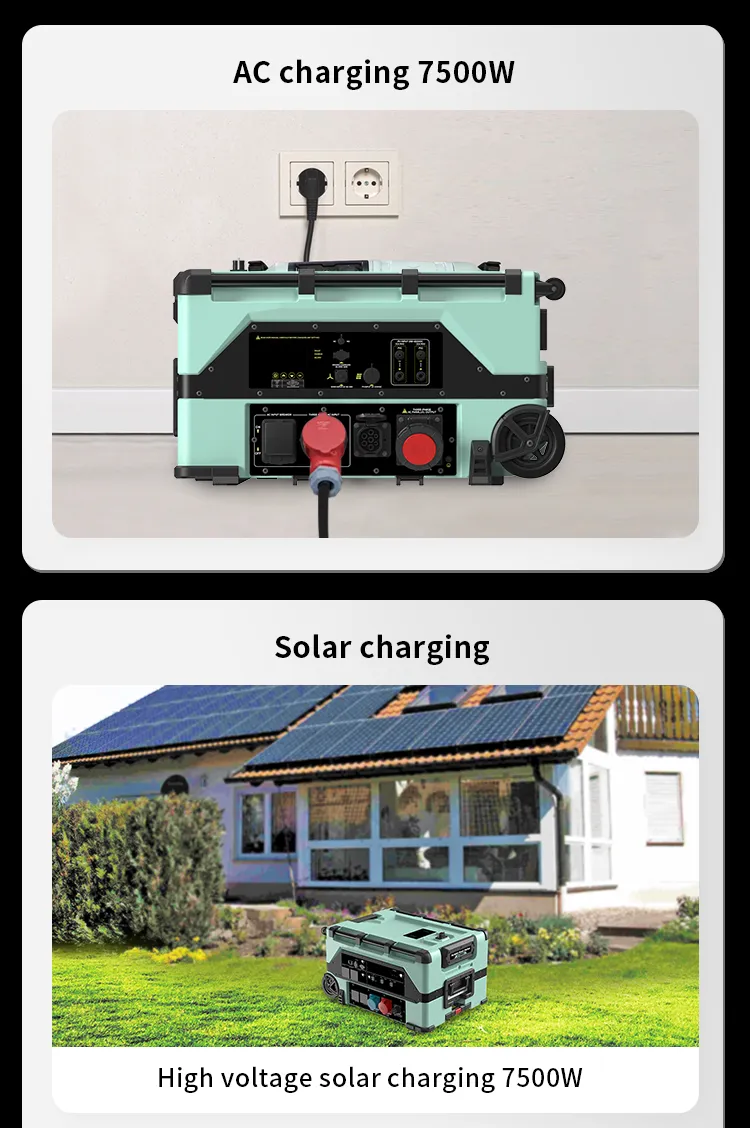

AC Wall/Generator	180~250VAC, 7500W Max	70 Minutes
High-voltage Solar	200~650VDC, 7500W Max	70 Minutes
EV Charger (Type 2/1)	180~430VAC, 7500W Max	70 Minutes
Wind Turbine	3AC 48~60V, 2000W Max	4 Hours

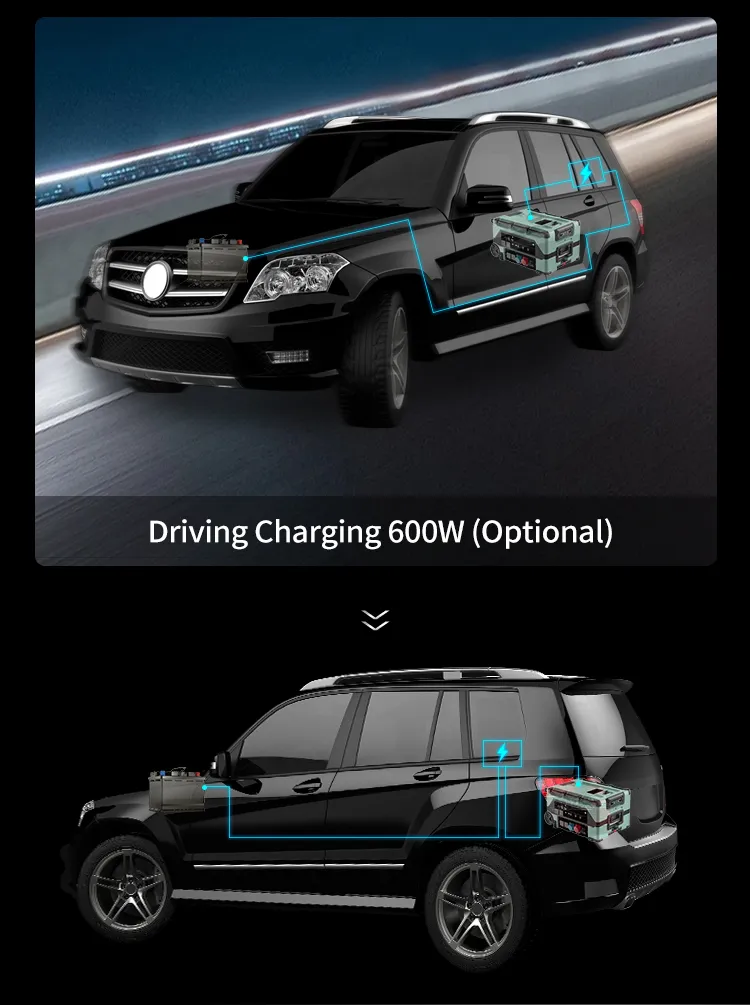

Driving Charging	58.4VDC, 600W Max	13 Hours

❓

Frequently Asked Questions

What is the maximum expandable capacity of this system?

The system is highly scalable. You can stack and connect up to 31 extra battery packs, reaching a massive total capacity of 245kWh.

How fast can the EP12000il be fully charged?

Using high-power AC or solar charging methods, the unit can be fully charged in as little as 70 minutes.

Can I use this system to charge my electric vehicle?

Yes, it features a built-in electric vehicle charger that can replace traditional charging stations, supporting car charging up to 22kW.

What kind of output does it support for home appliances?

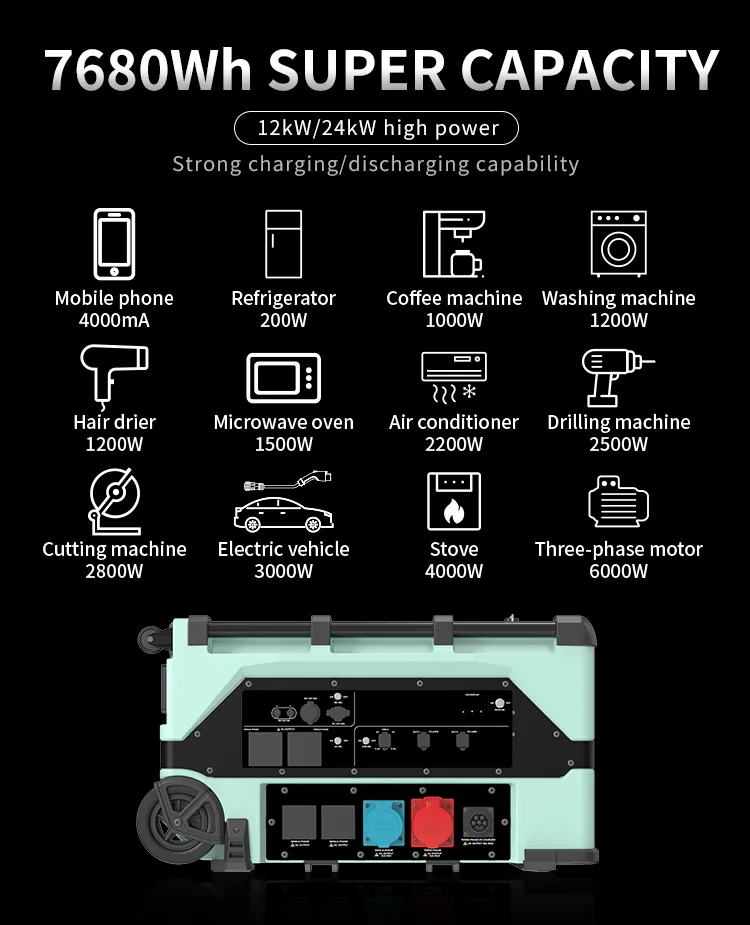

It supports 12kW continuous output for AC three-phase, 11kW for single-phase, and 10kW for split-phase, making it suitable for almost all household and industrial tools.

Is the system weather-resistant for outdoor use?

The main unit has an IP53 rating and the battery packs are IP66 rated, providing excellent protection against dust and water for outdoor environments.

What is the warranty and battery life expectancy?

The product comes with a 5-year warranty. The LiFePO4 battery is rated for over 3000 cycles to 80%+ capacity, ensuring long-term reliability.
