Pantograph EV Charging System for Electric Bus & Depot Charging

Basic Information

Model NO.

QSCDZ

Rated Current

2A; 63A; 100A; 200A; 300A

Rated Power

7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw

Protection Grade

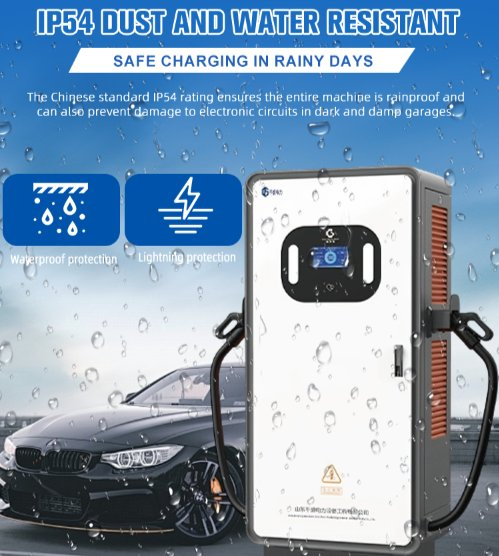

IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor)

Service Life

8 Years; 10 Years

Charging Type

AC Charging; DC Charging; AC&DC Integrated Charging

Charging Efficiency

≥93% (AC Charger); ≥95% (DC Charger)

Power Factor

≥0.95 (Rated Load); ≥0.92 (Light Load)

Product Description

Advanced Charging Pile Solutions

Flexible Expansion & Wide Compatibility
Certified Safety & Rock-Solid Reliability
Effortless Operation & Low-Maintenance Design
Consistently Stable Performance for Efficient Charging

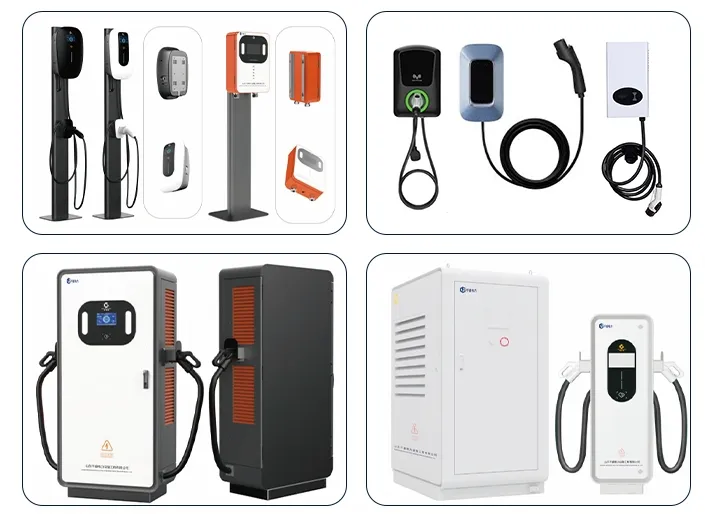

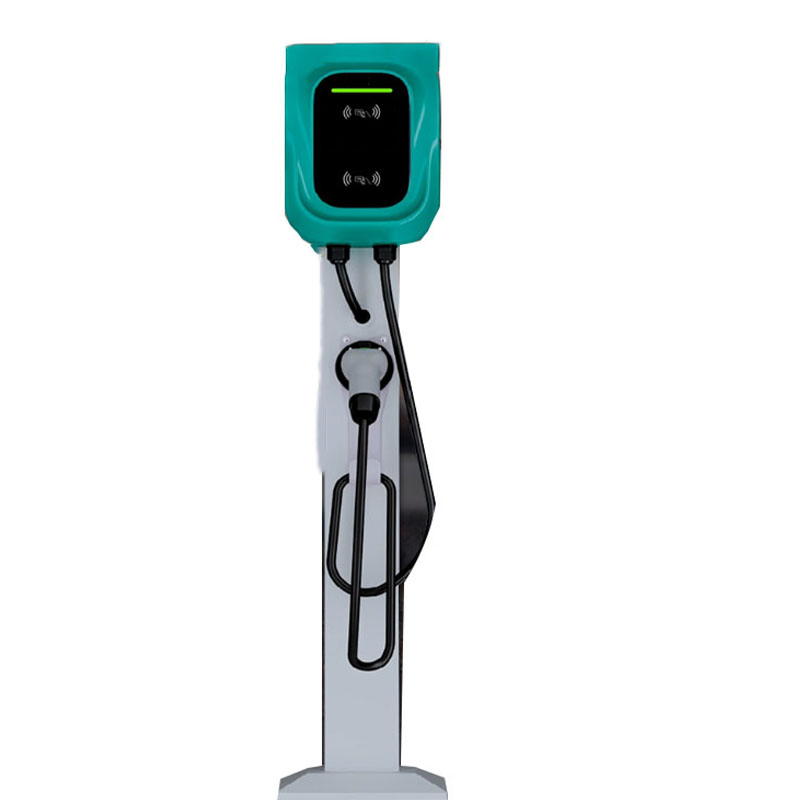

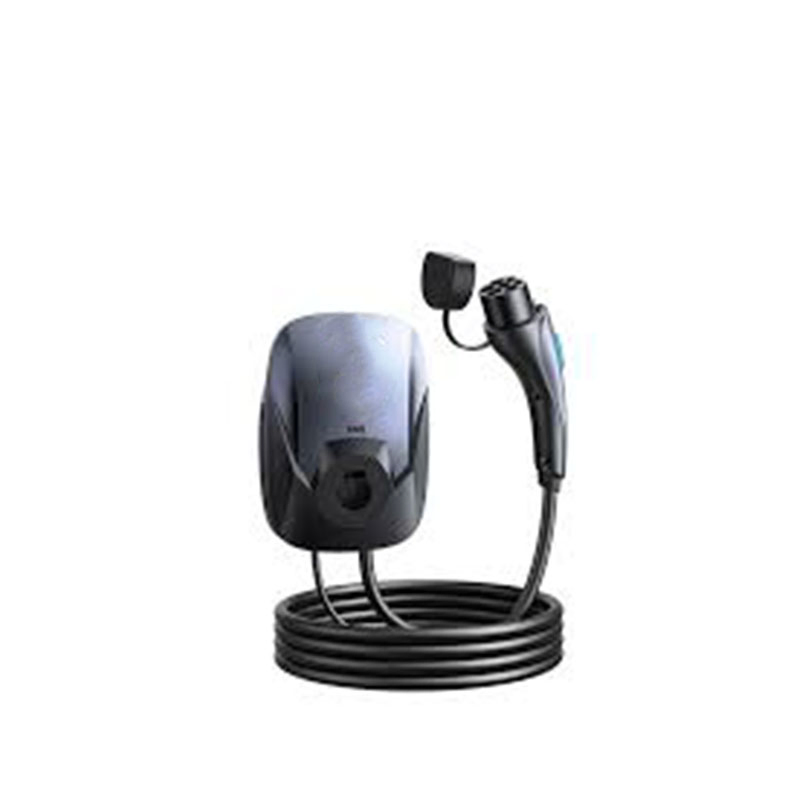

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. All models feature stylish designs, stable frameworks, and complete functionality. Modular power configuration allows for flexible customization and easy maintenance.

Technical Specification

Parameter	Details
Type	EV charging station
Power	20KW 40KW 120KW 160KW 240Kw
Input Rating	110V/220V/380V±15%
Working Frequency	50/60±10%
Output Voltage	200~1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Network Connection	4G/Ethernet
Communication Protocols	OCPP1.6J (OCPP2.0 upgradable)
Operating Temperature	-20℃~+50℃
Protection	IP55

Best Sellers

7KW AC Series

Compatible with global certifications (CE/UL/PSE/KC), 100% compliance rate.
Supports ISO 15118-20 standard + PNC Plug & Charge.
Compliant with V2G vehicle-to-grid protocol, 35% increase in operational revenue.
MID/UL 2735 metrology certification, billing accuracy ±0.5%.

20KW-40KW DC Series

22kW EU-standard AC fast charging, 80% power replenished in 30 mins.
IP65 dustproof & waterproof + wide temperature adaptation (-30℃ to 60℃).
Supports Apple Pay/Google Pay/credit card payment.
Remote diagnosis of 40 core parameters, 99.2% fault repair rate.

120/160/240KW DC Charging Station

Dual-gun simultaneous charging + modular design, 120% increase in single-pile utilization.
120kW super charging, 300+km range replenished in 30 mins.
240kW ultra-fast charge, 80% battery in 15mins; V2G supported.

Product Details

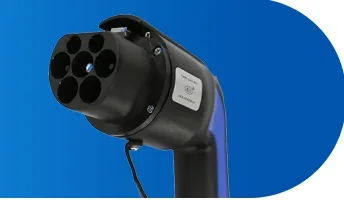

Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).
Thickened high-temperature resistant special cables, anti-aging & anti-stretching.
Customizable cable length with self-locking anti-drop connectors.

Product Features & Packaging

Profile

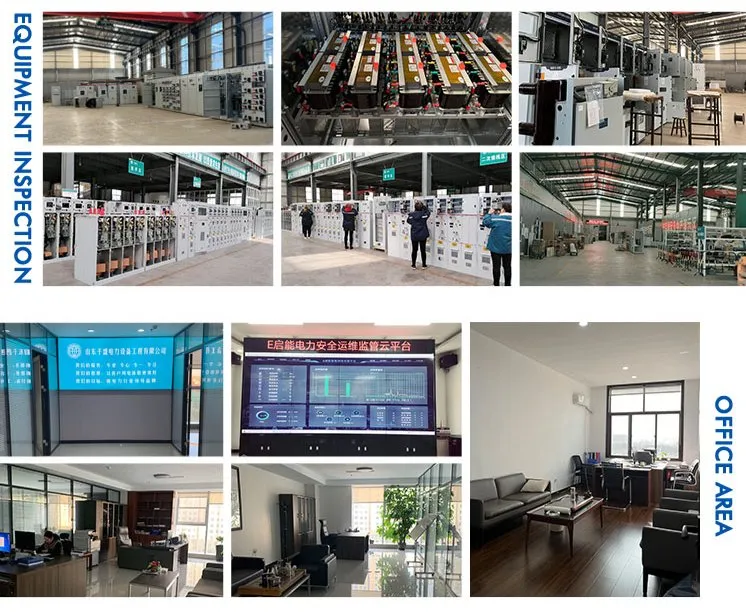

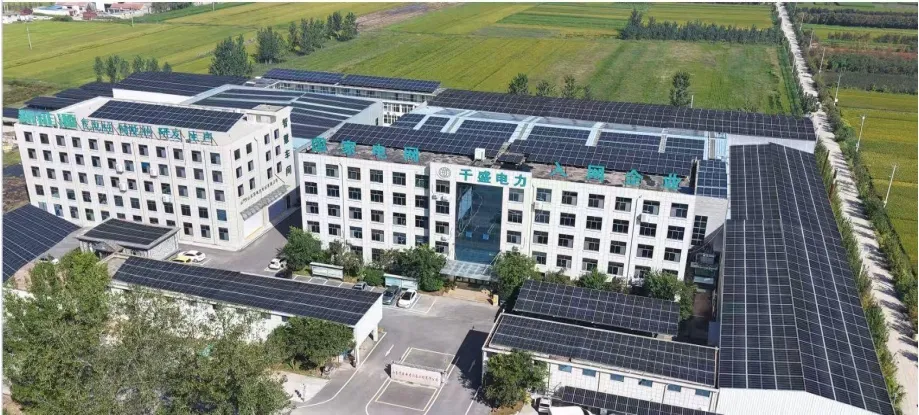

We are an experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions. Our facility covers over 16,000 square meters and employs a professional team including senior technicians and managers.

Our product range includes ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage systems, and inverters, all manufactured under strict quality control (ISO9001:2000, CCC, CQC, CE, UL).

Frequently Asked Questions

What situations are not covered by the warranty?

Includes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation/maintenance, external voltage abnormalities, force majeure (fire, earthquake, etc.) and non-functional appearance wear.

Is regular maintenance service provided? What is the frequency?

We provide free annual inspection including electrical safety testing, mechanical part tightening, cleaning and software updates; quarterly maintenance packages are available for commercial chargers.

Does the after-sales service comply with local regulations?

Fully compliant with EU GDPR, local safety certifications (CE/UL/PSE, etc.) and industry standards; maintenance data is encrypted and stored to fully protect user privacy.

Can the warranty period be extended?

Paid warranty extension is available: 2-year extension for residential chargers, 1-3-year extension for commercial chargers, covering main unit and core parts.

Is after-sales service universal across regions?

Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East; unified standard services are available locally with equipment serial numbers.

What are the main certifications of your products?

Our products hold ISO9001:2000, Environmental Management System Certification, CCC, CQC, and relevant international standards like CE and UL.
