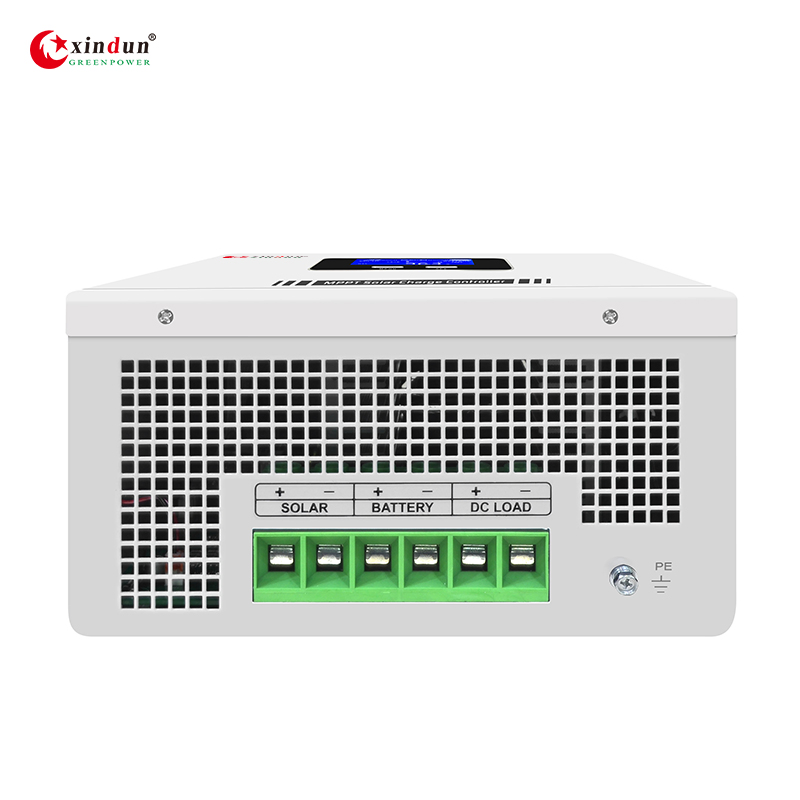

MPPT 12V 24V 48V 50AMP 80A 100A Solar Power Control Smart Charge Controller

1 / 5

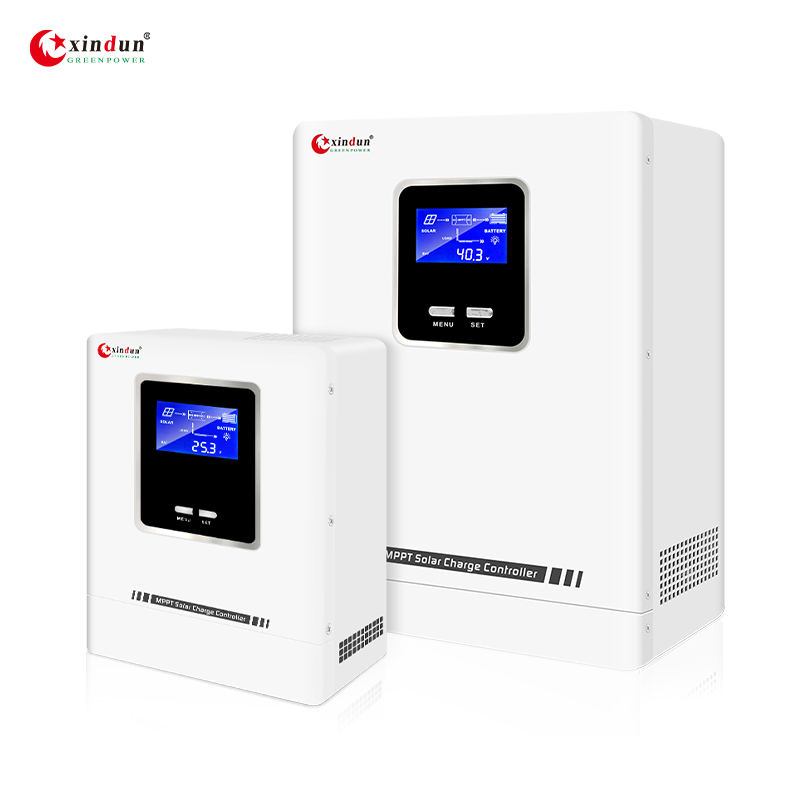

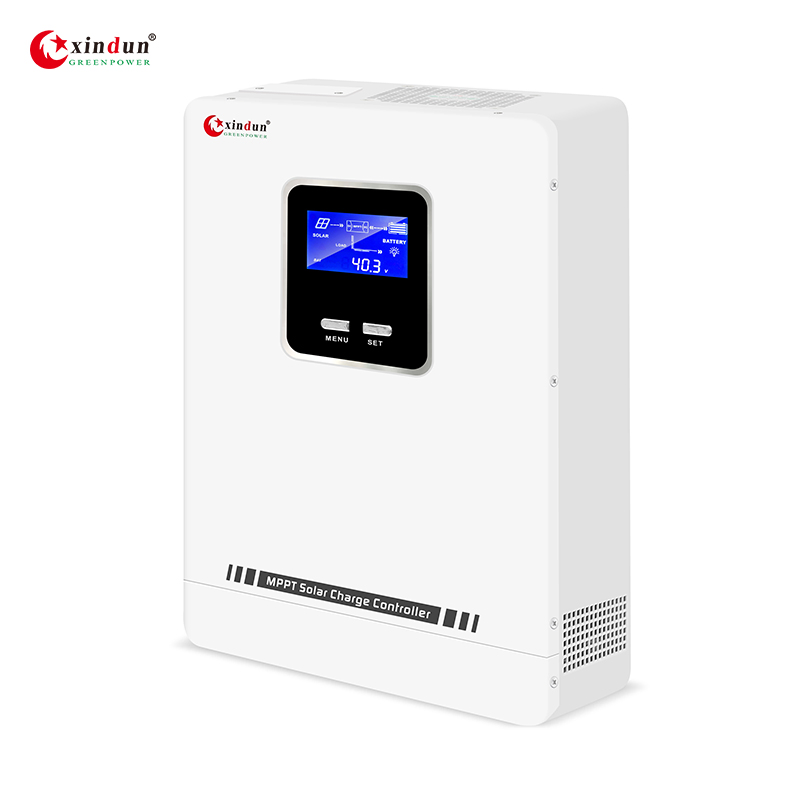

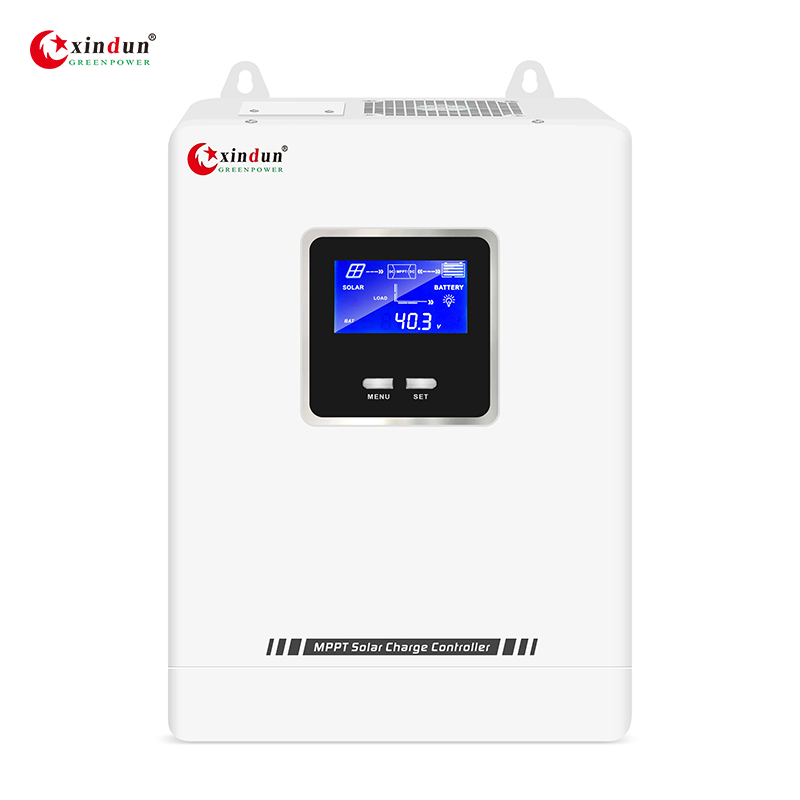

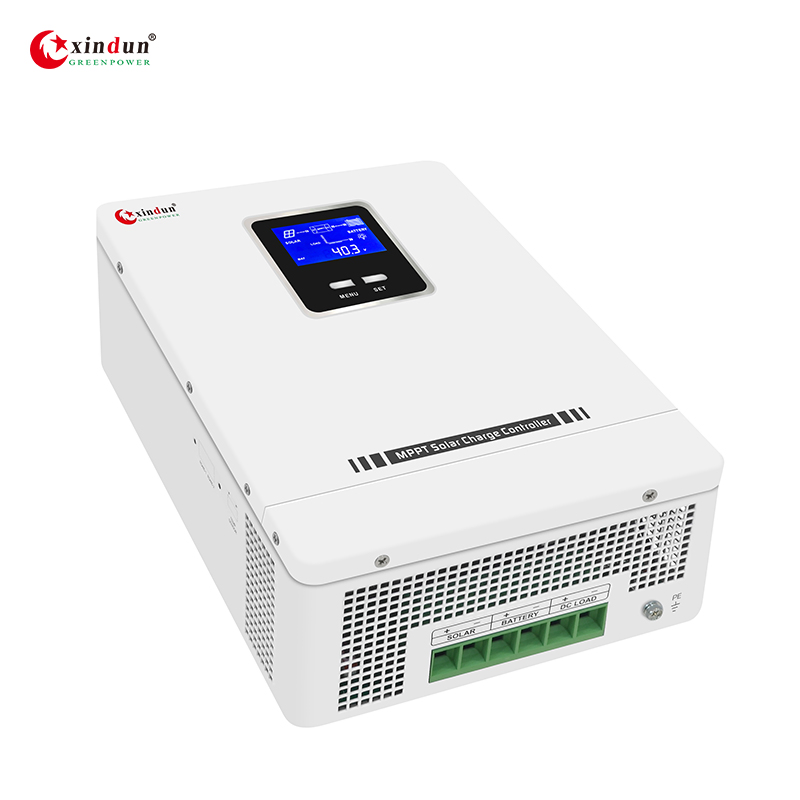

MPPT 12V 24V 48V 50AMP 80A 100A Solar Power Control Smart Charge Controller

Customization:	Available
After-sales Service:	Free Parts
Warranty:	2 Years

Send Inquiry

Product Description

📊

Basic Information

Model NO.

XD-Wonder2

Condition

New

Certification

ISO, CE

Application

Collector Controller, Charger Controller, Solar Working Station, Voltage Controller

Rated Voltage

12V/24V/48V

Rated Current

10A to 100A

MPPT Efficiency

>99%

Max PV Power

140W~5600W

Communication

RS485/APP (WiFi or GPRS)

Origin

China

Trademark

OEM/ODM

💡

Inverter Features

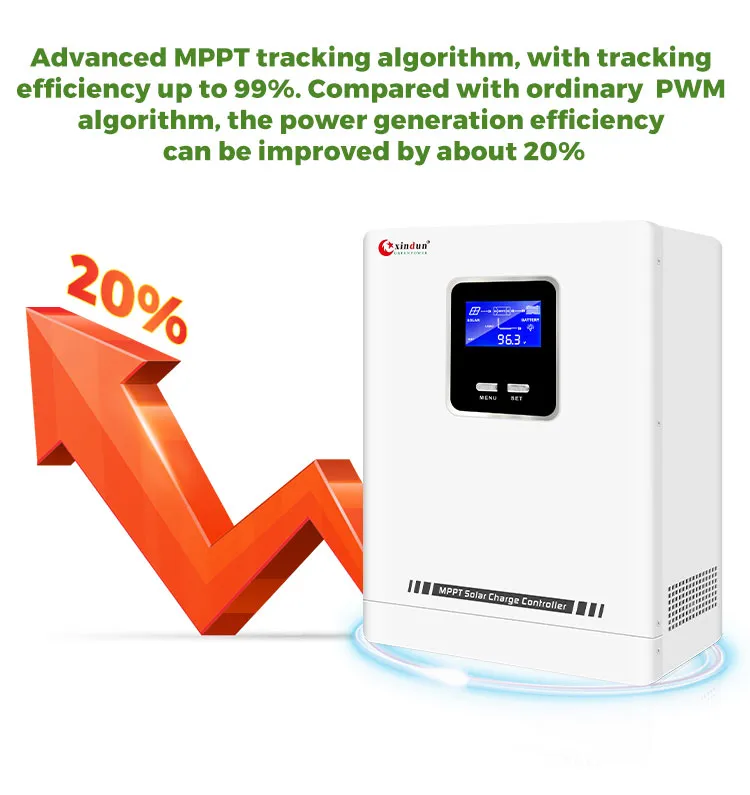

Advanced MPPT tracking algorithm with efficiency up to 99%, improving power generation by 20% over PWM.

LCD graphic display for real-time PV data and power generation simulation.

Multiple load working modes adaptable to various applications.

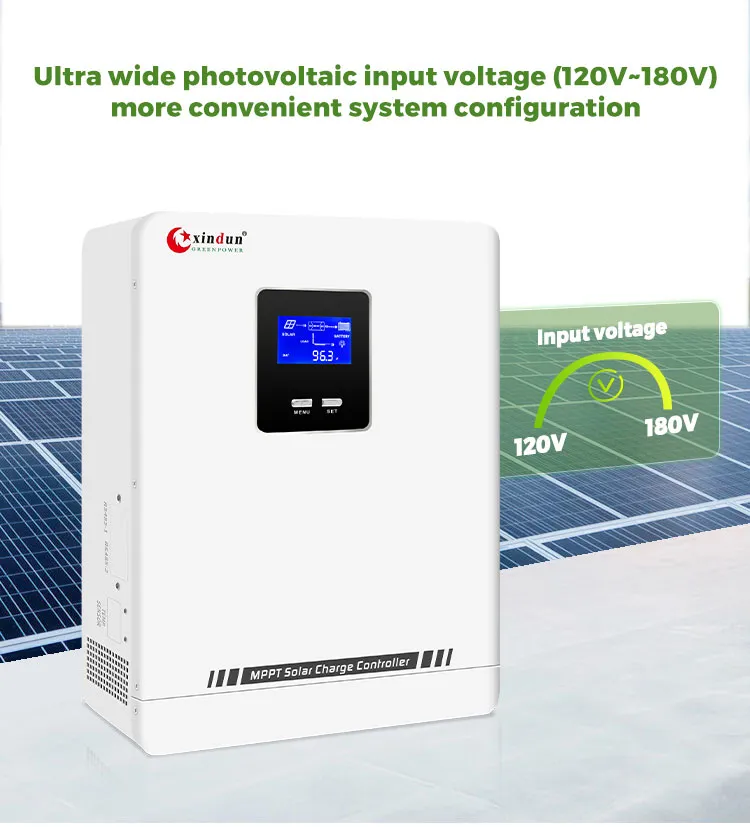

Ultra-wide PV input voltage range for flexible system configuration.

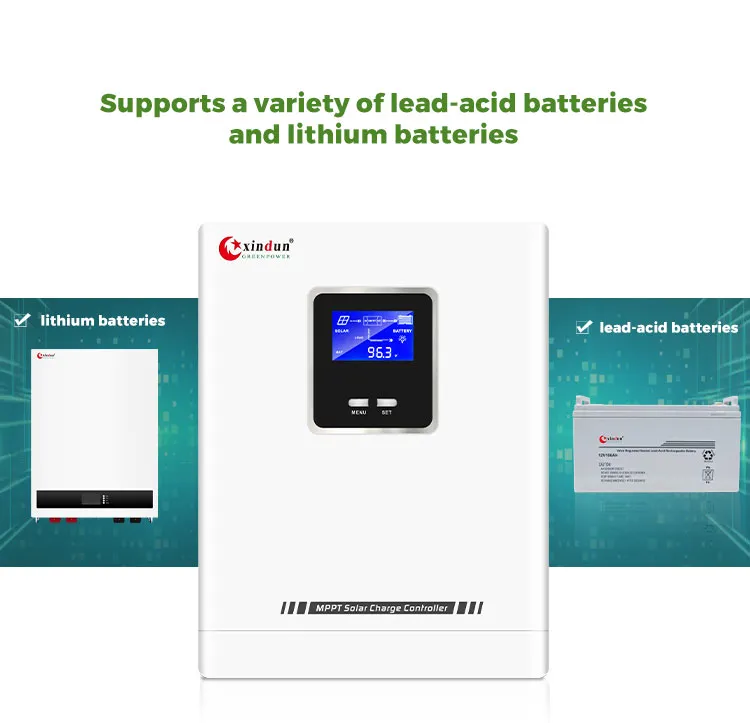

Supports lead-acid and lithium batteries with customizable charging parameters.

Lithium battery activation function included.

Full electronic protection: anti-reverse, over-current, over-temperature, and voltage protection.

Intelligent battery management to extend service life.

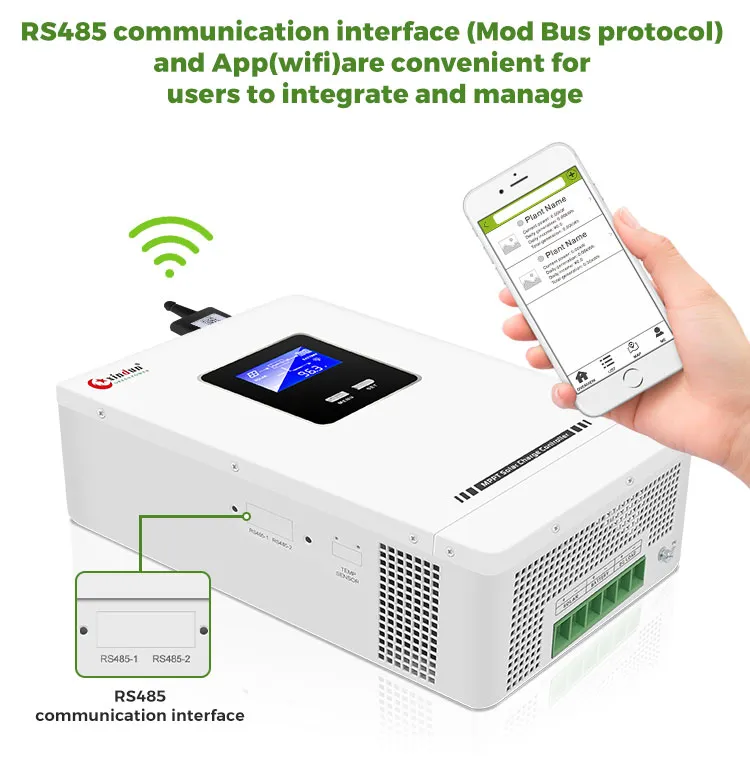

RS485 interface (Modbus) and mobile APP for easy integration and management.

✨

Product Highlights

📋

Technical Specifications

Model: Wonder2	10124 - 30124	1048 - 3048	40124 - 60124	4048 - 6048	80124 - 100124	8048 - 10048
Rated Current	10A/20A/30A		40A/50A/60A		80A/100A
Rated System Voltage	12V/24V	48V	12V/24V	48V	12V/24V	48V
Max PV Input Voltage (Voc)	120V	180V	120V	180V	120V	180V
MPPT Voltage Range	12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V
Battery Type	Lead acid / Lithium / User-defined
Conversion Efficiency	>98%
Communication	RS485/APP (WIFI or GPRS monitoring)

🔍

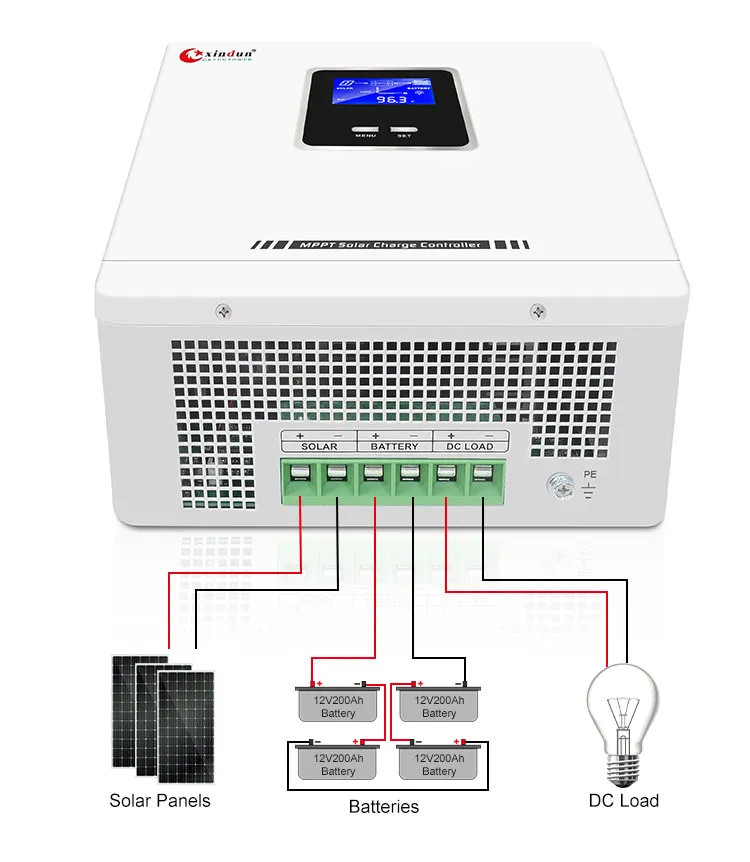

Product Detail & Wiring

📦

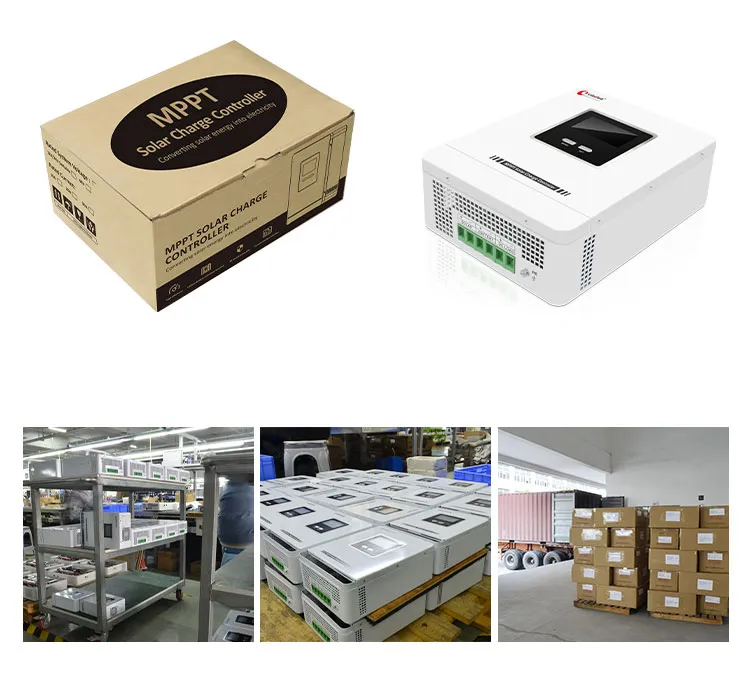

Packing & Delivery

Package
Carton Box for standard packaging. Wooden Box advised for samples to ensure maximum protection during transport.

Shipping Methods
1. Express: FedEx/DHL/TNT/UPS (Door-to-Door).
2. Air/Sea: For batch goods (Port receiving).
3. Flexible: Customer specified forwarders.

🏭

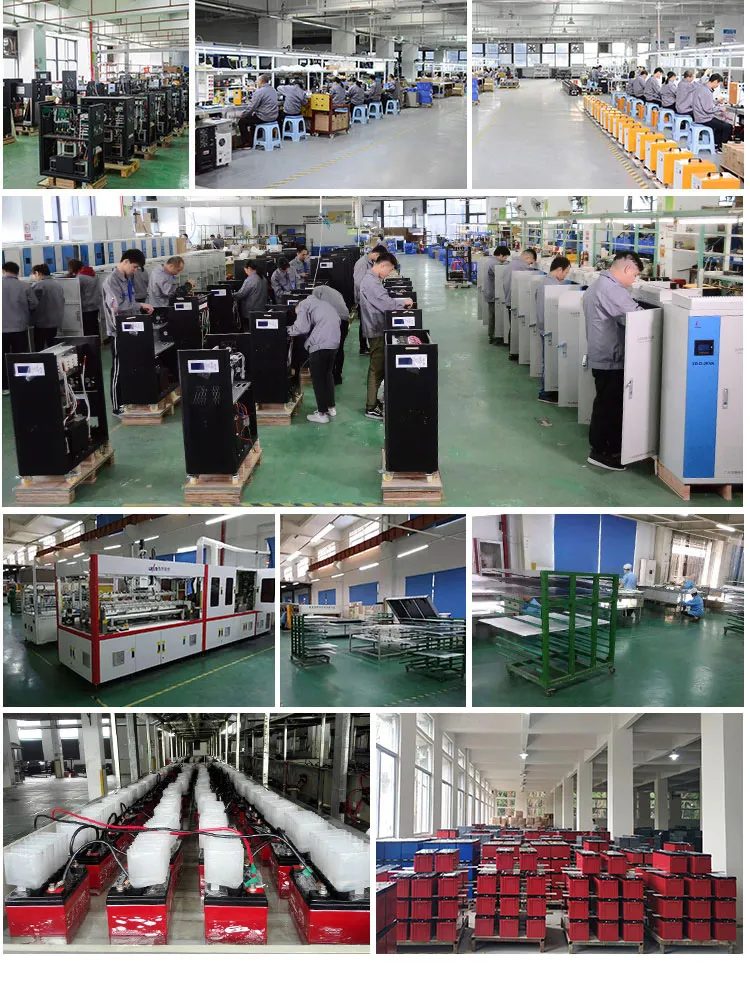

Workshop & Production

Frequently Asked Questions

What is the tracking efficiency of this MPPT controller?

The controller utilizes an advanced MPPT tracking algorithm with an efficiency of over 99%, significantly outperforming standard PWM controllers.

Which battery types are compatible with the XD-Wonder2?

It supports a wide range of batteries including Lead-acid and Lithium batteries. Users can also customize charging and discharging parameters for other types.

Does the controller support remote monitoring?

Yes, it features an RS485 communication interface and supports mobile APP monitoring via WiFi or GPRS modules.

What protection features are built into the device?

It includes a full range of electronic protections: battery and PV anti-reverse connection, over-current, over-temperature, and over/under-voltage protection.

How is the heat dissipated in the unit?

The device uses an intelligent fan control system for efficient cooling, ensuring stable operation across various temperatures.

Can it activate lithium batteries?

Yes, the controller includes a specific lithium battery activation function to handle dormant or protected lithium cells.

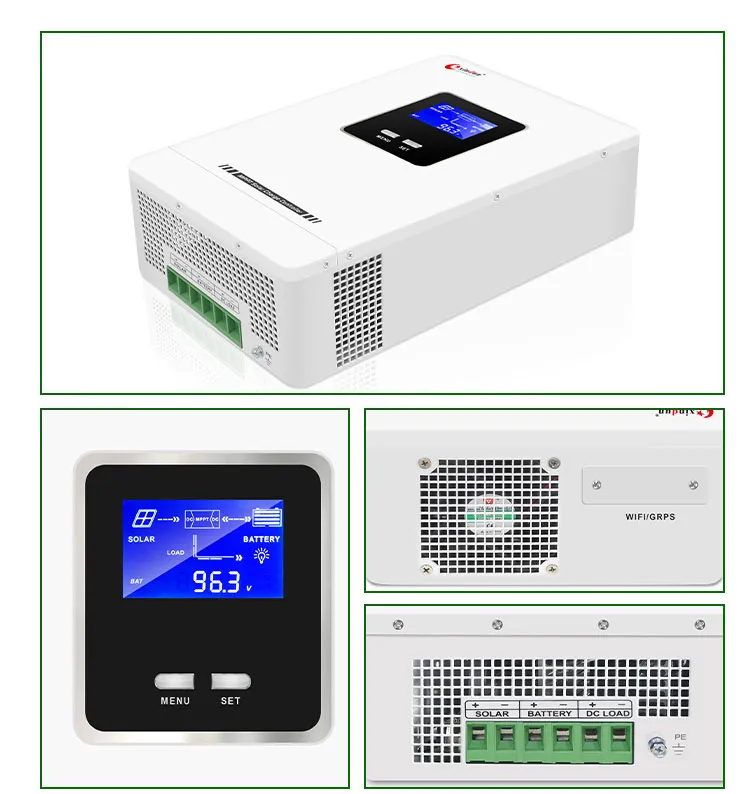

Product Detail
