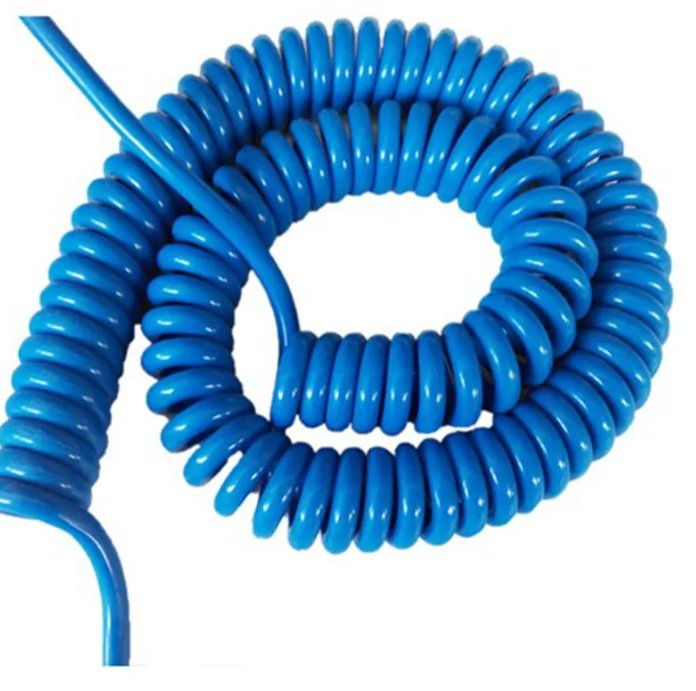

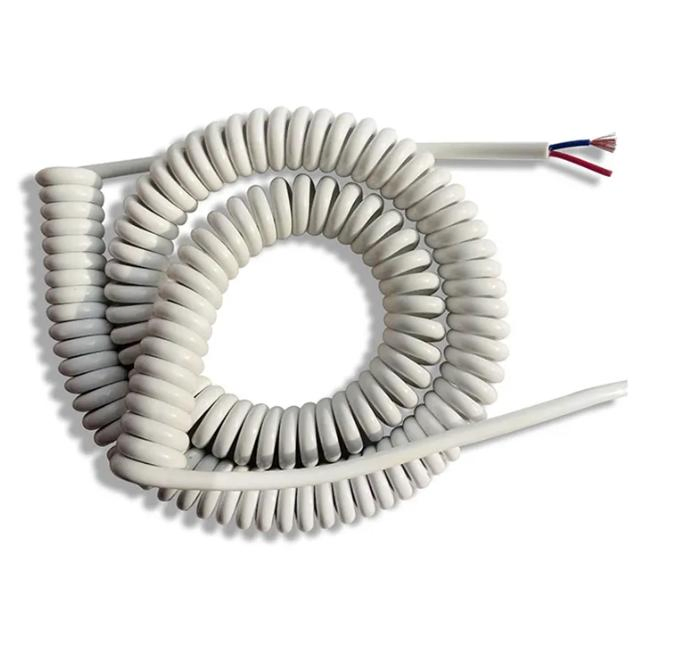

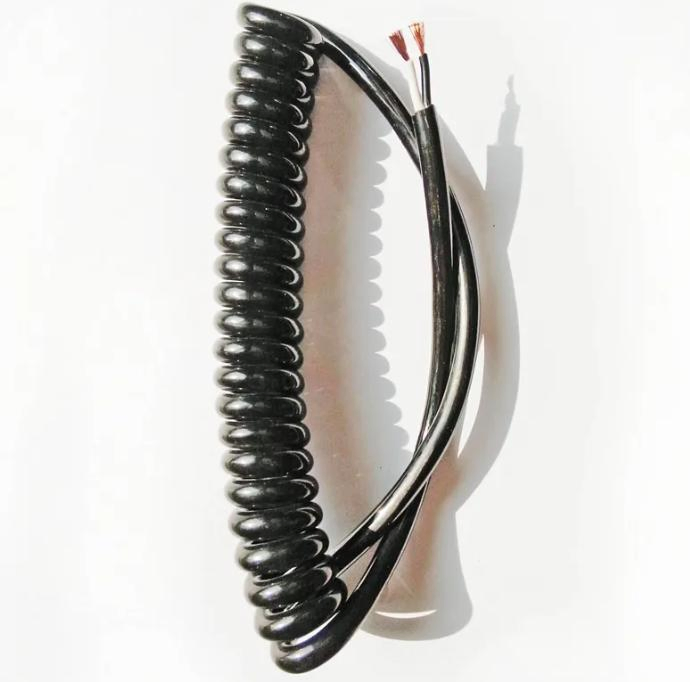

Medical Call Machine Protector Wire Charging Spiral Coiled Cable Microphone 8 Core Spiral Cable Assembly

1 / 5

Medical Call Machine Protector Wire Charging Spiral Coiled Cable Microphone 8 Core Spiral Cable Assembly

Customization:	Available
Application:	DVD Player, Speaker, Telephone, Game Player
Color:	Optional

Send Inquiry

Product Description

Basic Information

Certification

ISO9001

Brand

Bulovb

Factory

Helix Cable Type

Multicore Shield PU Helix Cable

Transport Package

PE Bag, Carton, or Customized

Trademark

Bulovb

Origin

China

HS Code

8544422900

Production Capacity

50000 Piece/Pieces Per Month

Packaging & Delivery

Package Size

35.00cm * 25.00cm * 15.00cm

Gross Weight

1.000kg

Product Description

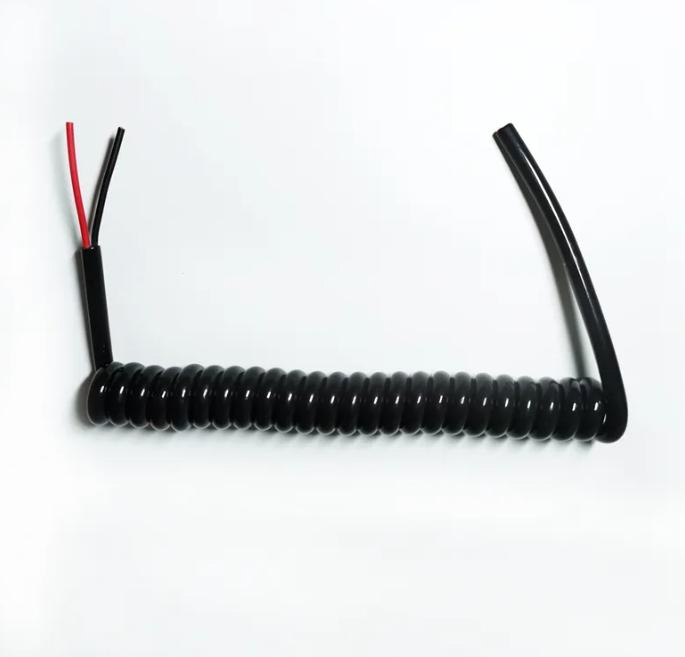

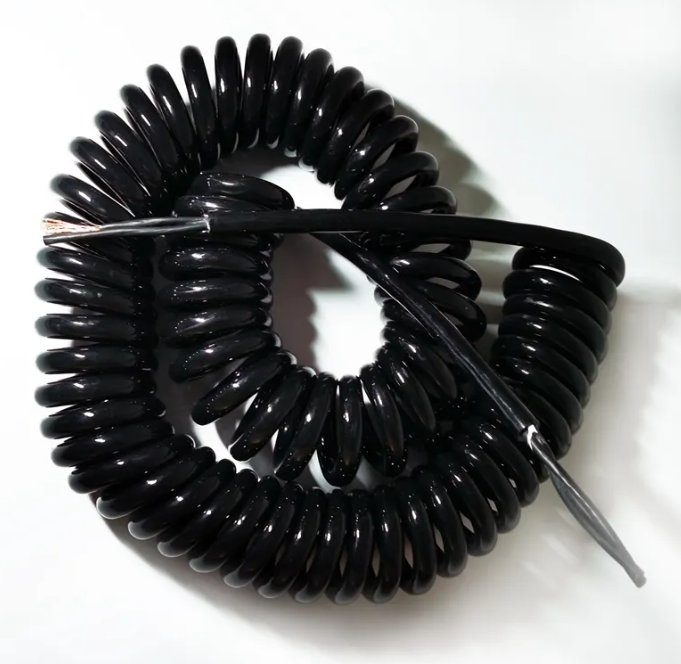

Circle Diameter PU Flexible Cable

Our Circle Diameter PU Flexible Cable offers exceptional flexibility and elasticity, with a spring elongation length that can reach 3 to 10 times its original length. It is engineered for durability, featuring excellent cold resistance, flame retardancy, oil resistance, and abrasion resistance.

We produce various types of spiral cables and wires to meet diverse industrial requirements, including environmental Halogen-Free standards for RoHS and REACH compliance.

Technical Specifications

Conductor Structure: Standard or Customized
Insulation Material: TPEE / FEP / MPPO / TPV / PP / HDPE
Sheath Material: Polyester Type TPU or Polyether Type TPU
Working Temperature: -60°C to 125°C
Production Range: Standard Section 0.03-6 Square Meter or Customization
Multiple Conductors: 1-37 Conductors available

Key Features

High Flexibility and superior Elasticity
Excellent Cold Resistance for harsh environments
Flame Retardant and Oil Resistant properties
Superior Abrasion Resistance for long life cycles

Halogen-free Flame Retardant PU Helix Cable Data Sheet

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor Option	Filling
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper, Tinned Copper, Varnished Wire, Sliver-Plated, Nickel Copper	Kevlar/Nylon
12	65/0.254 1/2.05	2.05	<7	2.65		Kevlar/Nylon
14	41/0.254 1/1.63	1.63	<10	2.2		Kevlar/Nylon
18	41/0.16 165/0.08	1.02	<25	1.6		Kevlar/Nylon
22	17/0.16 65/0.08	0.64	<55	1.2		Kevlar/Nylon
26	7/0.16 24/0.08	0.48	<125	0.9		Kevlar/Nylon
30	7/0.1 19/0.06	0.3	<320	0.7		Kevlar/Nylon
40	1/0.08	0.08	<3500	-		Kevlar/Nylon

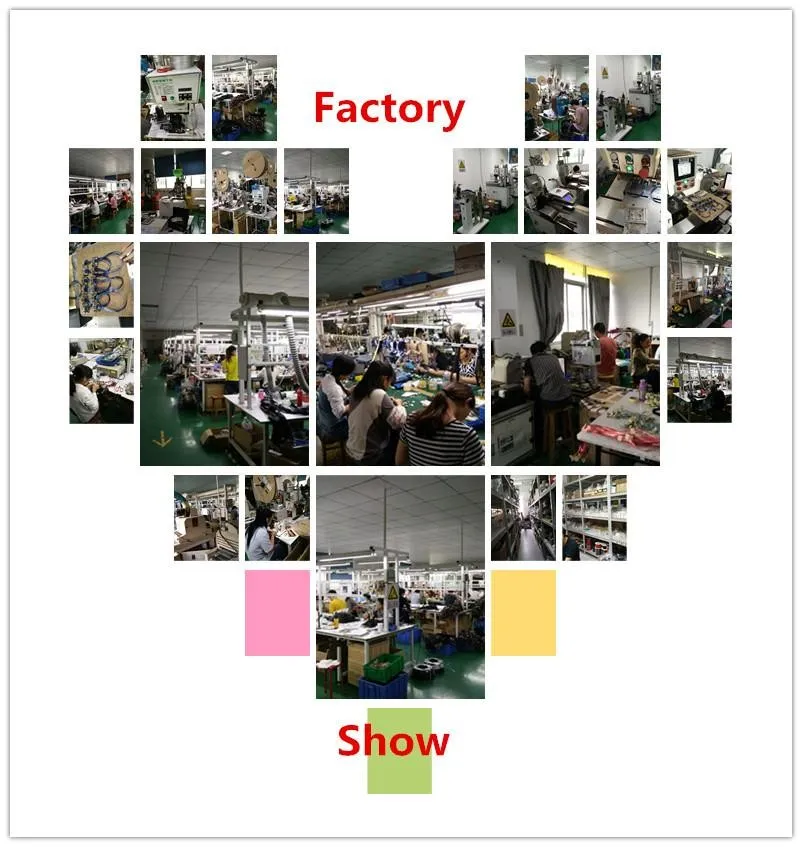

Product Visuals & Production

Production Process

Frequently Asked Questions

Q1: What are the key features of the PU Helix Cable?

The cable features high flexibility, excellent elasticity (3-10x elongation), cold resistance, flame retardancy, and superior oil and abrasion resistance.

Q2: What temperature range can this cable withstand?

Our cables are designed to work effectively in temperatures ranging from -60 degrees to 125 degrees Celsius.

Q3: Do you provide customized cable specifications?

Yes, we can produce customized spiral cables and wires based on your specific drawings and requirements, including different conductor structures and insulation materials.

Q4: Are your products environmentally compliant?

All our products comply with RoHS and REACH standards. We also provide halogen-free options for various industrial requirements.

Q5: What is the typical lead time for an order?

Generally, lead time is 7-10 days for stock items and 15-25 days for non-stock items, depending on the total order quantity.

Q6: How is product quality ensured?

Our manufacturing process is ISO9001 and TS16949 certified. All products undergo 100% testing before delivery to ensure quality and compliance.
