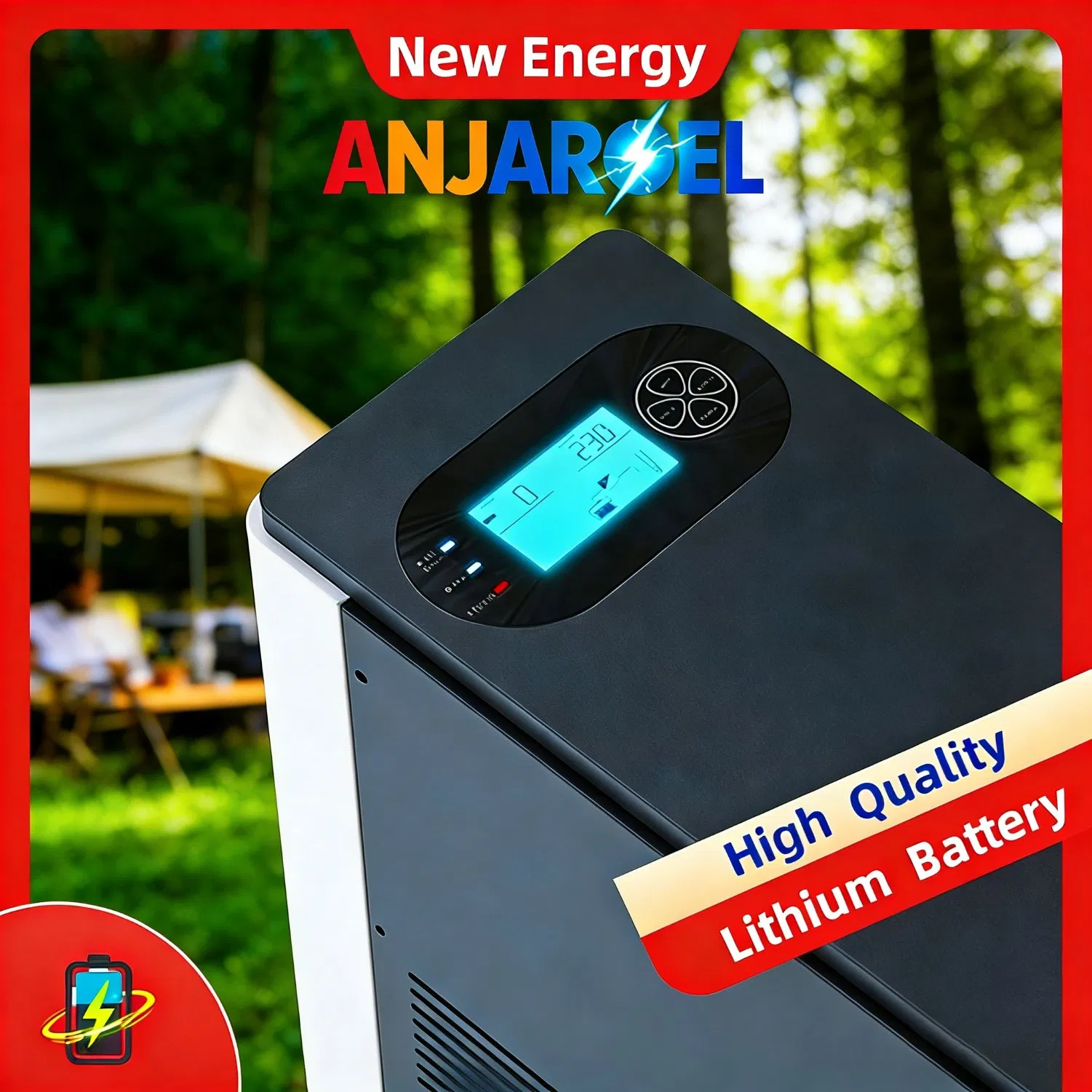

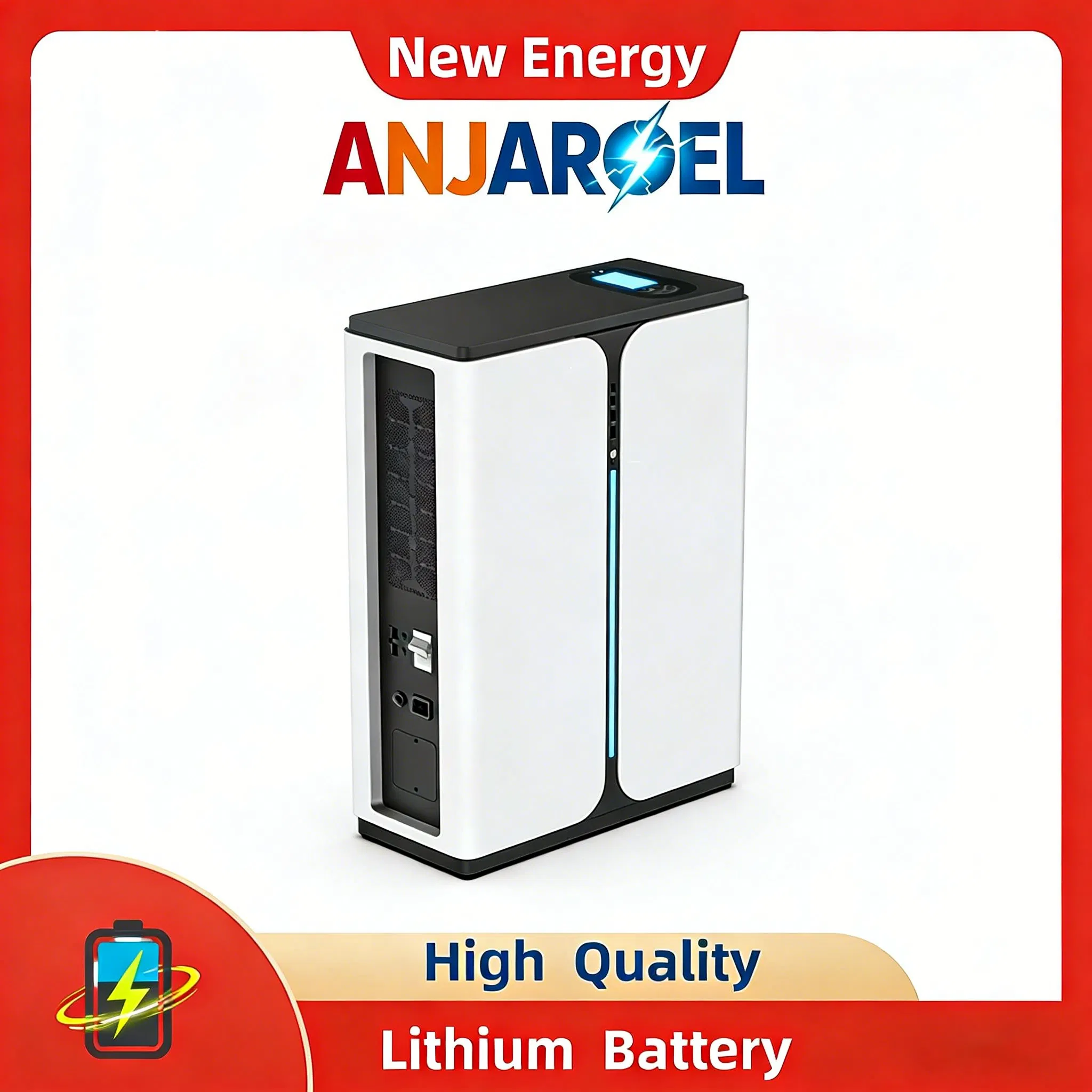

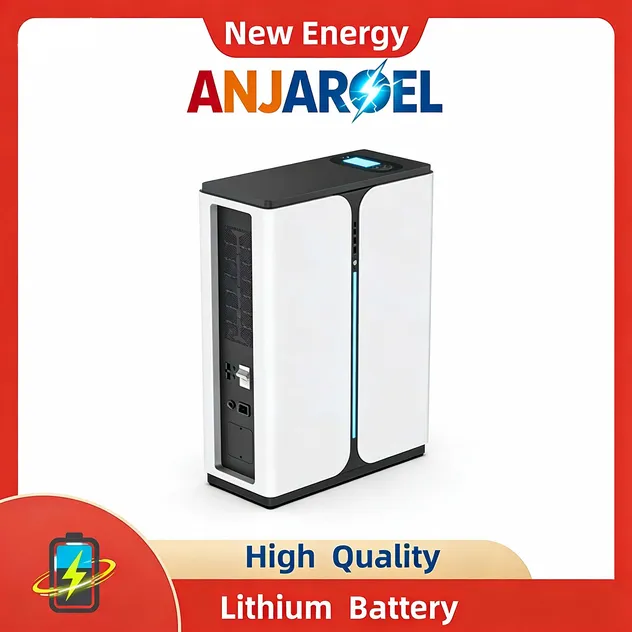

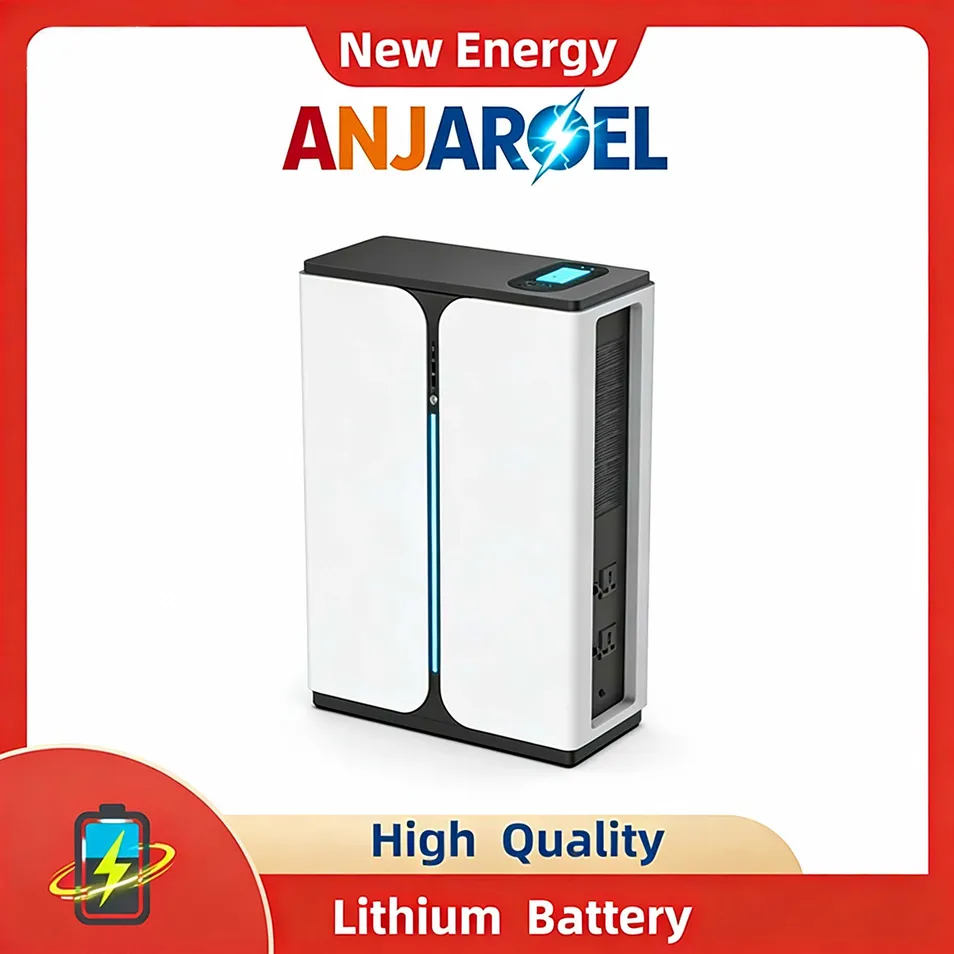

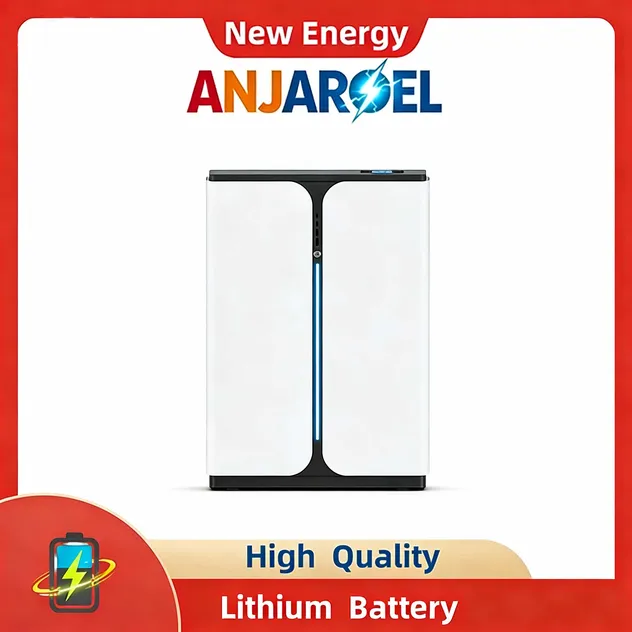

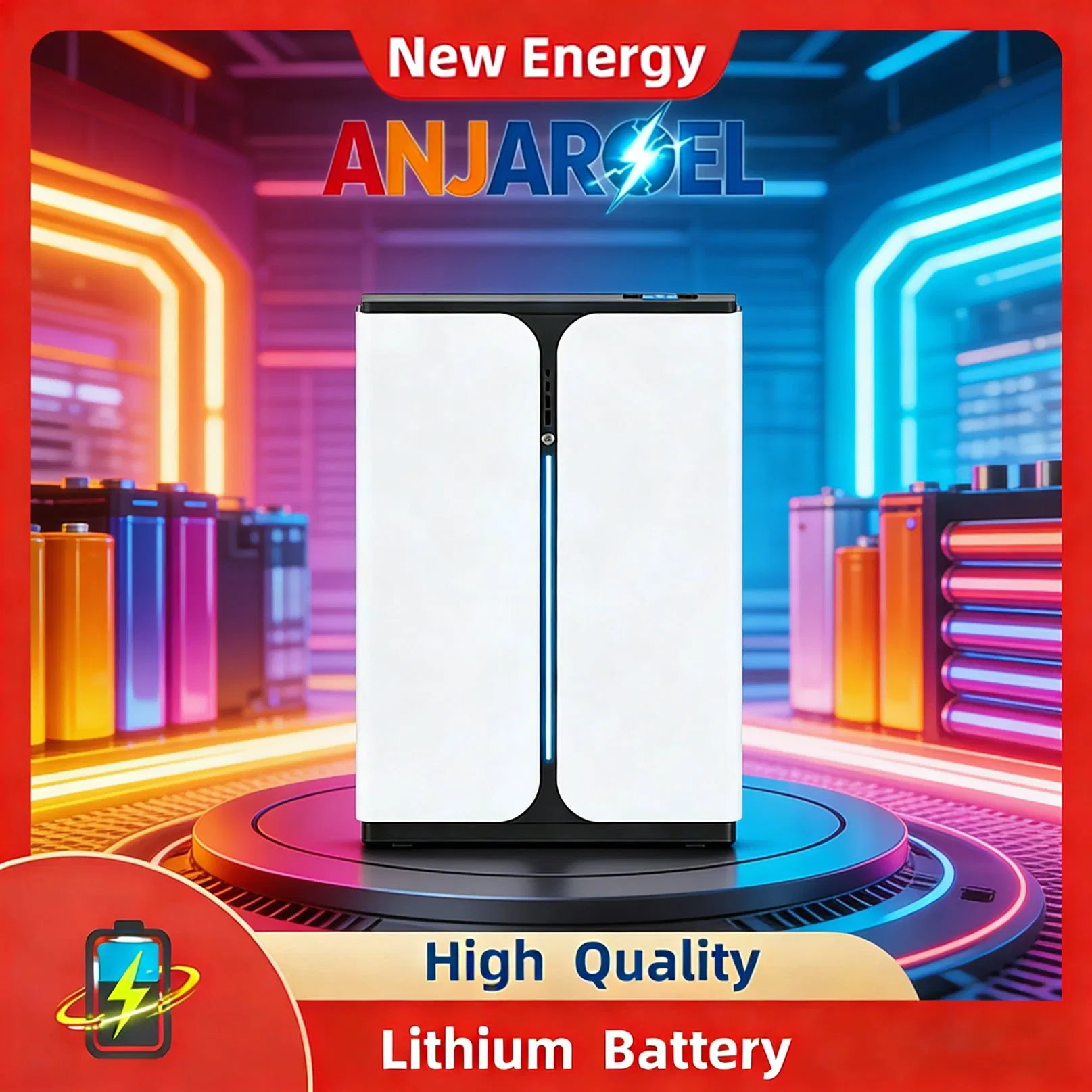

ALL-IN-ONE ENERGY STORAGE SYSTEM
The all-in-one home energy storage system is a plug-and-play residential energy storage solution integrating lithium iron phosphate batteries, bidirectional inverters, and an intelligent BMS management system.
Featuring a vertical integrated design, it requires no complex installation and can be used simply by plugging in. Supporting dual charging from the grid and solar energy, it provides households with stable backup power, peak-valley arbitrage, and off-grid power supply services.
High-performance LiFePO4
Engineered for deep cycling and long lifespan, ensuring predictable performance and low lifecycle cost.
Hot-swappable Modules
Allows seamless capacity expansion without system downtime or complex on-site reconfiguration.
Robust IP65 Enclosure
Rugged mechanical design supports indoor or sheltered outdoor installation in varied climates.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Module Number (stackable) | 1 – 5 PCS |
| Single Module Capacity | 100 Ah |
| Total Capacity Options | 5.12 kWh |
| Standard Voltage | 51.2 V |
| Working Voltage Range | 43.2 – 57.6 V |
| Standard Discharge/Charge Current | 100 A |
| Suggested DoD | 80% |
| Management System | Integrated BMS |
| Dimensions | L480*W279*H872mm |
| Package Gross Weight | 75.000kg |

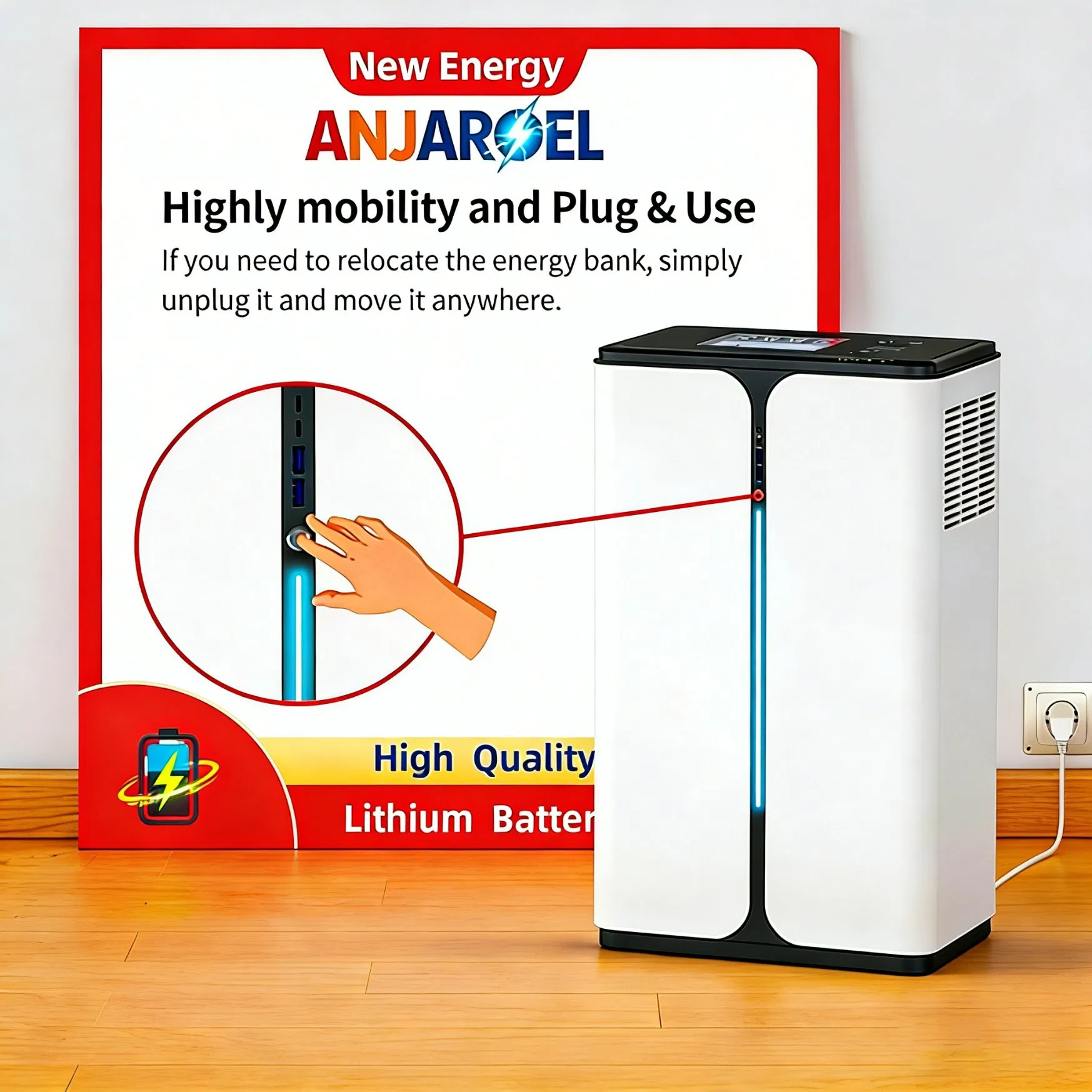

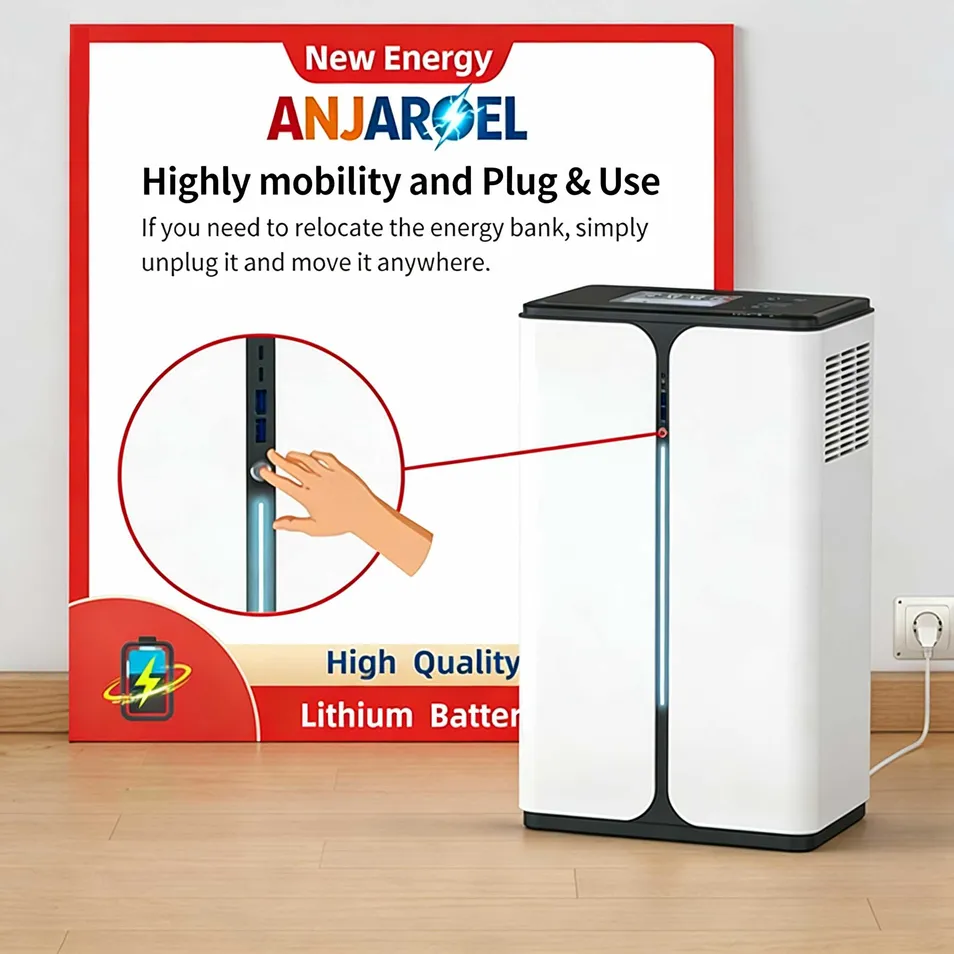

PLUG-AND-PLAY, HIGH MOBILITY
No professional installation required; simply plug in to use, unplug and relocate at any time, adapting to flexible power supply needs in different rooms and temporary scenarios.

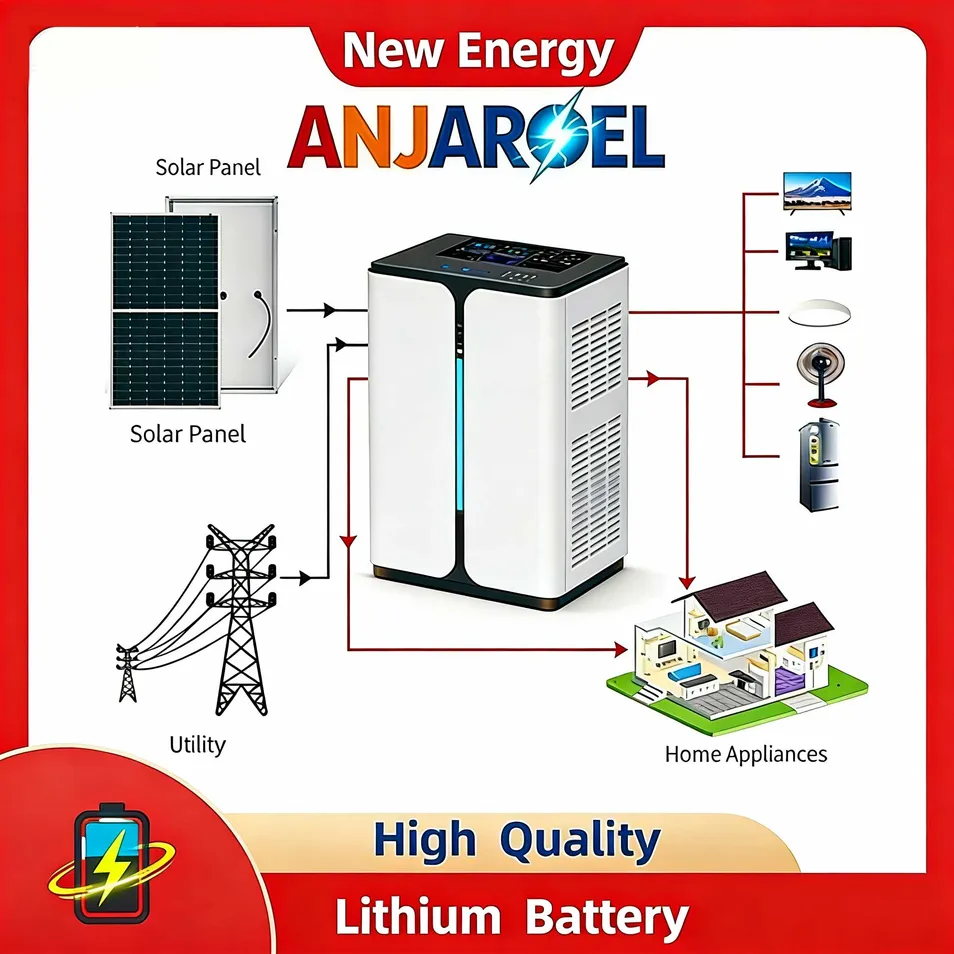

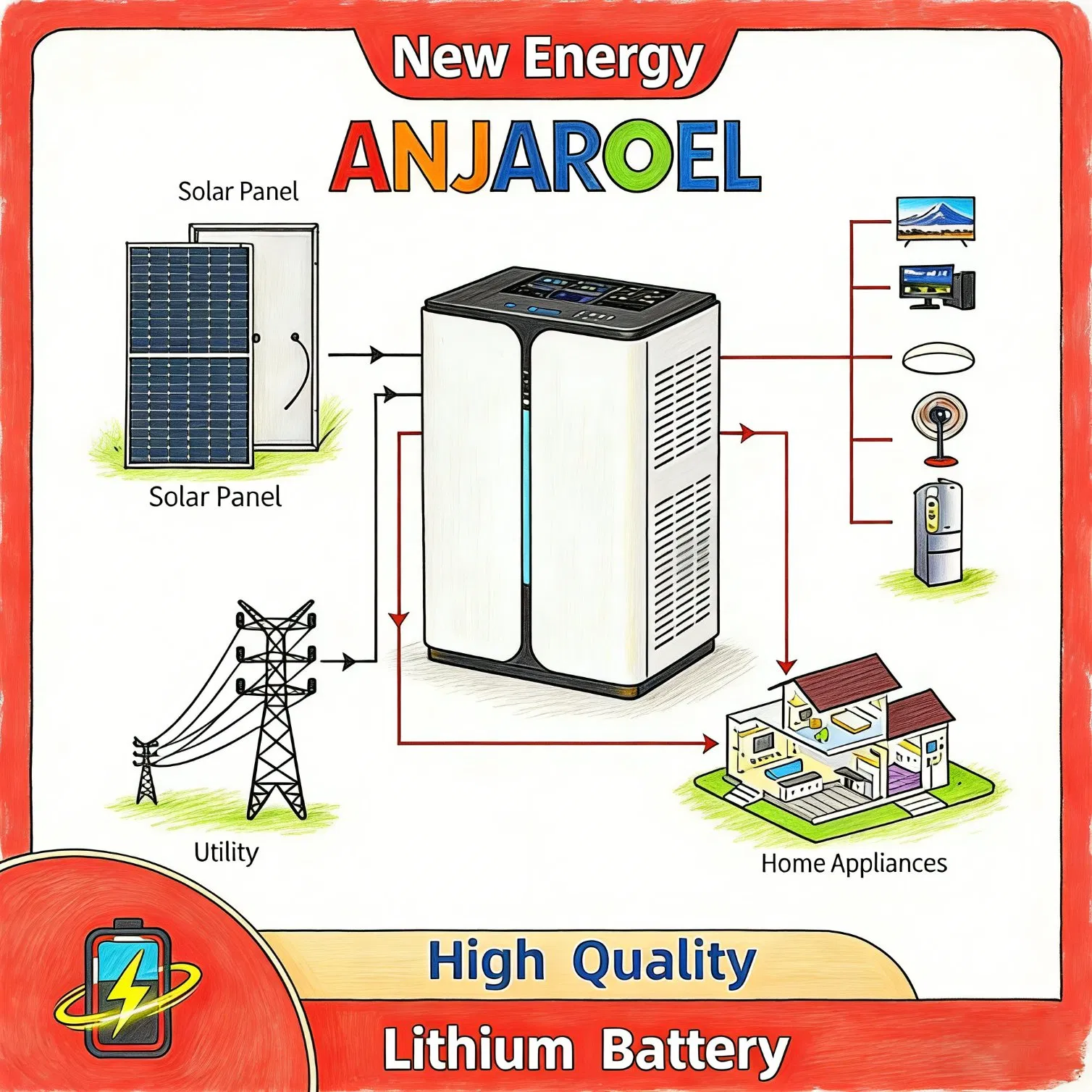

DUAL-INPUT COMPATIBILITY
Supports both grid power and solar photovoltaic panel dual-input, automatically switches to the optimal charging mode, maximizes the use of clean energy, and reduces electricity costs.

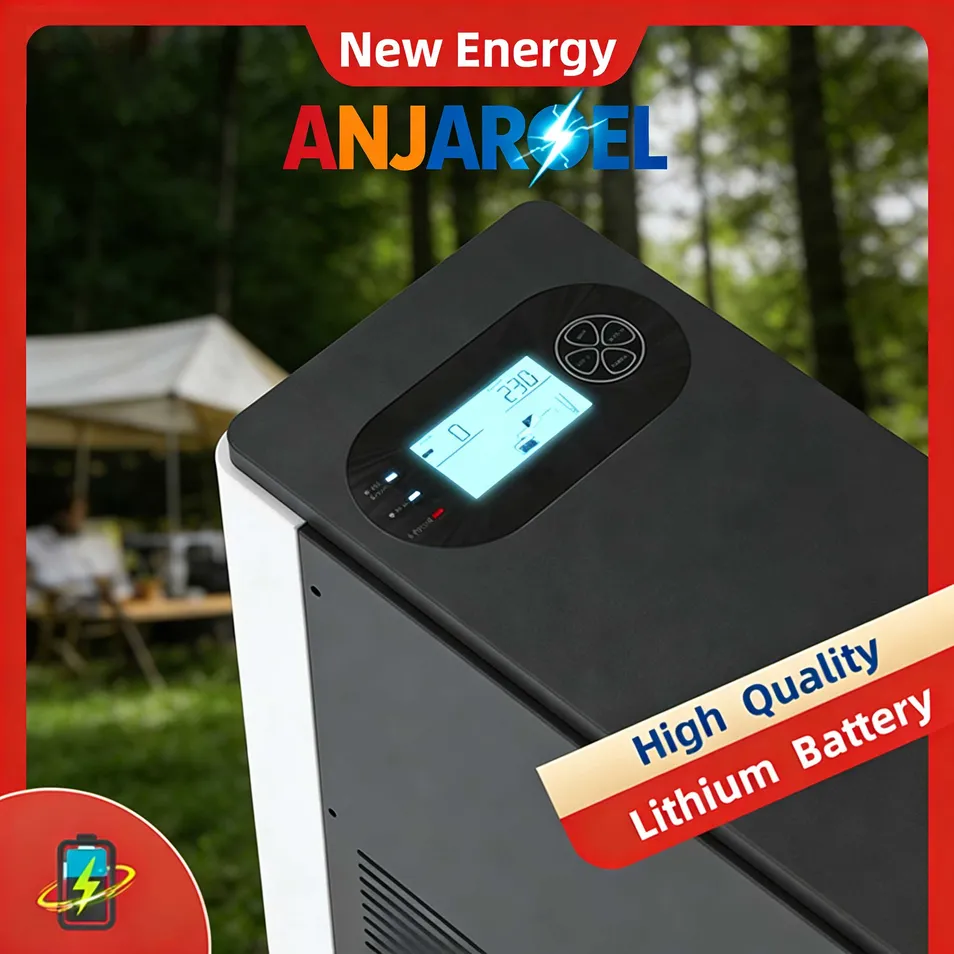

LONG SERVICE LIFE AND HIGH SAFETY
Adopts Grade A lithium iron phosphate battery cells with a cycle life exceeding 6,000 cycles. Built-in multiple safety protections (overcharge, over-discharge, overcurrent, short circuit, and high-temperature protection).
