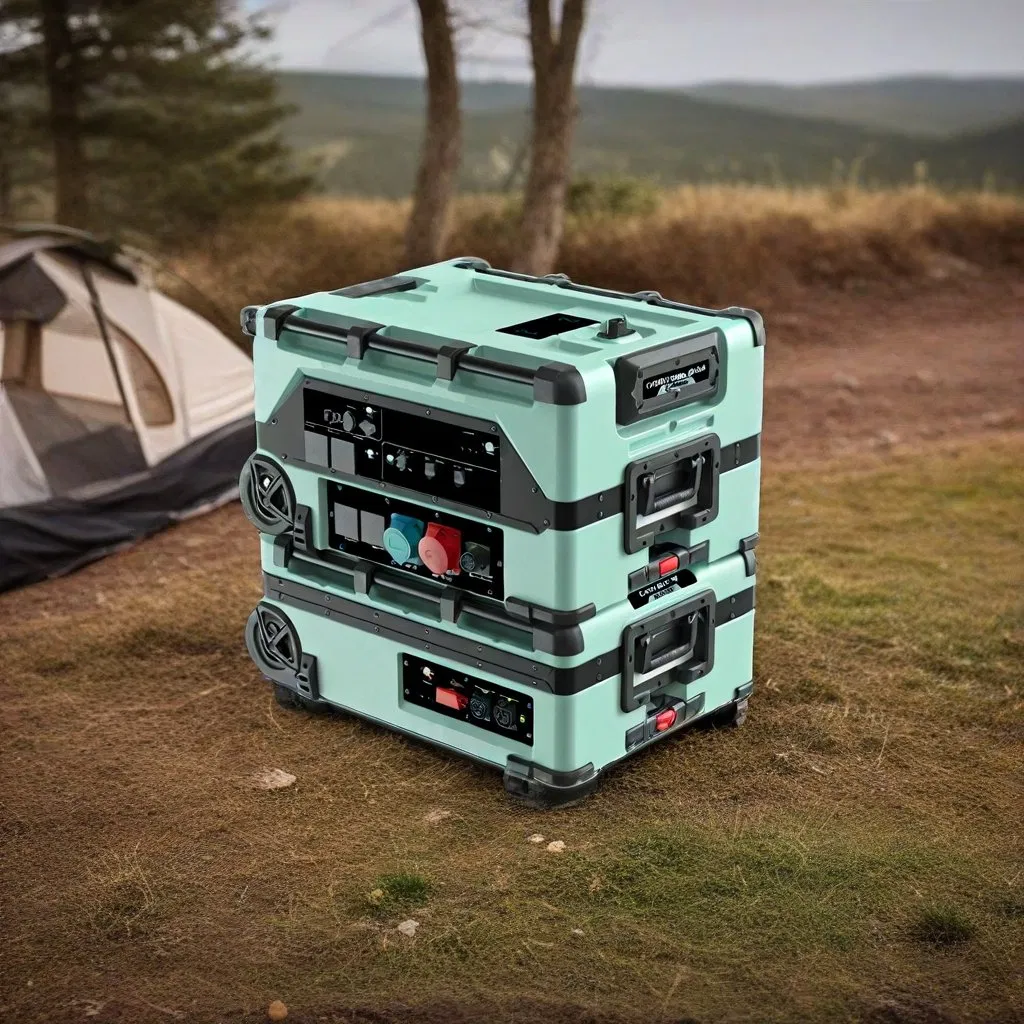

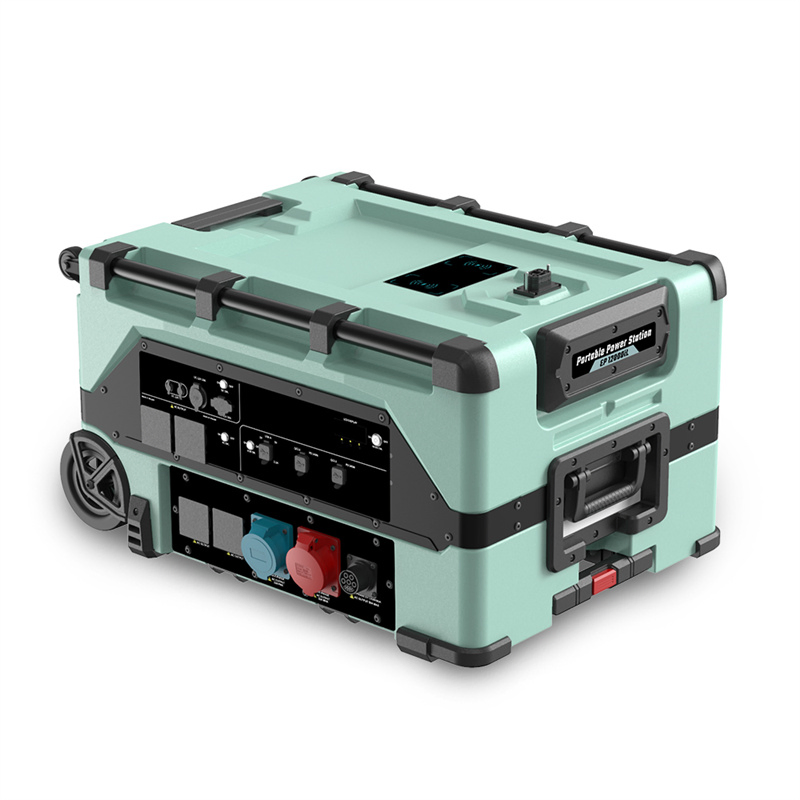

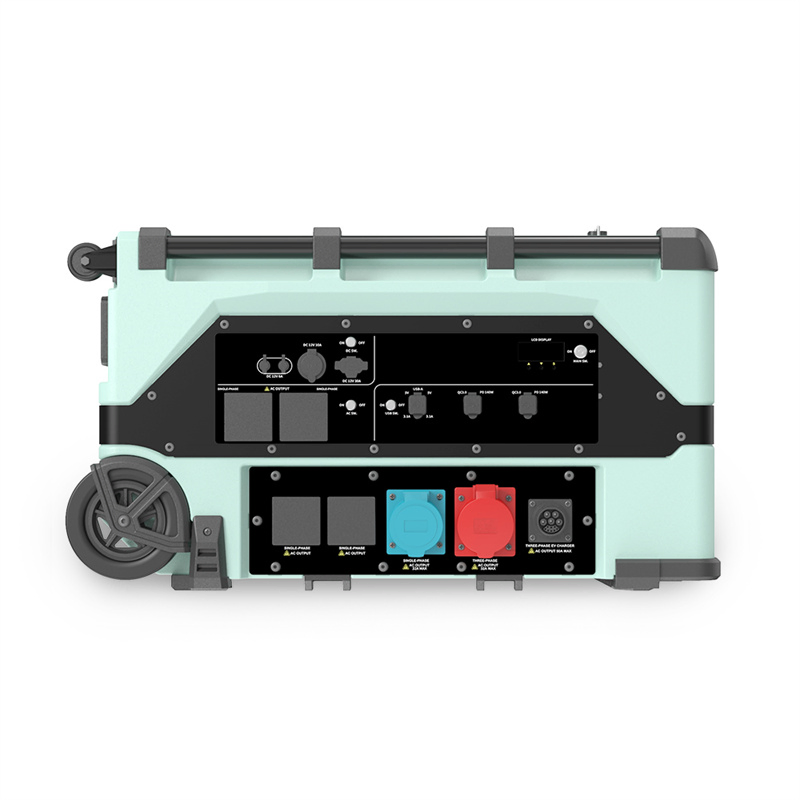

Inverter Solar Home System 10kwh Lithium LiFePO4 Solar Storage Home Energy Storage System

Customization: Available
Weight: 100kg
Warranty: 5 Years

Product Description

i

Basic Information

Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Certificates
CE RoHS IEC62619 Un38.8 MSDS
Inverter Type
Bi-Directional Inverter
Three-Phase Output
Yes
Portability
Drawbar & Wheels
📦

Packaging & Delivery

Package Size
97.00cm * 77.00cm * 60.00cm
Gross Weight
100.000kg

Product Advantages

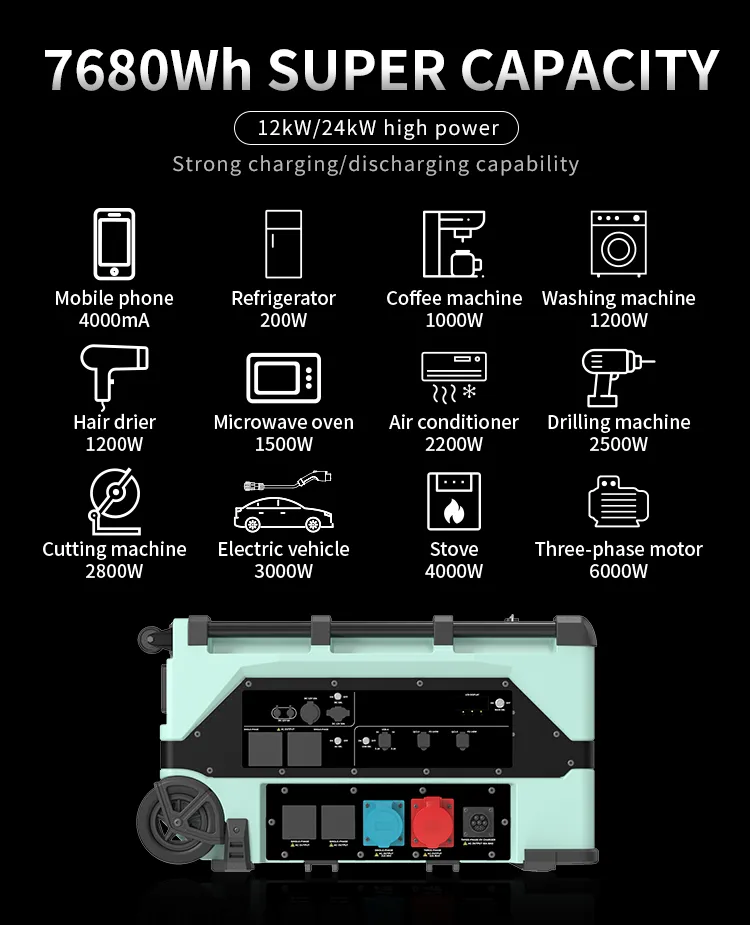

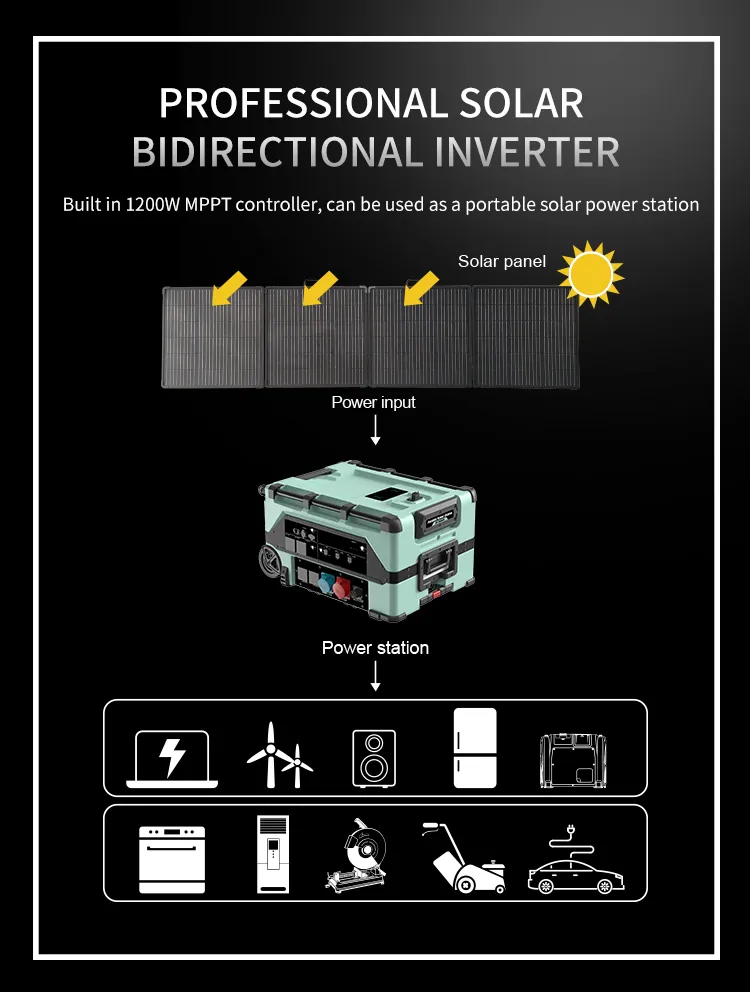

  • Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

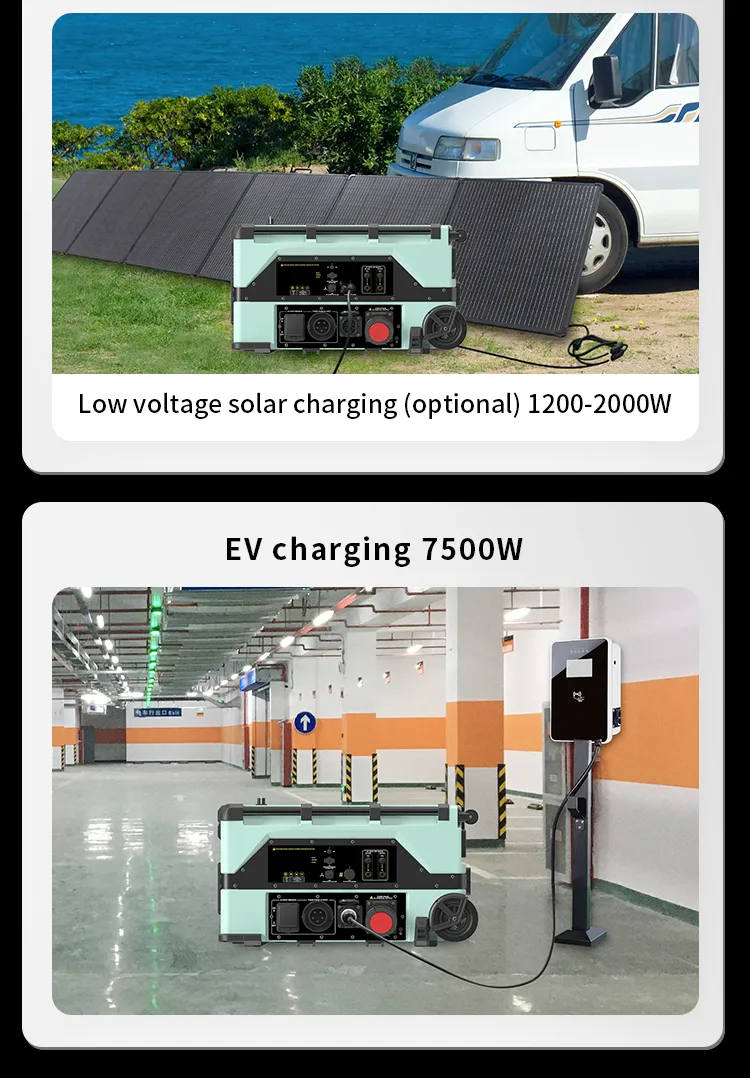

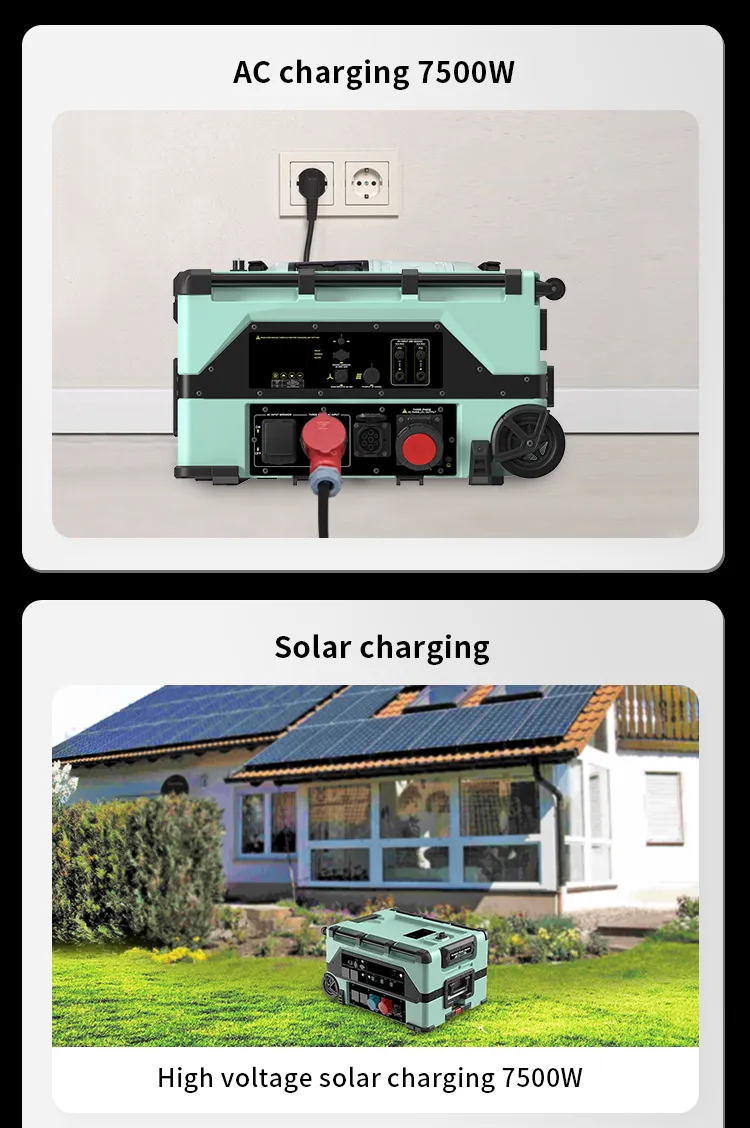

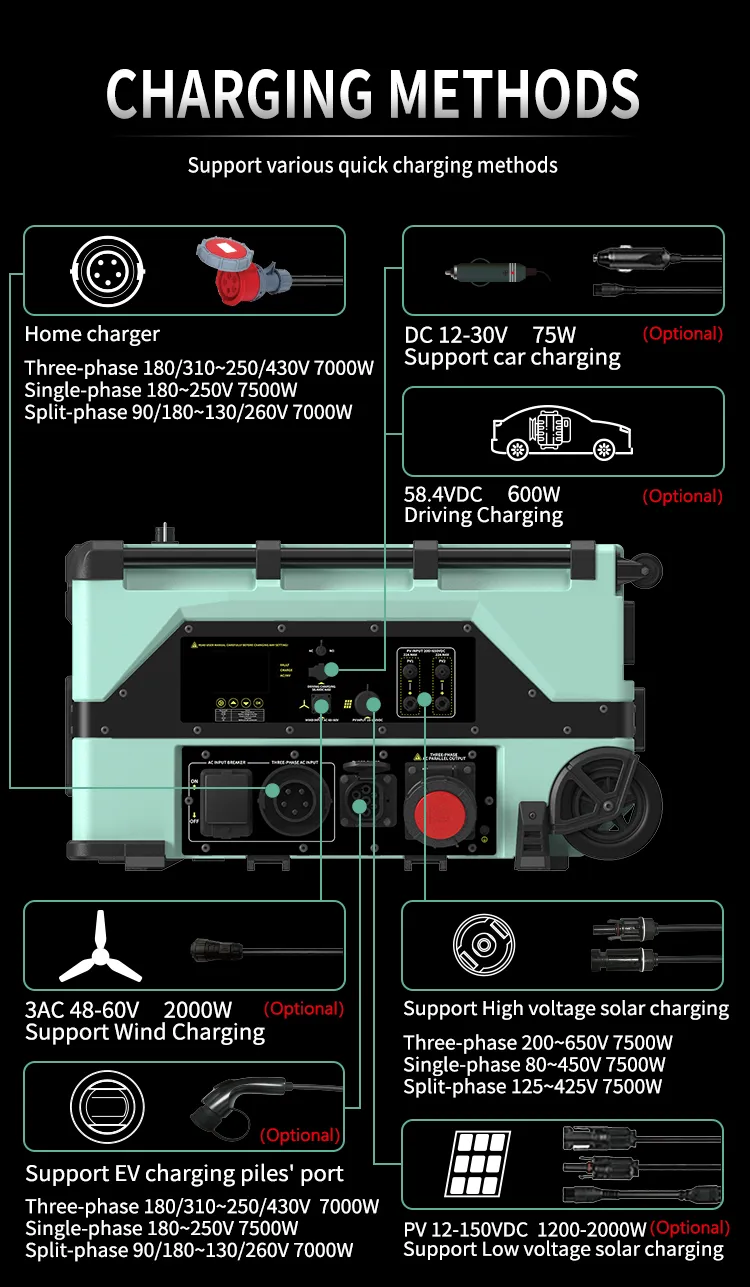

  • Support various fast charging: utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

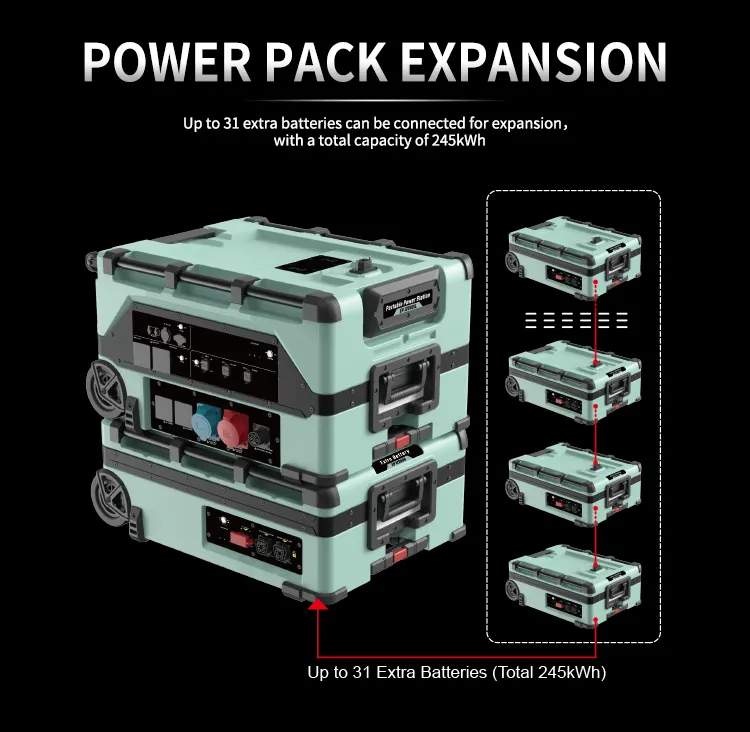

  • Up to 31 extra batteries can be stacked for expansion, total capacity up to 245kWh.

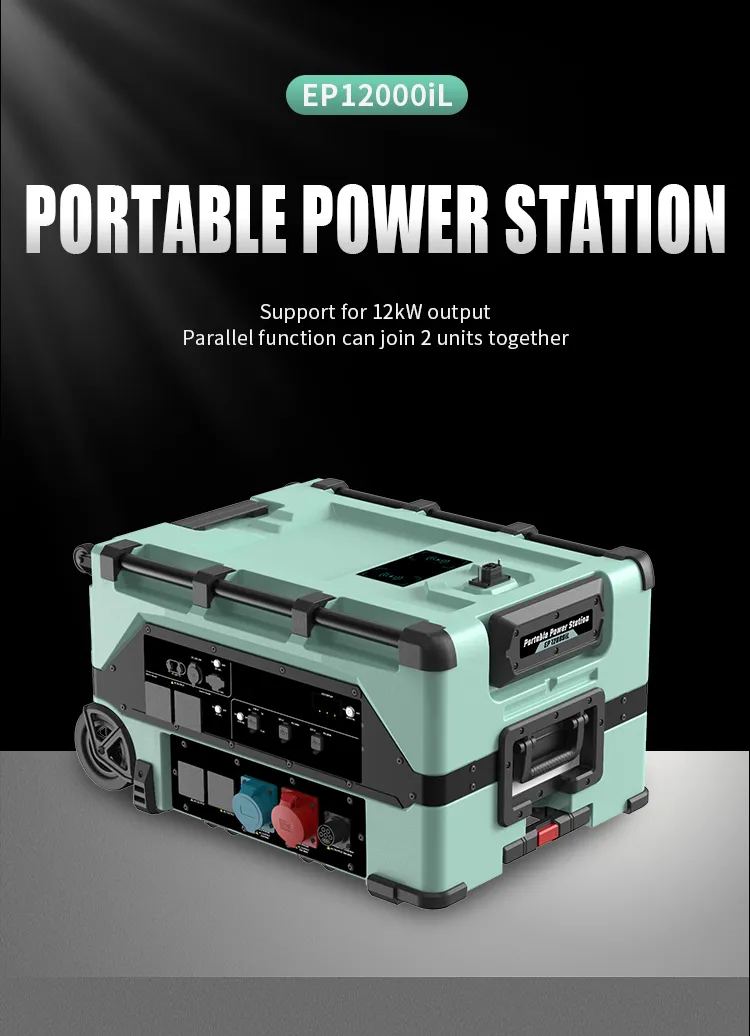

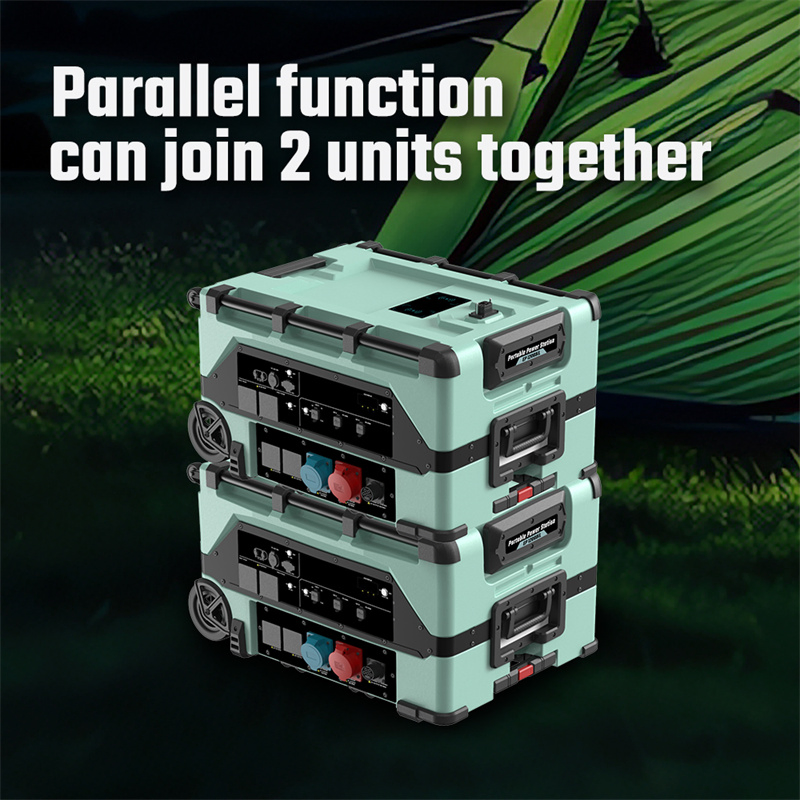

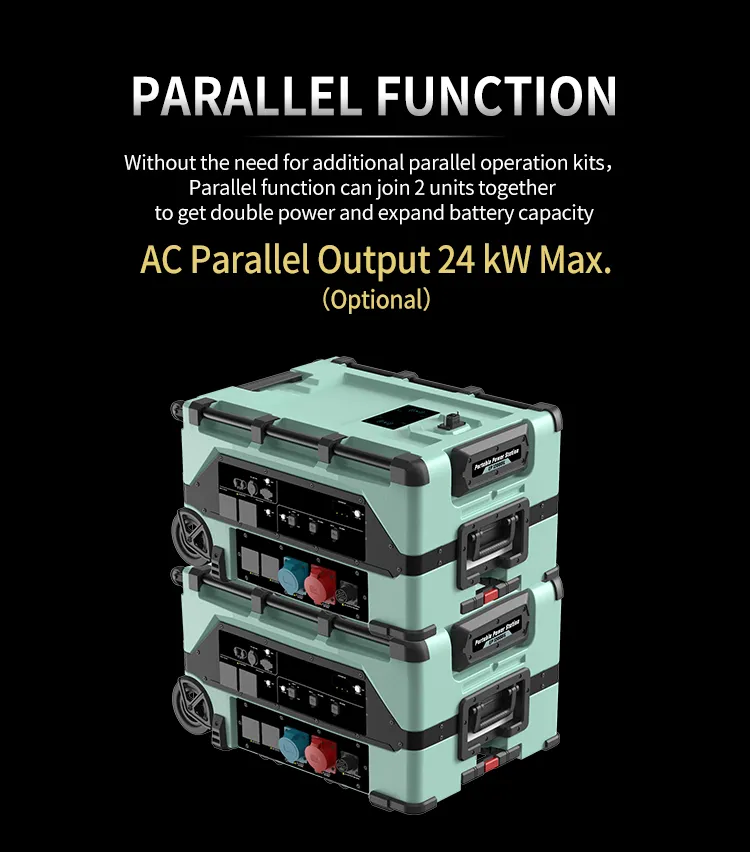

  • Stacked parallel technology: join 2 units for continuous output of 24kW.
  • Built-in electric vehicle charger, charges cars up to 22kW.
  • Four-wheel chassis and large-diameter wheels for easy portability.
  • Unit IP53 and Battery Pack IP66 protection grade.

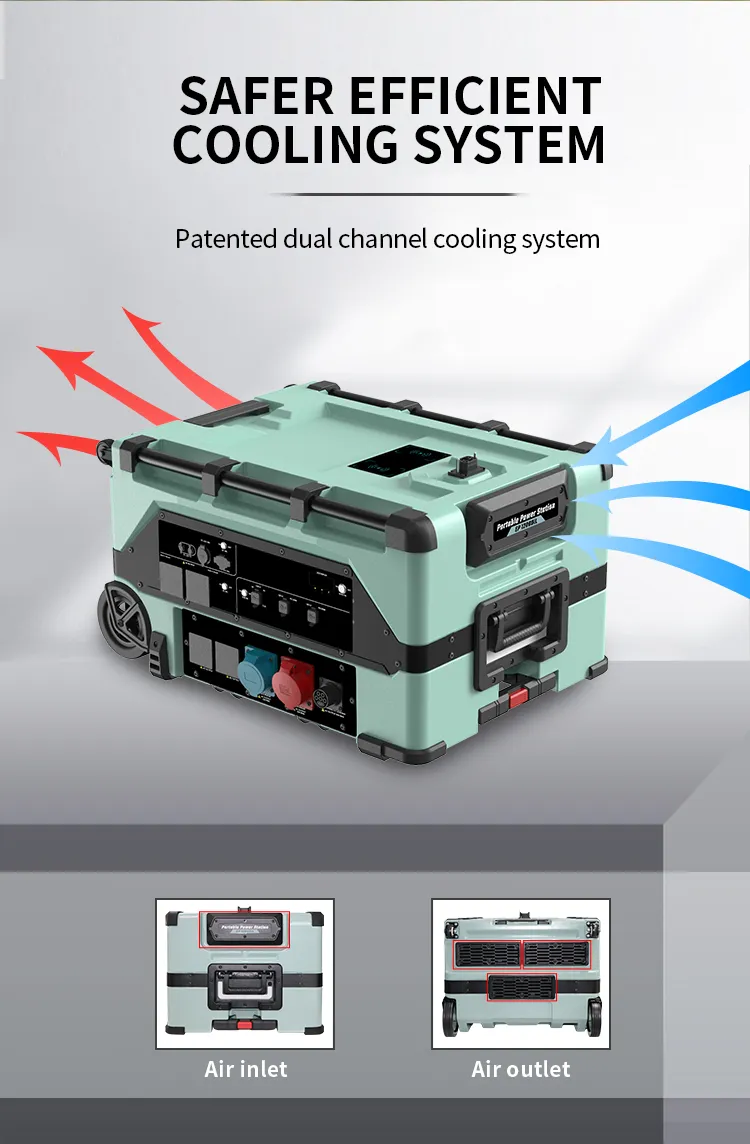

  • Patented dual channel cooling system and V-0 level flame-retardant casing.

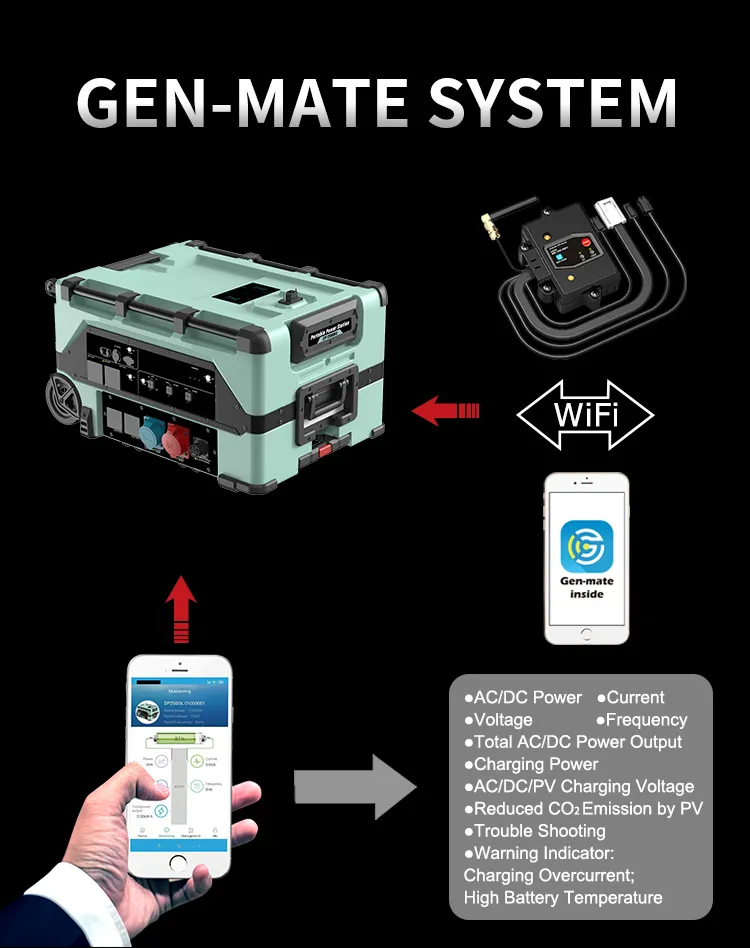

  • Intelligent control and monitor by smartphone APP.

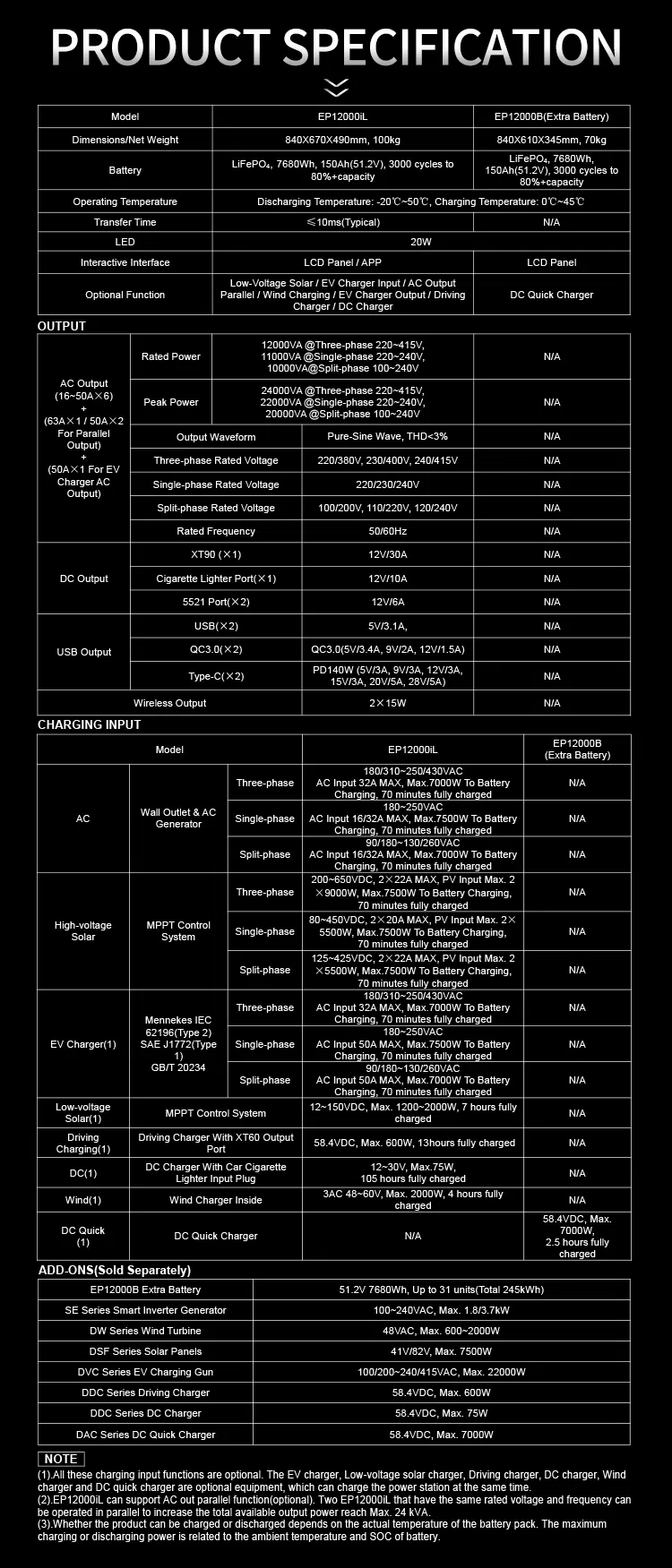

Product Parameters

AC Output Parameters Specifications
Rated Power Three-phase 12000VA @ 220~415V
Single-phase 11000VA @ 220~240V
Split-phase 10000VA @ 100~240V
Output Waveform Pure-Sine Wave, THD < 3%
Rated Frequency 50/60Hz

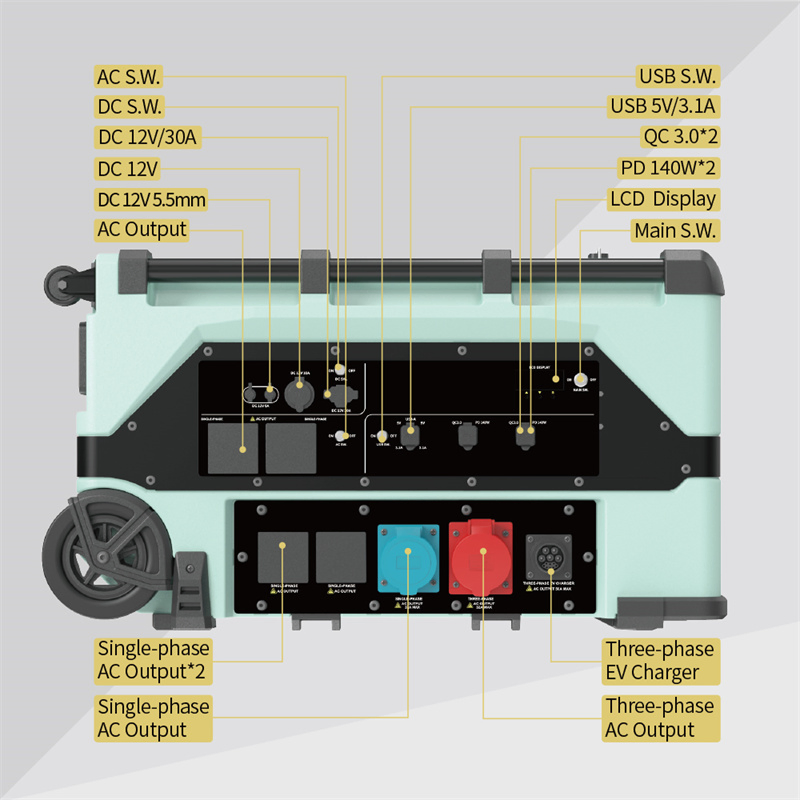

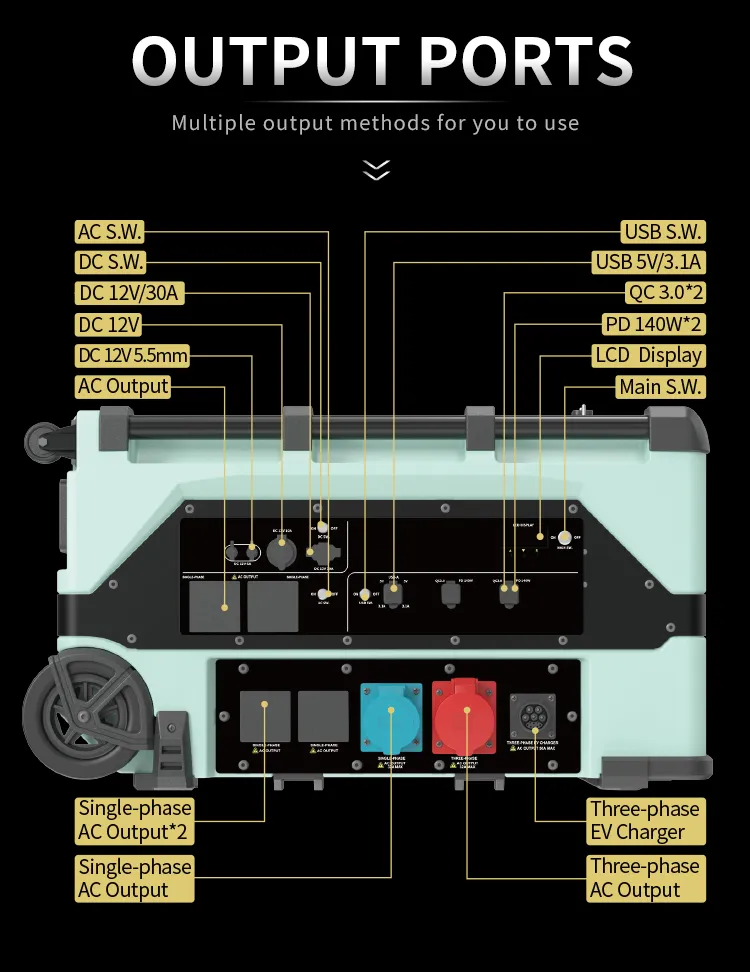

DC Output Port Specification USB Output Port Specification
XT90 12V/30A USB (x2) 5V/3.1A
Cigarette Lighter 12V/10A QC3.0 (x2) Up to 12V/1.5A
5521 Port (x2) 12V/6A Type-C (x2) PD 140W Max

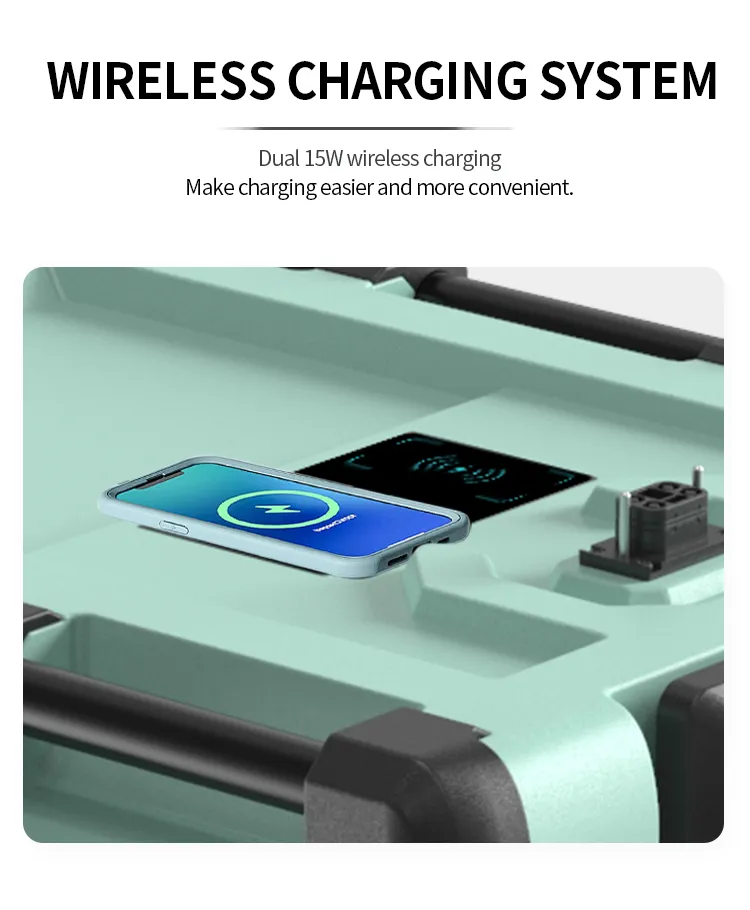

Wireless Output 2 x 15W - -
📷

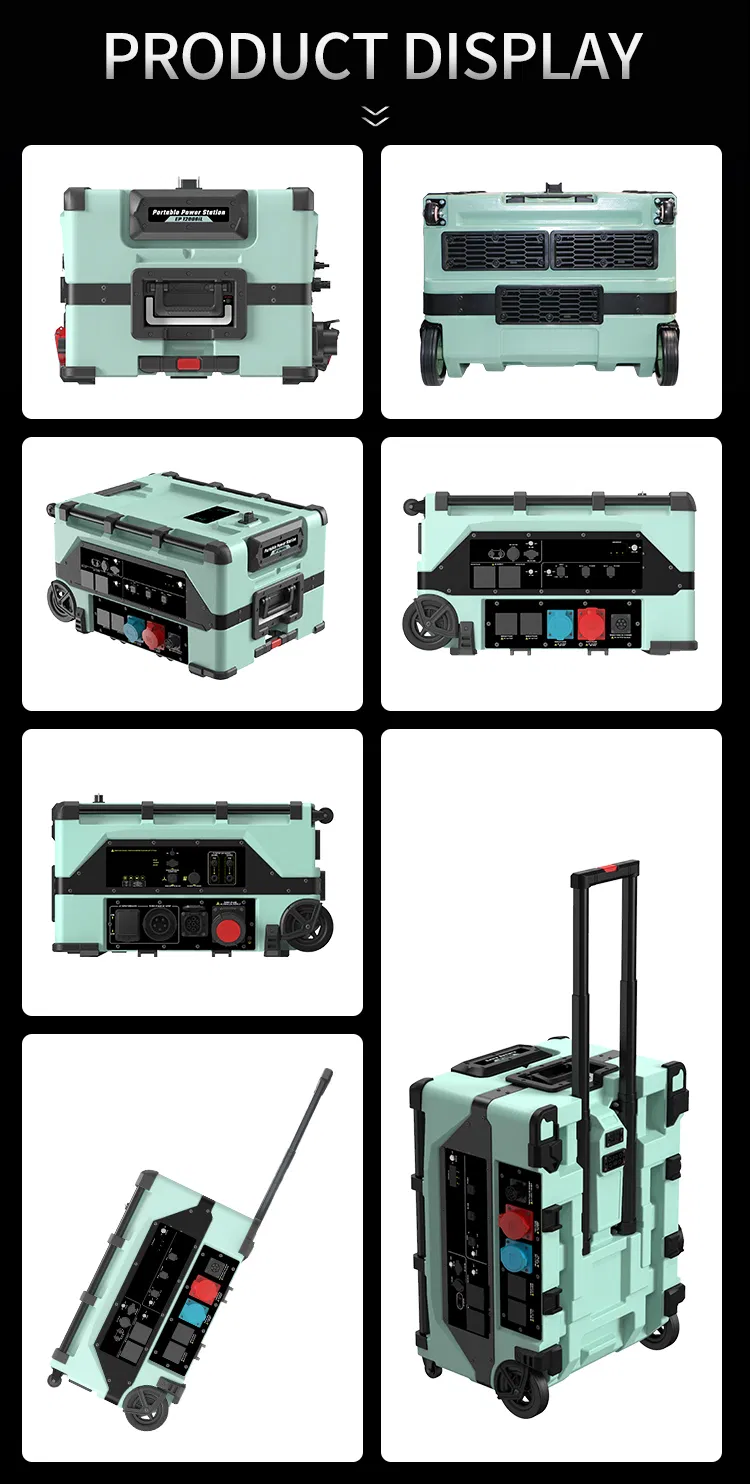

Detailed Photos

🏢

Profile

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of things, power equipment, automation equipment, and electrical products. We are devoted to the research and development of intelligent electromechanical products, insisting on independent innovation.

Possessing more than 70 critical patents in power equipment and intelligent controller fields, we maintain a leading position. Our products have earned an excellent reputation in Europe and North America markets for their superior quality and competitive pricing. We are committed to bringing innovative products to customers worldwide and promoting high-quality manufacturing.

?

Frequently Asked Questions

What is the battery capacity and type?
The system features a built-in 7680Wh high-power LiFePO4 battery, known for its safety and long cycle life (3000+ cycles).
How much can the capacity be expanded?
You can stack and connect up to 31 extra battery packs, reaching a massive total capacity of 245kWh.
What are the charging options?

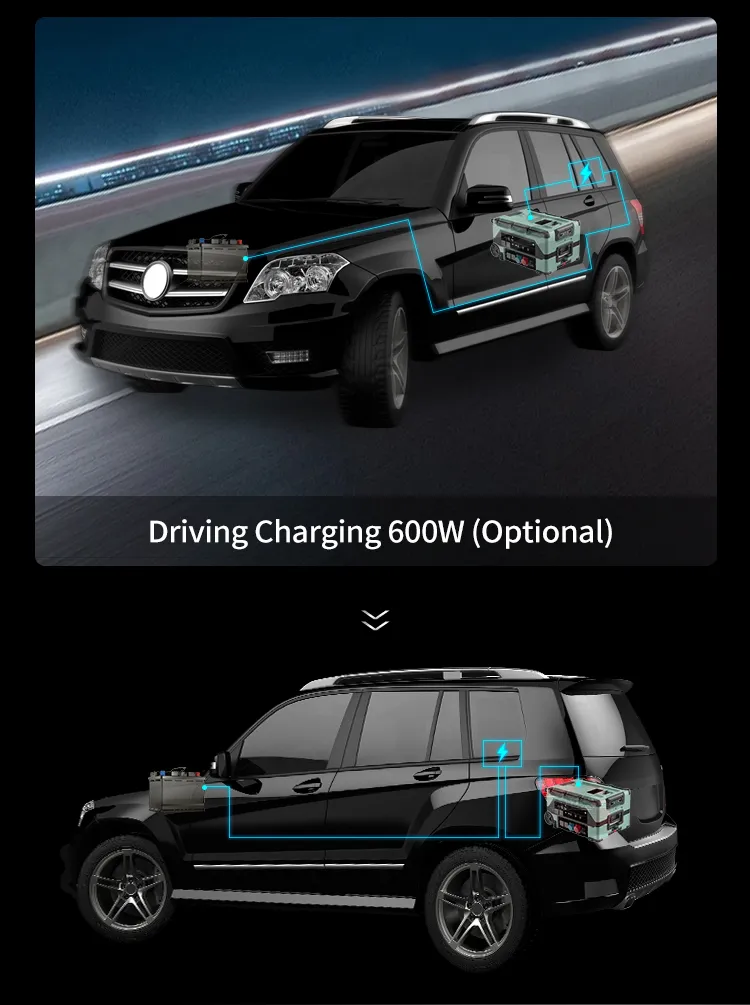

It supports multiple methods including AC utility, high/low voltage solar, EV charger, car driving charging, AC generator, and wind turbine.
How fast does it charge?
With super-fast charging support, the unit can be fully charged in as little as 70 minutes.
Is the system suitable for outdoor use?
Yes, the main unit has an IP53 protection grade, and the battery packs are IP66 rated, making them durable for various environments.
What is the warranty period?
The product comes with a 5-year warranty, ensuring long-term reliability and support.
