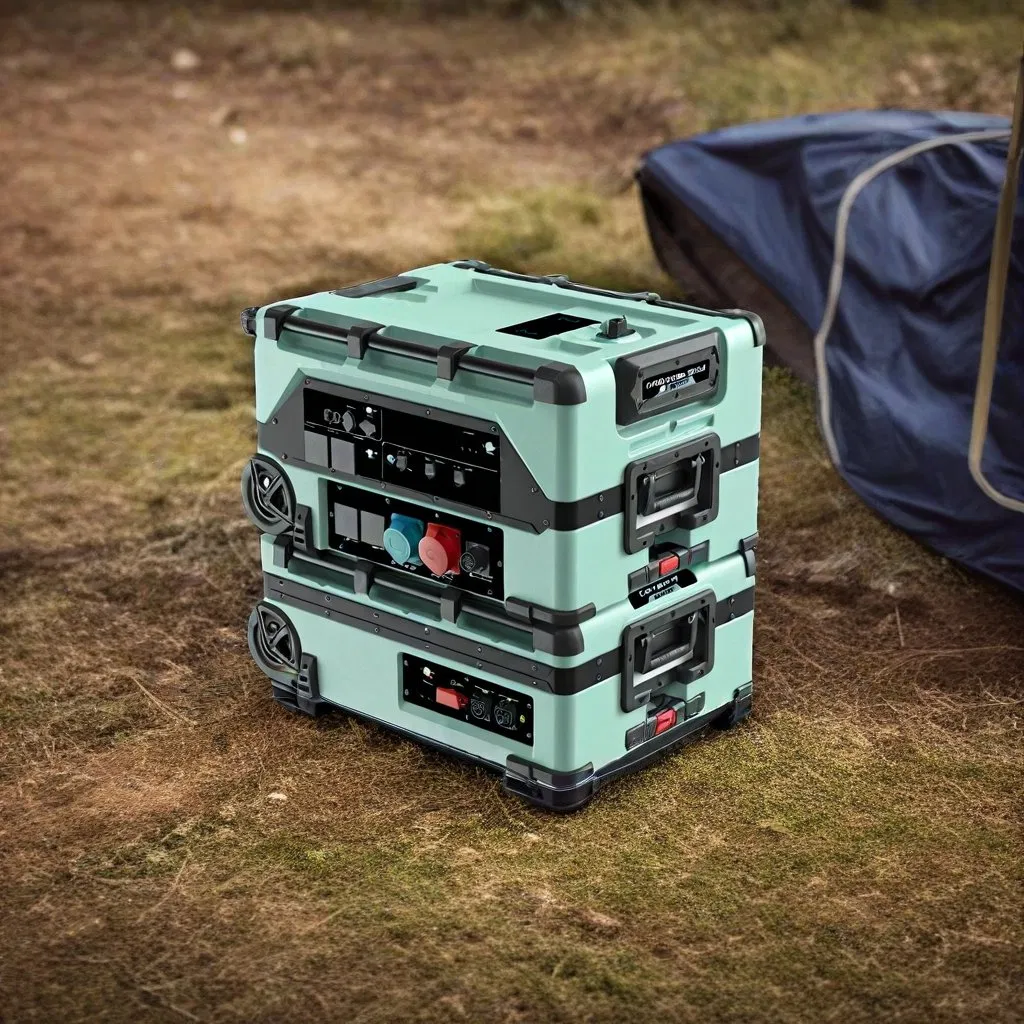

120000W Power System Self Adhesive Hybrid Solar Panels Wind Generator System

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model
EP12000W
Cycle Life
3000+
Nominal Capacity
7680Wh
Charging Methods
AC, Solar, EV, DC, Wind
Expansion
Yes, Max 245kWh
Fast Charging
70mins Fully Charged
Inverter Type
Bi-Directional
Output
Three-Phase Supported

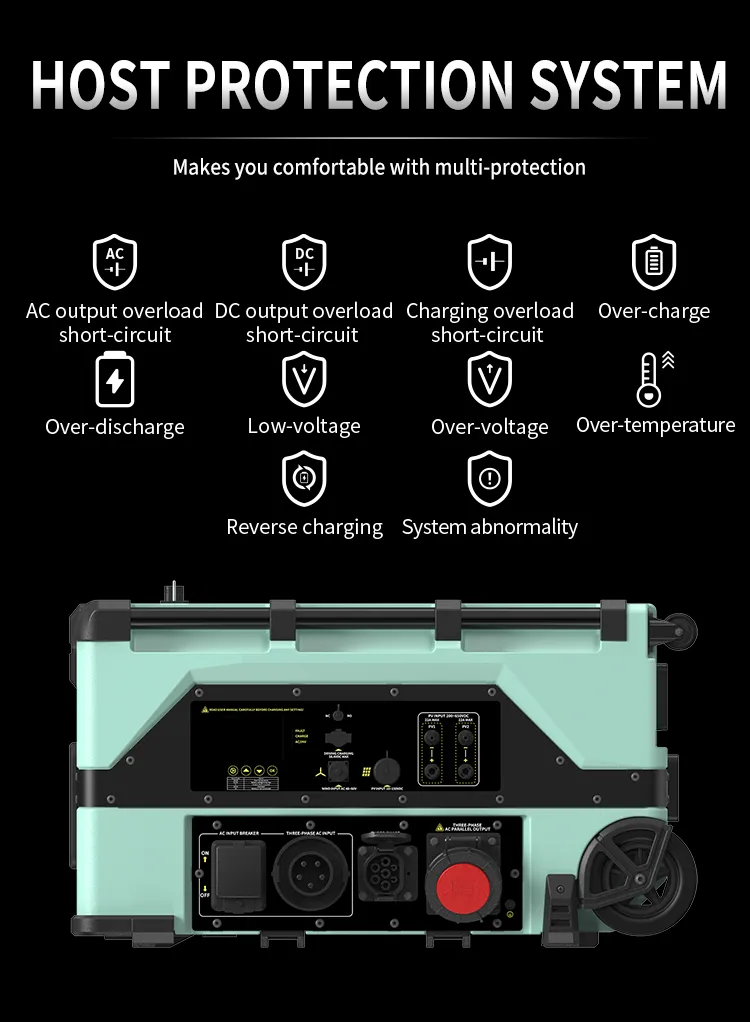

Protection
IP53 / IP66
Weight
110kg

Product Advantages

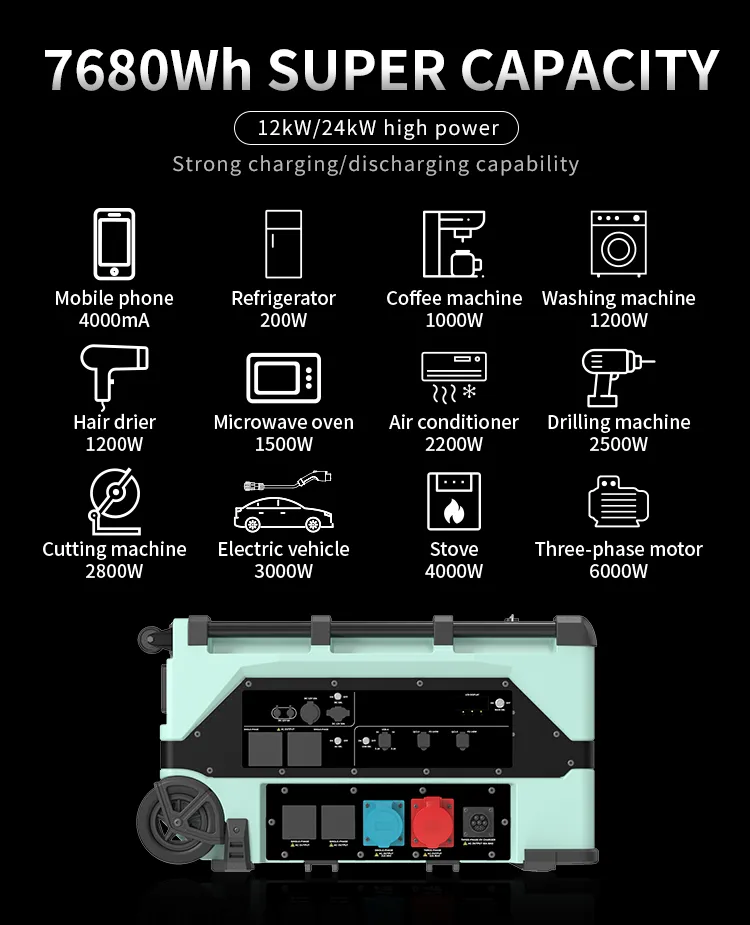

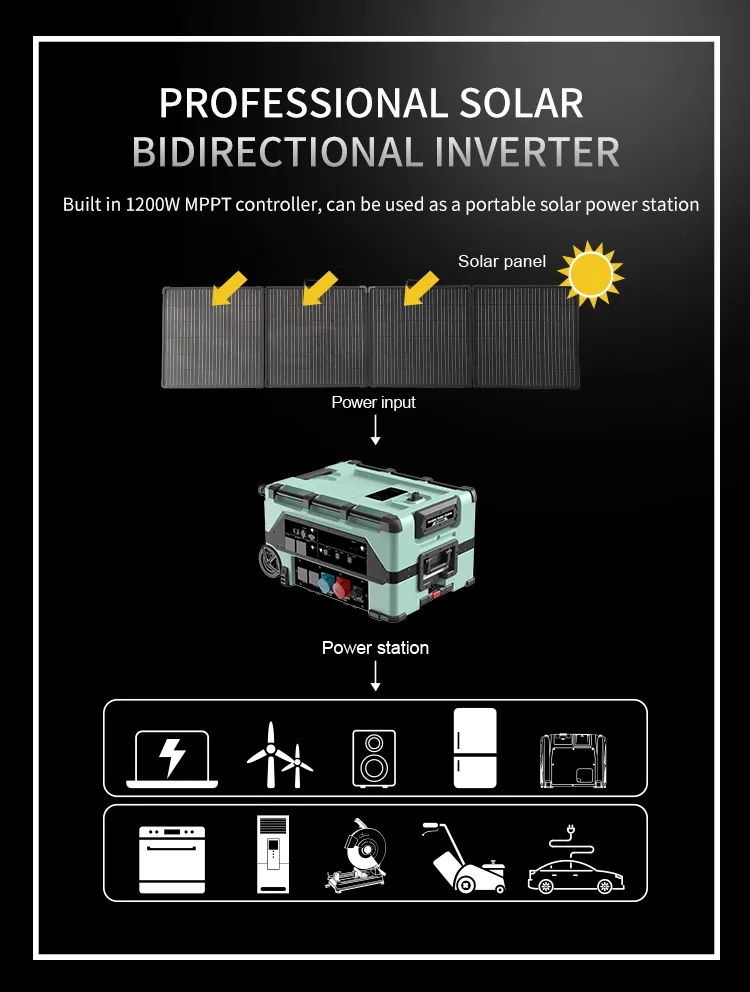

  • Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, supporting 12kW output and 8.5kW charging.
  • Supports continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

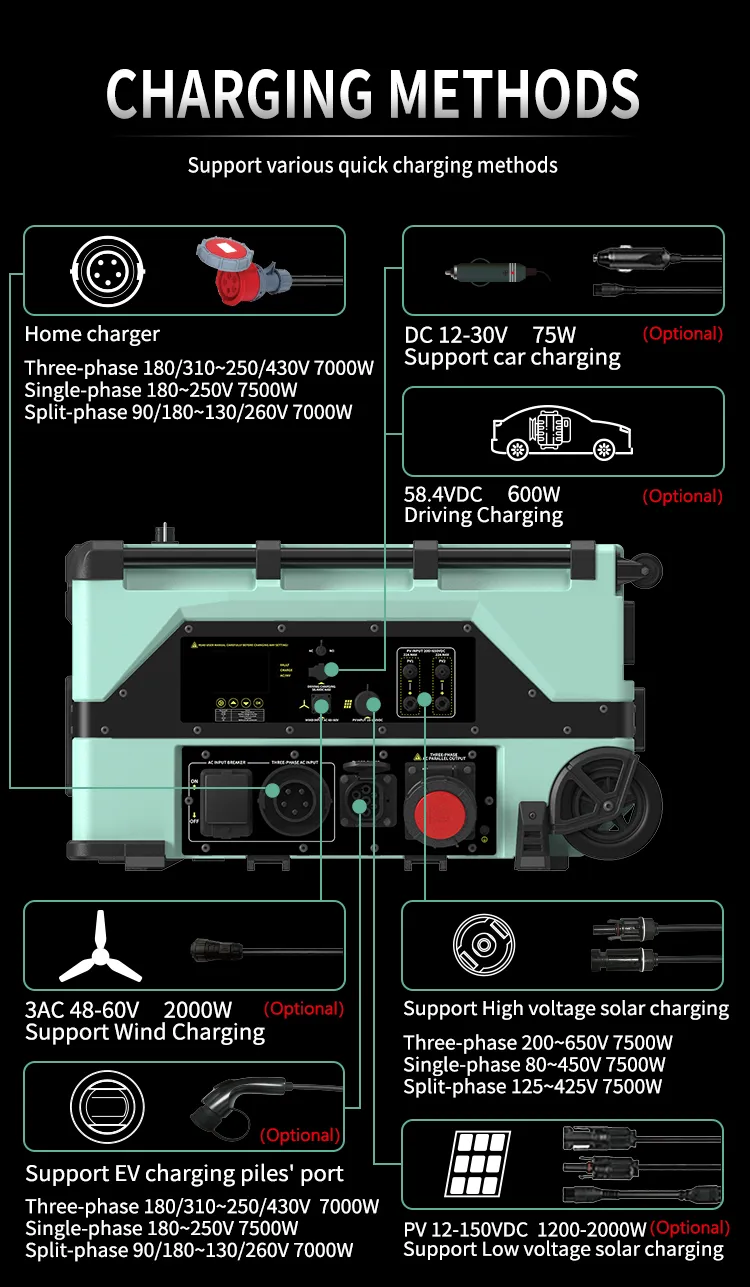

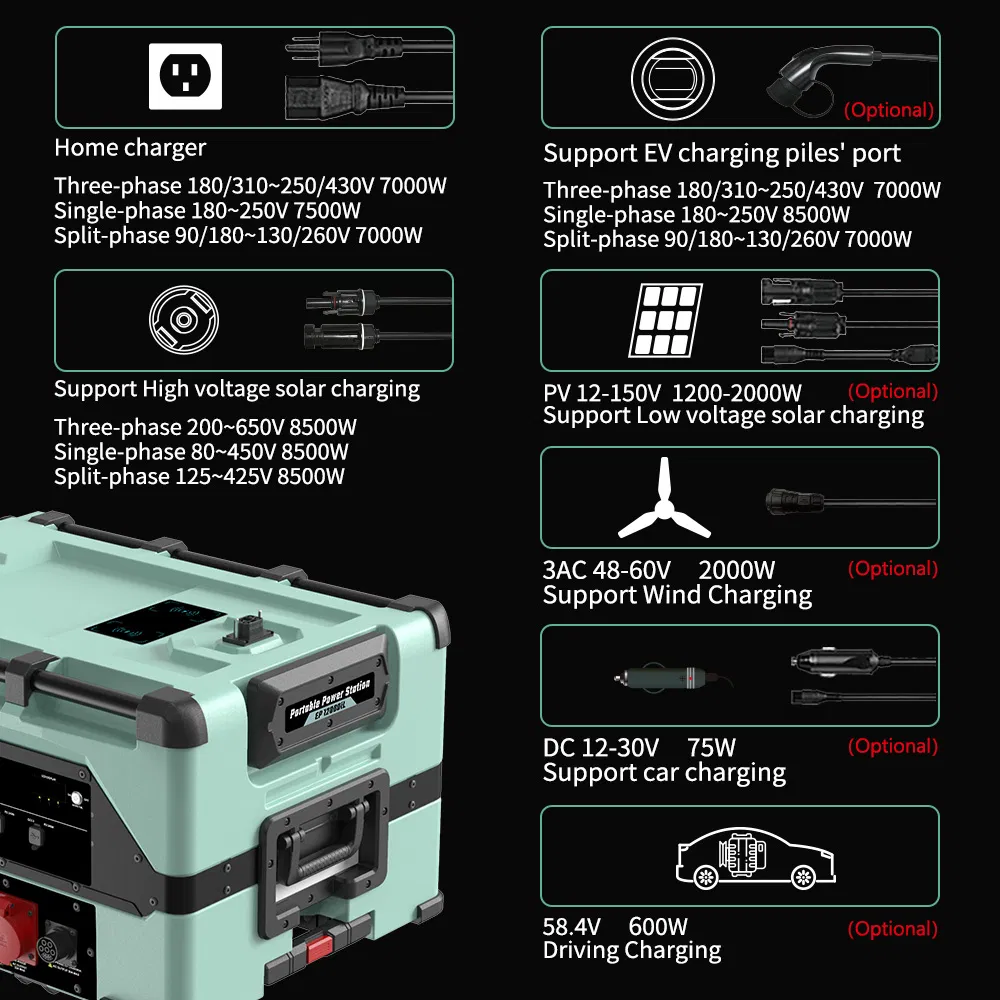

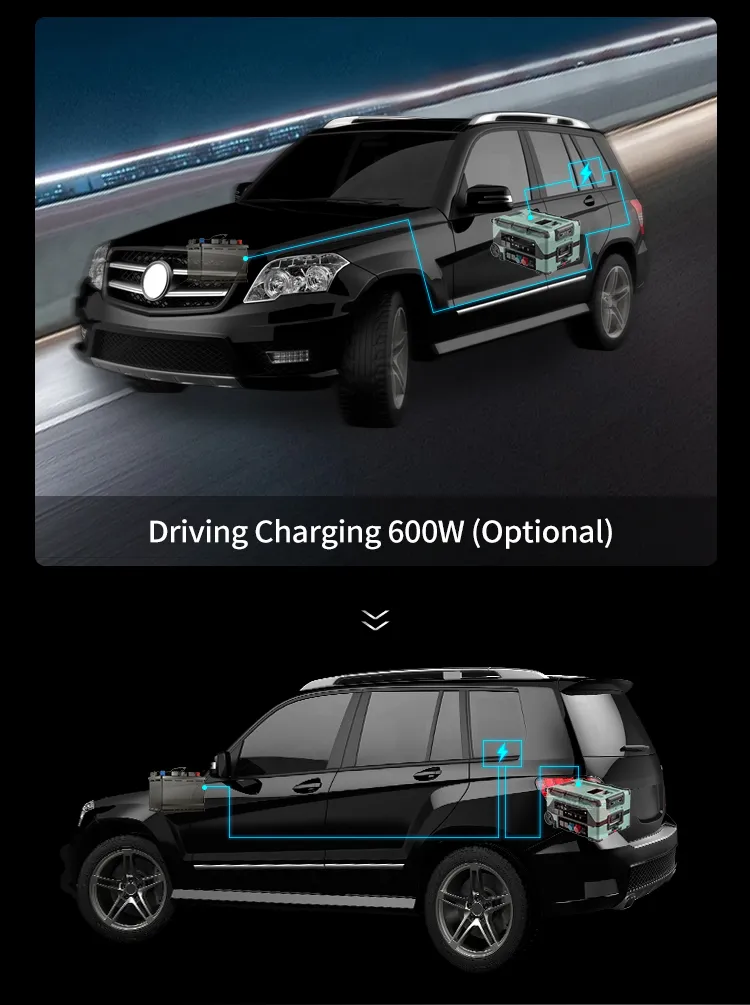

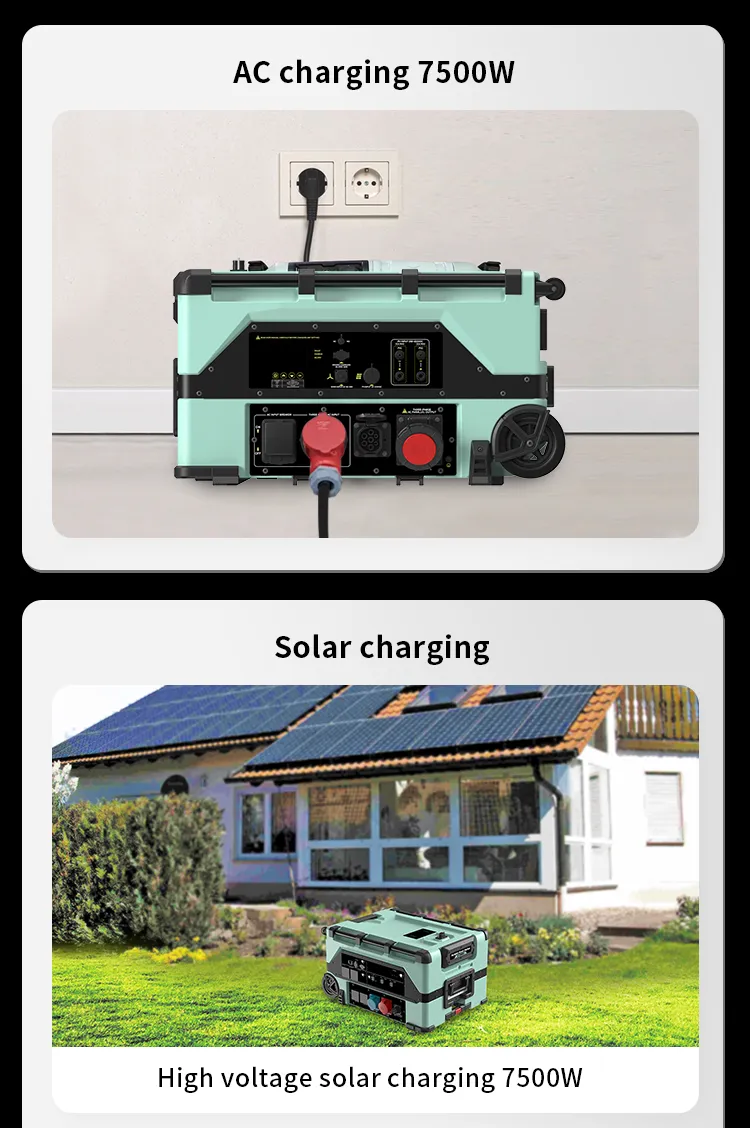

  • Versatile fast charging: Utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator, and wind turbine.
  • Extreme scalability: Up to 31 extra batteries can be connected for a total capacity of 245kWh.

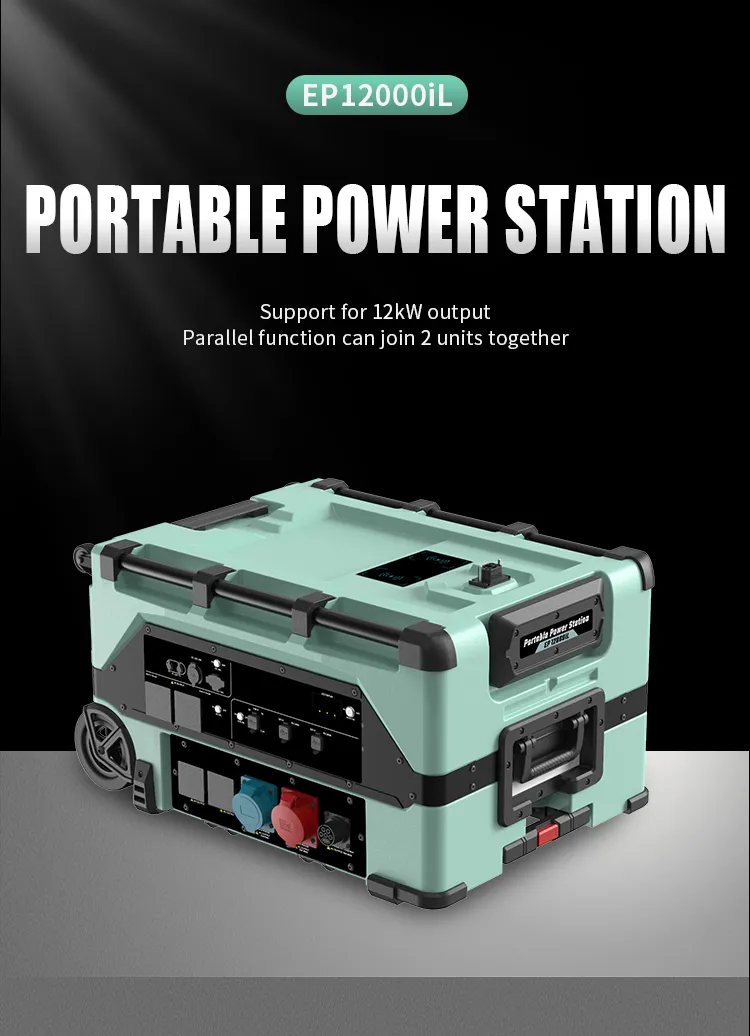

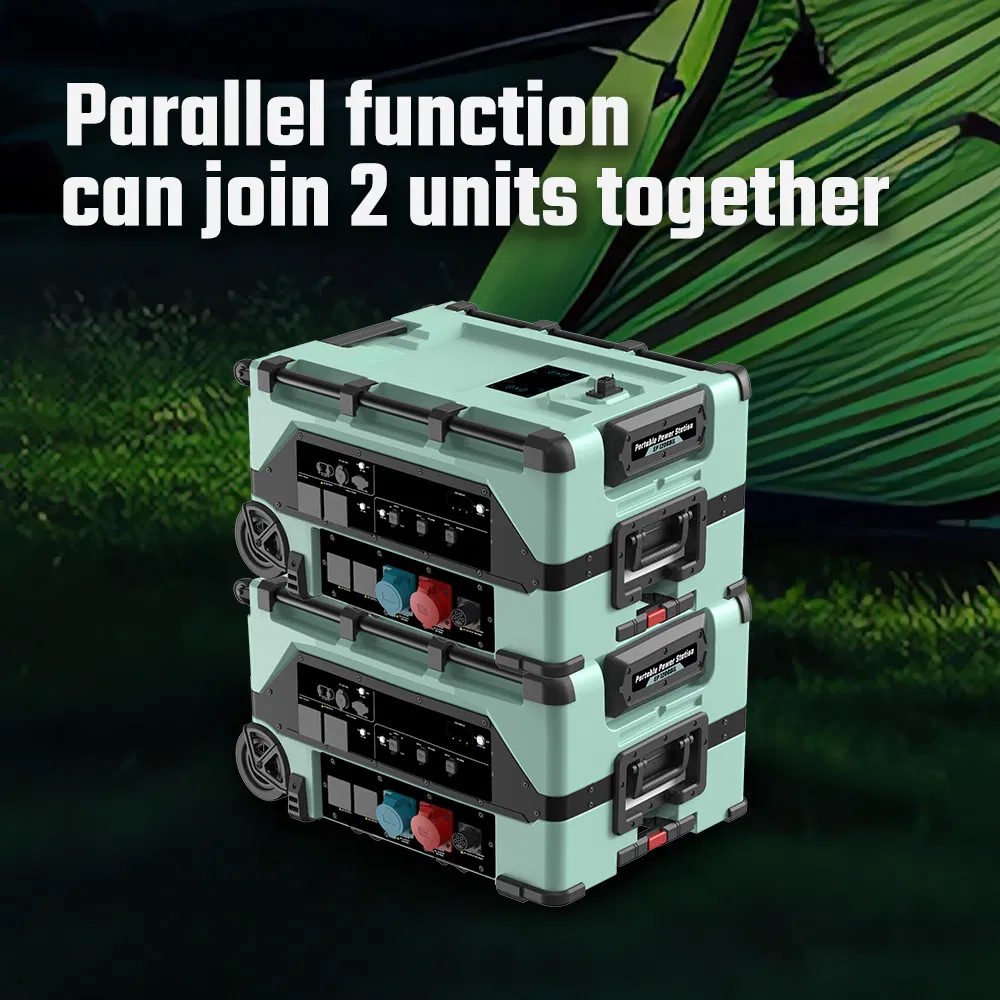

  • Stacked parallel patented technology: Join 2 units for a continuous 24kW output.
  • Integrated electric vehicle charger: Can charge cars up to 22kW.

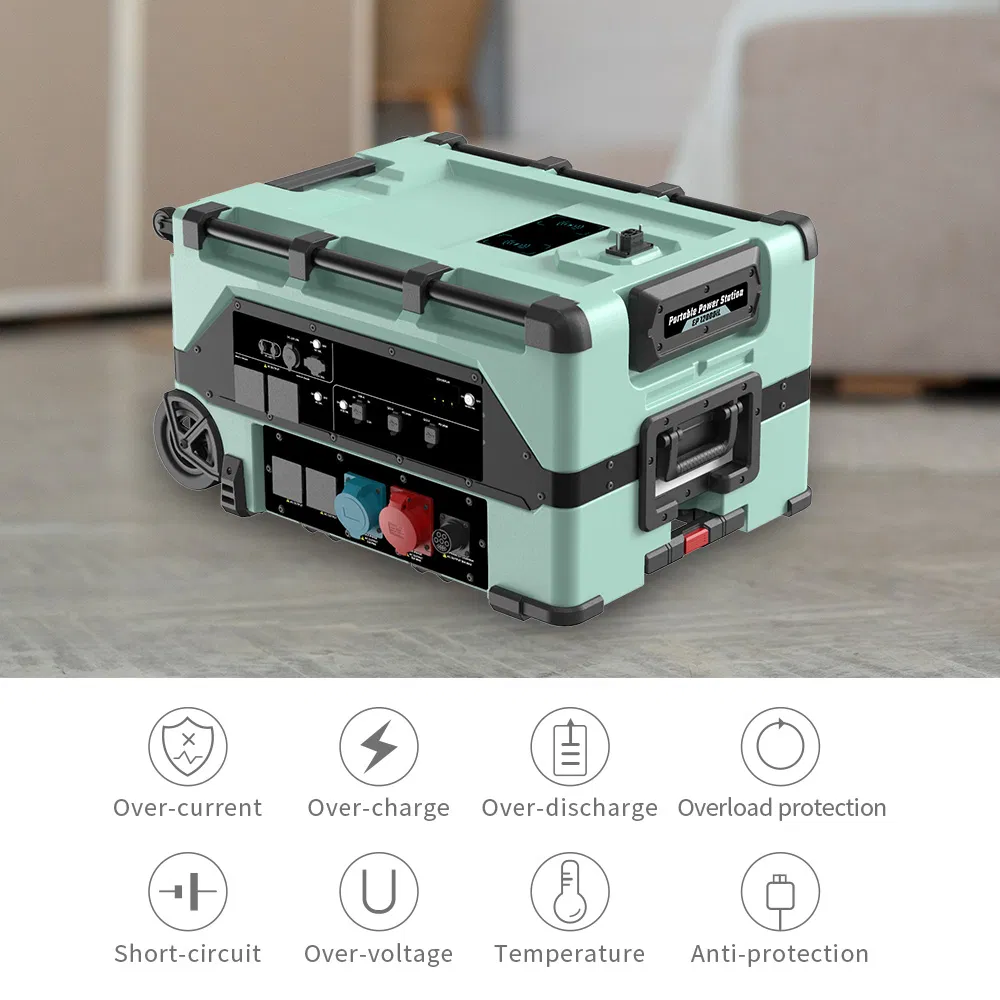

  • Rugged design: Four-wheel chassis, IP53 unit protection, and IP66 battery pack protection.
  • Intelligent control: Monitor and manage via smartphone APP.
  • Safety guaranteed: V-0 level flame-retardant casing and 5-year warranty.

Technical Parameters

Feature Main Unit (EP12000iL) Extra Battery (EP12000B)
Dimensions 840x670x490mm 840x610x345mm
Battery Type LiFePO4 (7680Wh) LiFePO4 (7680Wh)
AC Output Power 12000VA (Three-phase) N/A
Peak Power 24000VA N/A
Transfer Time ≤10ms N/A

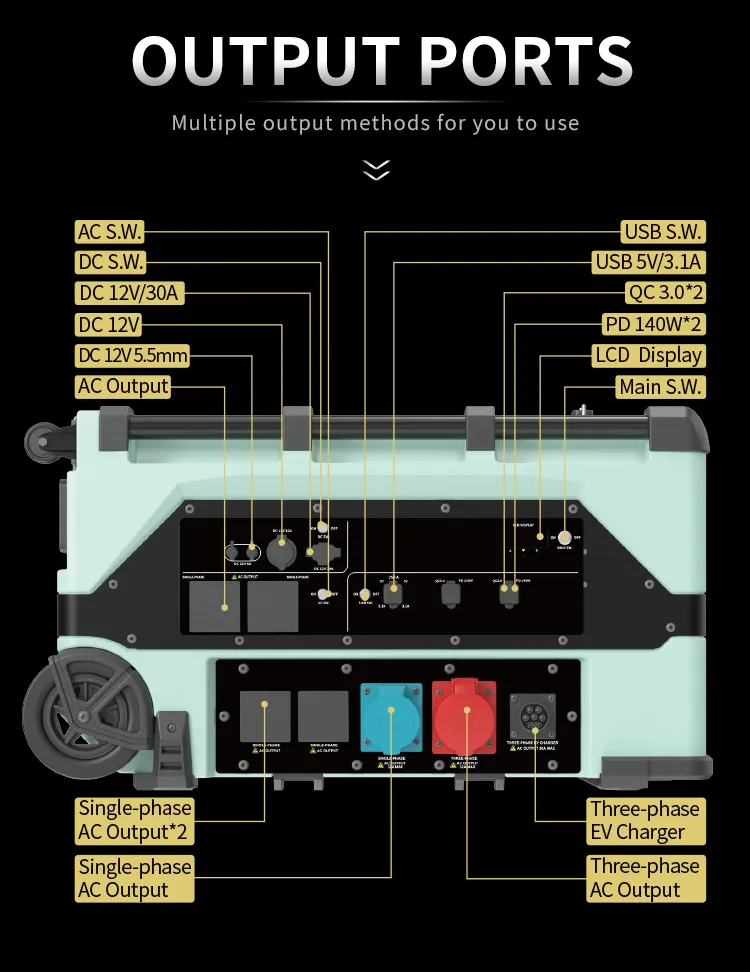

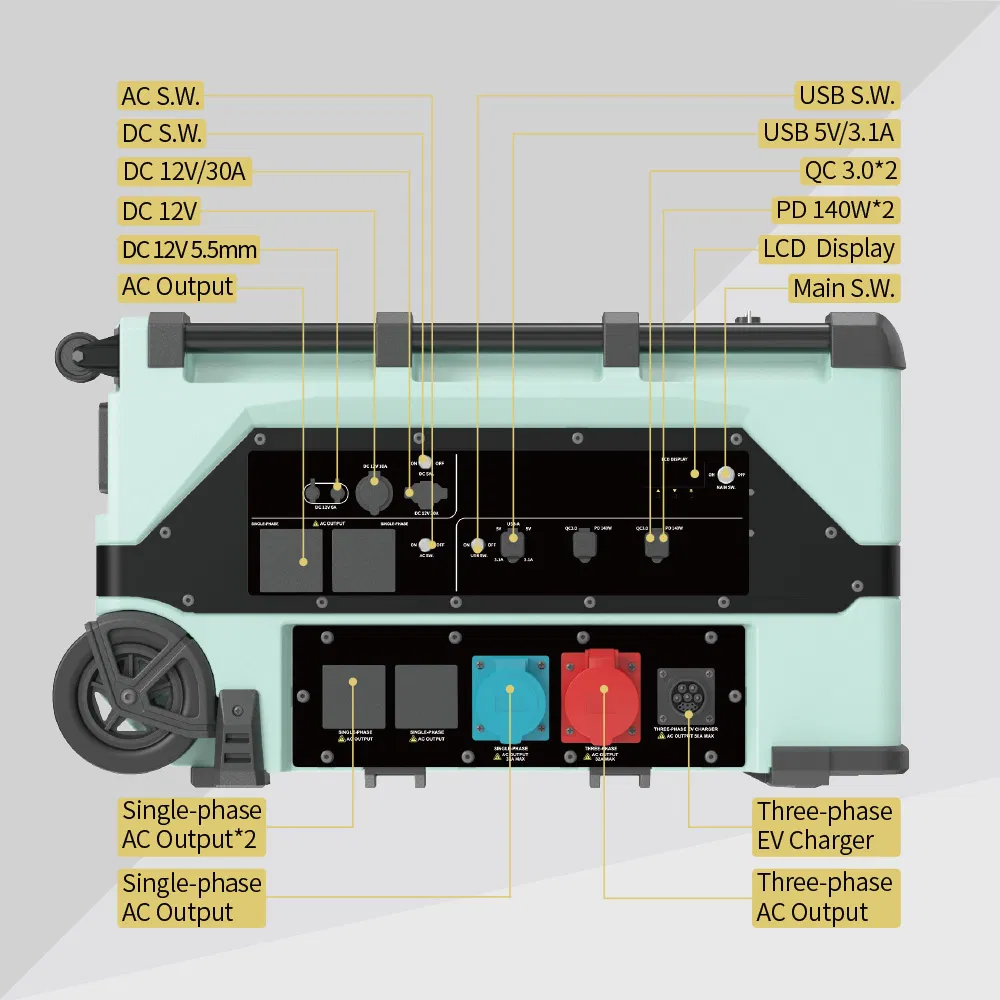

USB Output PD 140W, QC3.0, 5V/3.1A N/A

Detailed Photos

About Our Technology

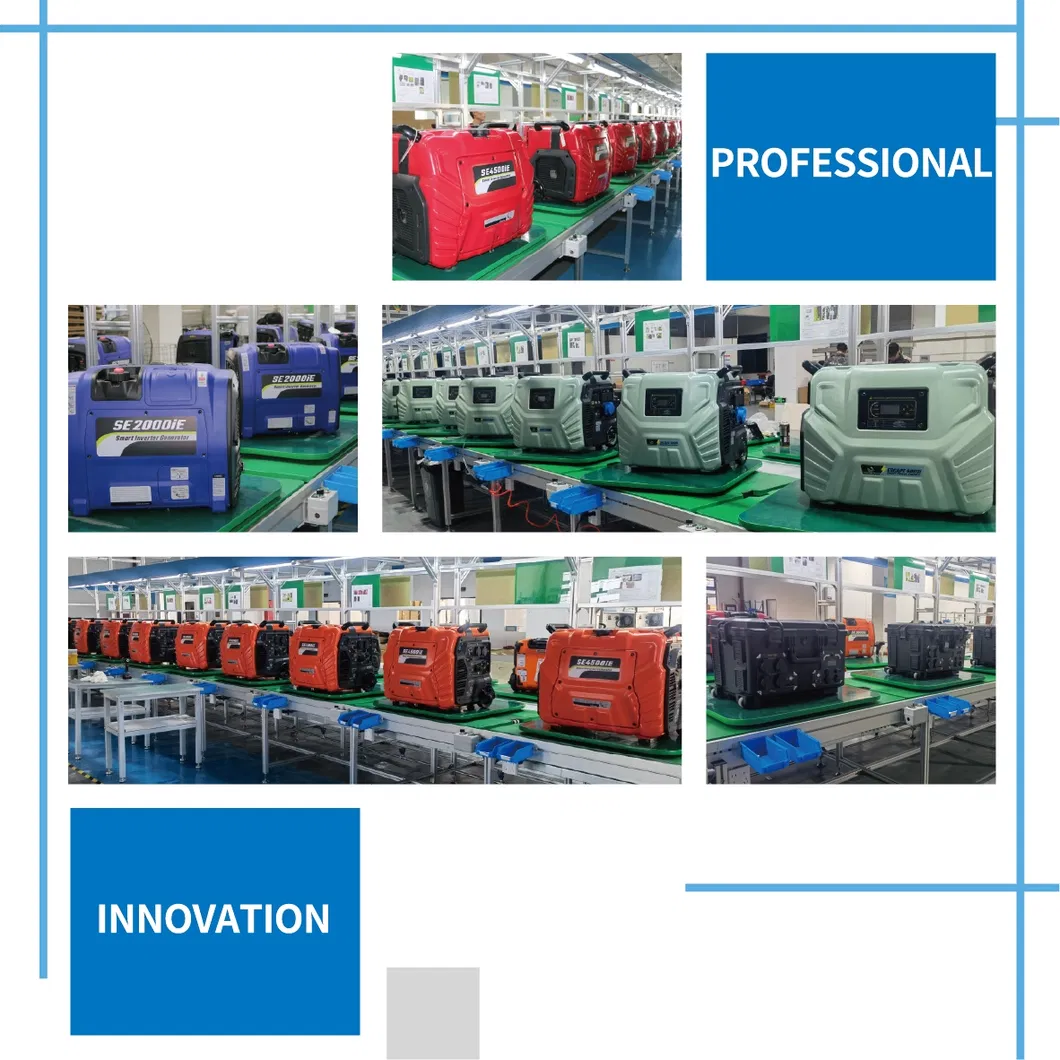

Founded with a focus on intelligent electromechanical research, our team is integrated with research, manufacture, and sales. We provide advanced products and services on inverter generators, Internet of Things (IoT), power equipment, and automation solutions. We insist on independent research and development, holding over 70 critical patents in power equipment and intelligent controller fields.

Our products have earned a strong reputation in European and North American markets for their superior quality and innovative design. We are committed to bringing better, more efficient power solutions to customers worldwide through continuous innovation and excellent service.

Frequently Asked Questions

What is the maximum capacity this system can reach?
The system is highly scalable. You can stack and connect up to 31 extra battery packs, reaching a total capacity of 245kWh.
How fast can the battery be charged?
Using AC utility or high-voltage solar charging, the system can be fully charged in approximately 70 minutes.
Can this unit charge an electric vehicle?

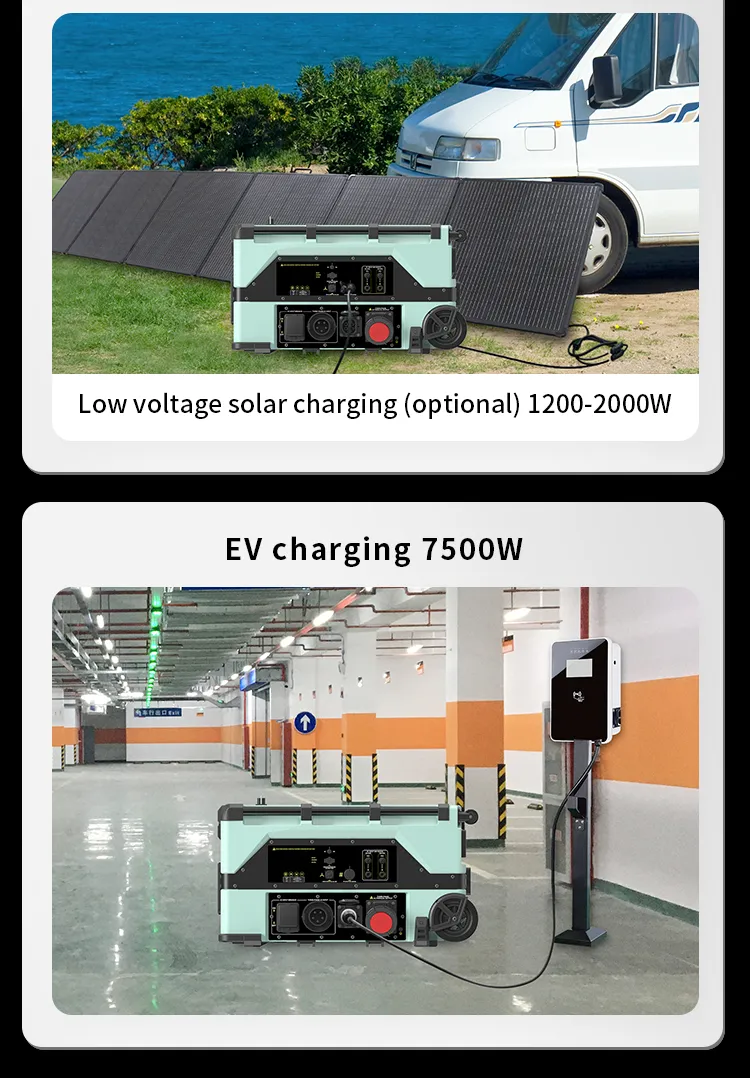

Yes, it features a built-in electric vehicle charger that can replace traditional charging stations, charging cars at up to 22kW.
Is the system suitable for outdoor or harsh environments?
Absolutely. The main unit has an IP53 rating, and the battery packs are IP66 rated, providing excellent protection against dust and water.
What kind of warranty is provided?
We offer a 5-year warranty, ensuring long-term reliability and support for your power system.
Does it support remote monitoring?

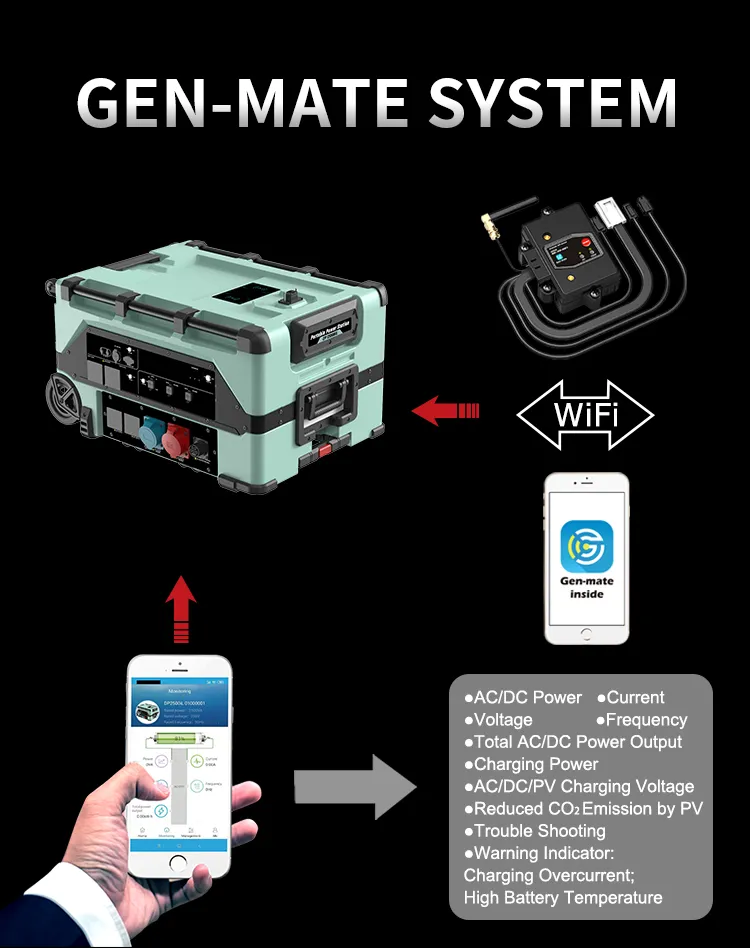

Yes, the system includes an intelligent control system that can be monitored and managed via a dedicated smartphone APP.
