Product Description

i

Basic Information

Model NO.

EP12000iL

Cycle Life

3000

Nominal Capacity

7680Wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kWh

Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

Portability

Drawbar & Wheels

★

Product Advantages

7680Wh high-power LiFePO4 battery with 12kW output.
Continuous output for three-phase (12kW), single-phase (11kW), and split-phase (10kW).
Supports utility, high/low voltage solar, EV charger, and wind turbine charging.
Expandable up to 245kWh with 31 extra battery units.

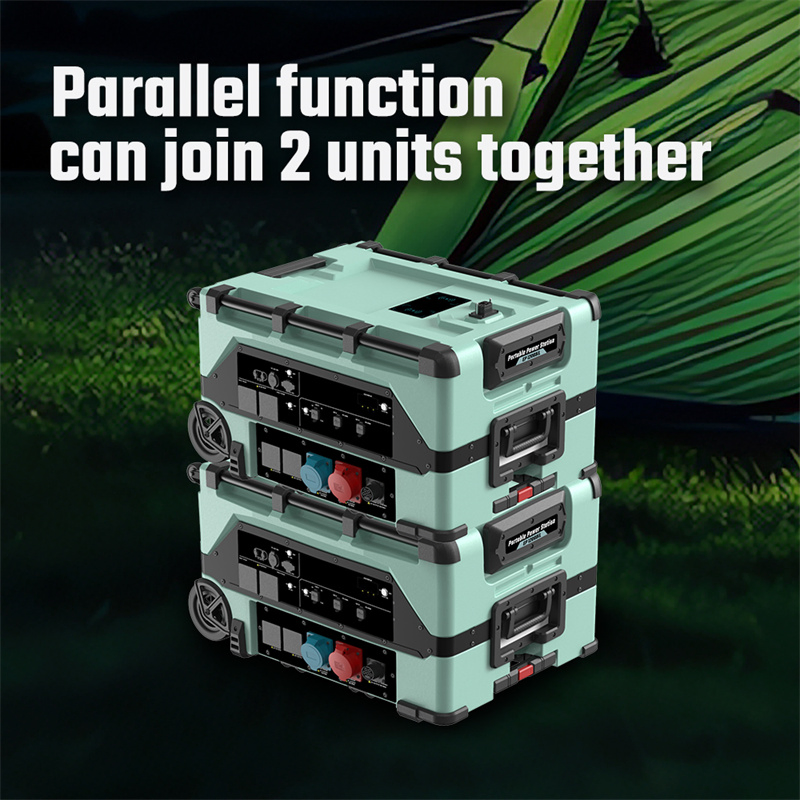

Join 2 units for a massive 24kW continuous output.
Built-in EV charger replaces stations up to 22kW.
Unit IP53 and Battery Pack IP66 protection grade.
Patented dual channel cooling system for stability.
V-0 level flame-retardant and fire-resistant casing.

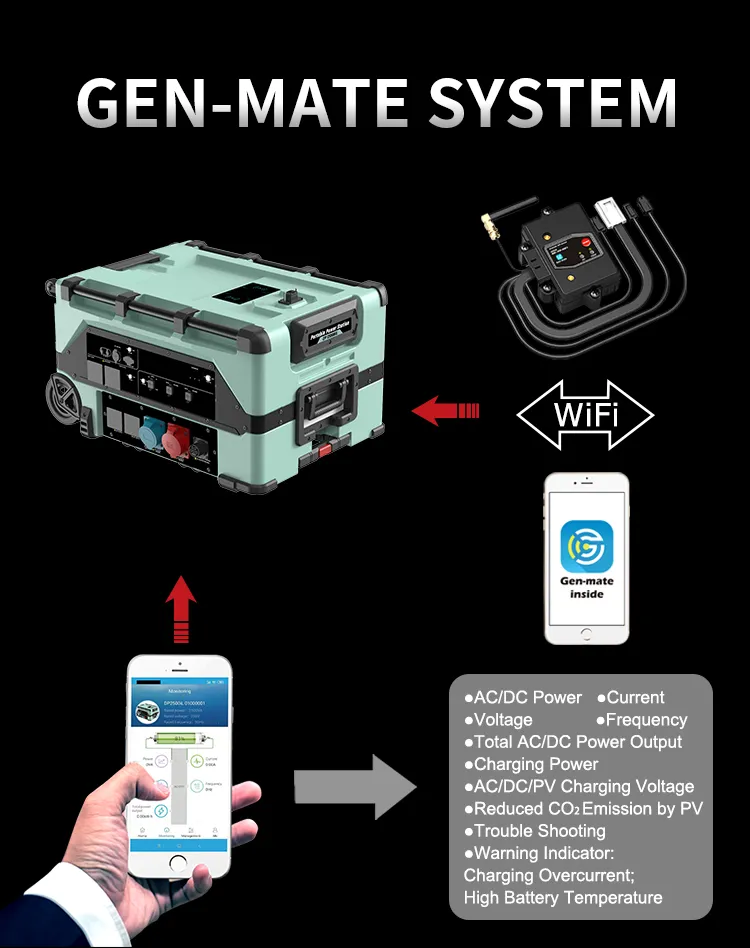

Intelligent control and monitoring via Smartphone APP.

⚙

Output Parameters

Output Type	Feature	Specifications
AC Output	Rated Power	12000VA (Three-phase) / 11000VA (Single) / 10000VA (Split)
	Peak Power	24000VA (Three-phase) / 22000VA (Single) / 20000VA (Split)

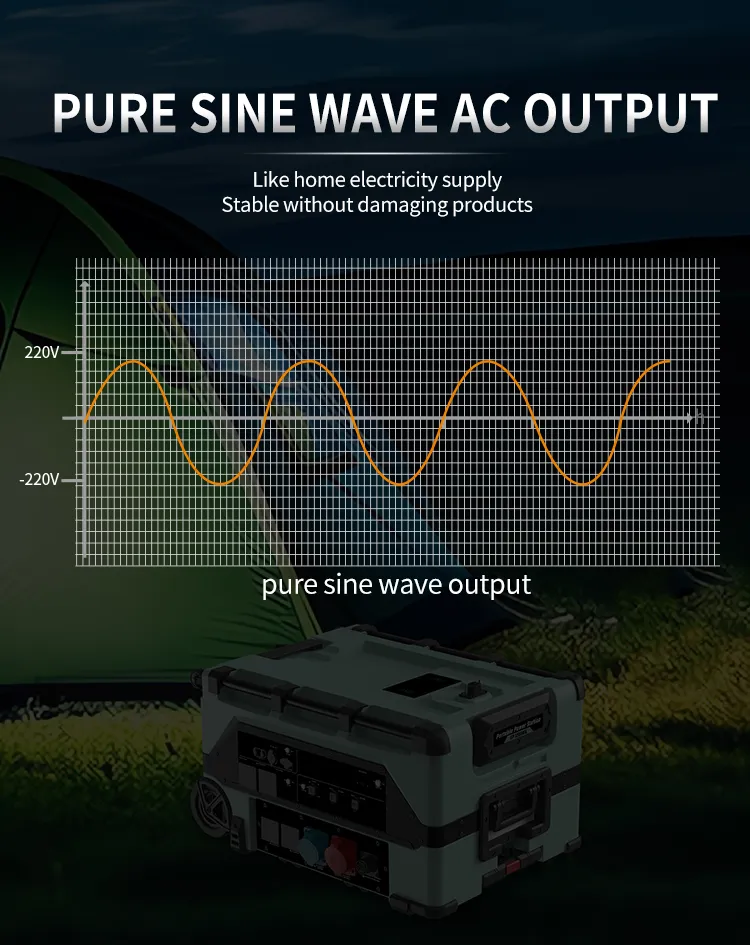

	Waveform	Pure-Sine Wave, THD < 3%
	Frequency	50/60Hz
DC/USB Output	DC Ports	XT90 (12V/30A), Cigarette Lighter (12V/10A), 5521 Port (12V/6A)

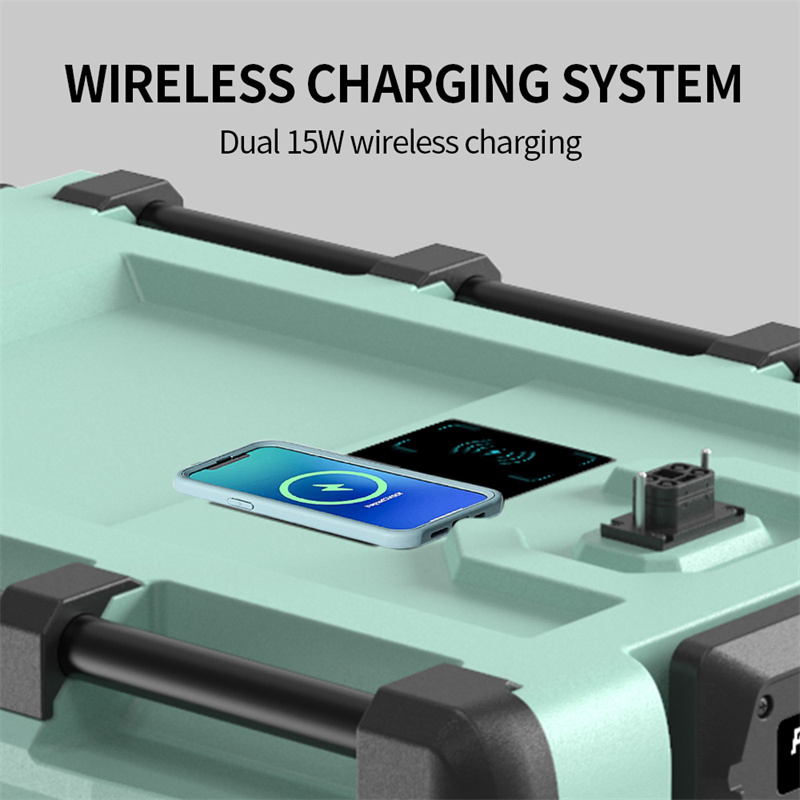

DC/USB Output	USB & Type-C	QC3.0 (18W), Type-C PD (140W), Wireless (15W x 2)

⚡

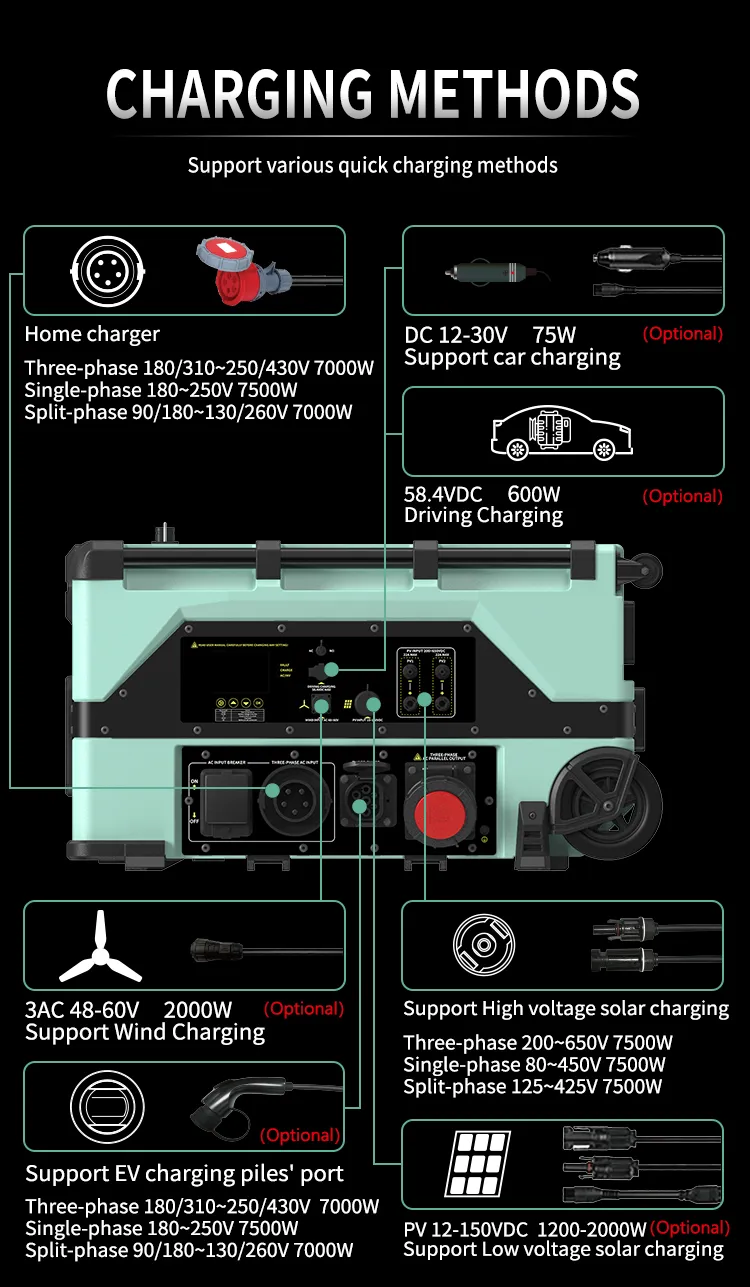

Charging Input

Method	Input Specifications	Charging Time

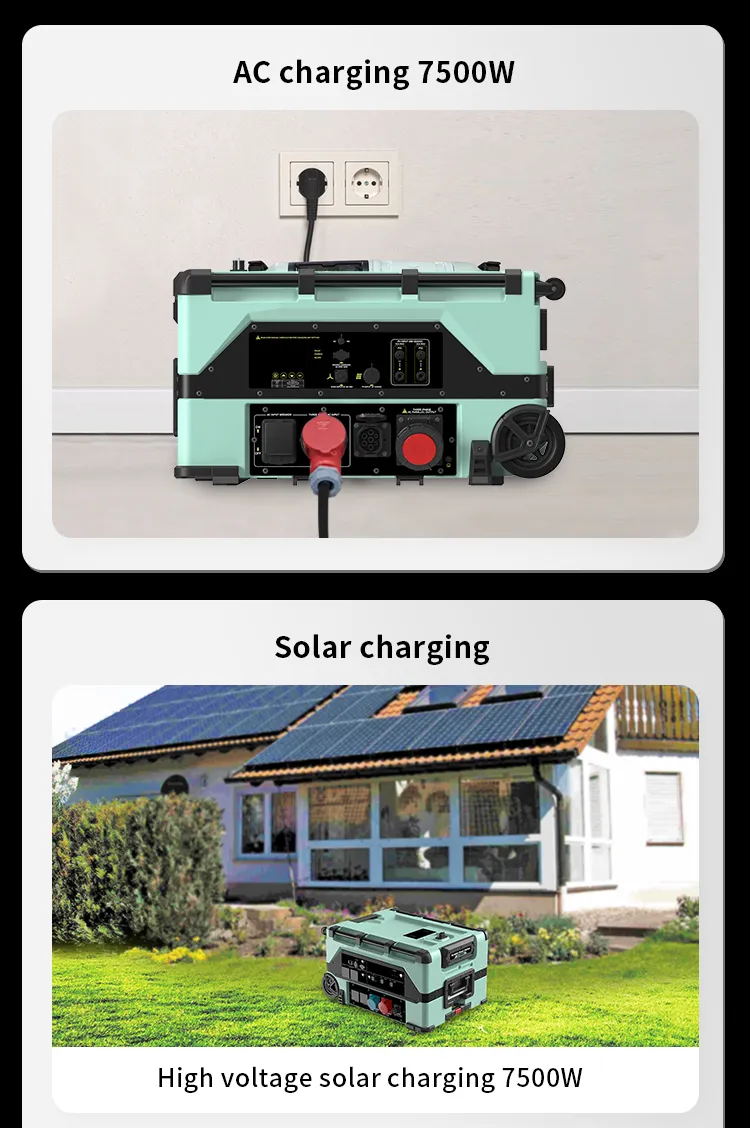

AC Wall Outlet	Max. 7500W (Single-phase 180~250VAC)	70 minutes fully charged
Solar (High Voltage)	Max. 7500W (80~650VDC)	70 minutes fully charged

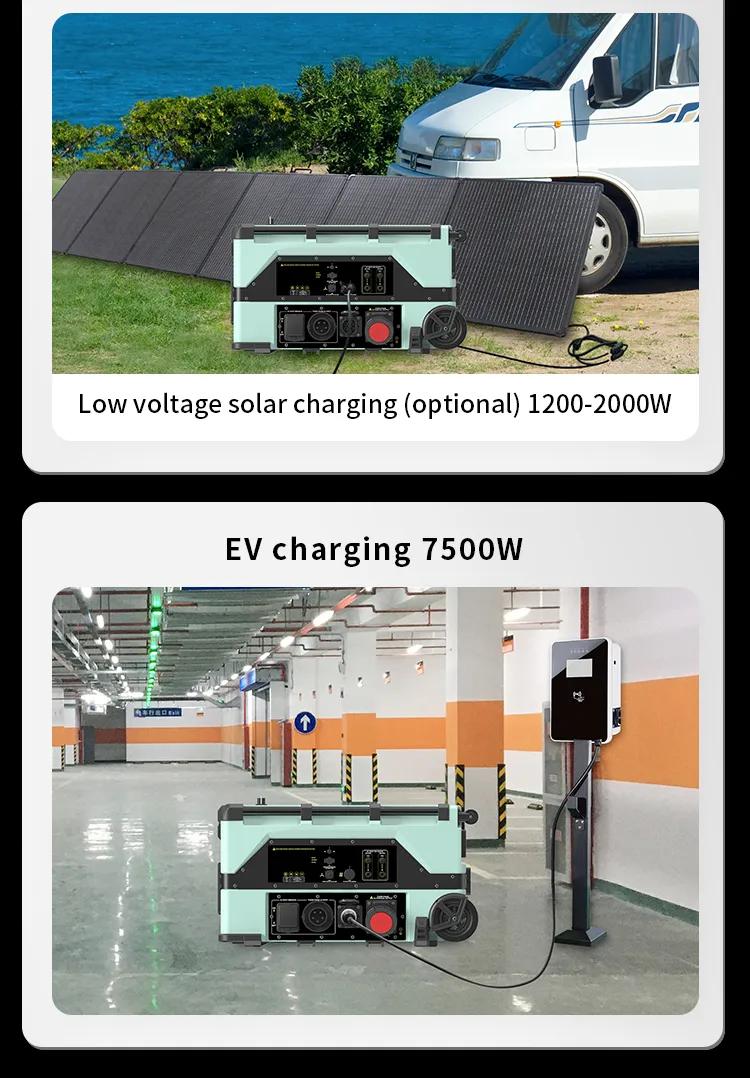

Solar (Low Voltage)	Max. 1200~2000W (12~150VDC)	7 hours fully charged
EV Charger Input	Max. 7500W (Type 1, Type 2, GB/T)	70 minutes fully charged
Wind Charging	Max. 2000W (3AC 48~60V)	4 hours fully charged

📷

Product Gallery

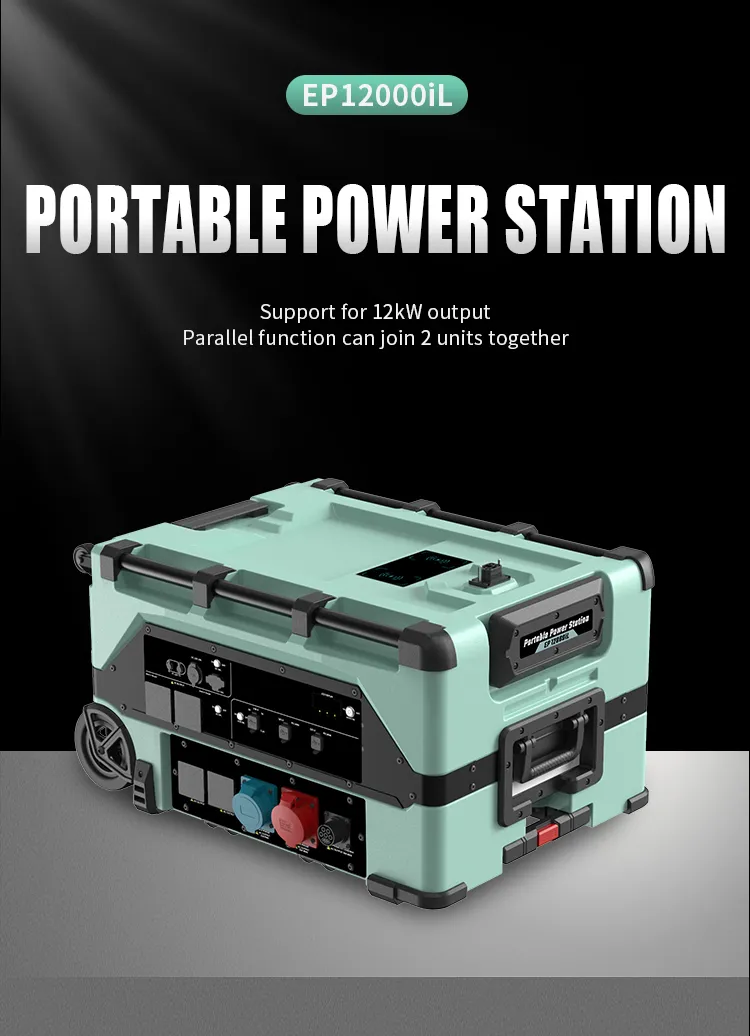

Home Energy Storage System 1

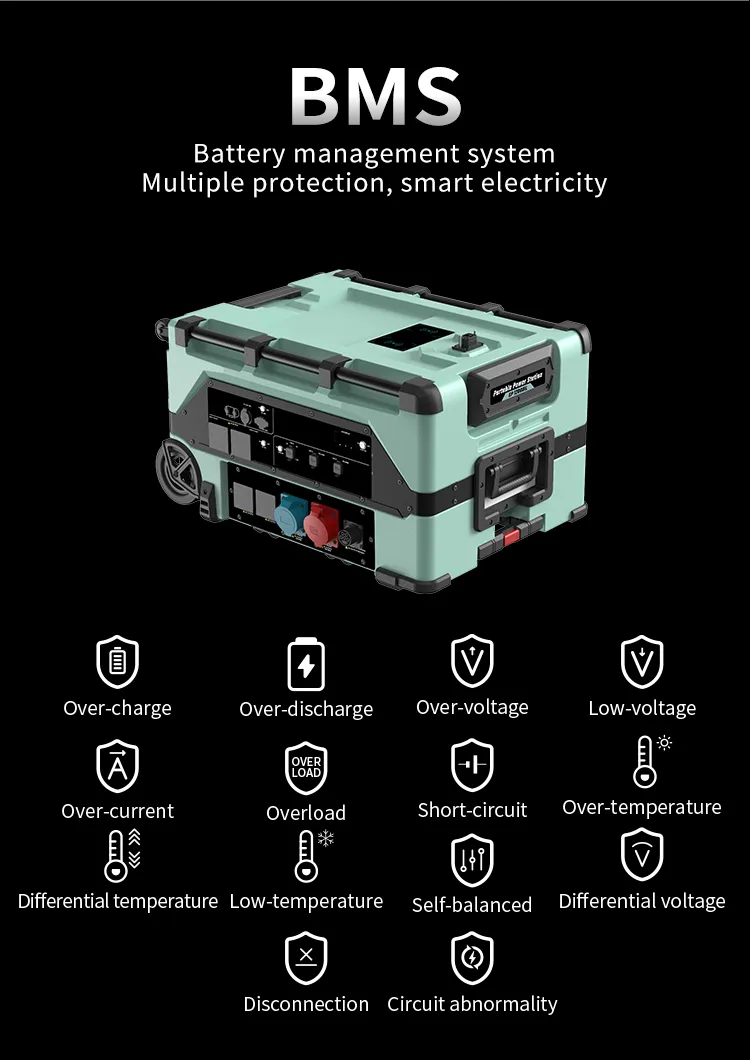

Home Energy Storage System 2

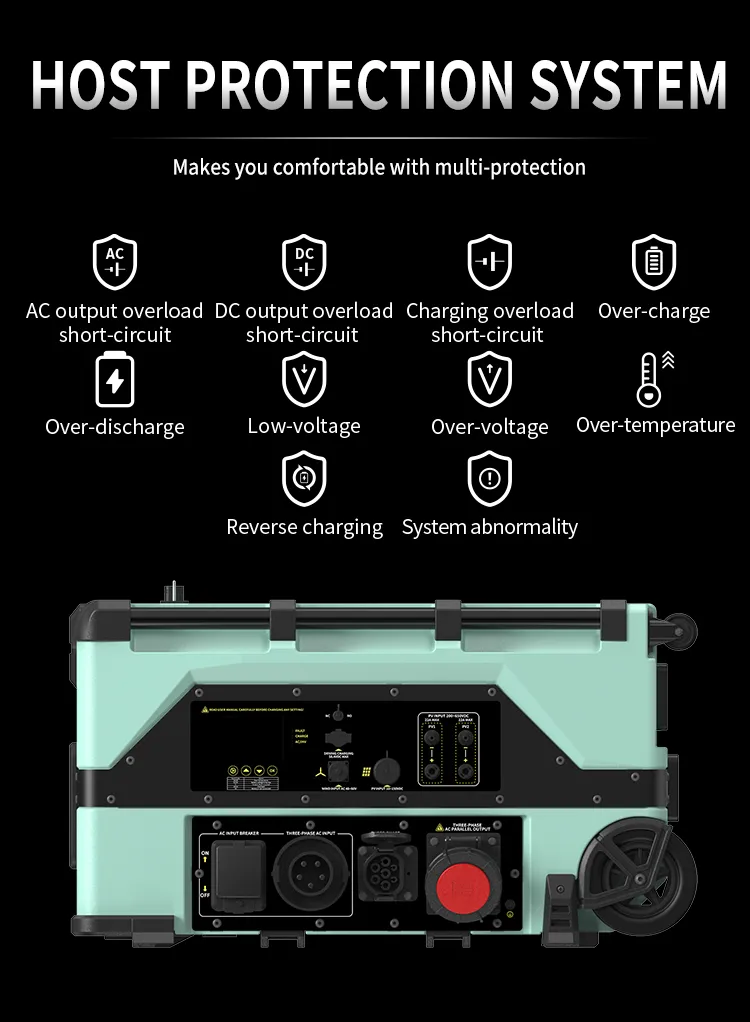

Home Energy Storage System 3

Home Energy Storage System 4

Home Energy Storage System 5

Home Energy Storage System 6

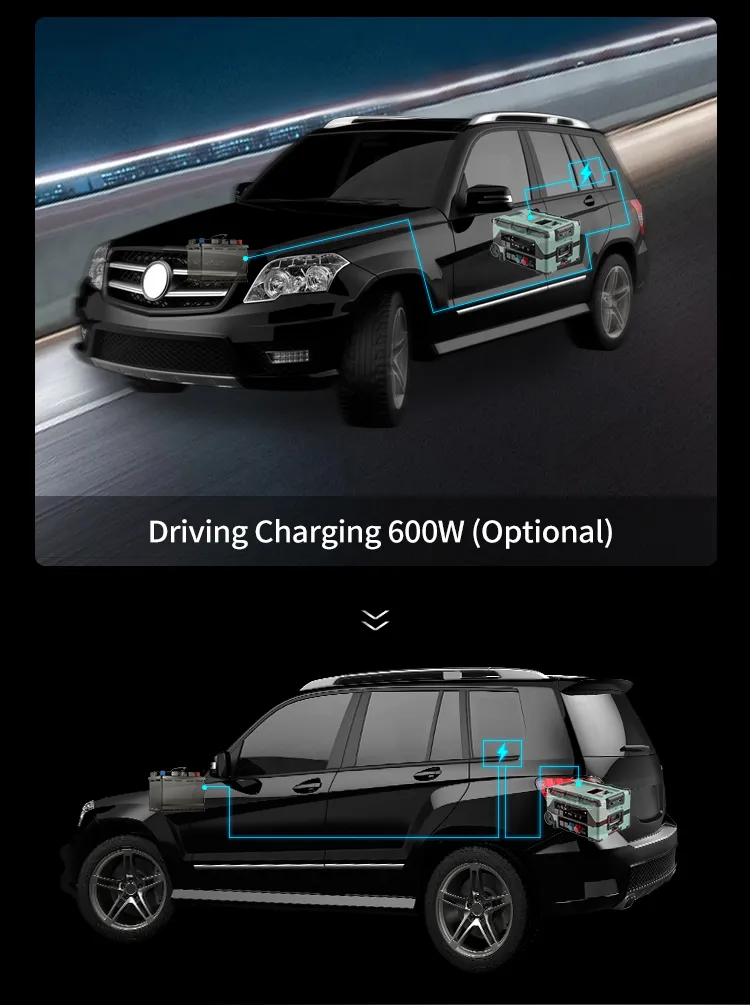

Home Energy Storage System 7

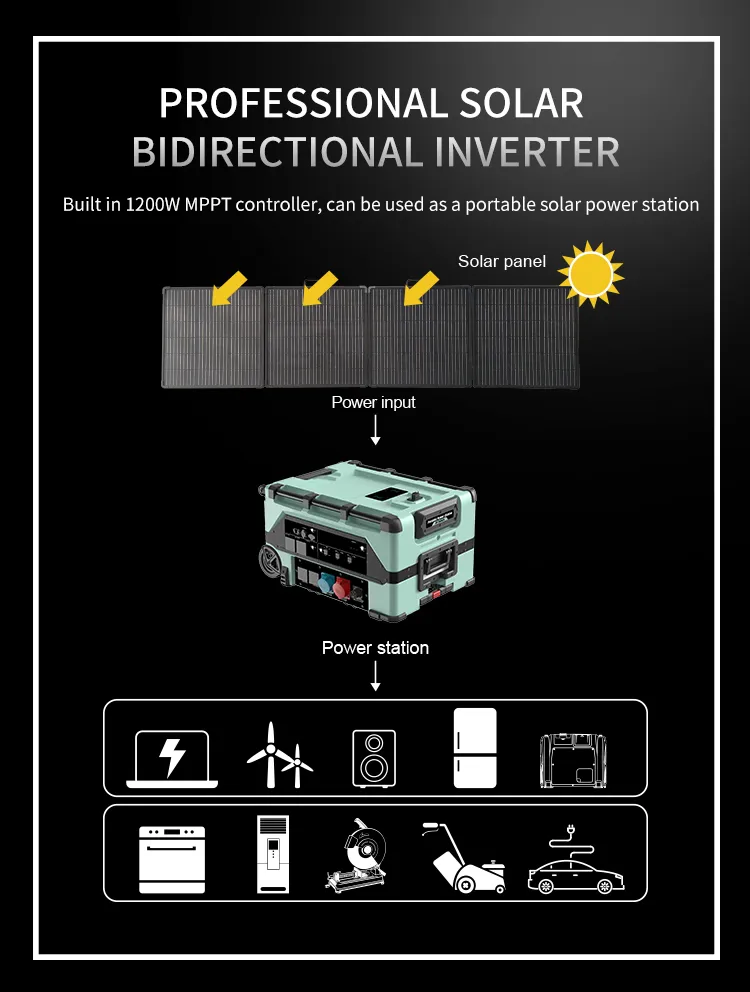

Home Energy Storage System 8

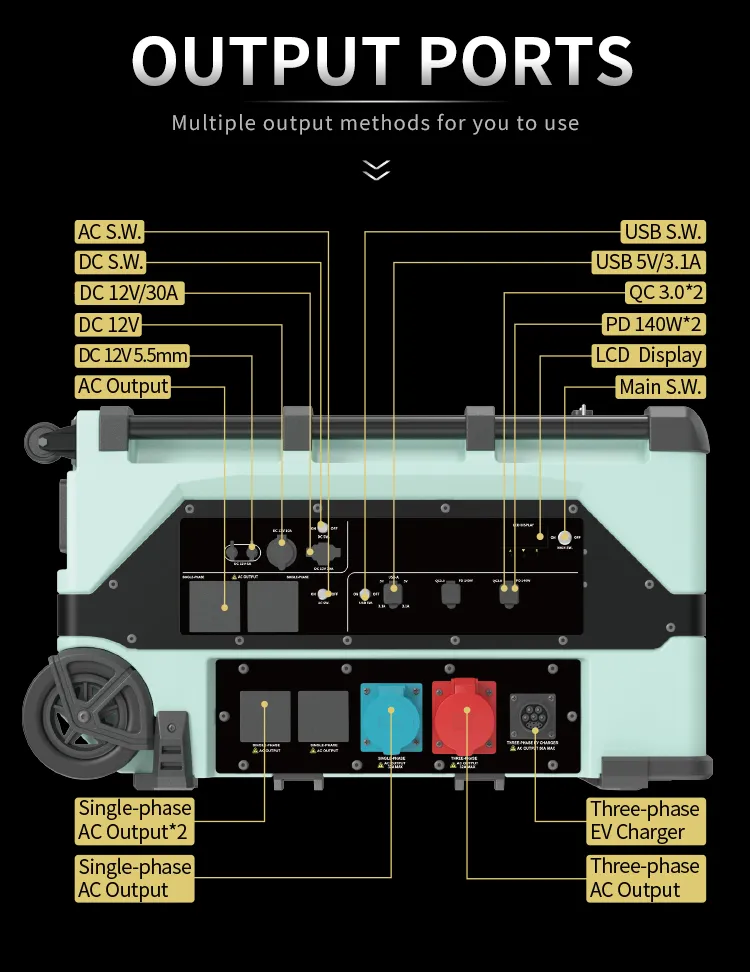

Home Energy Storage System 9

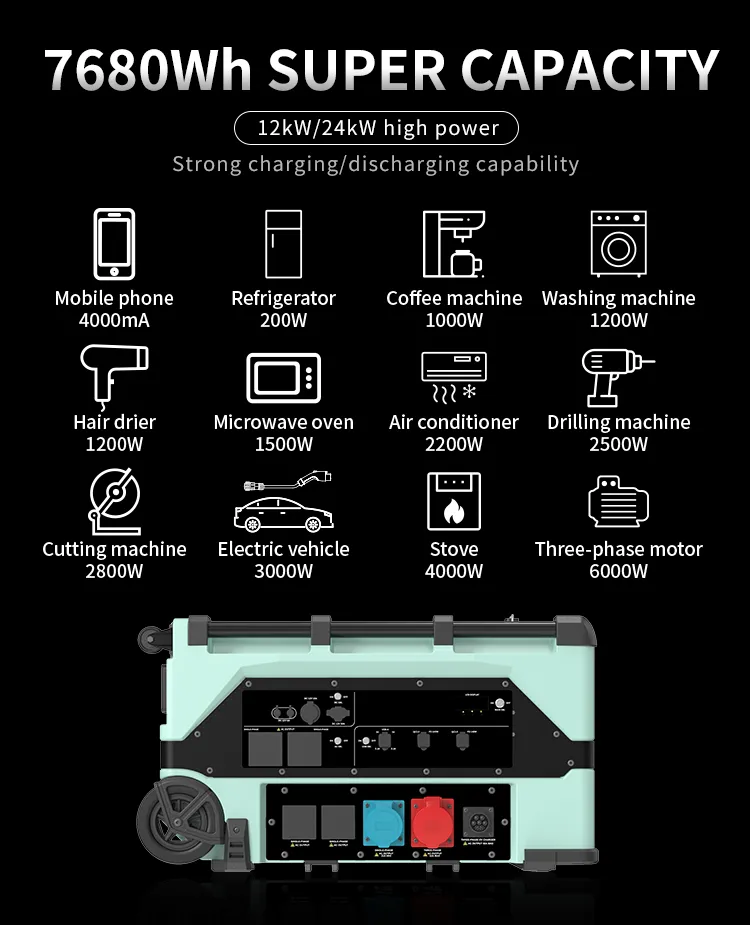

Home Energy Storage System 10

Home Energy Storage System 11

Home Energy Storage System 12

Full Setup Display

Charging Illustration 1

Charging Illustration 2

Compact View

📦

Packaging & Delivery

Package Size

94.00cm * 77.00cm * 59.00cm

Gross Weight

100.00kg

Package Type

Carton + Pallet

?

Frequently Asked Questions

What is the total capacity of the EP12000iL system?

The base unit features a 7680Wh high-power LiFePO4 battery. It is expandable up to 245kWh by connecting up to 31 extra battery packs.

How fast can the battery be charged?

Using super-fast AC or solar charging, the system can be fully charged in approximately 70 minutes.

Does this unit support three-phase output?

Yes, the EP12000iL supports continuous 12kW AC three-phase output, making it suitable for heavy-duty applications.

Is it possible to use it as an EV charger?

Absolutely. It features a built-in electric vehicle charger that can replace traditional charging stations with up to 22kW output.

What is the protection grade for outdoor use?

The main unit has an IP53 rating, while the battery packs are rated IP66, providing excellent protection against dust and water.

How long is the warranty period?

The product comes with a high-quality assurance and a 5-year warranty for peace of mind.
