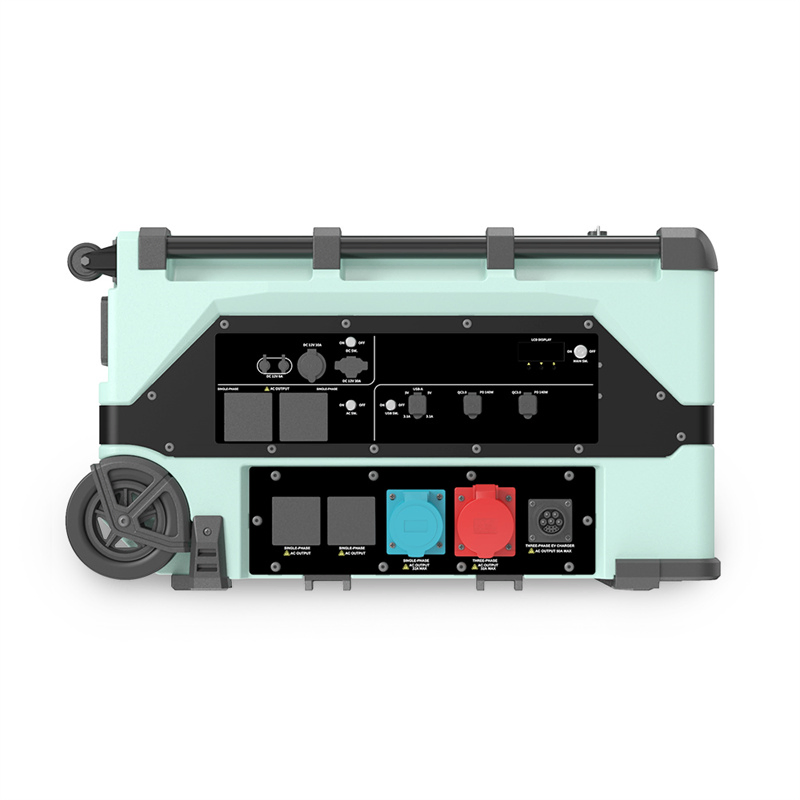

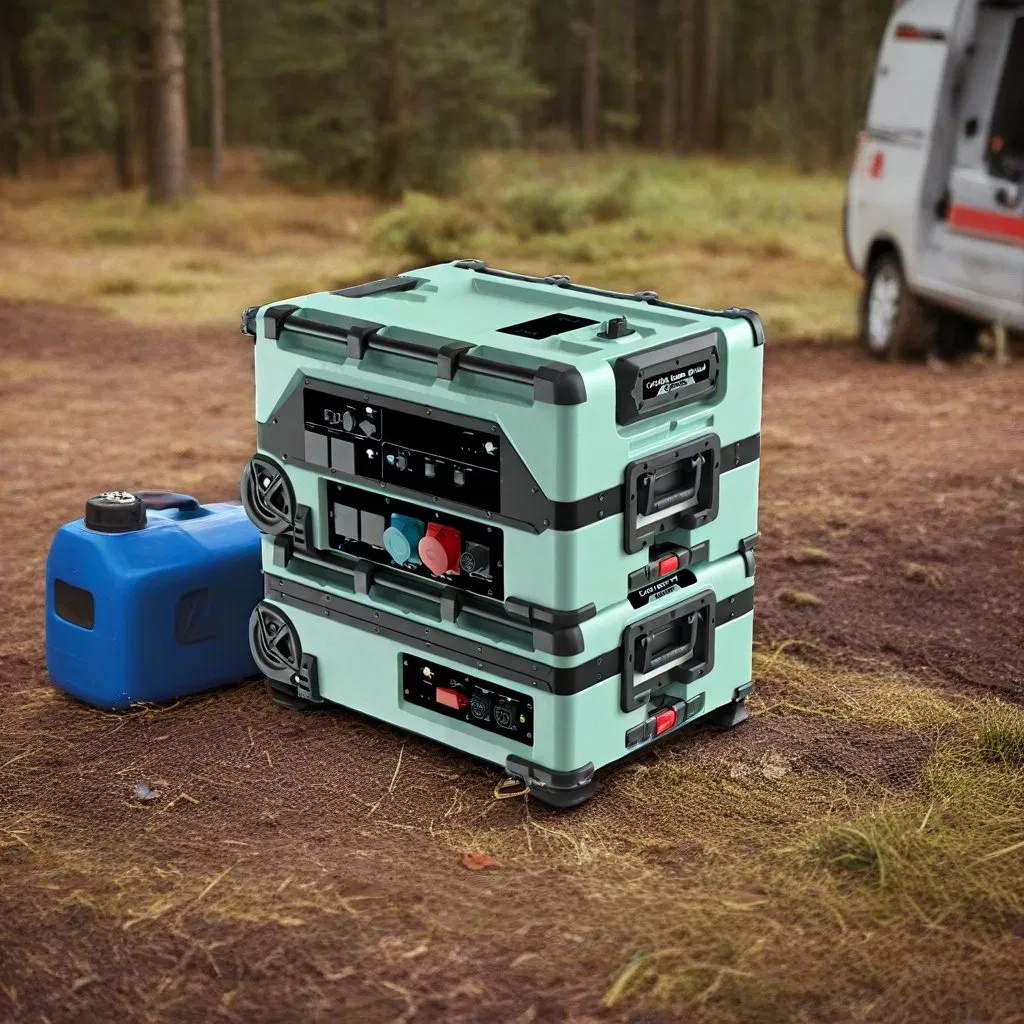

High Voltage Battery Pack Commercial Home 12kw Energy Storage System

Customization: Available
Weight: 100kg
Warranty: 5 Years

Product Description

i

Basic Information

Model NO.
EP12000iL
Cycle Life
3000 Cycles
Nominal Capacity
7680Wh
Charging
AC, Solar, EV, DC, Wind
Battery Expansion
Yes, Max 245kWh
Fast Charging
70mins Fully Charged
Inverter Type
Bi-Directional Inverter
Output
Three-Phase Supported
Protection
Unit IP53 / Battery IP66
Portability
Drawbar & Wheels

Product Advantages

Built-in 7680Wh high-power LiFePO4 battery with 12kW output and 8.5kW charging.
Supports continuous output for Three-phase (12kW), Single-phase (11kW), and Split-phase (10kW).
Multiple charging: Utility, High/Low voltage Solar, EV charger, AC generator, and Wind turbine.
Expandable capacity up to 245kWh by stacking up to 31 extra batteries.
Patented stacked parallel technology for 24kW continuous output.
Built-in EV charger capable of charging vehicles up to 22kW.
Switchable four-wheel chassis and large-diameter wheels for easy transport.
High protection grade: Unit IP53 and Battery Pack IP66.
Patented dual-channel cooling system and V-0 level flame-retardant casing.
Intelligent control and monitoring via smartphone APP.

Technical Parameters

AC & DC OUTPUT SPECIFICATIONS

Output Type Parameter Specification Details
AC Output Rated Power 12000VA (3-Phase) / 11000VA (1-Phase) / 10000VA (Split-Phase)
Peak Power 24000VA (3-Phase) / 22000VA (1-Phase) / 20000VA (Split-Phase)
Waveform Pure Sine Wave, THD < 3%
DC Output XT90 / Cigarette / 5521 12V/30A, 12V/10A, 12V/6A
USB Output Type-C PD 140W 5V/9V/12V/15V/20V/28V @ 3A-5A

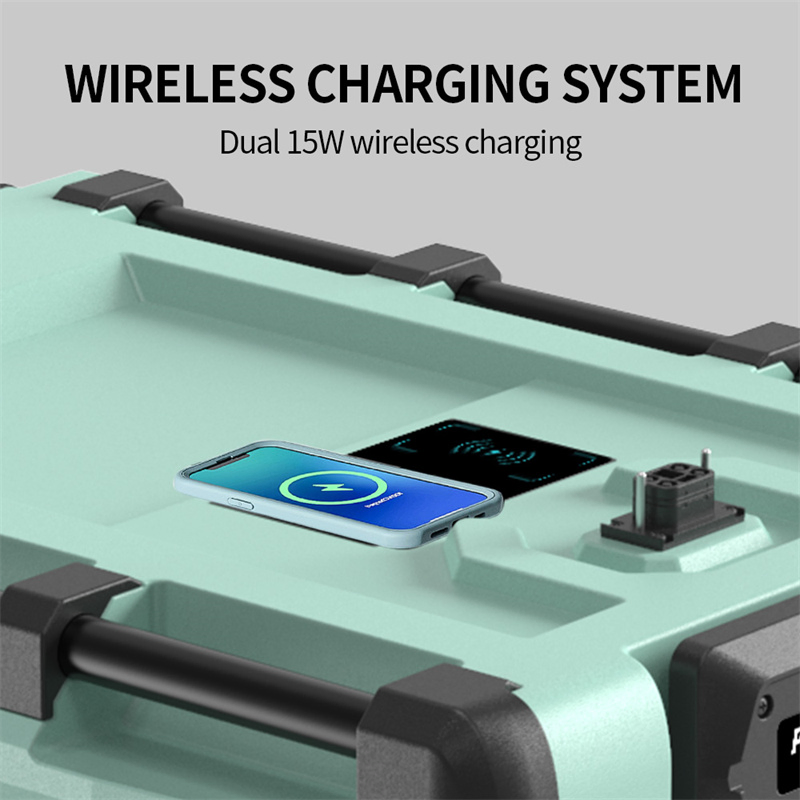

Wireless Charging Pad 2 x 15W

CHARGING INPUT

Source Method Charging Performance
AC Wall/Generator 3-Phase / 1-Phase Max 7500W, 70 minutes fully charged
High-Voltage Solar MPPT Control Max 2x9000W Input, 70 minutes fully charged
EV Charger Type 1 / Type 2 / GB/T Max 7500W to Battery, 70 minutes fully charged
Wind Turbine Wind Charger Max 2000W, 4 hours fully charged
📷

Detailed Photos

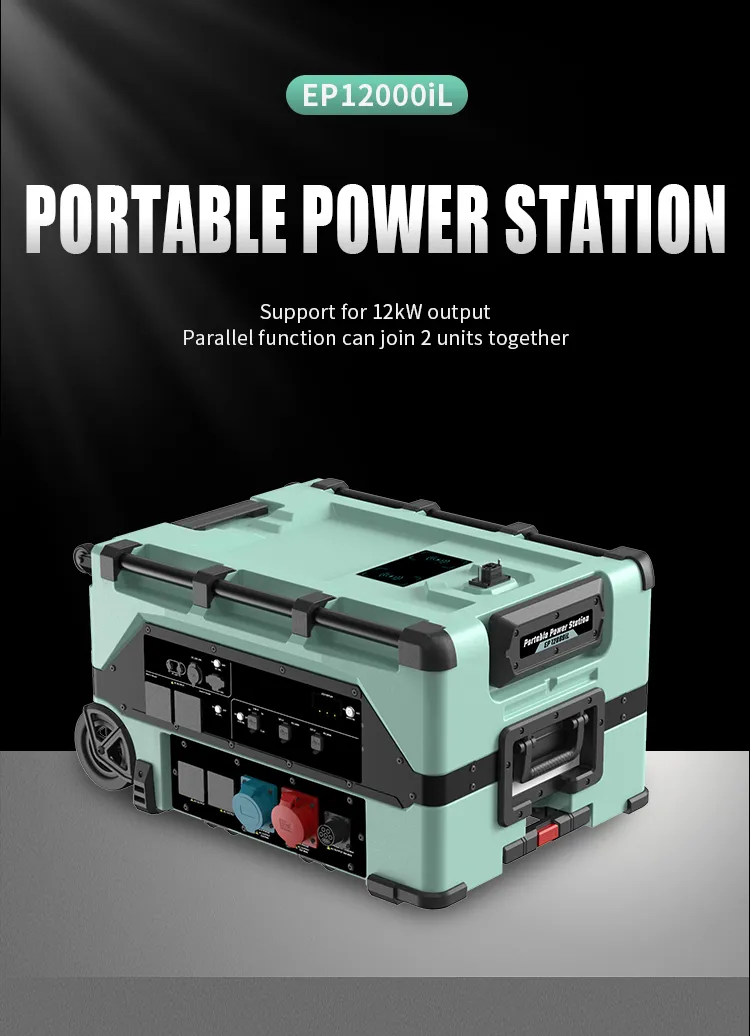

Energy Storage System 1

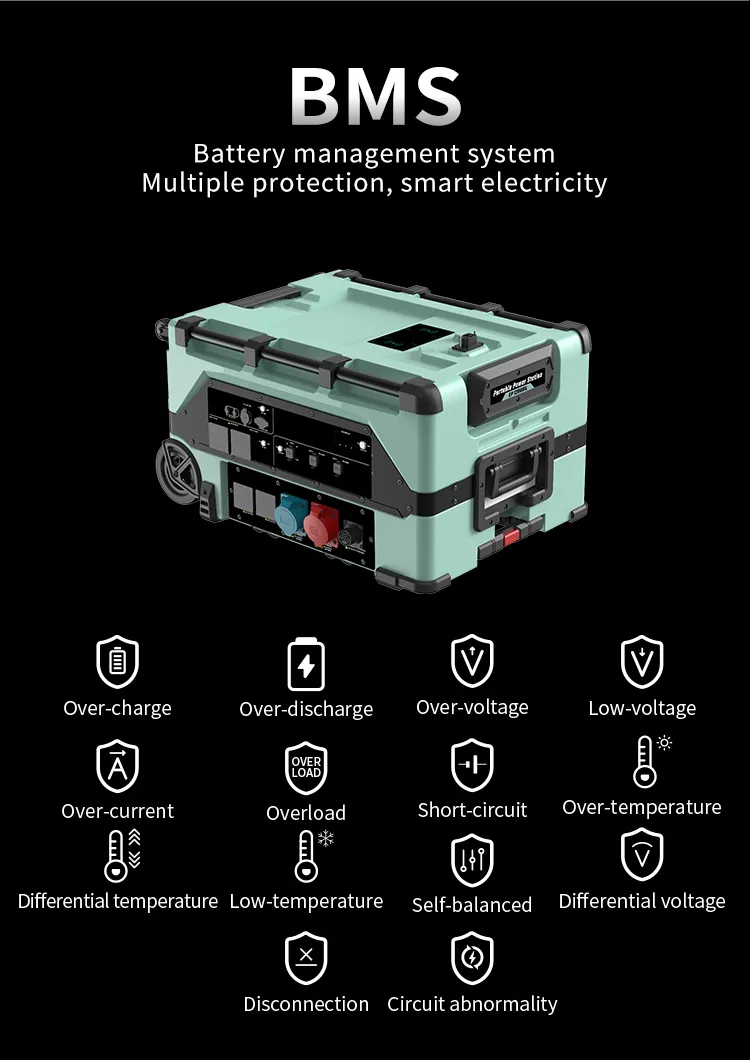

Energy Storage System 2

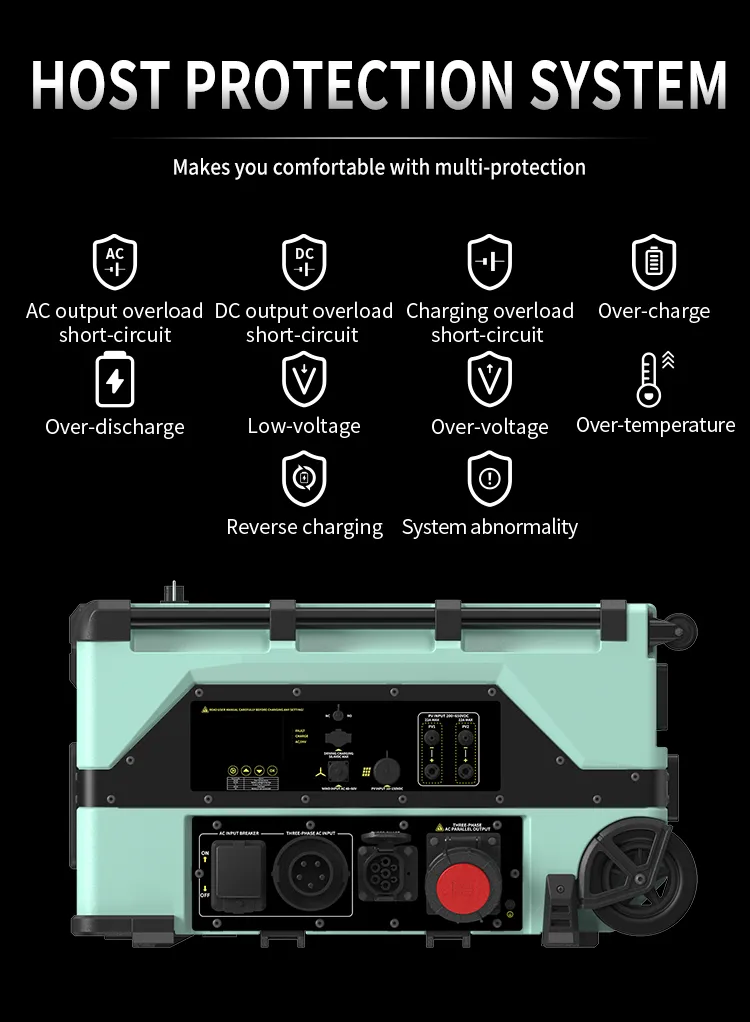

Energy Storage System 3

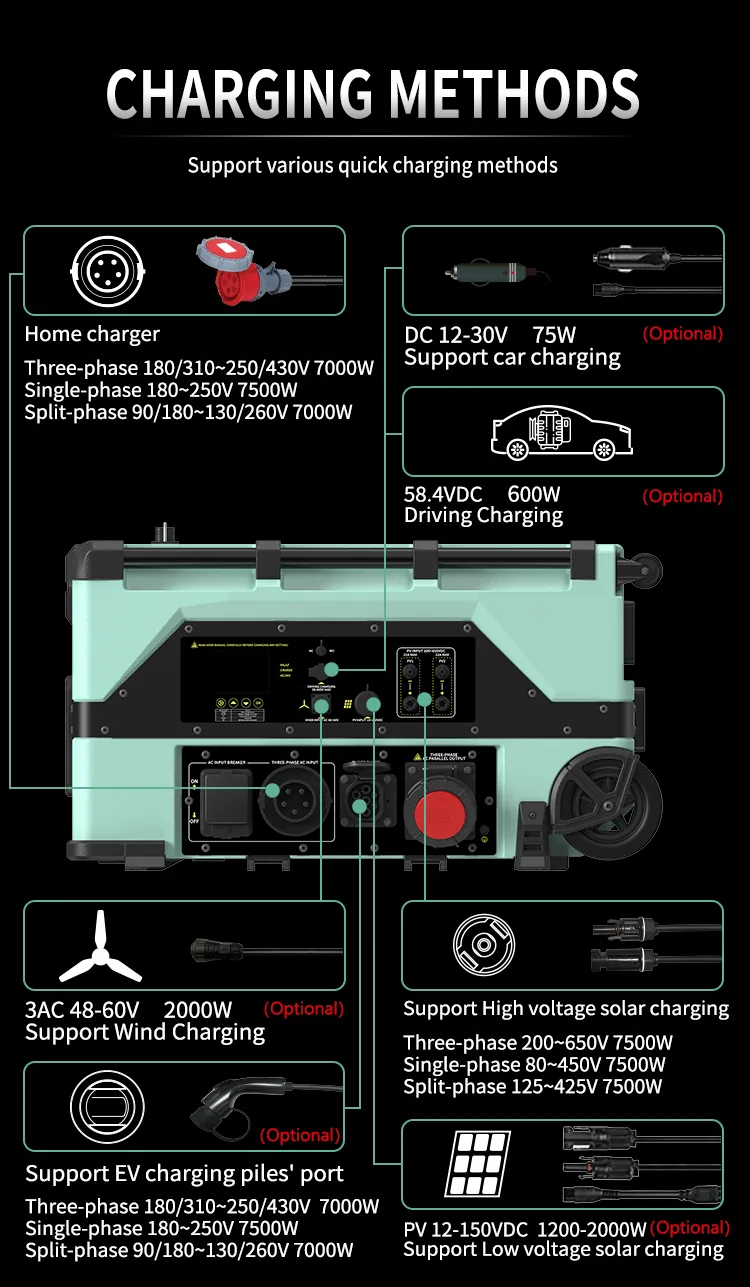

Energy Storage System 4

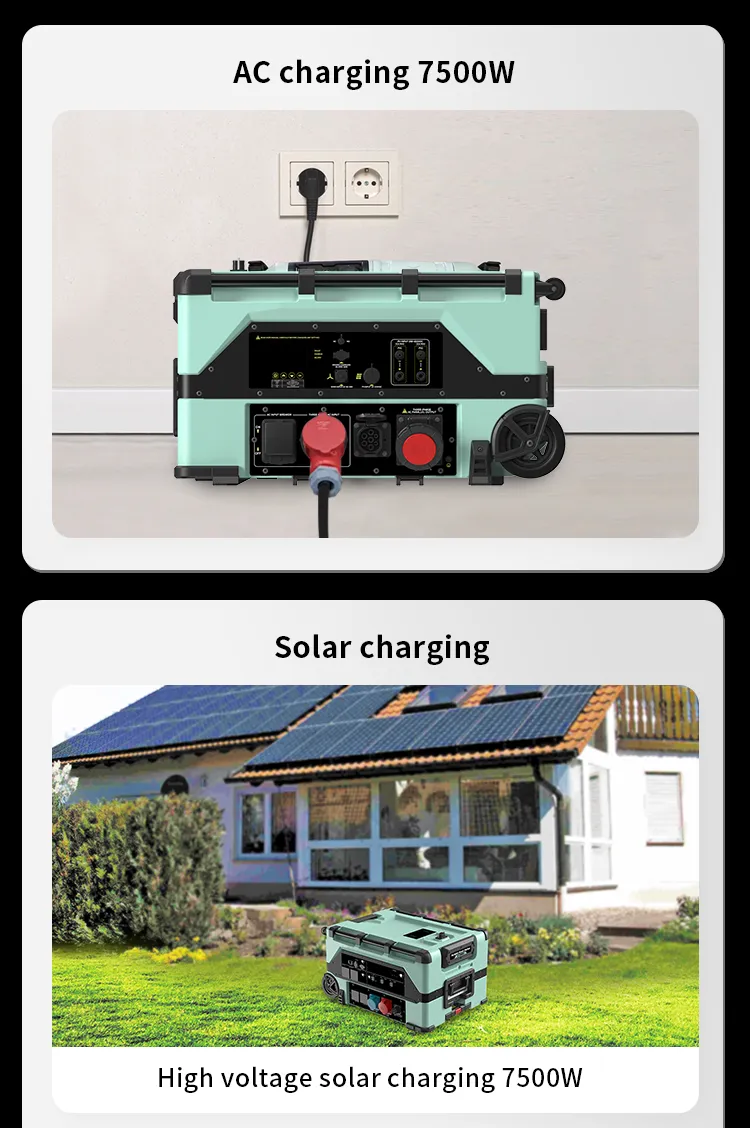

Energy Storage System 5

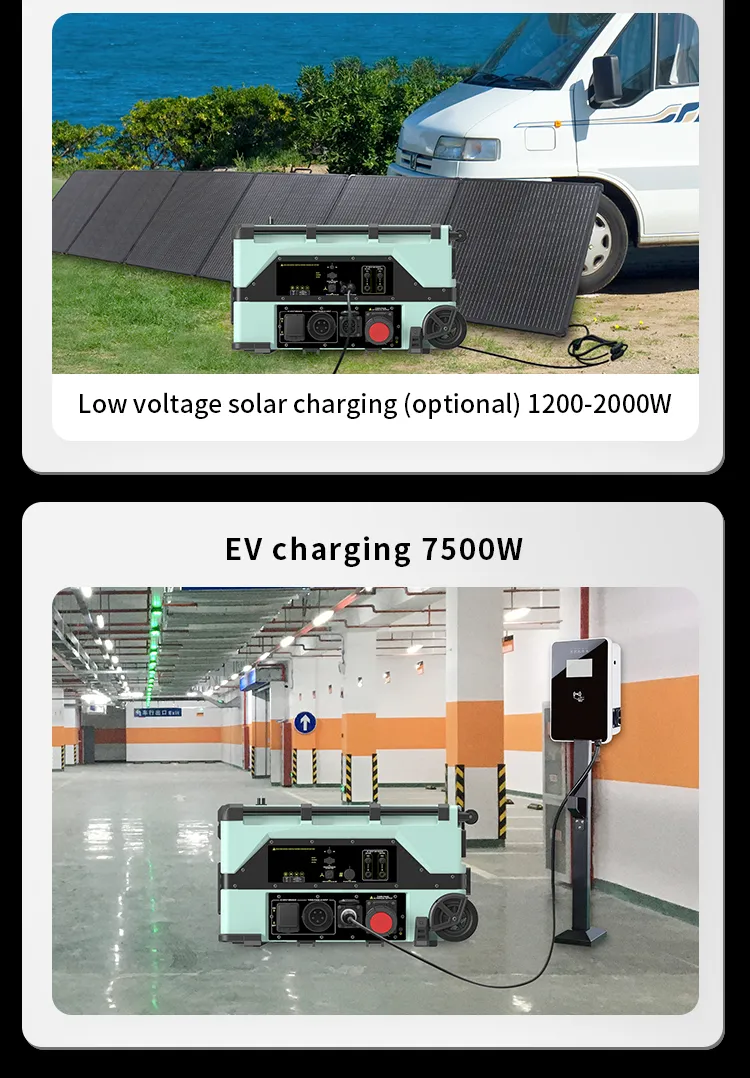

Energy Storage System 6
Energy Storage System 7

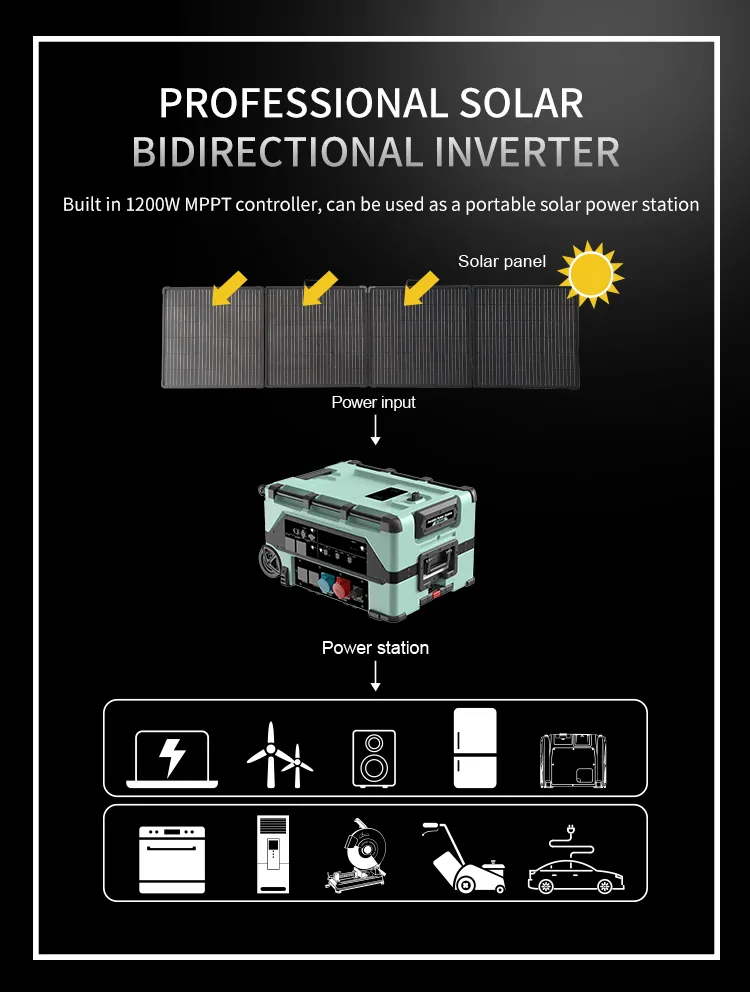

Energy Storage System 8

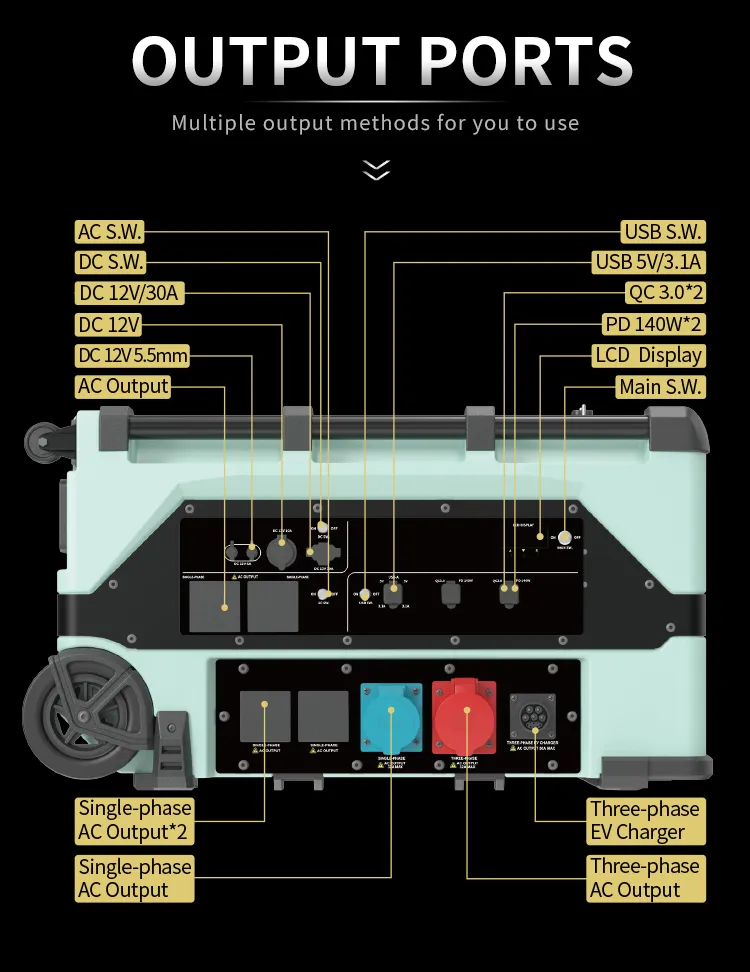

Energy Storage System 9

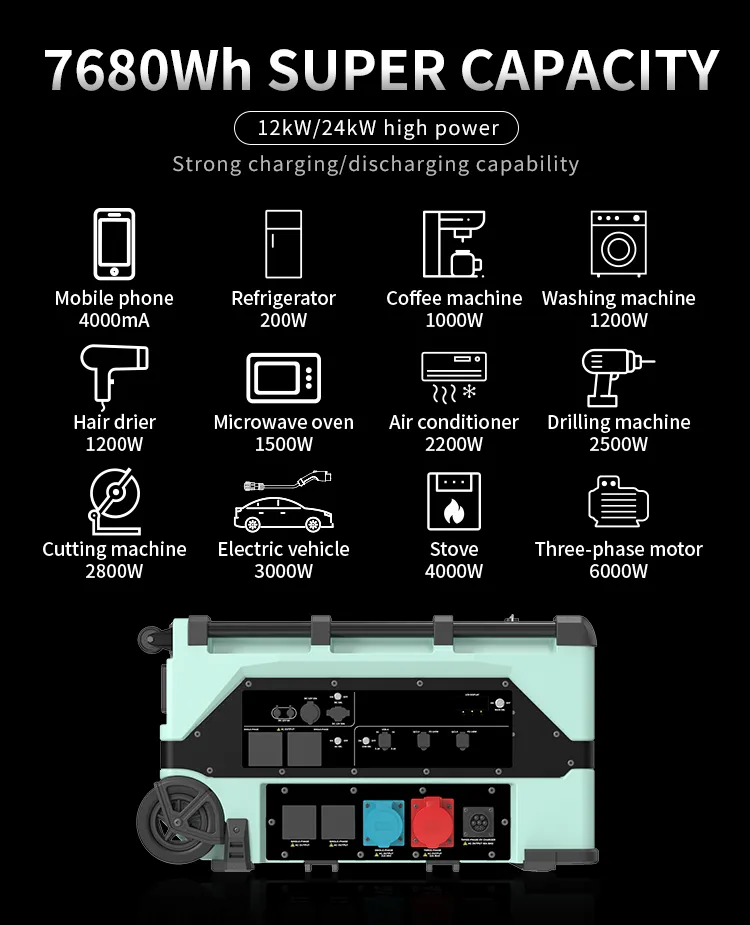

Technical Detail 1

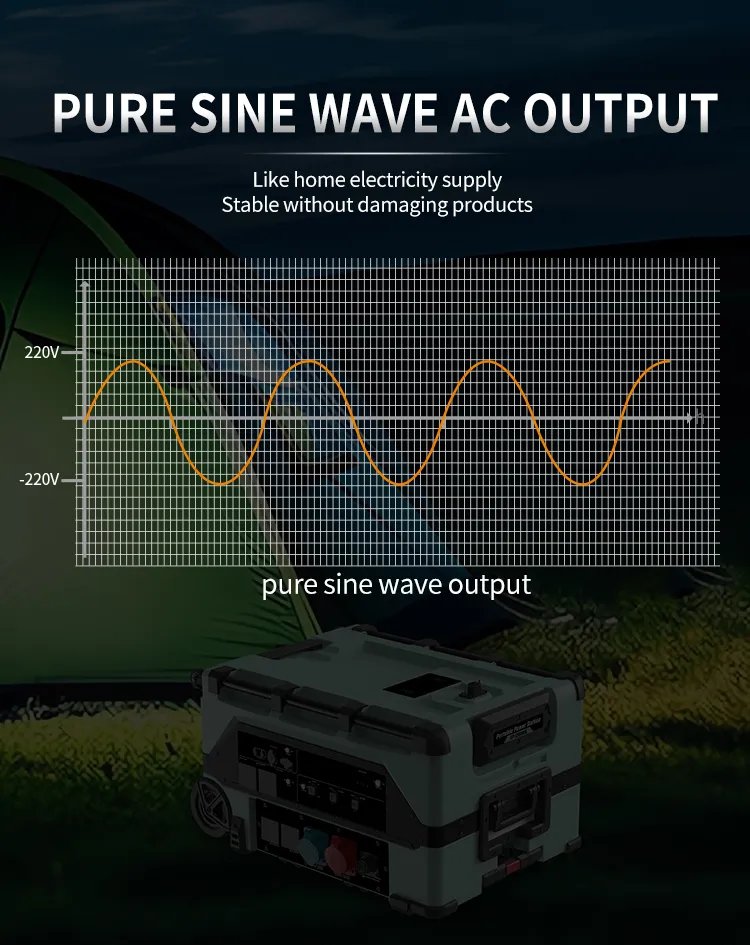

Technical Detail 2

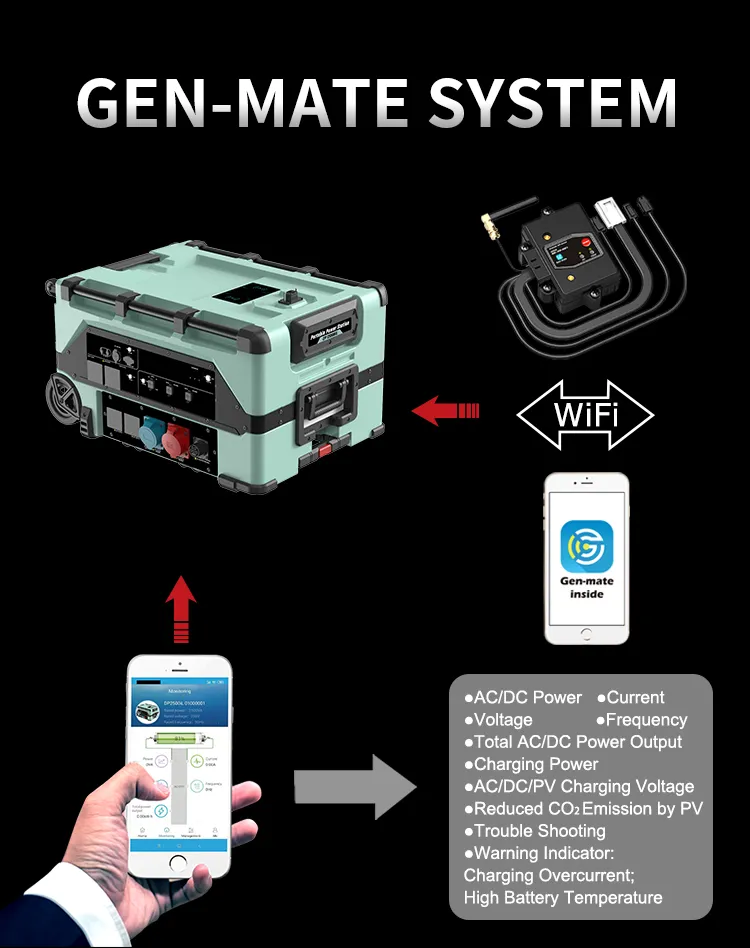

Technical Detail 3
System Overview
Application 1
Application 2
Application 3
?

Frequently Asked Questions

Q1: What is the total expandable capacity of the EP12000iL?
The system features a built-in 7680Wh battery and can be expanded up to a massive 245kWh by connecting up to 31 additional battery packs.
Q2: How fast can the system be fully charged?
Using high-power AC or solar charging methods, the EP12000iL can reach a full charge in as little as 70 minutes.
Q3: Does it support electric vehicle (EV) charging?
Yes, it includes a built-in EV charger that can replace traditional charging stations, supporting vehicle charging up to 22kW.
Q4: What are the output phase options?
The EP12000iL is highly versatile, supporting 12kW Three-phase, 11kW Single-phase, and 10kW Split-phase continuous AC output.
Q5: Is the system suitable for outdoor use?
Yes, the main unit has an IP53 protection grade, and the battery packs are rated at IP66, making them highly resistant to dust and water.
Q6: What is the expected lifespan of the battery?
The system uses professional-grade LiFePO4 batteries with a cycle life of 3000 cycles to 80%+ of their original capacity.
