Product Description

📋 Basic Information

Model NO.

YG-12-I-4A-1M-PVC(PUR)

Gender

Female

Certification

RoHS, CE

Application

UHF, Automobile

Contact Resistance

3.8mΩ

Contact Material

Brass

Surface Treatment

Nickel Plating

Housing

Brass Nickel Plating

Colour

Black, Orange

Connector Series

M12 Connector

Pin

4, 5, 8

Material

PVC, PUR, Rubber, Nylon

Application Area

Auto Parts, LED, Sensor

Production Capacity

5000

📦 Packaging & Delivery

Package Size

25.00cm * 21.00cm * 9.00cm

Gross Weight

0.500kg

Transport Package

Carton Packing

🔍 Product Description

M12 Connector Cable Banner

High-Performance M12 Connector Cable

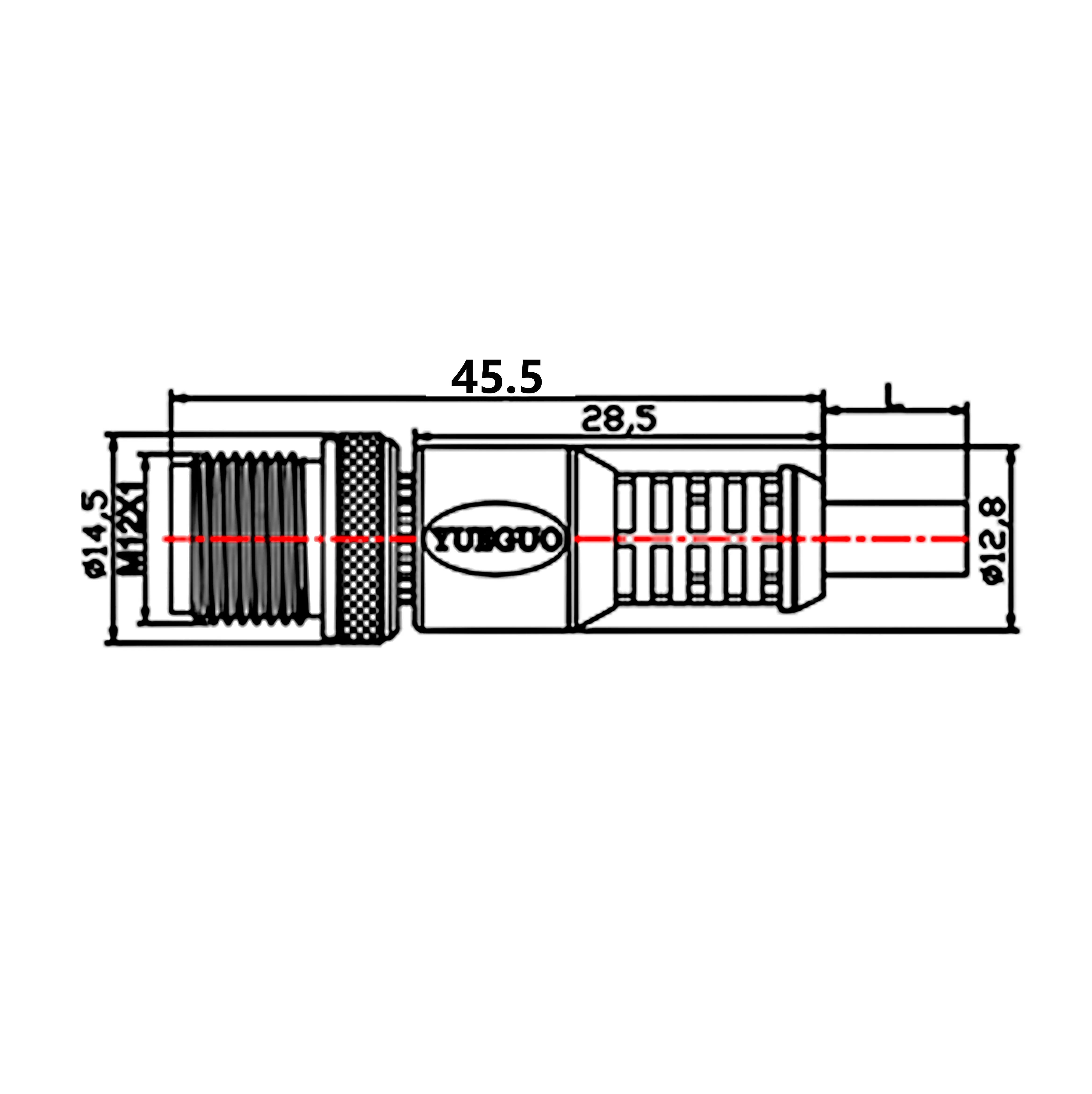

📐 Dimension Drawing

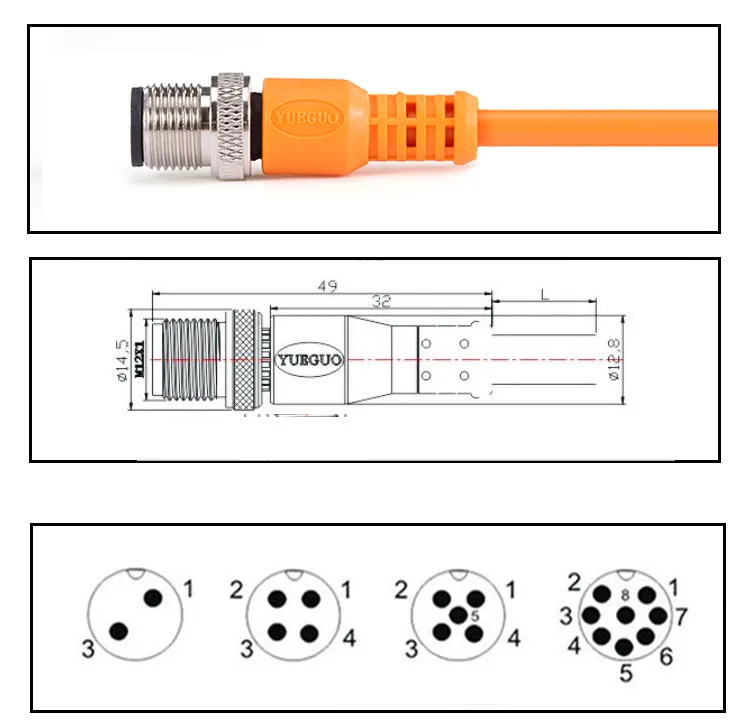

Dimension Drawing M12

⚙️ Specifications

Pin Number	4	5	8
Connector Locking system	Screw
Termination	Solder moulded-on cable
Wire gauge in mm²	Max.0.34mm²(WAG22) / Max.0.25mm²(WAG24)
Cable outlet(mm)	3.5 - 8mm
Shell protection	IP65 / IP67
Mechanical operation	>100 Mating cycles
Temperature Range	-25ºC to +85ºC
Rated voltage	250V	60V	30V
Rated impulse voltage	2500V	1500V	800V
Rated current (40ºC)	-	4A	2A
Contact plating	Au (Gold)
Housing Material	PUR / PVC

🏭 Company Overview

Workshop

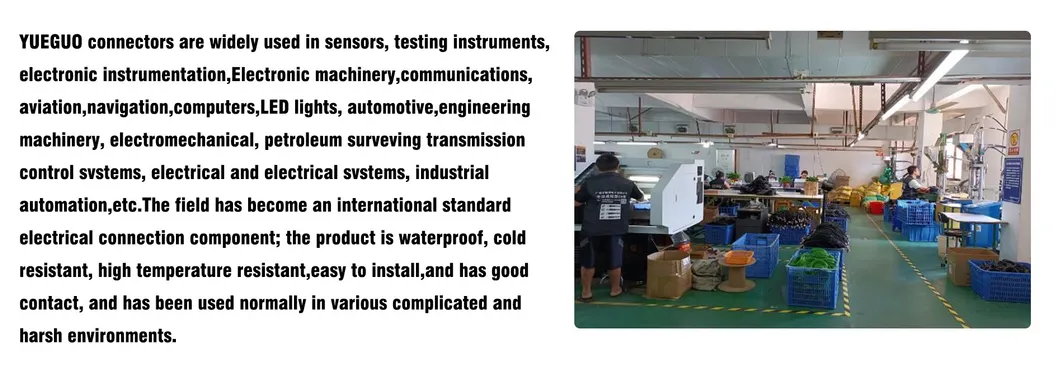

Production

Factory View

🔬 Instrumentation

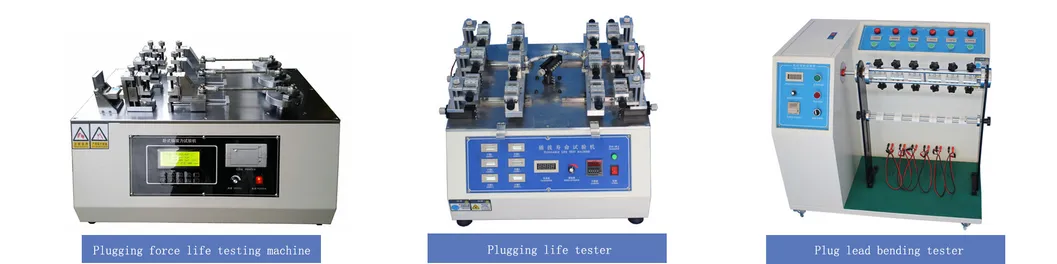

Testing Equipment 1

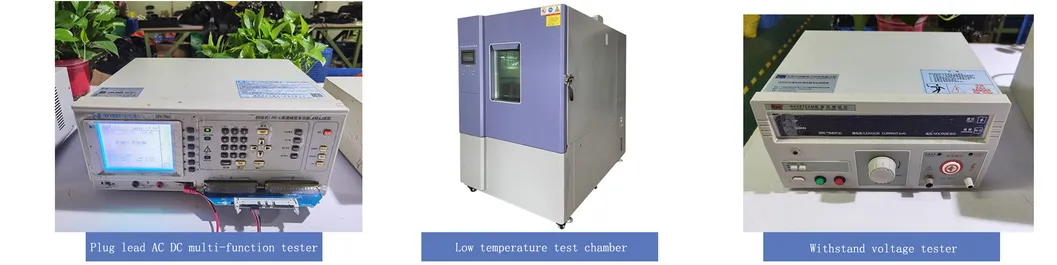

Testing Equipment 2

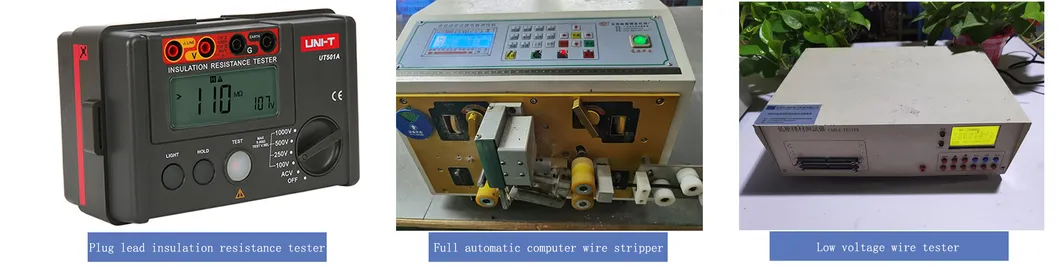

Testing Equipment 3

🚢 Packaging & Shipping

Packaging Process

❓ Frequently Asked Questions

Are you a manufacturer?

We are a manufacturer, providing one-stop station service for connectors and cables with competitive factory pricing.

What information is needed for a quotation?

Please provide the series (M5/M8/M12), coding, gender (male or female), pin number, and required cable length.

What is the minimum order quantity (MOQ)?

The standard MOQ is 100 pcs, though this may be negotiable depending on specific requirements.

What is the lead time for volume orders?

Typically, the lead time for volume orders ranges from 3 to 4 weeks.

How is your after-sales service?

All inquiries are responded to within 24 hours to ensure effective and efficient communication.

Can you provide customized cable lengths?

Yes, we can provide any specific cable length (mm) required for your application.
