Product Description

⚡ Basic Information
Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Super Fast Charging
70mins Fully Charged
Certificates
CE RoHS IEC62619 Un38.8 MSDS
Inverter Type
Bi-Directional Inverter
Three-Phase Output
Yes
Portability
Drawbar & Wheels
Package Size
97.00cm * 75.00cm * 57.00cm
Gross Weight
220.000kg
💎 Product Advantages

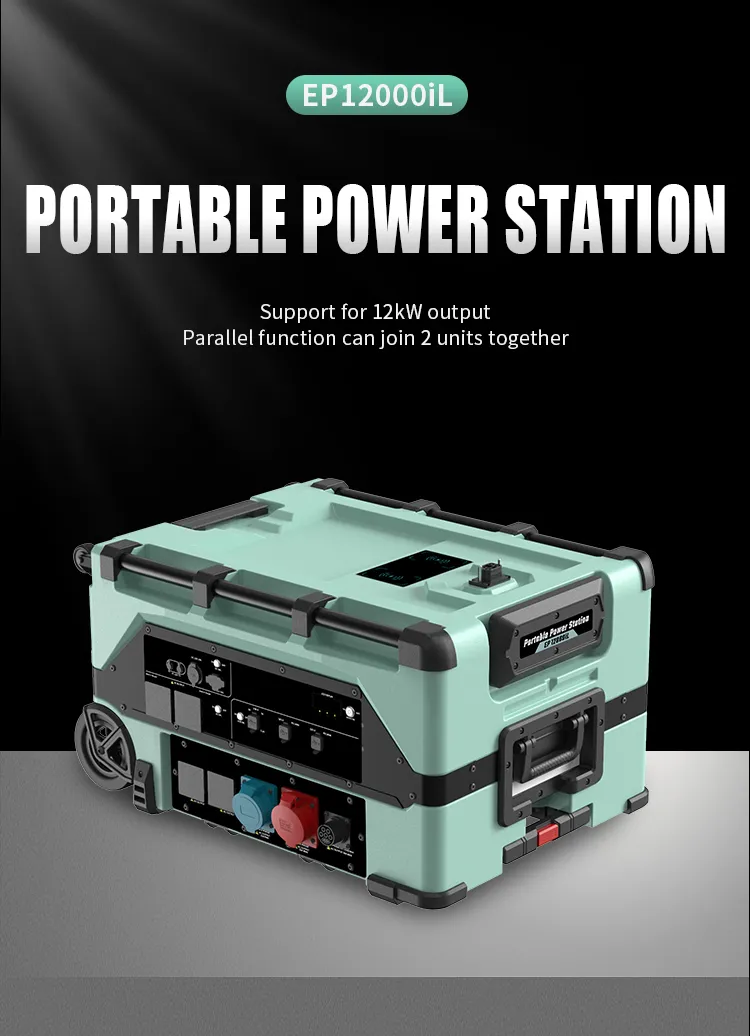

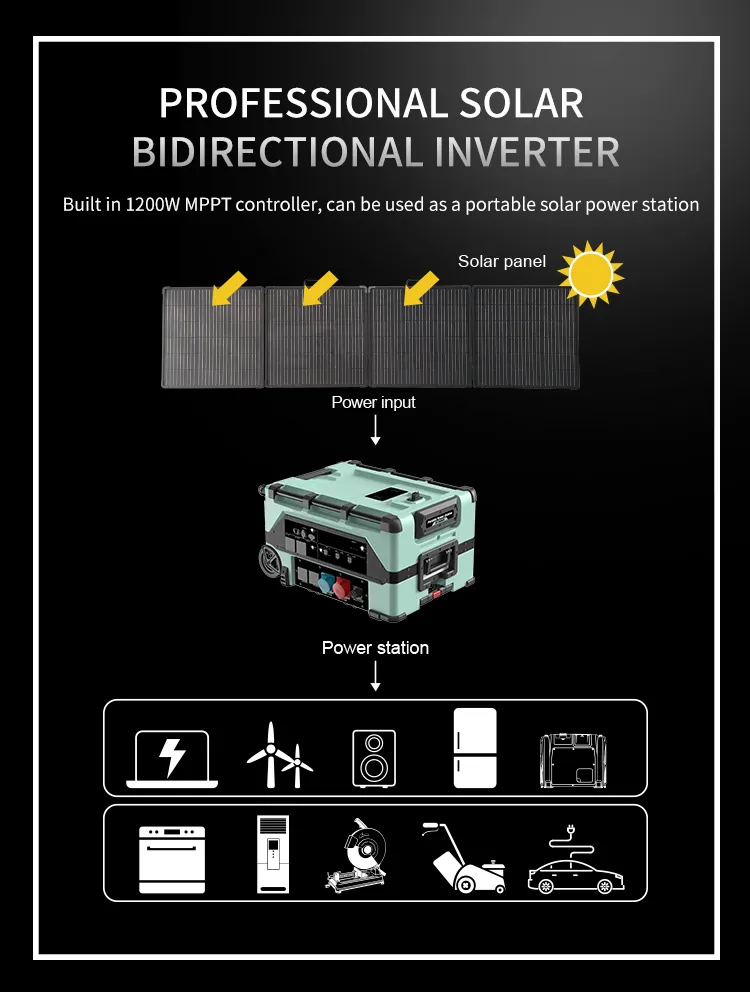

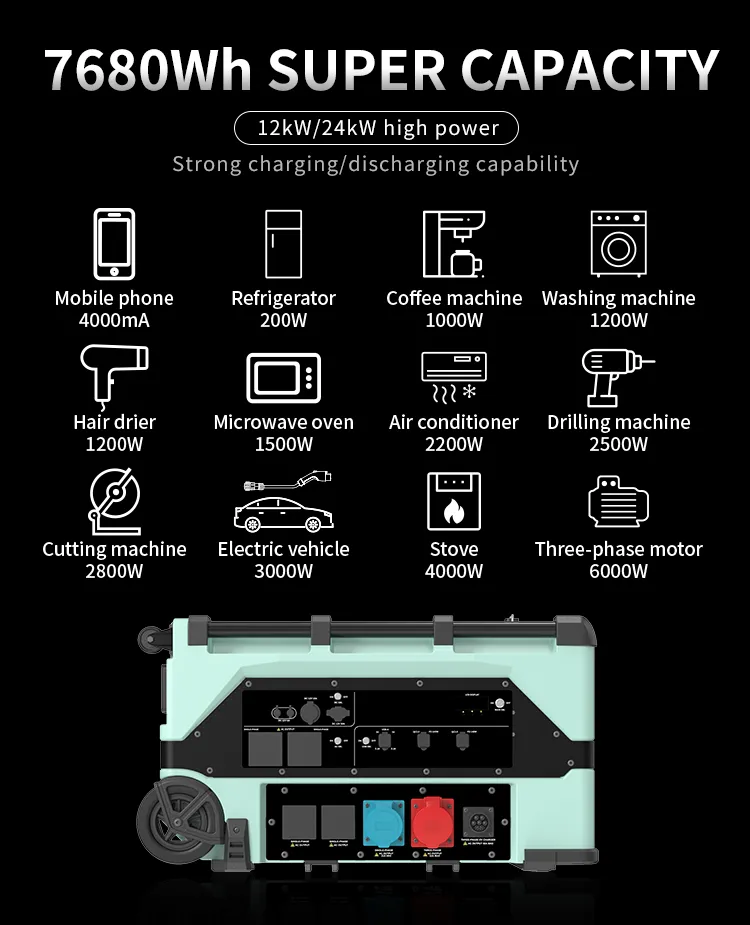

  • Built in 7680*2Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

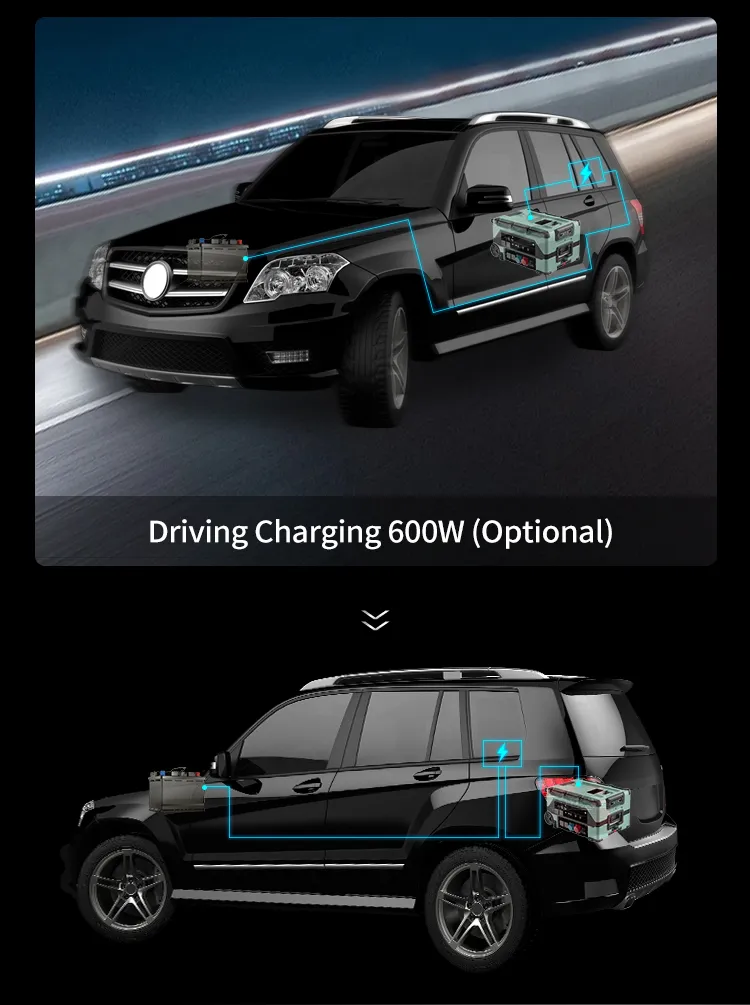

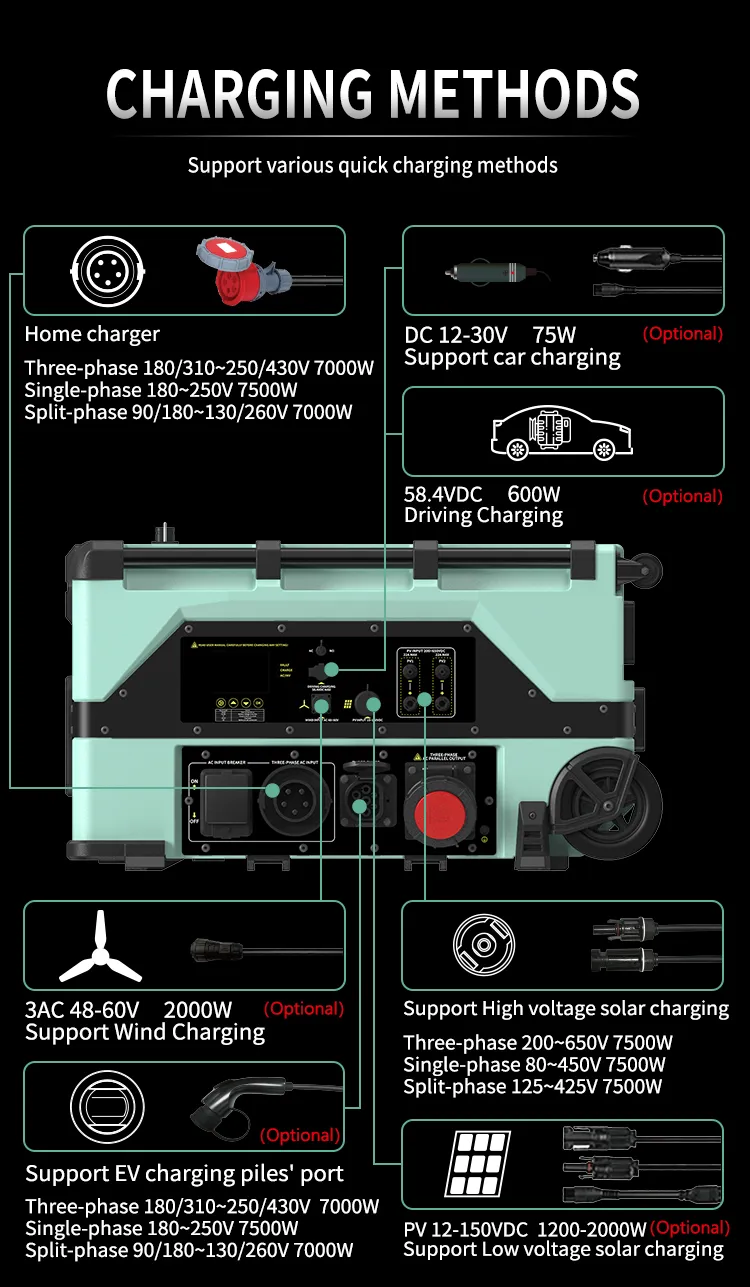

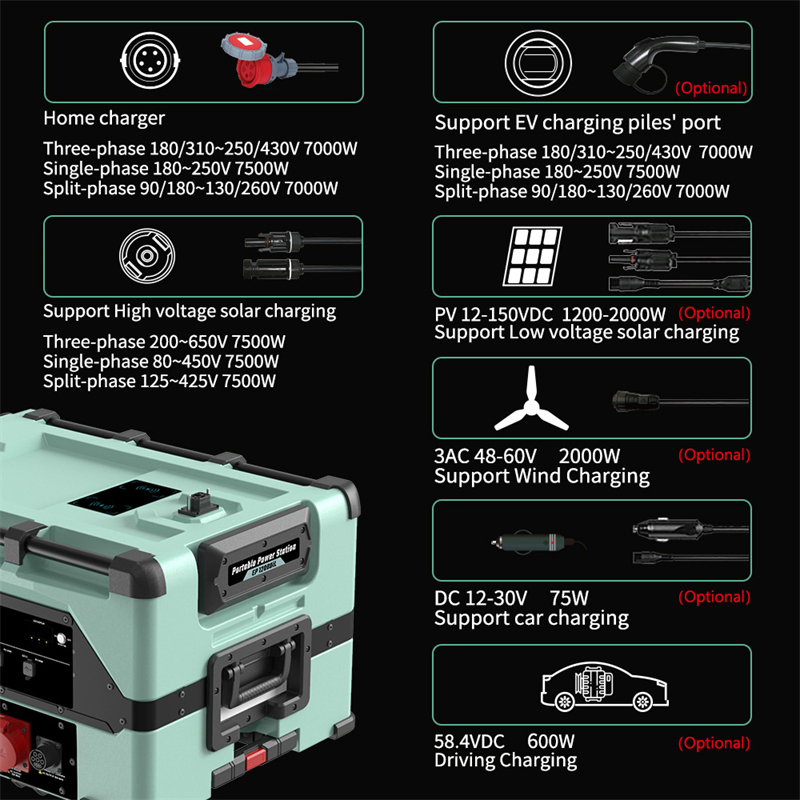

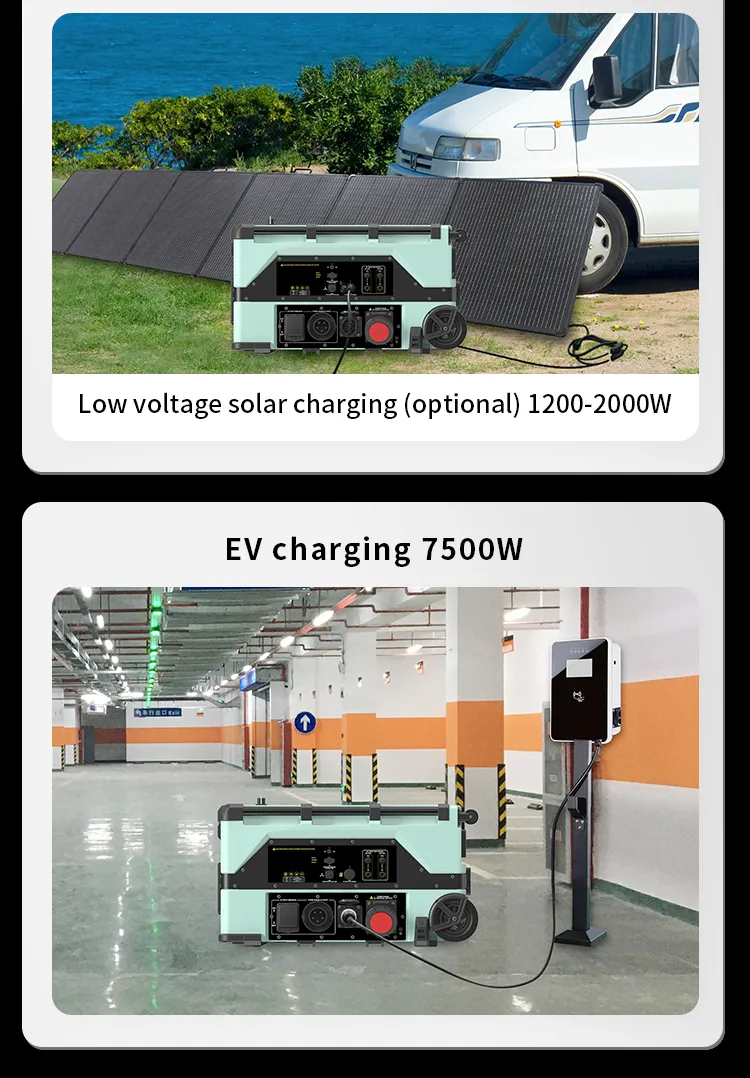

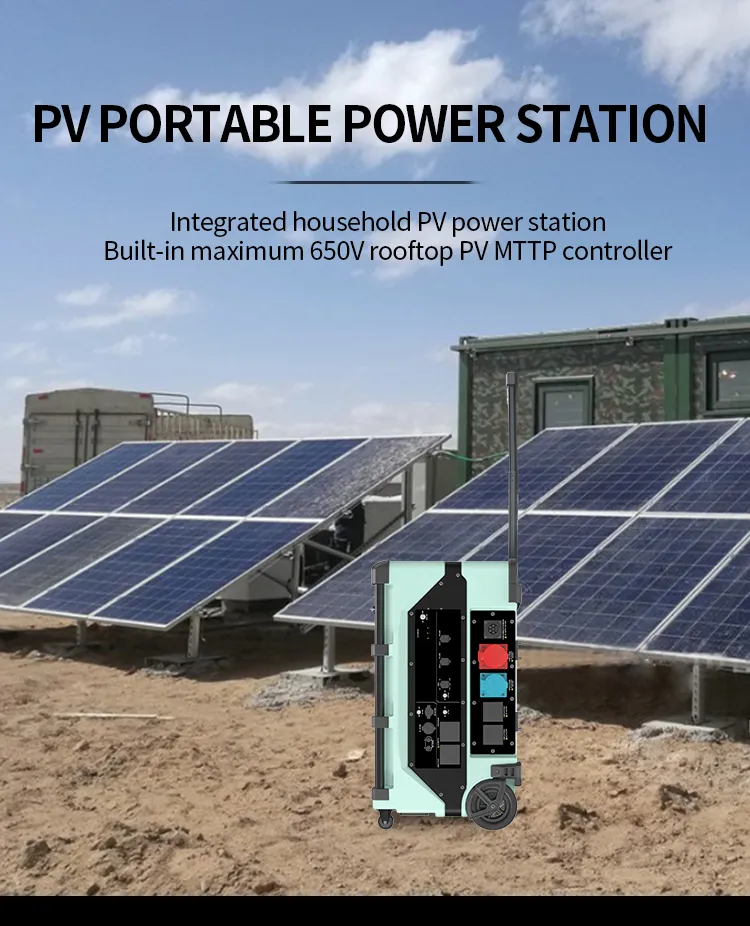

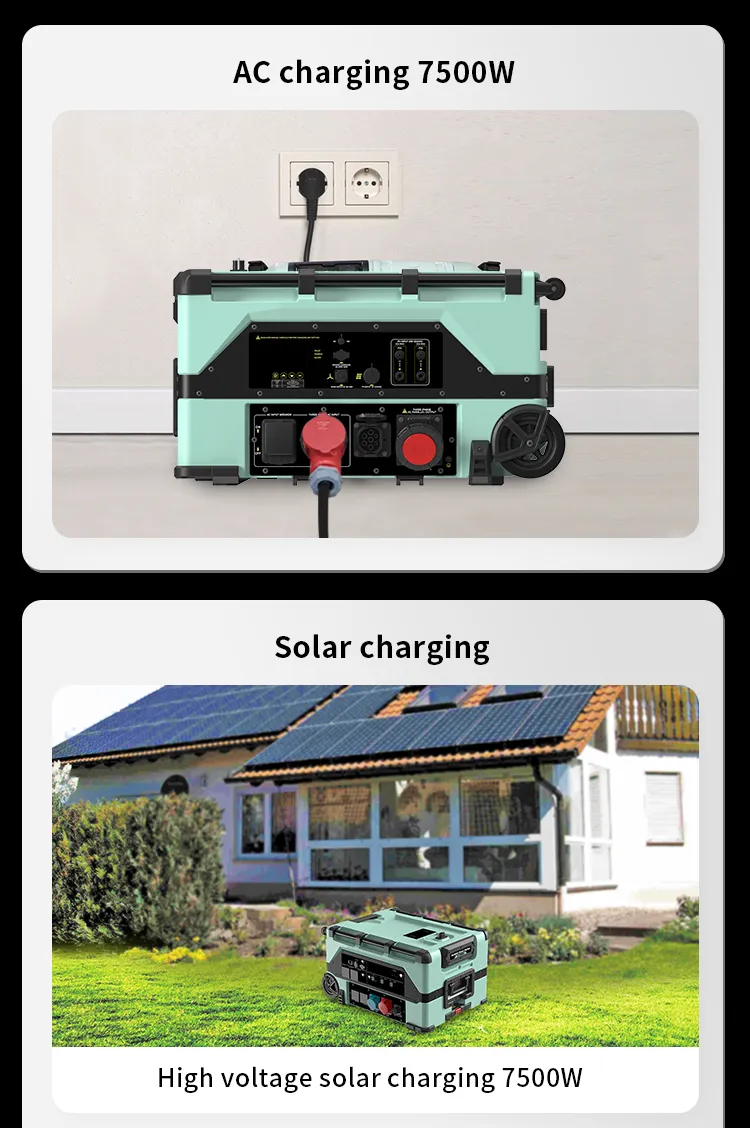

  • Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

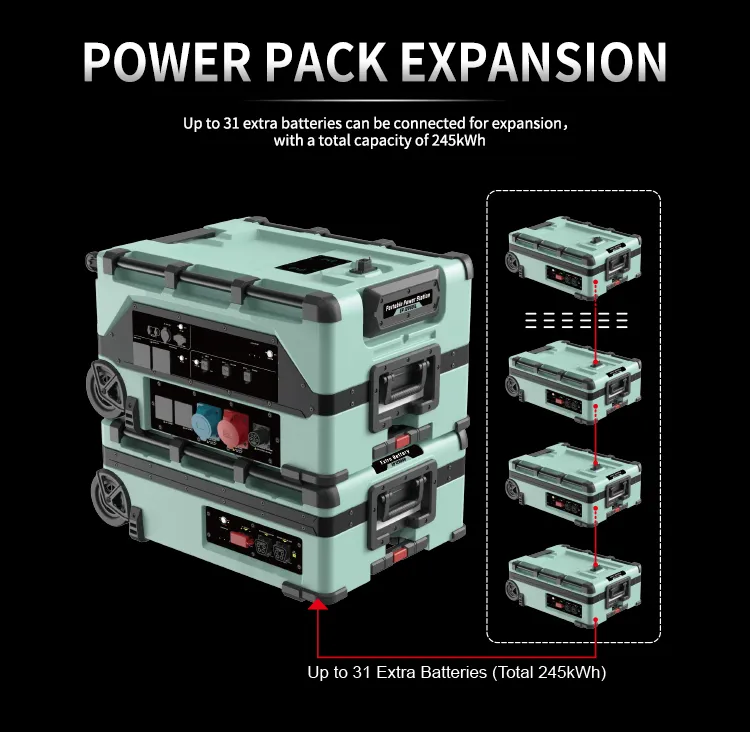

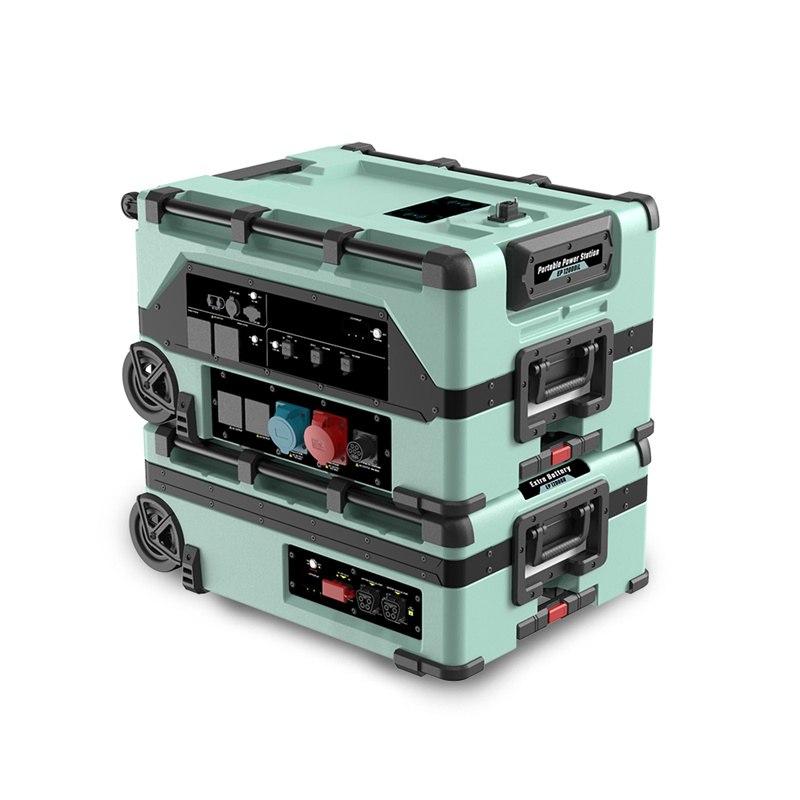

  • Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

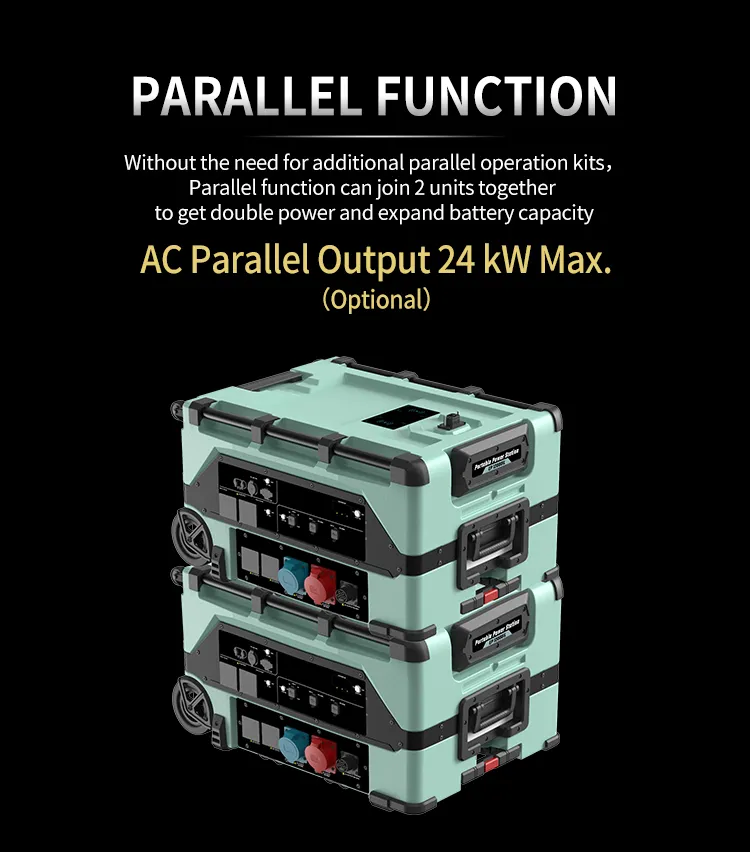

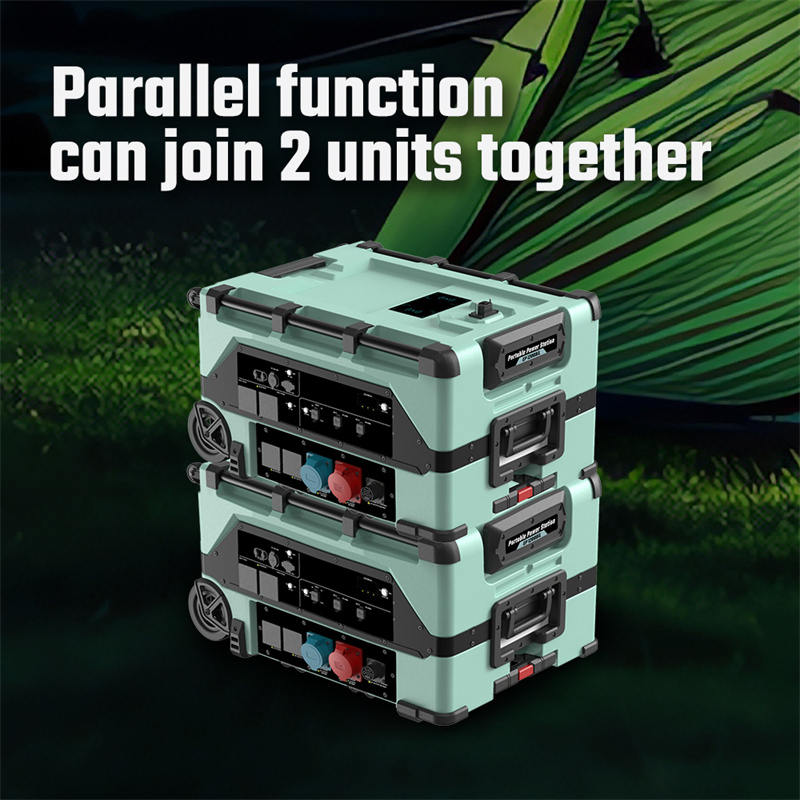

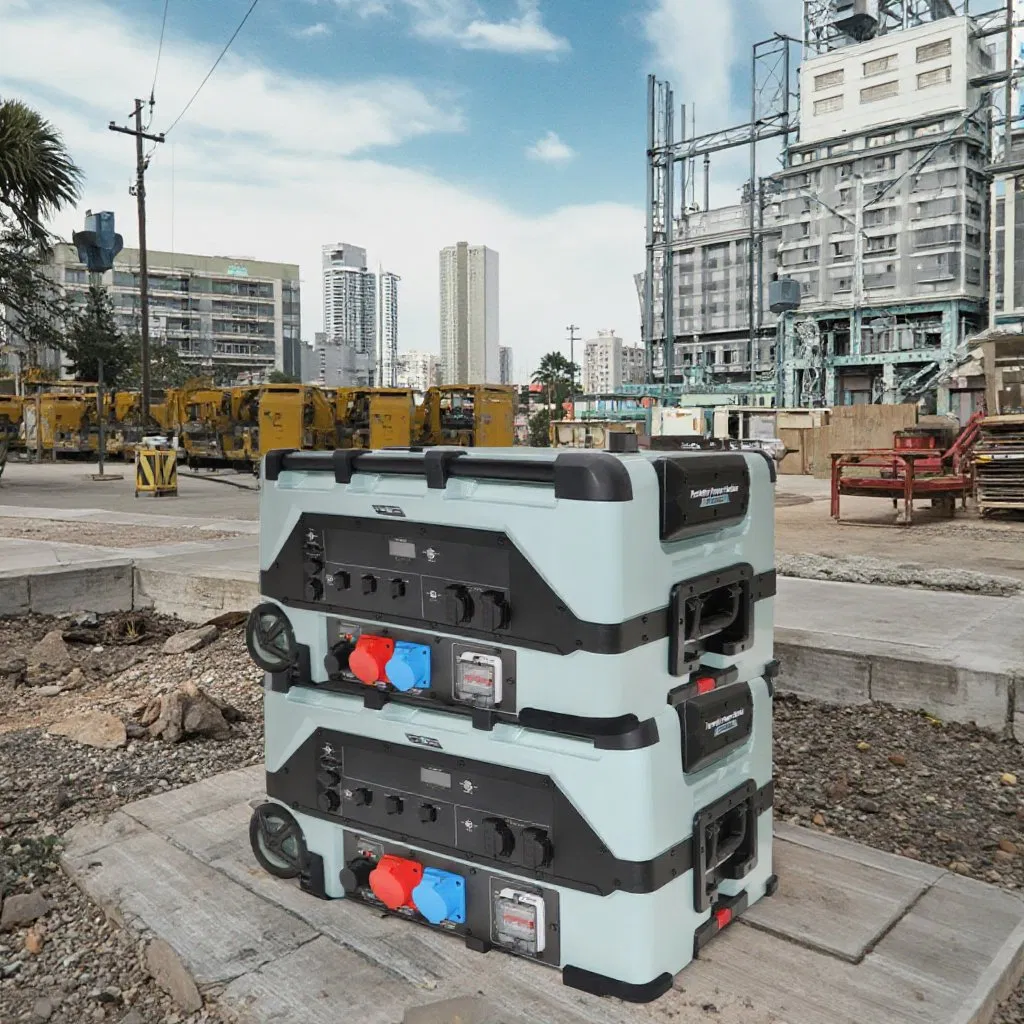

  • Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.
  • Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.
  • The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.
  • Unit IP53 and Battery Pack IP66 protection grade.

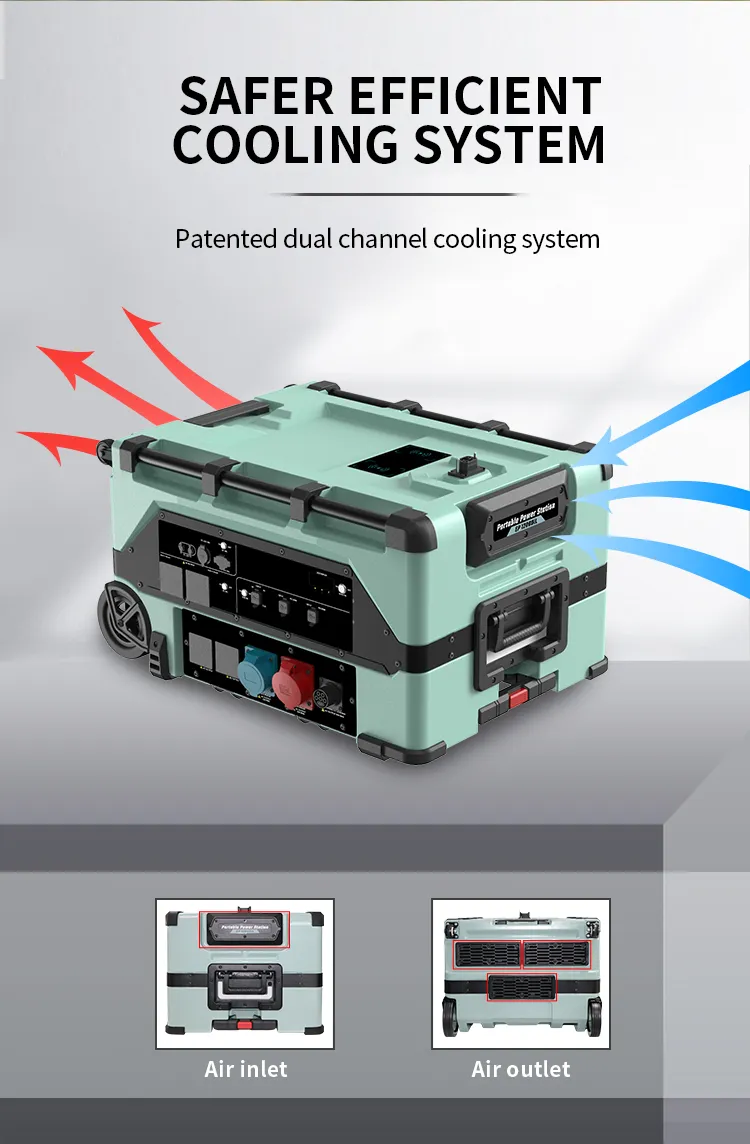

  • Patented dual channel cooling system.
  • Integrated handles and anti-collision rubber pad in all directions.
  • V-0 level flame-retardant and fire-resistant casing.

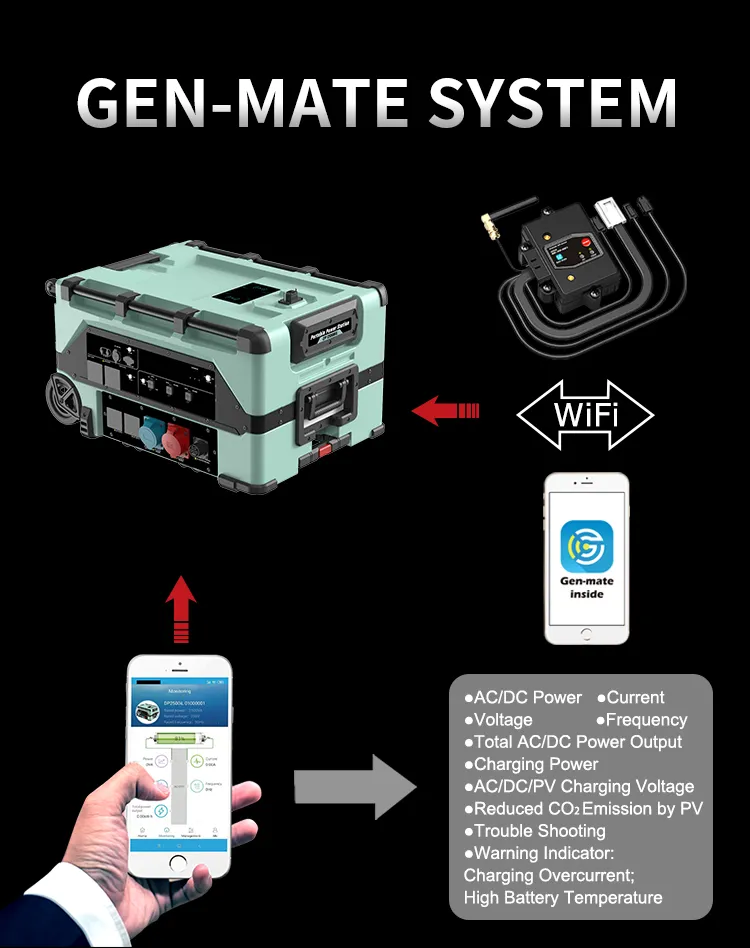

  • The intelligent control and monitor by smartphone APP.
  • Conformed to EU and US security certification.
  • Better quality with 5 years warranty.

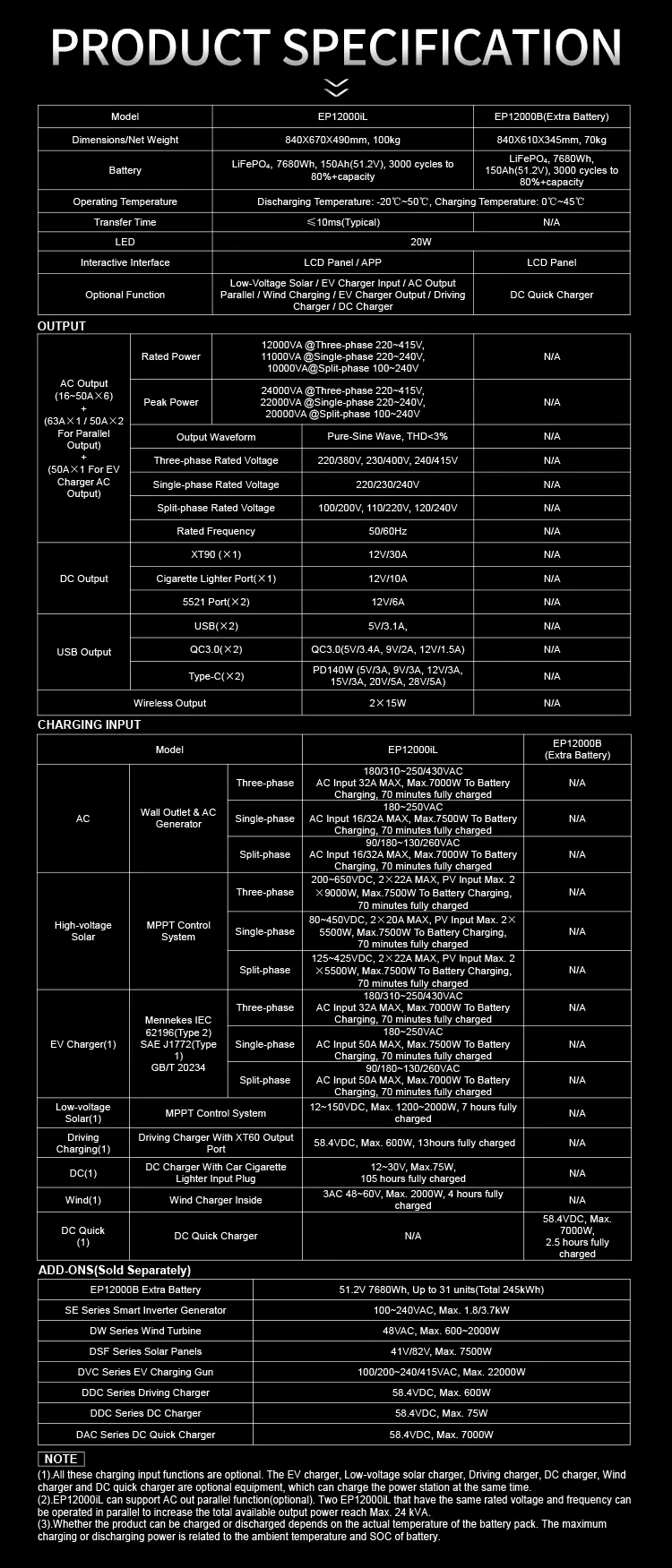

📊 Product Parameters
AC OUTPUT
Output Type Rated Power Peak Power Voltage Specs
Three-phase 12000VA 24000VA 220/380V, 230/400V, 240/415V
Single-phase 11000VA 22000VA 220/230/240V
Split-phase 10000VA 20000VA 100/200V, 110/220V, 120/240V

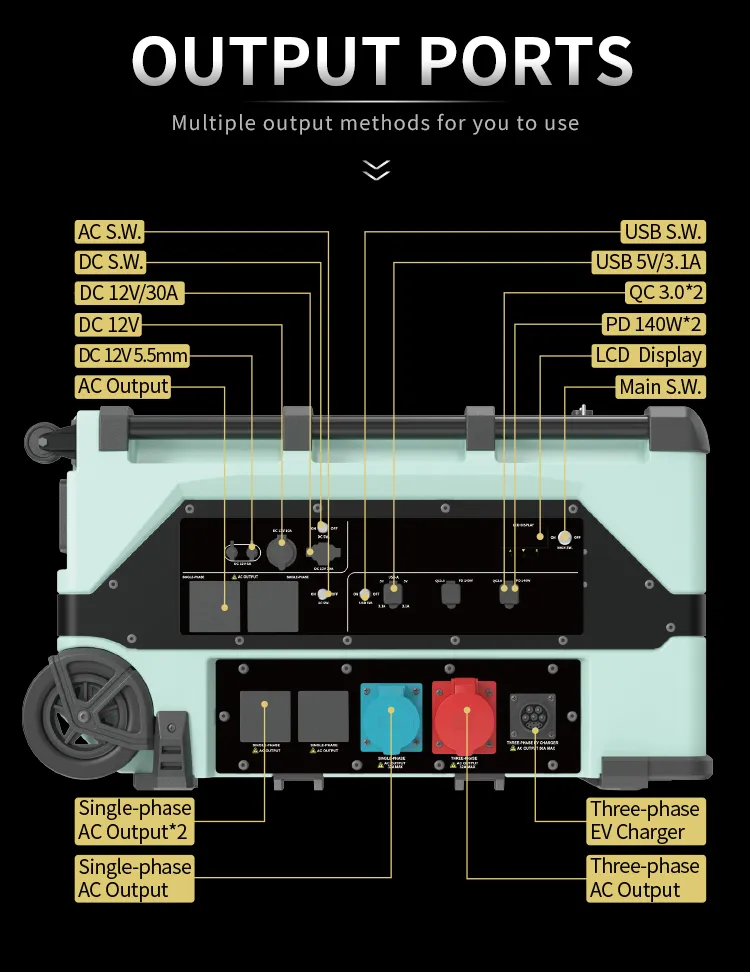

DC & USB OUTPUT
Port Type Specification Port Type Specification
XT90 (x1) 12V/30A USB (x2) 5V/3.1A
Cigarette Lighter 12V/10A QC3.0 (x2) Up to 12V/1.5A
5521 Port (x2) 12V/6A Type-C (x2) PD 140W Max
GENERAL INFO
Parameter Main Unit (EP12000iL) Extra Battery (EP12000B)
Dimensions 840x670x490mm 840x610x345mm
Net Weight 100kg 70kg
Battery Type LiFePO4, 7680Wh LiFePO4, 7680Wh
Operating Temp Discharge: -20ºC~50ºC | Charge: 0ºC~45ºC

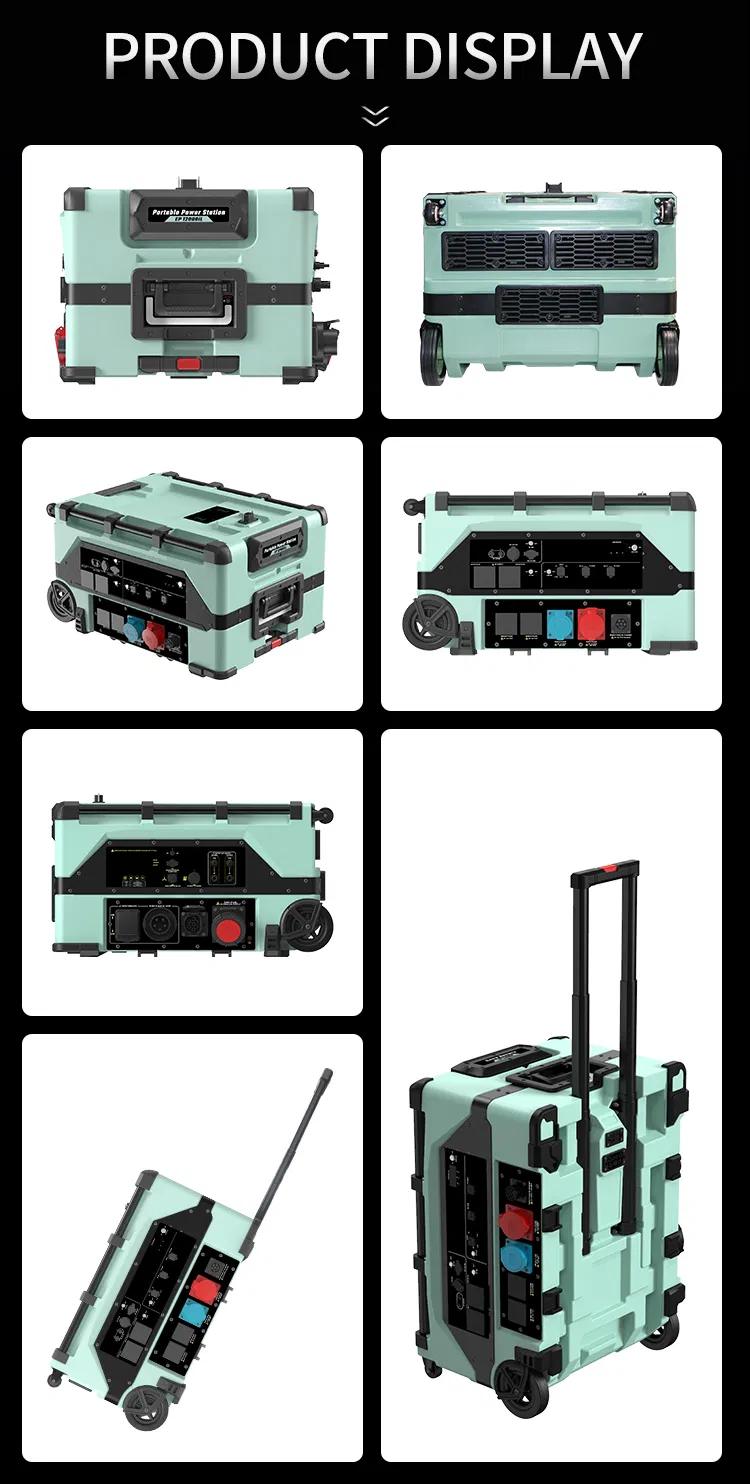

📸 Detailed Photos

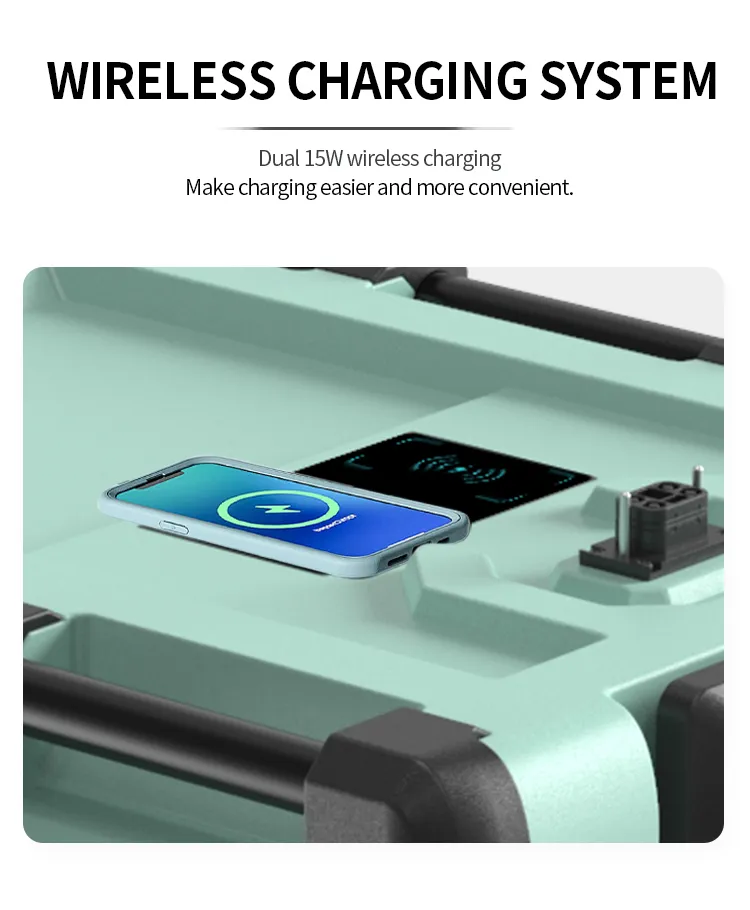

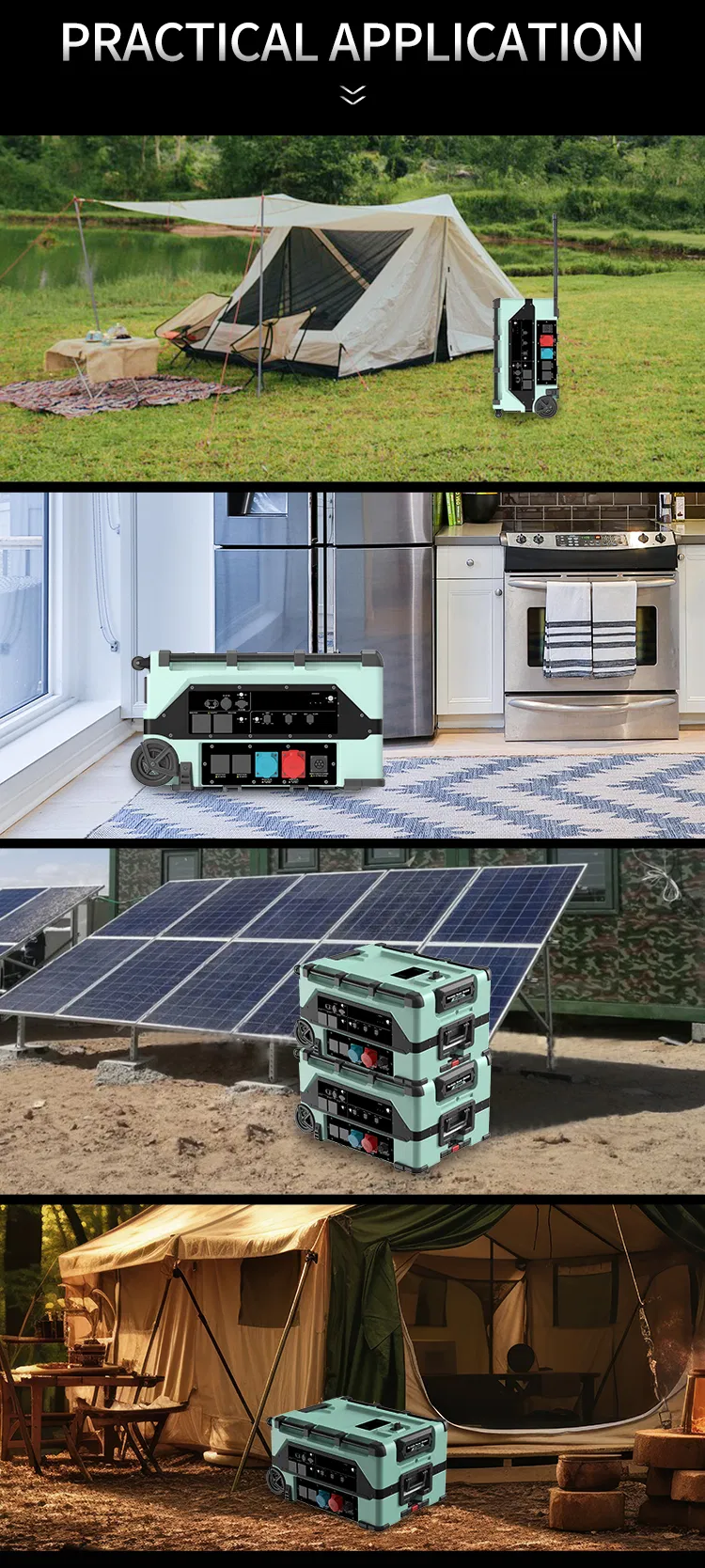

Technical Layout 1 Technical Layout 2 Technical Layout 3 System Scale 1 System Scale 2 System Scale 3
🏢 Company Profile

Founded in March 2015, the company is a high-tech enterprise integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of Things, power equipment, automation equipment, and electrical products.

We are devoted to research and development of intelligent electromechanical products, insisting on independent innovation. So far, we possess more than 70 critical patents which enable us to maintain a leading position. Our products enjoy a high reputation in Europe and North America markets, offering competitive quality and pricing globally.

We are committed to bringing innovative products to our customers, winning trust through excellence and superior service.

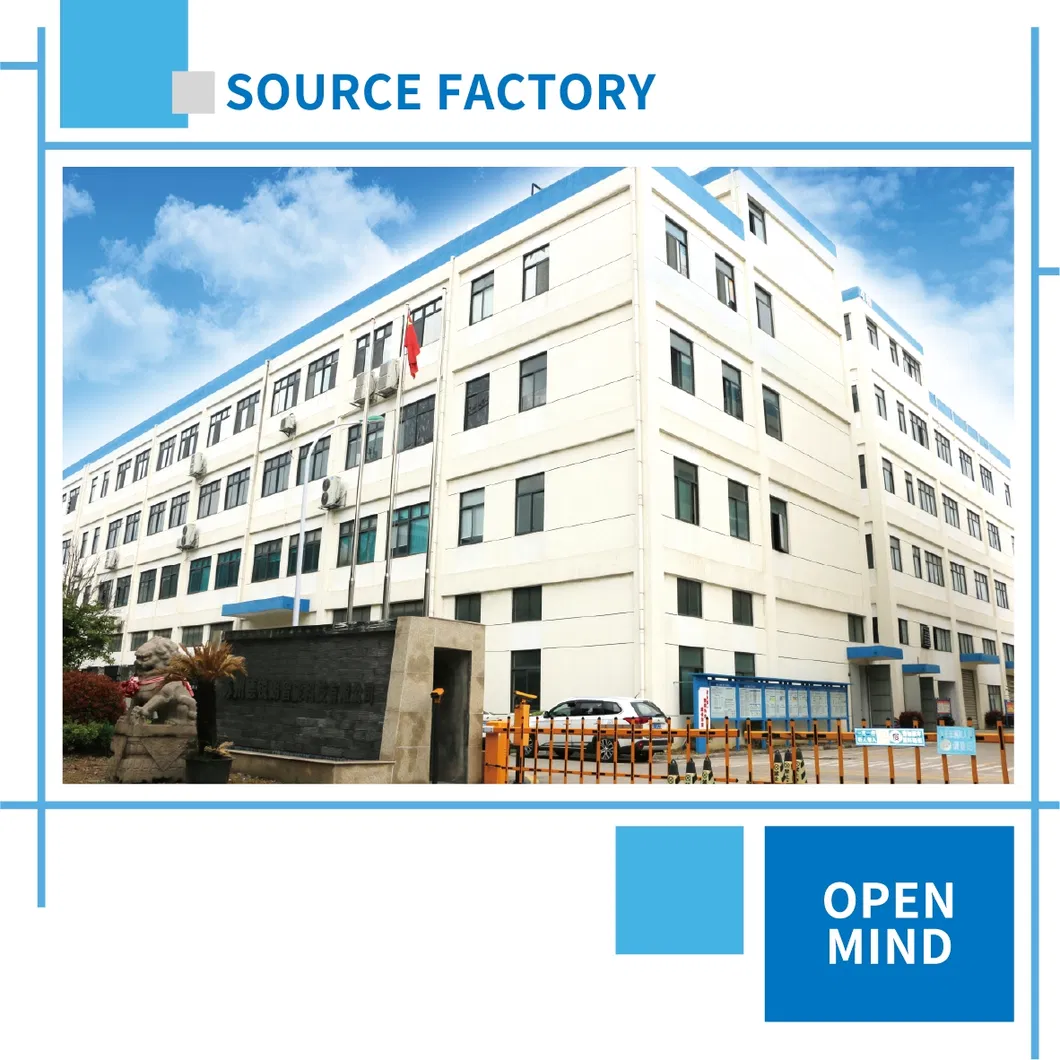

Manufacturing Facility
❓ Frequently Asked Questions
How long does it take to fully charge the system?
With our super fast charging technology via AC or High-voltage Solar, the battery can be fully charged in approximately 70 minutes.
Can the battery capacity be expanded?
Yes, the system is highly expandable. You can stack up to 31 extra battery packs to reach a total capacity of 245kWh.
What type of battery is used in the EP12000iL?
The system uses professional-grade LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety and long cycle life of over 3000 cycles.
Does this unit support three-phase power output?
Yes, it supports continuous output of 12kW AC three-phase power, as well as single-phase and split-phase configurations.
Is the system suitable for outdoor use?
Yes, the main unit is rated IP53 and the battery packs are rated IP66, providing excellent protection against dust and water.
How can I monitor the system status?
The system features an integrated LCD display panel and also supports intelligent monitoring and control via a dedicated smartphone APP.
