Product Description

📋 Basic Information
Model NO.
QSCDD
Rated Current
2A; 63A; 100A; 200A; 300A
Rated Power
7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw
Protection Grade
IP54 / IP65
Service Life
8 - 10 Years
Charging Type
AC / DC / Integrated
Efficiency
≥93% (AC); ≥95% (DC)
Power Factor
≥0.95
Production Capacity
5000 PCS/Year
Package Size
120cm * 45cm * 155cm
🚀 Product Description
EV Charging Pile System
Core Advantages
  • Flexible Expansion: Wide compatibility with various EV models.
  • Certified Safety: Rock-solid reliability with international standards.
  • Effortless Operation: Low-maintenance design for long-term use.
  • Stable Performance: Consistently efficient charging delivery.

Our charging pile series includes wall-mounted and floor-standing models to meet different installation needs. Stylish designs with modular power configuration for easy maintenance.

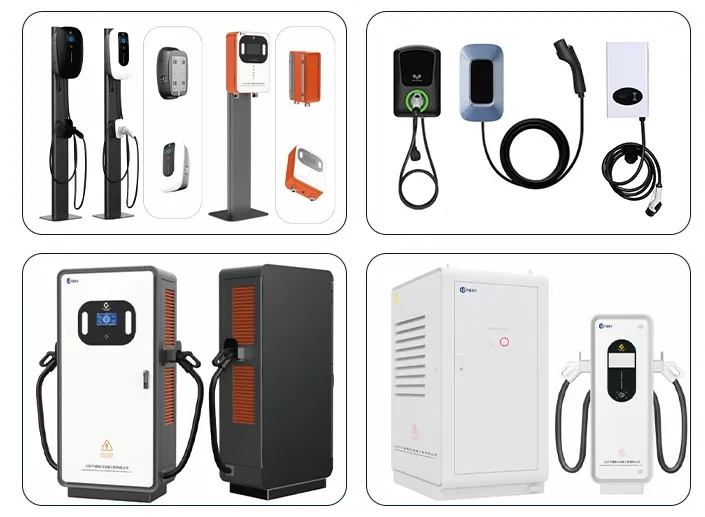

Charging Pile Options
⚙️ Technical Specification
TypeEV charging station
Power Options20KW, 40KW, 120KW, 160KW, 240KW
Input Rating110V/220V/380V ±15%
Working Frequency50/60 ±10%
Output Voltage200 ~ 1000V
ConnectorsCCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display7" LCD Touch Screen
Network4G / Ethernet
ProtocolsOCPP 1.6J (OCPP 2.0 upgradable)
ProtectionIP55
⭐ Best Sellers

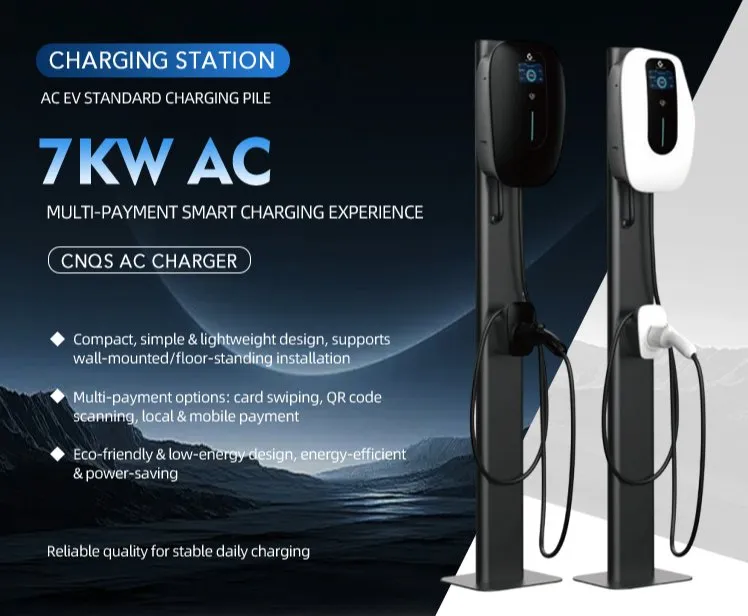

7KW AC Charger
  • Compatible with global certifications (CE/UL/PSE/KC).
  • Supports ISO 15118-20 standard + PNC Plug & Charge.
  • Compliant with V2G vehicle-to-grid protocol.
  • MID/UL 2735 metrology certification, billing accuracy ±0.5%.
7KW AC Charger

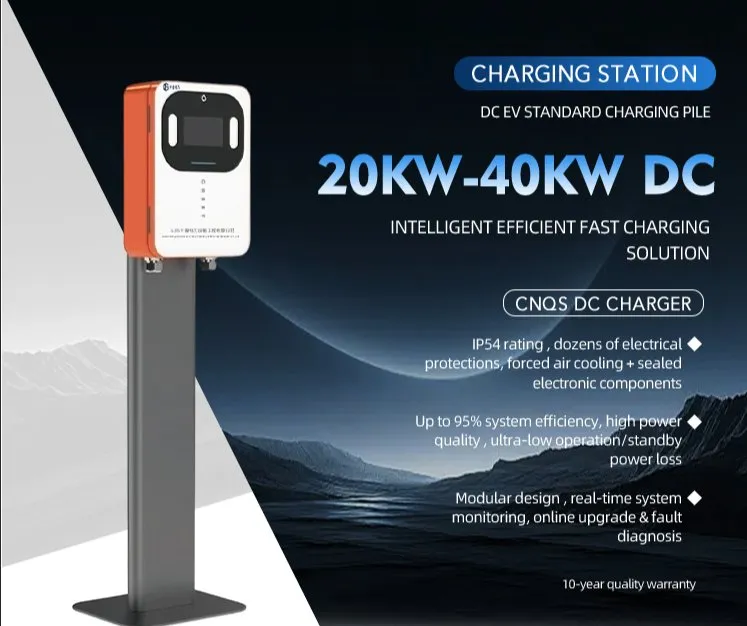

20KW-40KW DC Charger
20KW-40KW DC Fast Charger
  • 80% power replenished in 30 mins.
  • IP65 dustproof & waterproof (-30℃ to 60℃).
  • Supports Apple Pay/Google Pay/Credit Card.
  • Remote diagnosis of 40 core parameters.
120/160/240KW DC Station
  • Dual-gun simultaneous charging + modular design.
  • 120kW: 300+km range in 30 mins.
  • 240kW: 80% battery in 15 mins.
  • Dynamic power allocation & V2G supported.
High Power DC Station
🔍 Product Details
Detail 1
Detail 2
Detail 3

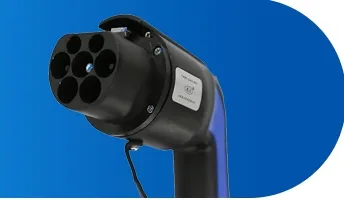

  • Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

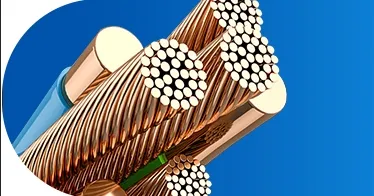

  • Thickened high-temperature resistant special cables.
  • Customizable cable length with self-locking anti-drop connectors.
🛠️ Features & Packaging

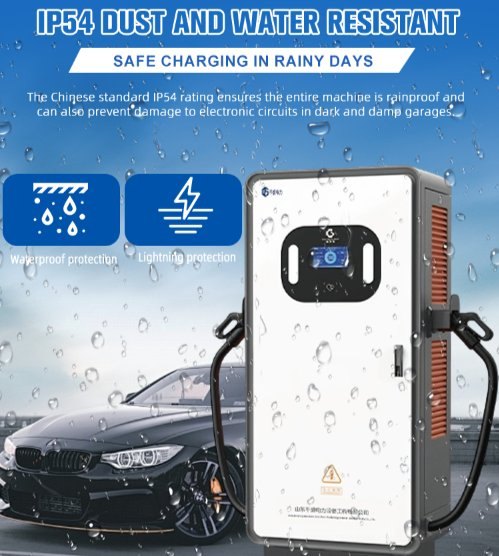

Feature 1

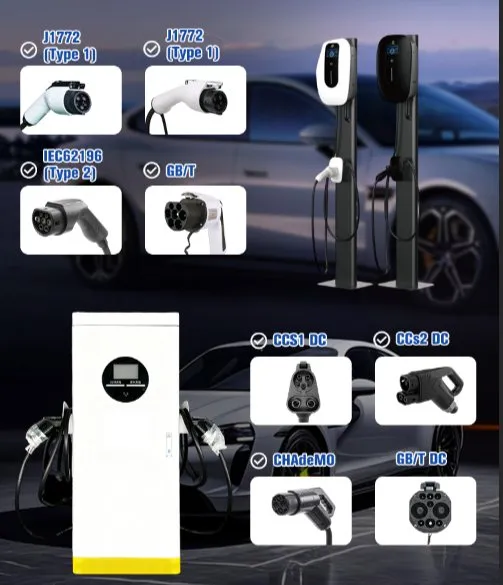

Feature 2

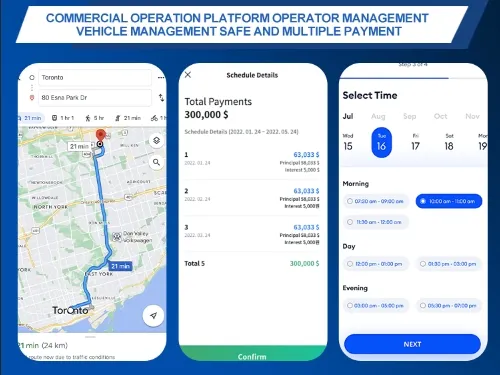

Feature 3

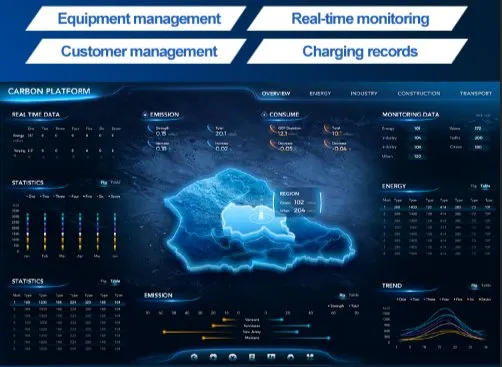

Feature 4
System Overview
Packaging
🏢 Professional Expertise

An experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions.

  • ISO9001:2000 Quality Management Certified.
  • CCC and CQC product certifications.
  • 16,000+ sqm facility with senior technical staff.
  • Strict quality control and on-time delivery.

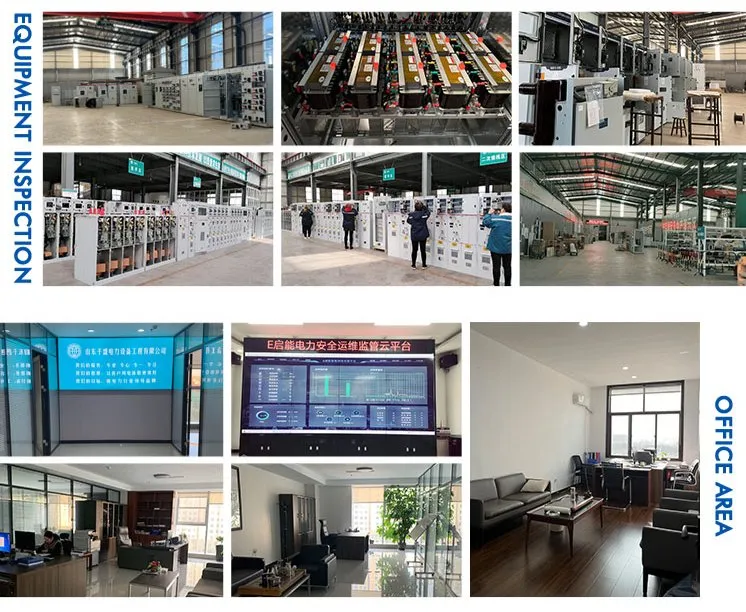

Manufacturing Facility
❓ Frequently Asked Questions
What situations are not covered by the warranty?
Includes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events.
Is regular maintenance service provided?
Yes, we provide free annual inspections including electrical safety testing, mechanical tightening, cleaning, and software updates.
Does the service comply with local data security requirements?
Fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted to protect user privacy.
Can the warranty period be extended?
Paid extensions are available: 2 years for residential and 1-3 years for commercial chargers, covering the main unit and core parts.
Is after-sales service universal across regions?
Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East with unified standard services.
What is the charging efficiency of your units?
Our AC chargers achieve ≥93% efficiency, while DC chargers reach ≥95%, ensuring minimal energy loss during the charging process.
