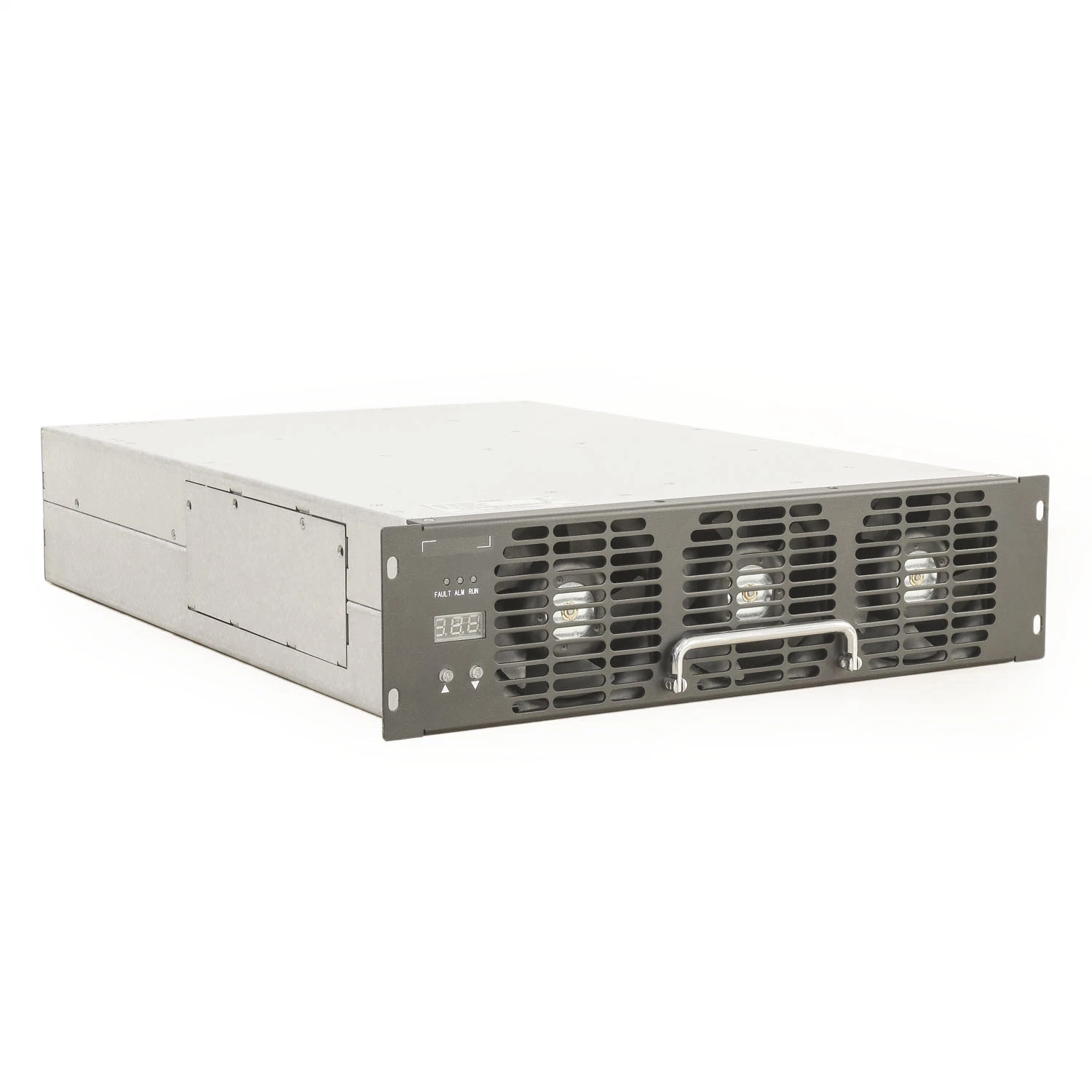

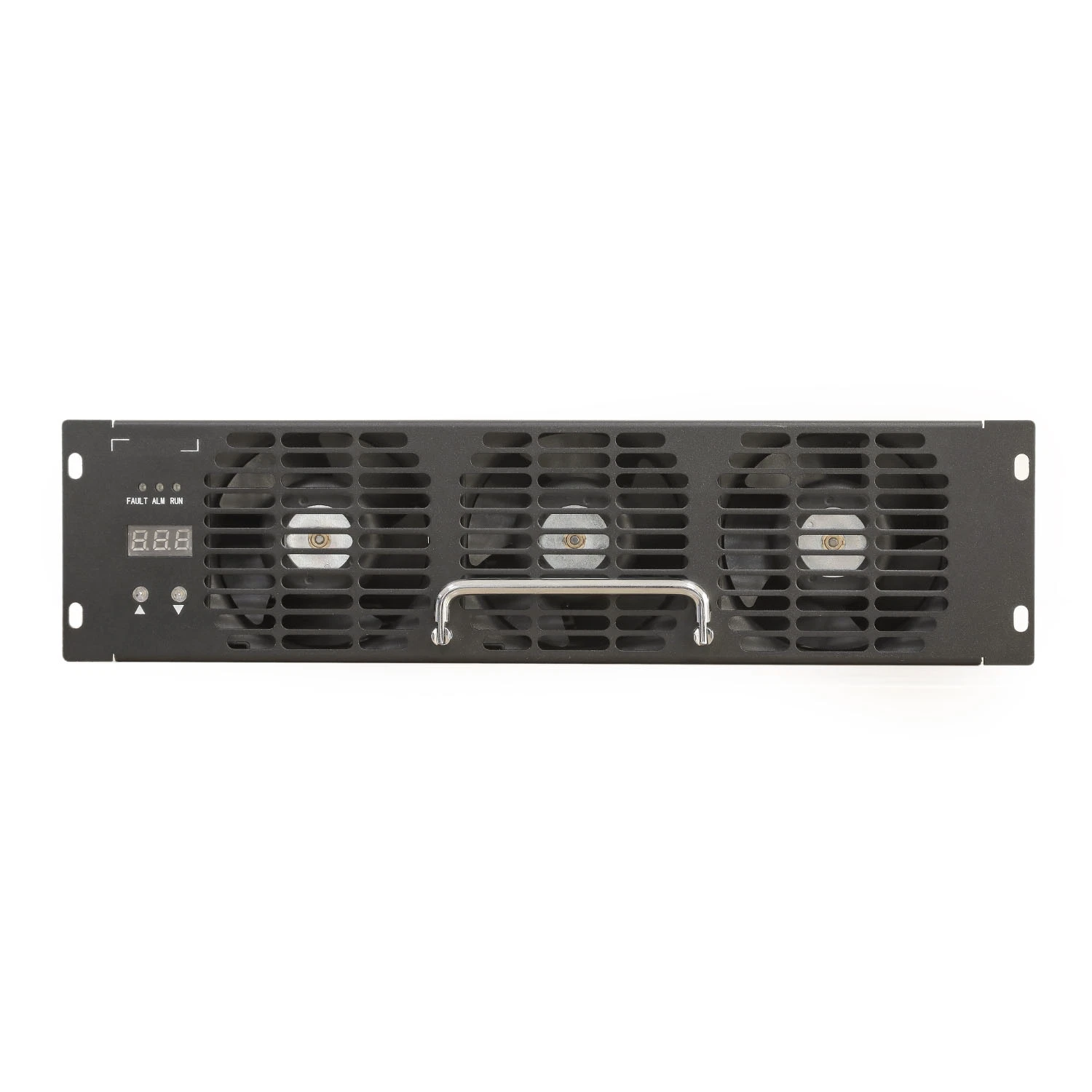

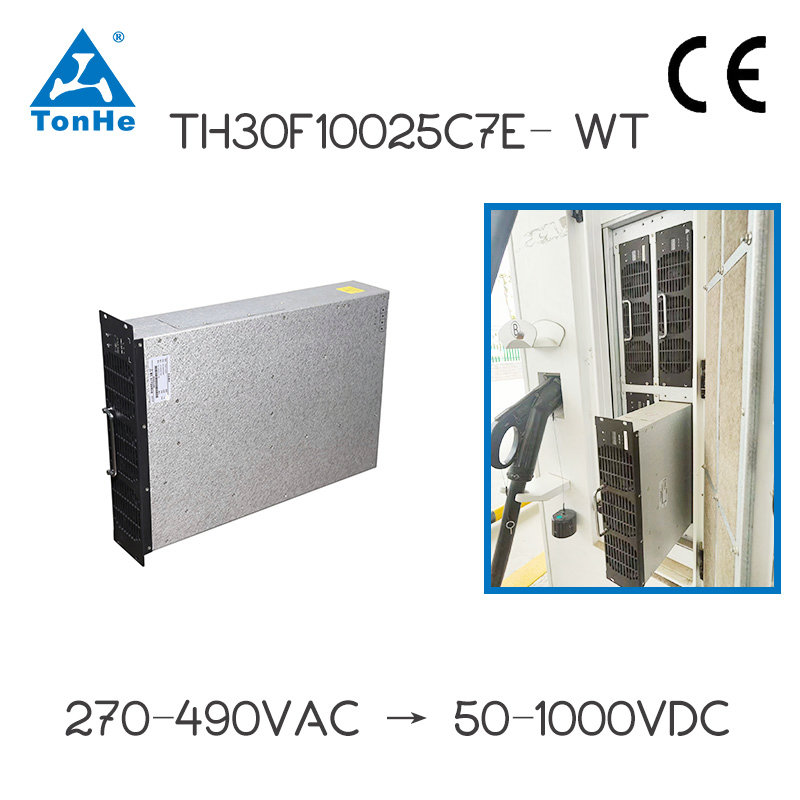

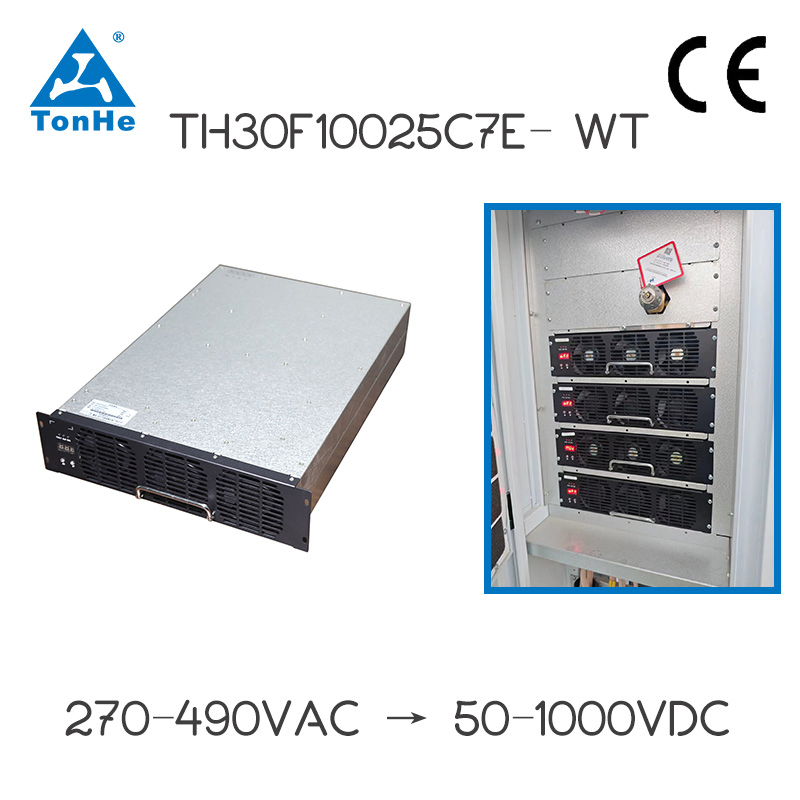

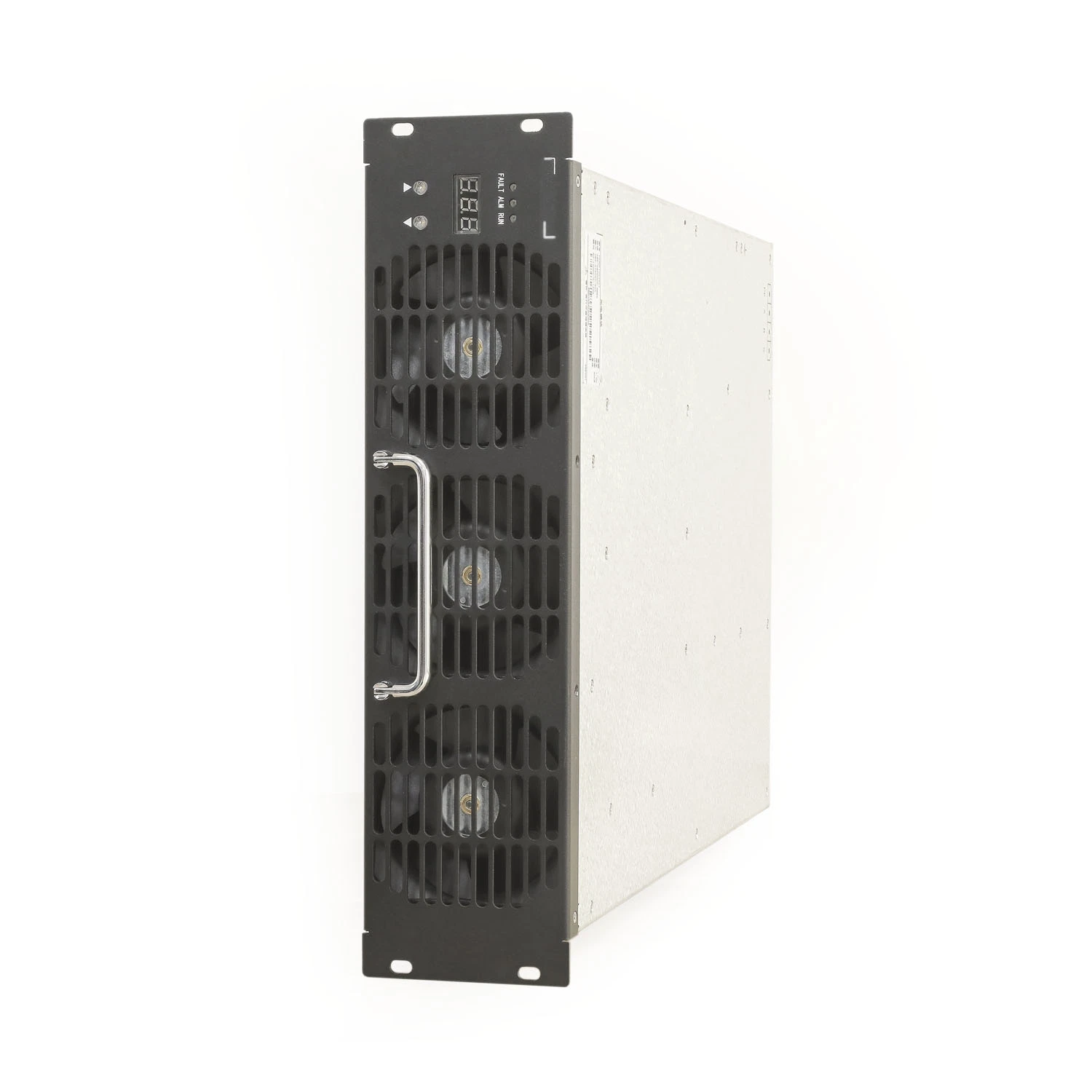

This product is a three-phase 380VAC input charging module, utilizing industry-leading resonant voltage type double-loop control resonant switching power supply technology and three-phase three-level power factor correction technology. It offers significant advantages including compact size, light weight, high efficiency, and high reliability.
| 30kW/1000V Power Module Technical Specification | ||
|---|---|---|
| Model | TH30F10025C7 | |
| Input Features | Input voltage range | 285V~475V |
| Input frequency | 50Hz±10% | |
| Power factor | ≥ 0.99 | |
| THD | ≤ 5% | |
| Standby power consumption | < 12W | |
| Output Features | Output voltage range | 150~1000V DC |
| Max output current | 80A | |
| Constant power range | 1000-250VDC constant 30KW | |
| Current range | 2~120A | |
| Efficiency | ≥ 96% | |
| Soft start time | 3~8 s | |
| Communication Protocol | CAN | |
| Environment | Working temperature | -30~+75ºC (50ºC output derating) |
| Humidity | 5%RH~95%RH (no condensation) | |
| Altitude | 2000m | |
| Others | Dimension (L*H*W) | 460*218*84mm |
| Weight | ≤ 13kg | |
| IP Level | IP20 | |
