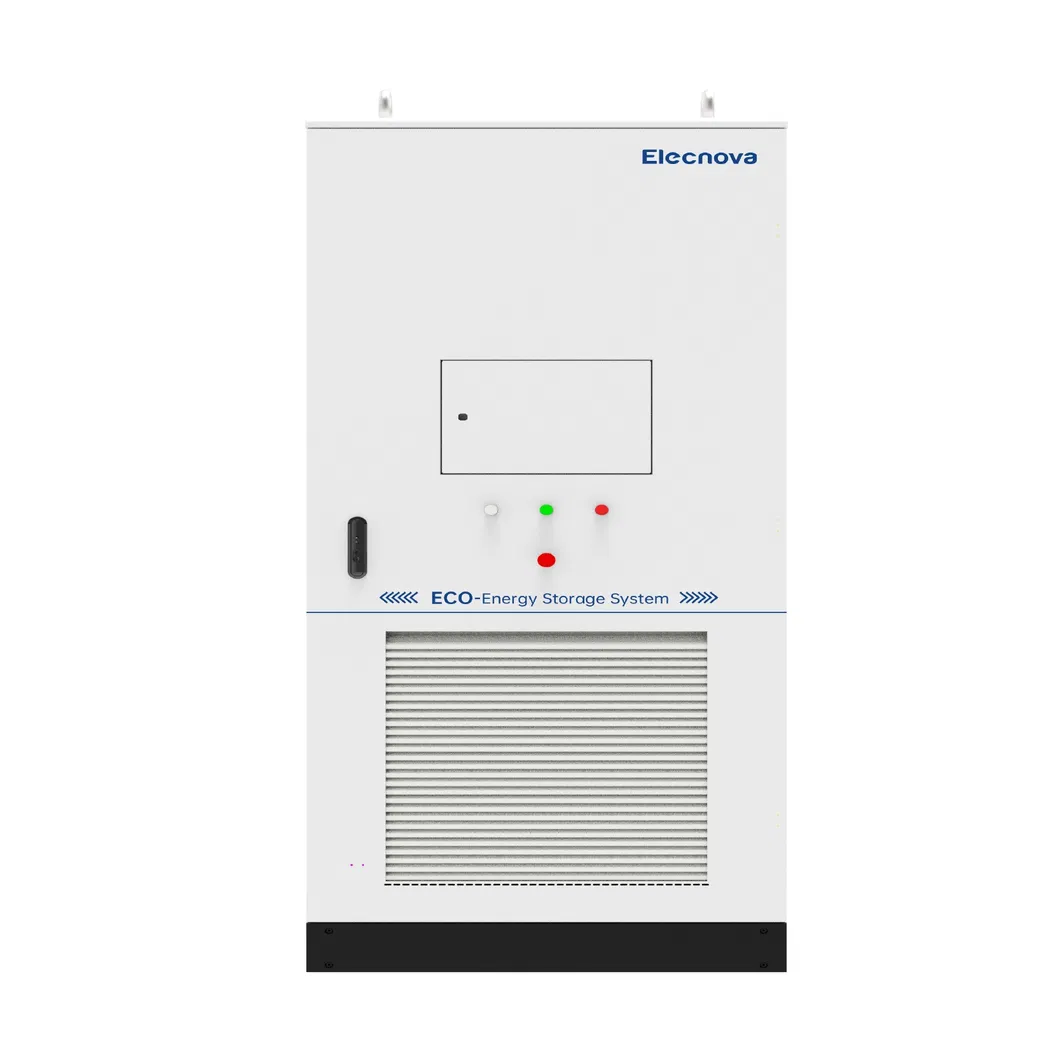

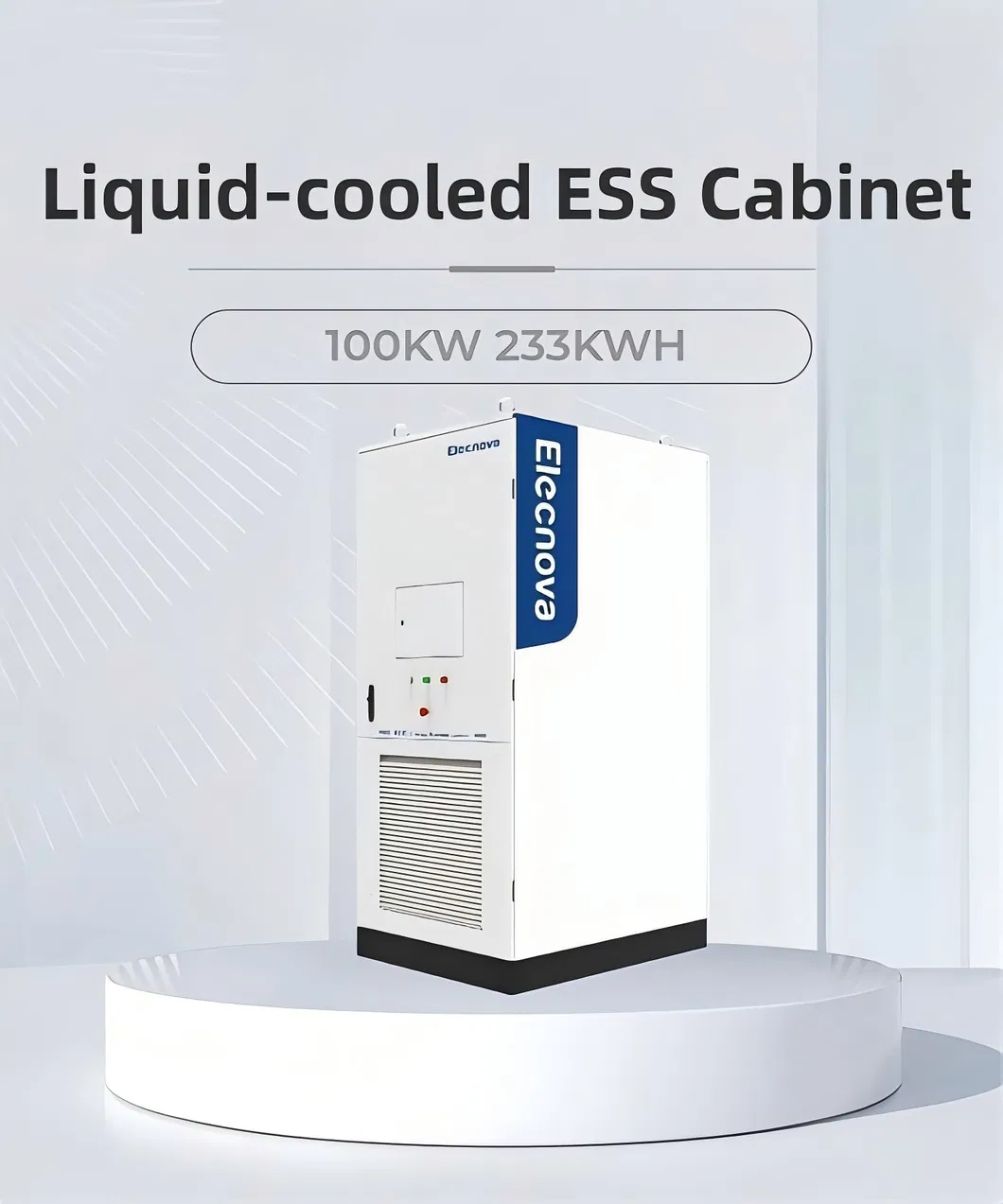

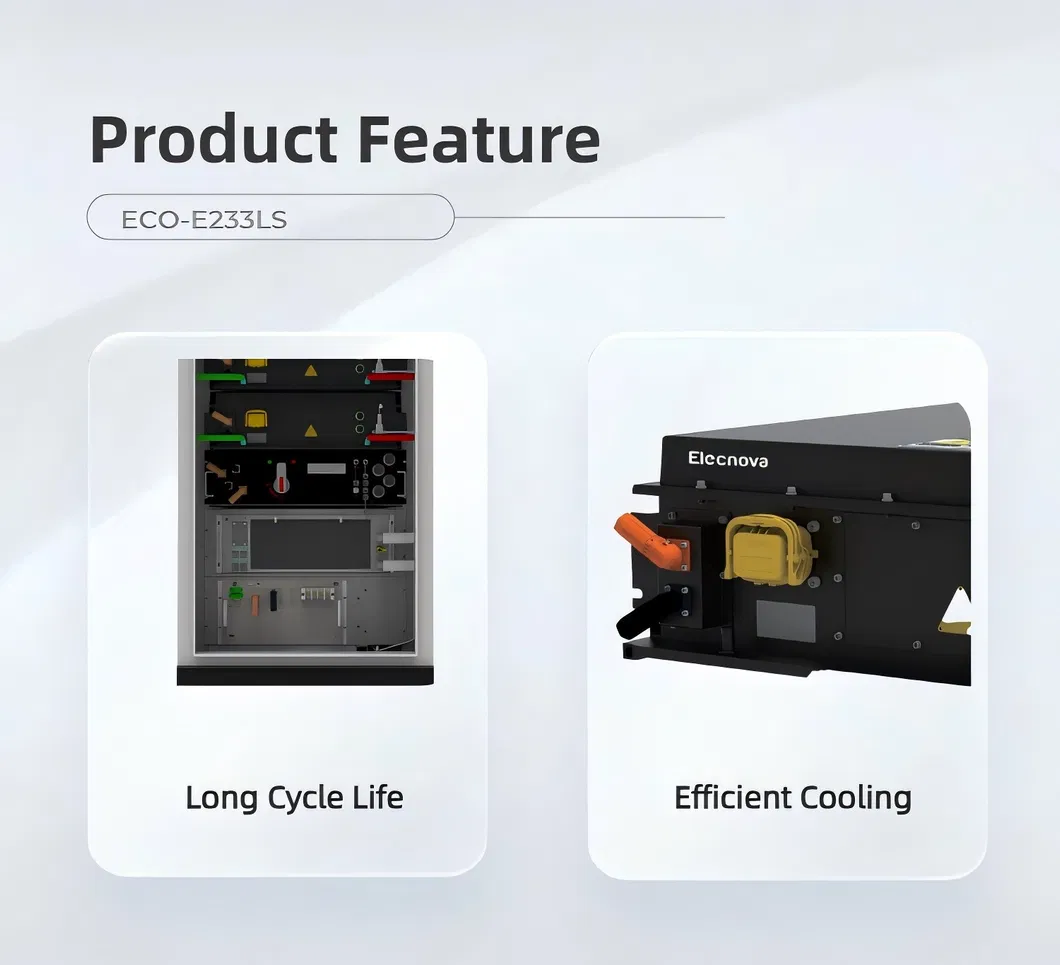

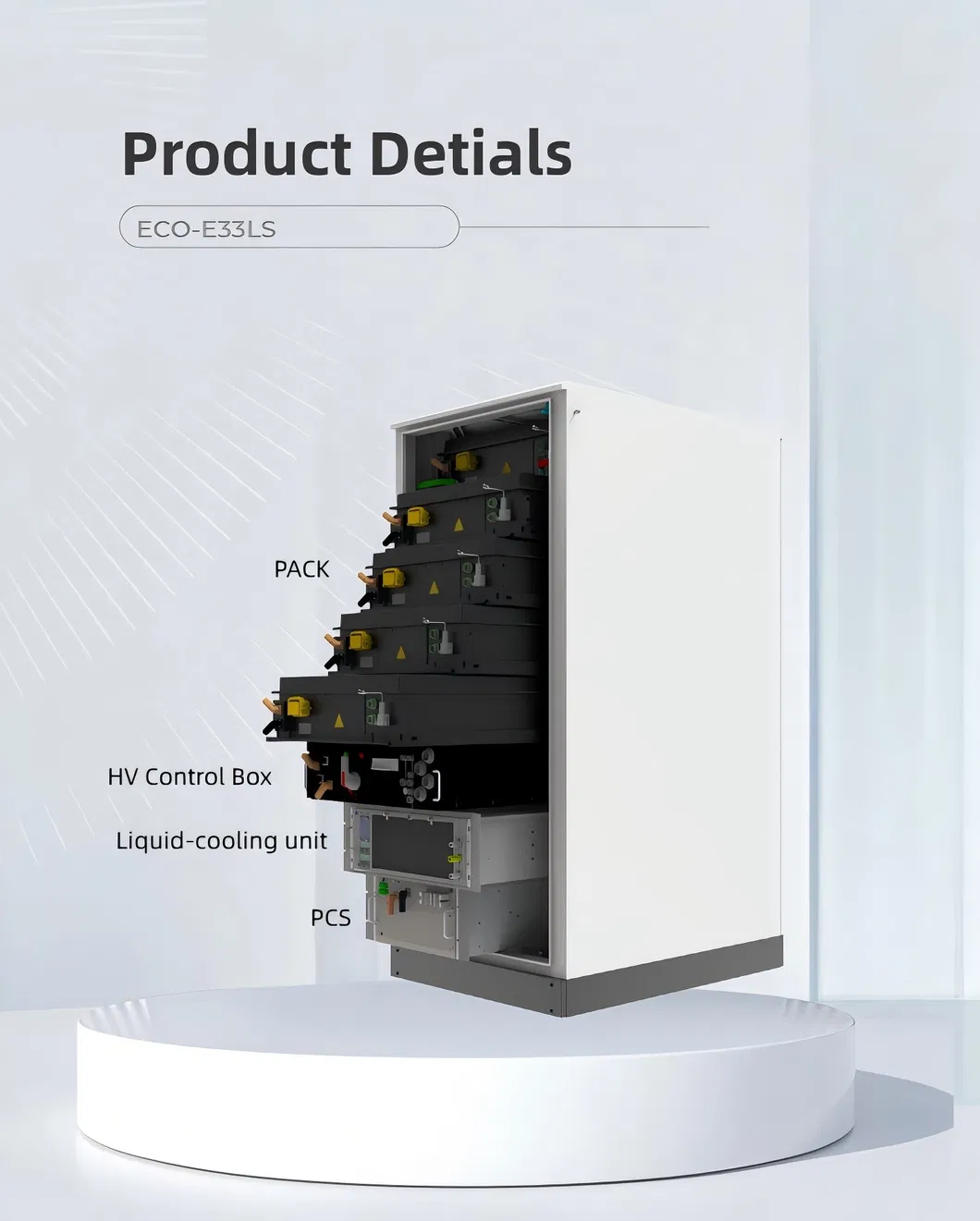

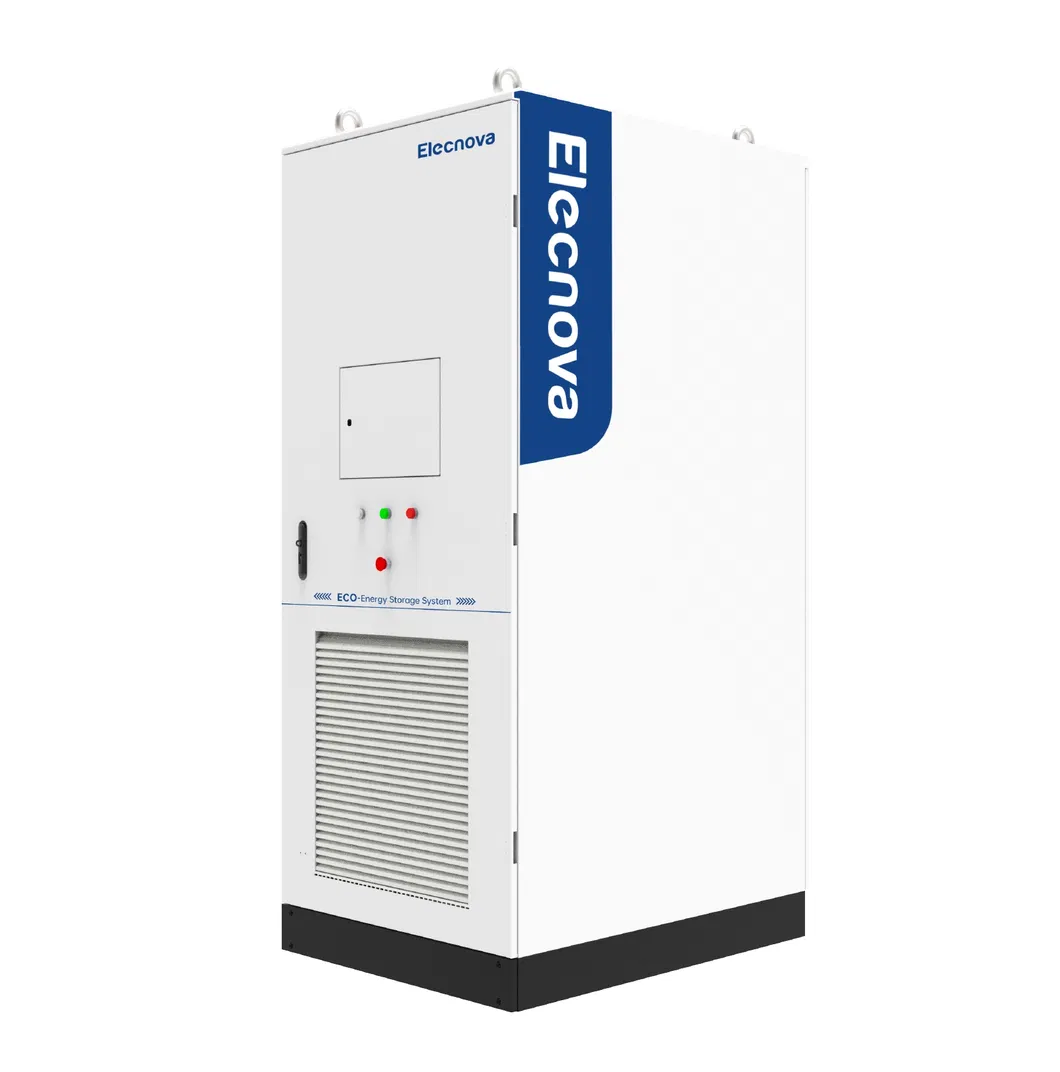

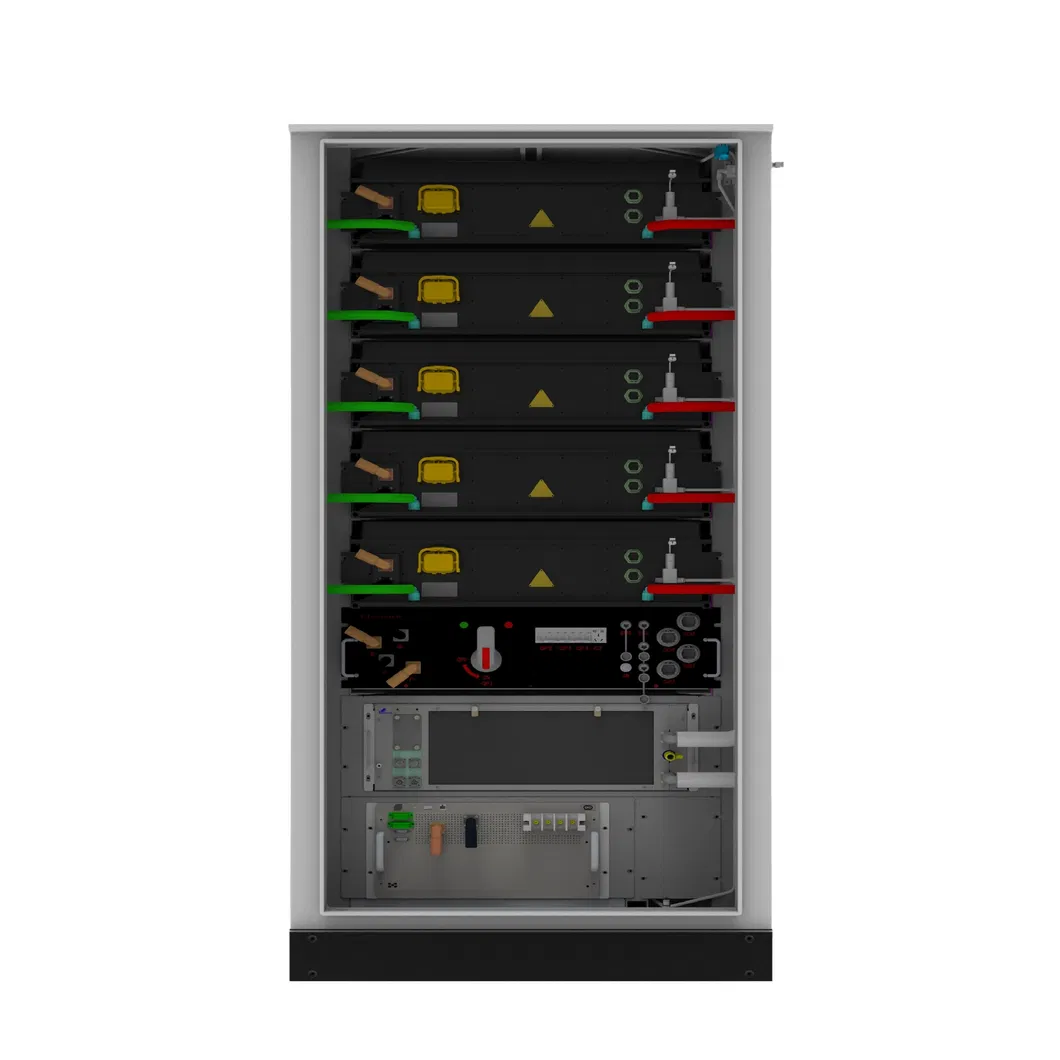

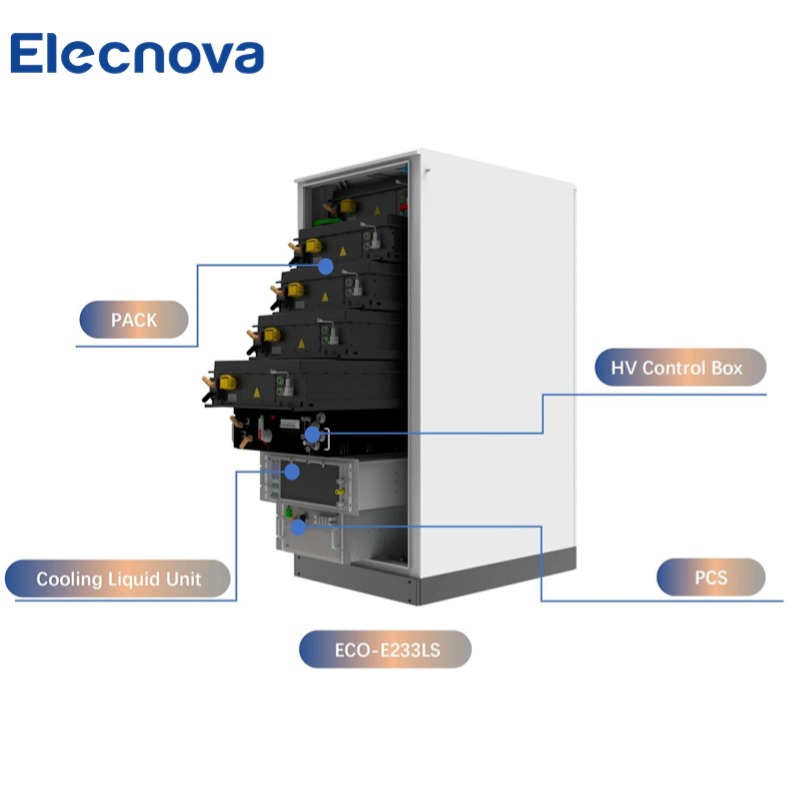

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

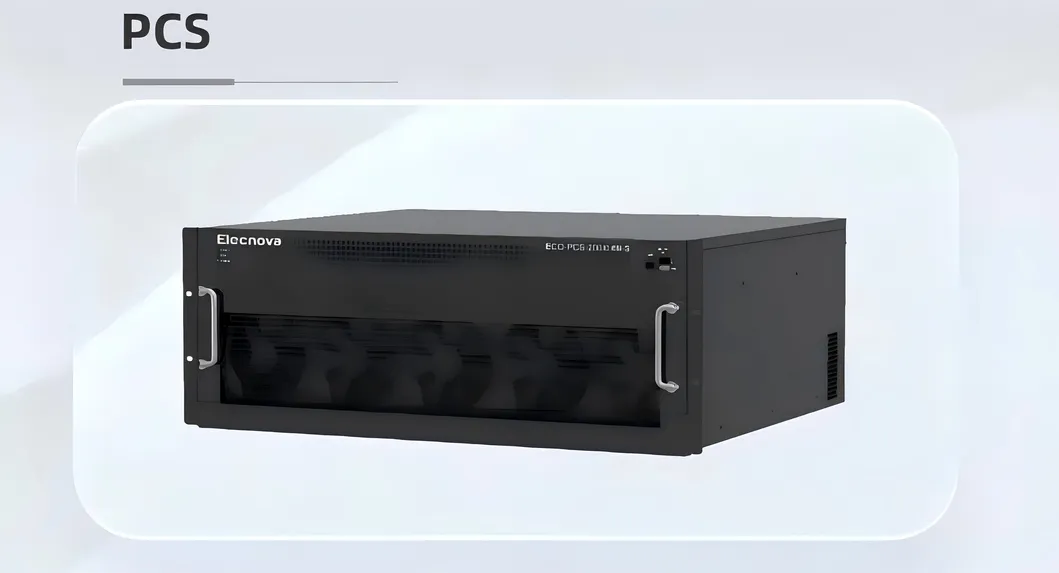

Conversion efficiency: 99%. IP65 rating, ms-level switching.

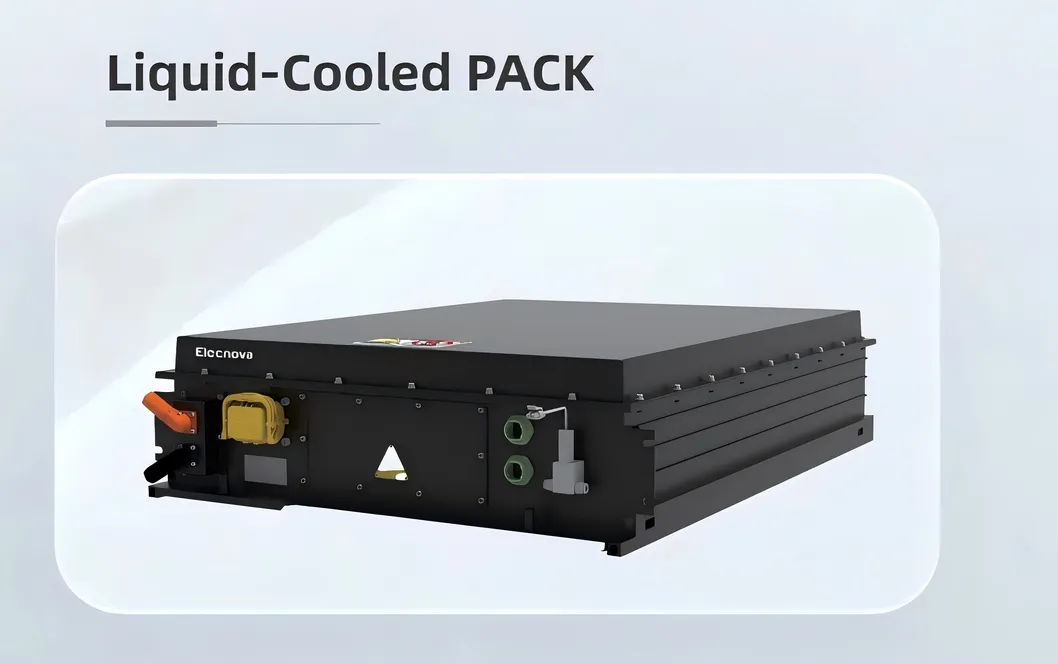

Active thermal management with 10 years designated lifespan.
SOC Estimation Accuracy Error < 5% with 100ms sampling.

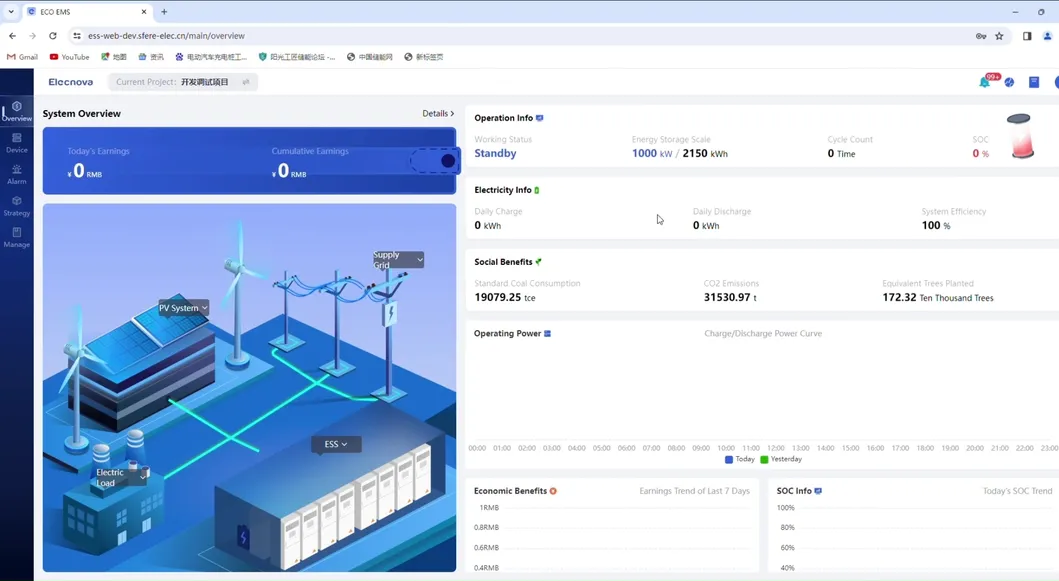

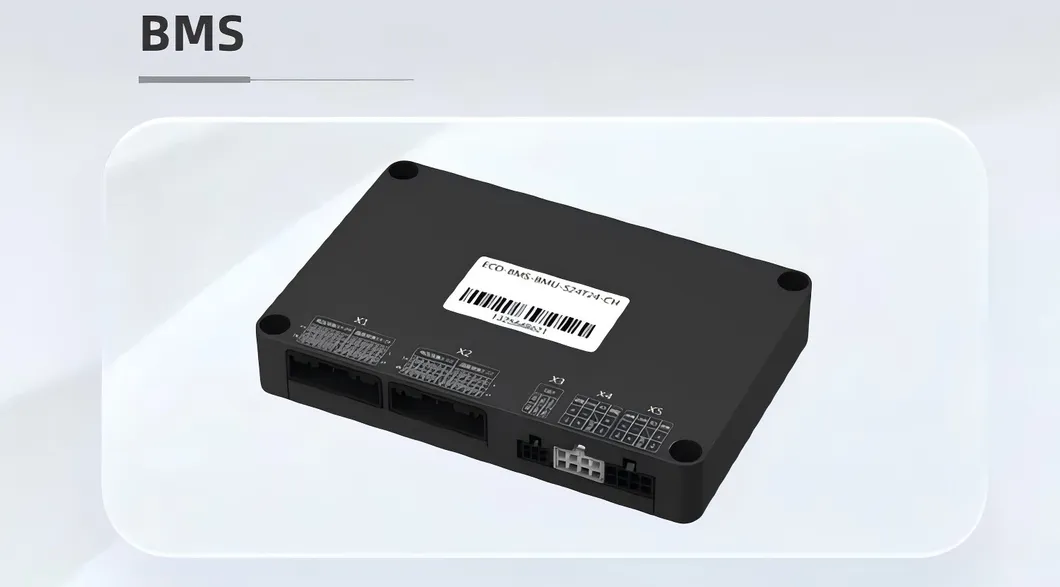

Real-time monitoring of PCS, BMS, and air conditioning.
| DC Side Specifications | |
|---|---|

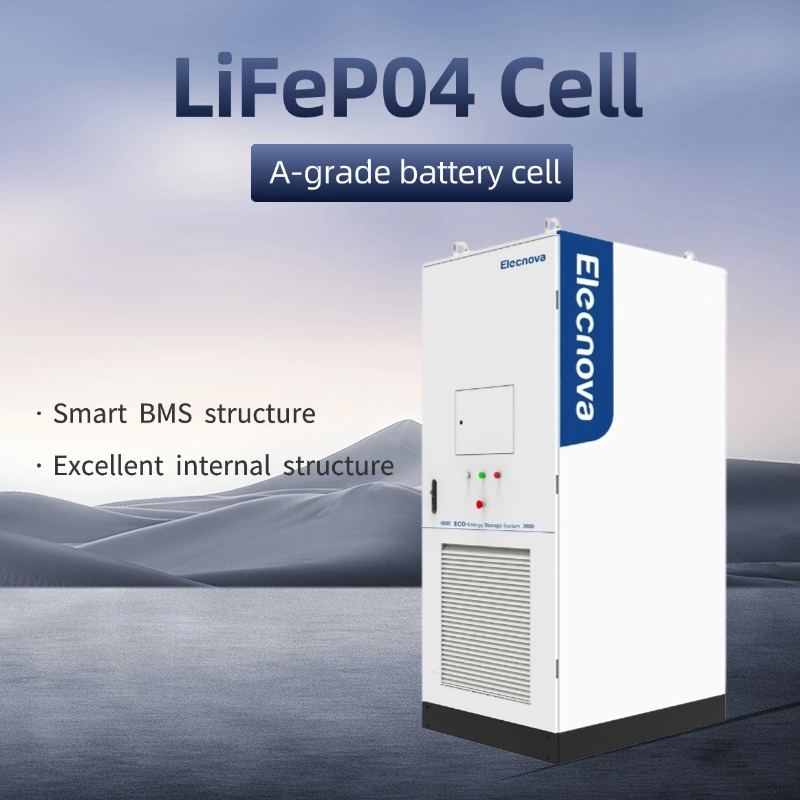

| Cell Type | LFP 280Ah |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| AC Side Specifications | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |

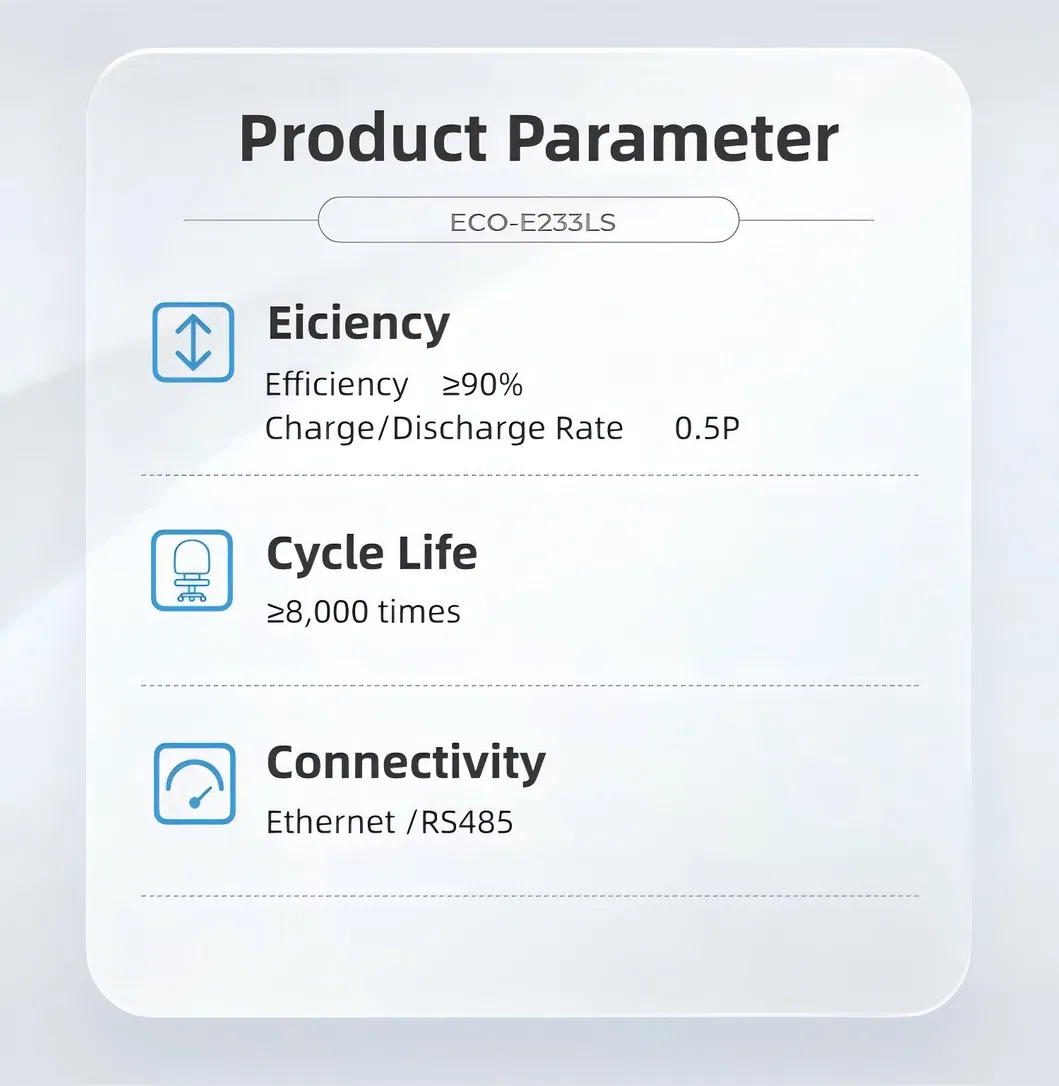

| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Ingress Rating | IP55 |
| Operating Temp | -25ºC ~ 55ºC |

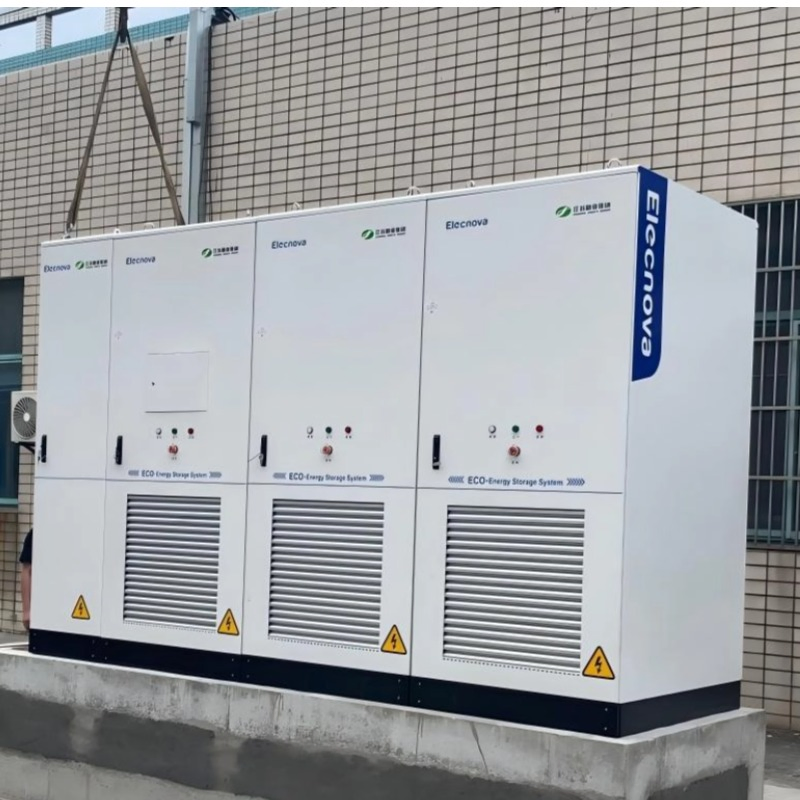

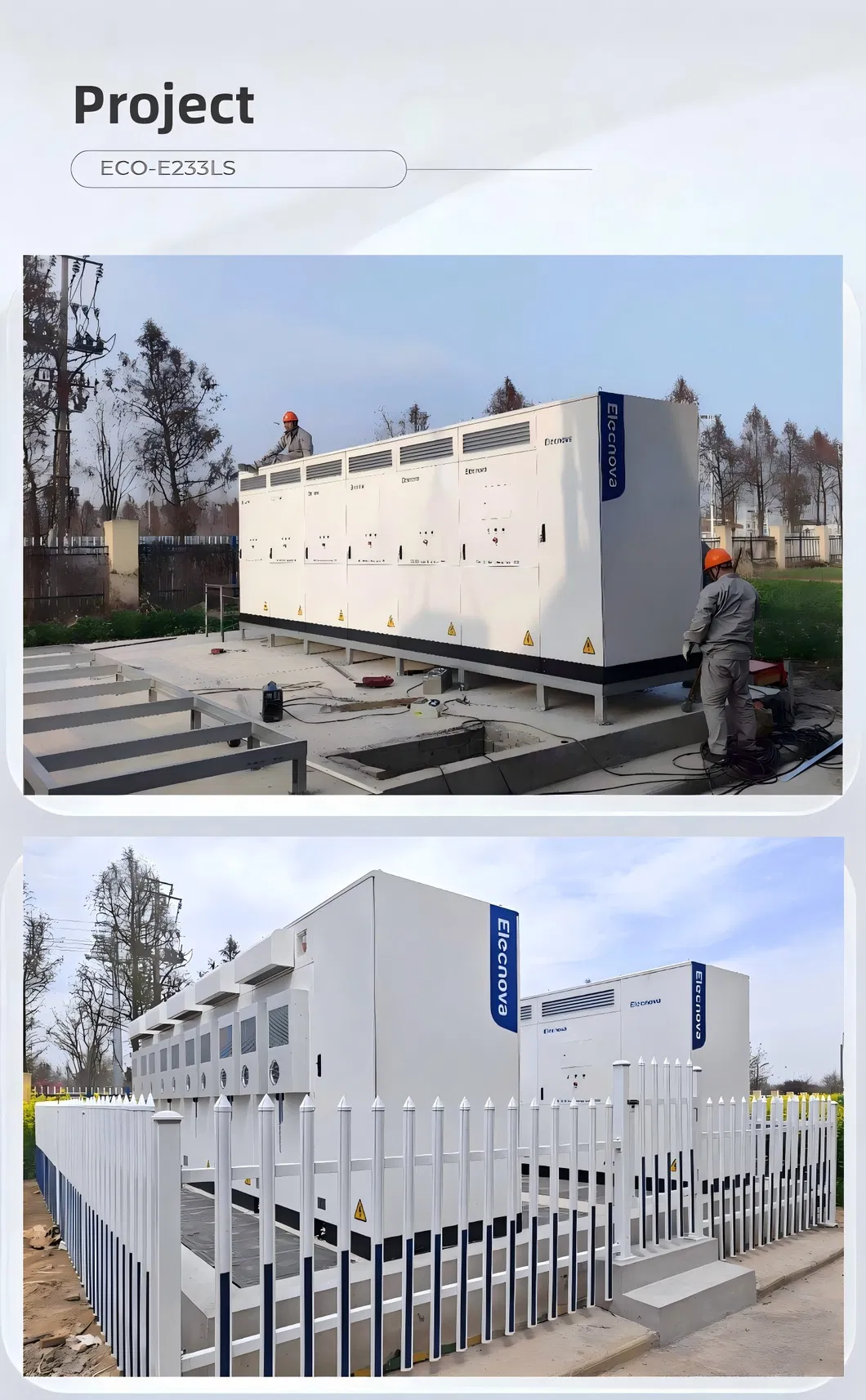

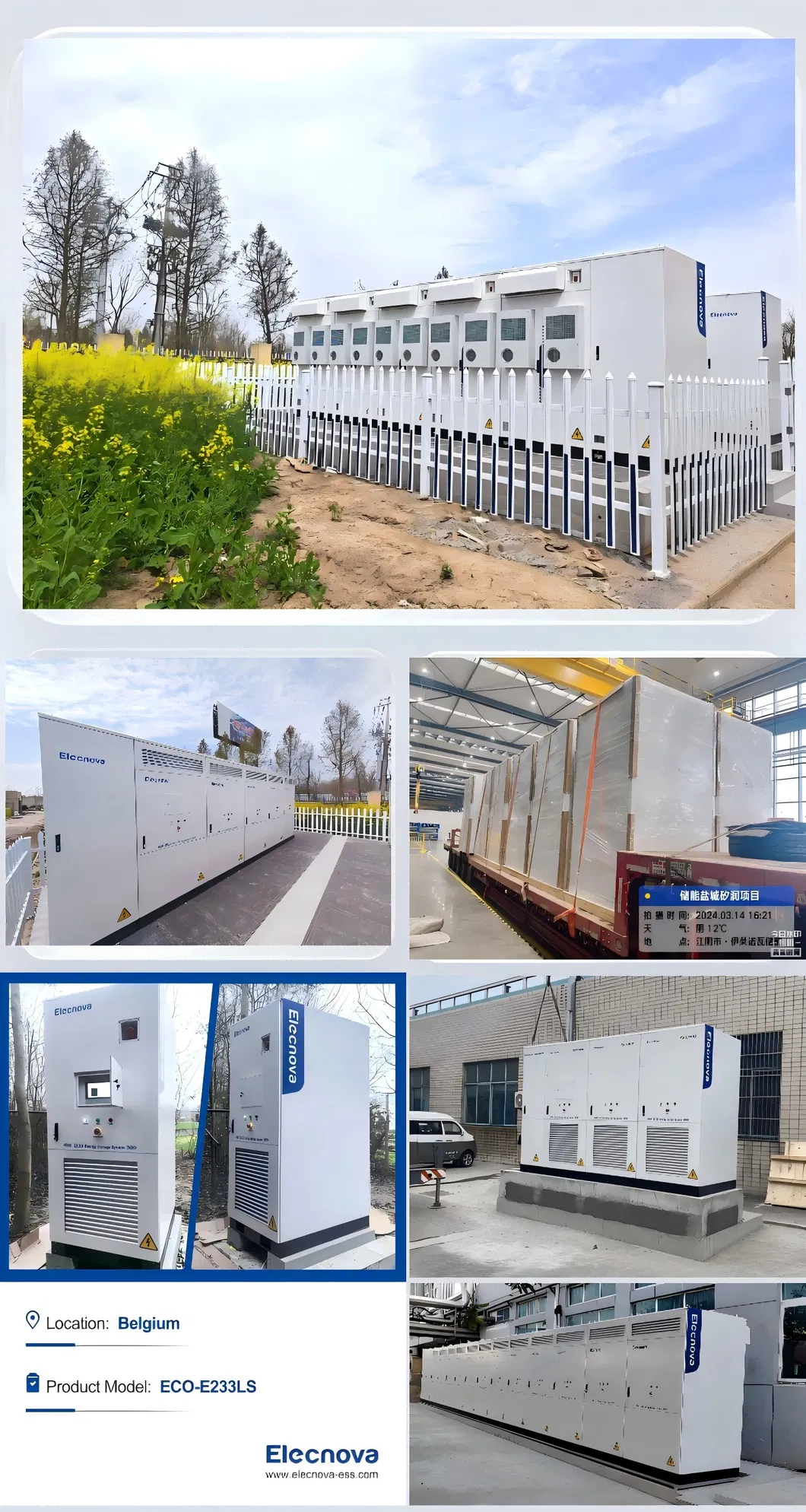

Our energy storage projects are successfully connected to the grid, providing high efficiency, stability, and safety for industrial and commercial users.
We are a technology-based enterprise focusing on overall solutions for energy storage systems. With supporting capabilities for system integration of PACK, PCS, and BMS, we aim to meet diversified energy requirements. We are committed to providing high-quality customized products for power generation, grid, and user-side scenarios.
