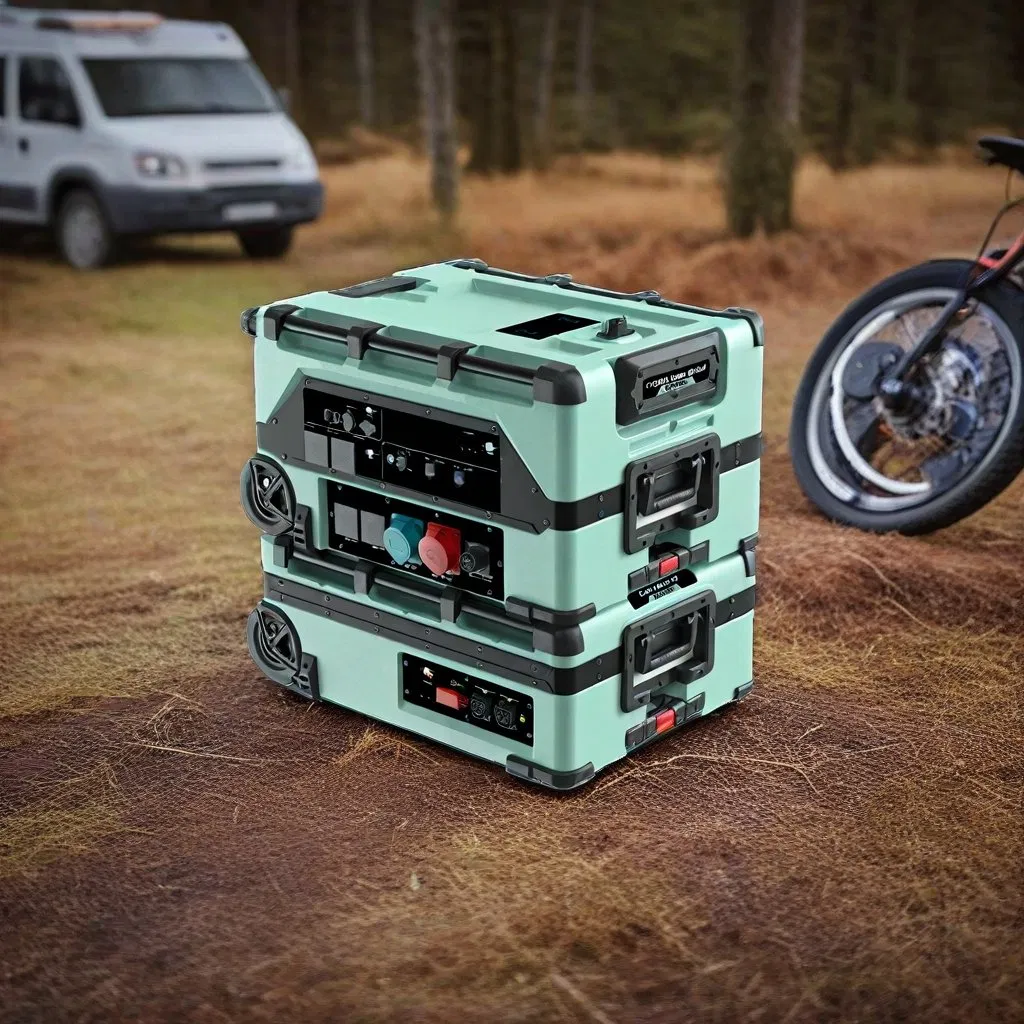

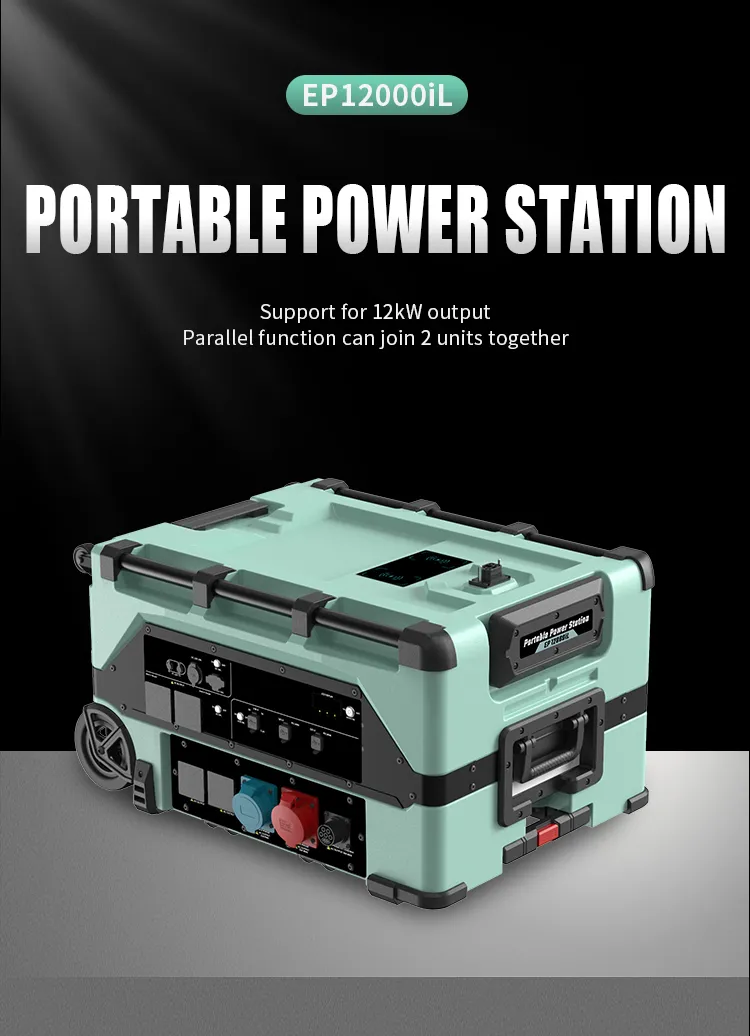

Ecochargepro Portable Smart UPS LiFePO4 Battery Expansion System

Send Inquiry

Product Description

📊 Basic Info

Model NO.

EP12000iL

Weight

100kg

Warranty

5 Years

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Super Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

LCD Display

with Display

Portability

Drawbar & Wheels

🌟 Product Advantages

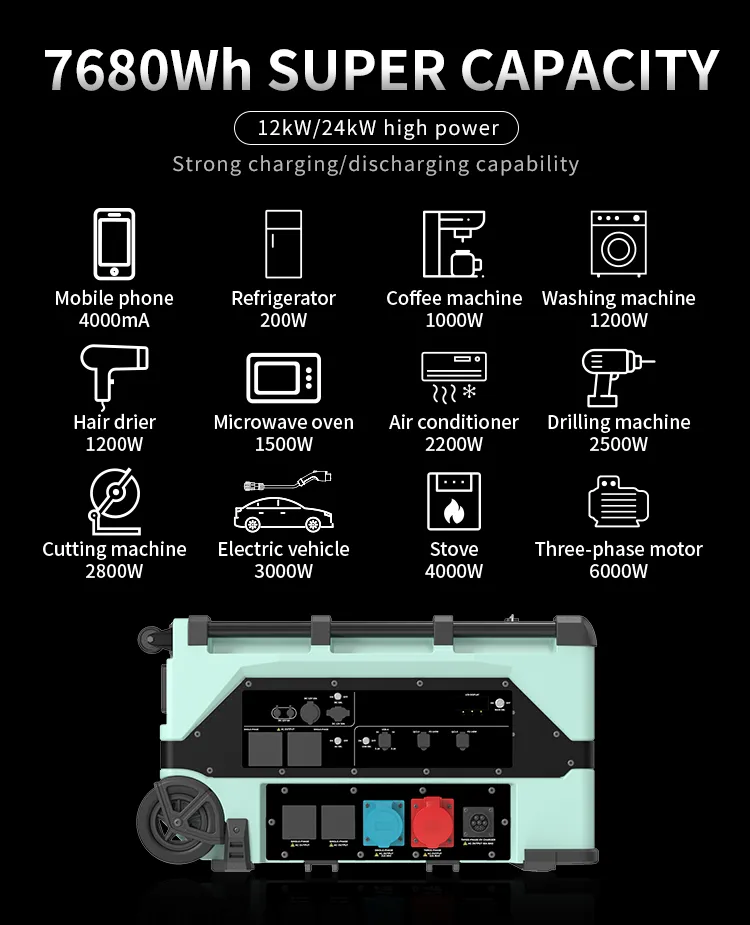

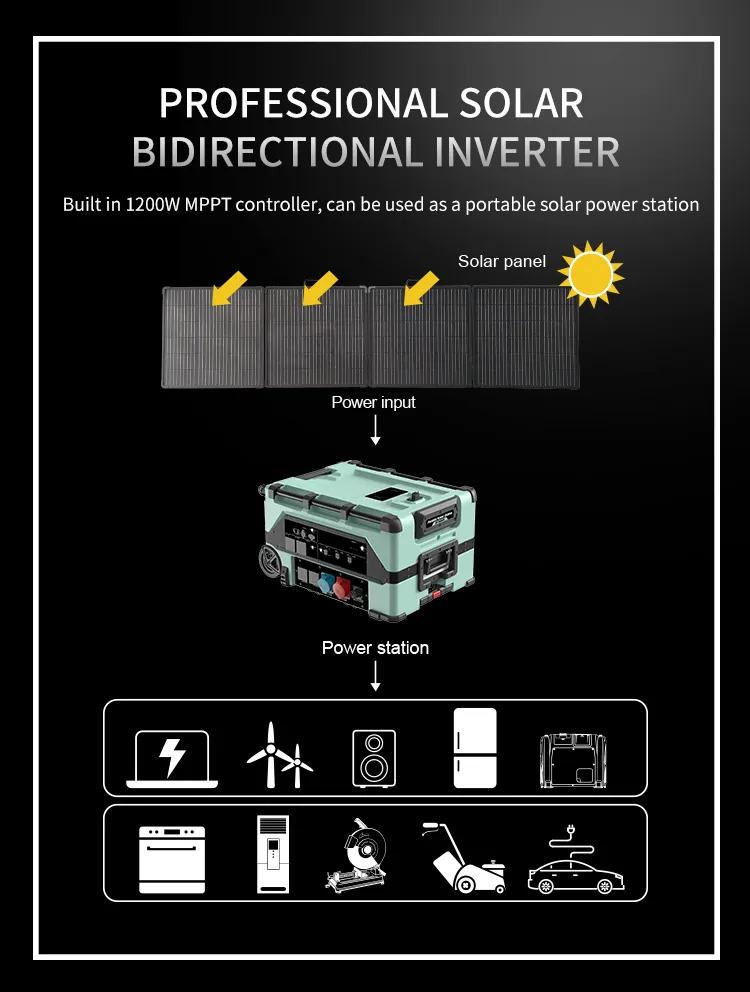

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

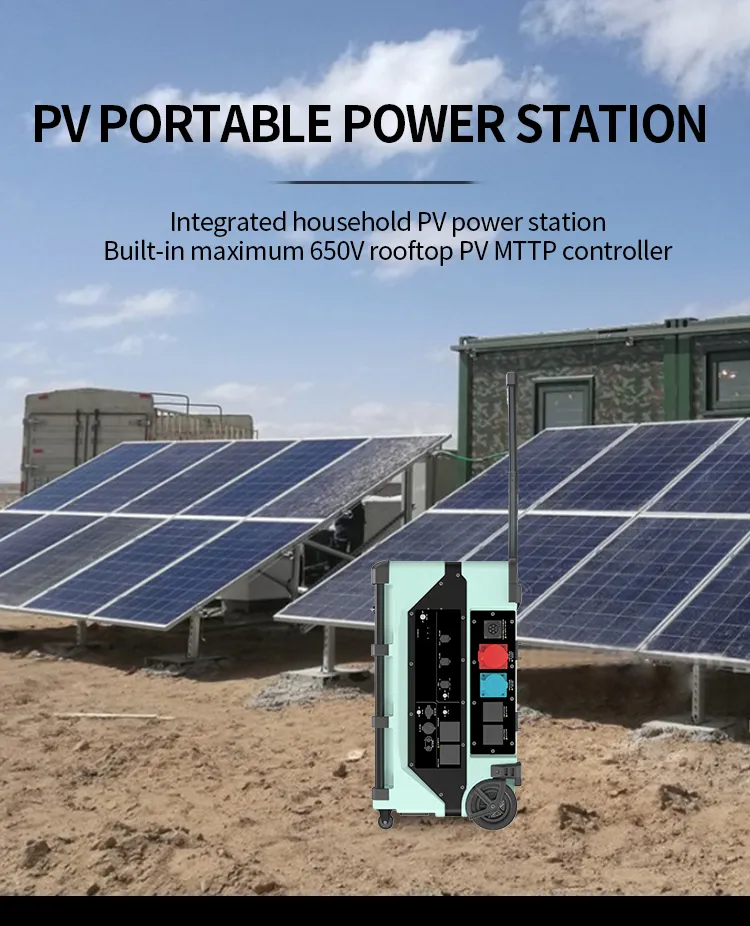

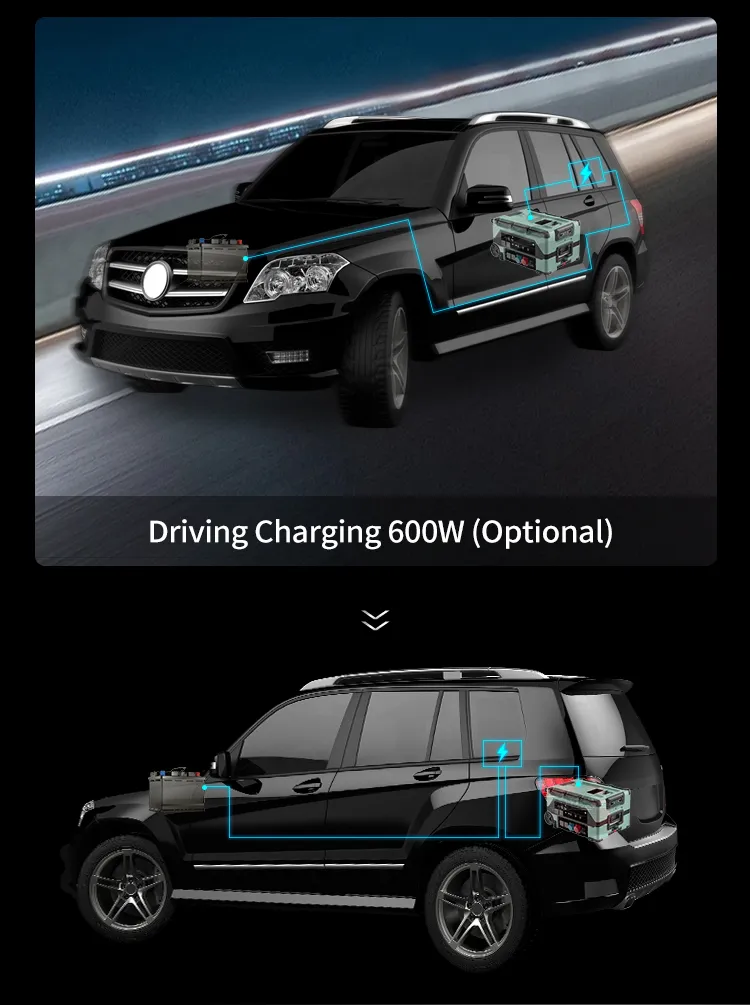

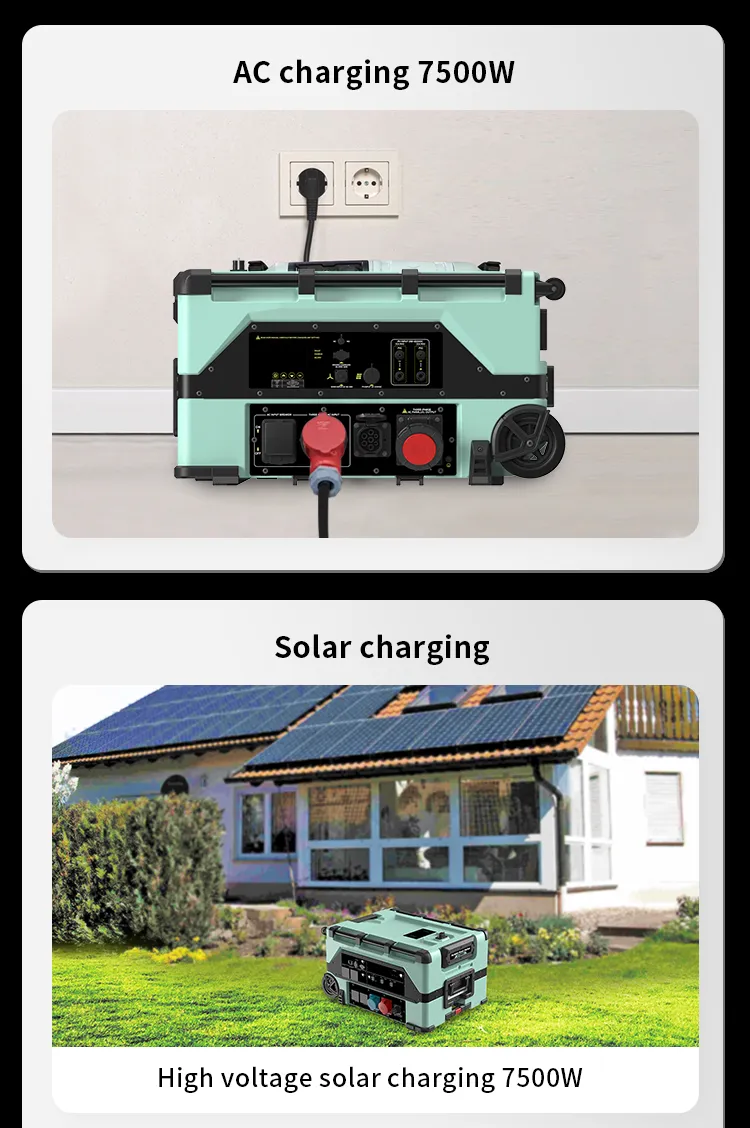

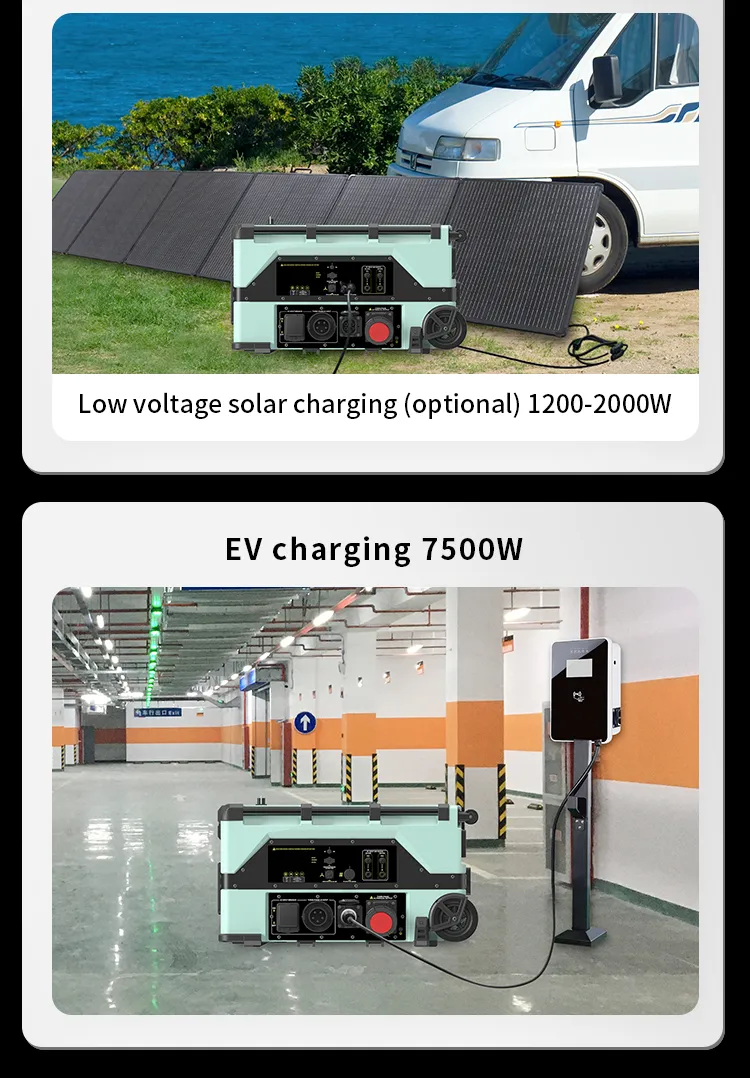

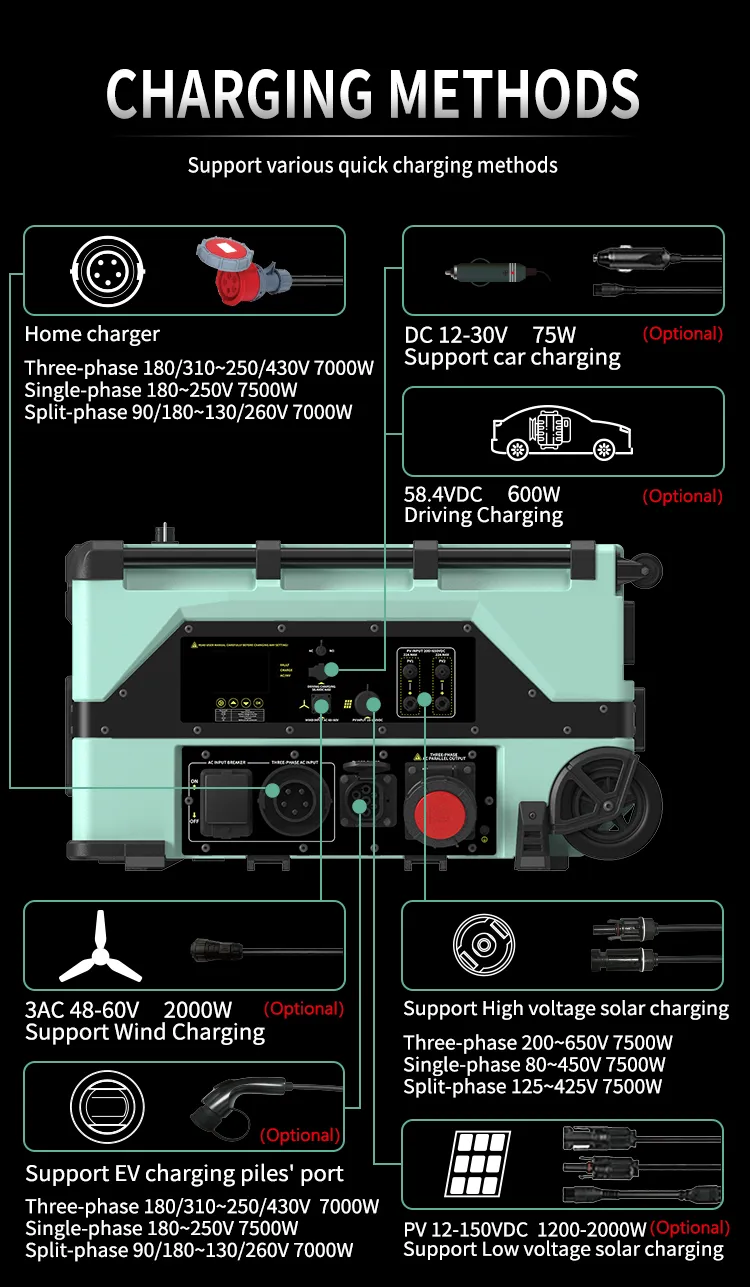

Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

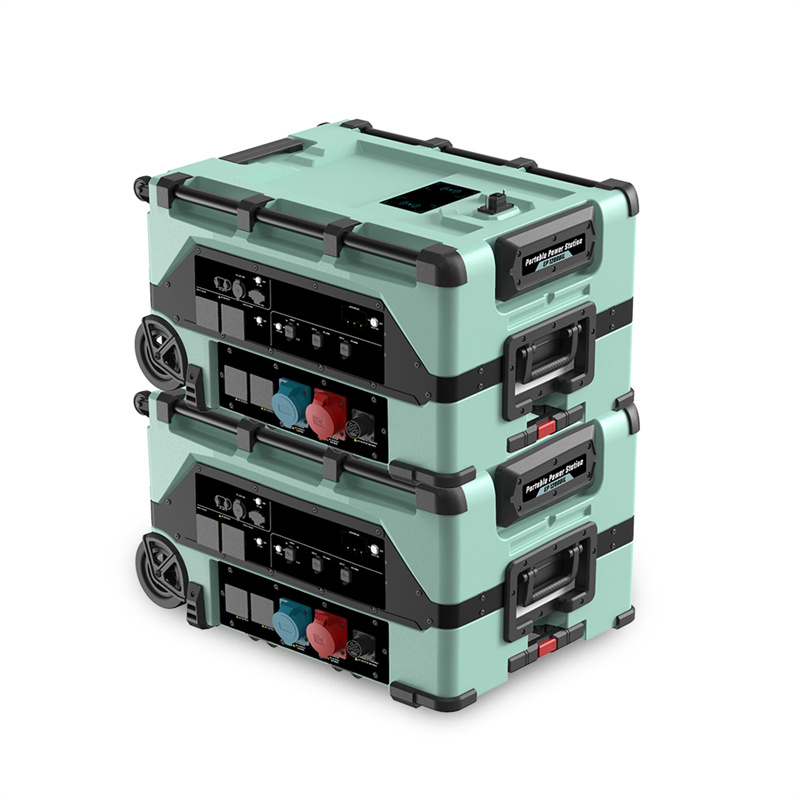

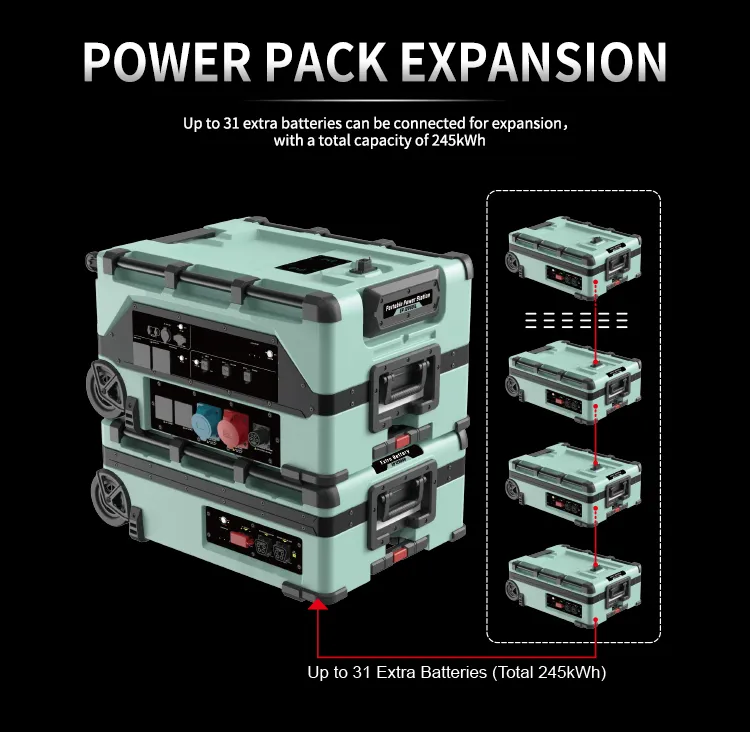

Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

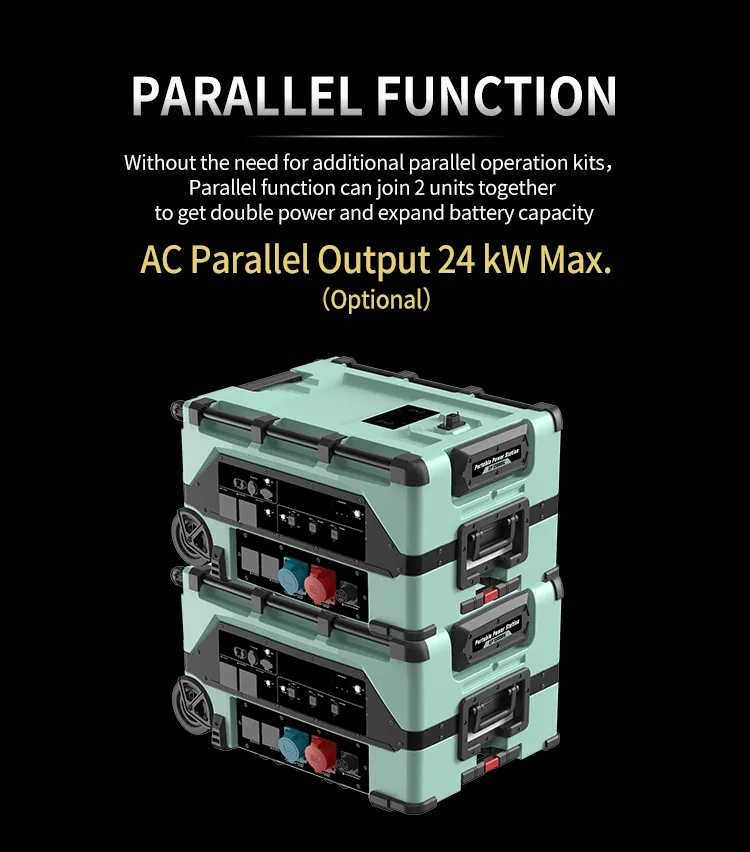

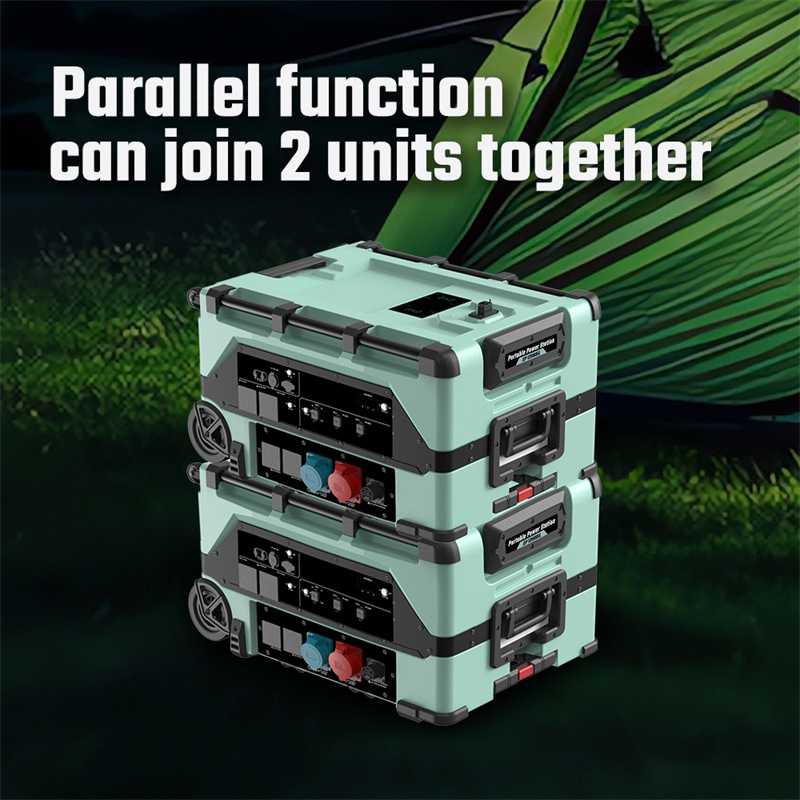

Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.
Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.

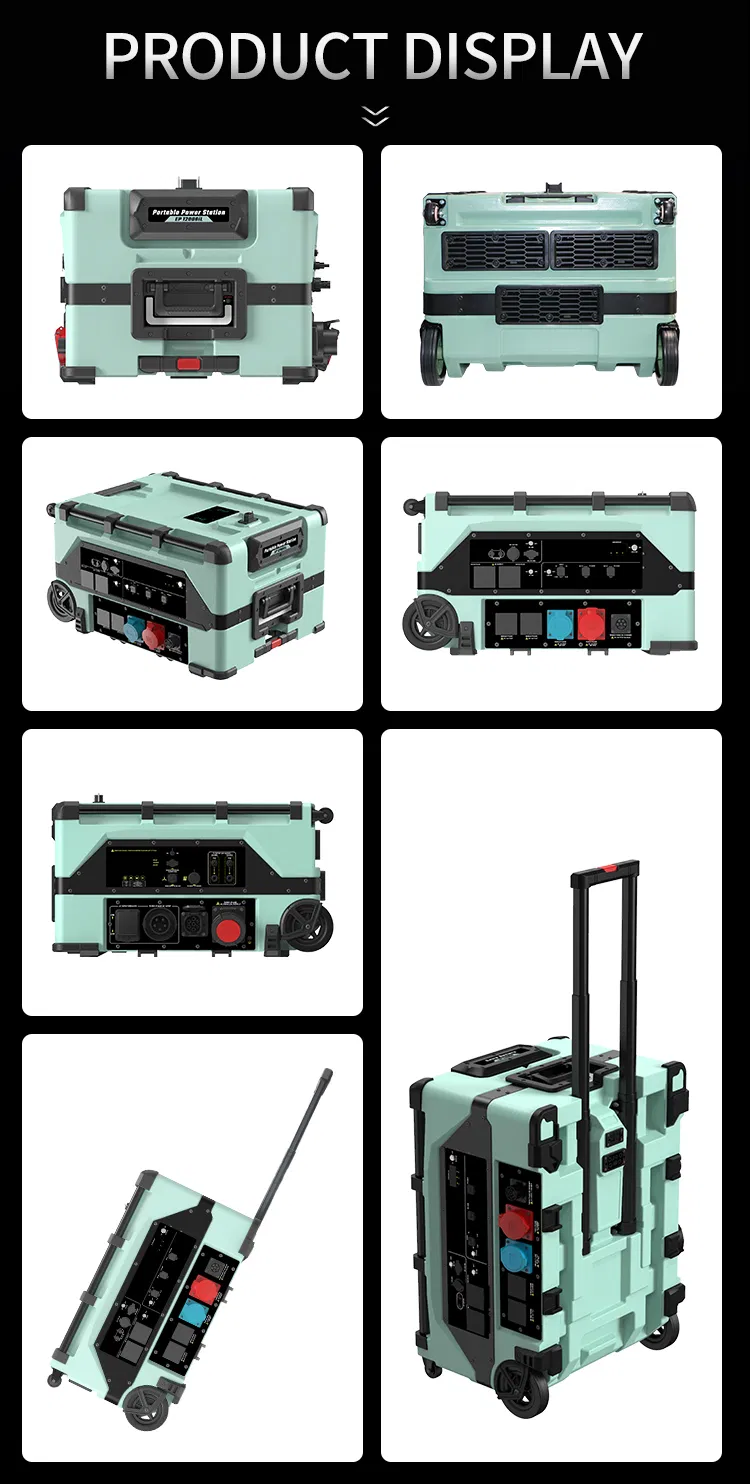

The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.
Unit IP53 and Battery Pack IP66 protection grade.

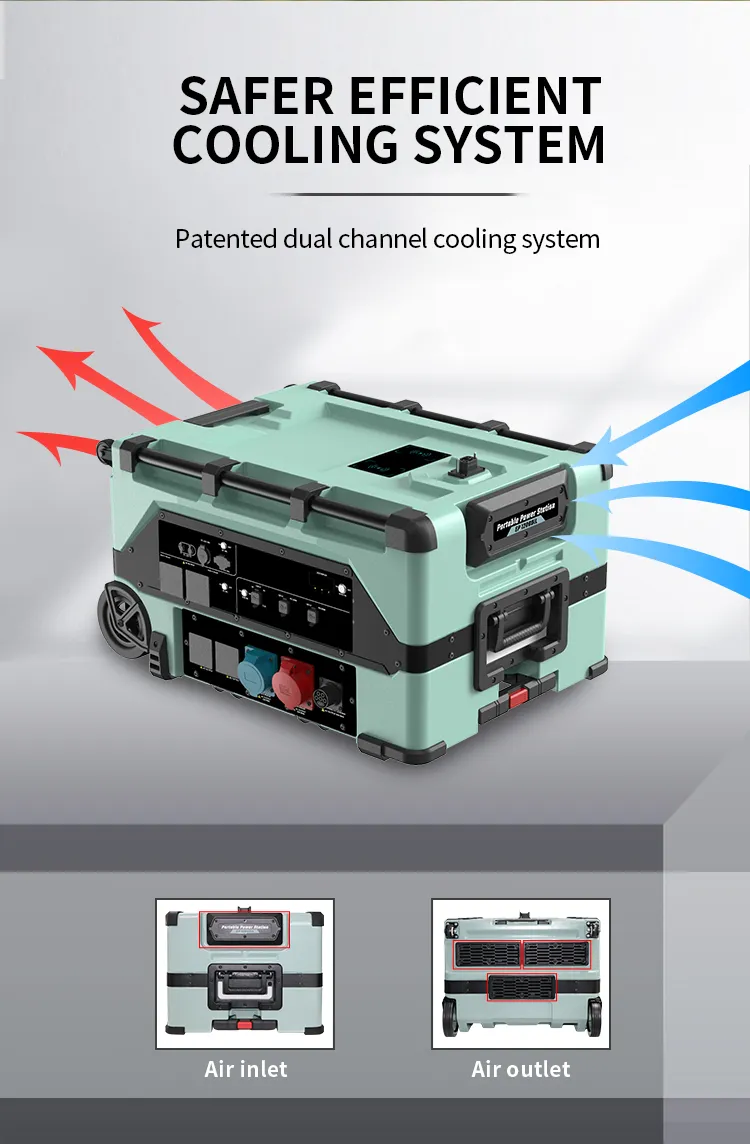

Patented dual channel cooling system with V-0 level flame-retardant casing.

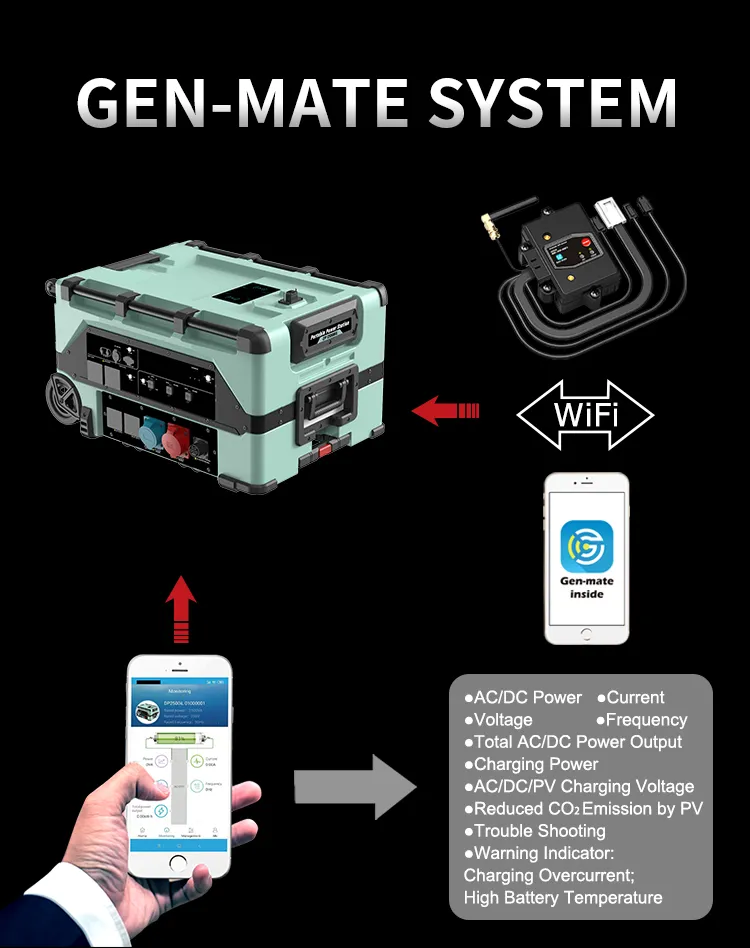

Intelligent control and monitor by smartphone APP.
Conformed to EU and US security certification with 5 years warranty.

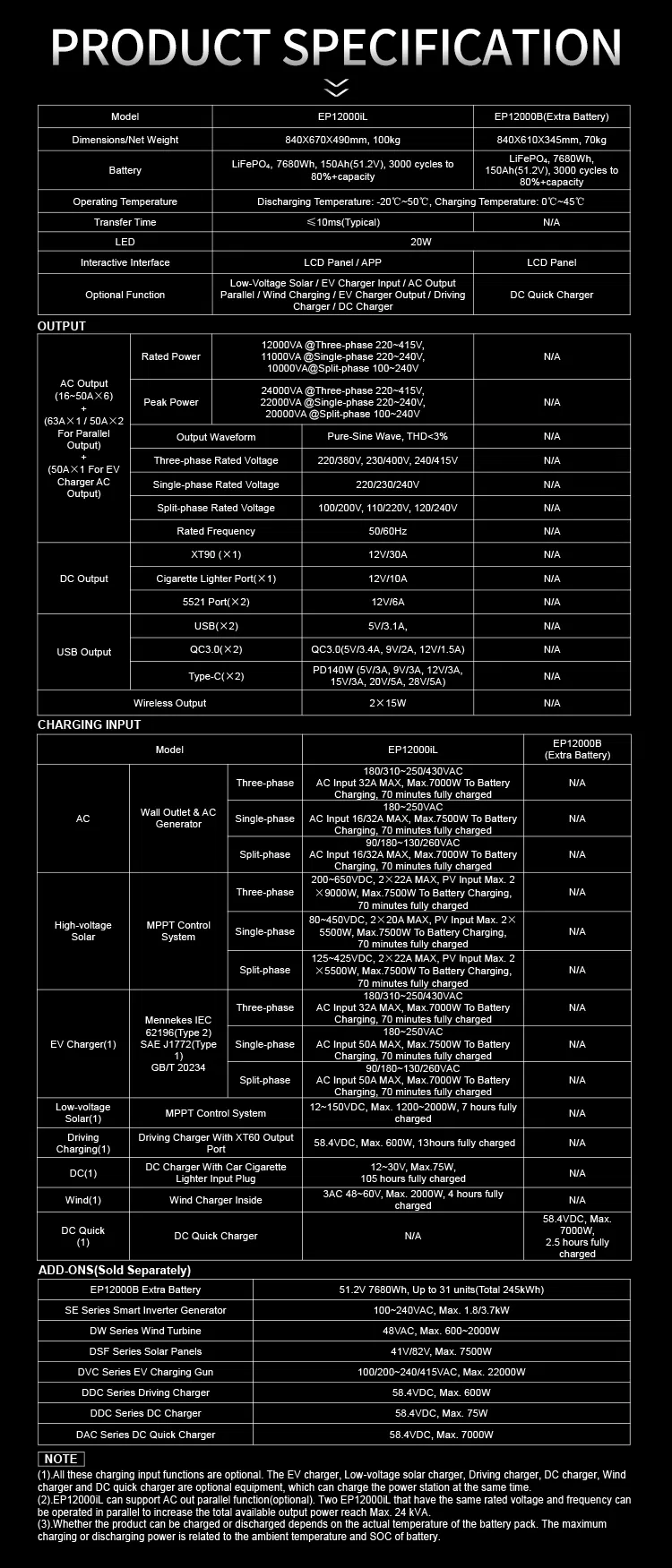

⚙️ Technical Parameters

Category		Specification Details
AC Output	Rated Power	12000VA (Three-phase) / 11000VA (Single-phase) / 10000VA (Split-phase)

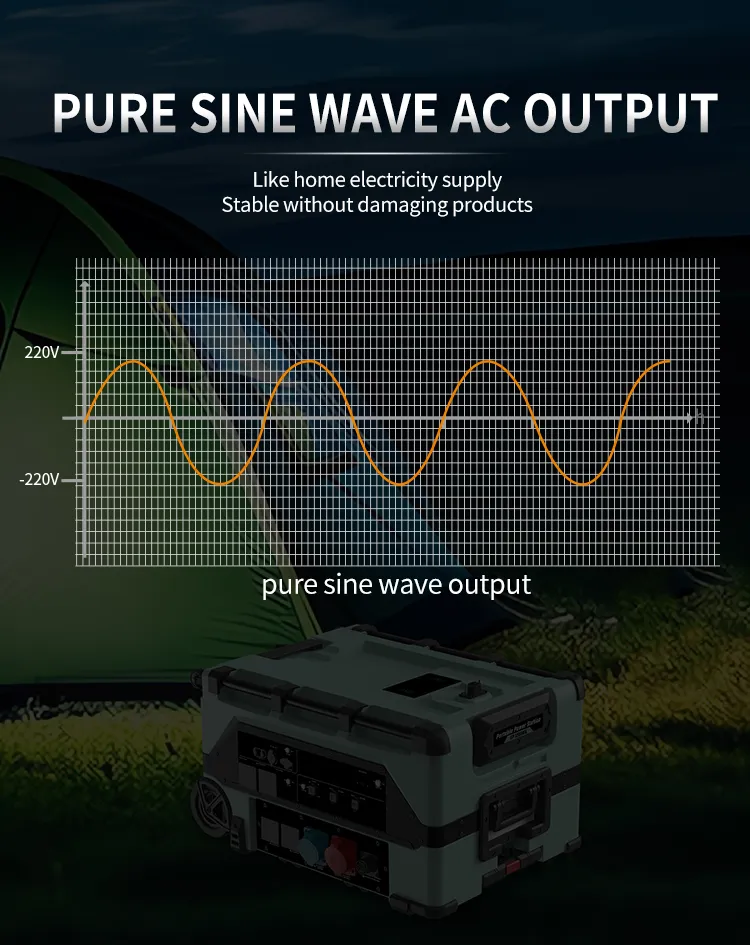

AC Output	Waveform	Pure-Sine Wave, THD < 3%
Battery System	Type	LiFePO4, 7680Wh, 150Ah (51.2V)
Battery System	Life Cycle	3000 cycles to 80%+ capacity
Charging	AC Fast Charge	Max. 7500W, 70 minutes fully charged
Charging	Solar Input	Max. 18000W (PV Input), 70 minutes fully charged
Protection	Grade	Unit IP53 / Battery Pack IP66
