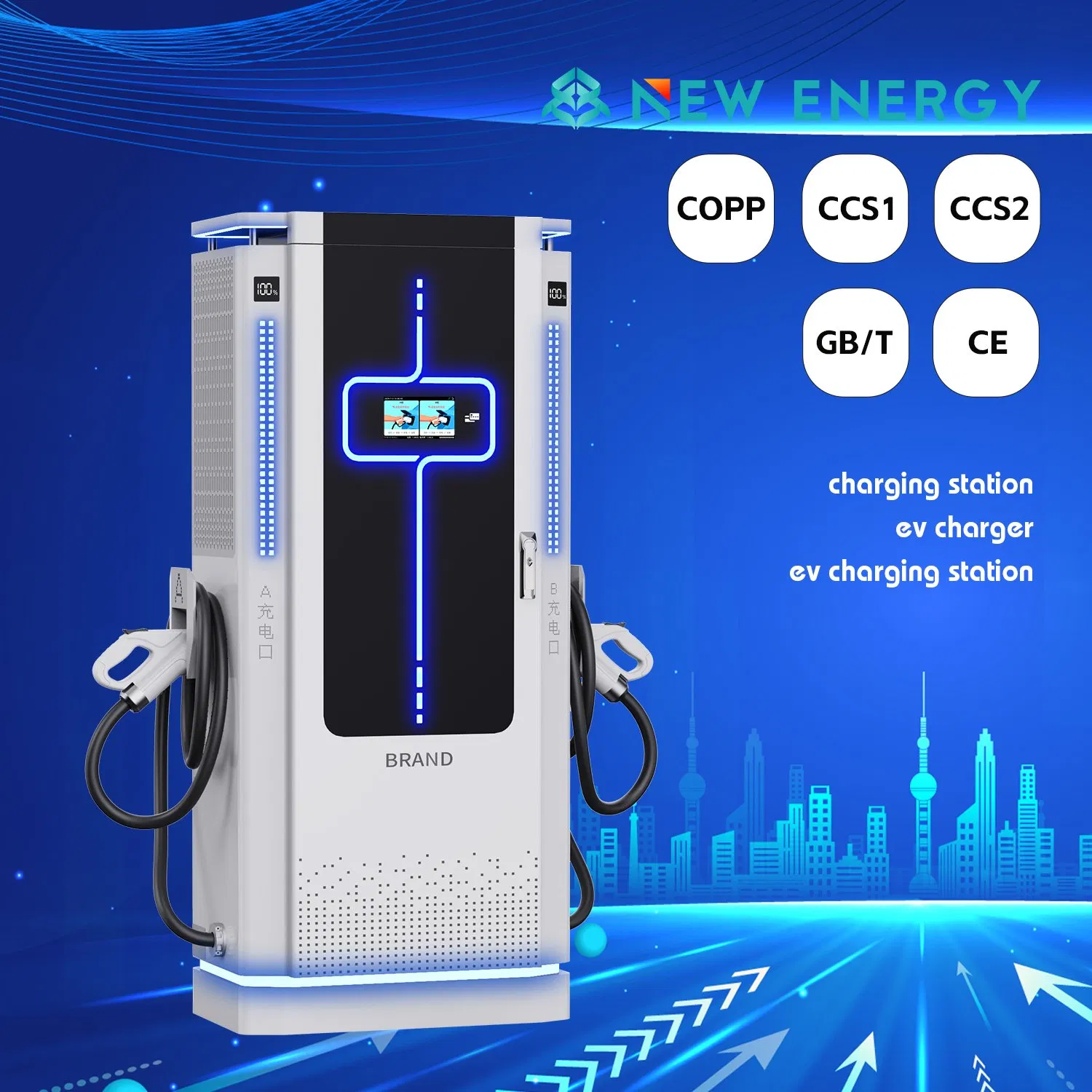

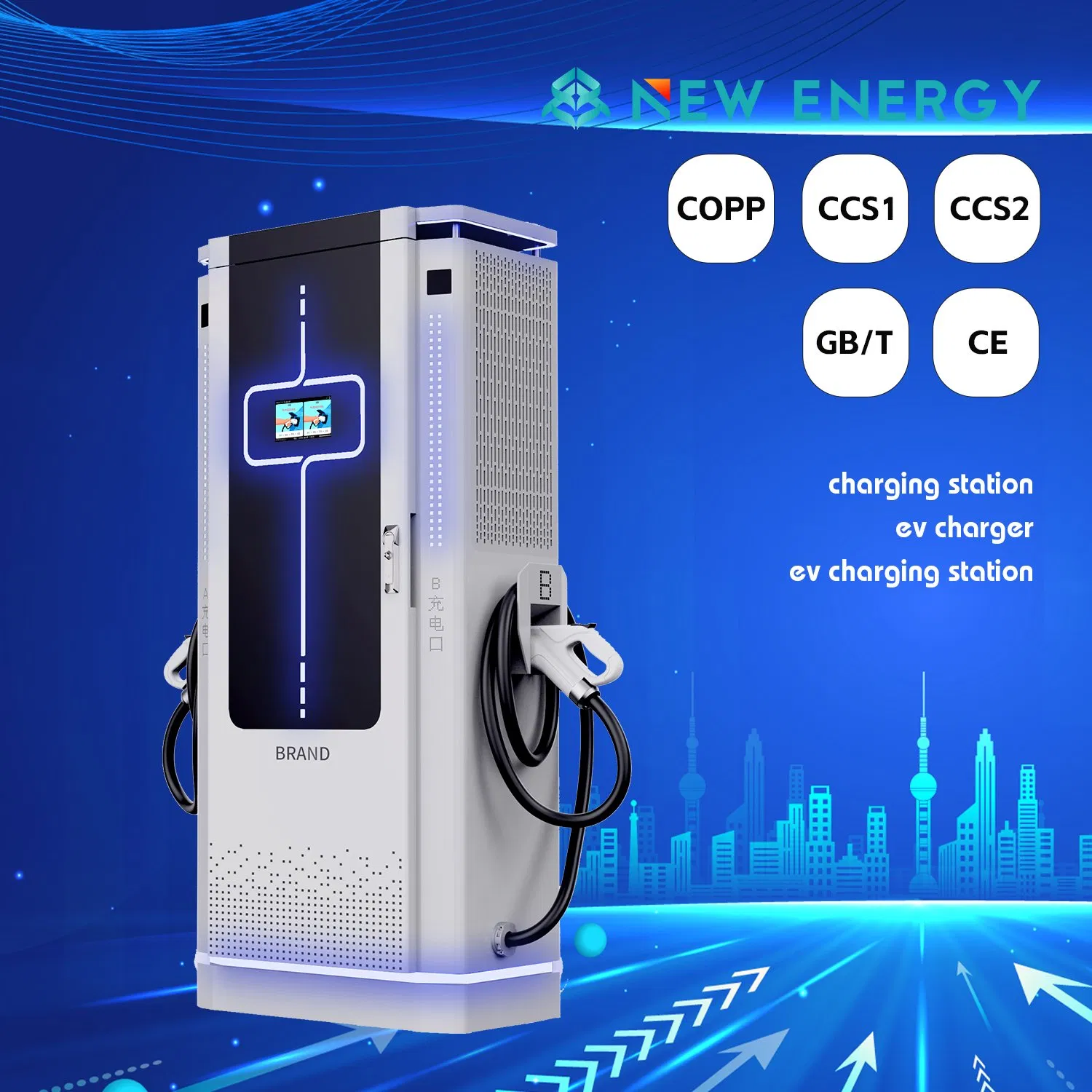

Commercial Cloud Based EV Charger Ocpp Remote Management EV Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
80KW-600KW
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Connector Type
CCS1, CCS2, Chademo, GB/T
Rated Power
40kw To 600kw
Weight
194kg-274kg
Gun Barrel Length
5 Meters / 7 Meters
Body Size
750X410X1700(mm)
HMI
7-Inch LCD Touch Screen + LED
Connection
4G / Ethernet
Origin
China
Production Capacity
50,000 Units Per Year

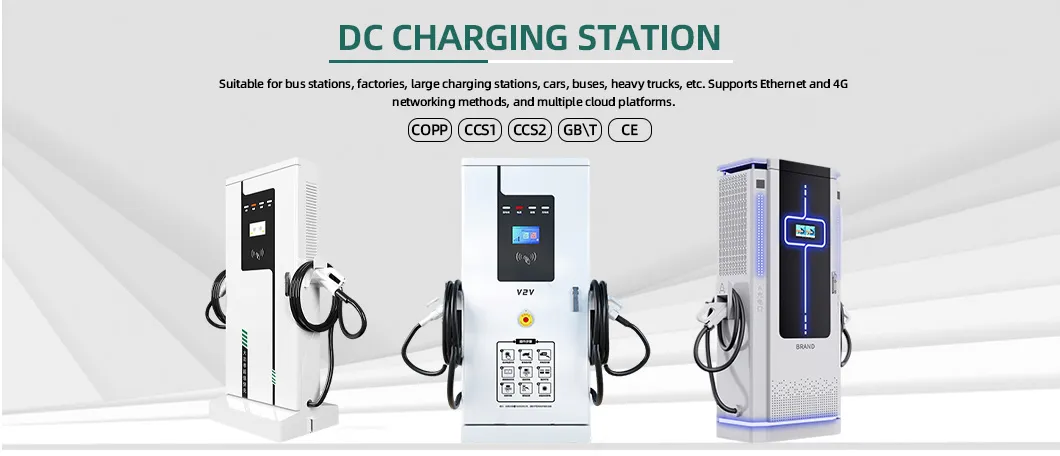

EV Charger Overview
EV Charging Station Lineup
🚗 Product Description
Product Introduction:
Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

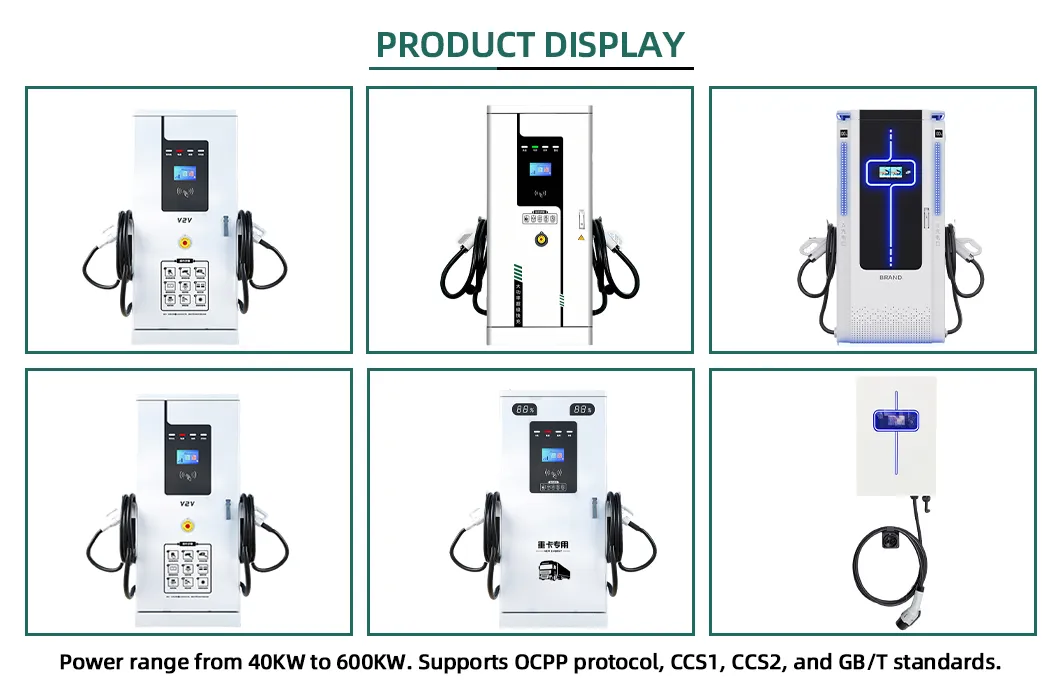

High Efficiency EV Charger
Charger Detail 1
Charger Detail 2
Charger Internal 1
Charger Internal 2

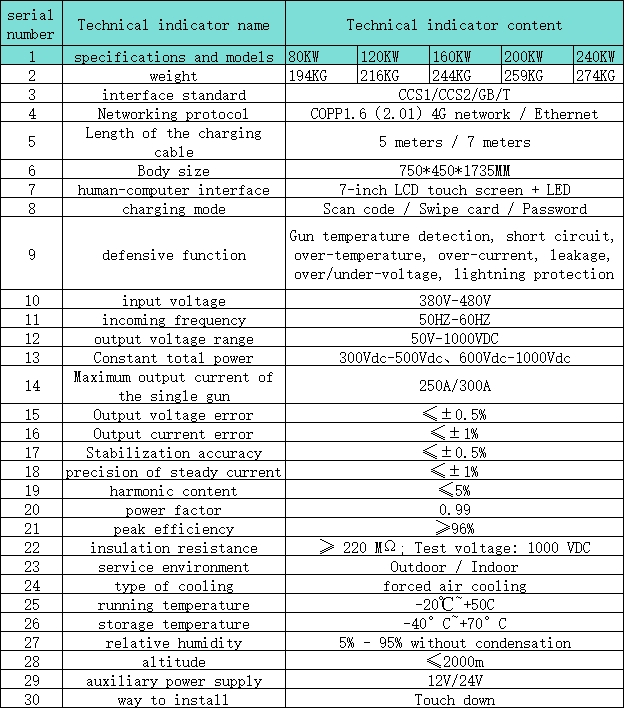

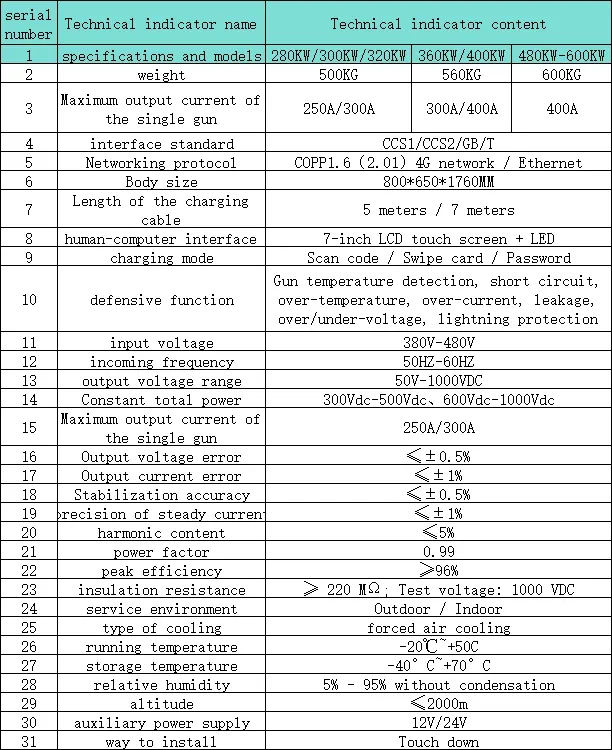

Technical Specifications
Product Model40KW-600KW External Dimension750x410x1700(mm)
Rated Power40KW-600KW Weight194KG-274KG
Design CriterionCCS1, CCS2, GB/T Gun Barrel Length5 Meters
Charging Guns2 Individual HMI7-inch LCD Touch Screen + LED
Protection LevelIP54 Connection Method4G / Ethernet
Charging ModeScan code, Swipe card, VIN code, Password Start MethodSwiping card, Scanning code
Defensive FunctionGun temperature detection, short circuit, over-temperature, over-current, leakage, over/under-voltage, lightning protection
🏭 Company Profile
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights, certificates such as those for honest businesspeople, and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.

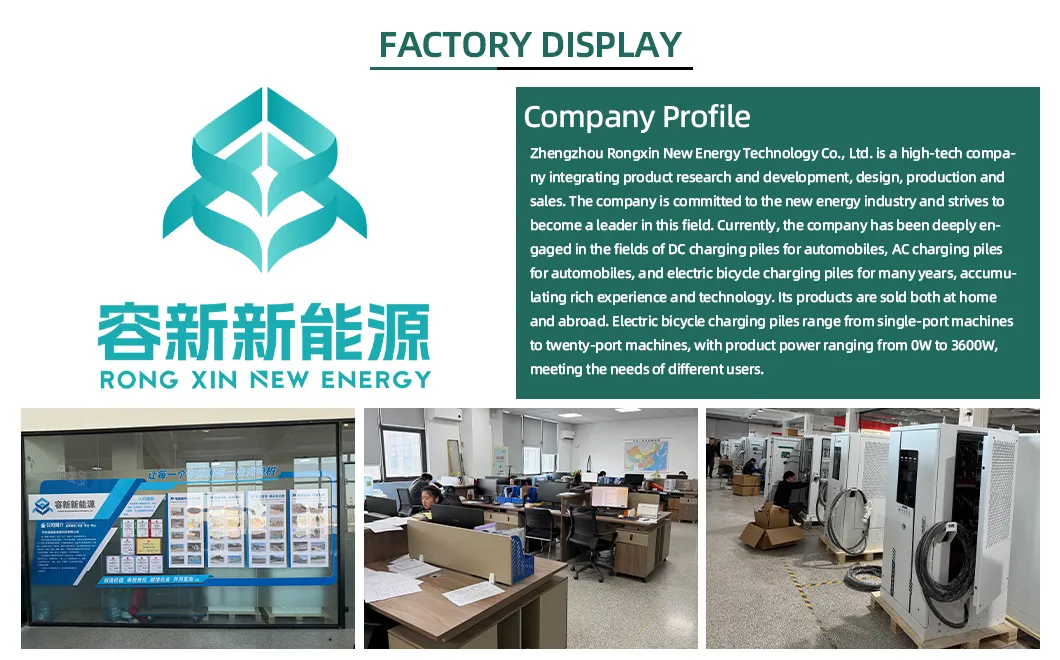

Factory View

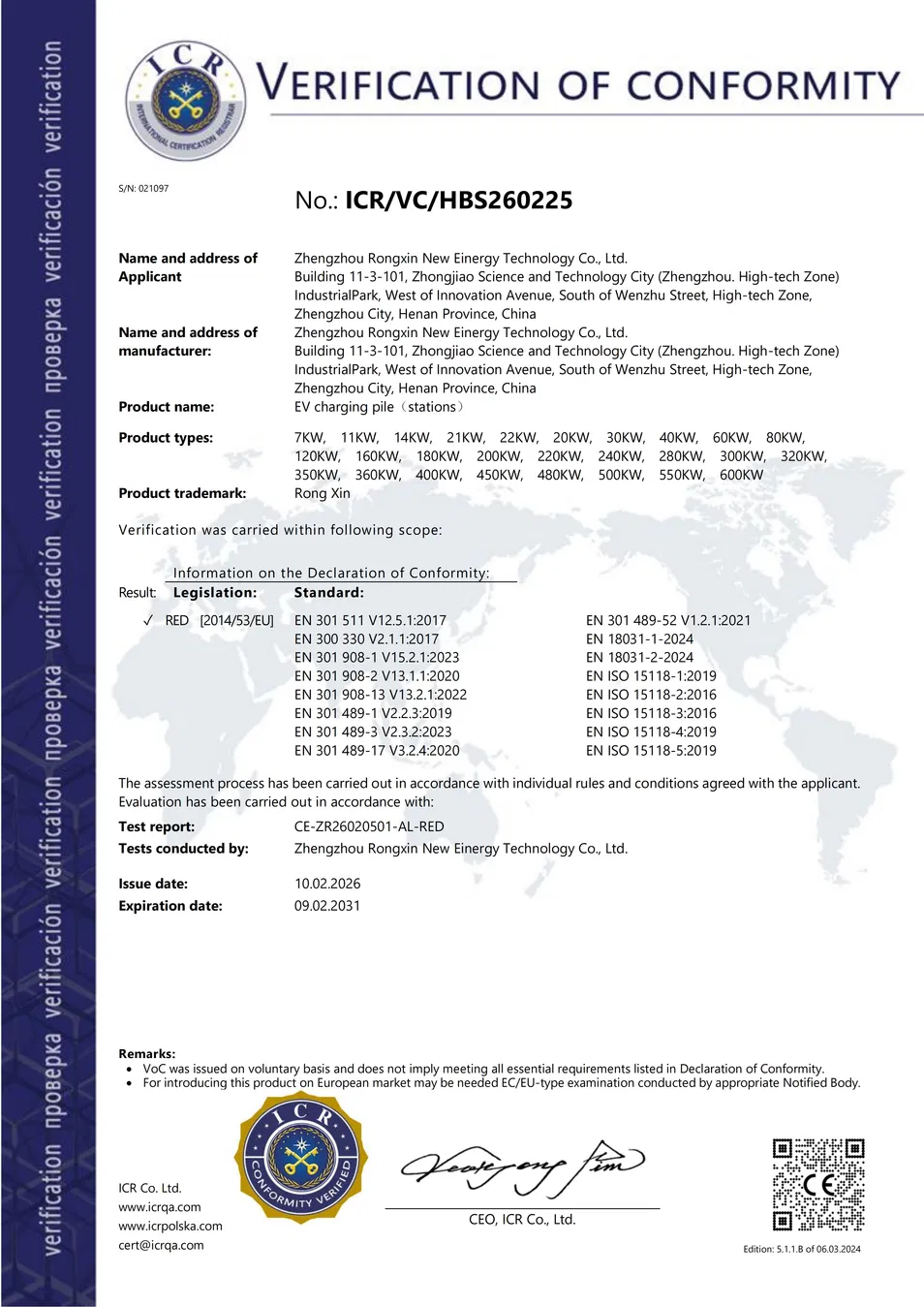

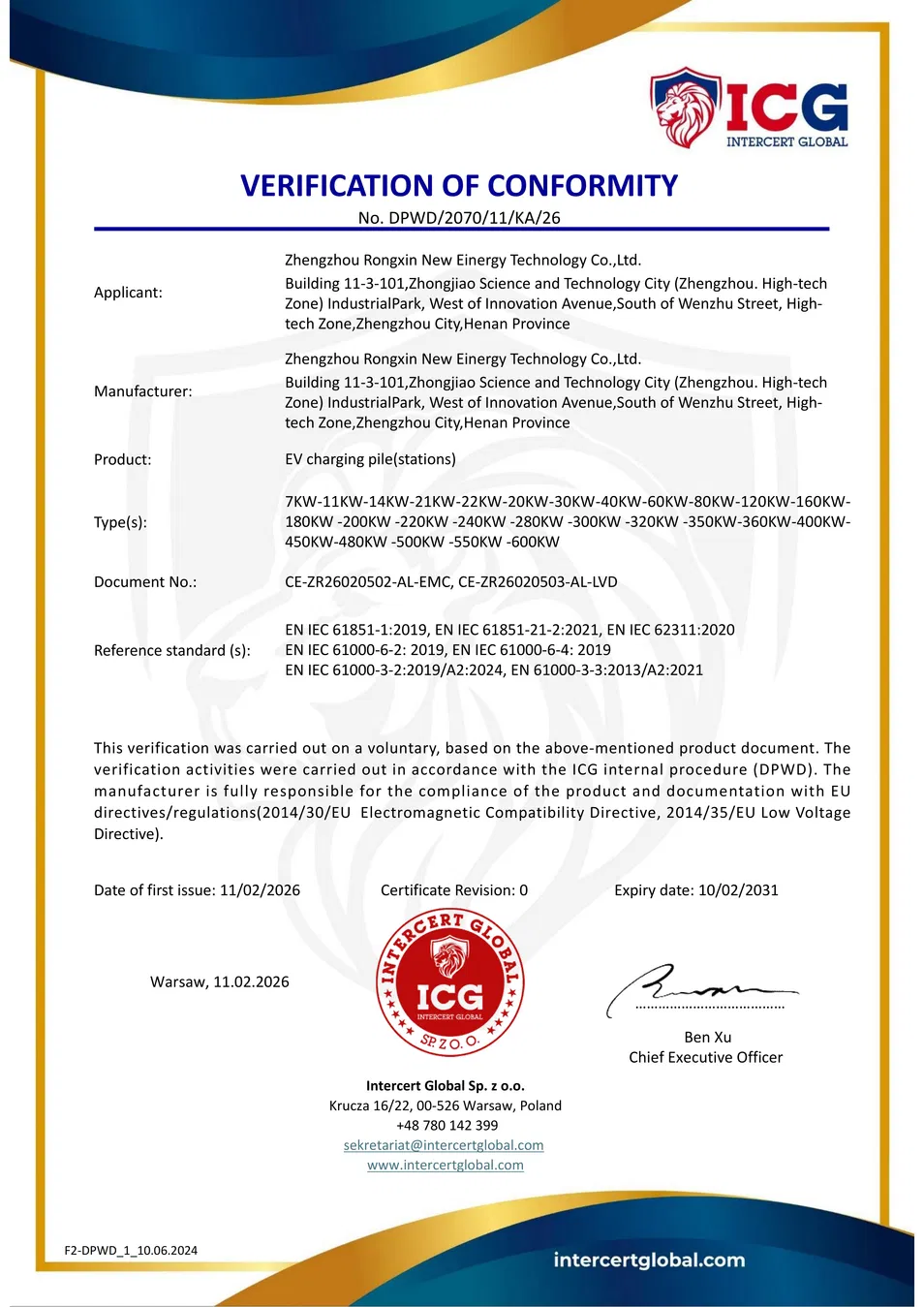

Certifications
📦 Packaging & Shipping
Packaging Process
We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.
Frequently Asked Questions
Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can we buy from you?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage, and Solar System products.
Can you provide OEM/Customization services?
Yes, we can make your design and put your logo on the products. We also provide customized packaging services meeting the MOQ.
What are your payment terms?
T/T 30% as deposit, 70% paid off before delivery. We accept all payment methods including PayPal, T/T, Credit Card, and Western Union.
How long is the delivery time?
Generally, it will take 7 to 35 days after receiving your advance payment. The specific time depends on the items and quantity of your order.
Do you test all goods before delivery?
Yes, we perform a 100% final inspection of all goods before they leave the factory to ensure quality.
