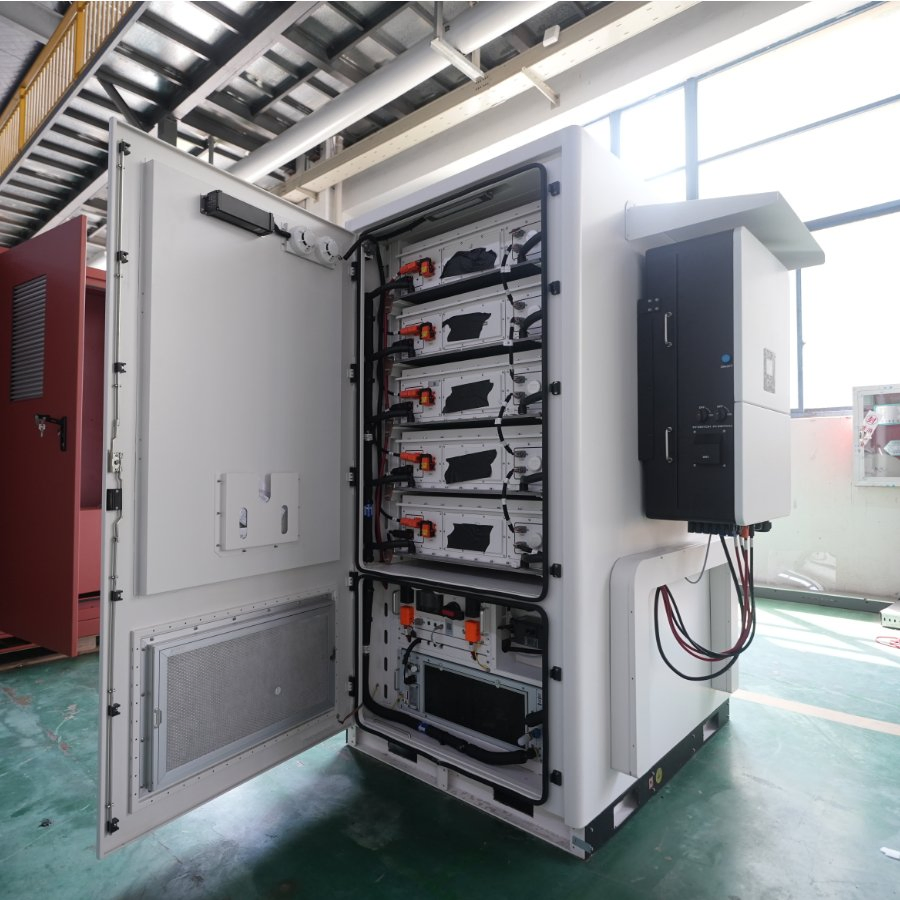

Outdoor Cabinet Bess Battery Storage 50kw 80kw 200kwh 261kwh 1mwh Lithium Solar Battery Energy Storage System

1 / 5

Outdoor Cabinet Bess Battery Storage 50kw 80kw 200kwh 261kwh 1mwh Lithium Solar Battery Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ATESSOT100-215KWH

Nominal Capacity

100~215kwh

Cycle Life

More Than 6000 Cycles

Total Weight

1.25t

Degree of Protection

IP54

Battery Type

Lithium Iron Phosphate

Cooling

Air Conditioning Air Cooling

Application Scenario

Outdoor

Designed Life

More Than 10 Years

Certification

IEC62619, IEC61000, Un38.3, MSDS

Product Description

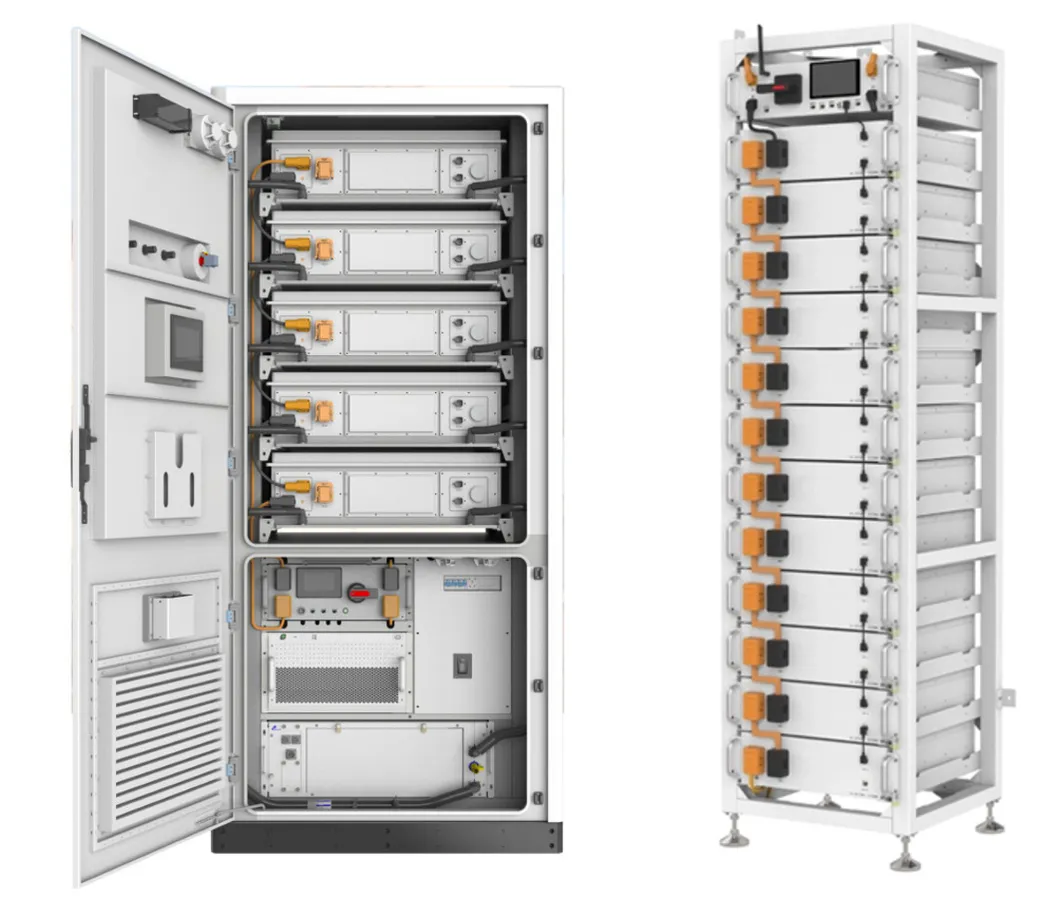

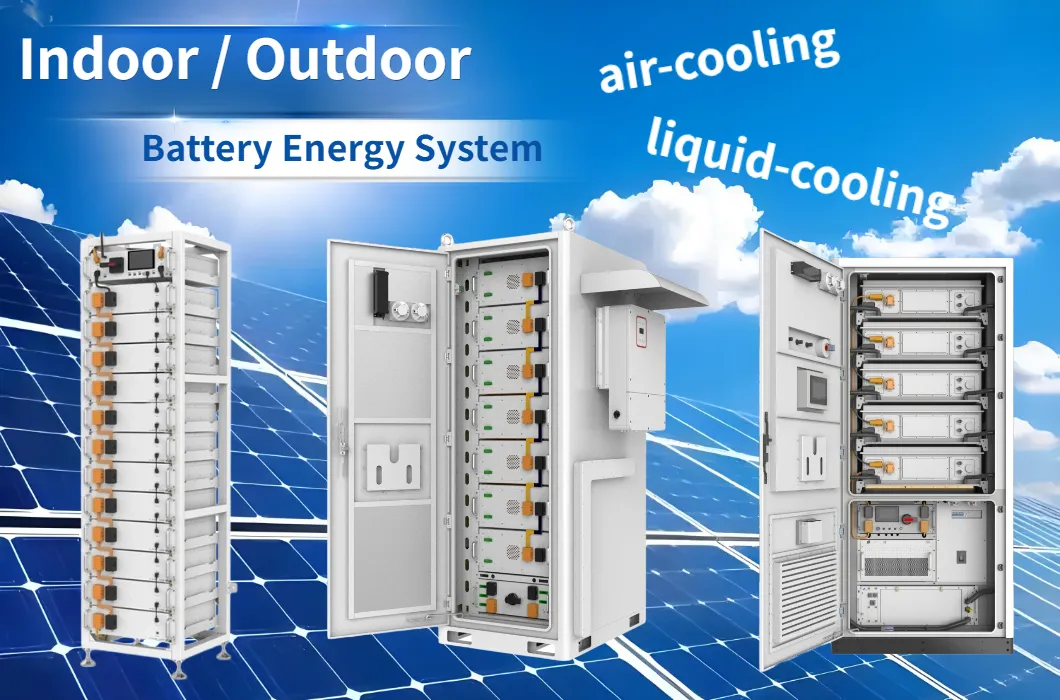

Commercial Battery Storage Energy System, available for indoors (steel bracket) or outdoors (cabinet), with capacity options from 100KWh to 261KWh. Systems are expandable through parallel use and widely applied in industry and commerce. Adopting cost-effective air/liquid cooling technology for easy maintenance.

Application Scenarios

💰

Electricity bill savings: Peak shaving and valley filling to reduce electricity bills; Demand control reduces capacity electricity bills.

☀️

Renewable consumption: Store surplus PV electricity during the day for night use; Smooths out output fluctuations of wind power.

🌐

Optical storage microgrid: Provides stable power supply for off-grid areas like islands and mountainous regions.

⚡

Power expansion: Acts as virtual capacity expansion when distribution capacity cannot meet load demand.

🛡️

Standby power supply: Ensures continuity during power outages or rationing.

Technical Parameters

INTELLIGENT ENERGY STORAGE SYSTEM
Model	ATESSOT50-100KWH	ATESSOT100-200KWH
Dimension(WxDxH)	1500x1100x2080 mm	1760x1100x2080 mm
Weight (incl. battery)	1.25 t	2.05 t
Protection Grade	IP54	IP54
Rated Power	30/50 KW	80 /100 KW
System Capacity	100.352 KWH(MAX)	200.7 KWH
Battery Type	Lithium Iron Phosphate (LiFePO4)
Cooling	Air conditioning air cooling
Operating Temp	-25°C ~ +50ºC
Battery Pack Data
Module Capacity	14.336 KWH
Rated Voltage	51.2 V
Cycle Times	≥6000 @25ºC

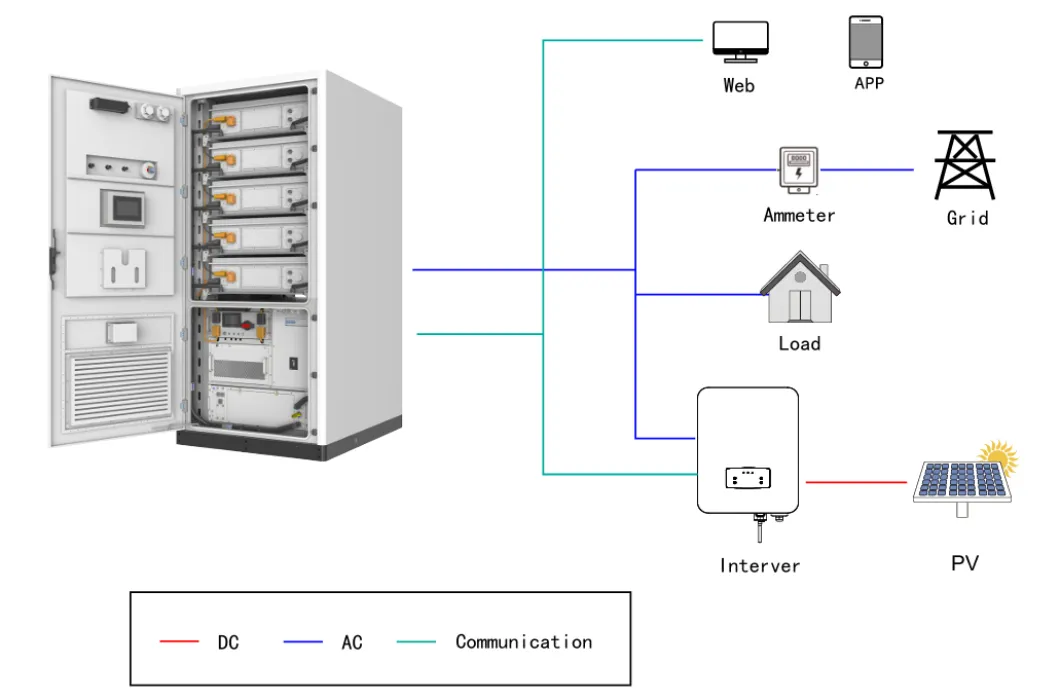

System Components

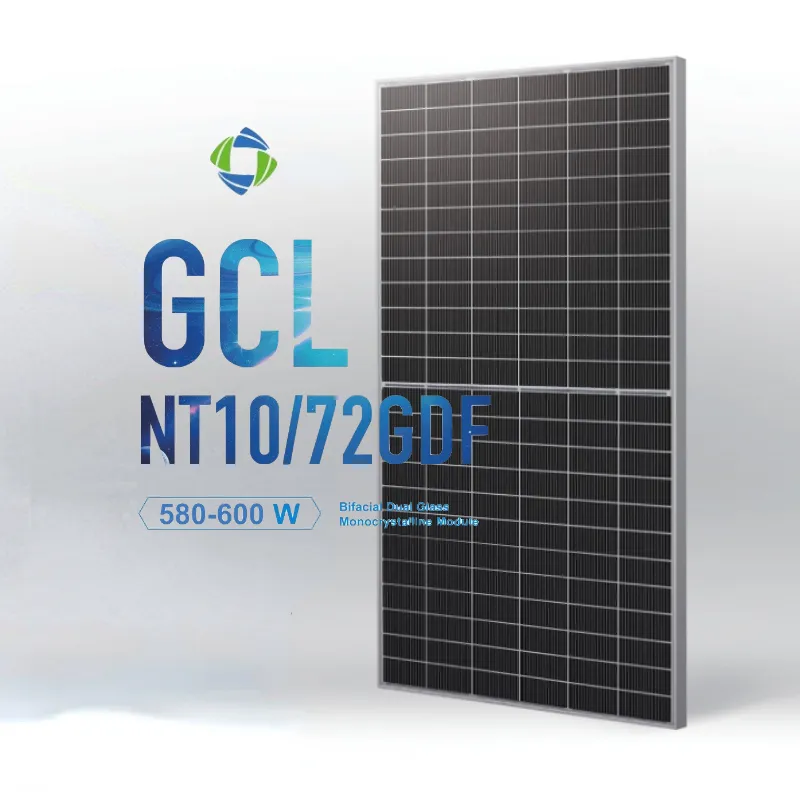

SOLAR PANEL

High efficiency modules from 400W+ to 600W+.

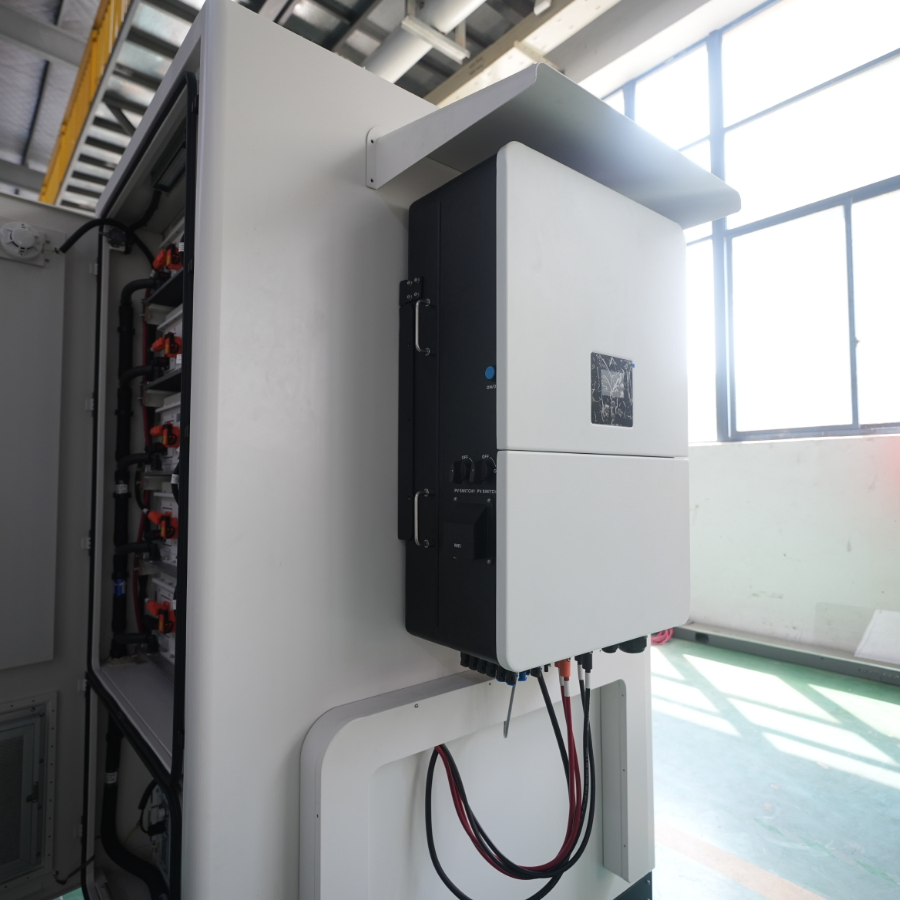

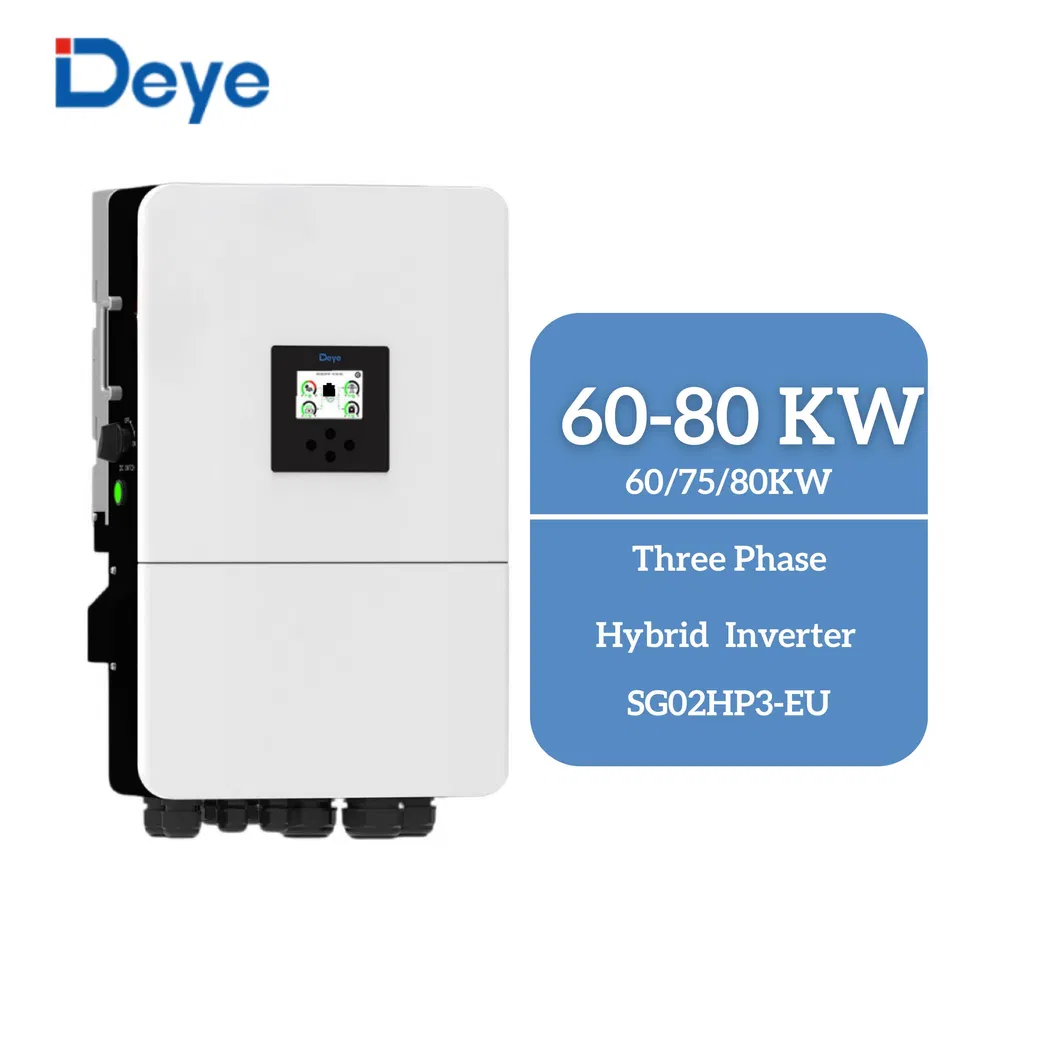

HYBRID INVERTER

Cabinet-mounted power options: 30Kw~80Kw.

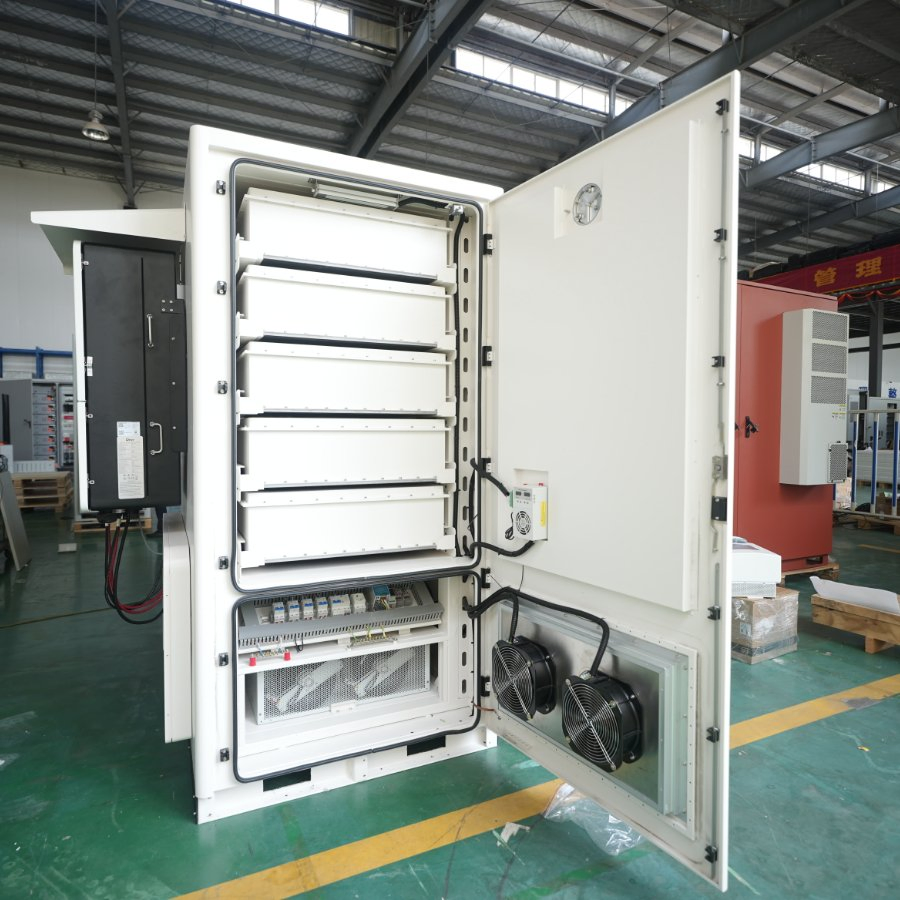

BATTERY STORAGE

Capacities from 100KWh up to 1.8MWh+ for indoor/outdoor use.

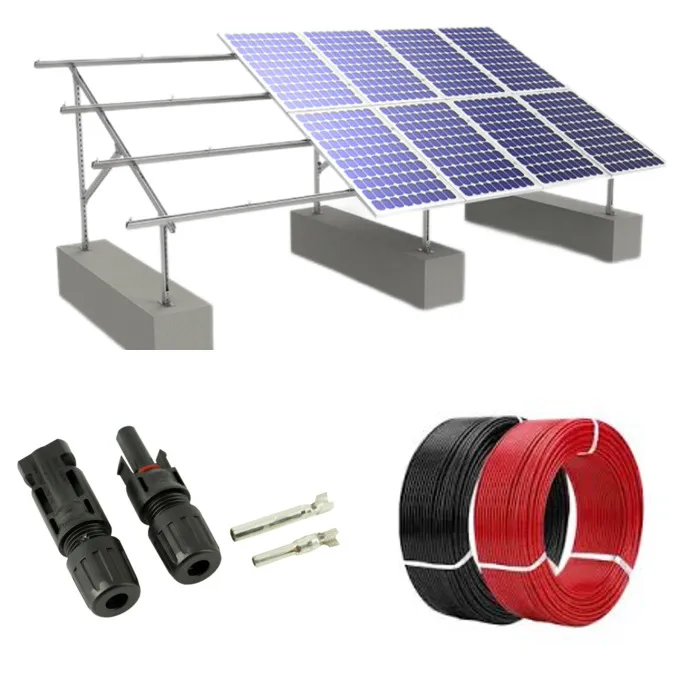

ACCESSORIES

Including professional brackets, cables, and MC4 connectors.

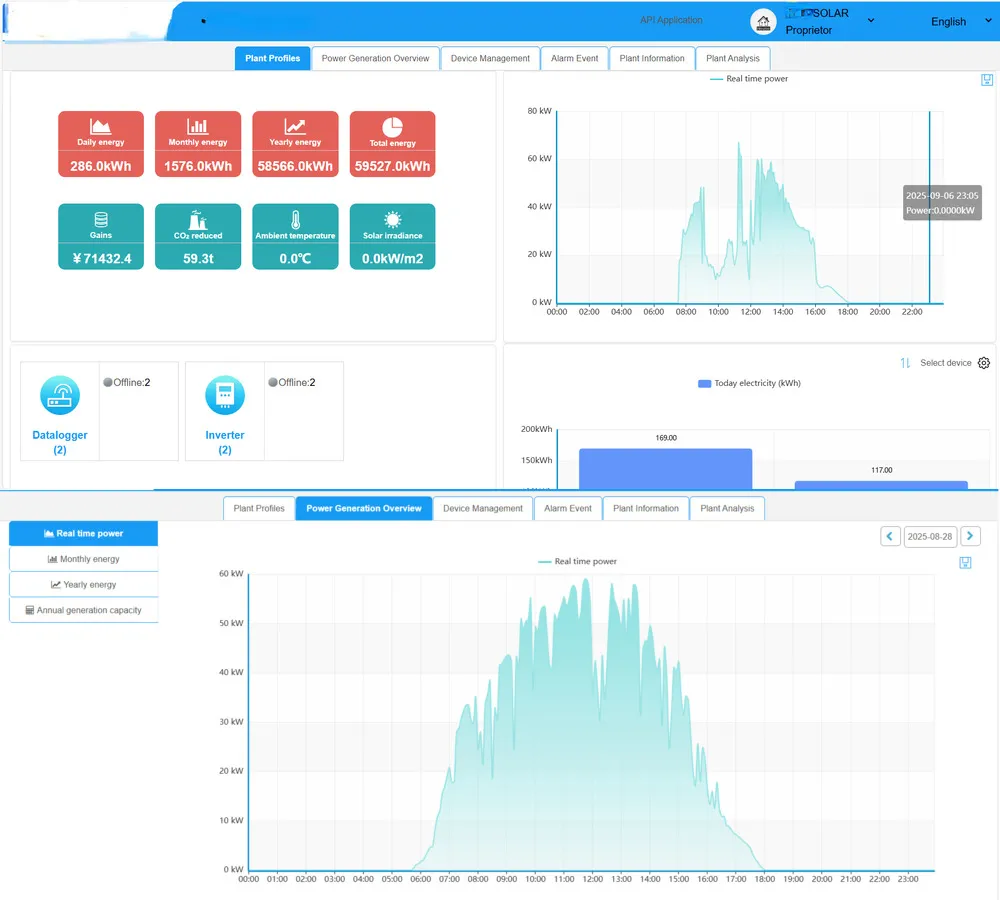

PV MONITORING SYSTEM

Real-time data tracking and management.

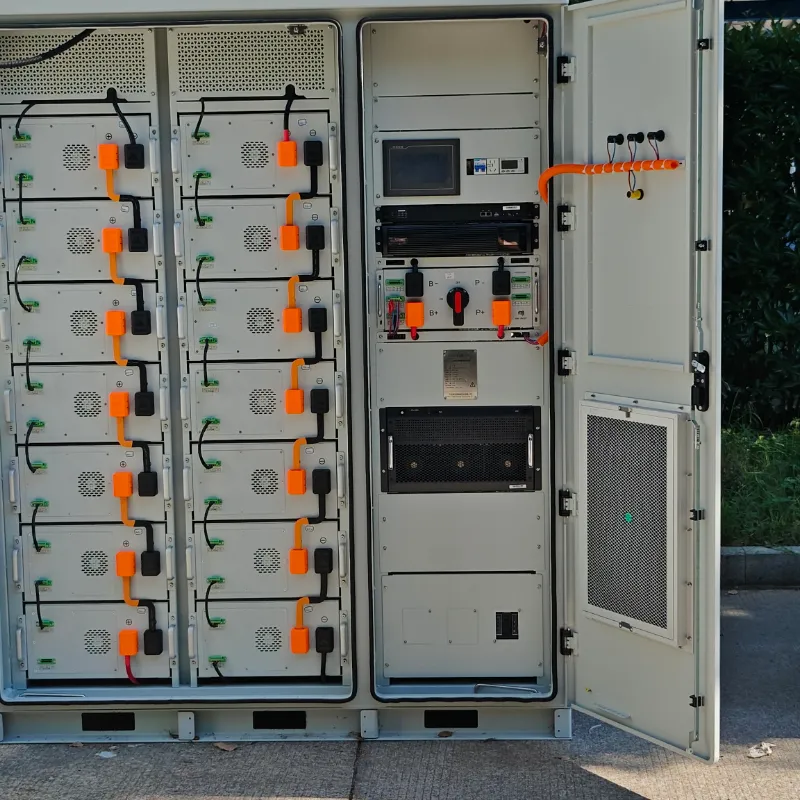

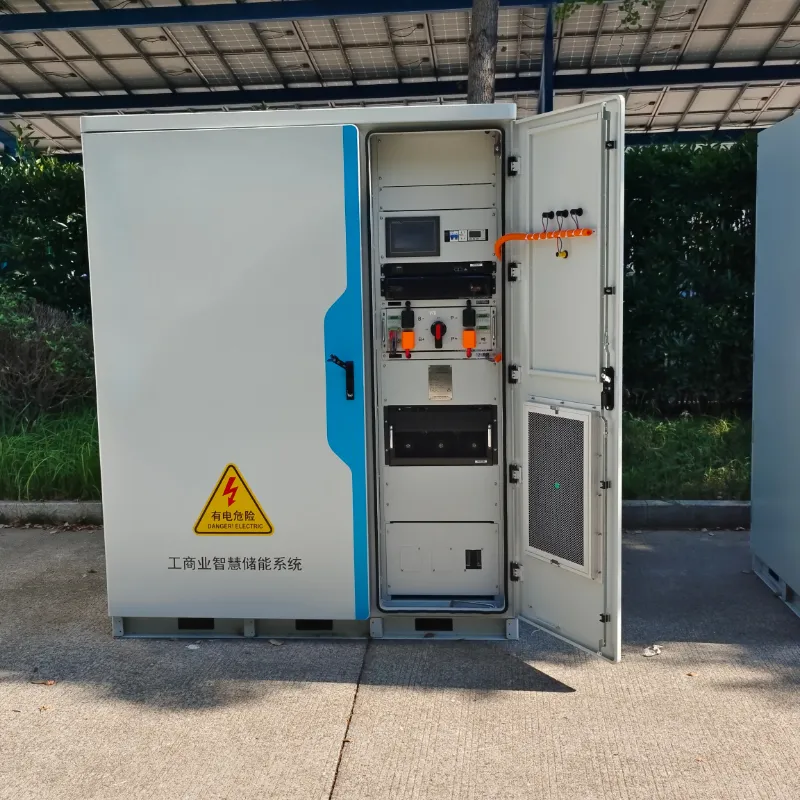

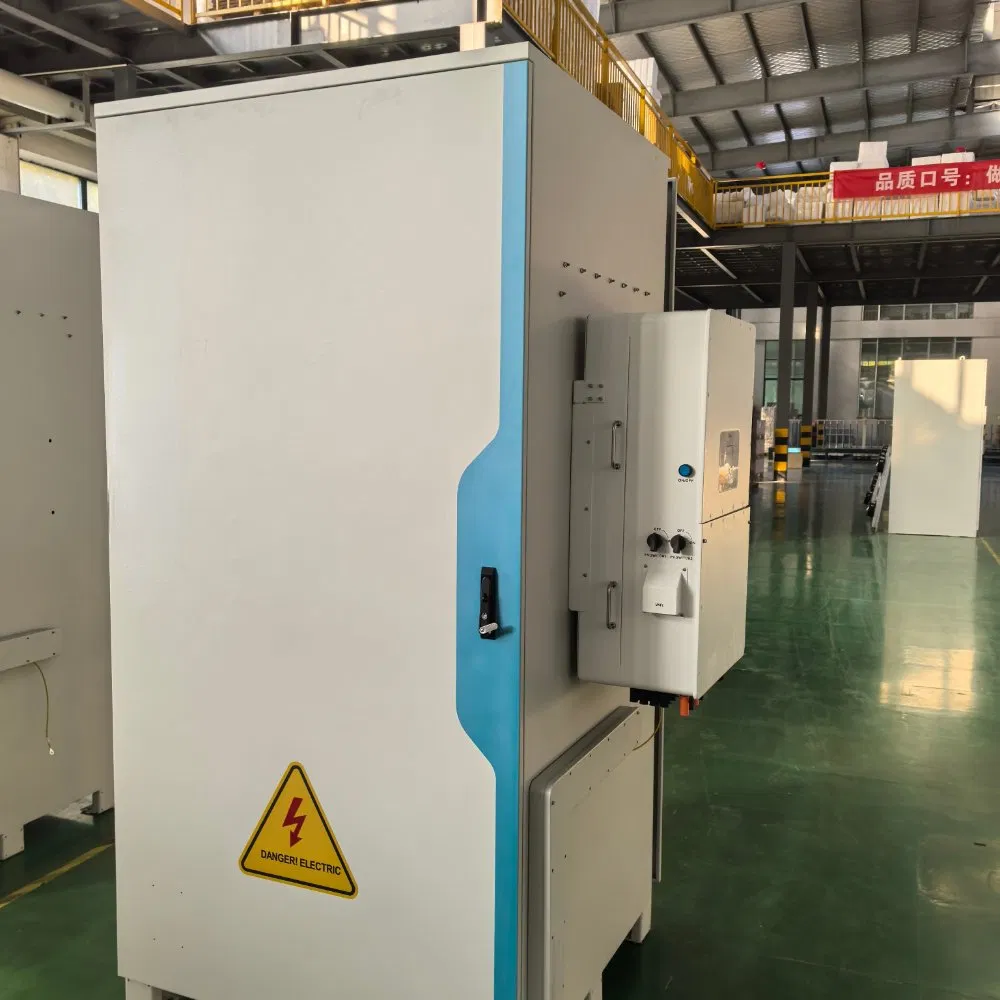

Detailed Gallery

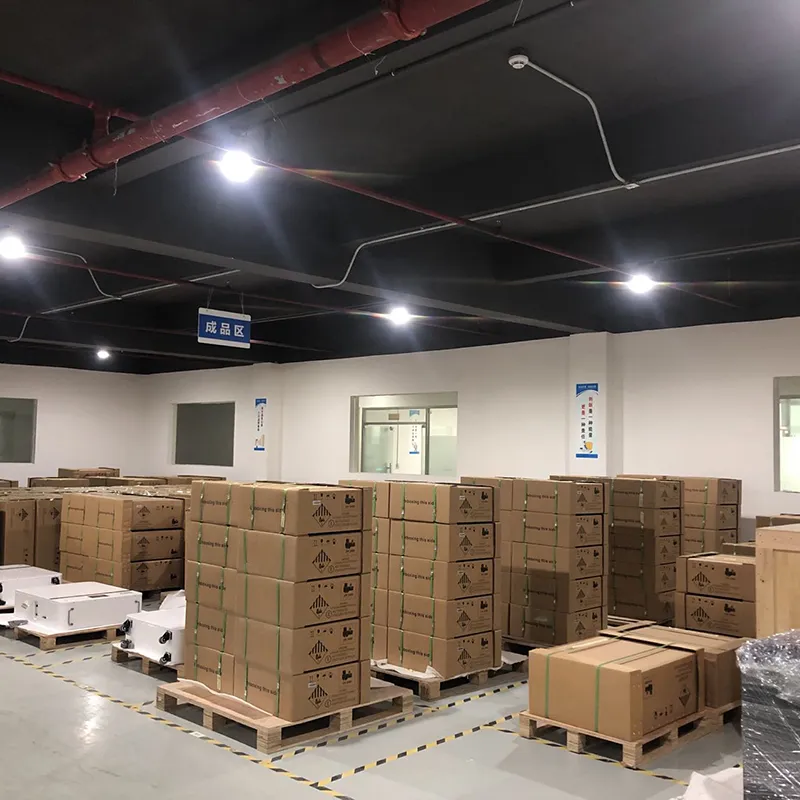

Packaging & Shipping

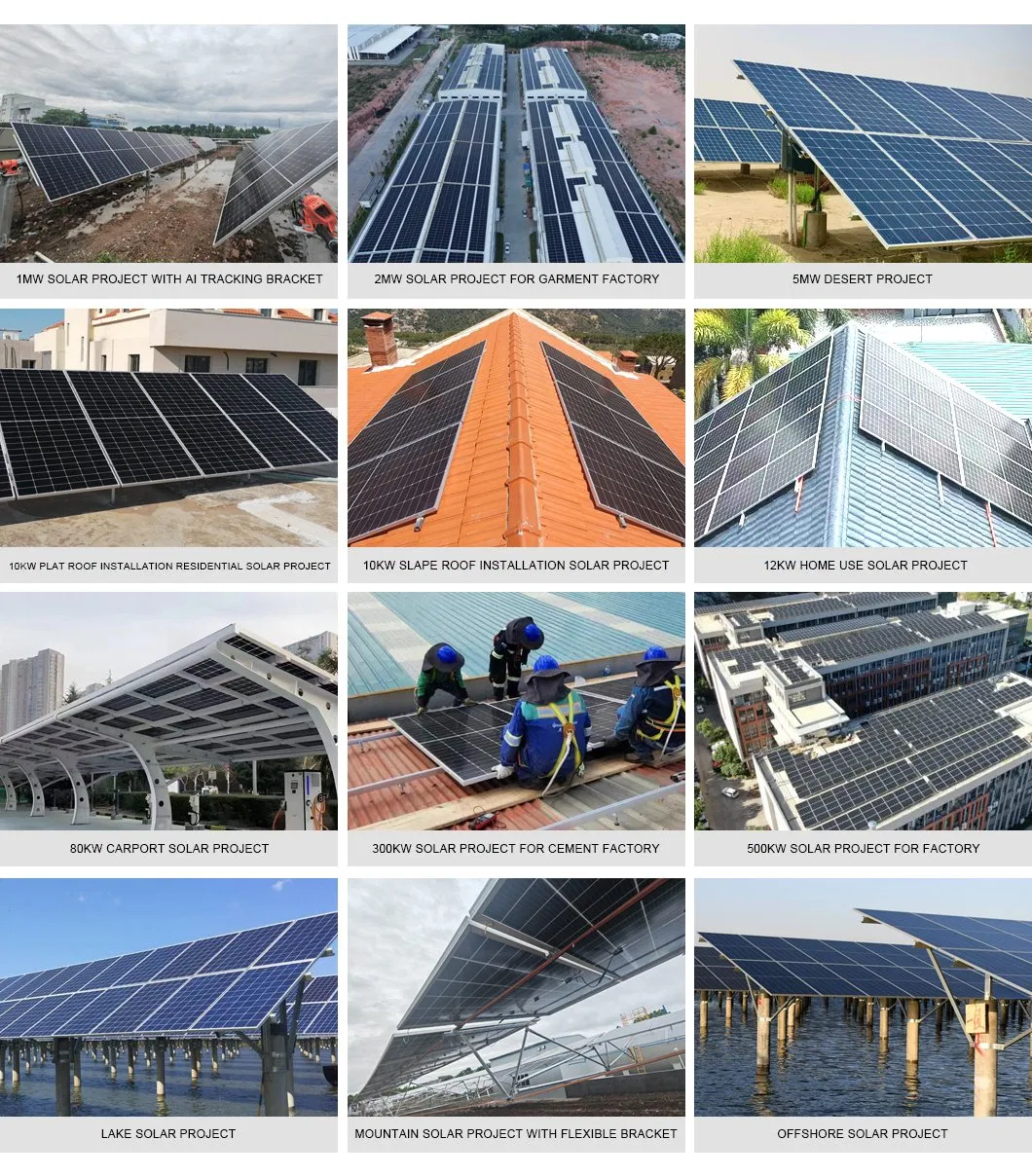

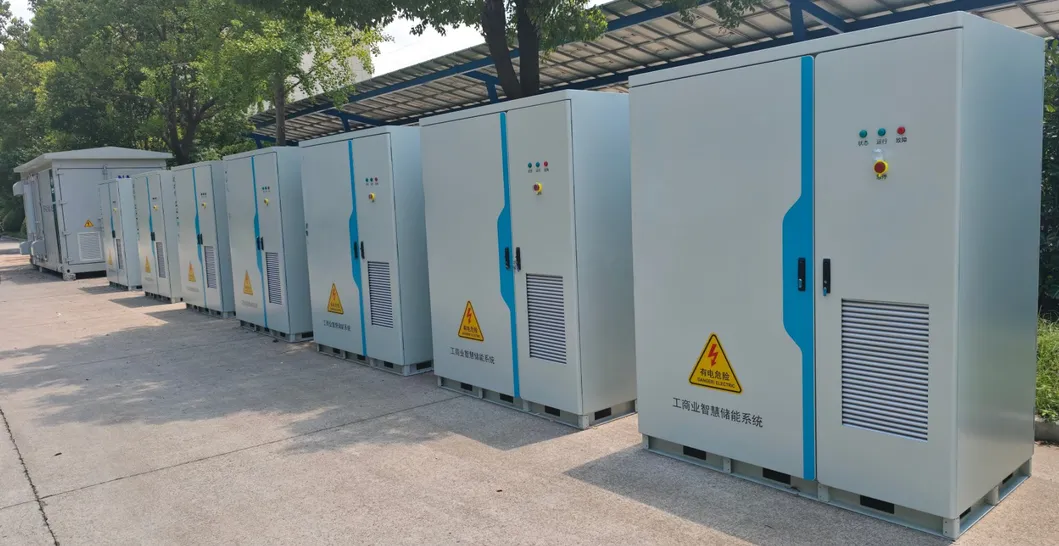

Project Cases & Certifications

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system is designed for a service life of more than 10 years, with a battery cycle life exceeding 6000 cycles at 25ºC.

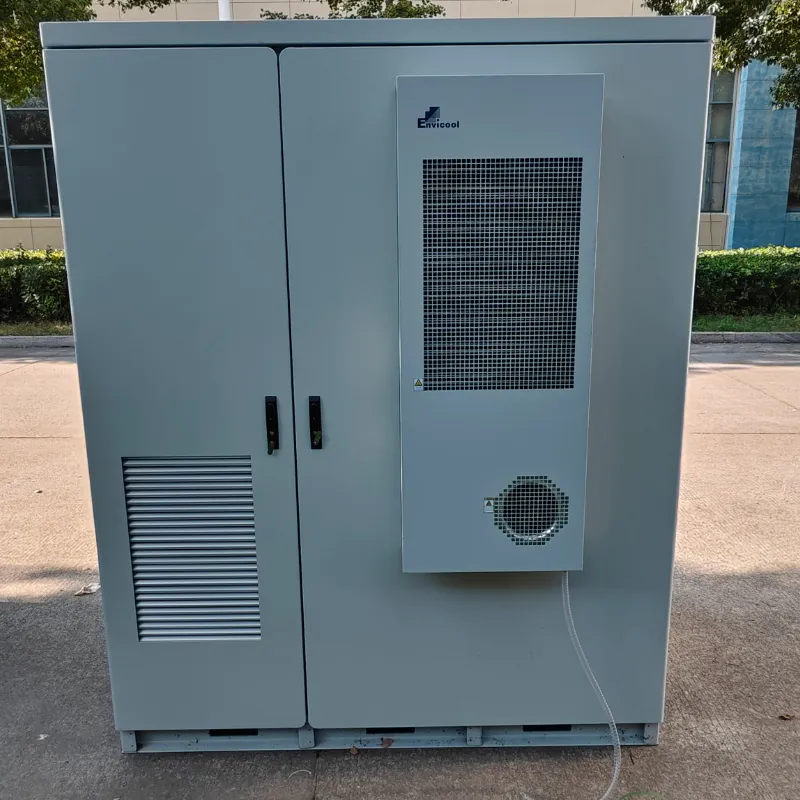

Is the system suitable for outdoor installation?

Yes, the outdoor cabinet version features an IP54 protection rating and integrated air conditioning to ensure stable operation in various weather conditions.

What type of battery technology is used?

The system utilizes high-safety Lithium Iron Phosphate (LiFePO4) battery technology.

Can the capacity be expanded if my needs grow?

Yes, the units are designed to be expanded through parallel use, allowing for configurations ranging from 100KWh to several MWh.

What certifications does the product hold?

Our energy storage systems comply with international standards including IEC62619, IEC61000, UN38.3, and MSDS for safe transportation and operation.

How is the battery system cooled?

The system uses professional-grade air conditioning air cooling to maintain optimal operating temperatures between -25°C and +50°C.
