All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System

Basic Specifications

Model NO.

EP12000iL

Cycle Life

3000 Cycles

Nominal Capacity

7680Wh

Charging Methods

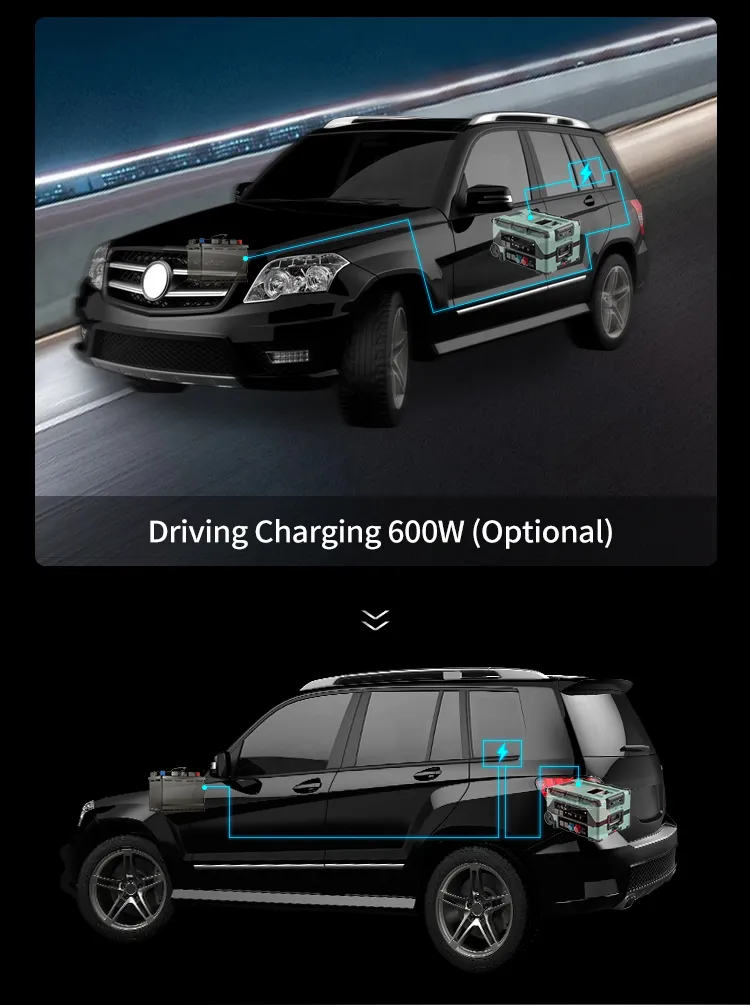

AC, Solar, EV Charger, Driving, DC, Wind

Expansion

Yes, Max 245kWh

Fast Charging

70mins Fully Charged

Certificates

CE, RoHS, IEC62619, UN38.8, MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase

Supported

LCD Display

Integrated LCD Panel

Portability

Drawbar & Wheels

Dimensions

840X670X490mm

Product Advantages

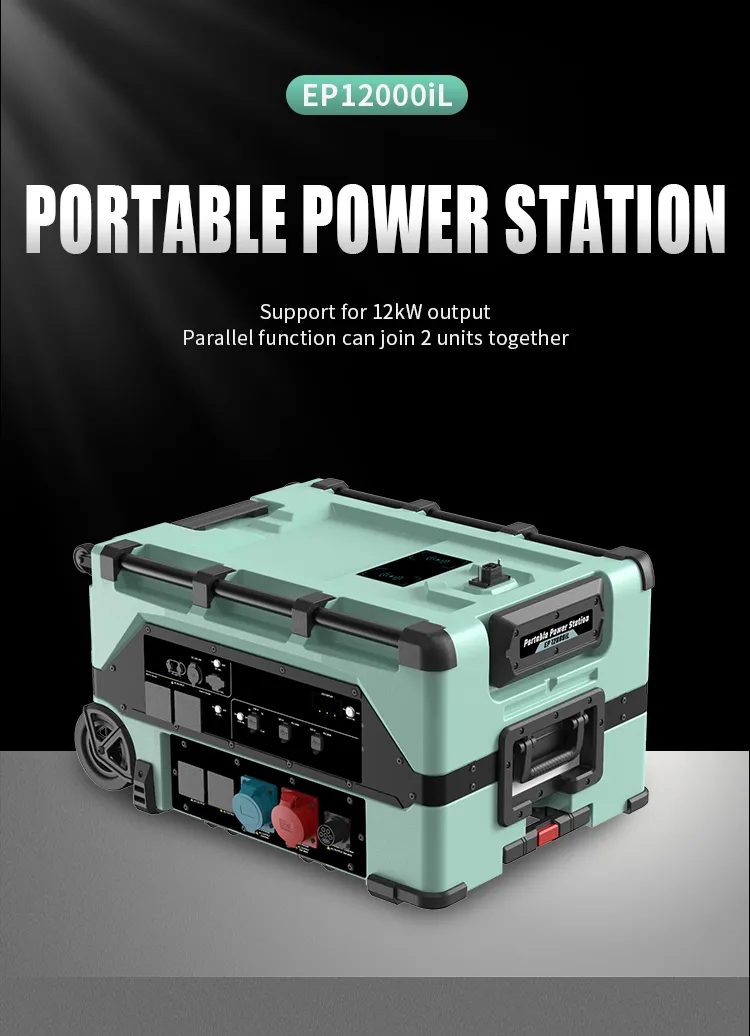

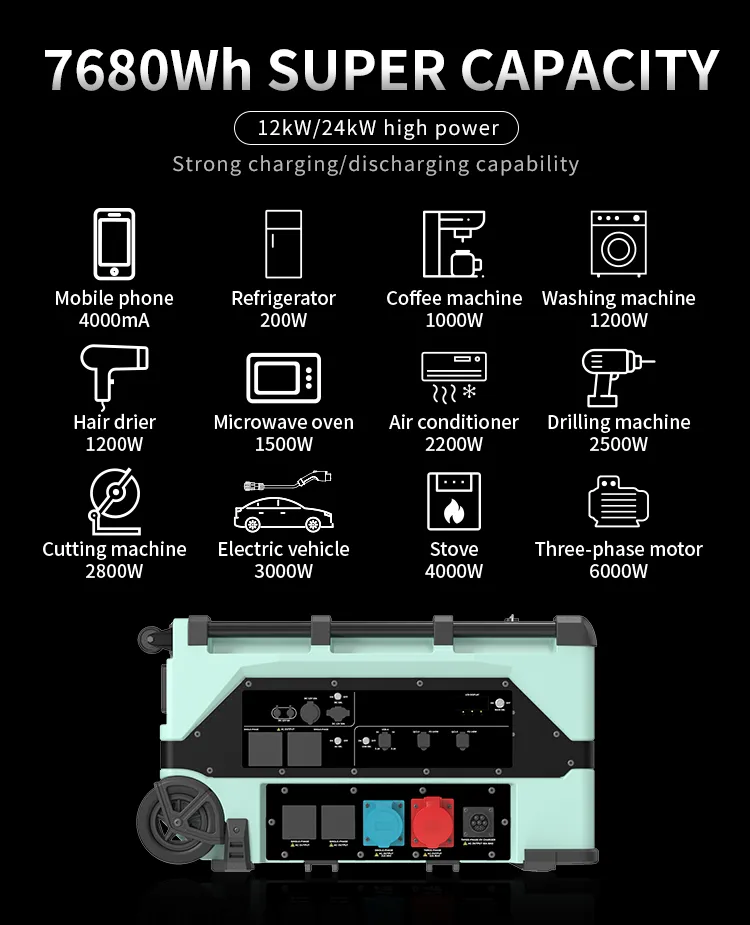

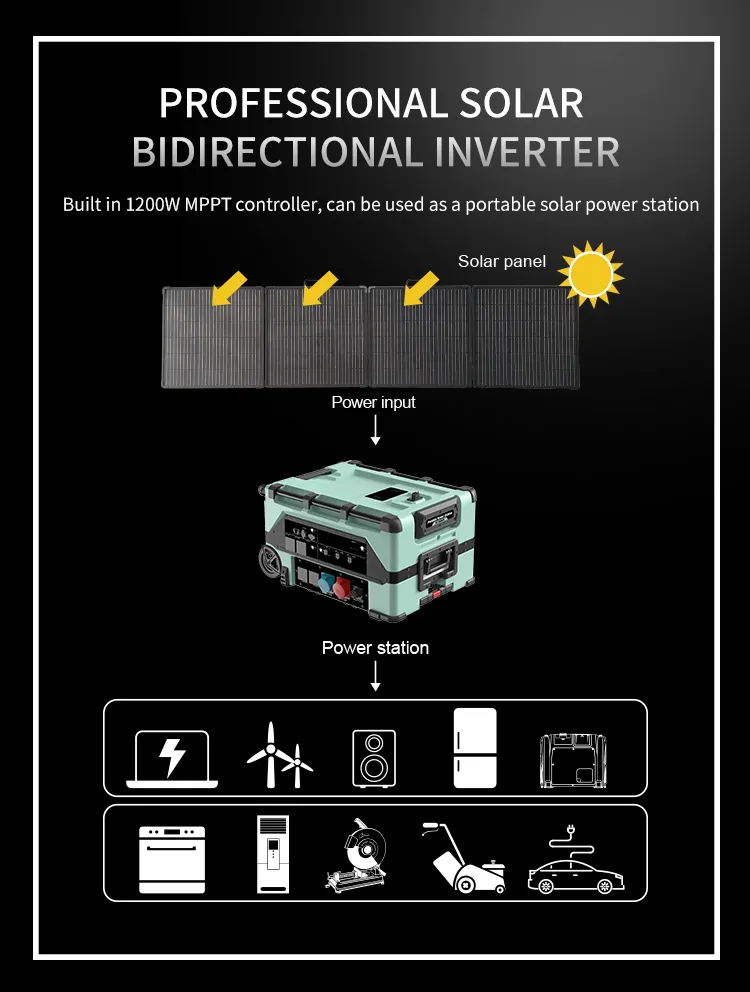

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter.

Support continuous output of 12kW AC three-phase, 11kW single-phase, and 10kW split phase.

Multi-method fast charging: Utility, High/Low voltage solar, EV charger, Wind, and more.

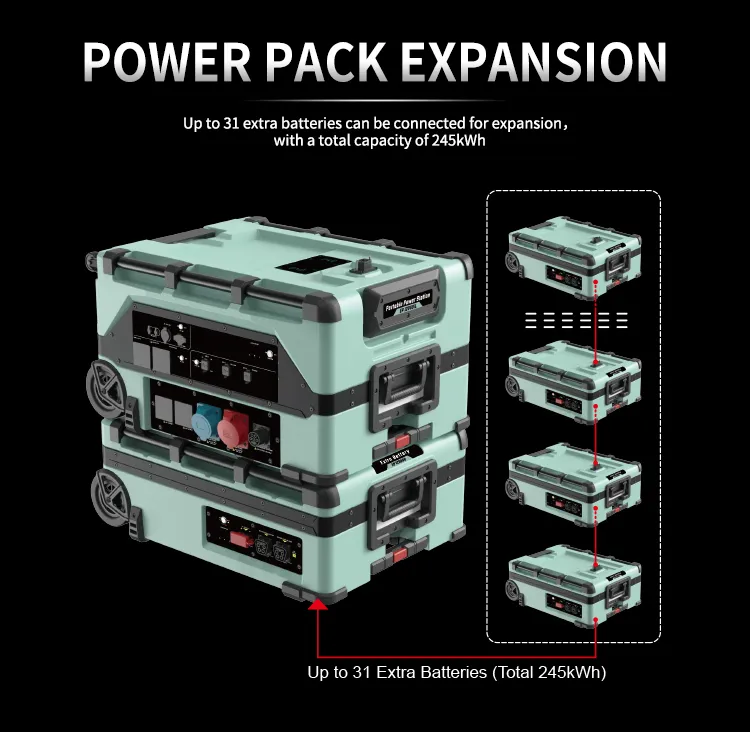

Expandable capacity up to 245kWh by stacking up to 31 extra batteries.

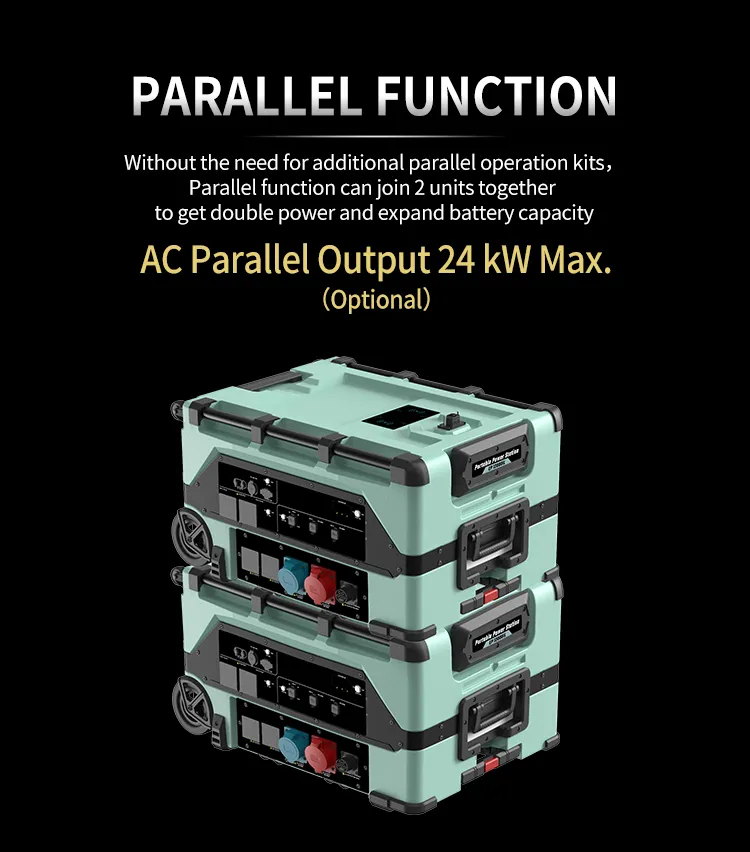

Stacked parallel patented technology for 24kW continuous output.

Built-in electric vehicle charger capable of charging cars up to 22kW.

Four-wheel chassis and large-diameter wheels for effortless mobility.

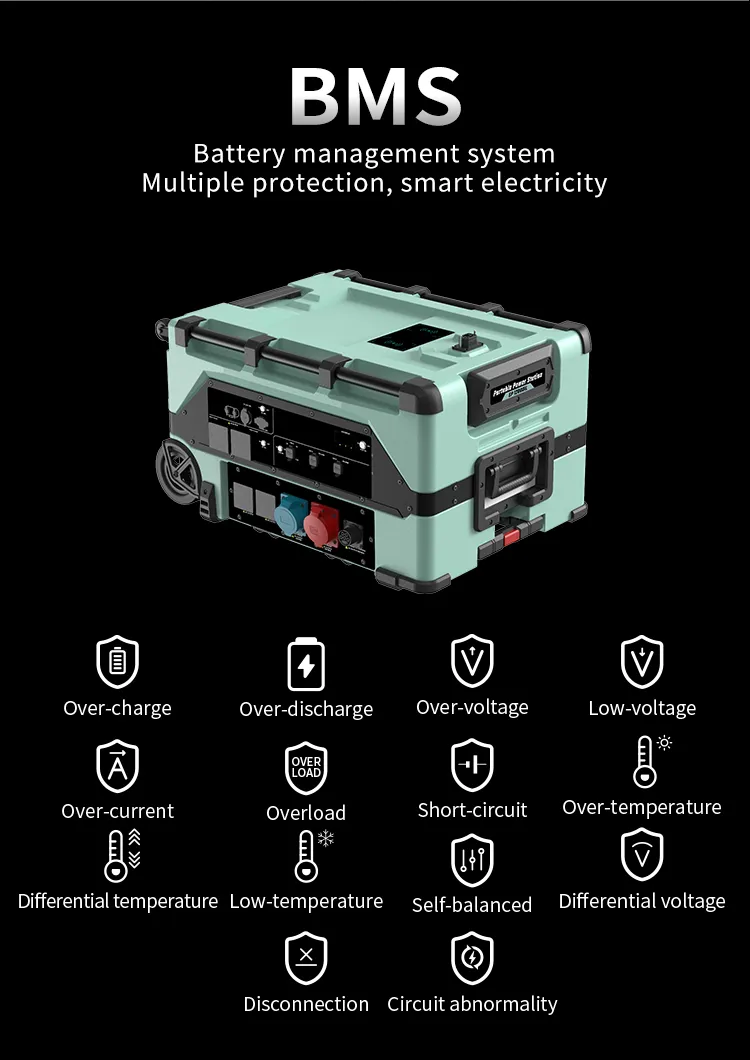

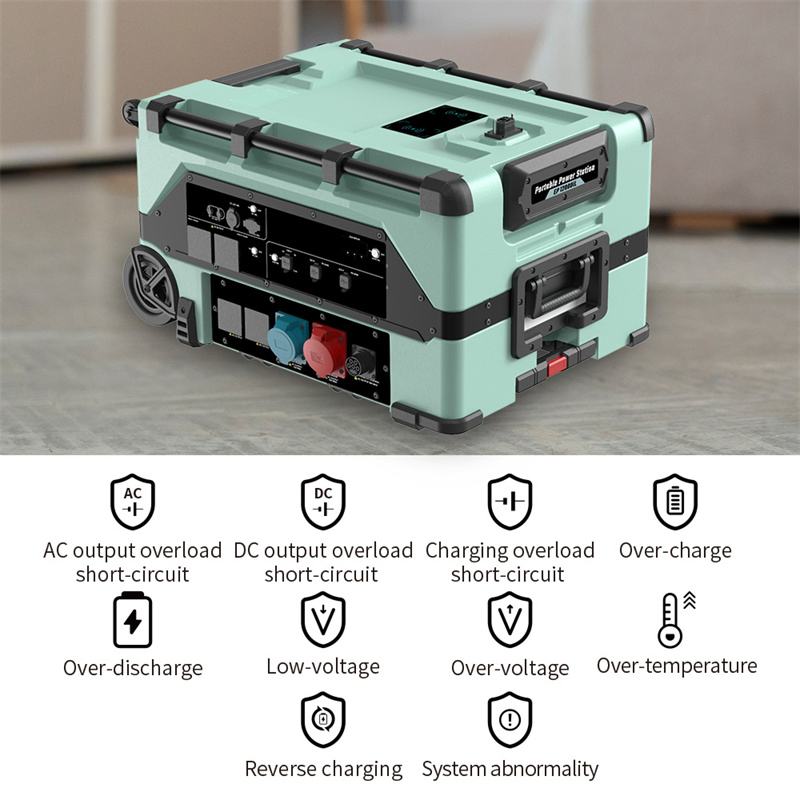

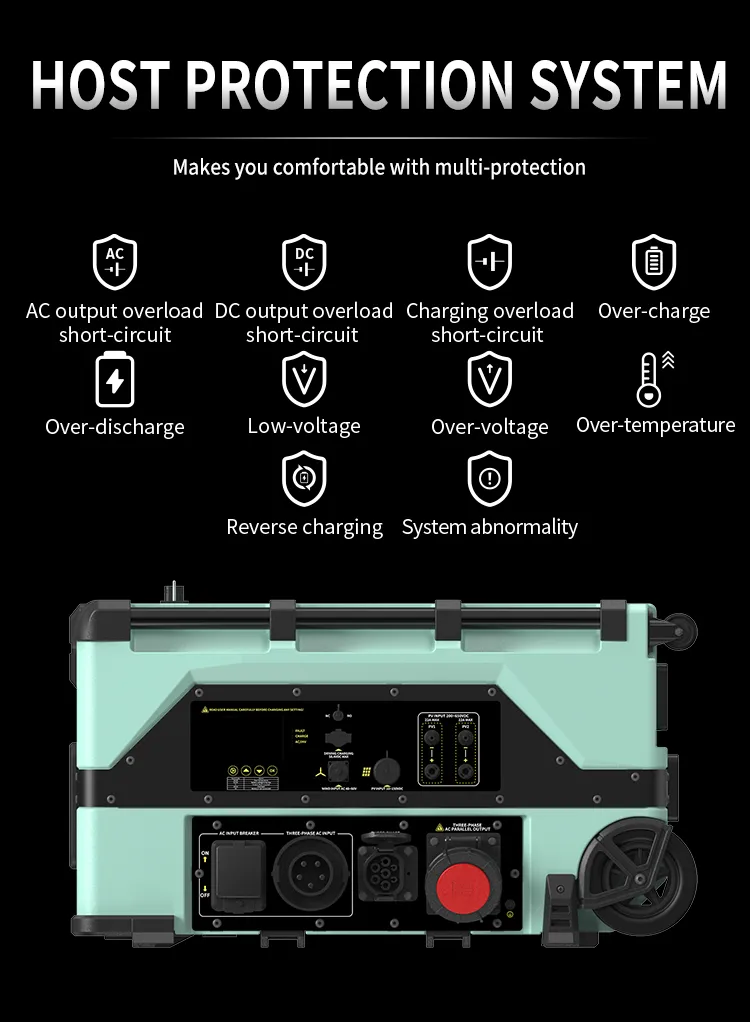

Robust protection: Unit IP53 and Battery Pack IP66 grade.

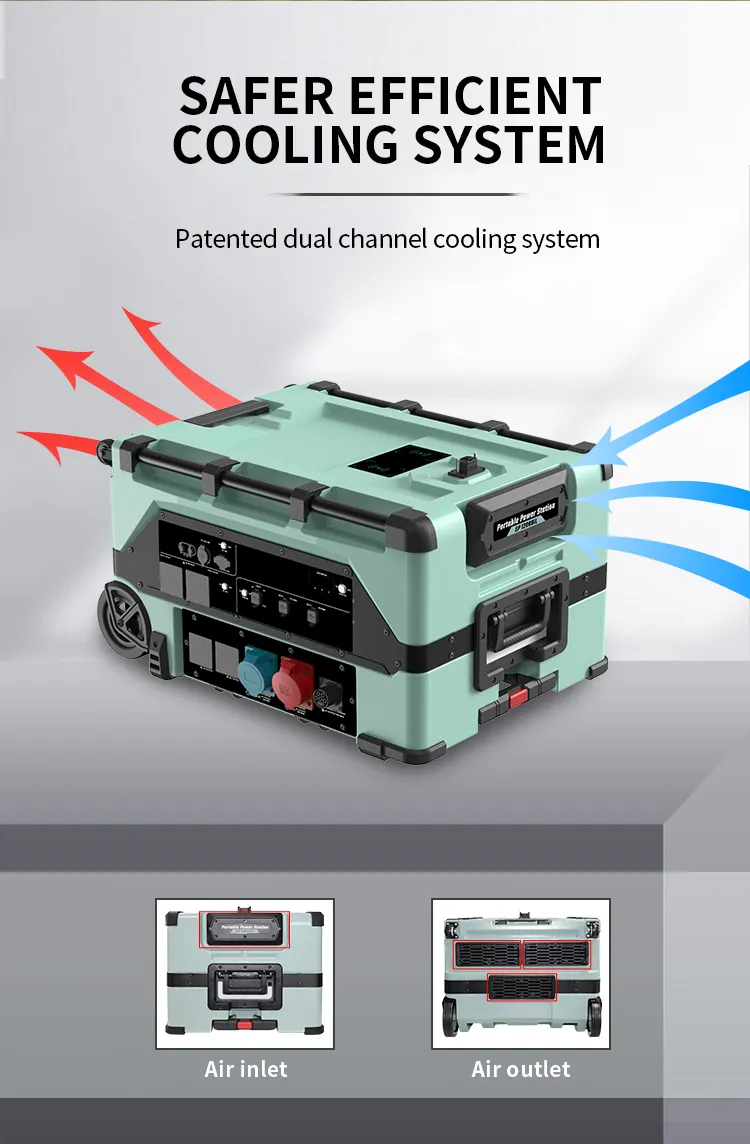

Patented dual channel cooling system for optimal thermal management.

V-0 level flame-retardant and fire-resistant casing.

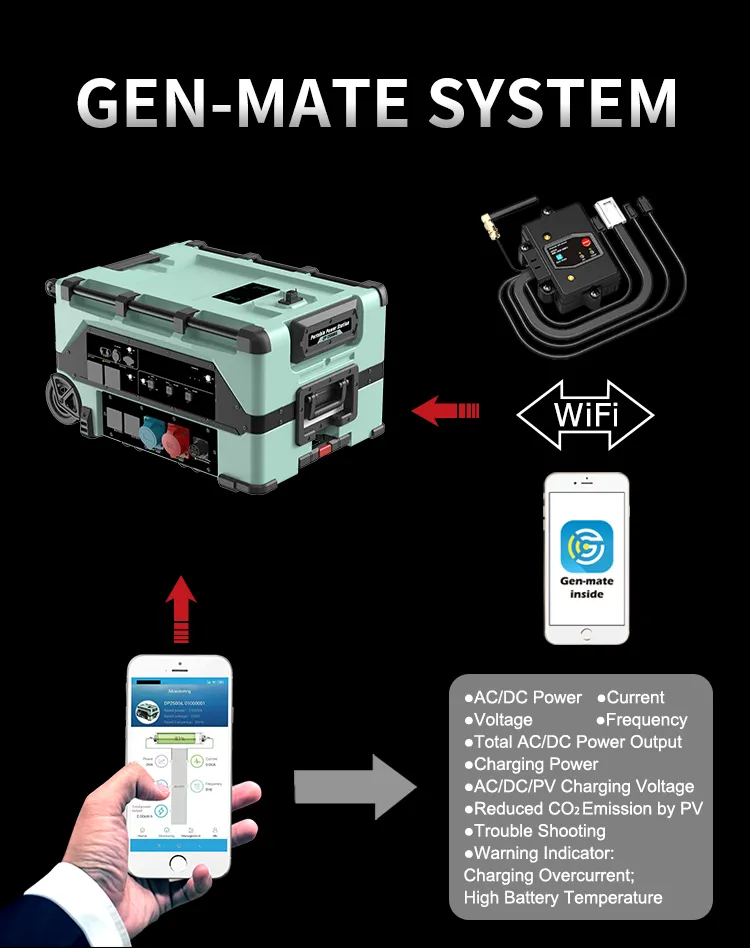

Intelligent control and remote monitoring via smartphone APP.

5-year warranty with international safety certifications.

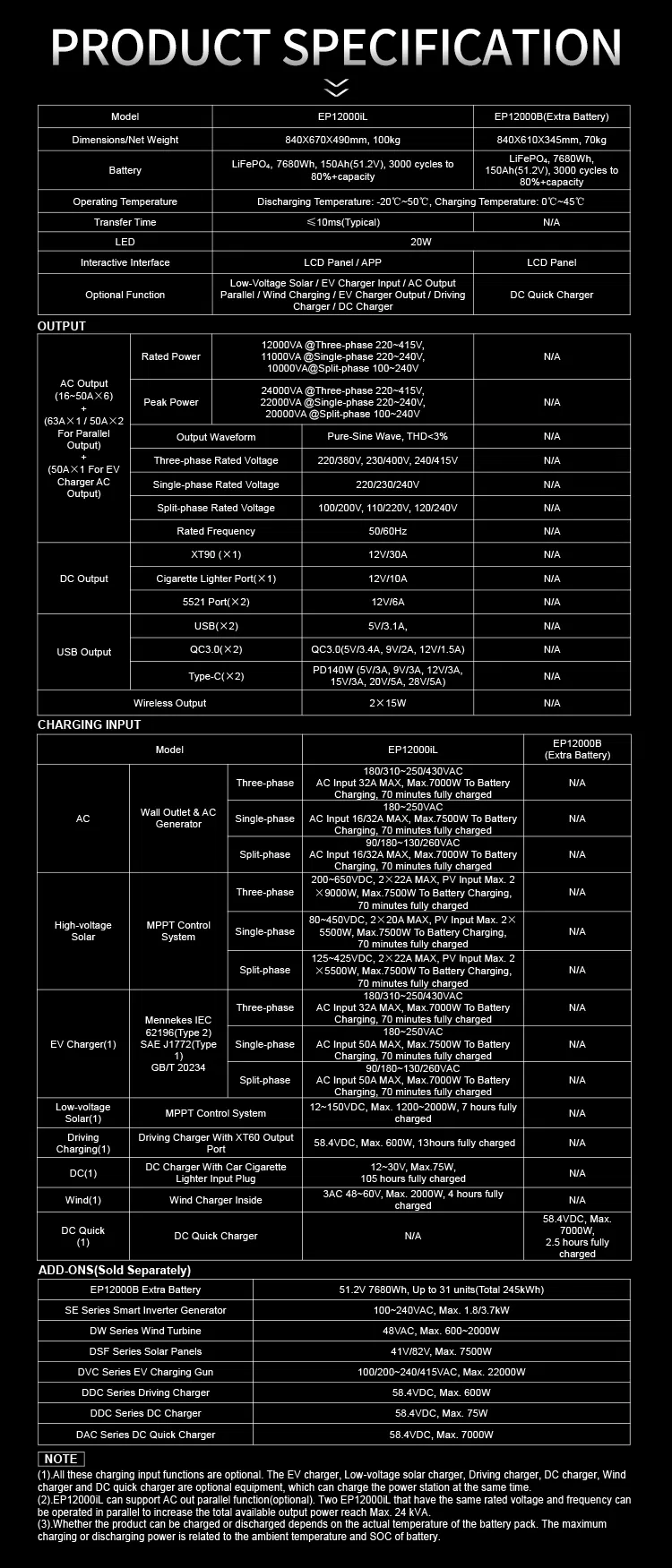

Technical Parameters

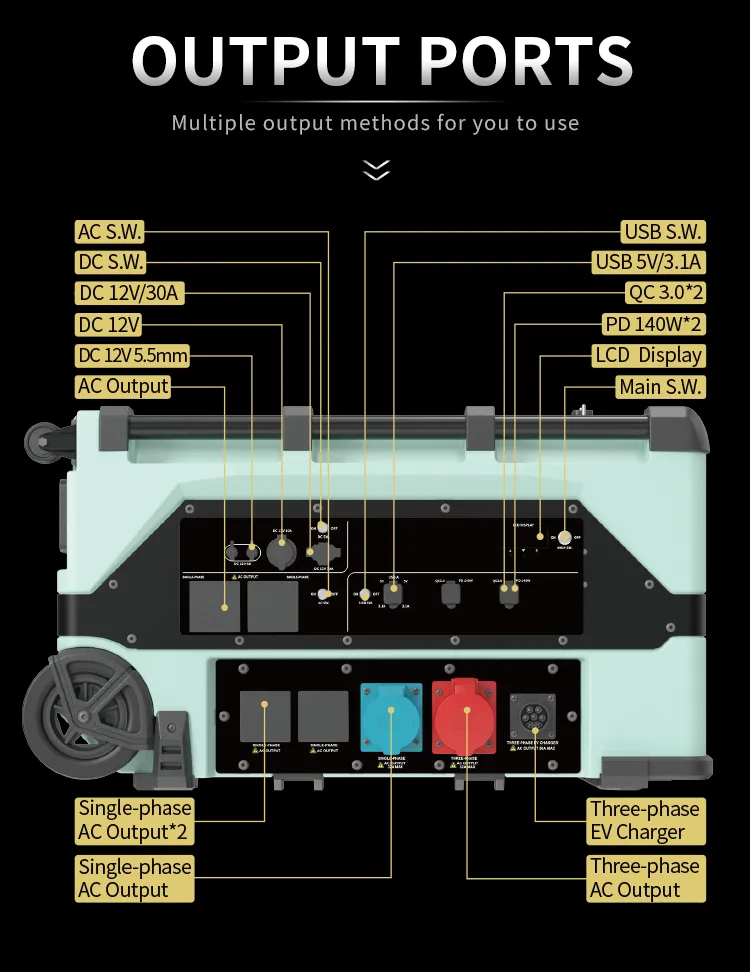

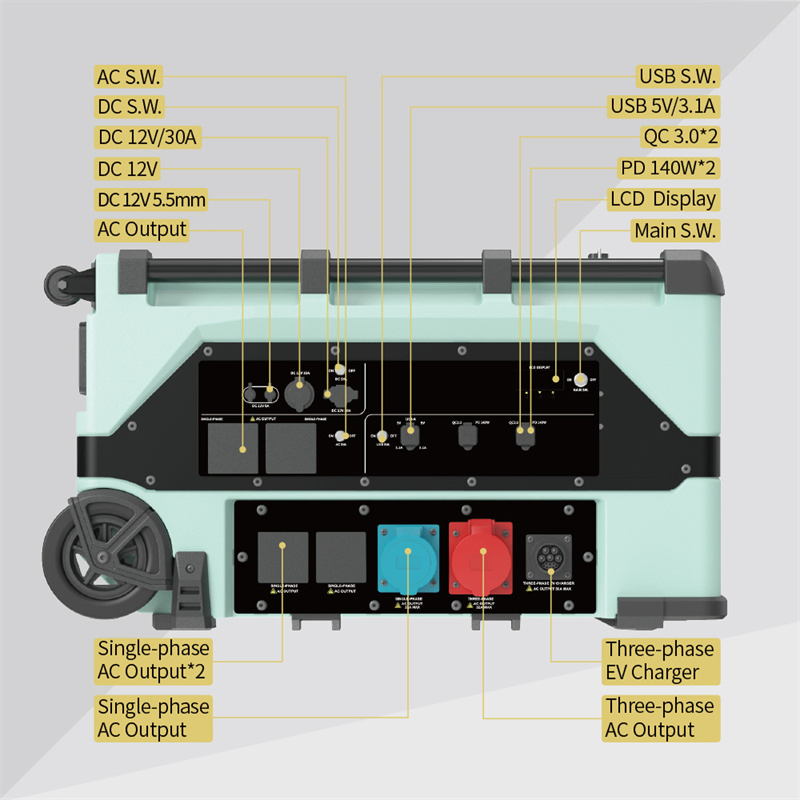

OUTPUT SPECIFICATIONS

Output Type	Parameter	Specification
AC Output	Rated Power	12000VA (Three-phase) / 11000VA (Single) / 10000VA (Split)
AC Output	Peak Power	24000VA (Three-phase) / 22000VA (Single) / 20000VA (Split)

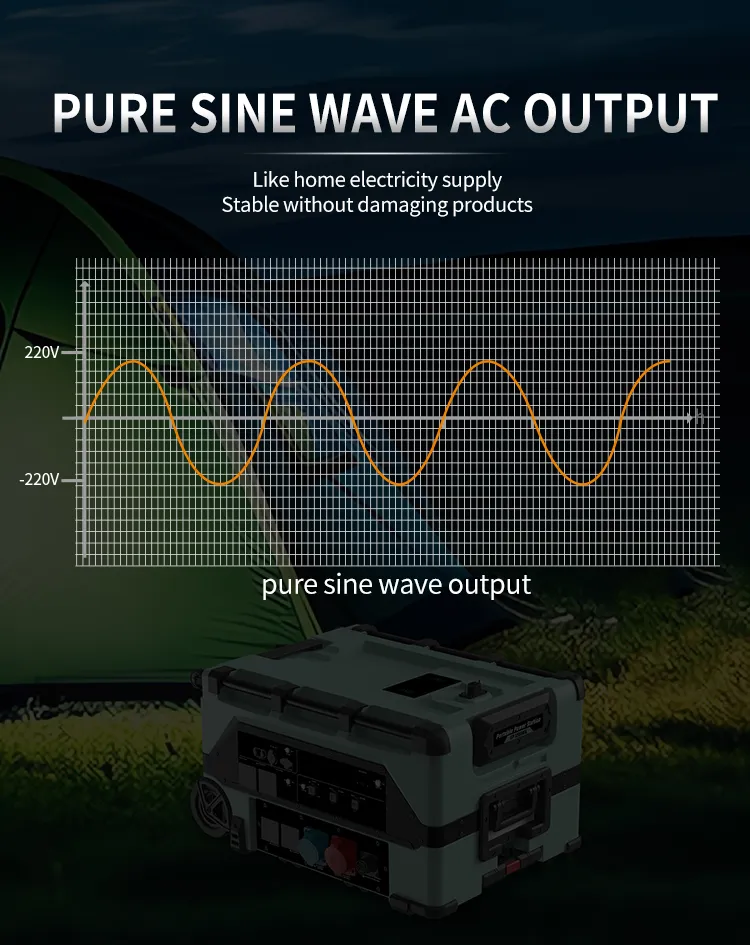

Waveform	Output Waveform	Pure-Sine Wave, THD < 3%
DC Output	XT90 Port	12V / 30A
	Cigarette Port	12V / 10A
	USB Type-C	PD 140W (Max 28V/5A)

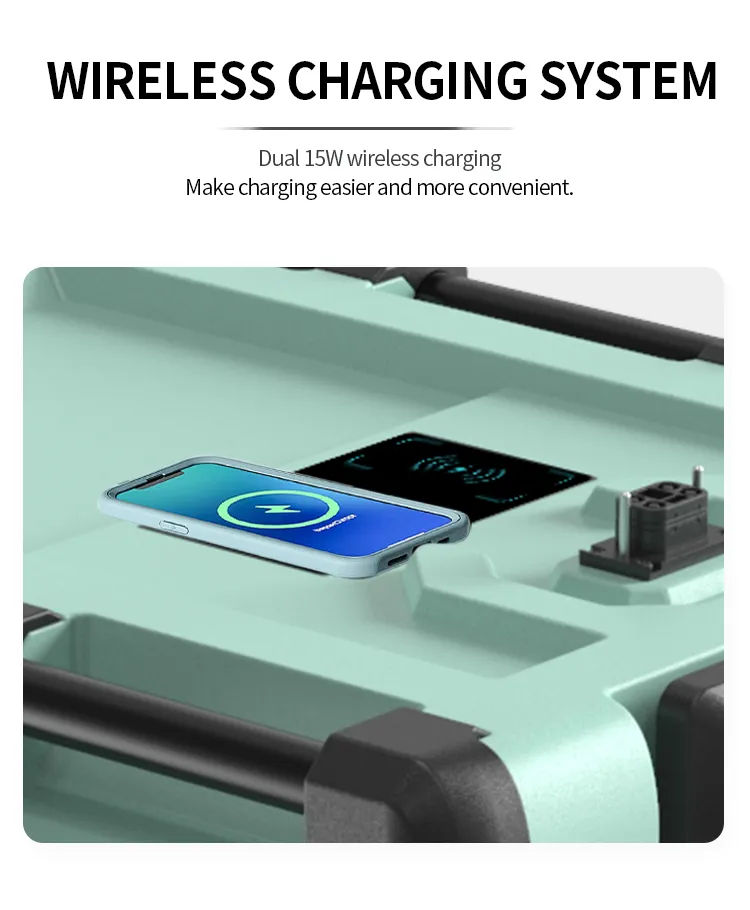

Wireless	Charging Pad	2 × 15W

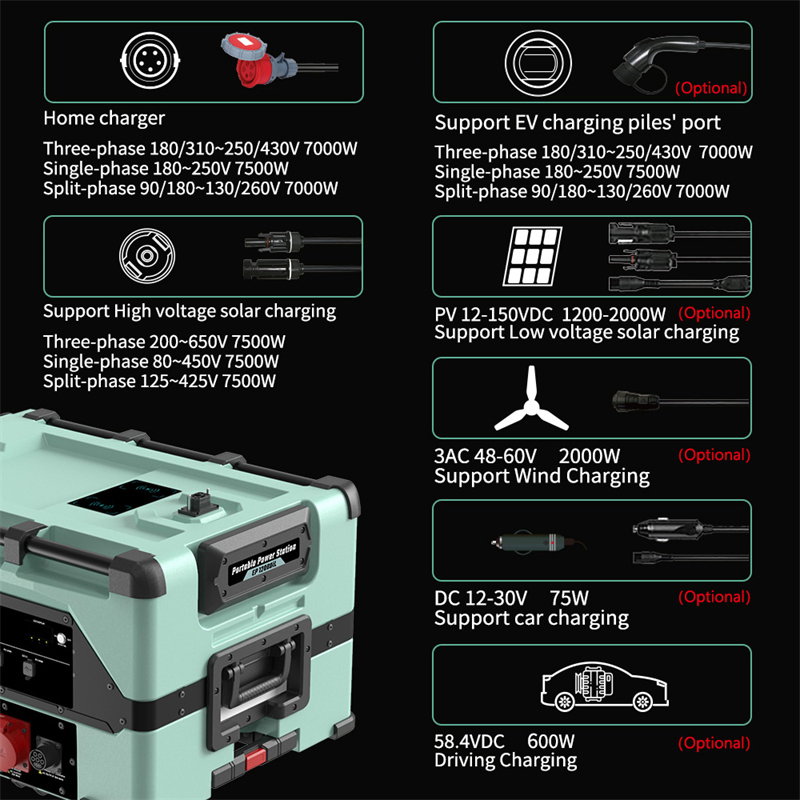

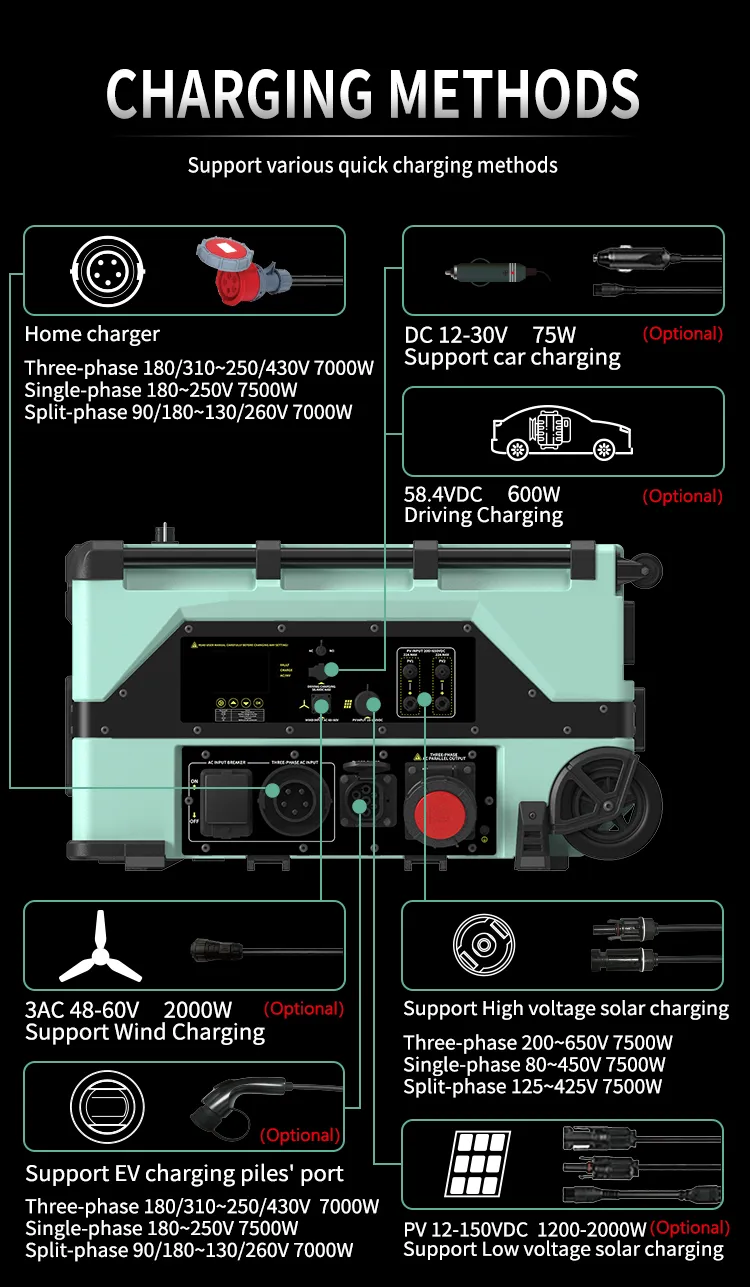

CHARGING INPUT

Method	Input Source	Max Power / Time

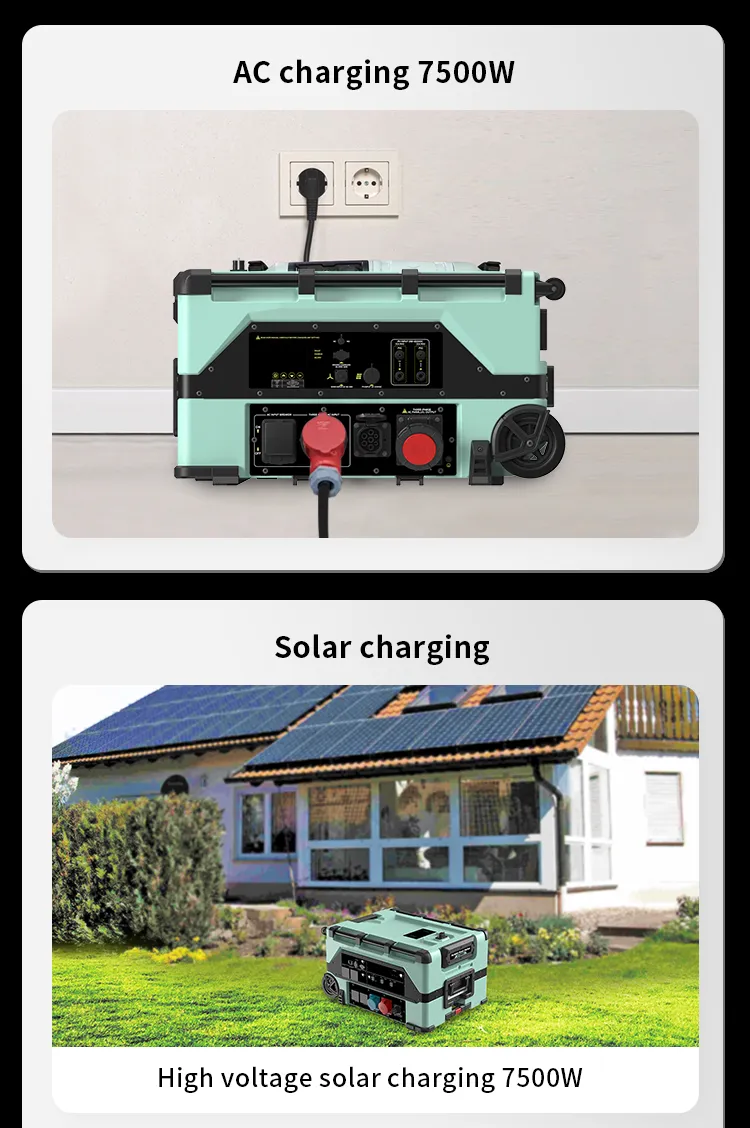

AC Wall/Gen	Three-phase / Single / Split	7000W-7500W / 70 mins full charge

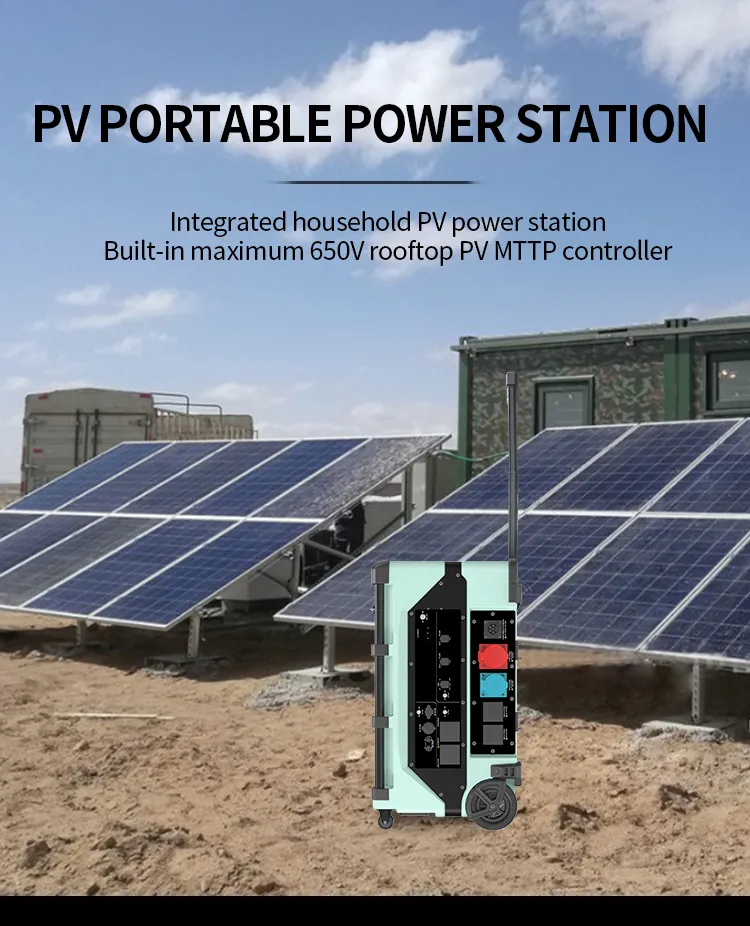

High-Voltage Solar	MPPT Control	Max 2 × 9000W / 70 mins full charge

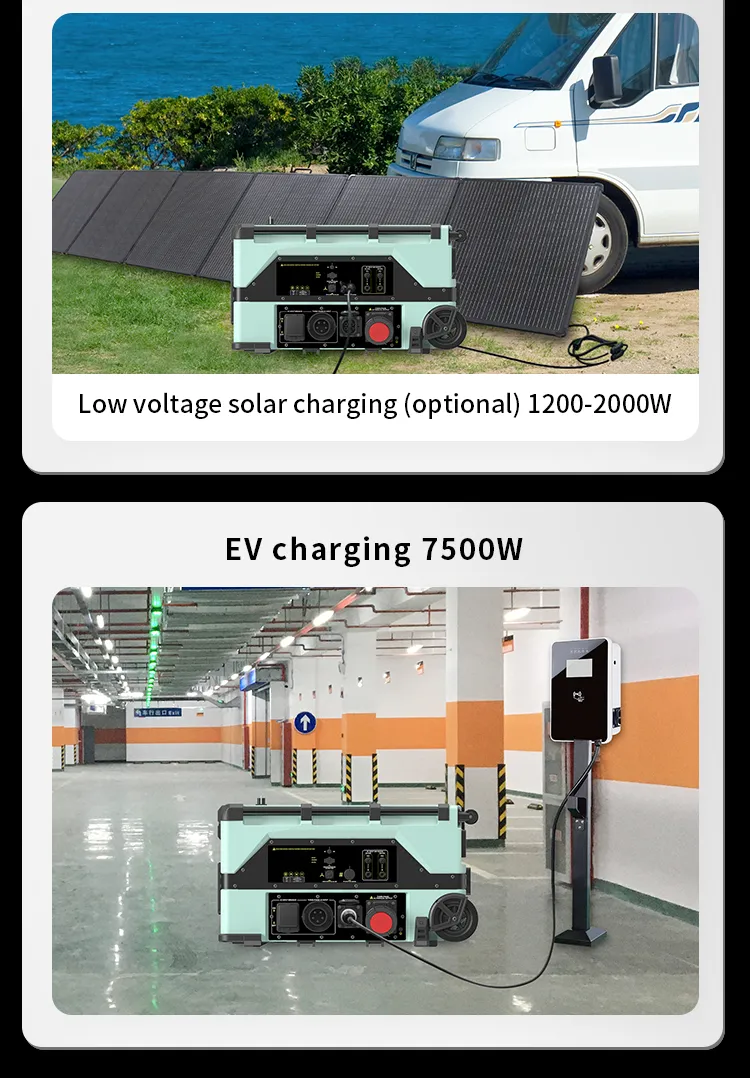

Low-Voltage Solar	MPPT Control	1200~2000W / 7 hours full charge
EV Charger	Type 1 / Type 2 / GB/T	7000~7500W / 70 mins full charge
Wind Turbine	Built-in Wind Charger	2000W / 4 hours full charge

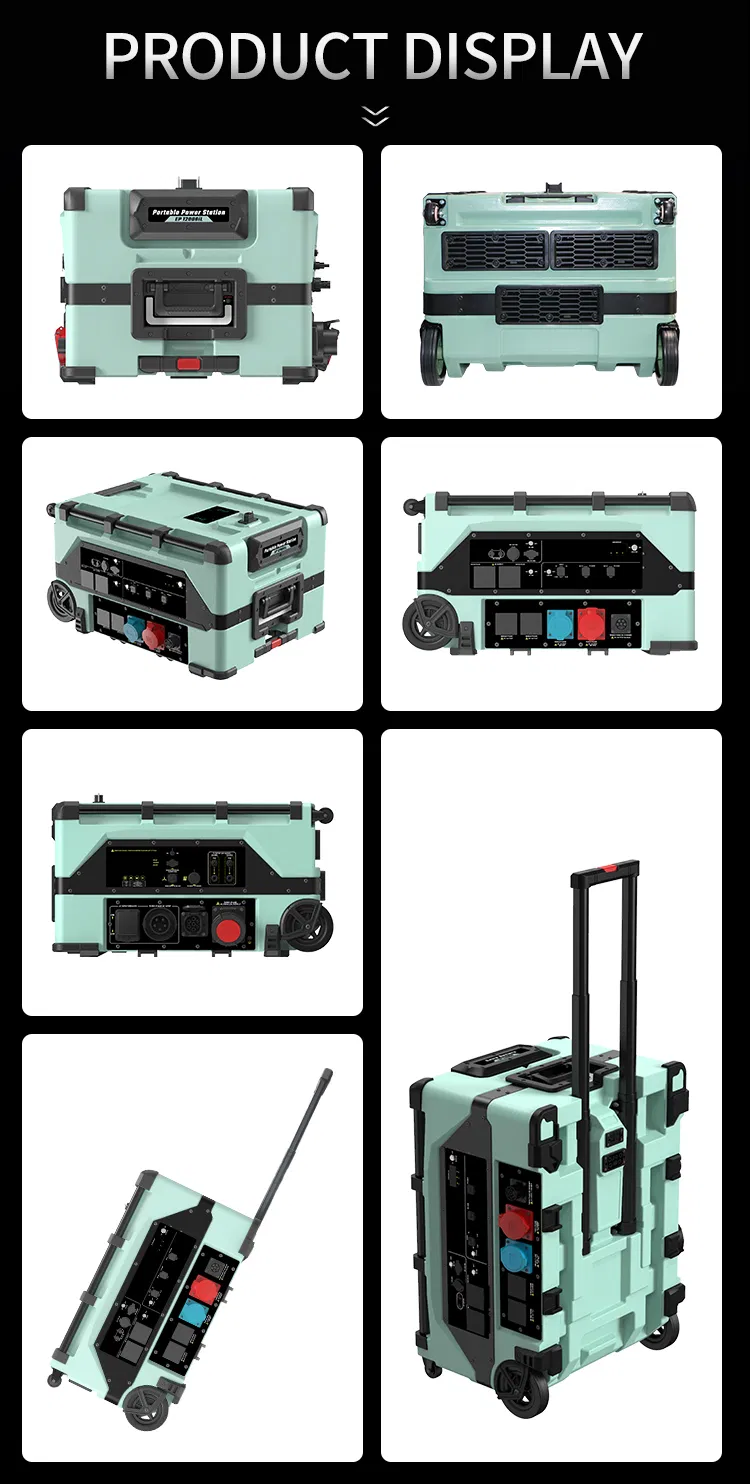

Detailed Photos

Company Profile

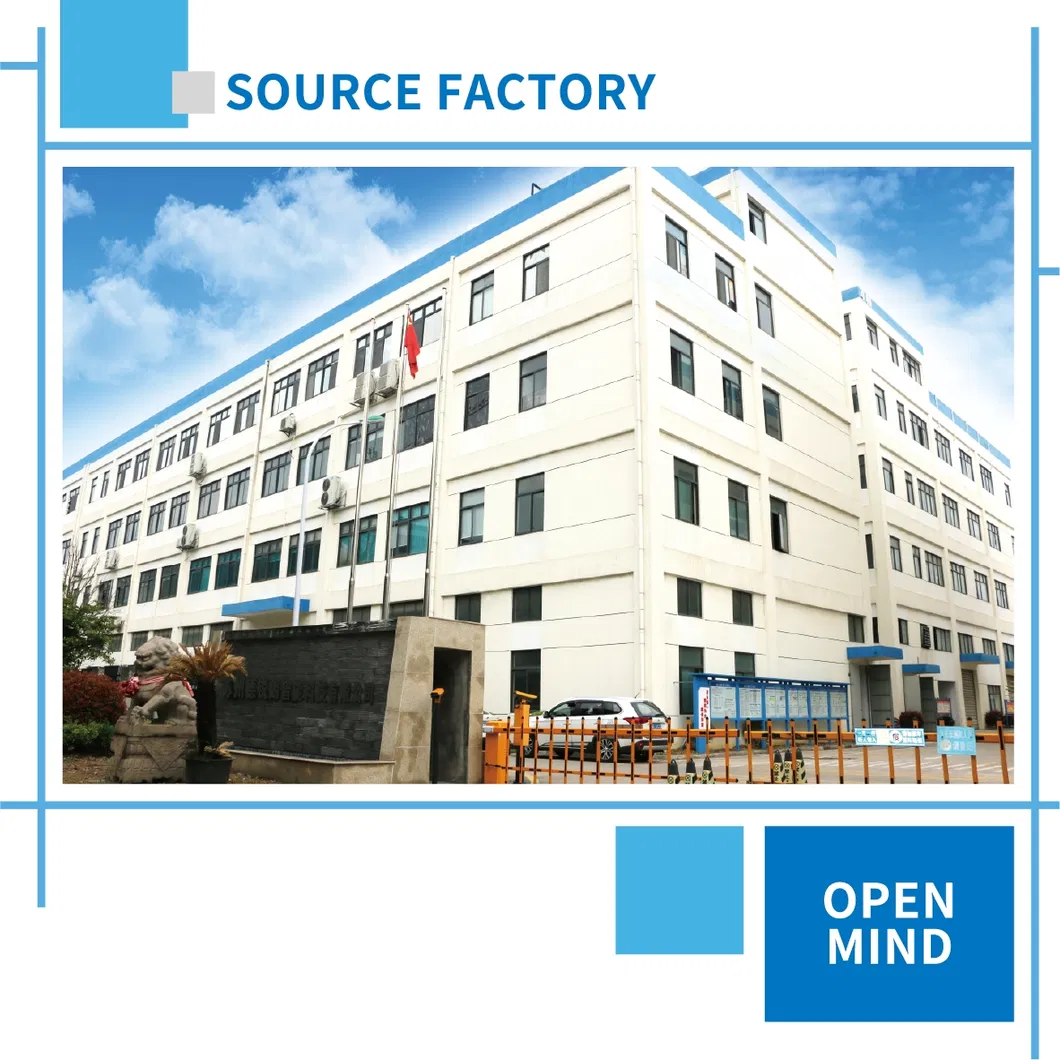

Founded in March 2015, the company is a high-tech enterprise integrated with research, manufacture, and sales. We specialize in providing innovative products and services in inverter generators, power equipment, automation equipment, and electrical products. With manufacturing plants in multiple provinces, we are dedicated to independent research and development.
