All in One Battery and Inverter Home Hybrid Solar Power 10kw Storage System

1 / 5

All in One Battery and Inverter Home Hybrid Solar Power 10kw Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

EP12000IL

Cycle Life

3000

Nominal Capacity

7680wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

LCD Display

With Display

Portability

Drawbar & Wheels

Specification

840X670X490mm, 110kg

Origin

China

✨ Product Advantages

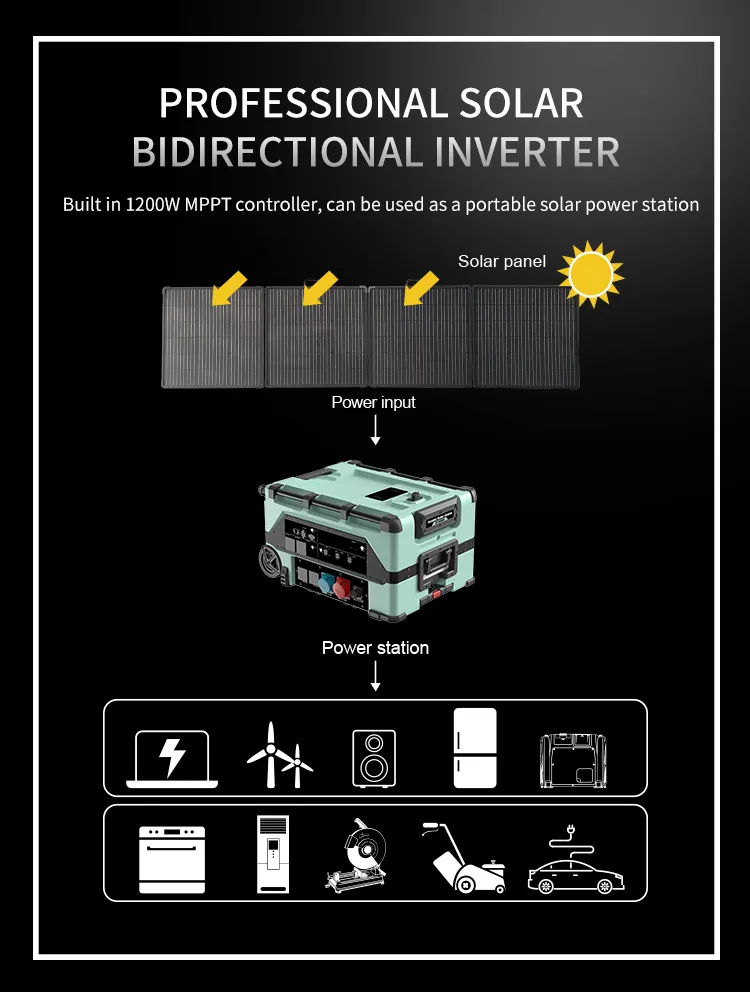

✔ Built in 7680*2Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.

✔ Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

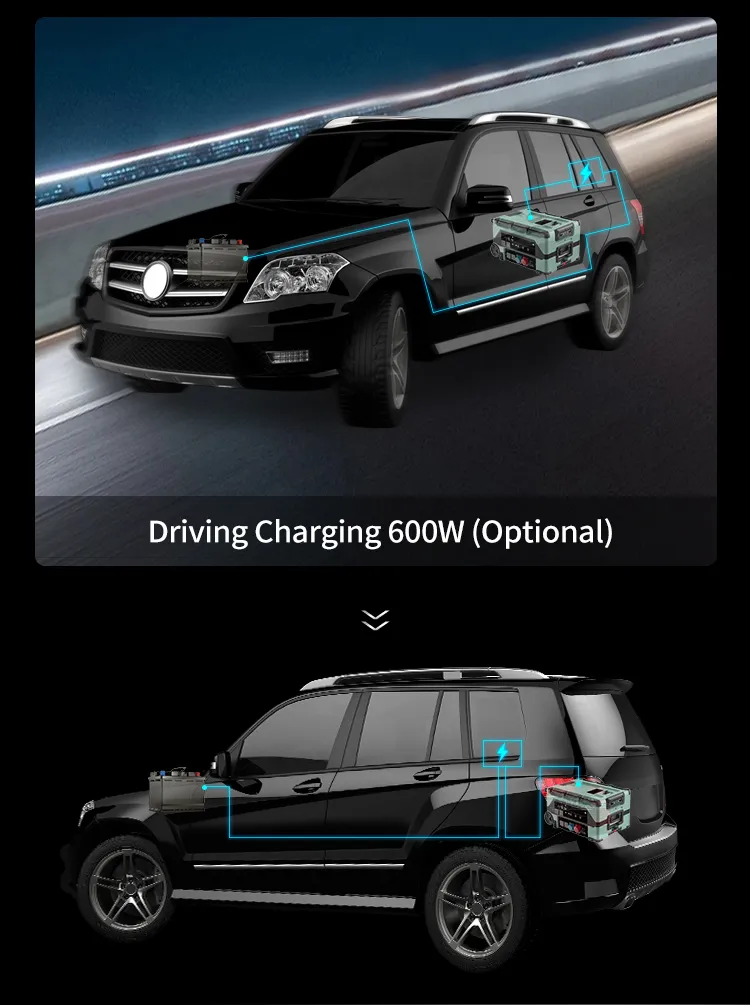

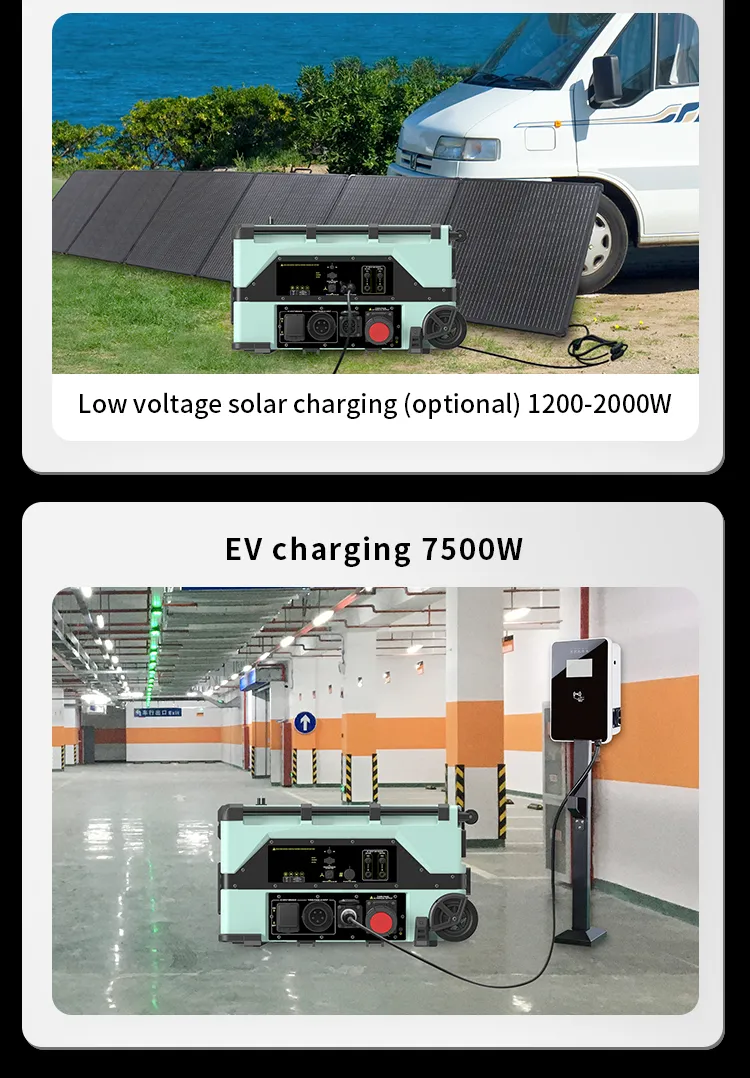

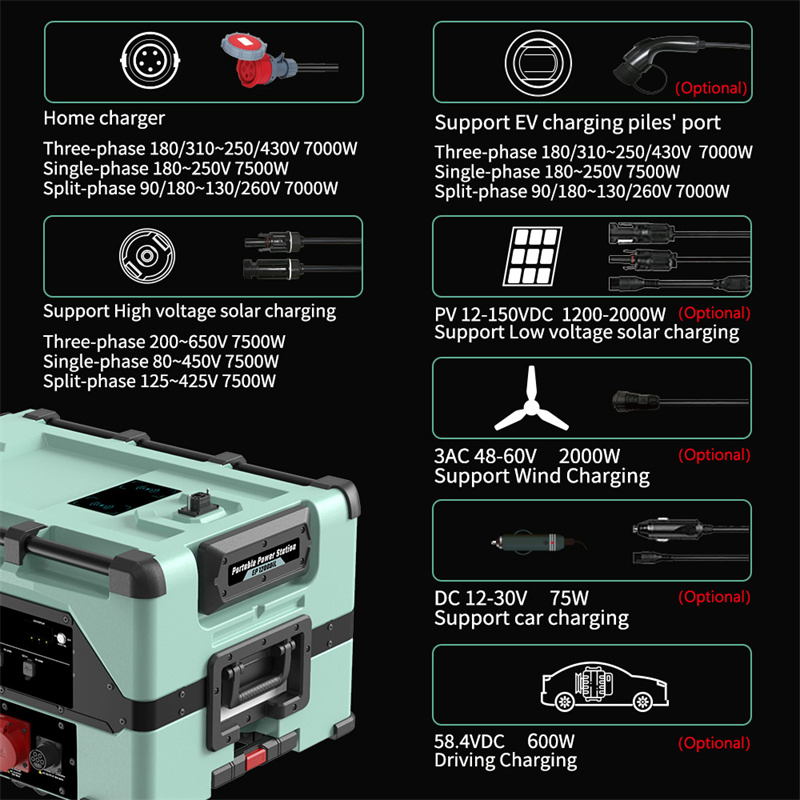

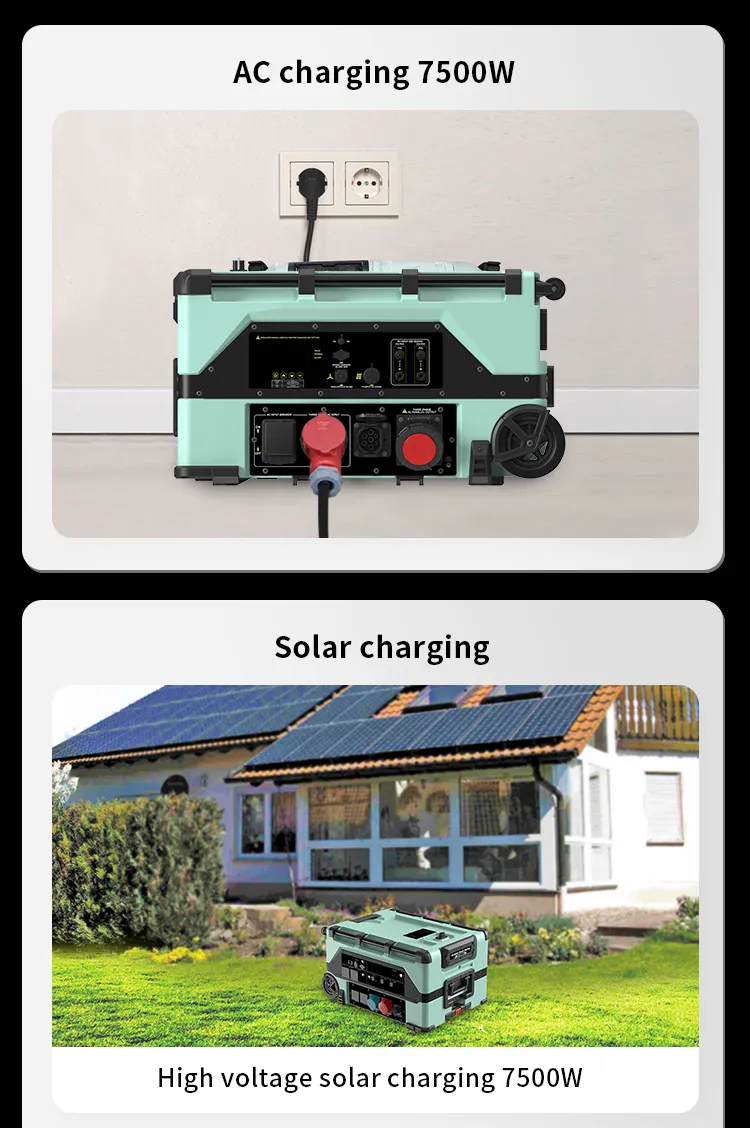

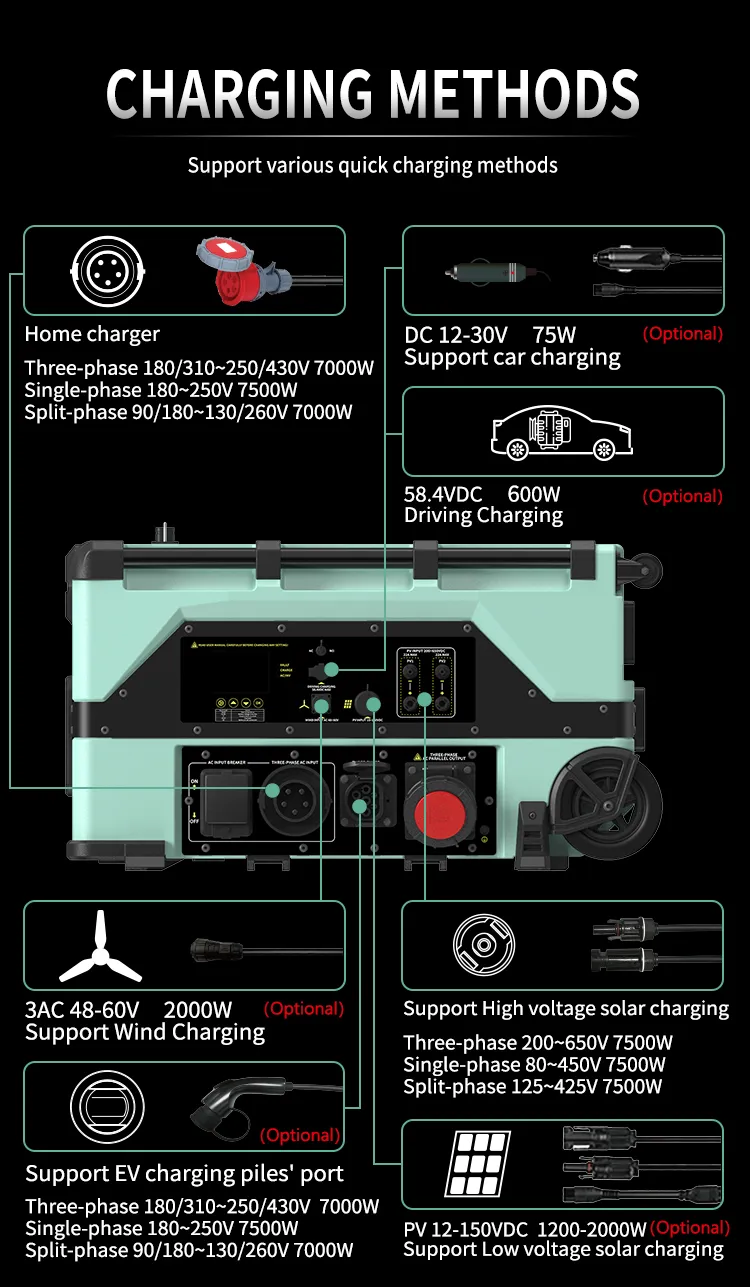

✔ Support various fast charging methods: utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

✔ Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

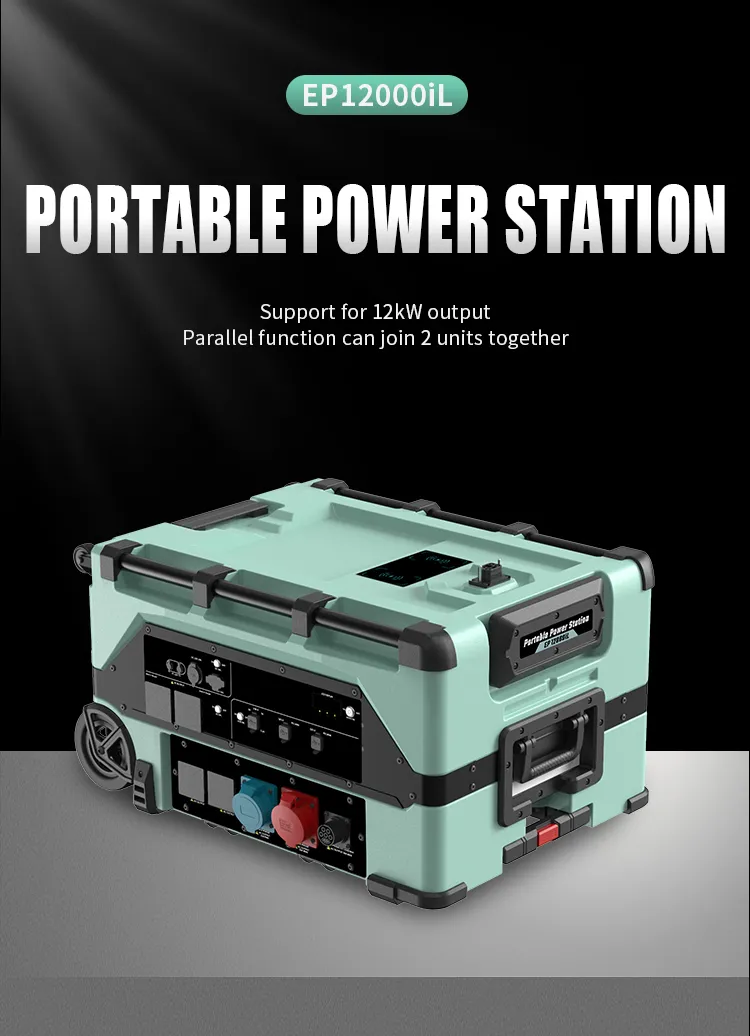

✔ Stacked parallel patented technology: join 2 units together for a continuous output of 24kW.

✔ Built-in electric vehicle charger: can replace charging stations to charge cars up to 22kW.

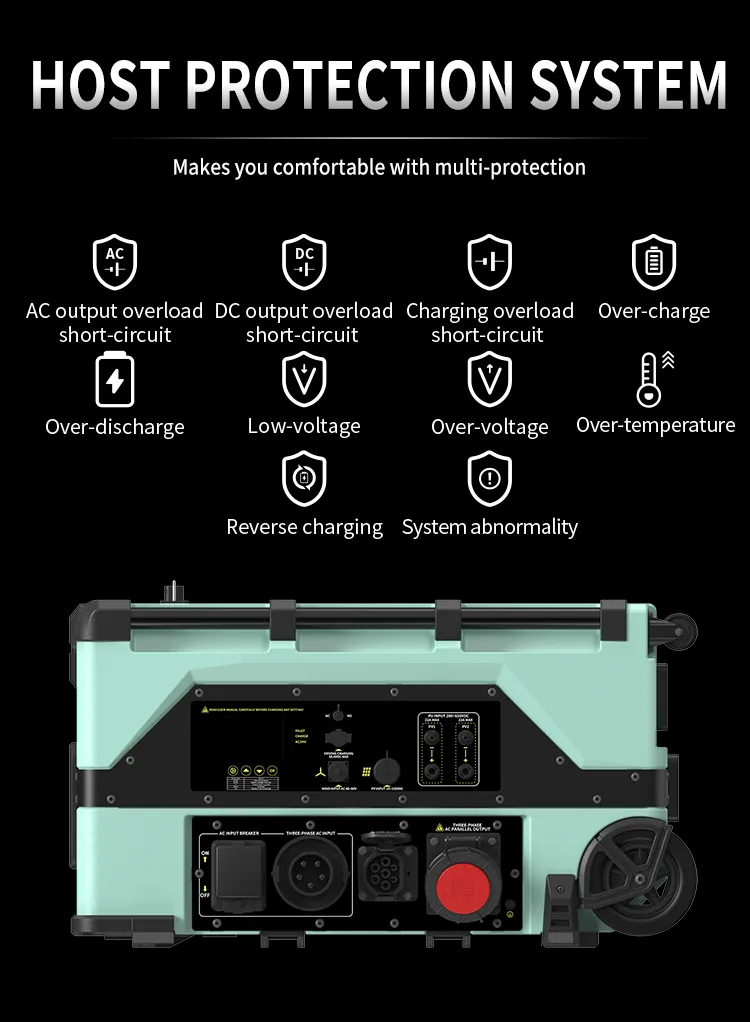

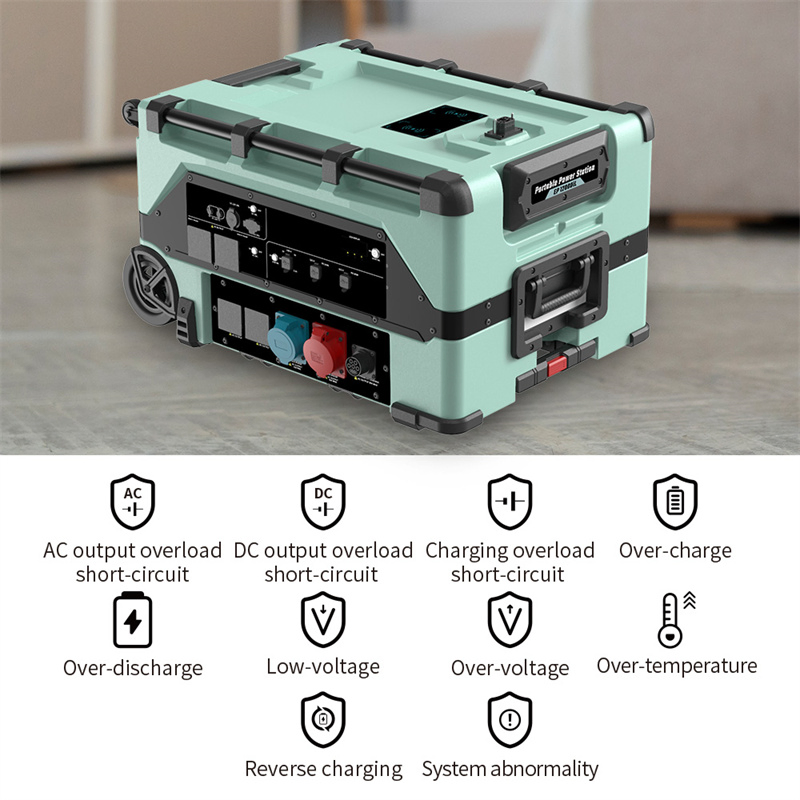

✔ Protection Grade: Unit IP53 and Battery Pack IP66.

✔ Patented dual channel cooling system and V-0 level flame-retardant casing.

✔ Intelligent control and monitor via smartphone APP.

⚙ Technical Parameters

Category	Feature	Specifications
AC Output	Rated Power	12000VA (3-Phase) / 11000VA (Single-Phase) / 10000VA (Split-Phase)
	Peak Power	24000VA (3-Phase) / 22000VA (Single-Phase) / 20000VA (Split-Phase)
	Waveform	Pure-Sine Wave, THD < 3%

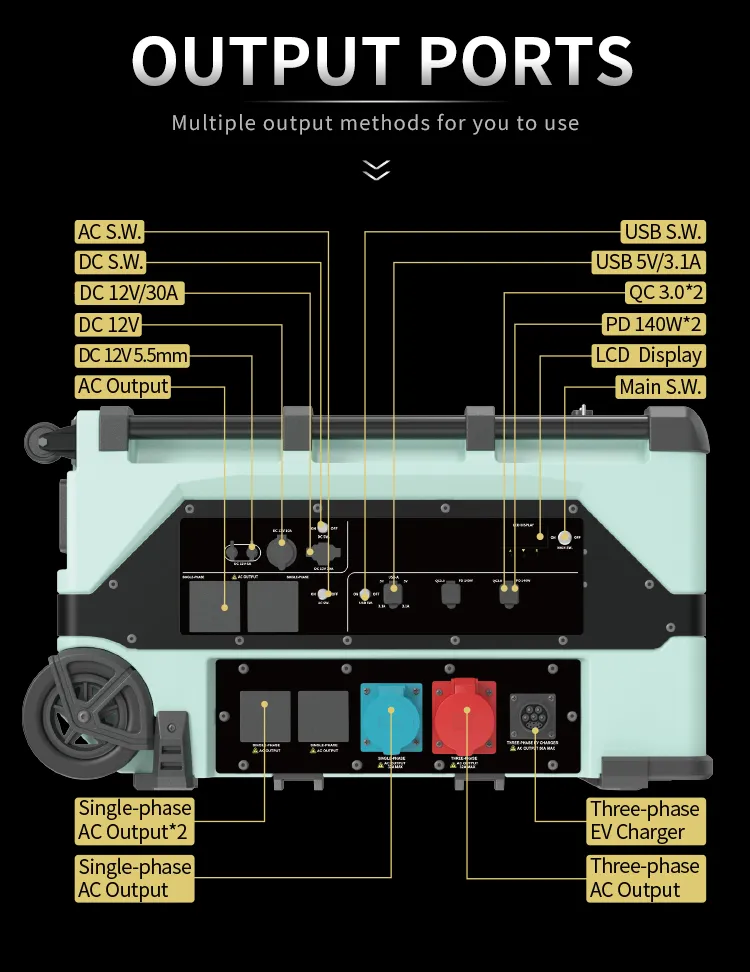

DC Output	XT90 Port	12V / 30A
	USB Ports	USB 5V/3.1A, QC3.0 (18W), Type-C PD 140W

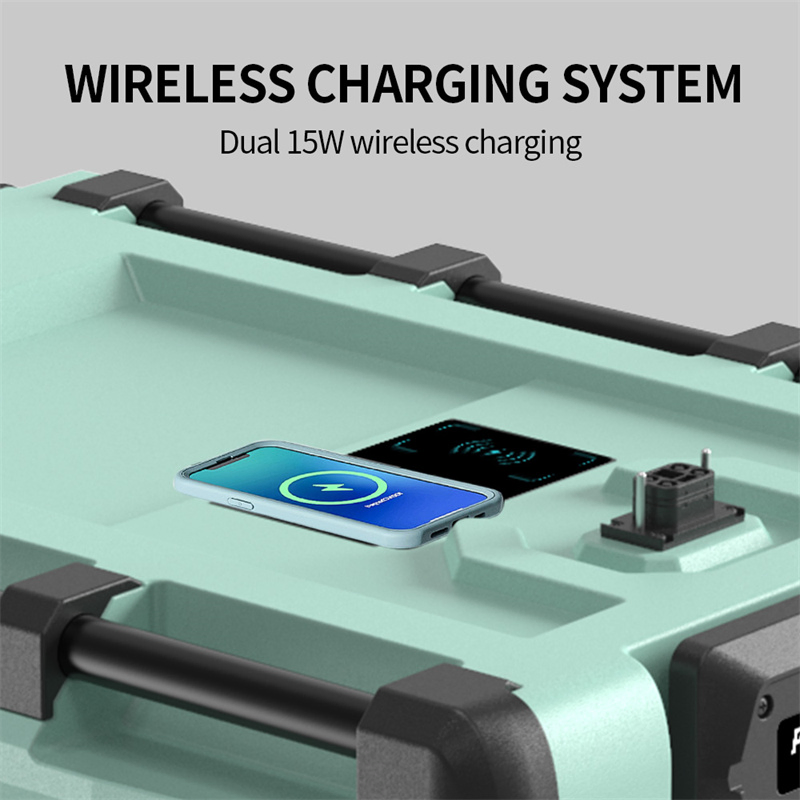

	Wireless	2 x 15W
Battery	Type	LiFePO4 (7680Wh, 150Ah 51.2V)
Battery	Cycle Life	3000 cycles to 80%+ capacity

📷 Detailed Photos

🏭 Profile

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of Things, power equipment, automation equipment, and electrical products.

We are devoted to the research and development of intelligent electromechanical products, insisting on independent innovation. Possessing more than 70 critical patents, we maintain a leading position in power equipment and intelligent controller fields. Our products have earned an excellent reputation in Europe and North America markets for their superior quality and competitive performance.
