Advanced Home Energy Storage System with 245kwh Capacity

1 / 5

Advanced Home Energy Storage System with 245kwh Capacity

Customization:	Available
Weight:	100kg
Warranty:	5 Years

Send Inquiry

Product Description

Basic Specifications

Model No.

EP12000iL

Cycle Life

3000 Cycles

Nominal Capacity

7680Wh

Charging Versatility

AC, Solar, EV Charger, Driving, DC, Wind

Battery Expansion

Yes, Max 245kWh

Super Fast Charging

70 Mins Fully Charged

Inverter Type

Bi-Directional Inverter

Certificates

CE, RoHS, IEC62619, Un38.8, MSDS

Product Advantages

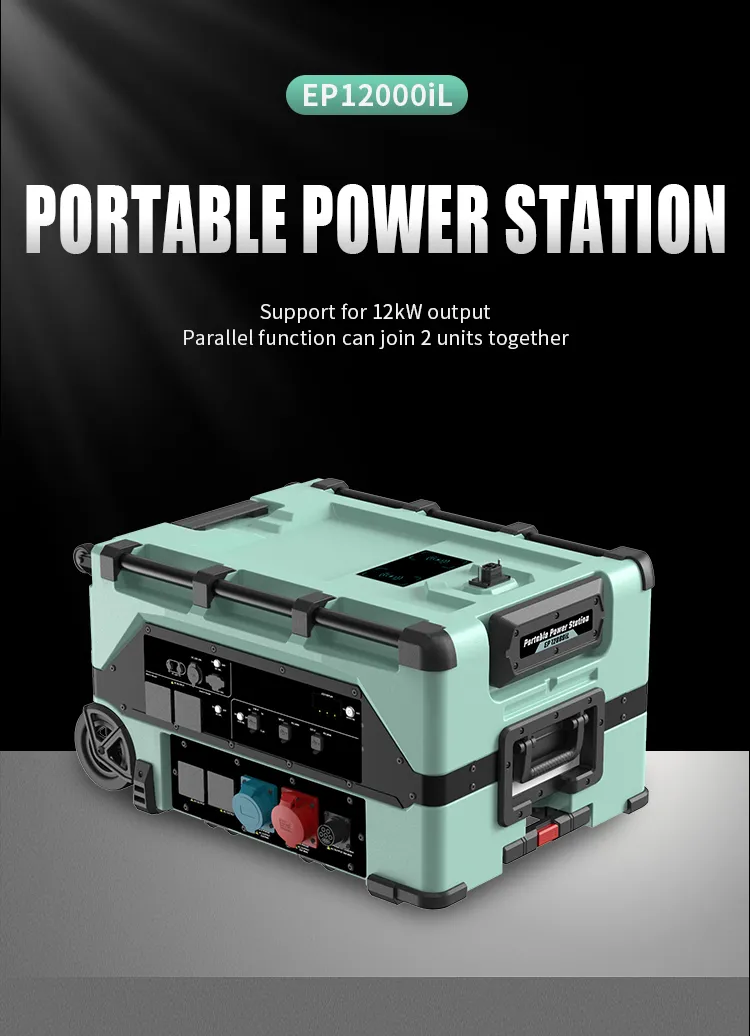

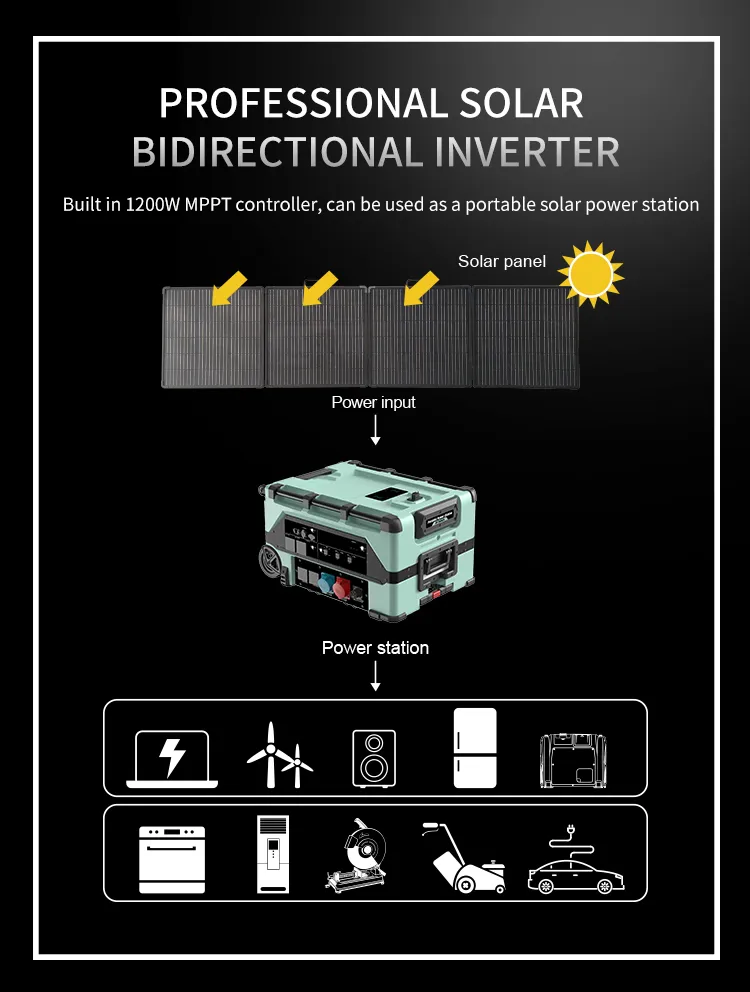

Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter.
Supports 12kW output and 8.5kW fast charging.
Continuous output: 12kW AC three-phase, 11kW single-phase, and 10kW split phase.

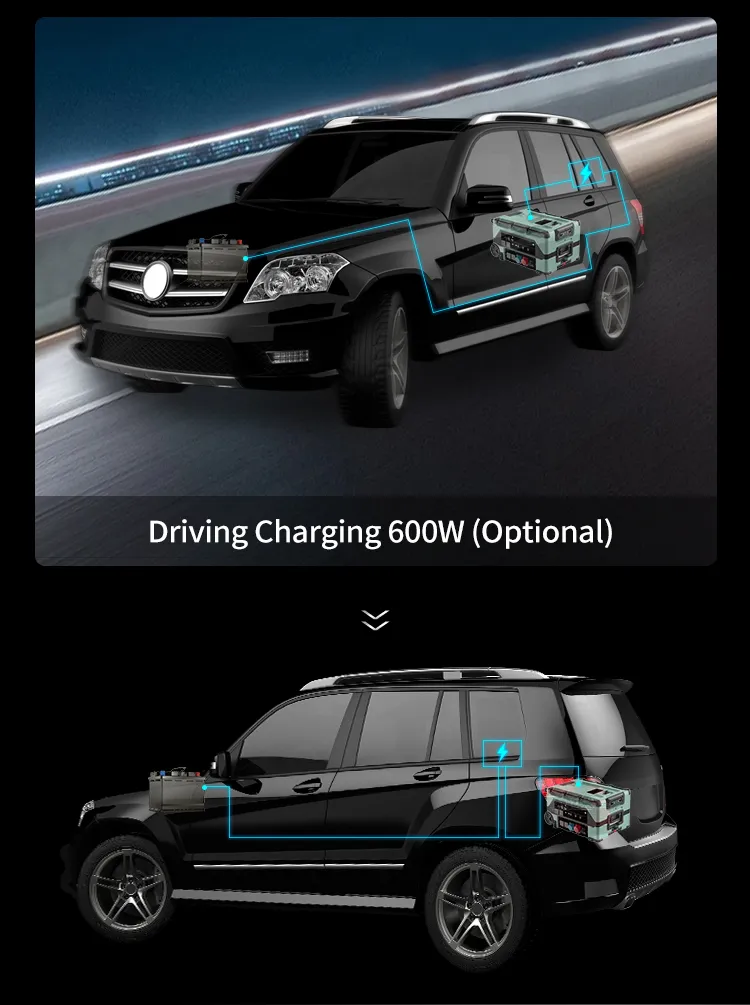

Compatible with utility, solar, EV charger, driving, generator, and wind charging.

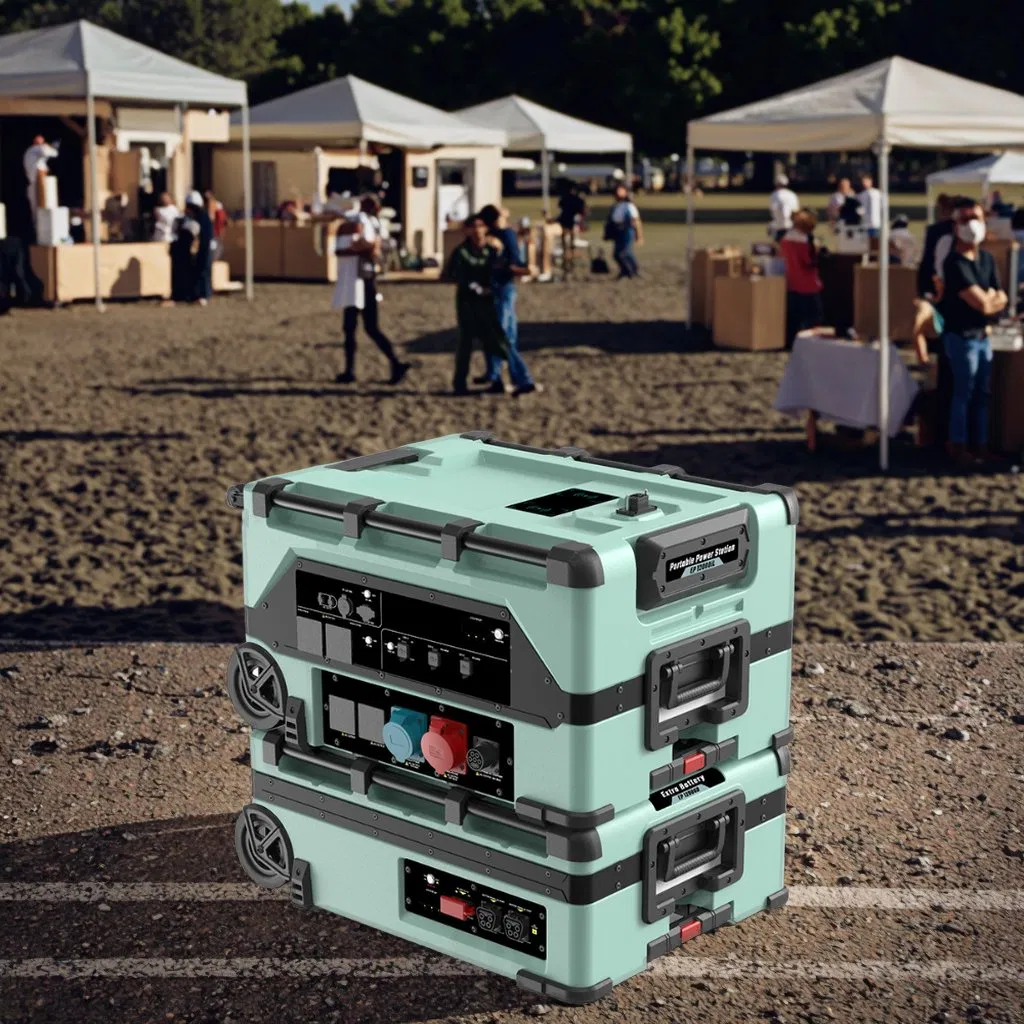

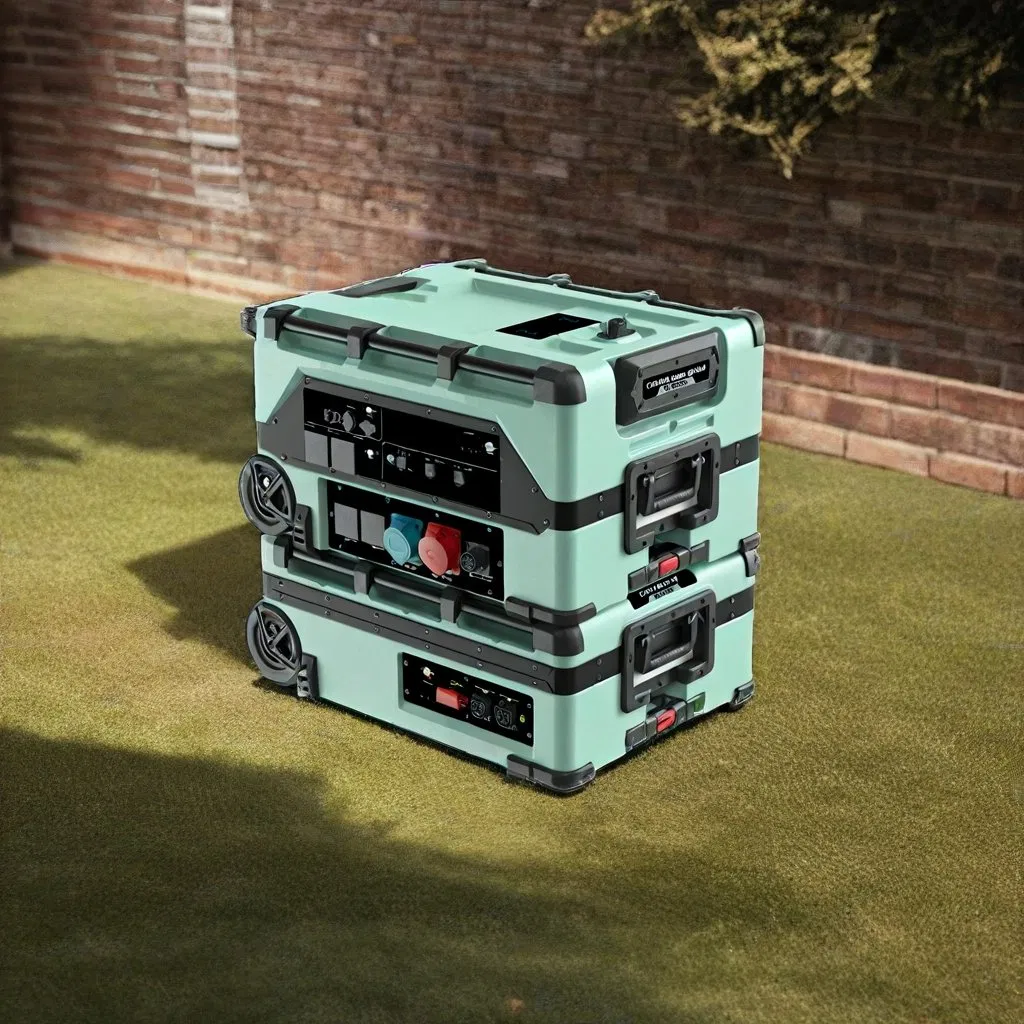

Stackable expansion up to 31 extra batteries (Total 245kWh).

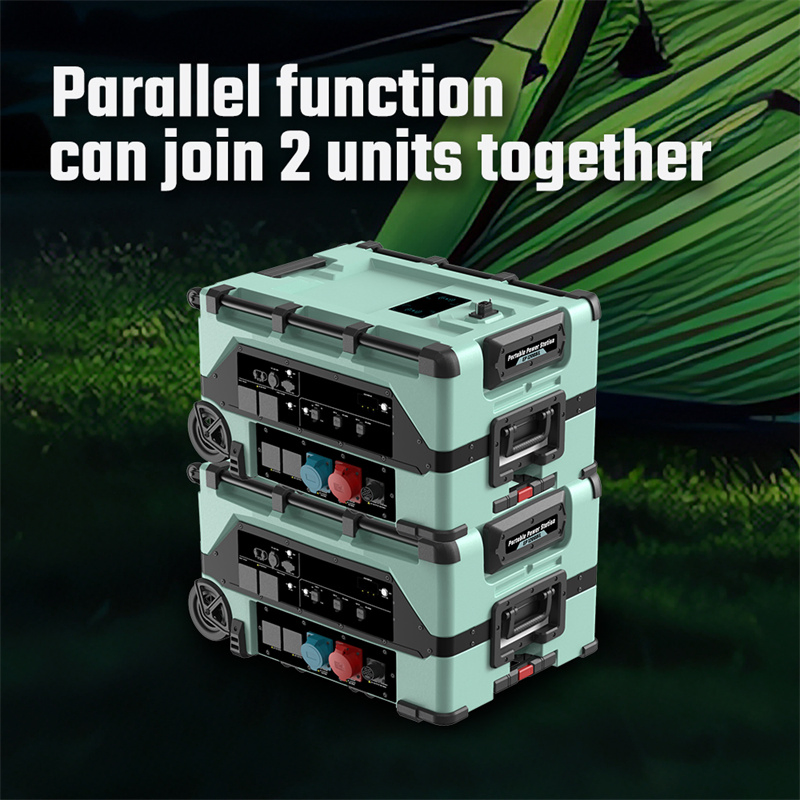

Patented stacked parallel technology for 24kW continuous output.
Built-in EV charger replacing standard stations (up to 22kW).

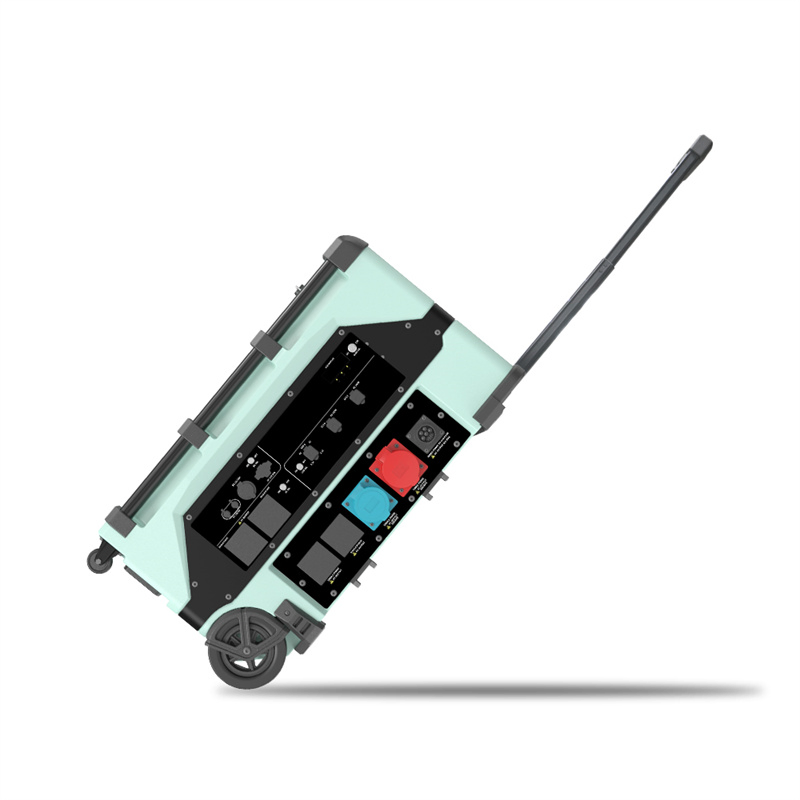

Portable four-wheel chassis and large-diameter wheel design.
Protection grades: Unit IP53 and Battery Pack IP66.
Dual channel cooling system and V-0 level flame-retardant casing.
Smart control and monitoring via mobile APP.
5-year warranty for premium quality assurance.

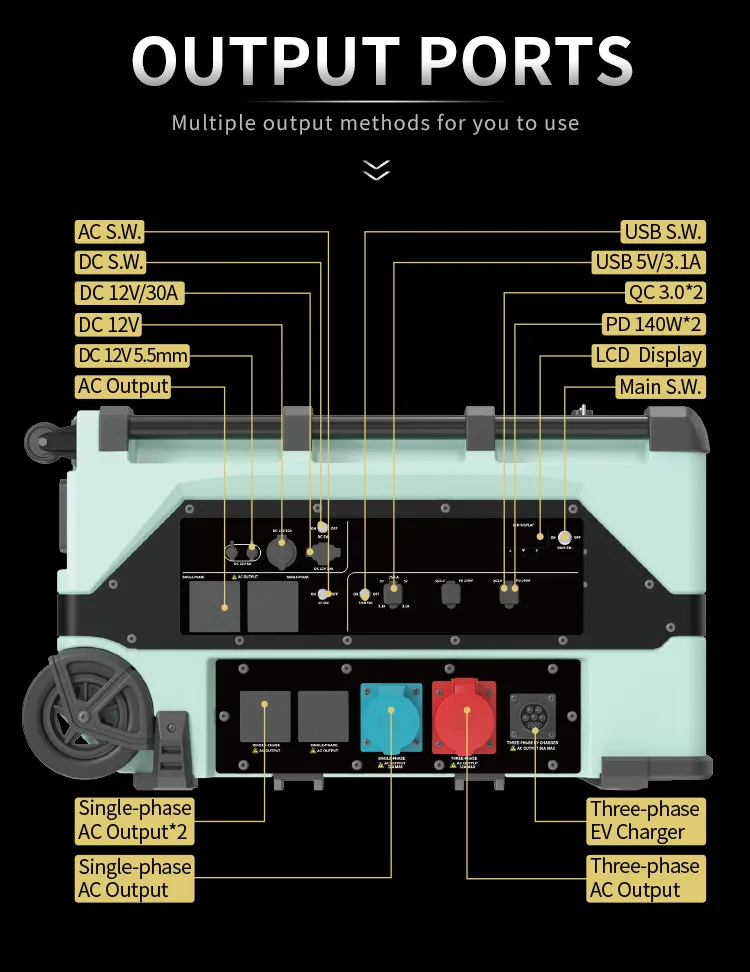

Output Parameters

Output Type	Feature	Specifications
AC Output	Rated Power	12000VA (Three-phase), 11000VA (Single-phase)
AC Output	Peak Power	24000VA (Three-phase), 22000VA (Single-phase)
DC Output	XT90 / Cigarette / 5521	12V/30A, 12V/10A, 12V/6A
USB Output	QC3.0 / Type-C	PD 140W (Type-C), 18W (QC3.0)
Wireless	Dual Pad	2 × 15W

Detailed Photos

Professional Manufacturer

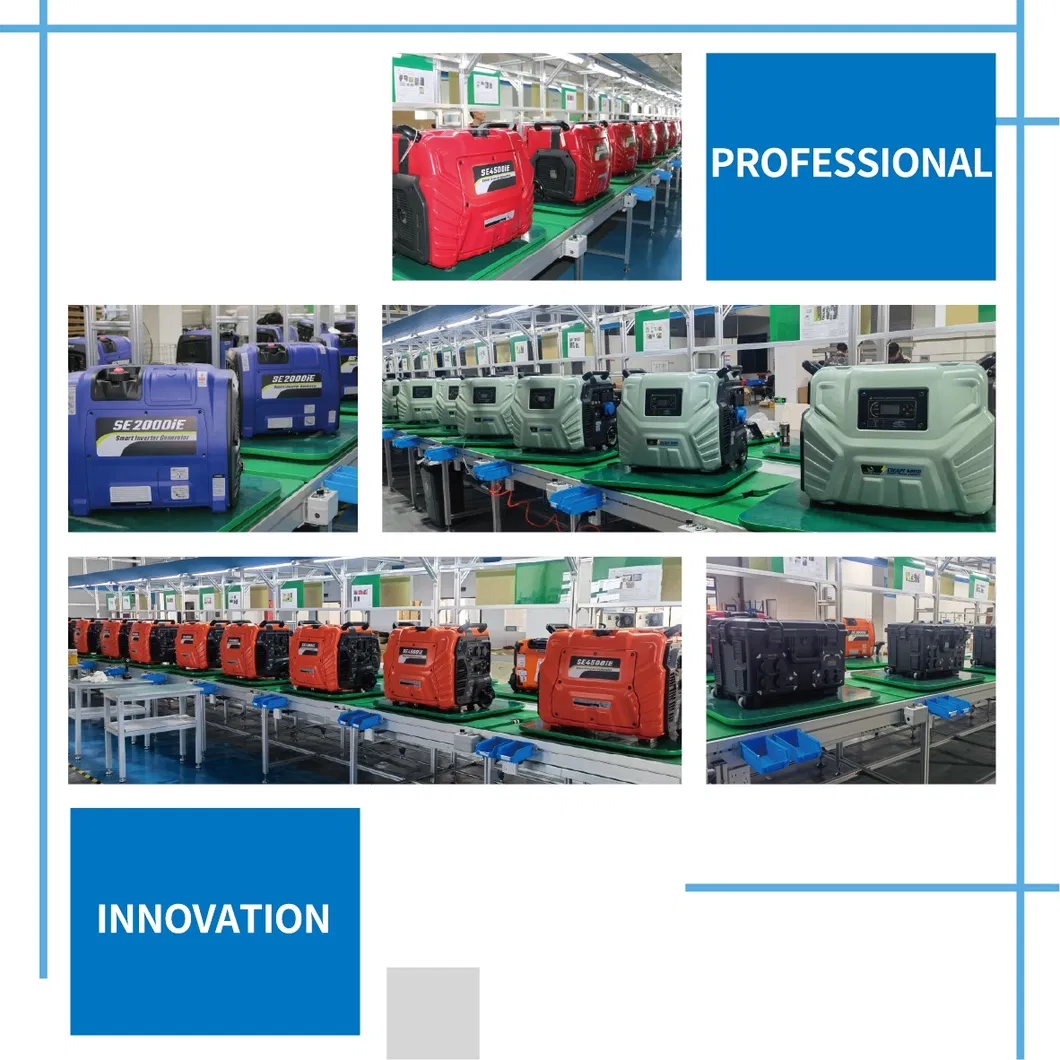

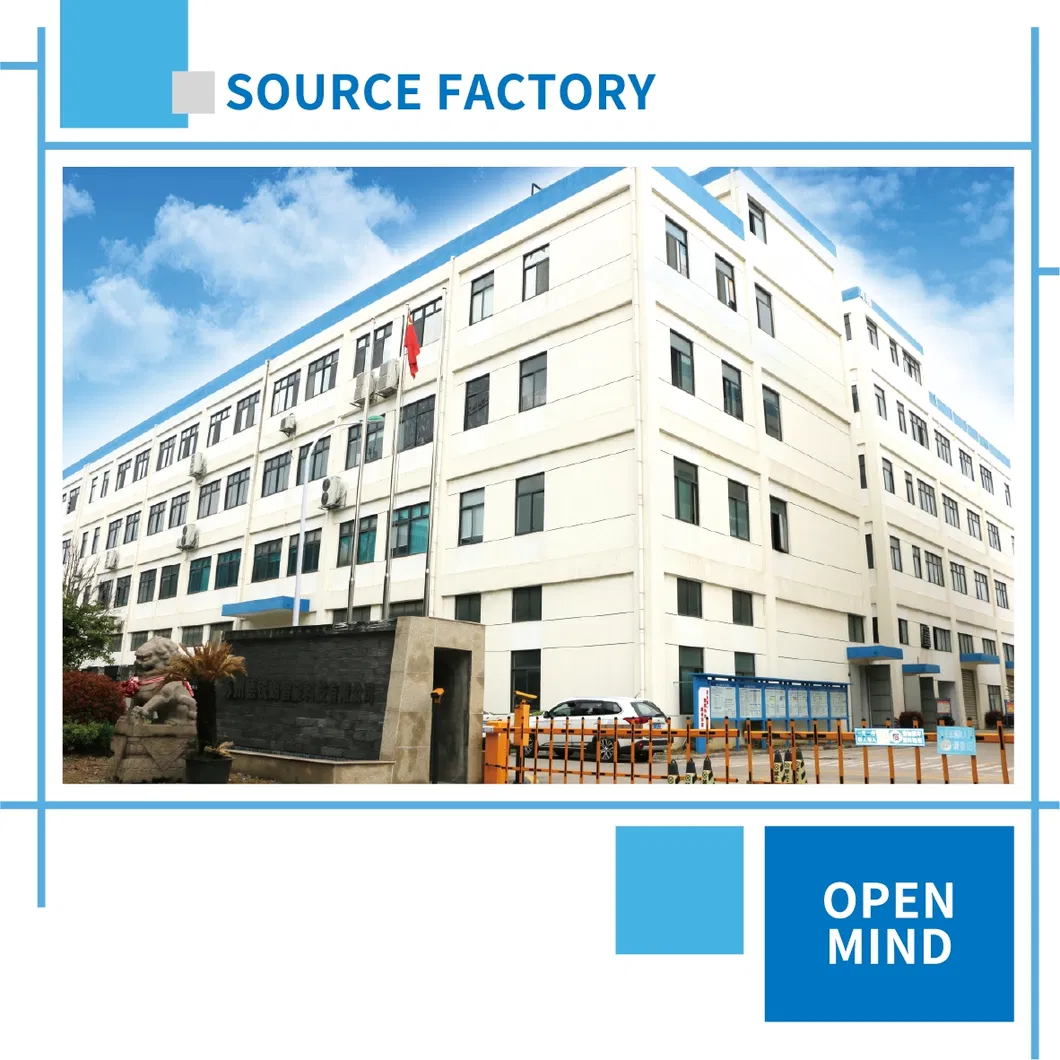

The company was founded in March 2015. With R&D and marketing departments located in Suzhou and manufacturing plants in Jiangsu and Shandong provinces, it is a high-tech enterprise integrated with research, manufacture, and sales. We provide advanced products and services for inverter generators, power equipment, automation systems, and electrical products.

Dedicated to the research and development of intelligent electromechanical products, the company insists on independent innovation. Holding more than 70 critical patents in power equipment and intelligent controllers, the company maintains a leading position in the industry. Our products have earned an excellent reputation in Europe and North America for superior quality and competitive performance.

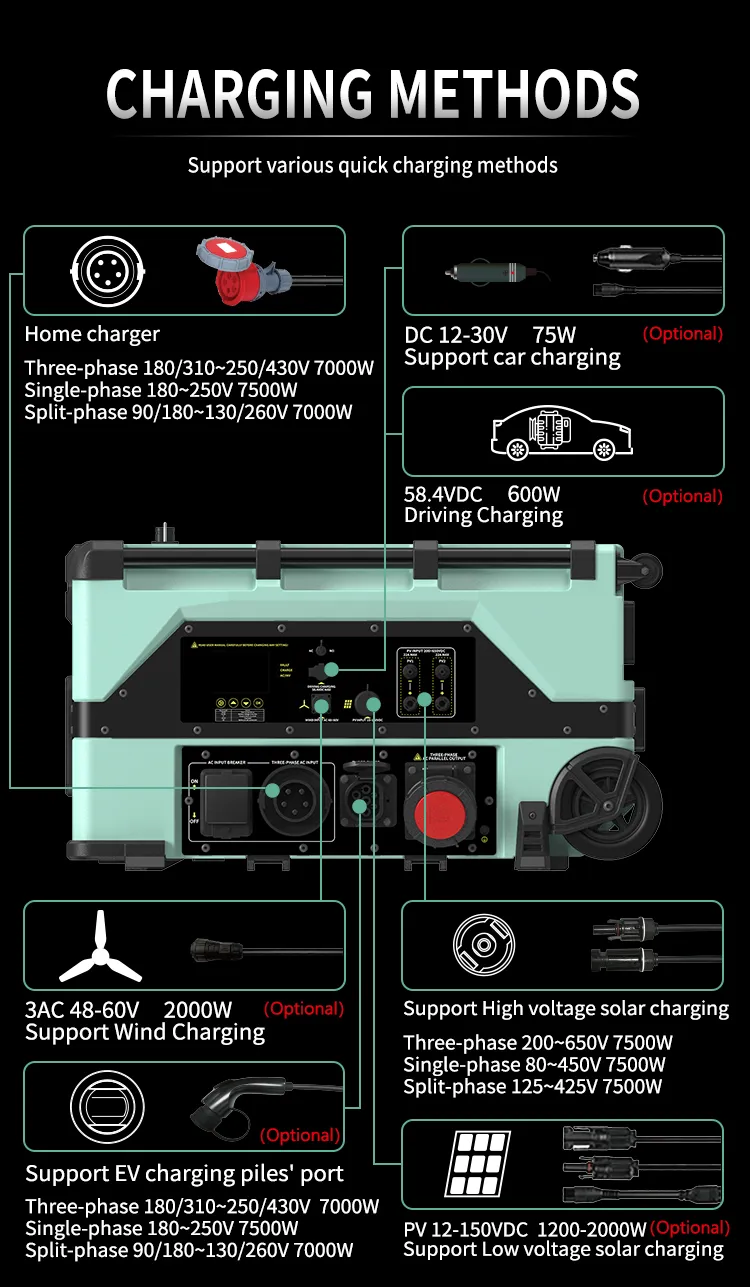

Charging & Input

Method	Type	Max Input / Time

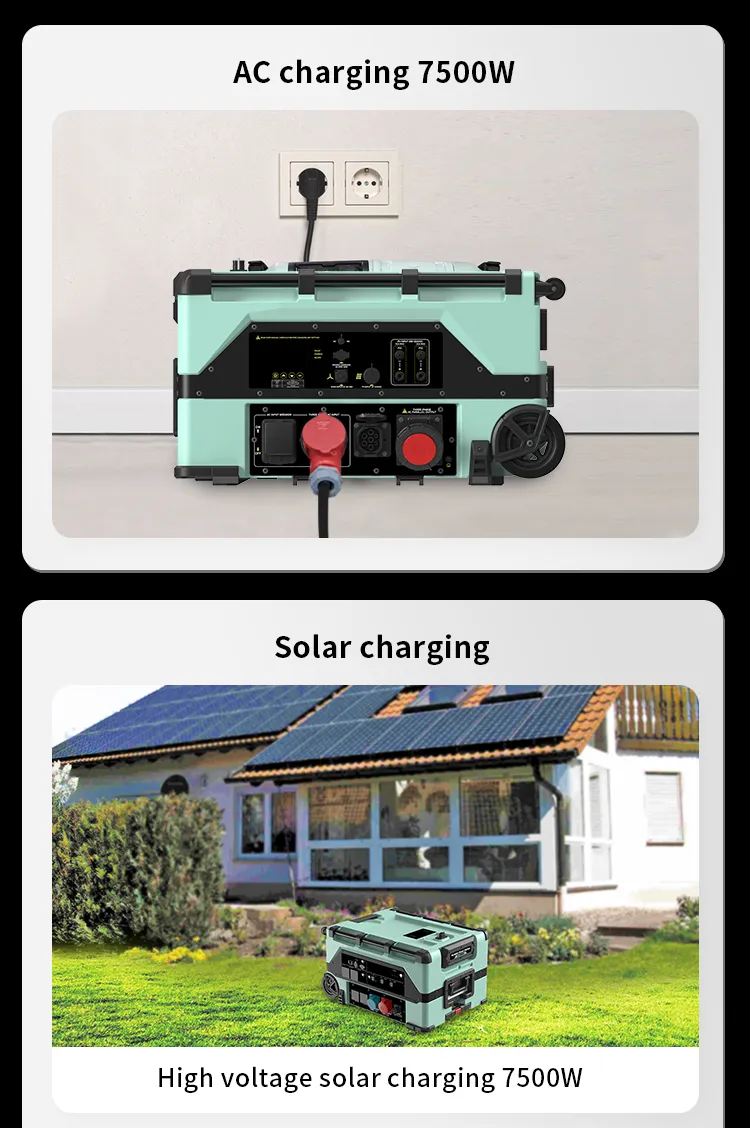

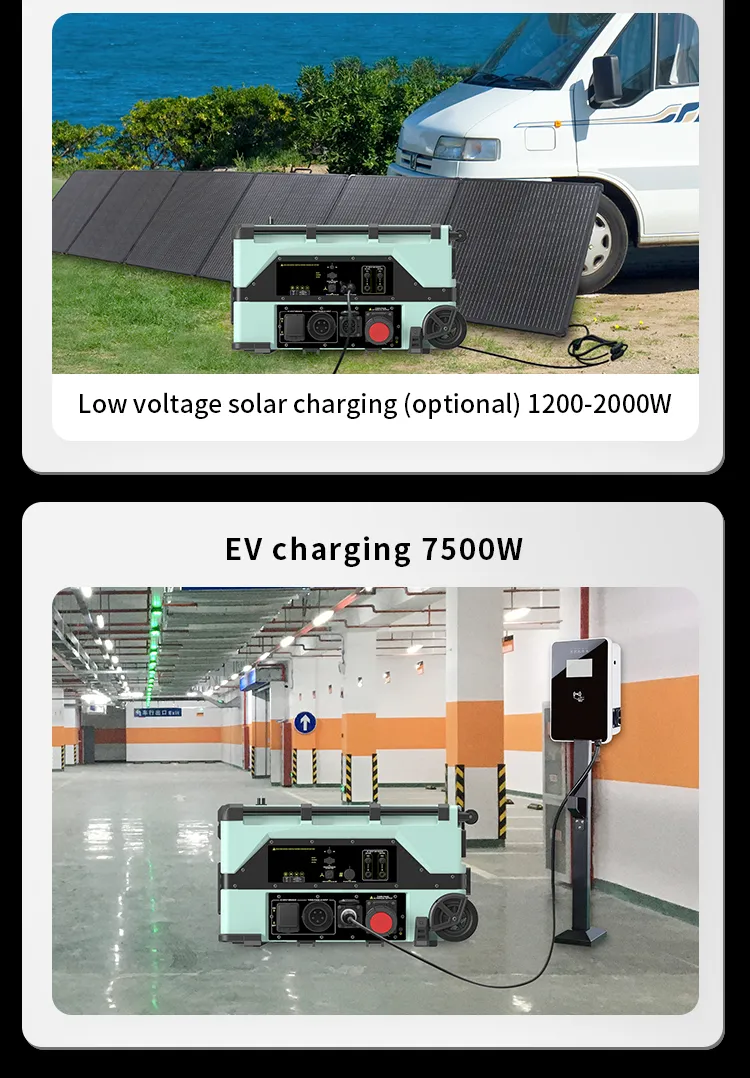

AC Charging	Wall/Generator	7500W / 70 Mins Full
Solar MPPT	High-Voltage	18000W Max / 70 Mins Full
EV Charger	Type 1/2 / GB/T	7500W / 70 Mins Full
Wind Charging	Inside Controller	2000W / 4 Hours Full

Frequently Asked Questions

What is the total capacity and can it be expanded?

The base unit has a 7680Wh capacity. It is highly expandable; you can connect up to 31 extra battery units to reach a total capacity of 245kWh.

How fast can the EP12000iL be charged?

Using AC fast charging or high-voltage solar input, the system can be fully charged in as little as 70 minutes.

What kind of output does it support?

It supports professional-grade outputs including 12kW AC three-phase, 11kW single-phase, and 10kW split-phase, suitable for heavy-duty appliances and tools.

Is the system weather-resistant for outdoor use?

Yes, the main unit is IP53 rated and the battery packs are IP66 rated, providing excellent protection against dust and water.

Can I monitor the system remotely?

Yes, the system features an intelligent control system that can be monitored and managed through a dedicated smartphone APP.

What is the expected lifespan of the battery?

The system uses premium LiFePO4 cells rated for over 3000 cycles while maintaining 80% or more of the original capacity. It also comes with a 5-year warranty.
