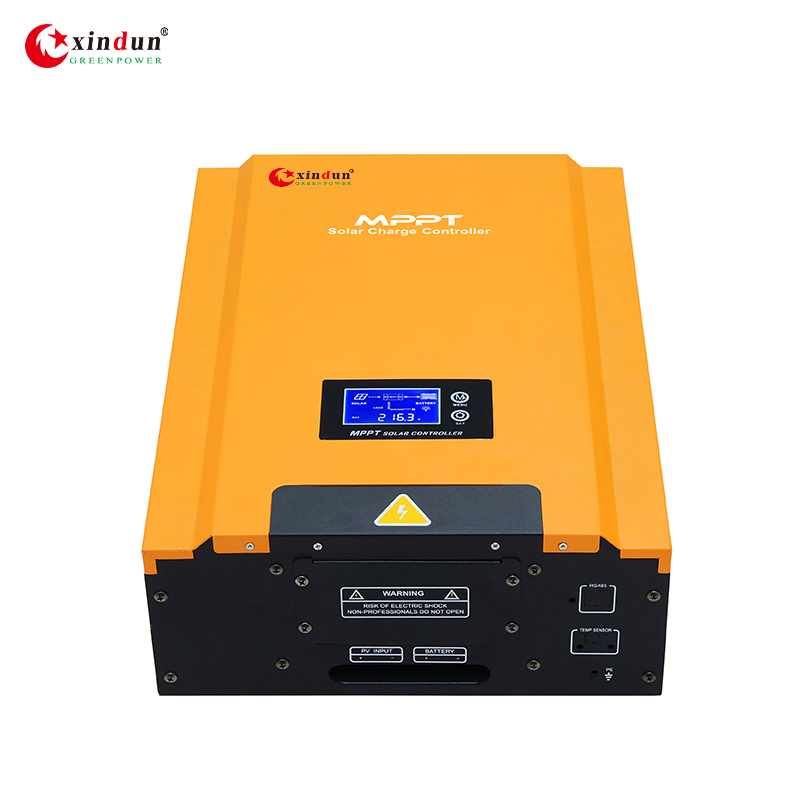

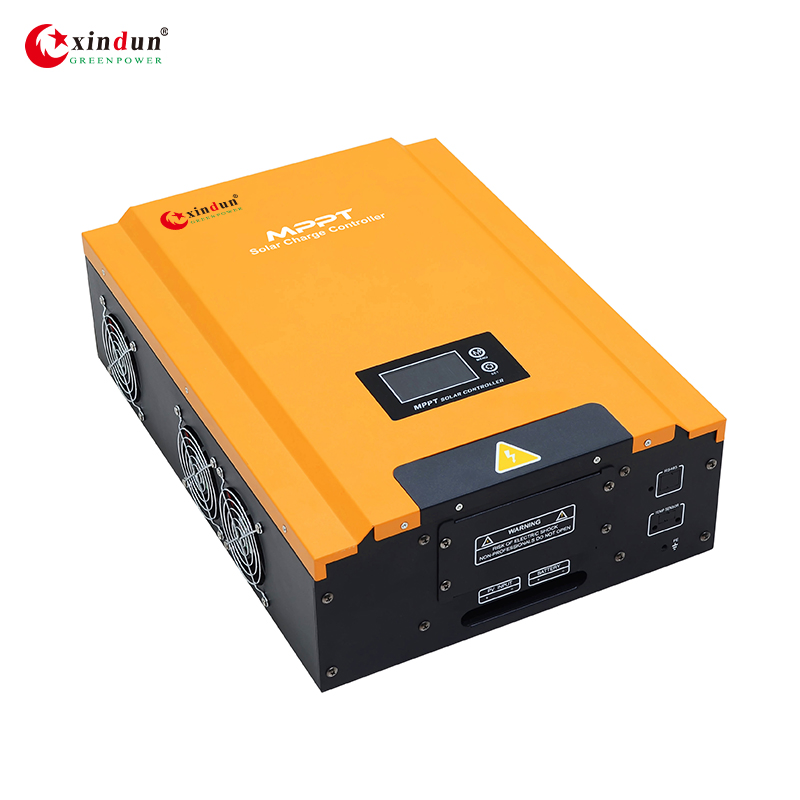

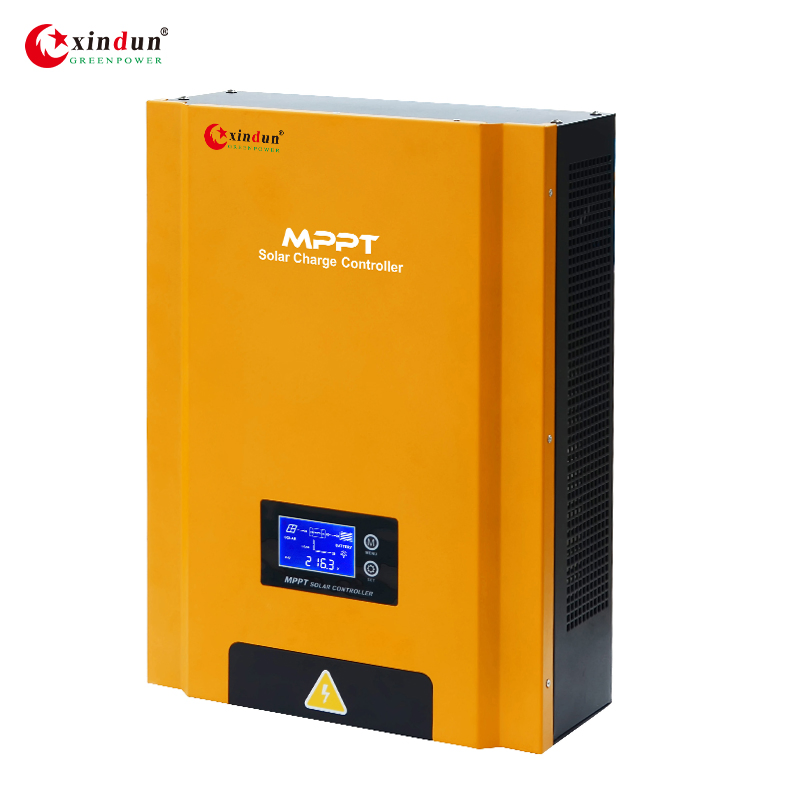

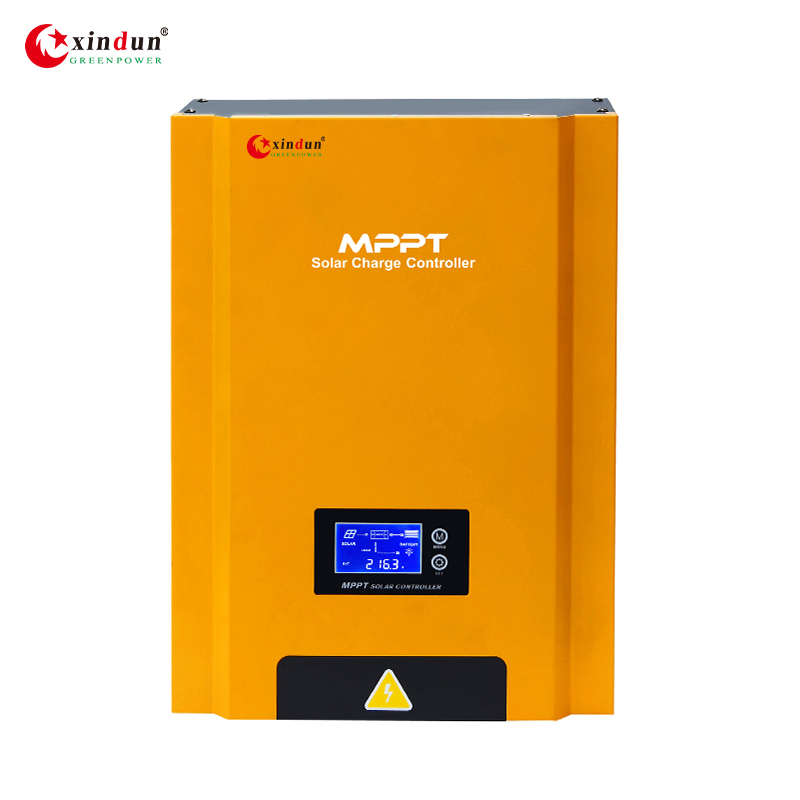

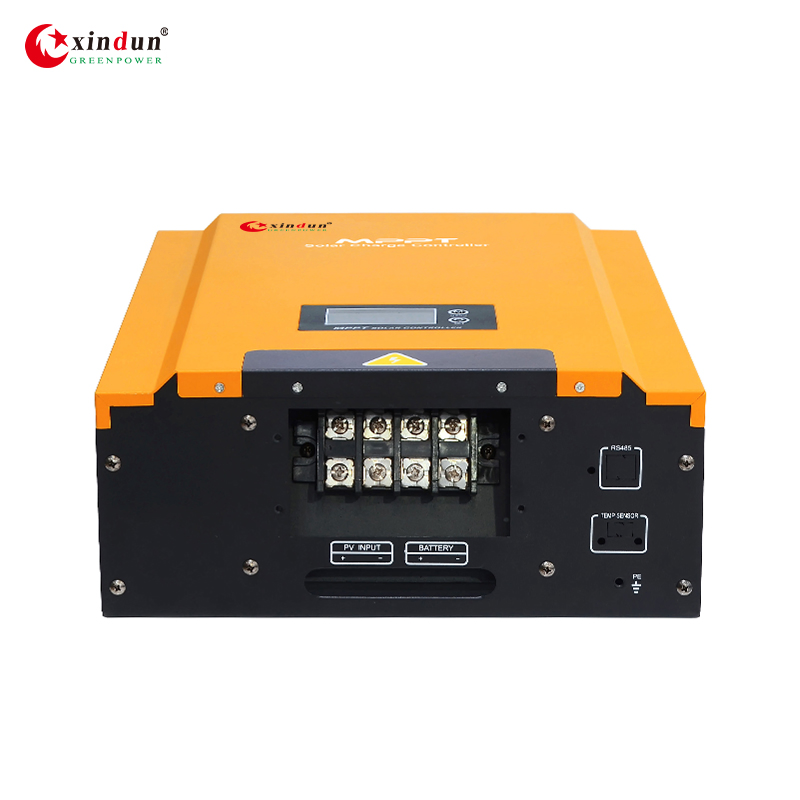

96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
1 / 5
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller
96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller

96 Volt 50A 100AMP Best Smart Control MPPT Solar Battery Charge Regulator Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Year
Send Inquiry

Product Description

⚡ Overview & Basic Info
Model NO.
XD-Wonder1
Condition
New
Certification
ISO, CE
Application
Collector Controller, Solar System Controller, Charger Controller, Voltage Controller
Rated Voltage
96V
Rated Current
50A/100A
Work Time (H)
1~24h
MPPT Efficiency
>99%
Conversion Efficiency
>98%
Max PV Input (Voc)
300V/450V/500V/800V
Cooling Method
Intelligent Fan Control
Display
LCD Display
🚀 Key Features
01
Advanced MPPT tracking with 99% tracking efficiency. Compared with PWM, the generating efficiency increases near 20%.
02
LCD display for real-time PV data and chart simulation of the power generation process.
03
Wide PV input voltage range, providing convenience for various system configurations.
04
Intelligent battery management function to significantly extend battery life.
05
Optional RS485 communication port for enhanced connectivity.
📷 Product Details
MPPT Solar Charge Controller View 1

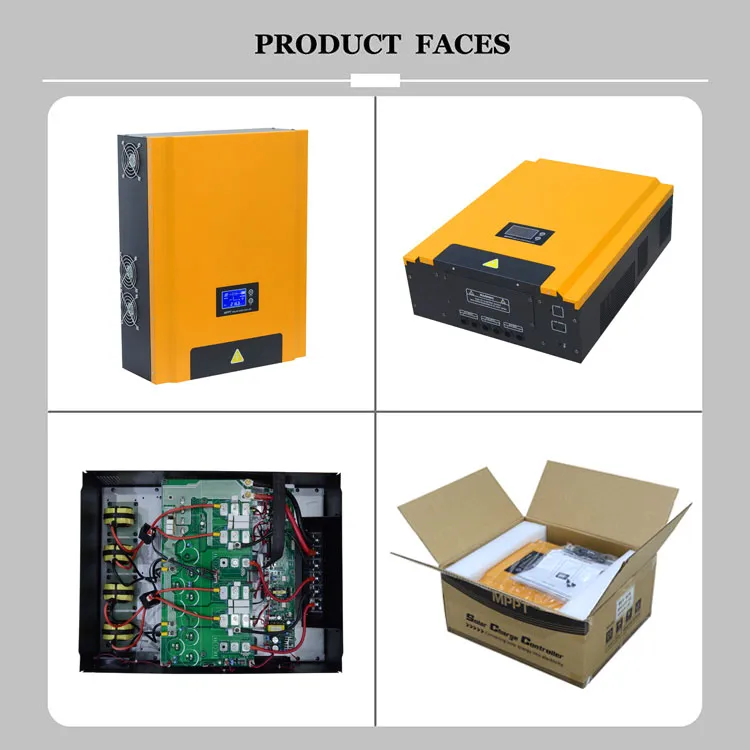

MPPT Solar Charge Controller View 2
📊 Technical Specifications
Model: Wonder1 96/50 96/100 192/50 - 384/50 192/100 - 384/100
Rated Current 50A 100A 50A 100A
Rated System Voltage 96V 96V 192V/216V/240V/384V 192V/216V/240V/384V
Max PV Input Voltage(Voc) 300V(96V) / 450V(192V/216V) / 500V(240V) / 800V(384V)
PV Array Max Power 5.6KW 5.6KW*2 11.2KW - 22.4KW 11.2KW*2 - 22.4KW*2
MPPT Tracking Efficiency >99%
Conversion Efficiency >98%
Battery Type Lead acid battery (Base on user charge specification)
Charging Method Three stages: Constant current(MPPT); Constant voltage; Floating charge
Operating Temperature -15ºC ~ +50ºC
Communication RS485/APP (WIFI or GPRS monitoring optional)
🔌 Wiring & Application

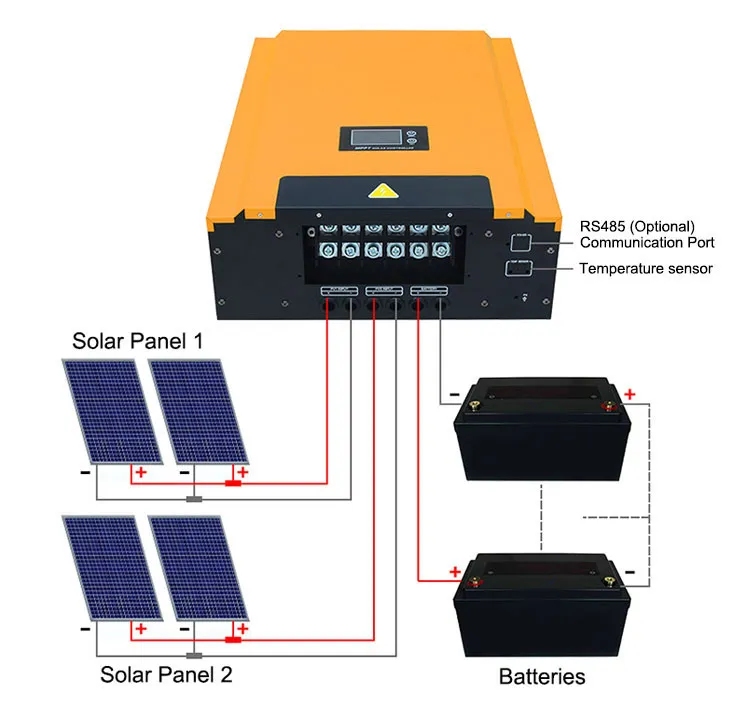

Wiring Diagram

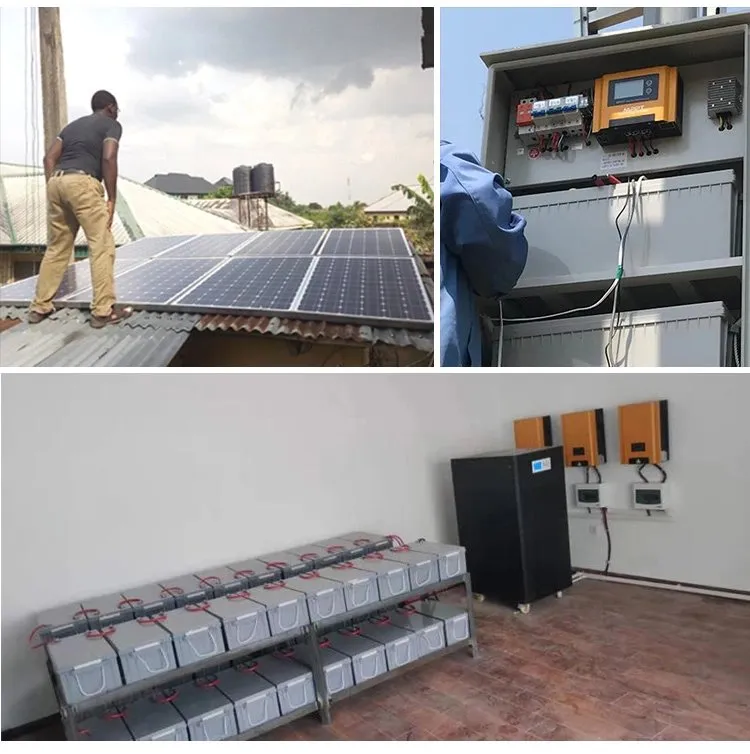

Application Scenario
📦 Packaging & Shipping

Package: Carton Box for standard packaging. Wooden Box is advised for samples to ensure maximum protection during transportation.

Shipping Methods:

  • Fedex/ DHL/ TNT/ UPS for samples (Door-to-Door).
  • By air or by sea for batch goods.
  • Customer-specified freight forwarders or negotiable methods.
  • Delivery Time: 7 days for samples; 10 to 25 days for batch goods.
🏭 Production & Workshop
Production Facility 1
Production Facility 2

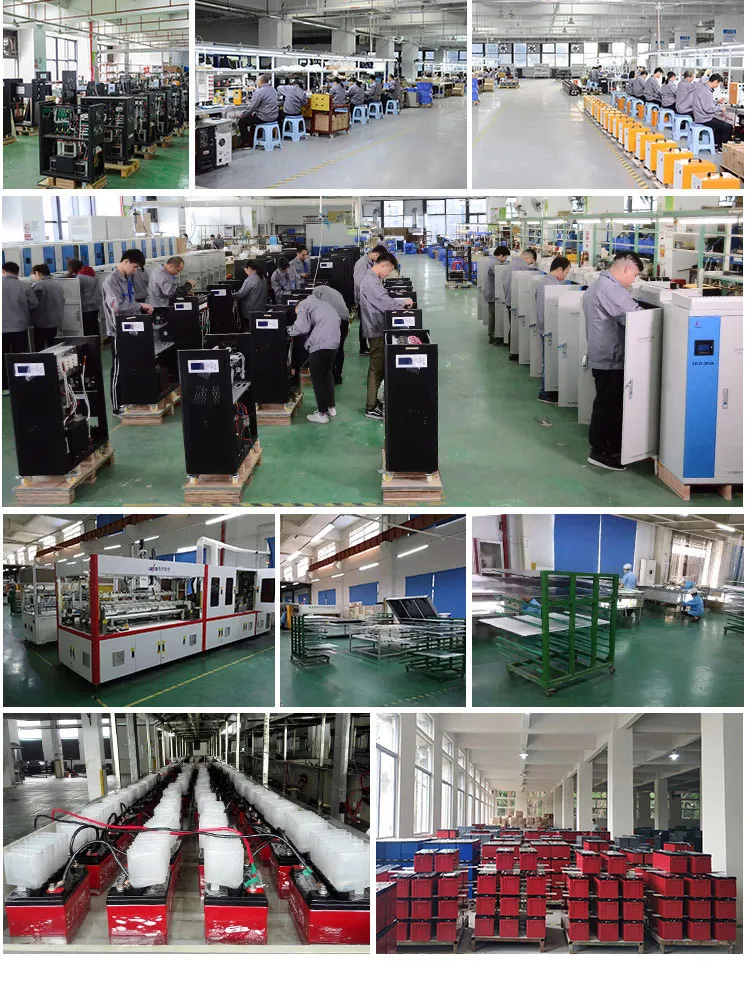

Workshop View
❓ Frequently Asked Questions
1. What is the tracking efficiency of this MPPT controller?
The controller features advanced MPPT tracking technology with a tracking efficiency of over 99%, which can increase power generation by nearly 20% compared to PWM controllers.
2. What types of batteries are compatible with this device?
It is primarily designed for lead-acid batteries, but the charging specifications can be adjusted based on the user's specific battery requirements.
3. Does the controller support remote monitoring?
Yes, it offers an optional RS485 communication port and supports WiFi or GPRS monitoring via a dedicated APP.
4. How does the cooling system work?
The unit utilizes an intelligent fan control system for thermal management, ensuring the device stays within safe operating temperatures efficiently.
5. What protections are built into the controller?
It includes comprehensive protection features such as over-voltage, under-voltage, over-temperature, and anti-reverse protection for both the PV array and the battery.
6. What is the maximum PV input voltage supported?
Depending on the system voltage, the maximum PV input (Voc) can range from 300V for 96V systems up to 800V for 384V systems.
