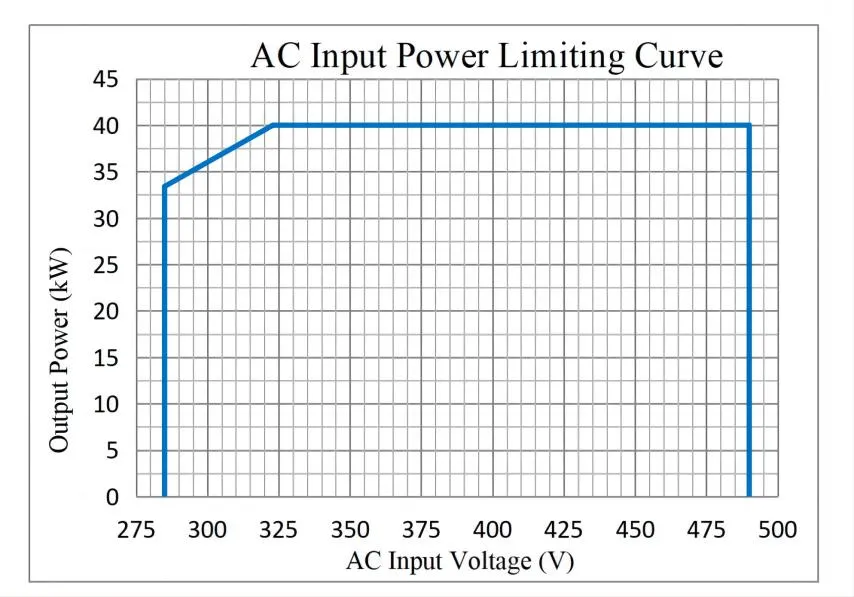

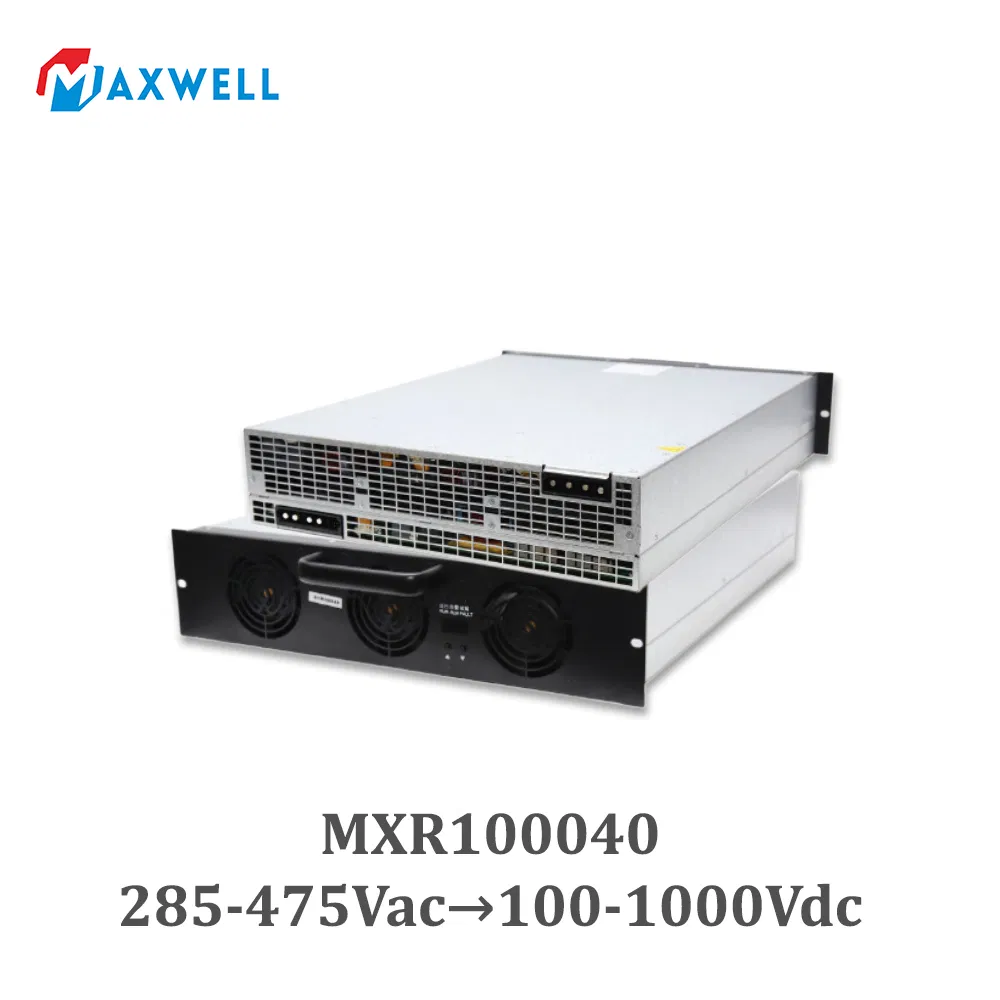

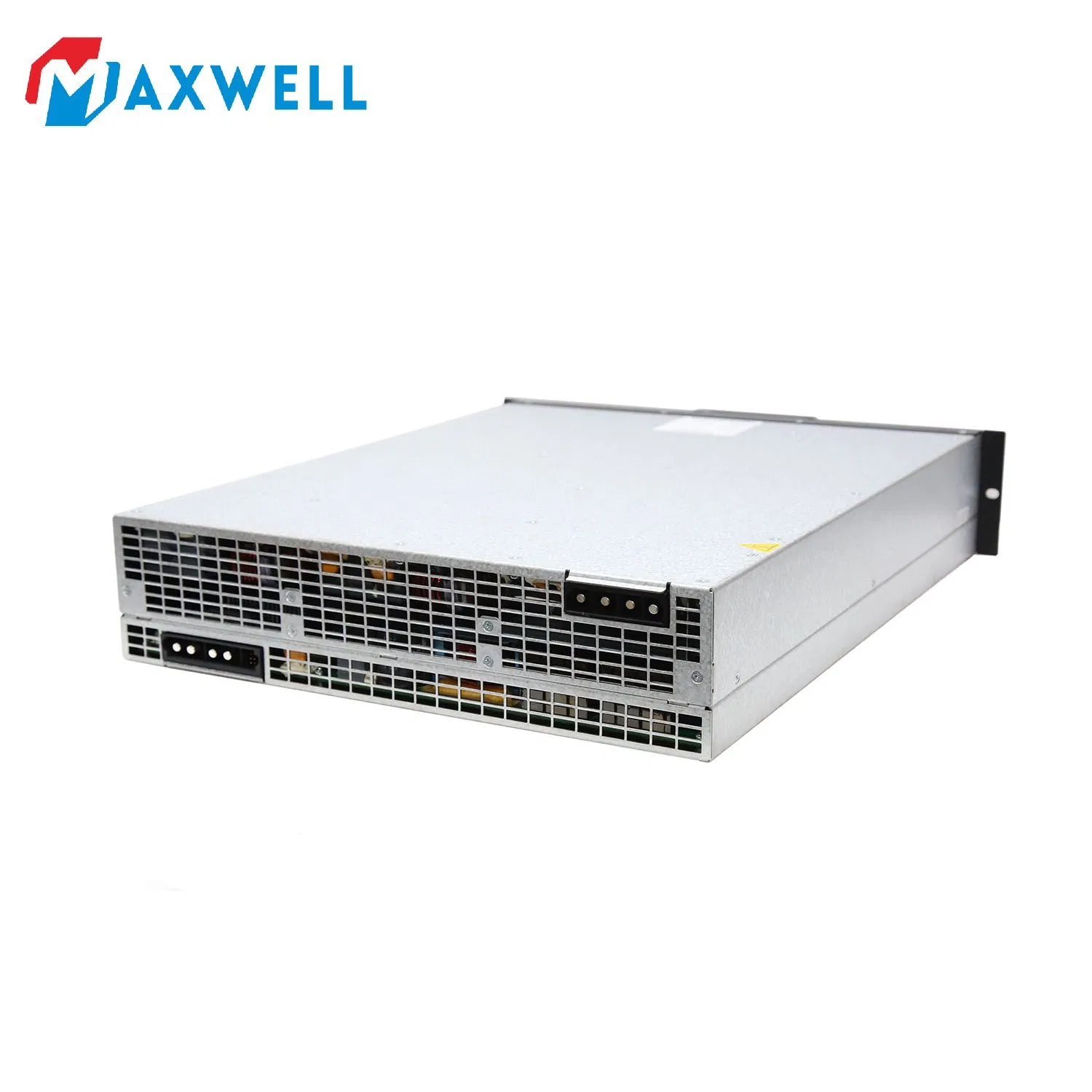

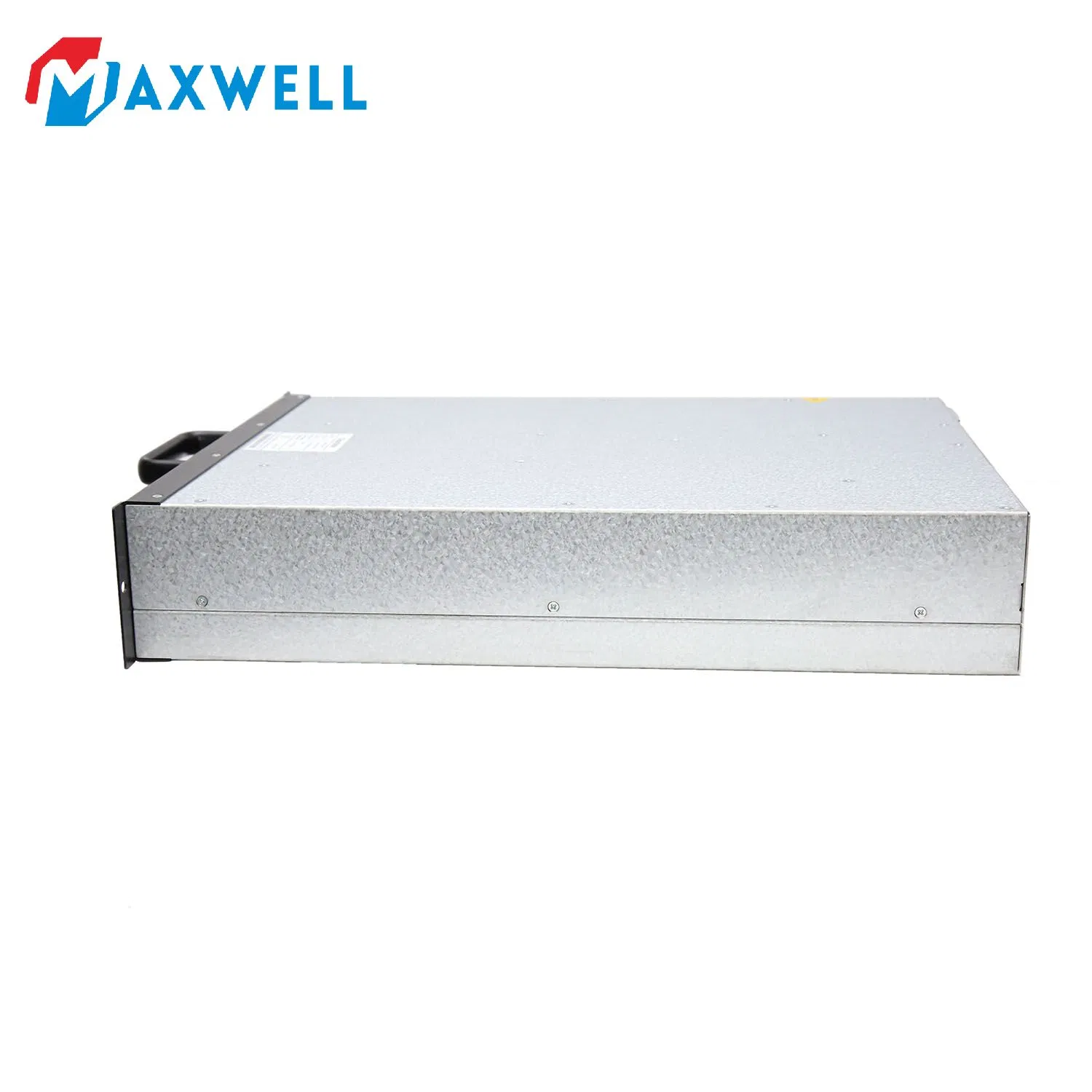

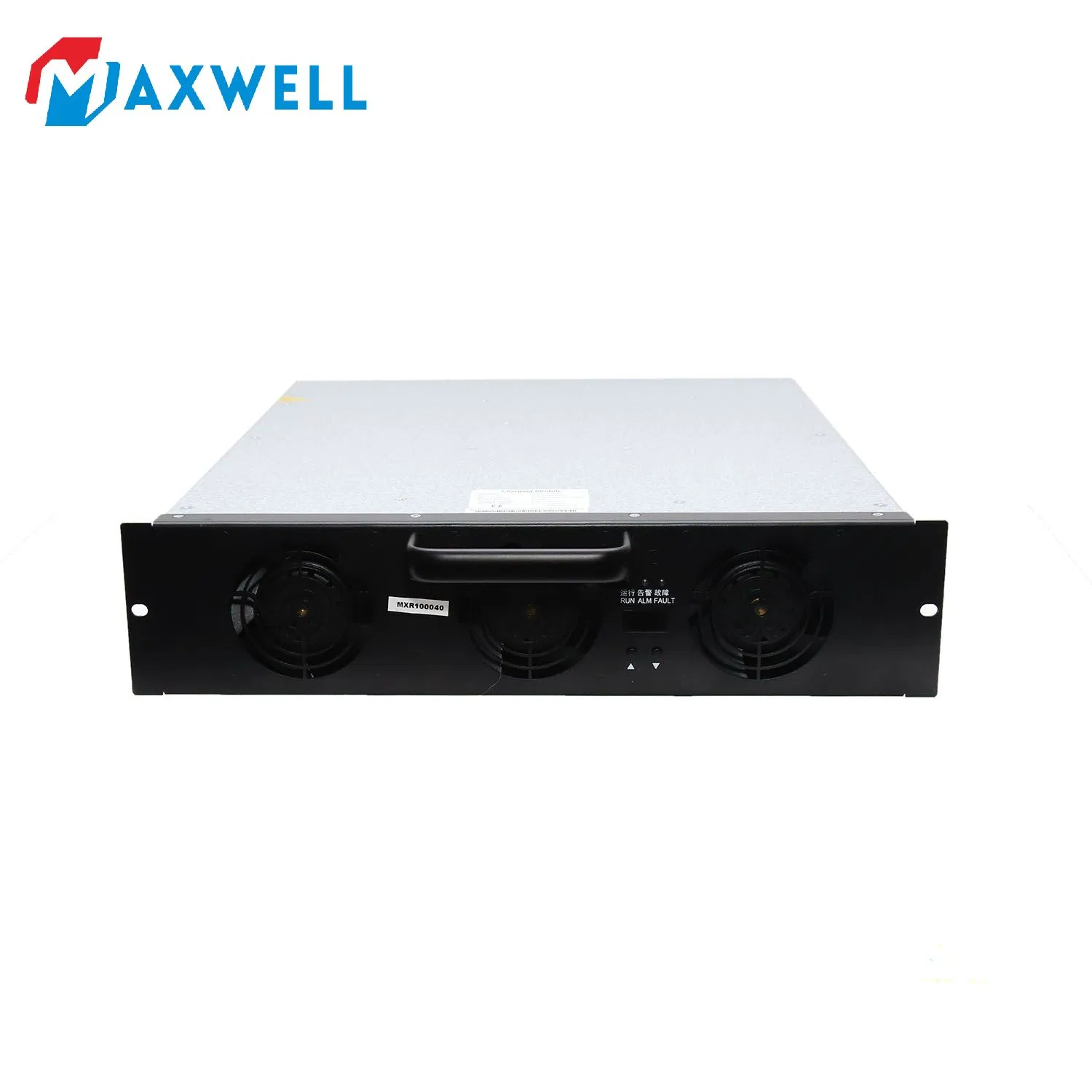

The MXR100040 is a high-efficiency AC/DC charging module specifically engineered for premium electric vehicle charging infrastructure. It supports a robust 285VAC~475VAC three-phase four-wire system (A/B/C +PE) input.

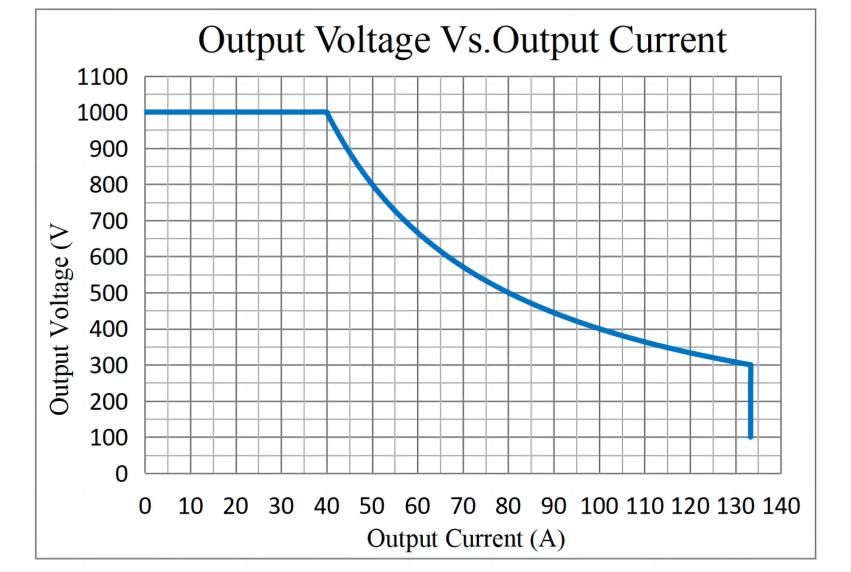

With an expansive output voltage range of 100VDC to 1000VDC and a maximum current of 133.3A, this 40kW module delivers superior power density. Designed for extreme environments, it operates reliably from -40°C to 75°C (derating applies above 60°C).
| Dimensions | 85mm(H) * 360mm(W) * 459mm(D) |
| Communication | CAN bus |
| Input Voltage Range | 285Vac - 475Vac, three phase + PE |
| Power Factor | ≥0.99 |
| Rated Output Power | 40kW |
| Output Voltage Range | 100Vdc - 1000Vdc |
| Efficiency | High-Efficiency Conversion |

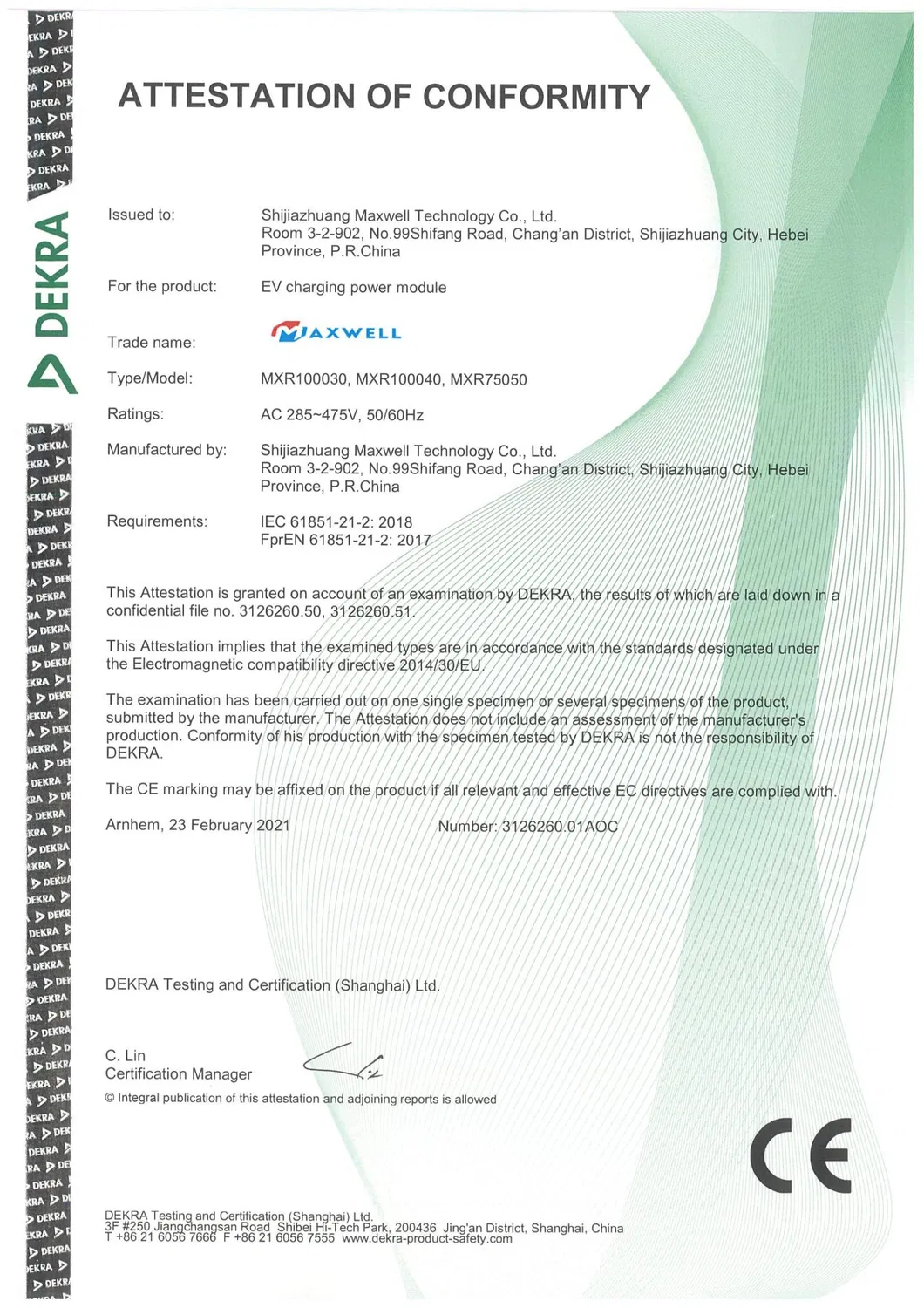

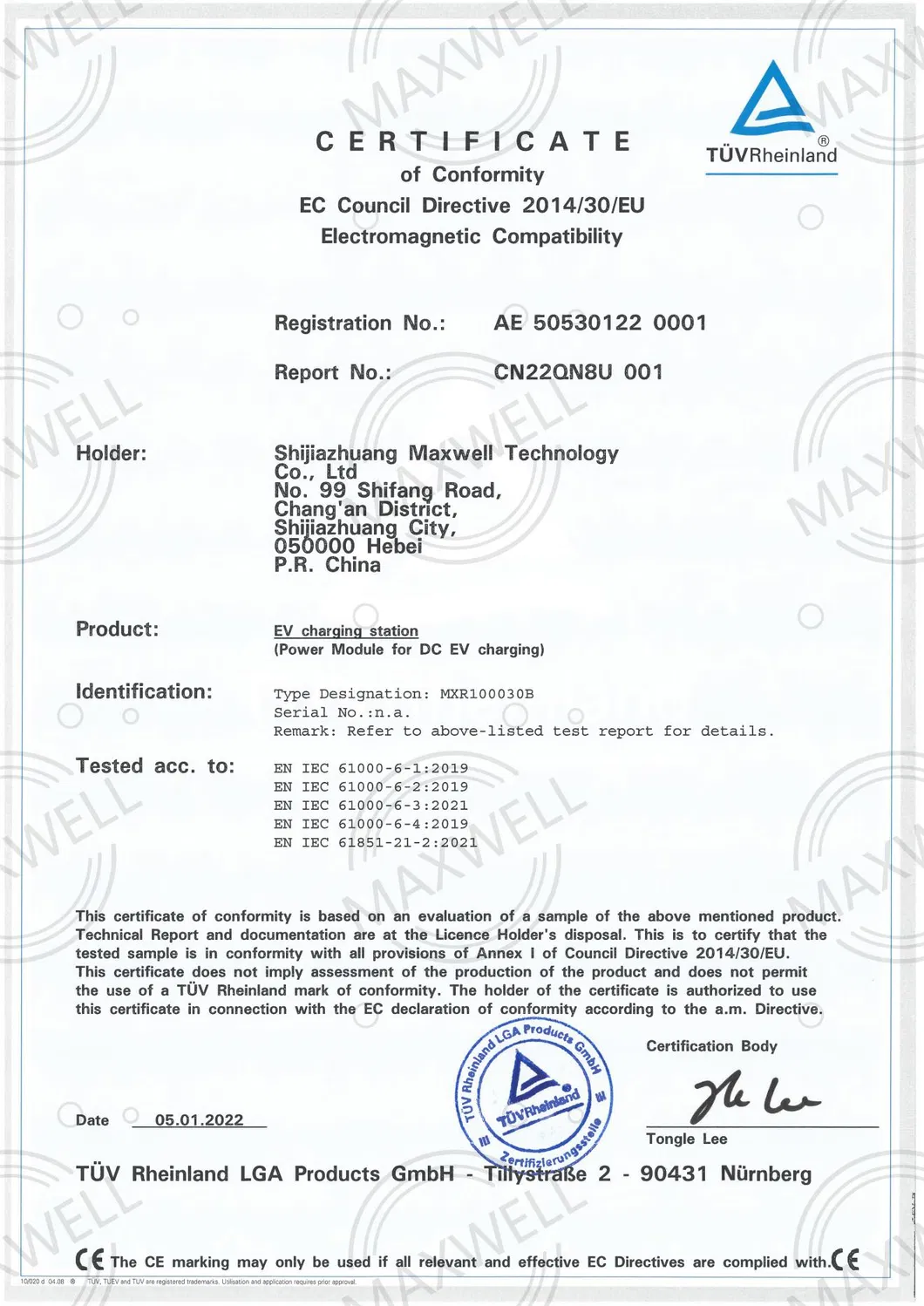

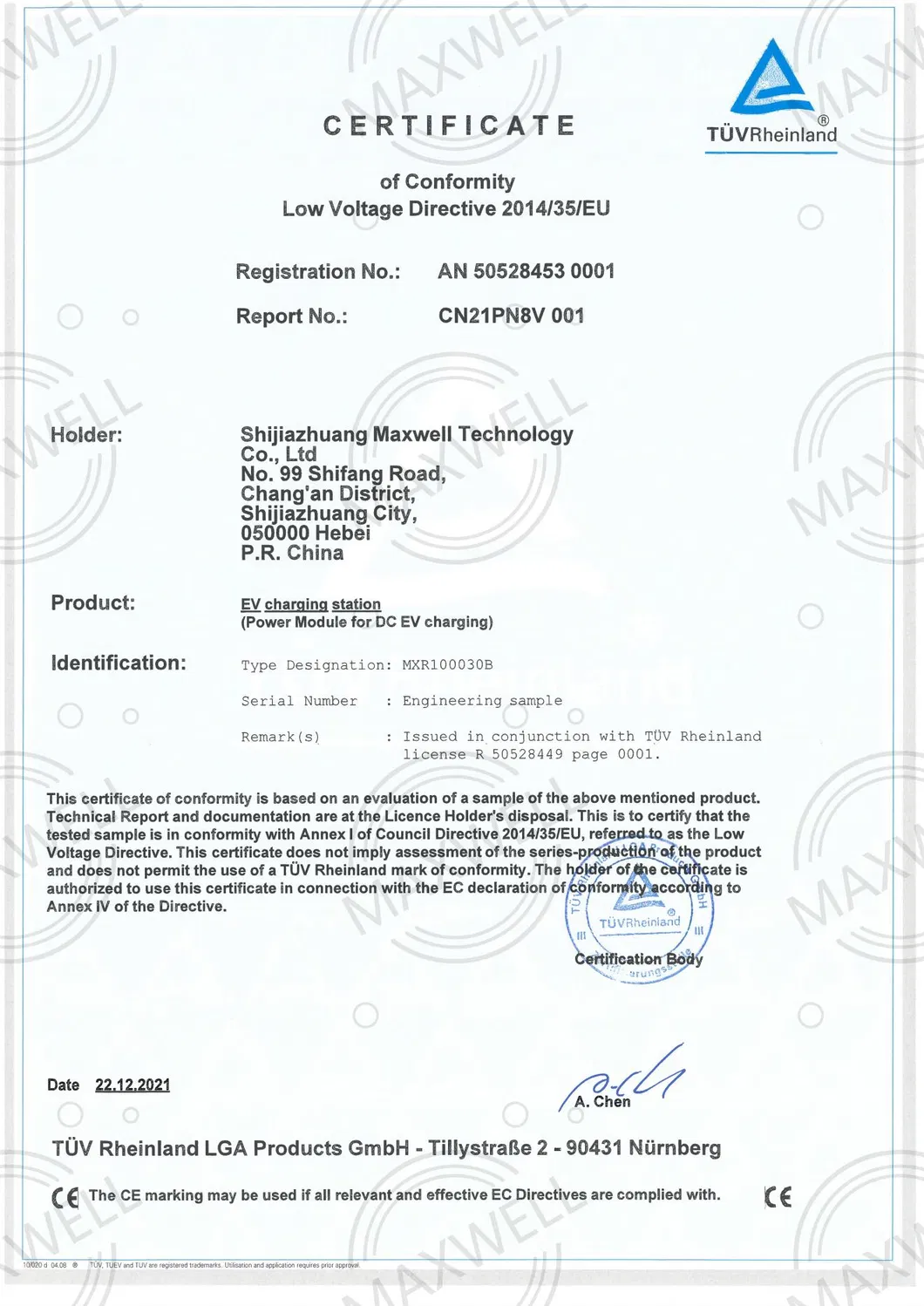

| EMC Compliance | CE (EMI Class B) Reference IEC61000-6-3 |

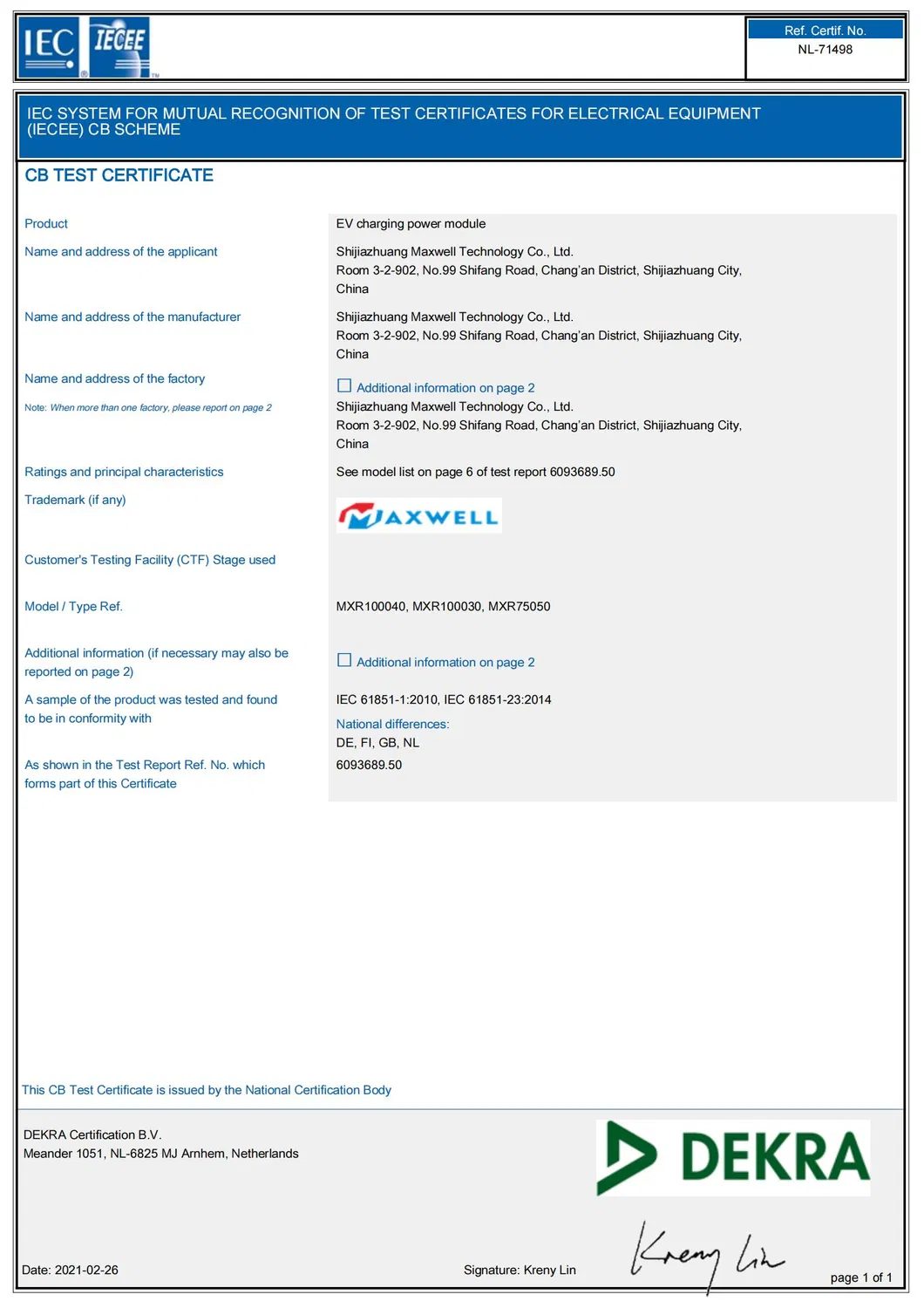

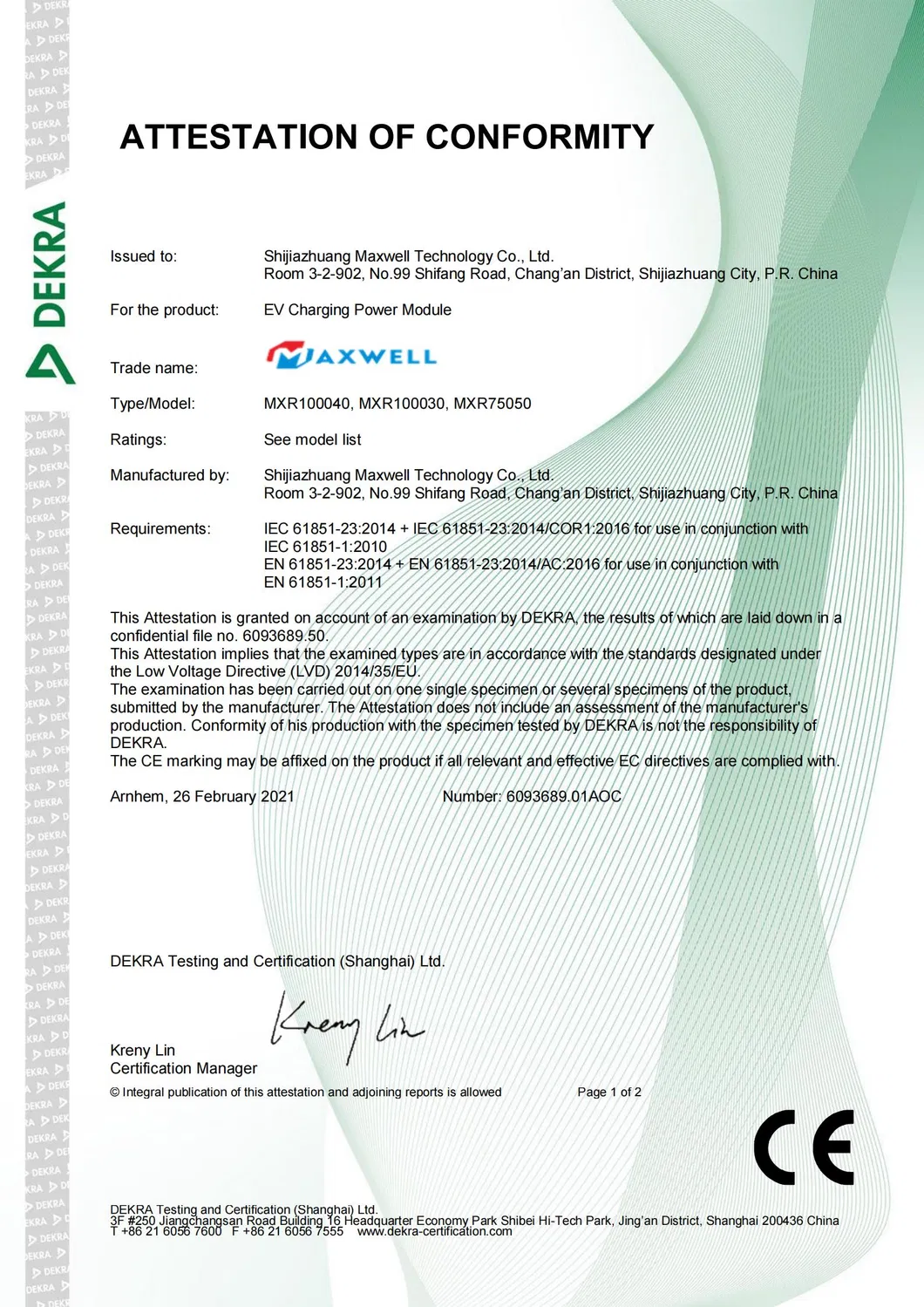

| Standards | IEC61851; EN61851 |

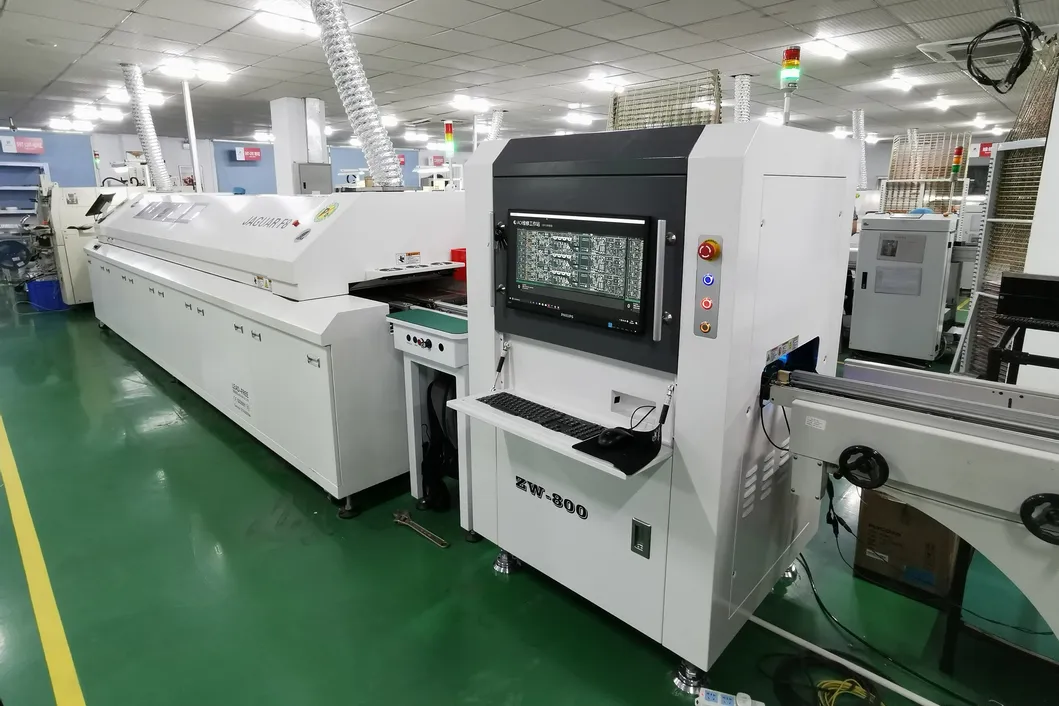

With over a decade of expertise in power electronics, our manufacturing facility focuses on the R&D and production of mid-to-high-end DC power supply systems. We specialize in automotive DC charging modules ranging from 15kW to 50kW, serving global markets with standards-compliant products for automotive, railway, and communication sectors.
