40kw EV Charging Module for DC Fast Electric Car Charger

1 / 5

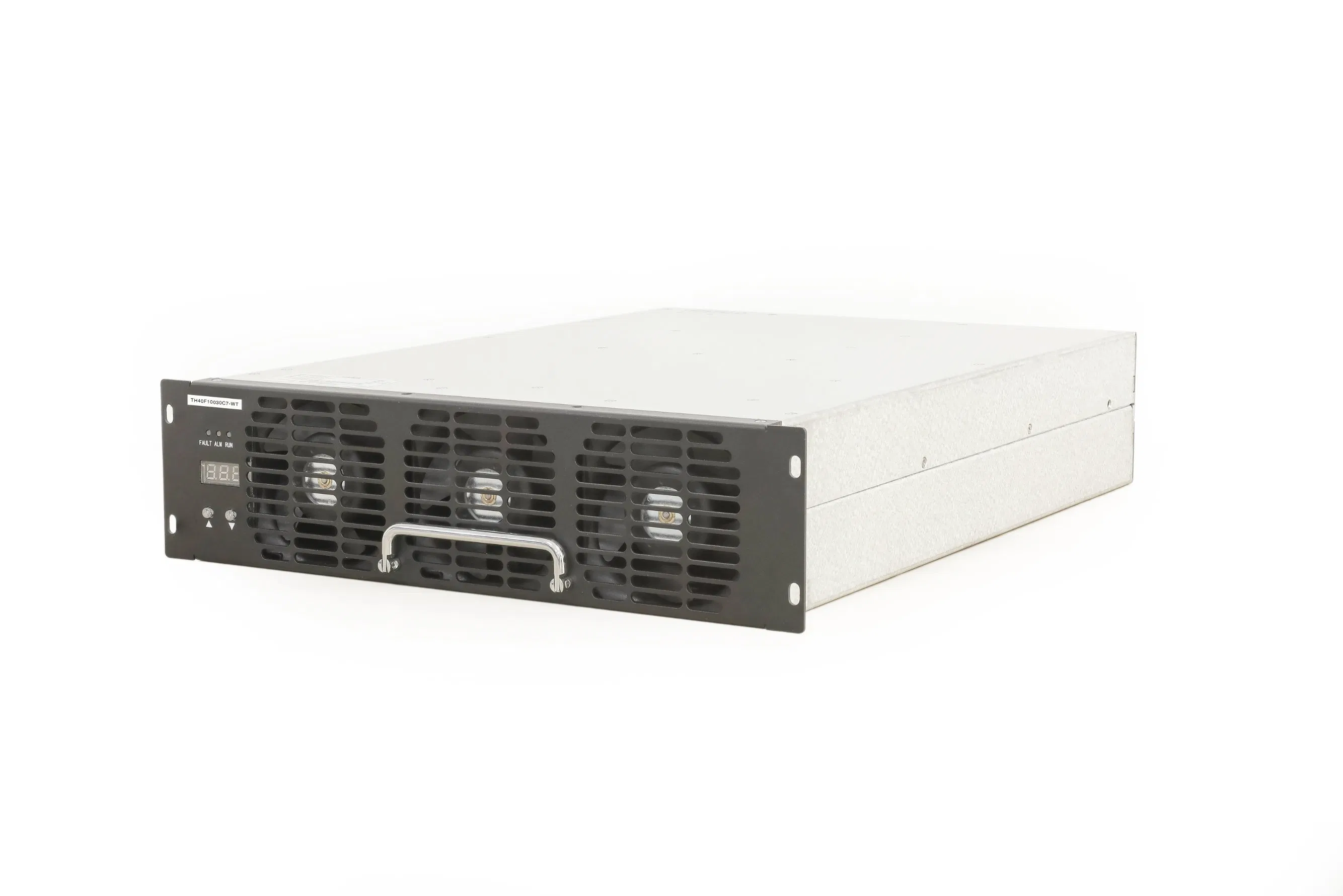

40kw EV Charging Module for DC Fast Electric Car Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	TH40F10030C7-WT	Peak Efficiency	≥ 96%
Output Power	40kW	Working Temperature	-40℃ to 75℃
IP Degree	IP54	Cooling Method	Fan Cooling
Output Voltage	50~1000VDC	Protocol	CAN Bus

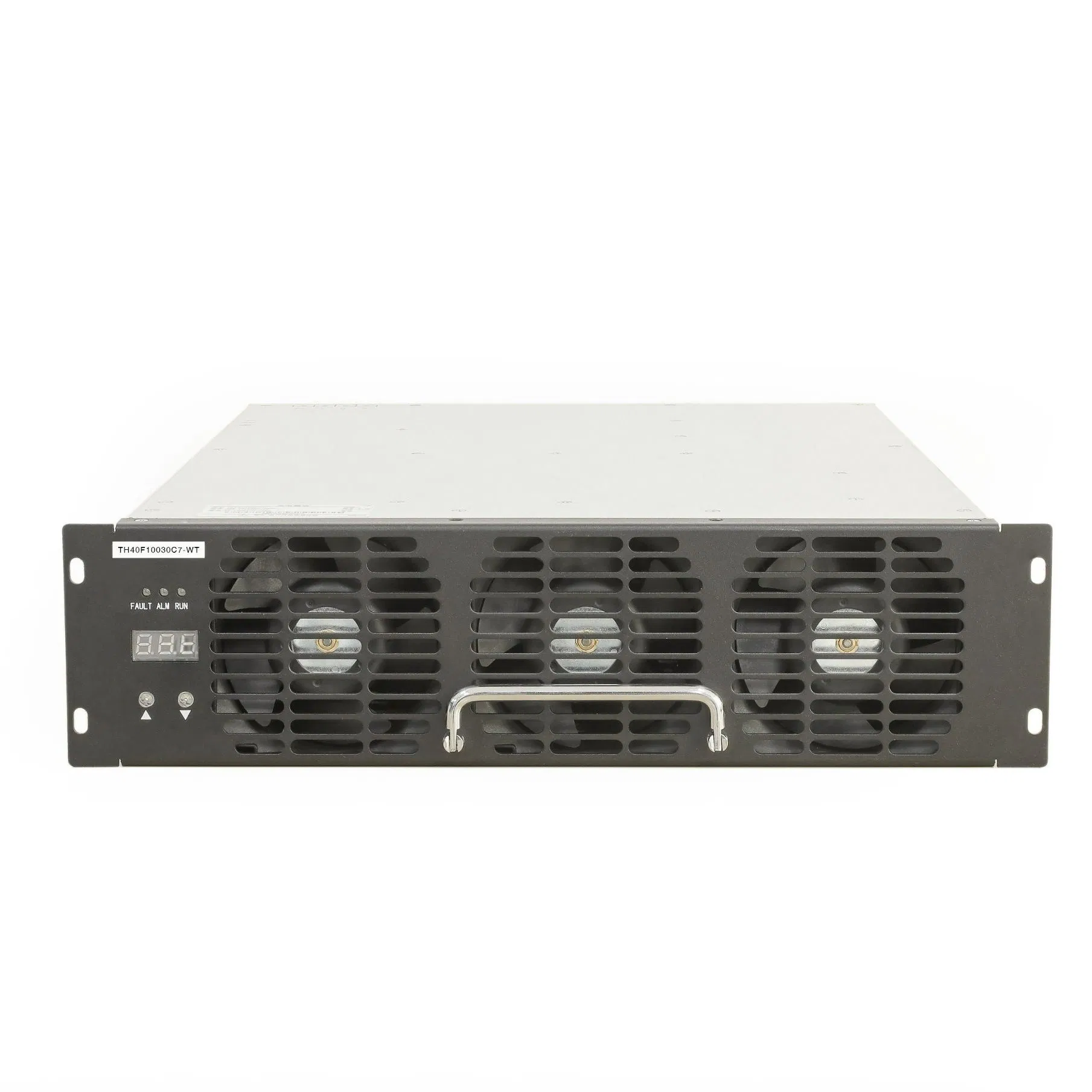

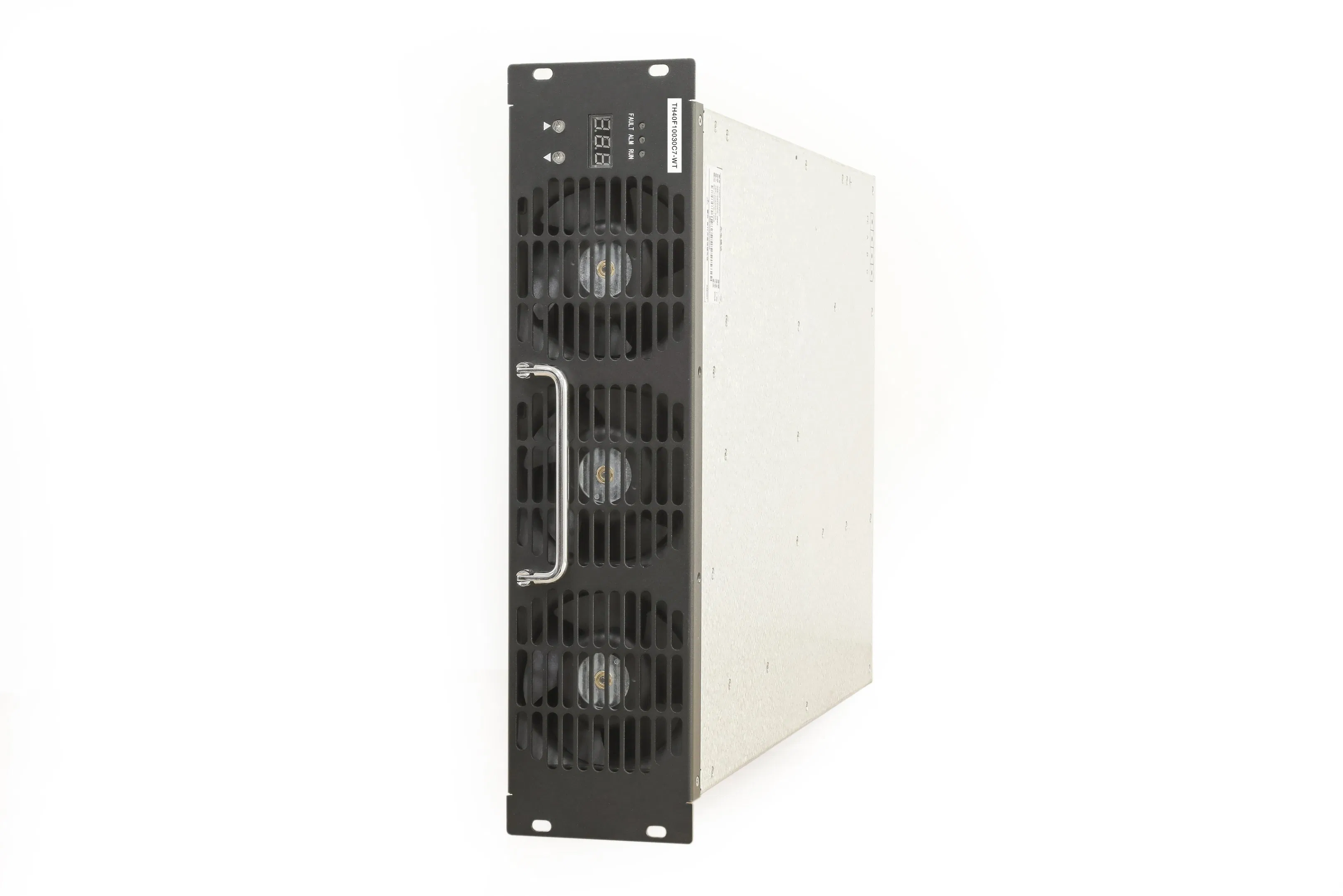

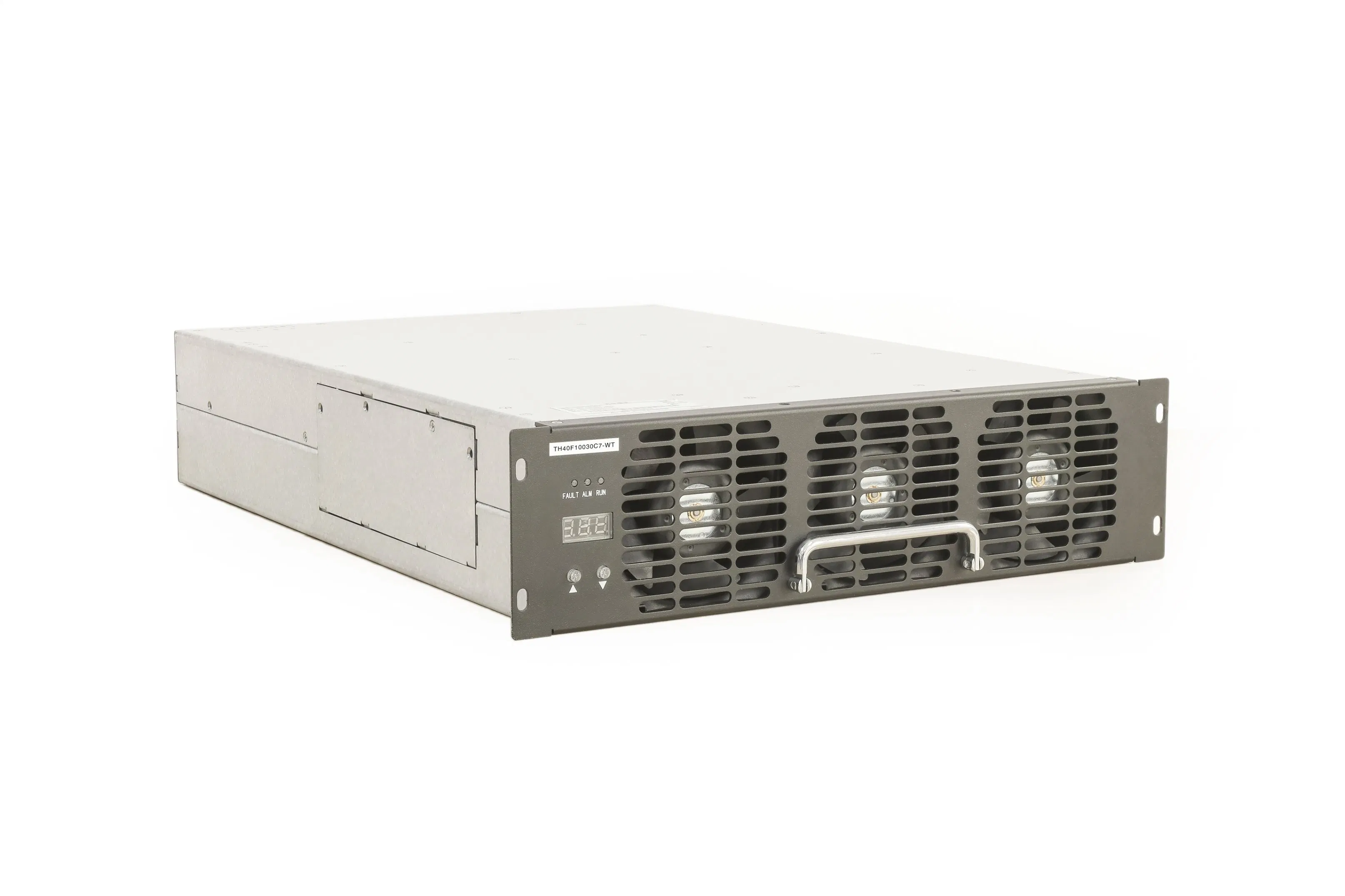

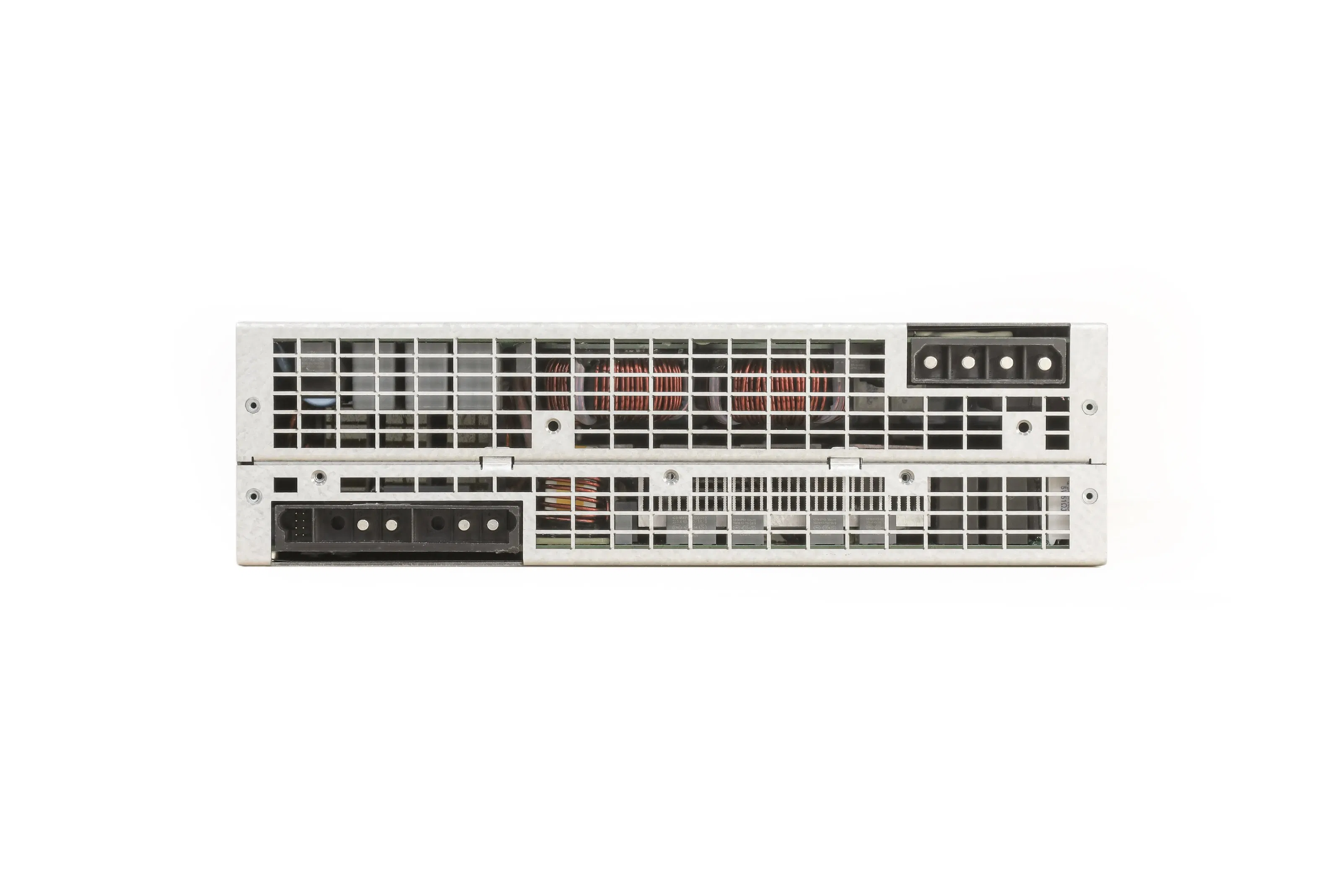

The TH40F10030C7 is a high-efficiency, high-power density DC charging module specifically developed for EV charging stations. It supports an output voltage up to 1000V and maintains constant power of 40kW within the ranges of 300-500VDC and 600-1000VDC. Its interface and dimensions are compatible with existing 30kW modules, making it an ideal choice for power upgrades and system iterations.

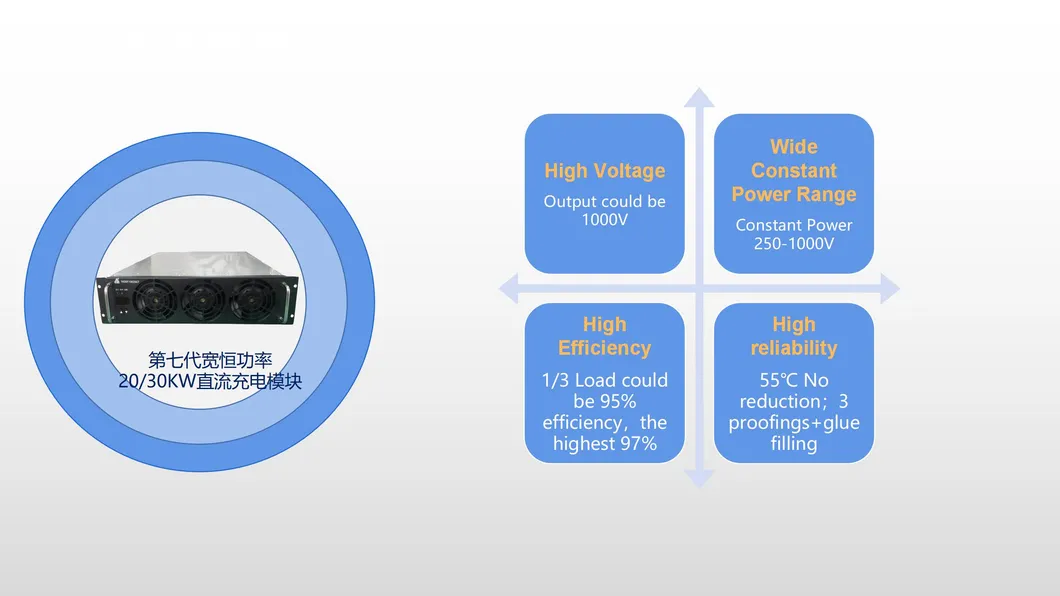

Product Characteristics

◈ Wide Constant Power Range: 300-500V and 600-1000V for versatile charging.
◈ Ultra-low Standby Consumption: Power loss is less than 13W.
◈ High Power Quality: Ultra-low THD ≤ 5%.
◈ Extreme Adaptability: Operating range from -40ºC to +75ºC.
◈ Wide Input Voltage: 380V ± 25% AC input range.
◈ Peak Efficiency: High conversion efficiency ≥ 96%.

Product Performance Data

AC Input Parameters
Input Voltage	Rated 380VAC, 3-phase (no neutral), range 285-475VAC
Input Frequency	50 ± 5Hz
Power Factor	≥ 0.99
DC Output Parameters
Rated Power	40kW
Output Current	0.5 ~ 134A
Protection	Short circuit self-rollback, overvoltage, overtemperature
Dimensions	437.5 * 300 * 84mm (LWH)
Weight	≤ 20kg

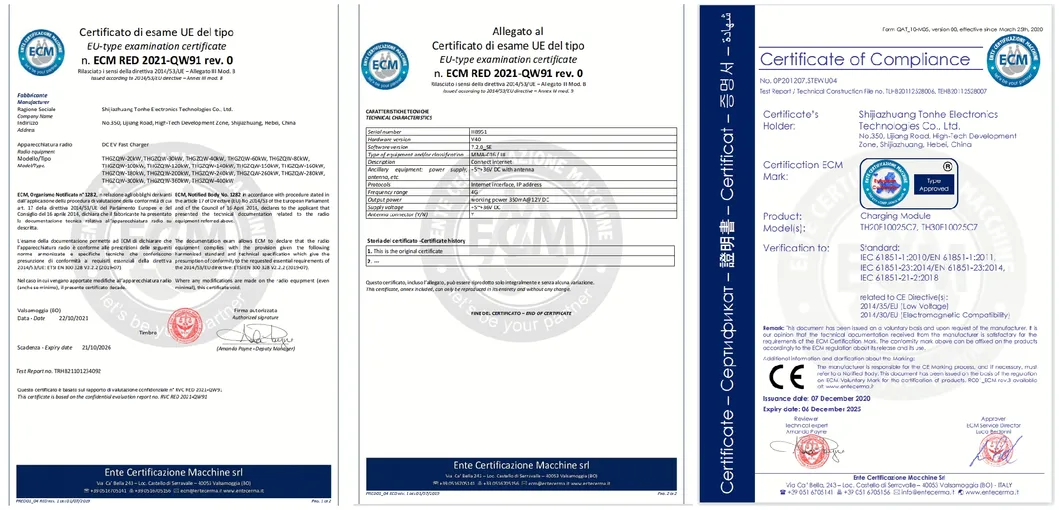

Product Certification

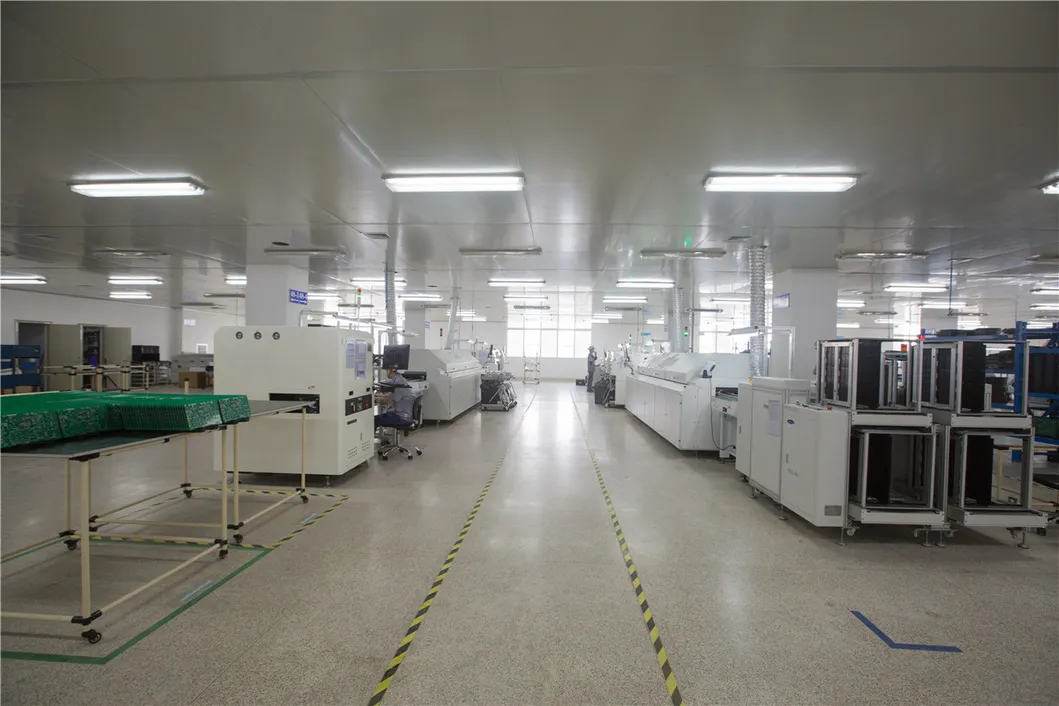

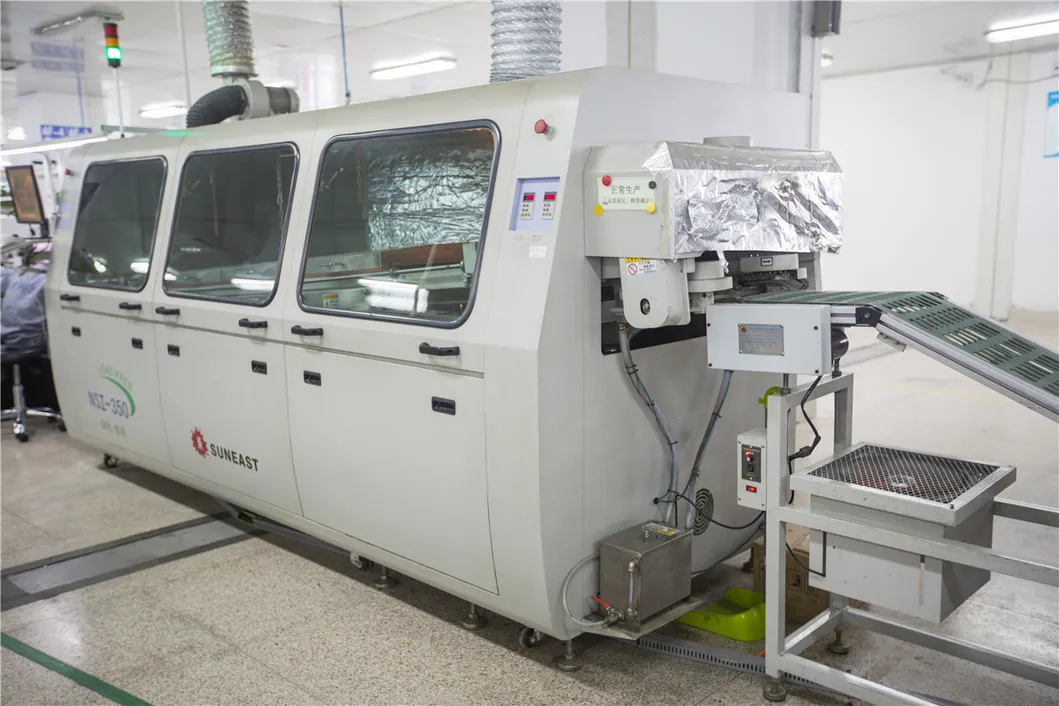

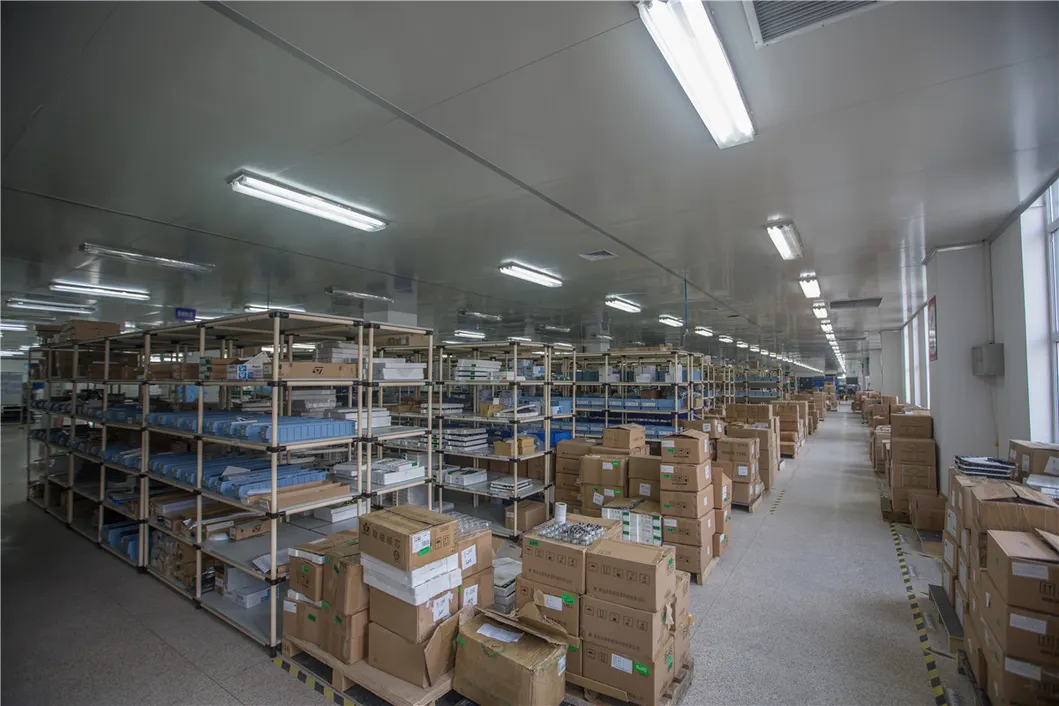

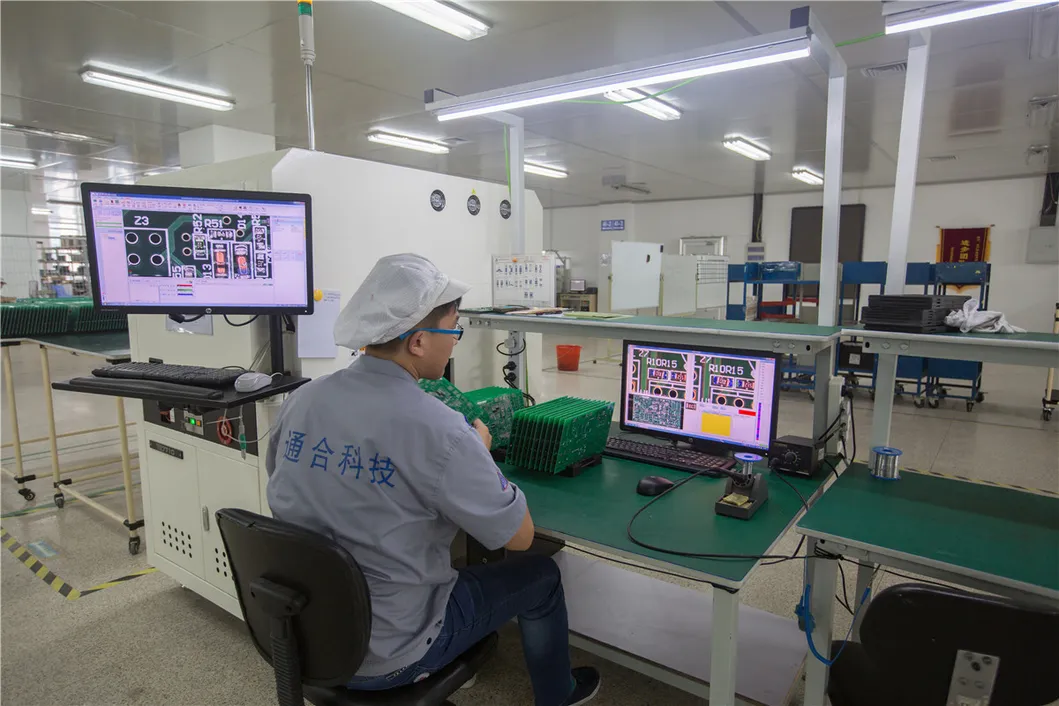

Manufacture Center

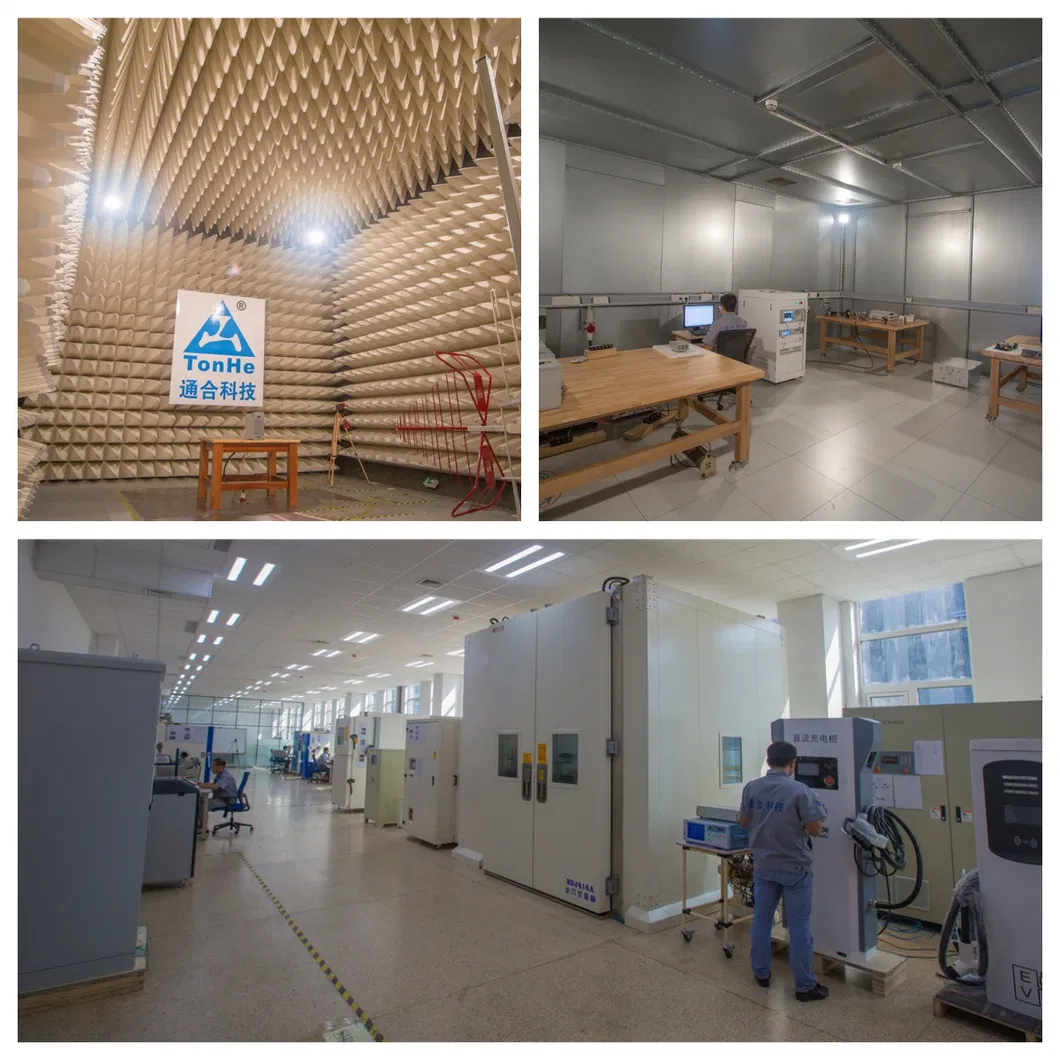

Test & Laboratory

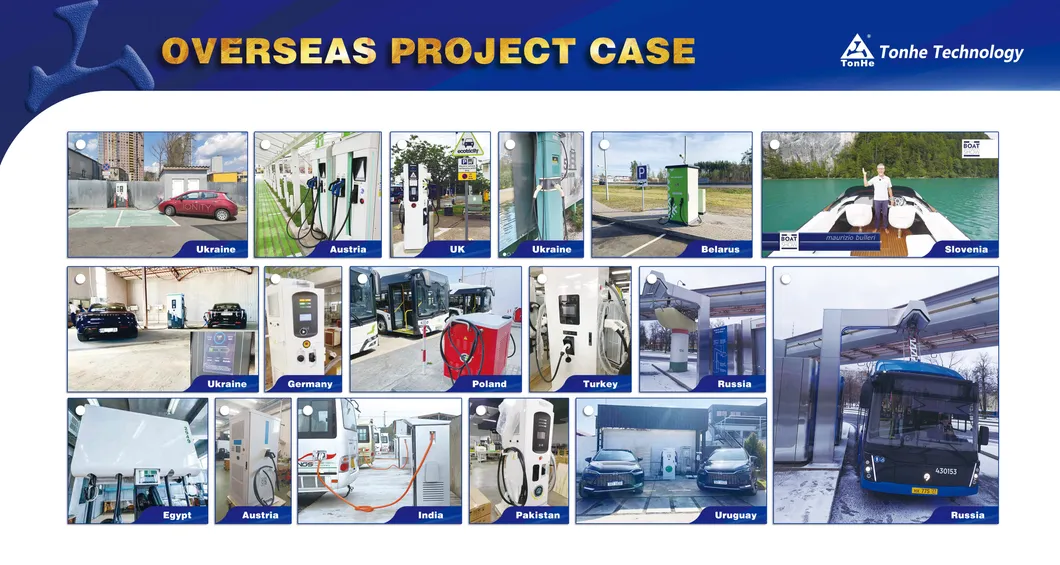

Successful Cases

Frequently Asked Questions

1. What are the module CAN baud rate and CAN voltage level? The module utilizes a 125Kbs baud rate with a 5V CAN voltage level.

2. Do the modules support glue filling for environmental protection? Yes, all series modules in this range support glue filling to enhance durability and environmental resistance.

3. What are the installation requirements for the charging module? The charging module can be installed horizontally, side-standing, or upside down. For upside-down installation, customized front panels without handles are recommended.

4. What is the typical delivery time for orders? Standard modules typically require about 7 days, while standard charging piles take approximately 35 days. Large or customized orders are scheduled based on workshop capacity.

5. What is the standard warranty period? The standard warranty is 12 months upon receipt of the shipment.

6. Can you provide technical after-sales support? We provide both online technician support and site guidance. We maintain a 24-hour response scheme for all technical inquiries.
