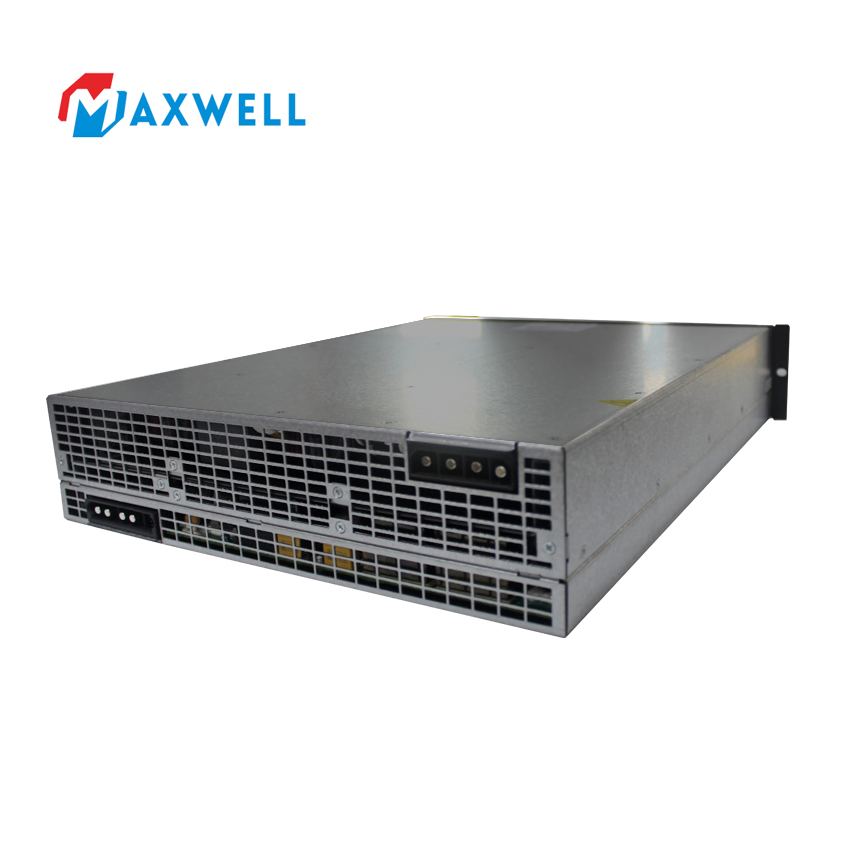

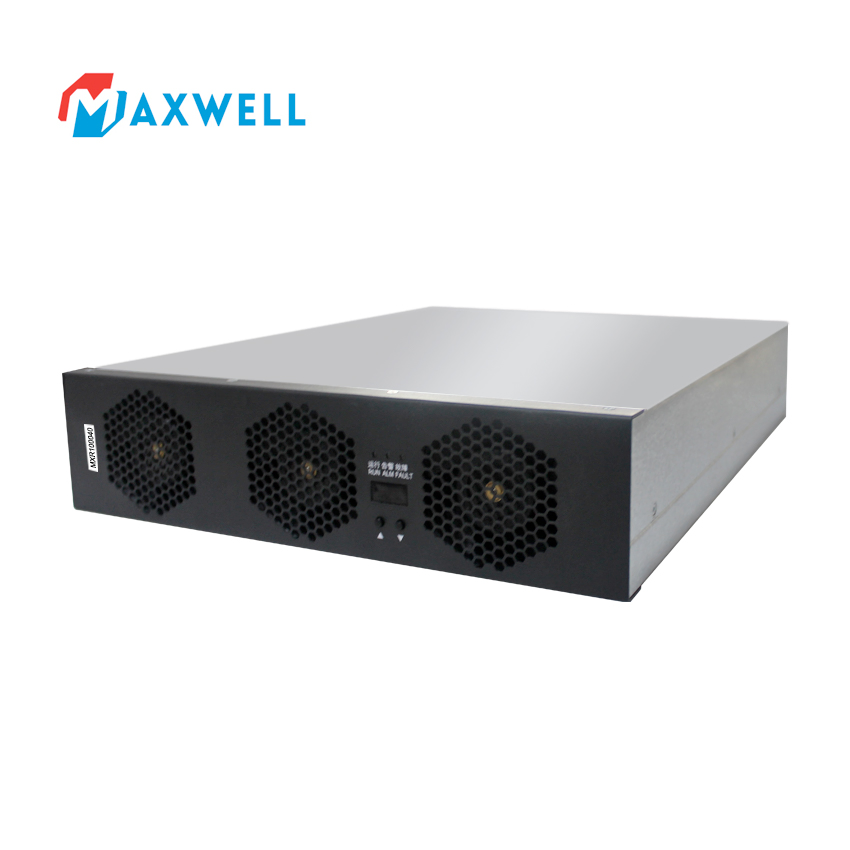

40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
1 / 5
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station
40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station

40kw AC/DC Converter(Rectifier 100-1000V DC Charging Module for EV Charging Station

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
MXR100040
Location
Public Use
Charging Interfaces
Multiple Charges
AC Input
285VAC~475VAC, 3-Phase
DC Output
100VDC~1000VDC, 0~133.3A
Efficiency
>95.5%
Certification
CE, ISO, TUV, RoHS
Cooling Mode
Fan Cooling
Weight
21kg
MTBF
500,000 Hours
✓

Product Description

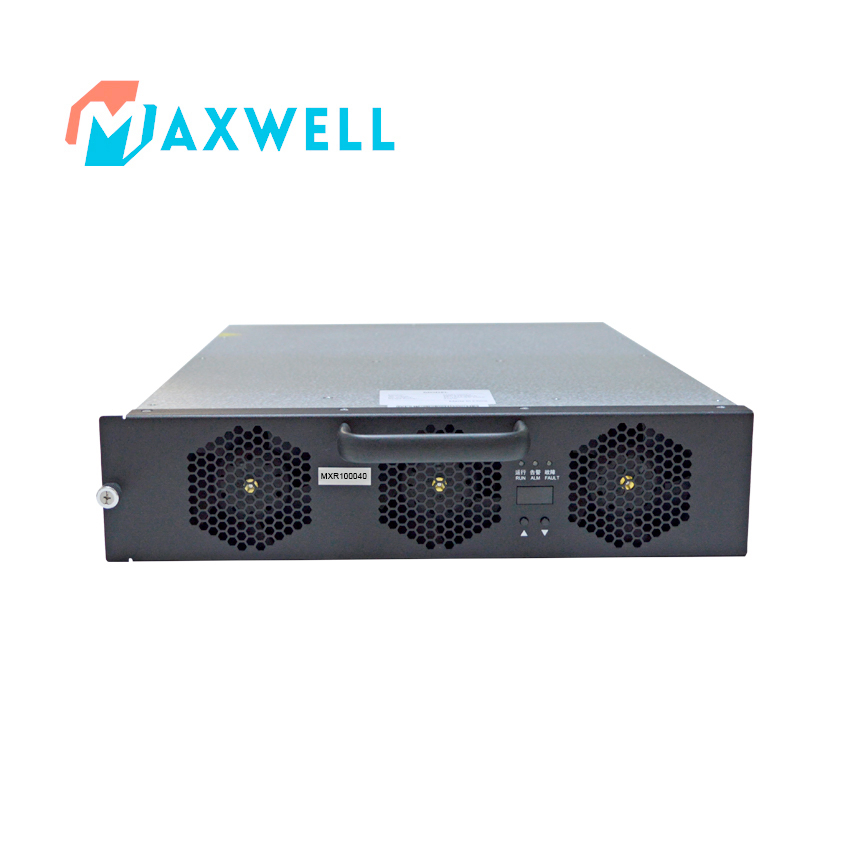

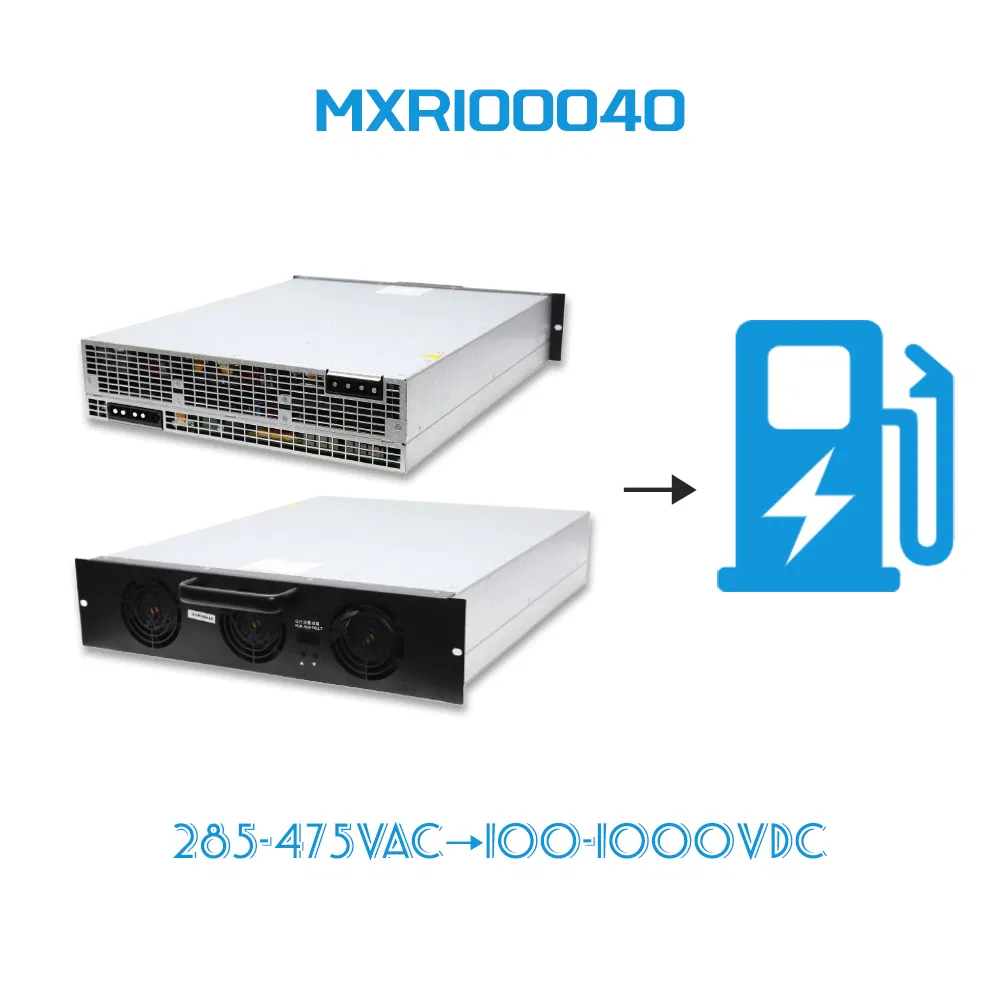

DC Charging Module

The MXR100040 is a high-performance charging power module specifically designed for the EV charging pile industry. It addresses the critical demand for ultra-high full-load operating temperatures and an exceptionally wide constant power range, making it a leading solution for modern fast-charging infrastructure.

Output Power 15KW 20KW 30KW 40KW 50KW 60KW
Product Type AC-DC, DC-DC, Bidirectional Power Module, Liquid Cooling Module

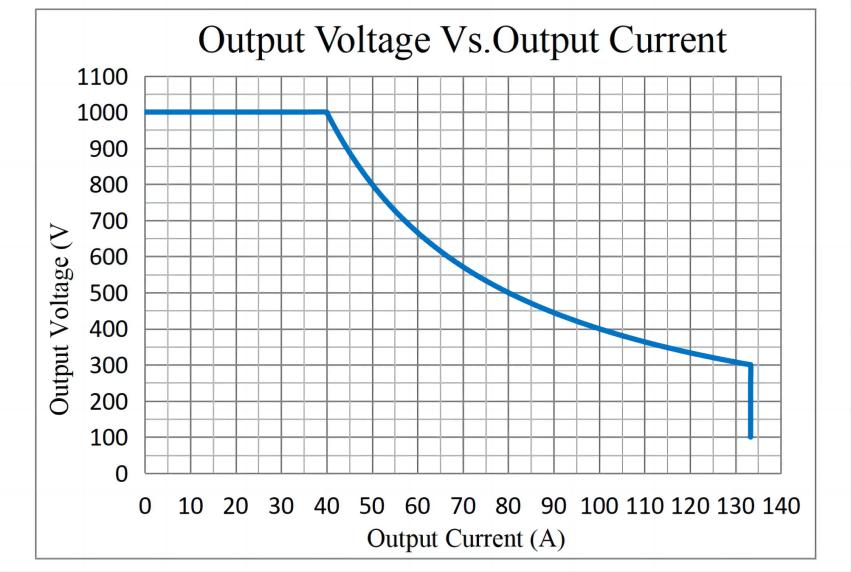

Wide Constant Power Range300V - 1000V output range for diverse EV battery requirements.
Low Standby ConsumptionUltra-low standby power usage of less than 13W.
Superior EfficiencyPeak conversion efficiency ≥95.5% for energy savings.
High Power QualityUltra-low THD: ≤5% ensures grid stability.
Robust Temperature RangeOperates reliably from -40ºC to 60ºC.
Wide Voltage InputFlexible 285Vac~475Vac, three-phase + PE input.

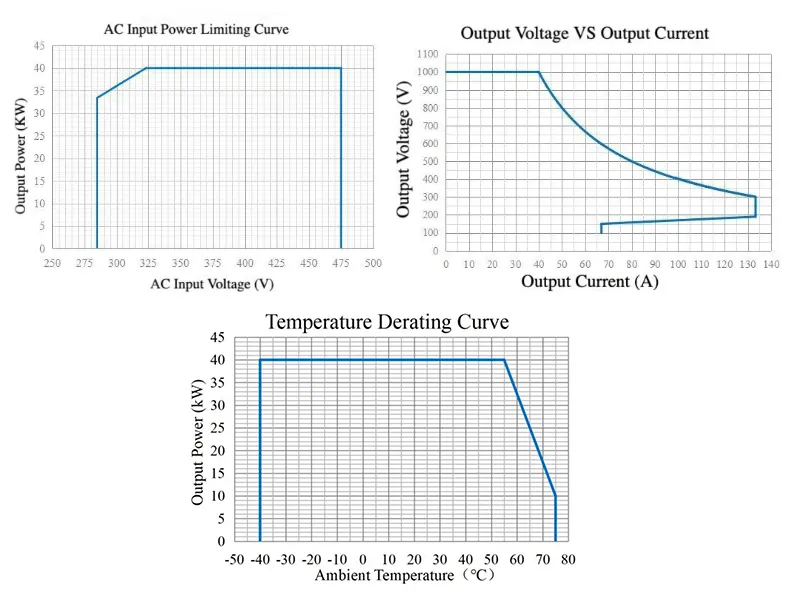

Module Efficiency Chart
⚙

Product Applications

Application Scenarios
📦

Packaging & Shipping

Standard packaging consists of high-durability kraft cartons, available with or without pallets depending on logistical requirements. For specialized needs, custom branding options are available upon proper authorization.

Packaging Details
Quality Evaluation
?

Frequently Asked Questions

What are the differences between global DC fast charging standards?
Currently, there are several major DC fast charging standards globally, including CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China). Each has unique connector designs and communication protocols.
What after-sales support is provided for the EV DC charger module?
We provide comprehensive technical training, including written manuals and videos. For complex master maintenance or urgent situations, professional technical support is available to ensure minimal downtime.
Are customized OEM/ODM services available?
Yes, we provide various OEM and ODM solutions tailored to specific customer requirements regarding power output, cooling methods, and integration needs.
What are the standard payment terms?
Our standard terms are T/T (Telegraphic Transfer) in advance or Irrevocable L/C (Letter of Credit) at sight.
What is the typical delivery timeframe for orders?
Standard delivery is usually completed within 2-3 weeks once the order has been officially confirmed.
Can this module be used in extreme weather conditions?
Yes, the module is designed with an ultra-wide operating temperature range of -40ºC to 60ºC, making it suitable for both extremely cold and hot environments.
