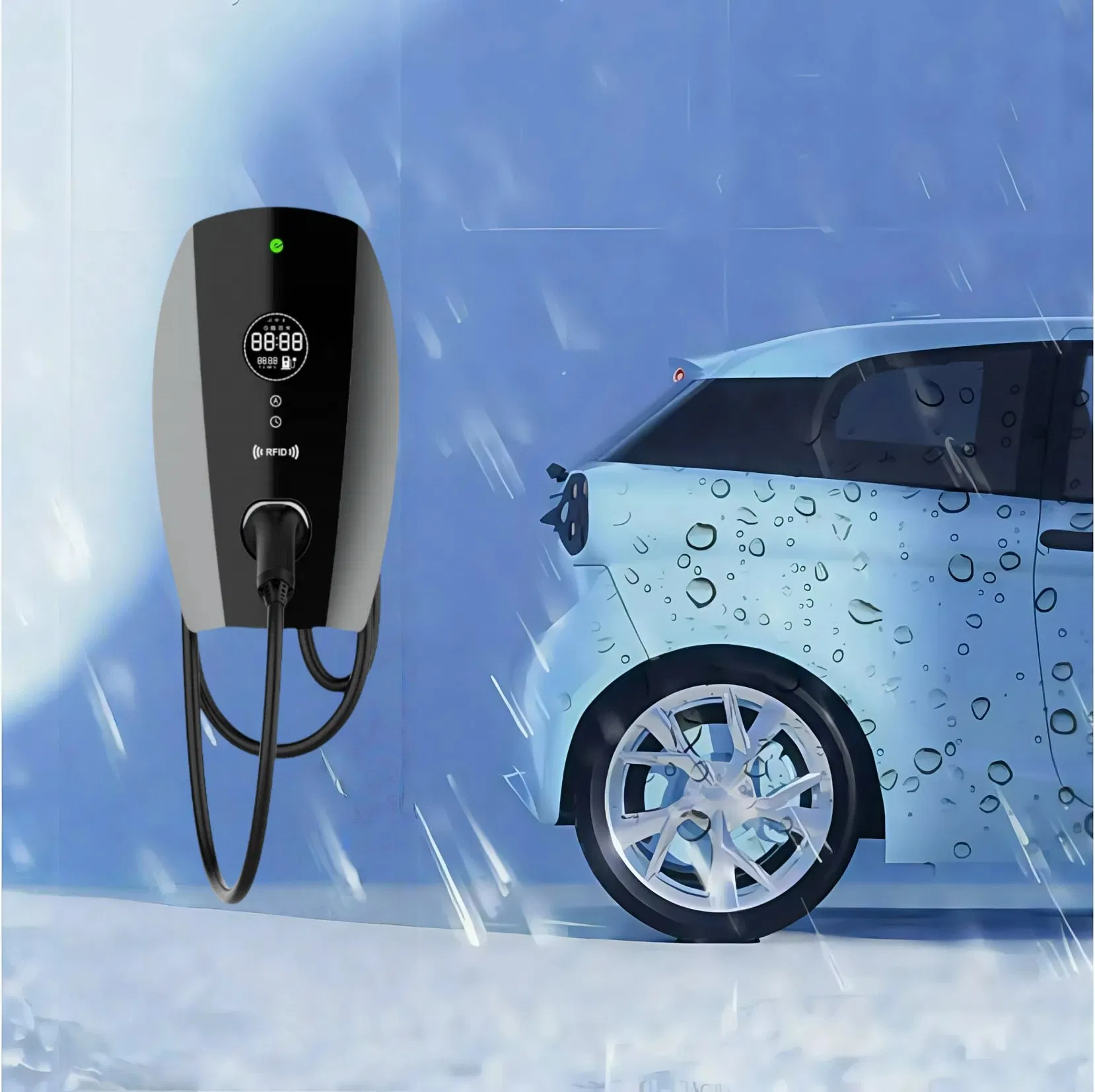

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

1 / 5

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

400V Wall 32A 22kw Smart Home AC Smart EV Car Charger Wallbox

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.	ZAU311C-CS
Charging Interfaces	One Pile with One Charge
Location	Private & Public
Installation	Wall Mounted
Charge Method	Normal Charge
Specification	Product Size: 405mm220mm95mm
Production Capacity	5000/Month
HS Code	8504409990

⚡

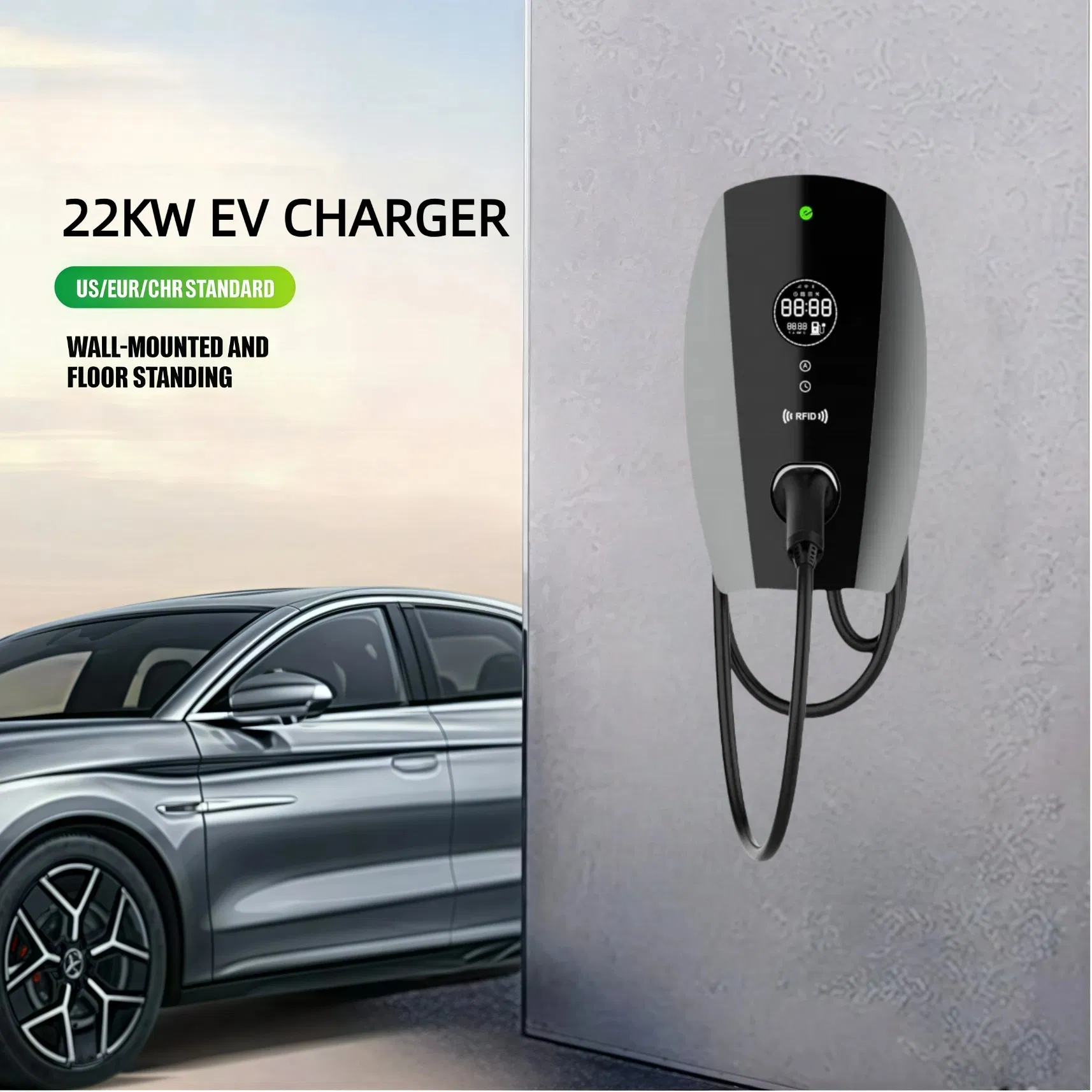

22kW Smart AC EV Charger

4 Inches LCD Screen AC Type 2 Smart Charger
32A, 22kW Smart Charger for Home or Commercial use with OCPP 1.6J protocol support.

EV Charger Front View

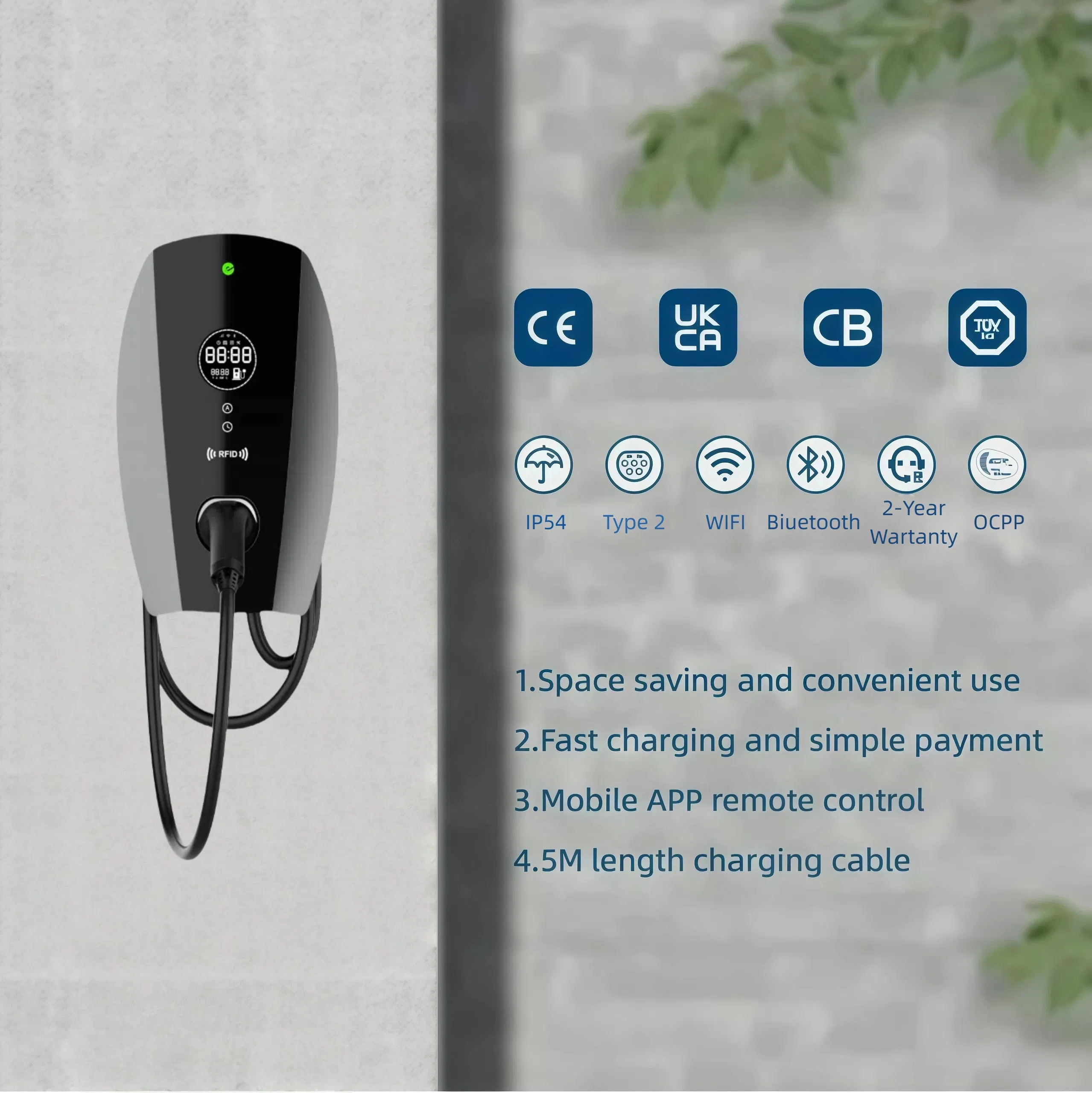

EV Charger Side View

🛡️

Protection & Control

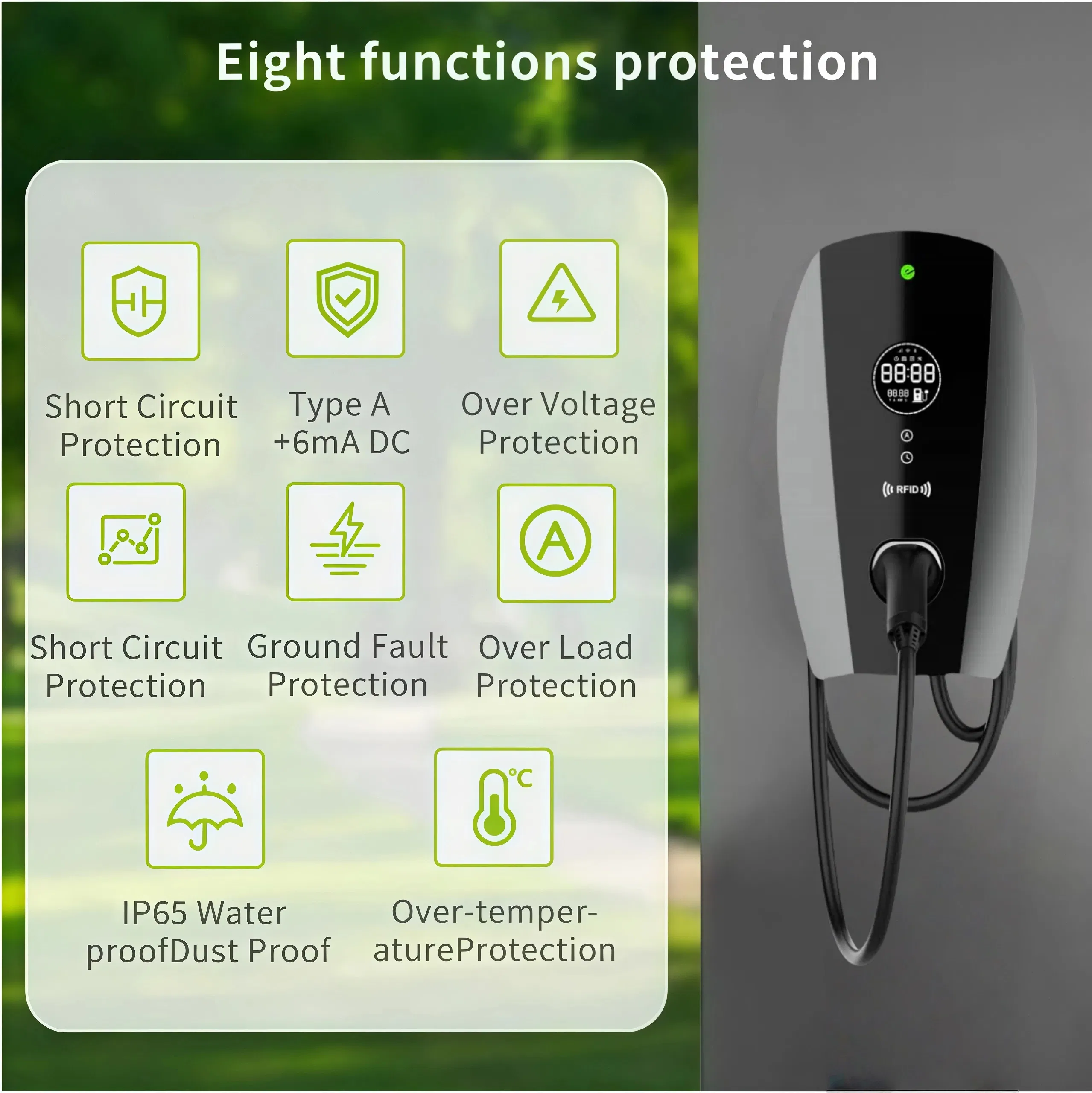

Protection Features

Control Methods

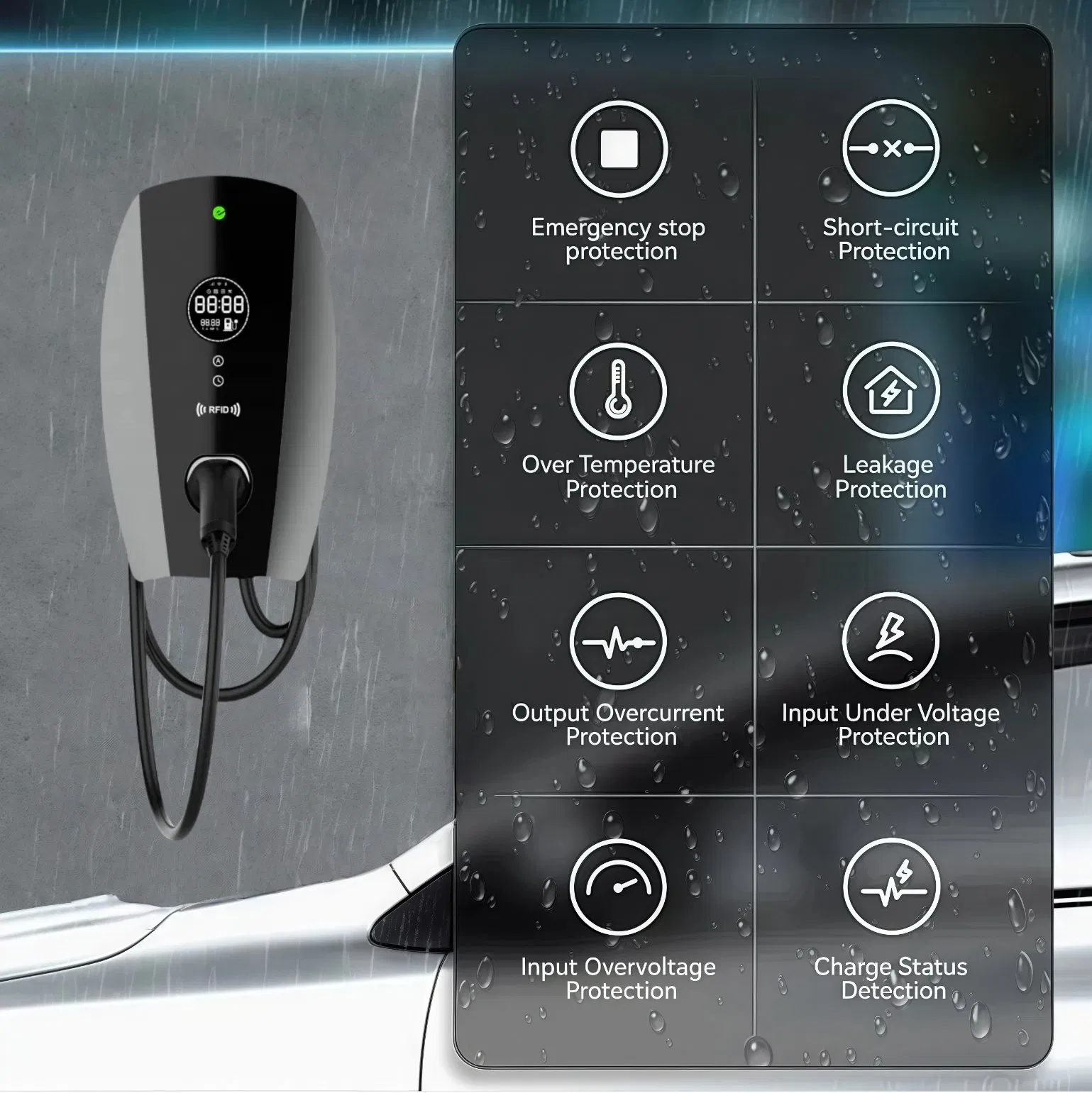

Multiple Protections

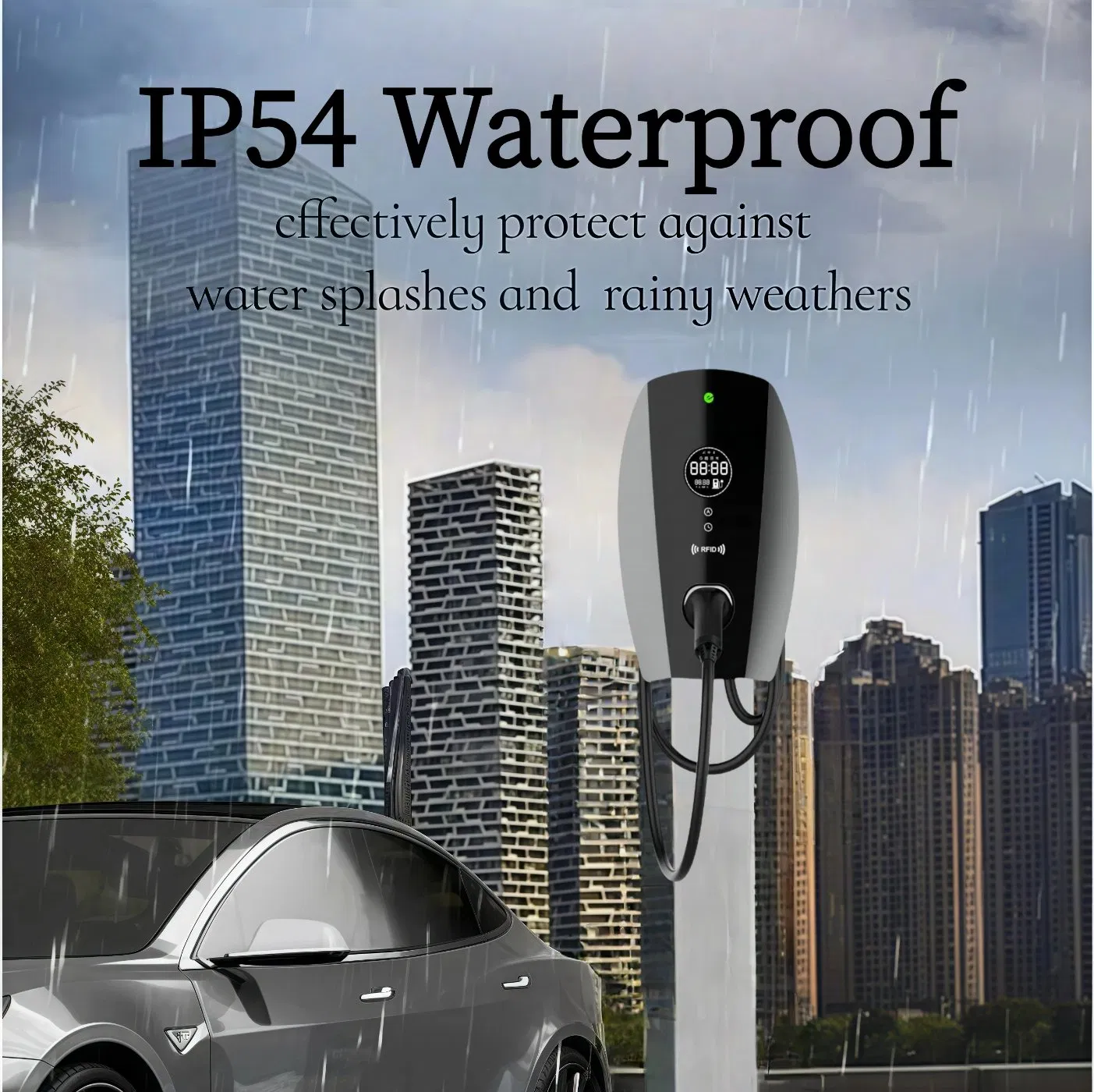

IP54 for outdoor commercial use
Emergency Stop Button
Leakage & Over Temperature Protection
Lightning & Over Current Protection
Over Voltage & Short Circuit Protection

Multiple Control

App Remote Control via WiFi/Bluetooth
RFID Card Control
Plug-in & Charging

⚙️

Technical Specifications

Power	22kW
Rated Voltage	AC 400V ±15%
Rated Current	32A
Phase	Three Phases
Communication	OCPP1.6 JSON
IP Rating	IP54 / IK10
LCD Display	4 inches VA Screen / 7 inches TFT Screen option
Cable Length	5m (Standard)
Operating Temp	-20℃~+55℃
RCD Leakage	AC 30mA & DC 6mA
Product Size	405mm220mm95mm
Net Weight	9.5Kg (22kW version)

📦

Packing & Delivery

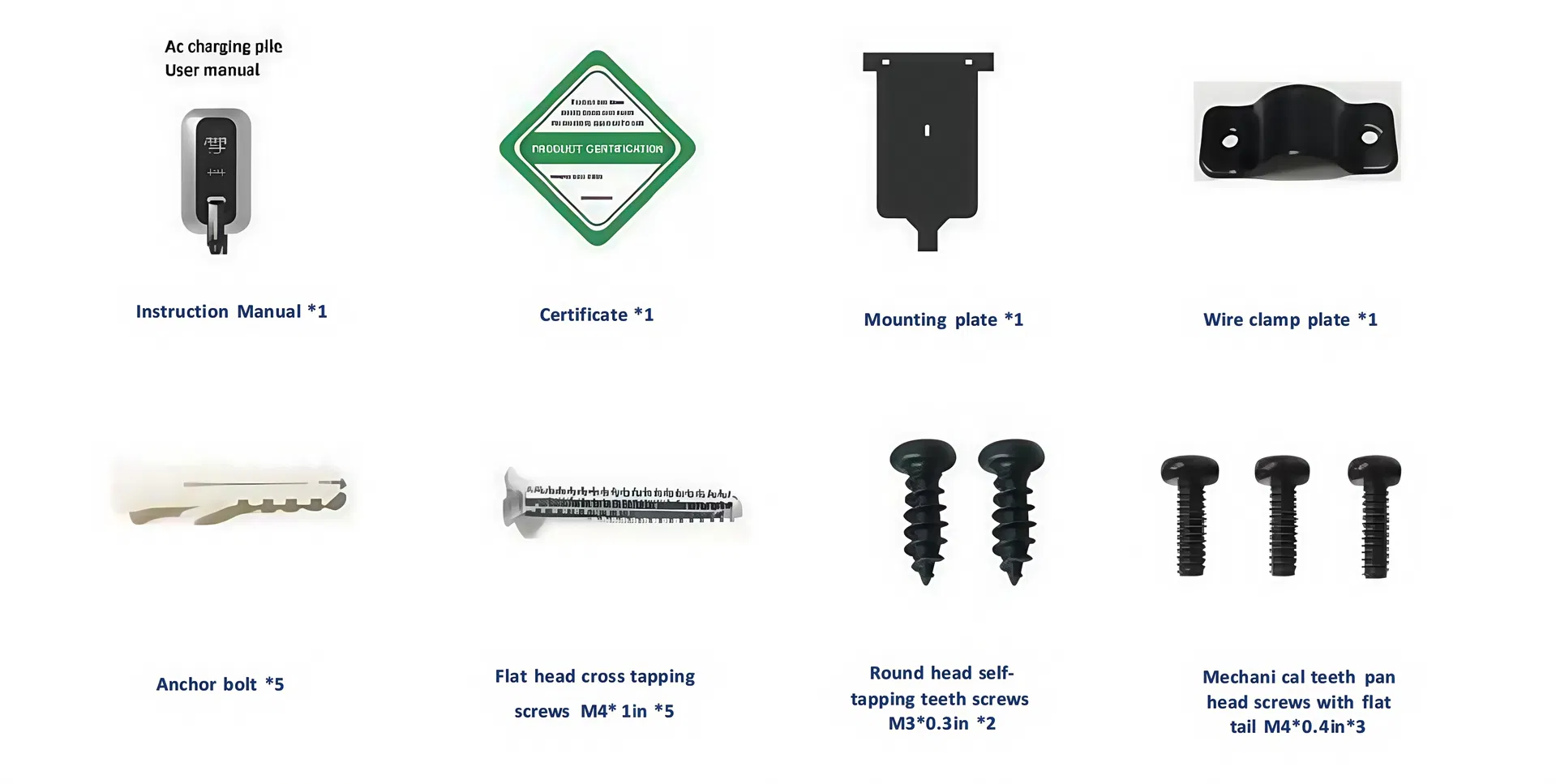

Packing details

Standard Accessories

1× Socket AC EV Charger
1× Charger Instruction Manual
1× Mounting Plate & Wire Clamp
Complete Anchor Bolt & Screw Set

Logistics Info

Package Size: 40.5cm * 22cm * 9.5cm
Package Gross Weight: 10.5kg
Lead Time: 25-30 days based on quantity

🛠️

After Sales Service

24-Month Warranty
Comprehensive protection against manufacturing defects.

Component Replacement
Free replacement for core components during the warranty period.

Technical Support
Lifetime free technical support on working days.

📜

Certifications

ISO9001

ISO9001

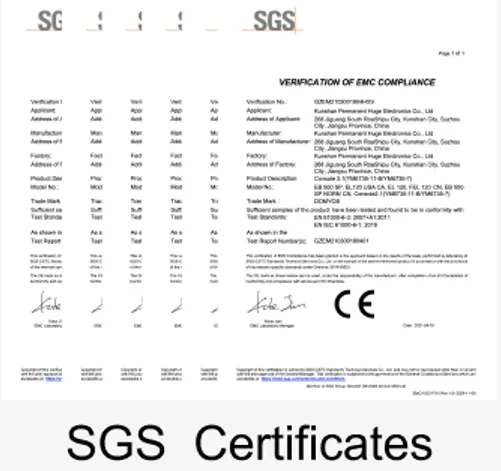

SGS

SGS Certificates

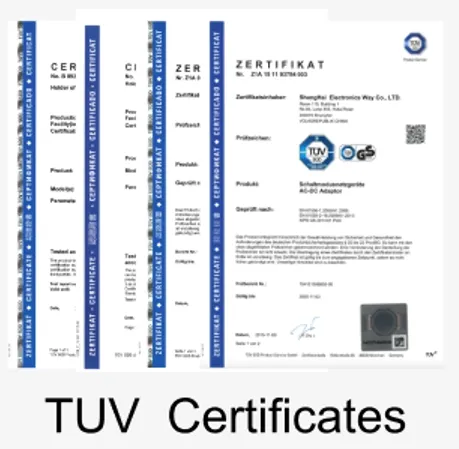

TUV

TUV Certificates

❓

Frequently Asked Questions

Q: How long is the charging cable?

A: It is 5m for the standard charging cable, but also could be customized as 7m, 10m or longer.

Q: Is it possible to customize the charger?

A: Yes, color, logo, RFID card and APP are all available for customization.

Q: Does the charger support smart phone control?

A: Yes, it supports App remote control via both WiFi and Bluetooth connections.

Q: Is the charger safe for outdoor use in rain?

A: Yes, it has an IP54 rating, making it suitable for outdoor commercial or residential use.

Q: What protocol does the charger use for management?

A: It uses the standard OCPP 1.6 JSON communication protocol for smart management.

Q: What is the lead time for mass production?

A: For 1-50 pieces it is 30 days; for 51-100 pieces it is 25 days. Larger orders are negotiable.
