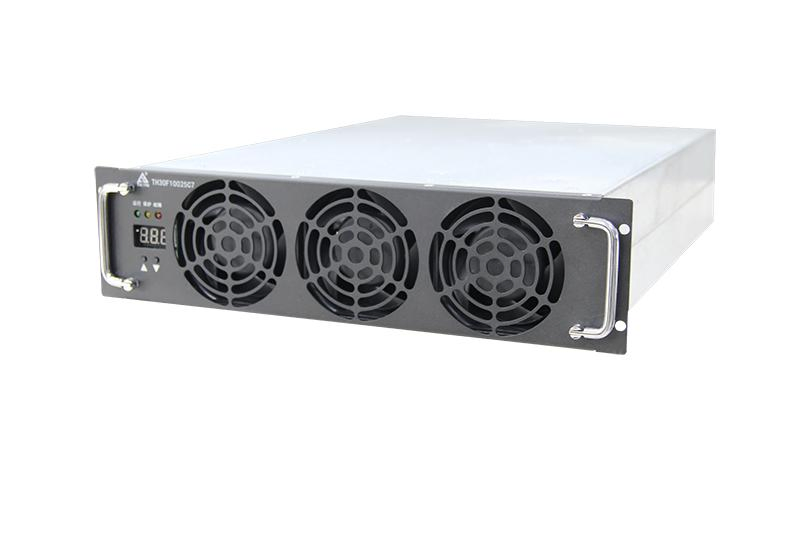

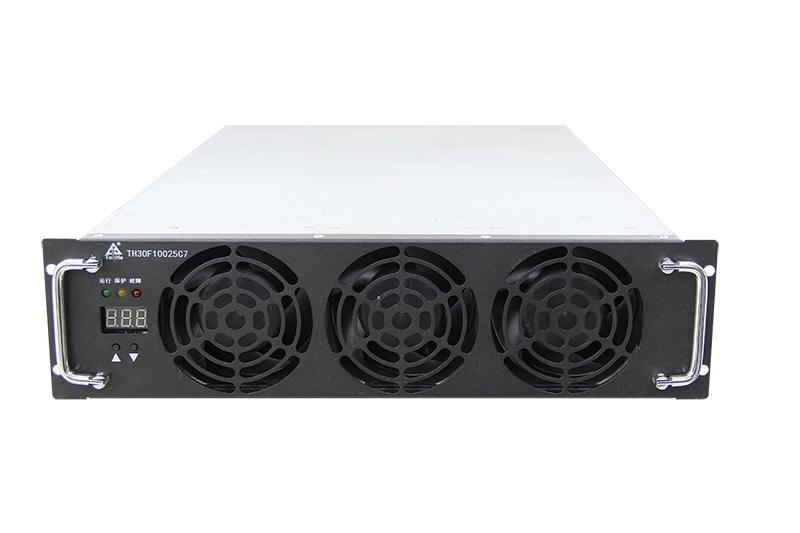

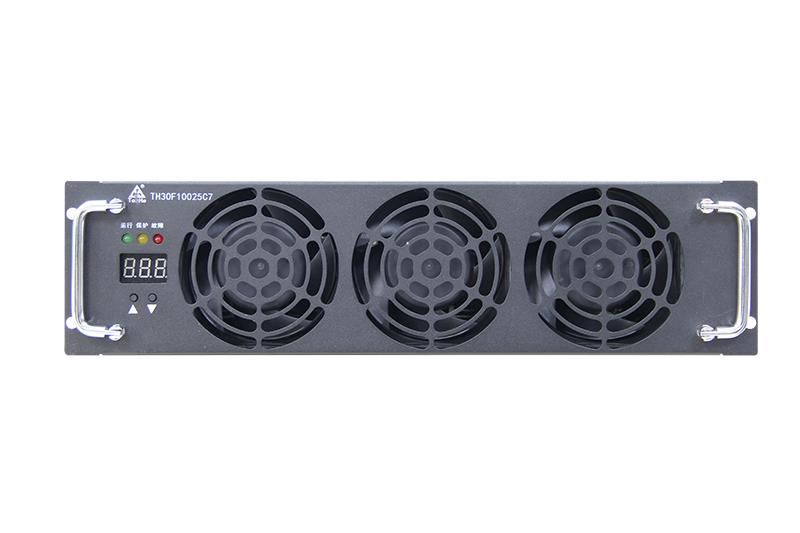

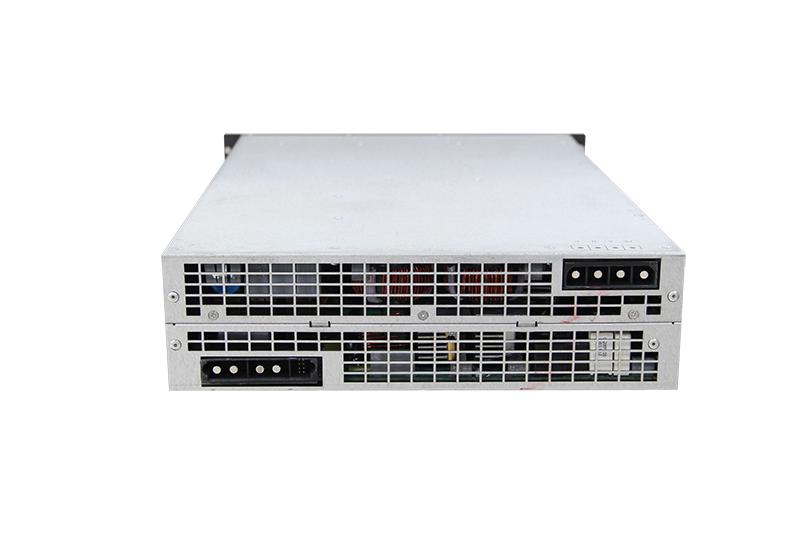

30kw/1000V Charging Module DC Power Module for EV Charger

1 / 5

30kw/1000V Charging Module DC Power Module for EV Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

TH30F10025C7

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID Authentic

Output Voltage (DC)

150-1000VDC

Output Current

2-120A

Efficiency

More Than 96%

Can Bus Protocal

Can

After-Sales Service

Online Support and Site Guidance

Certification

CE, ISO

Warranty

12 Months

Specification

435*300*84mm

HS Code

8504401991

Packaging & Delivery

Package Size

45.00cm * 32.00cm * 10.00cm

Gross Weight

20.000kg

Transport Package

Wooden Box

Product Description

Input Features

Item	Parameters	Remark
Operating Voltage (AC)	285~475V, rated voltage 380V	See input voltage/output power curve
Input Frequency (HZ)	45~55	-
Power Factor	Full load ≥0.99	-
THD	Full load ≤5%	-
Standby Power Consumption	<12W	-

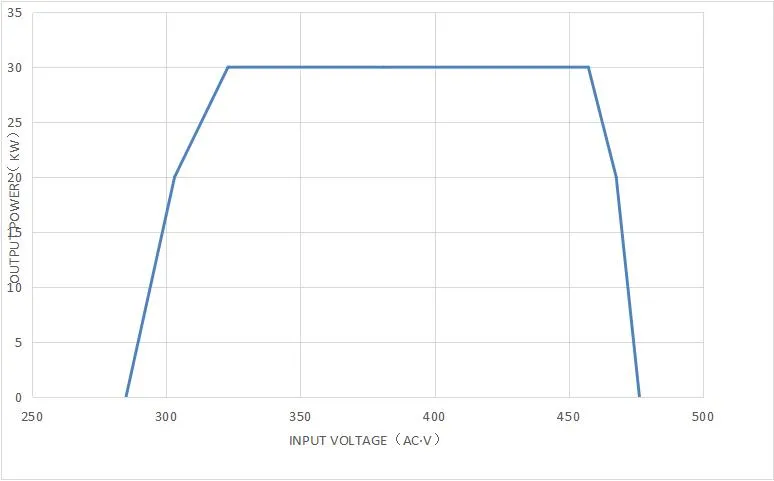

Input voltage/output power curve

Output Features

Item	Parameter	Remark
Output Voltage Range (DC)	150~1000V	-
Max output current (A)	120	-
Output constant power interval	250~500VDC, 500~1000VDC	-
Output current limit range	Max limit current is 120A, limit point set between 2~120A	See output voltage/current curve
Voltage Stabilization Accuracy	≤±0.5%	-
Current Stabilization Accuracy	≤±1% (load 20%~100%)	-
Output ripple coefficient	≤±0.5%	-
Current sharing imbalance	≤±5% (parallel current > 5A)	For modules in parallel
Peak efficiency	≥95.5%	-
Soft start time (S)	3~8	-
Current rewinding protection	Support	-
Communication Protocol	CAN	-

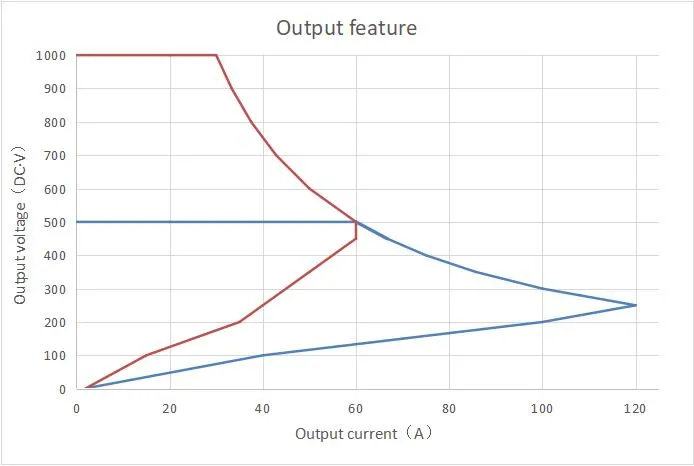

Output voltage/output current

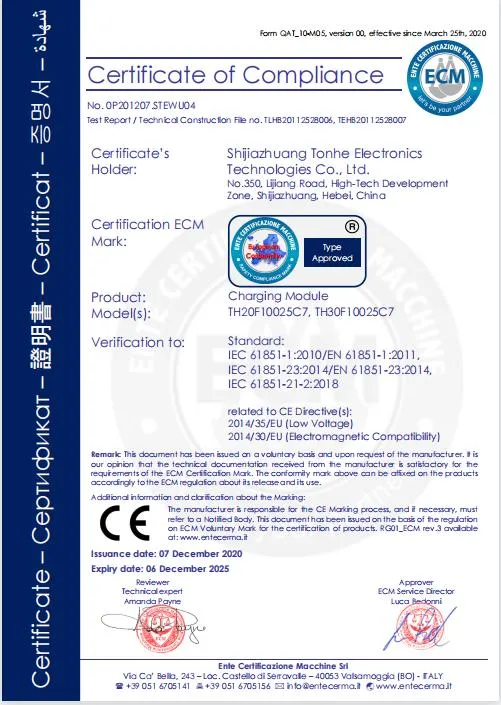

Certifications

Manufacturing & Test Facilities

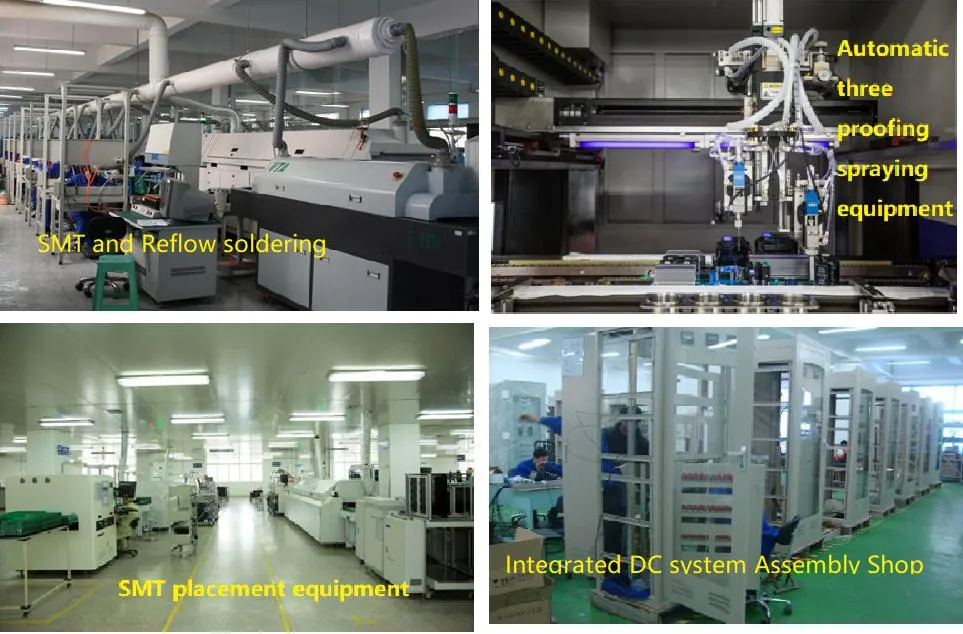

Manufacturing Center

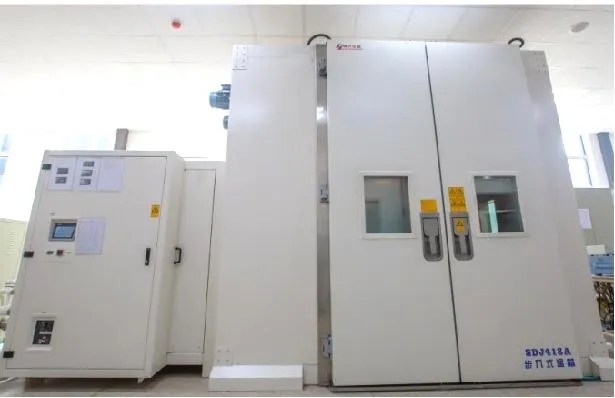

18m³ high/low temperature lab

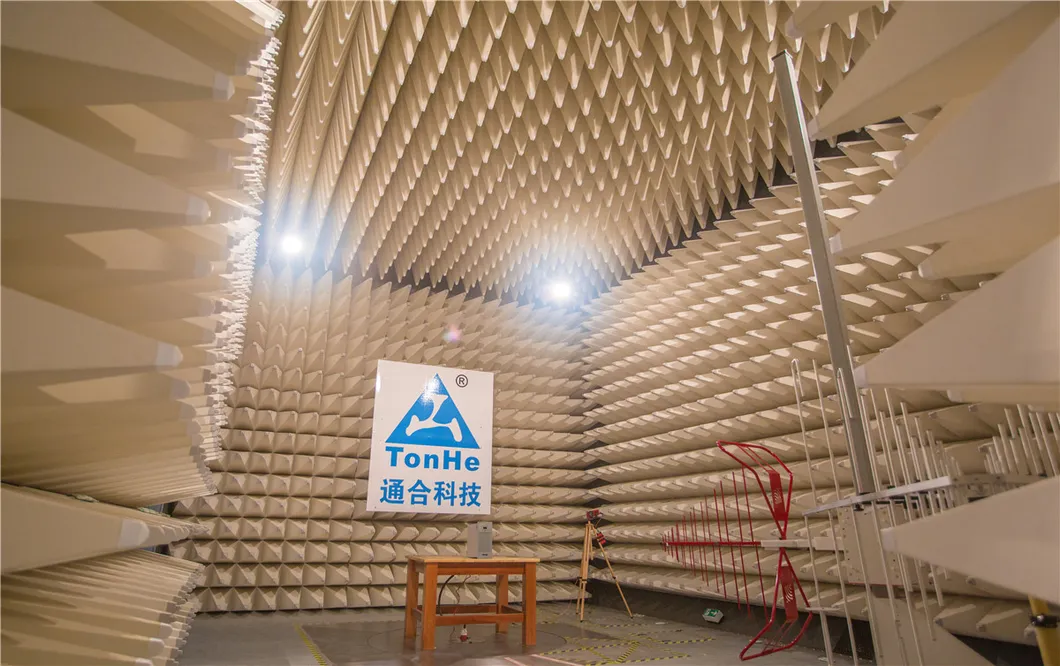

Anechoic Chamber (FARNKONIA)

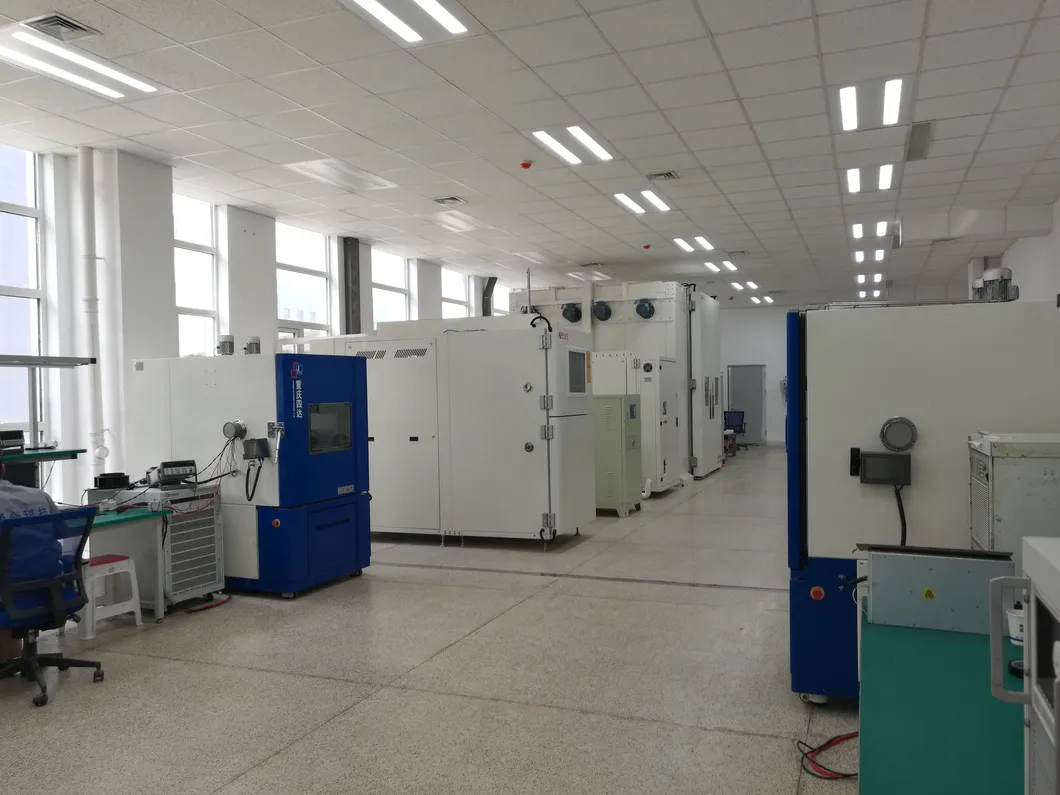

Test Hall: Program AC power & Electronic Load

Frequently Asked Questions

Q: What is the output voltage range of the TH30F10025C7 module? A: The module supports a wide output voltage range from 150VDC to 1000VDC, making it suitable for various EV charging requirements.

Q: What is the maximum efficiency of this charging module? A: The module achieves a peak efficiency of more than 96%, ensuring high energy conversion and reduced heat loss.

Q: Can multiple modules be used together in one charging pile? A: Yes, it supports parallel operation with a current sharing imbalance of ≤±5%, allowing for "one pile with multiple charges" configurations.

Q: What communication protocol does the module use? A: It utilizes the standard CAN Bus communication protocol for reliable integration with charging station controllers.

Q: What kind of standby power consumption should be expected? A: The module is designed for energy efficiency even when idle, with a standby power consumption of less than 12W.

Q: What certifications does the product have? A: The module is fully certified with CE and ISO standards, ensuring compliance with international safety and quality regulations.
