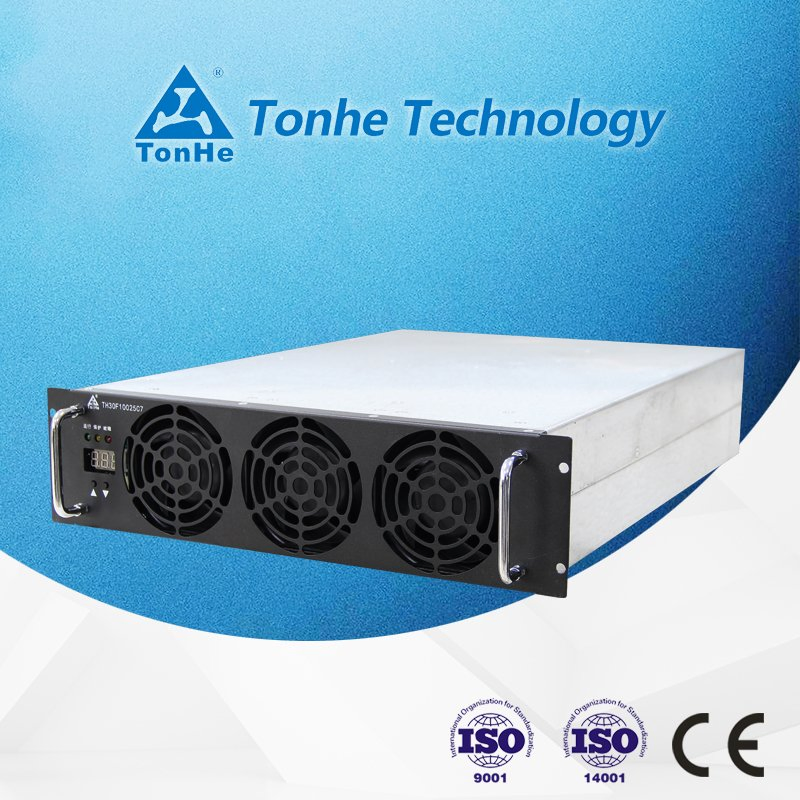

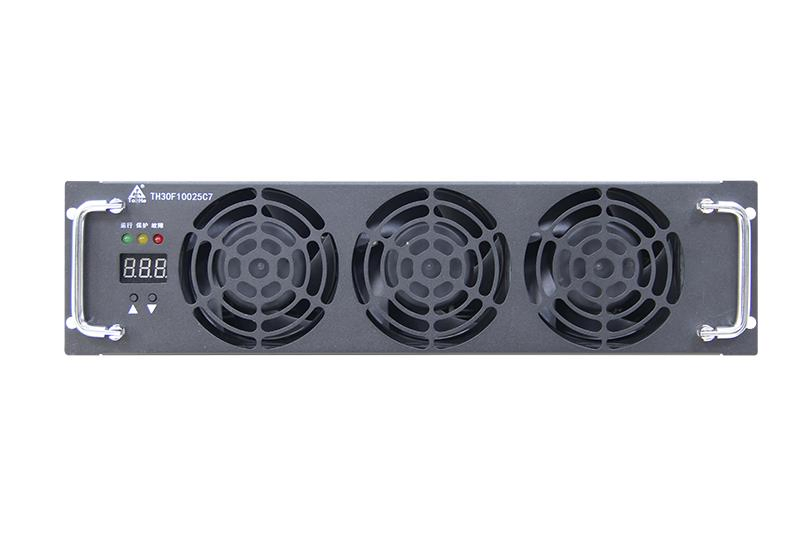

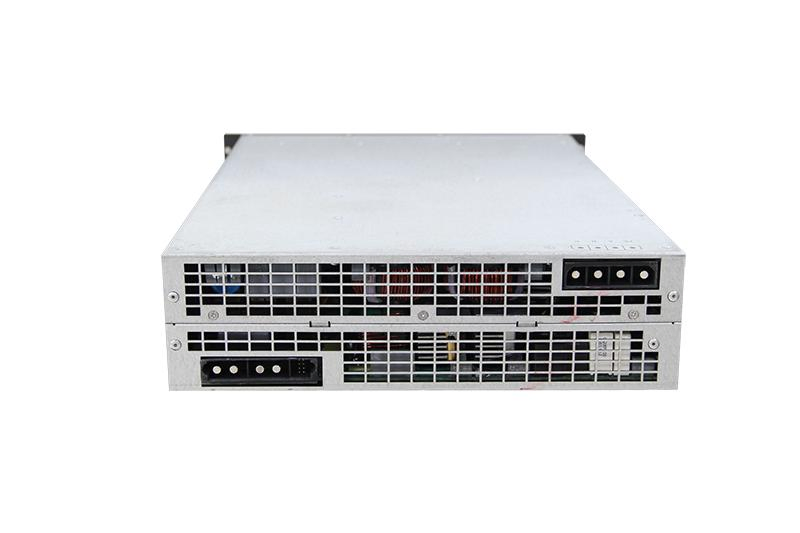

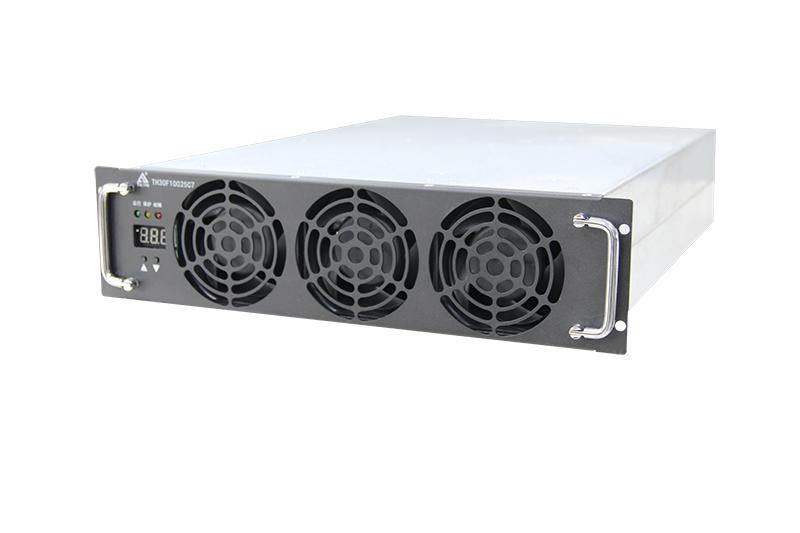

30kw CE Certificate Tonhe CCS Chademo EV DC Charging Module AC to DC Converter Output DC 30kw and up to 1000V

1 / 5

30kw CE Certificate Tonhe CCS Chademo EV DC Charging Module AC to DC Converter Output DC 30kw and up to 1000V

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.TH30F10025C7

TypeFast EV Charging Station

Output Voltage150-1000V

Output Current2-120 A

EfficiencyLarger Than 96%

Power FactorLarger Than 0.99

Start ModeRFID Authentic

InterfacesOne Pile with Multiple Charges

Soft Start Time3-8 S

Warranty12 Months

CertificationCCC, CE, ISO

OriginChina

📦

Packaging & Delivery

Package Size54.00cm * 40.00cm * 15.00cm

Gross Weight30.000kg

Transport PackageWooden Box

Specification435*300*84mm

💡

Product Features

This product is three-phase 380VAC input, using the industry leading resonant voltage type double-loop control resonant switching power supply technology and three-phase three-level power factor correction technology. It offers advantages of small size, light weight, high efficiency, and high reliability.

🛠

Technical Specification

30kw/1000v Power Module Specs		Model: TH30F10025C7
Input Features	Input Voltage Range	285V~475V
	Power Factor	≥ 0.99
	THD	≤ 5%
Output Features	Output Voltage Range	150~1000V DC
	Max Output Current	80A
	Constant Power Range	1000-250VDC constant 30KW
	Efficiency	≥ 96%
Environmental	Working Temp	-30~+75 ºC
	Humidity	5%RH~95%RH (no condensation)
	IP Level	IP20

🏆

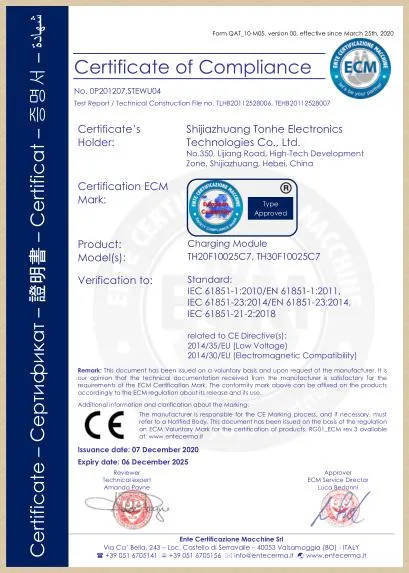

Quality & Certification

🏭

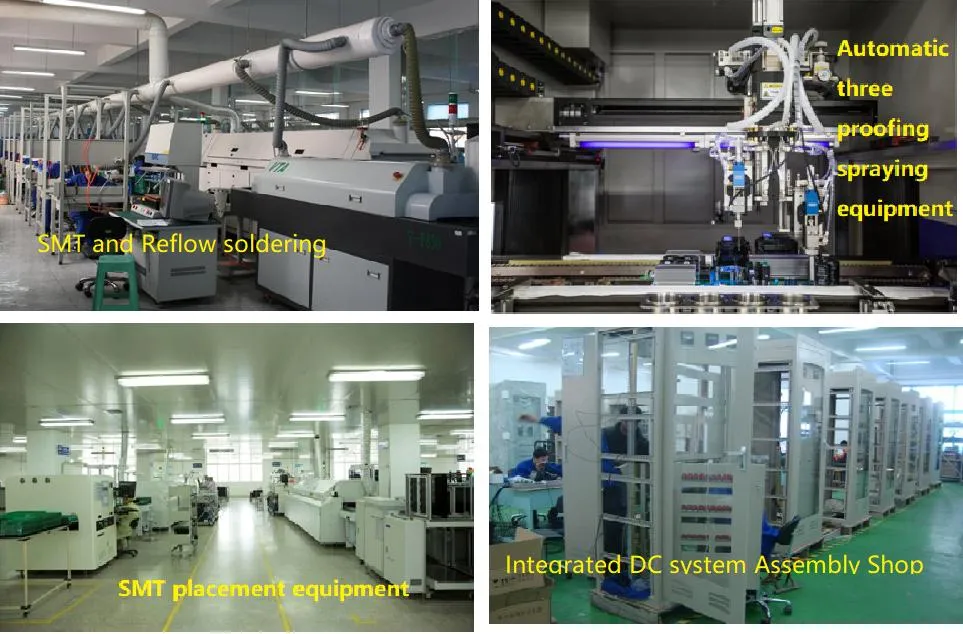

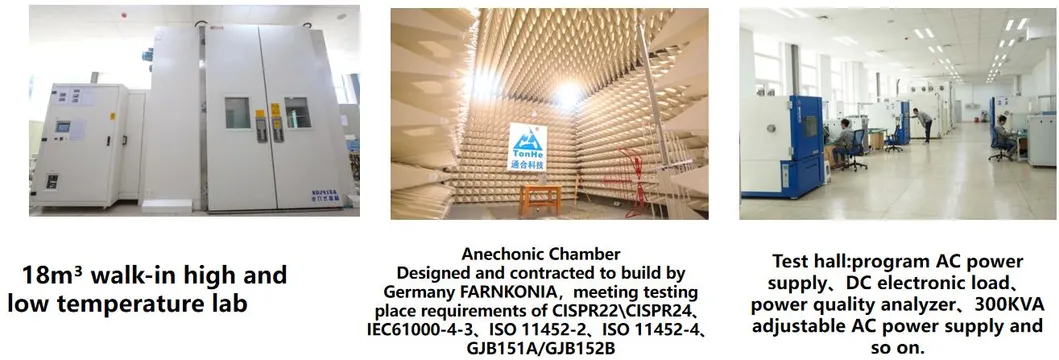

Manufacturing & Testing

🛡

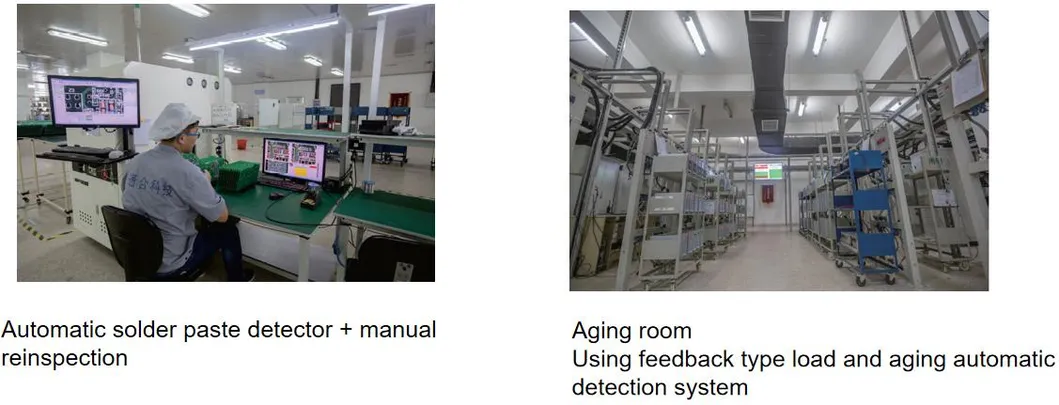

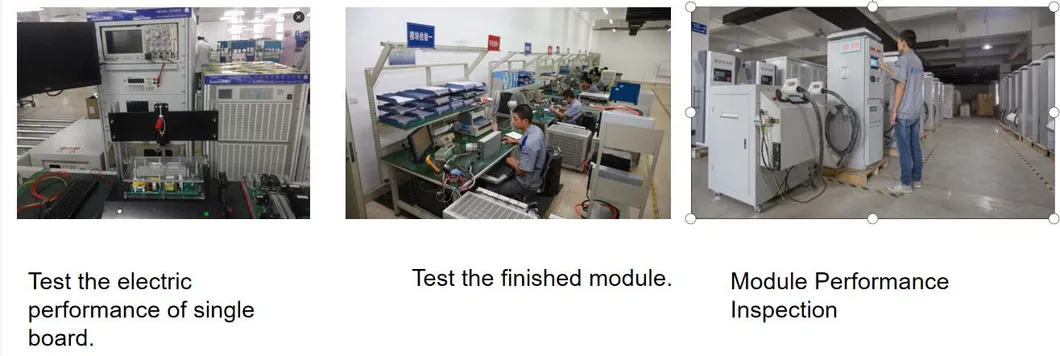

Quality Guarantee

❓

Frequently Asked Questions

Q1: What is the maximum efficiency of this charging module? The module achieves a high efficiency of over 96%, which reduces energy loss during the fast charging process.

Q2: What range of voltage does the module support? The output voltage range is extremely wide, from 150V DC to 1000V DC, making it suitable for various EV battery requirements.

Q3: How long does the soft start take? The soft start time is between 3 to 8 seconds, ensuring a stable and safe power-up sequence for the equipment.

Q4: Can this module operate in extreme temperatures? Yes, the working temperature range is -30ºC to +75ºC, though output derating occurs above 50ºC.

Q5: What communication protocol is used? The module uses the standard CAN communication protocol for reliable data exchange and control.

Q6: What certifications does the product have? The product is fully certified with CCC, CE, and ISO standards, ensuring international quality compliance.
