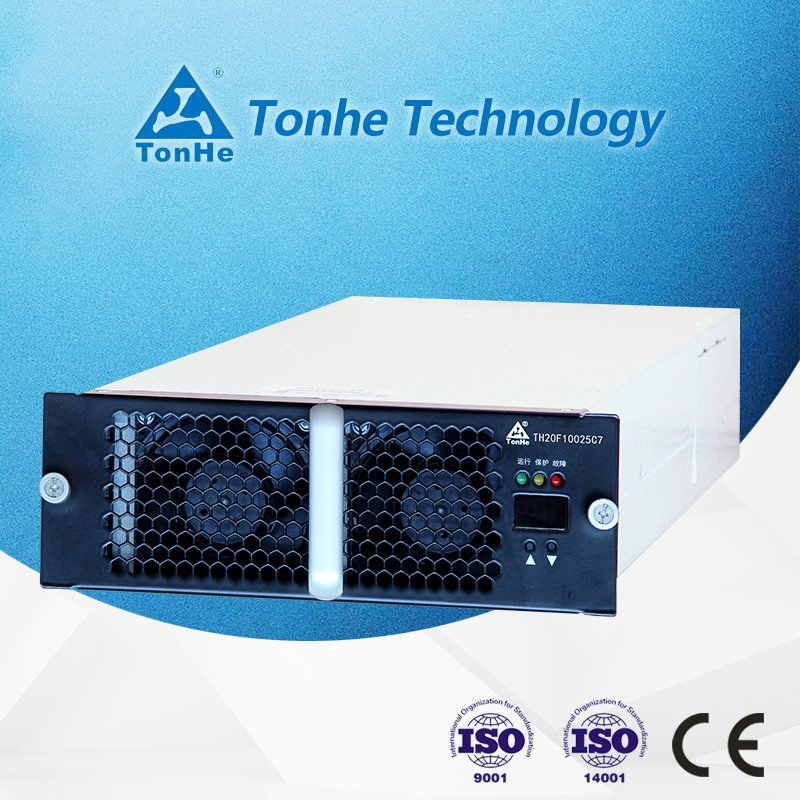

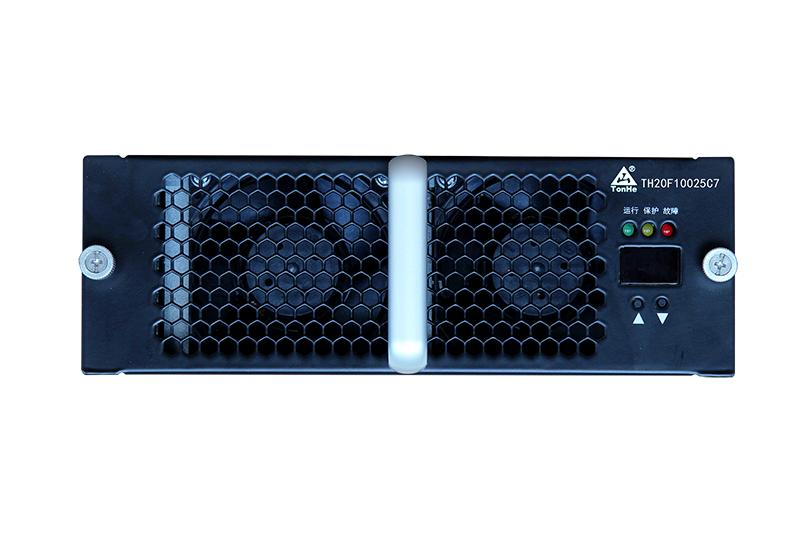

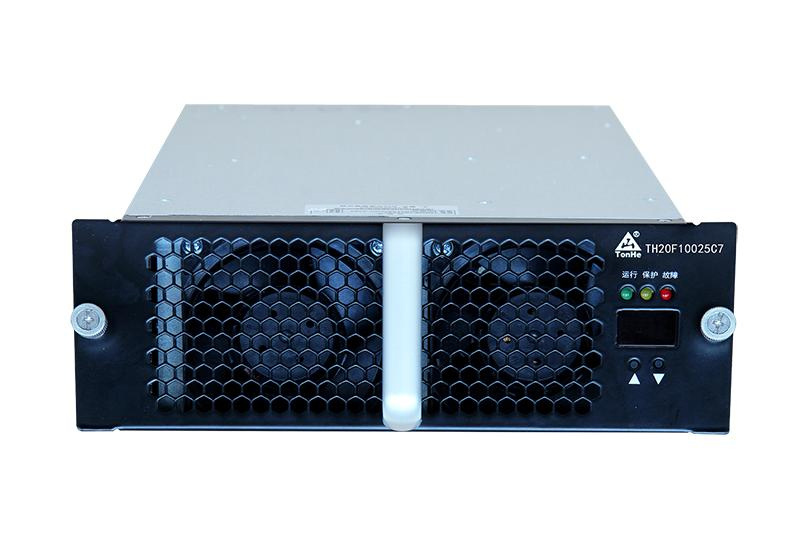

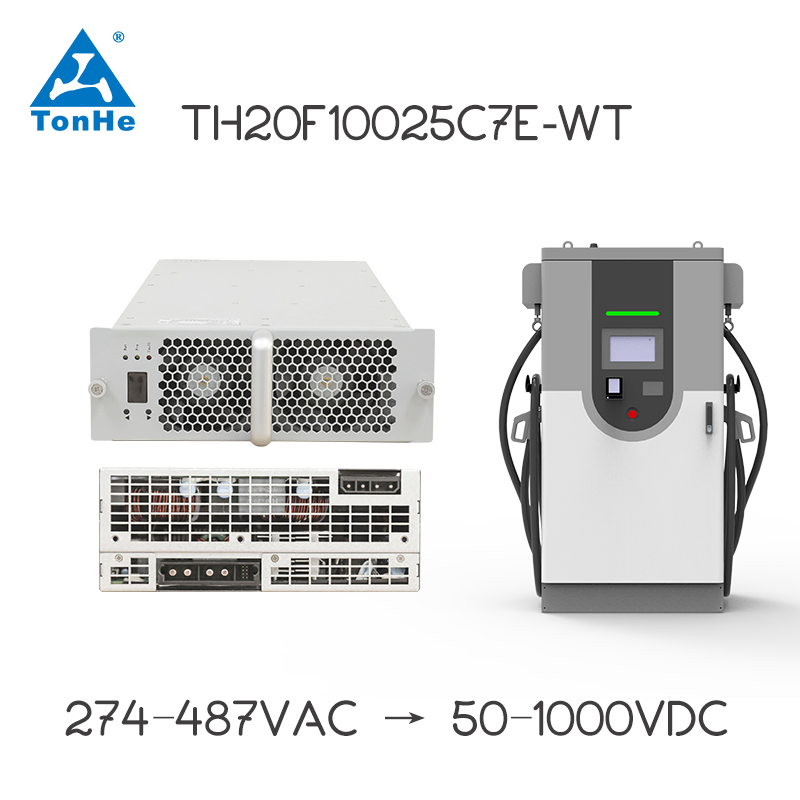

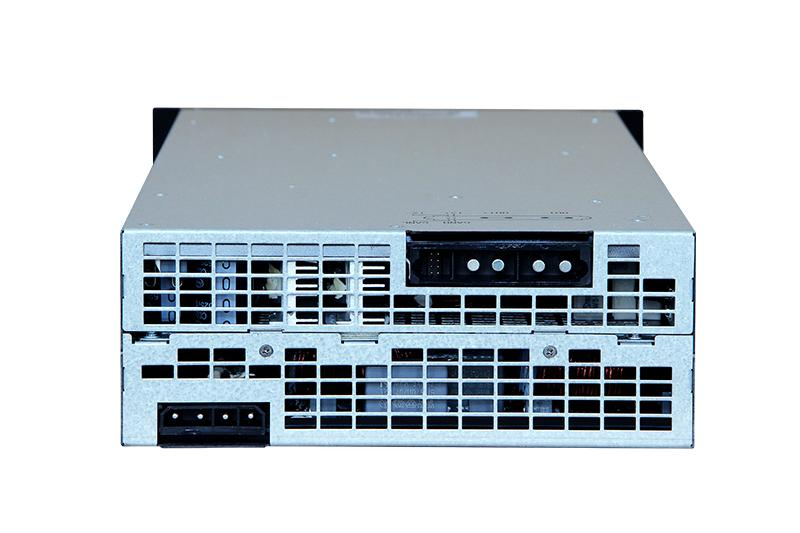

The TH20F10025C7 is a high-performance EV charging module featuring a three-phase four-wire system (three-phase + PE) input. It supports a wide input range of 285VAC-475VAC, delivering a maximum power output of 20KW within a constant power range of 250-1000VDC.
Equipped with CAN bus communication, the module allows for seamless integration with main monitoring systems. This enables real-time parameter setting, operational data collection, and precise control over the module's working state.
| Item | Parameters | Remark |
|---|---|---|
| Operating Voltage (AC) | 285~475V, Rated 380V | Refer to curve 1.3.3-1 |
| Input Frequency (HZ) | 45~55 | - |
| Power Factor | Full load ≥ 0.99 | - |
| THD | Full load ≤ 5% | - |
| Standby Power | < 10W | - |

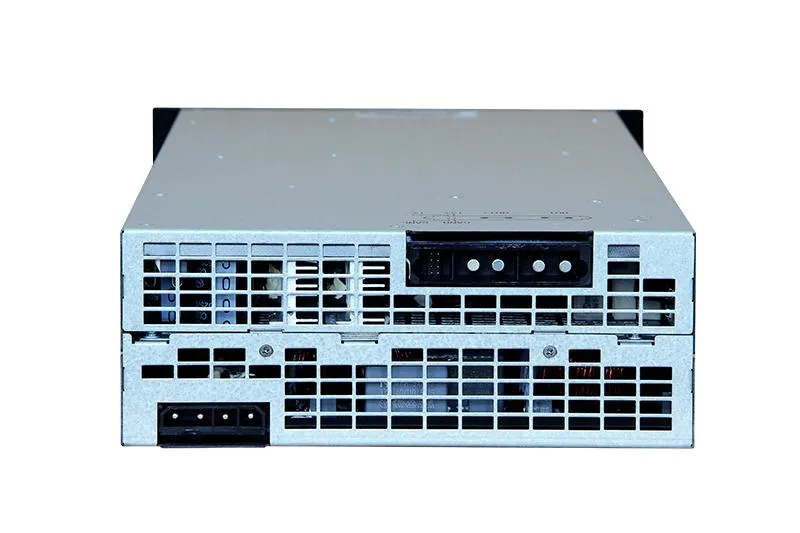

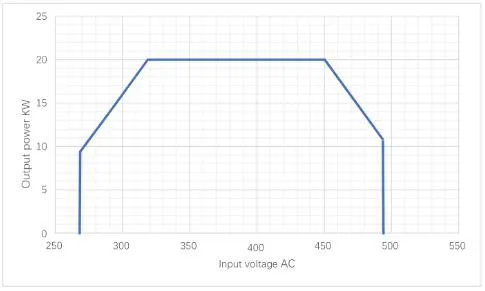

Input Voltage/Output Power Curve:
| Item | Parameter | Remark |
|---|---|---|
| Output Voltage Range (DC) | 200~1000V | - |
| Max Output Current (A) | 80 | - |
| Constant Power Interval | 250~500VDC, 500~1000VDC | - |
| Stabilization Accuracy | ≤±0.5% | Voltage |
| Peak Efficiency | ≥96% | - |
| Soft Start Time (S) | 2~4 | - |
| Communication Protocol | CAN | - |
Output Voltage/Current Characteristics:
Specialized in the innovation of power electronics technology, we provide comprehensive manufacturing, R&D, and service for EV charger modules and rapid charging points. With over 70 patents and advanced power conversion soft-switch technology, we hold a significant market share in the electric power supply and charging station fields.
